1500W 190mm Circular Saw ERB566CSW
GUARANTEE
This product carries a 2 year guarantee. If your product develops a fault within this
period, you should in the rst instance contact the retailer where the item was purchased.
This guarantee specically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For further technical advice, spare parts or repair service (outside of guarantee) please con-
tact the customer helpline number on 0345 607 6380.
Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This
product should give you reliable service but for your peace of mind this
power tool does carry a 2 year guarantee, the terms of which are detailed below.
If this product develops a fault within the guarantee period contact your retailer.
Please retain this handbook in case you need to refer to safety, care or guarantee
information in the future.

GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b. Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable,
use a residual current device (RCD) protected supply. Use of
an RCD reduces the risk of electric shock.

1500W 190mm Circular Saw ERB566CSW
3. Personal safety
a. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power tool
while you are tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energising power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the
power tool on.
A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool in
unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving
parts.
g. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the switch
is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or
the battery pack from the power tool before making any
adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.
d. Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g. Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of
the power tool for operations different from those intended could
result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
ADDITIONAL SAFETY RULES FOR YOUR CIRCULAR SAW
Remove the plug from the socket before carrying out any
adjustment, servicing or maintenance.
1. Always wear a dust mask, hearing protection and eye
protection.
2. Only use saw blades recommended in the specication.
3. Always wear gloves when handling saw blades and rough
material. Saw blades shall be carried in a holder whenever

1500W 190mm Circular Saw ERB566CSW
practicable.
4. Fully unwind cable drum extension to avoid potential overheating.
5. When an extension cable is required you must ensure it has
the correct ampere rating for your power tool and is in a safe
electrical condition.
6. Ensure your mains supply voltage is the same as indicated on
the rating plate.
7. Your circular saw is a hand held tool, do not clamp your circular
saw.
8. Before cutting, check the cutting line is free of nails, screws, etc.
9. Do not cut small workpieces with a circular saw. If possible, use a
jigsaw.
10. Only make cuts with the blade direction downwards, never
upwards or at the side.
11. Do not use a blade unless the rated blade speed exceeds the
saw no load speed.
12. Never remove the guard system. Never use the saw if the guard
system does not function correctly. Never lock the moving guard
open. The guard must move freely.
13. Never use saw blades made from high speed steel(HSS).
14. Always check walls, oors and ceilings to avoid hidden power
cable and pipes.
15. After long working periods external metal parts and accessories
could be hot.
16. Do not cut material containing asbestos.
17. Do not use metal or stone saw blades. Only use wood saw blades.
18. Do not use circular saw to cut tree limbs or logs.
19. Do not use any abrasive wheels.
20. Use only blade diameter(s) in accordance with the markings.
SAFETY WARNINGS FOR ALL SAWS
a) Danger: Keep hands away from cutting area and the
blade. Keep your second hand on auxiliary handle, or
motor housing. If both hands are holding the saw, they cannot
be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot
protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece.

Less than a full tooth of the blade teeth should be visible below
the workpiece.
d) Never hold piece being cut in your hands or across your
leg. Secure the workpiece to a stable platform. It is important
to support the work properly to minimise body exposure, blade
binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when
performing an operation where the cutting tool may contact
hidden wiring or its own cord. Contact with a “live” wire will
also make exposed metal parts of the power tool “live” and shock
the operator.
f) When ripping always use a rip fence or straight edge guide.
This improves the accuracy of cut and reduces the chance of
blade binding.
g) Always use blades with correct size and shape (diamond
versus round) of arbour holes. Blades that do not match the
mounting hardware of the saw will run eccentrically, causing loss
of control.
h) Never use damaged or incorrect blade washers or bolt.
The blade Warning of explosive to dust washers and bolt were
specially designed for your saw, for optimum performance and
safety of operation.
FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
KICKBACK CAUSES AND RELATED WARNINGS
- Kickback is a sudden reaction to a pinched, bound or misaligned
saw blade, causing an uncontrolled saw to lift up and out of the
workpiece toward the operator;
- When the blade is pinched or bound tightly by the kerf closing
down, the blade stalls and the motor reaction drives the unit
rapidly back toward the operator;
- If the blade becomes twisted or misaligned in the cut, the teeth
at the back edge of the blade can dig into the top surface of the
wood causing the blade to climb out of the kerf and jump back
toward the operator.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper

1500W 190mm Circular Saw ERB566CSW
precautions as given below.
a) Maintain a rm grip with both hands on the saw and position
your arms to resist kickback forces. Position your body to either
side of the blade, but not in line with the blade. Kickback could
cause the saw to jump backwards, but kickback forces can be
controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason,
release the trigger and hold the saw motionless in the material
until the blade comes to a complete stop. Never attempt to
remove the saw from the work or pull the saw backward while
the blade is in motion or kickback may occur. Investigate and
take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade
in the kerf and check that saw teeth are not engaged into the
material. If saw blade is binding, it may walk up or kickback from
the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and
kickback. Large panels tend to sag under their own weight.
Supports must be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly
set blades produce narrow kerf causing excessive friction, blade
binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight
and secure before making cut. If blade adjustment shifts while
cutting, it may cause binding and kickback.
g) Use extra caution when making a “plunge cut” into existing walls
or other blind areas. The protruding blade may cut objects that
can cause kickback.
SAFETY INSTRUCTION FOR CIRCULAR SAW WITH INNER
PENDULUM GUARD
a) Check lower guard for proper closing before each use. Do
not operate the saw if lower guard does not move freely and
close instantly. Never clamp or tie the lower guard into the
open position. If saw is accidentally dropped, lower guard may
be bent. Raise the lower guard with the retracting handle and
make sure it moves freely and does not touch the blade or any

other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard
and the spring are not operating properly, they must be
serviced before use. Lower guard may operate sluggishly due
to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard may be retracted manually only for special cuts
such as “plunge cuts” and “compound cuts.” Raise lower
guard by retracting handle and as soon as blade enters
the material, the lower guard must be released. For all other
sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade
before placing saw down on bench or oor. An unprotected,
coasting blade will cause the saw to walk backwards, cutting
whatever is in its path. Be aware of the time it takes for the blade
to stop after switch is released.
ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST
The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now
also targets to reduce the risks associated with silica, wood and gypsum dusts.
Construction workers are one of the at-risk groups within this because of the dust that they
breathe: silica dust is not just a nuisance; it is a real risk to your lungs!
Silica is a natural mineral present in large amounts in things like sand, sandstone and
granite. It is also commonly found in many construction materials such as concrete and
mortar. The silica is broken into very ne dust (also known as Respirable Crystalline Silica or
RCS) during many common tasks such as cutting, drilling and grinding
Breathing in very ne particles of crystalline silica can lead to the development of:
Lung cancer
Silicosis
Chronic Obstructive Pulmonary Disorder (Chronic obstructive pulmonary disease (COPD))
And breathing in ne particles of wood dust can lead to the development of Asthma
The risk of lung disease is linked to people who regularly breathe construction dust over a
period of time, not on the odd occasion.
To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that
you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal
working day. These limits are not a large amount of dust: when compared to a penny it is
tiny – like a small pinch of salt:
This limit is the legal maximum; the most you can breathe after the right controls have been
used.

1500W 190mm Circular Saw ERB566CSW
How to reduce the amount of dust?
1. Reduce the amount of cutting by using the best sizes of building products.
2. Use a less powerful tool e.g. a block cutter instead of angle grinder.
3. Using a different method of work altogether – e.g. using a nail gun to direct fasten cable
trays instead of drilling holes rst.
Please always work with approved safety equipment, such as those dust masks that
specially designed to lter out microscopic particles and use the dust extraction facility at all
time.
For more information please see the HSE website:
http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf
Warning: Some dust particles created by power sanding, sawing, grinding, drill
and other construction jobs contain chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks and cement and other masonry products.
• Arsenic and chromium from chemically treated timber.
Your risk from these exposures varies, depending upon how often you do this type of work.
To
reduce your exposure to these chemicals:
• Work in a well-ventilated area.
• Work with approved safety equipment, such as those dust masks that are specially
designed
to lter microscopic particles.
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help reduce
hand arm vibration syndrome injuries to power tool users. The directive requires power
tool manufacturers and suppliers to provide indicative vibration test results to enable users
to make informed decisions as to the period of time a power tool can be used safely on a
daily basis and the choice of tool.
Further Advice can be found at www.hse.gov.uk
Vibration total values (triax vector sum) determined according to EN 60745:
Cutting wood Vibration emission value ah,W =4.24m/s²
Uncertainty K =1.5m/s²
The declared vibration emission value should be used as a minimum level and should be
used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difcult and the HSE
website has further information.
The declared vibration emission been measured in accordance with a standardised test
stated above and may be used to compare one tool with another tool.

The declared vibration emission value may also be used in a preliminary assessment of
exposure.
Warning: The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant
on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
While working with this power tool, hand/arm vibrations occur. Adopt the correct
working practices in order to reduce the exposure to vibration.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
Warning: identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of
the operating cycle such as the times when the tool is switched off and when it is running
idle in addition to the trigger time).Note The use of other tools will reduce the users’ total
working period on this tool.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated
(where appropriate)
Avoid using tools in temperatures of 10ºC or less
Plan your work schedule to spread any high vibration tool use across a number of days.
Health Surveillance
All employees should be part of an employer’s health surveillance scheme to help identity
any vibration related diseases at an early stage, prevent disease progression and help
employees stay in work.
Double insulation
The tool is double insulated. This means that all the external metal parts are
electrically insulated from the mains power supply. This is done by placing insulation
barriers between the electrical and mechanical components making it unnecessary for the
tool to be earthed.
Important note
Be sure the supply is the same as the voltage given on the rating plate. The tool is tted
with a two-core cable and plug.
Remove the mains plug from socket before carrying out, any adjustment or servicing.

1500W 190mm Circular Saw ERB566CSW
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Warning
Double insulation
Wear ear protection
Wear eye protection
Wear dust mask
Wear safety gloves
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority
or retailer for recycling advice.
yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of
manufacturing (Wxx);

18 2
3
21
22
12 20
7
18
19
4
5
6
9
11
10
13
17
14
16
15

1500W 190mm Circular Saw ERB566CSW

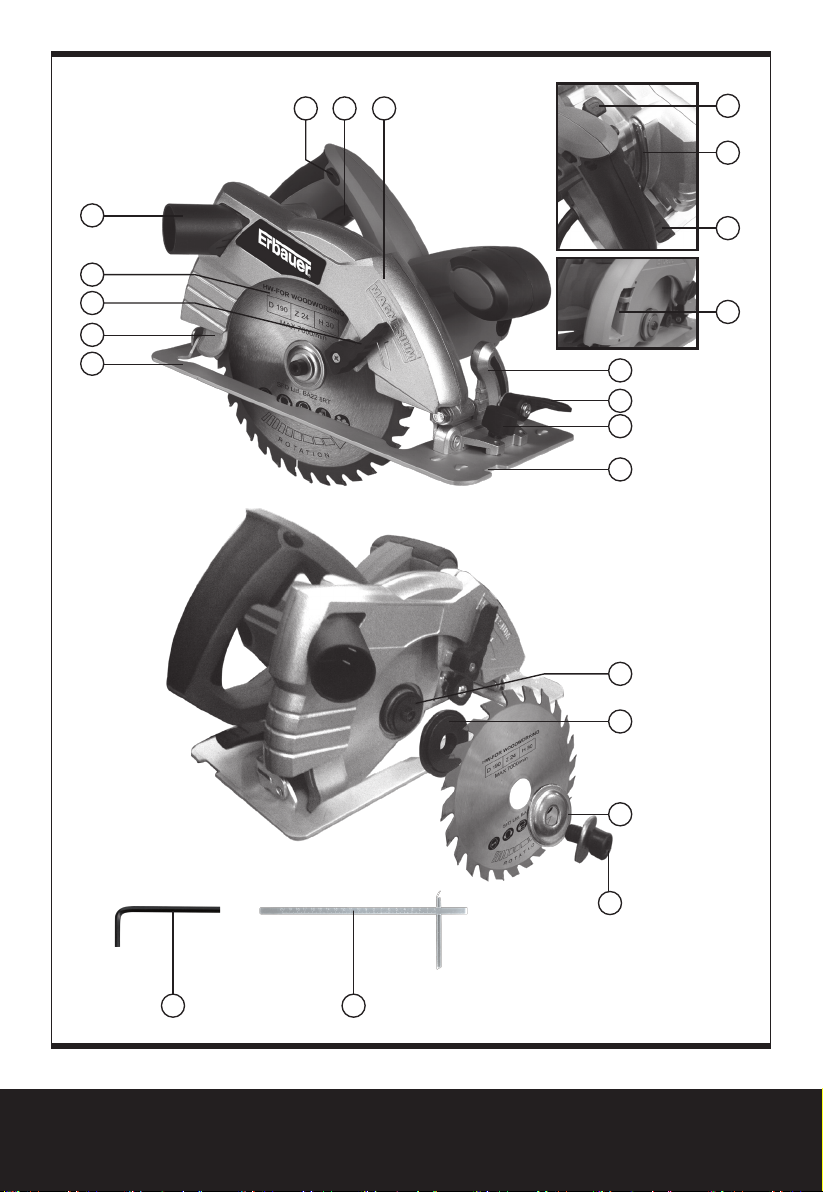

1. SAFETY ON/OFF SWITCH
2. FIXED GUARD
3. BASE PLATE
4. LOWER BLADE GUARD
5. LOWER GUARD LEVER
6. SAW BLADE
7. BASE PLATE BEVEL LOCK
8. LOCK-OFF BUTTON
9. SPINDLE LOCK BUTTON
10. DEPTH ADJUSTMENT LEVER
11. DEPTH SCALE
12. HEX KEY
13. DUST EXTRACTION OUTLET
14. INNER FLANGE
15. BLADE BOLT
16. OUTER FLANGE
17. SPINDLE
18. BEVEL SCALE
19. CUTTING GUIDE NOTCH
20. PARALLEL GUIDE
21. VACUUM ADAPTOR
22. PARALLEL GUIDE TIGHTEN SCREW

Rated voltage 230-240V~ 50Hz
Rated power 1500W
No-load speed 5000/min
Blade diameter 190mm
Blade bore 30mm
Protection class /II
Max. depth of cut
90o
45o
Base plate
Machine weight
66mm
47mm
Aluminium
4.4Kg
NOISE INFORMATION
A weighted sound pressure LpA: 75dB(A) KpA=3.0dB(A)
A weighted sound power LwA: 86dB(A) KWA=3.0dB(A)
Wear ear protection when sound pressure is over 80dB(A)
ACCESSORIES
Blade (Ø190xØ30x24T) 1pc
Parallel guide 1pc
Vacuum adapter for 35mm hose interface only 1pc
Hex key 6mm 1pc
TECHNICAL DATA

1500W 190mm Circular Saw ERB566CSW
OPERATING INSTRUCTIONS
Note: Before using the tool, read the
instruction book carefully.
INTENDED USE:
The machine is intended for lengthways and
crossways cutting of wood with straight cutting lines
as well as bevel angles to 51° while resting rmly on
the work piece.
1. DUST EXTRACTION OUTLET
To remove sawdust, connect a suitable external
dust extraction machine (e.g. vacuum cleaner) to
the dust extraction outlet (13) using t with an
adaptor (23) and a exible hose connection. Press
the snap of adapter before assembly it to machine.
when the adapter t well on machine, pls release
the snap pull the adapter to conrm it assembly rm.
2. SAFETY ON/OFF SWITCH
Your switch is locked off to prevent accidental
starting. To start the machine, depress lock-off
button (8) then press down the on/off switch (1)
and release lock-off button (8). Your switch is now
on. To switch off the machine, just release the on/
off switch.
3. HAND GRIP POSITION
Always hold your saw rmly with both hands
when operating. The right and wrong ways to
hold the machine are shown in Fig. 1-1 and Fig. 1-2.
4. FITTING AND CHANGING A SAW BLADE(See
Fig. 2-1, 2-2, 2-3)
Warning: Before tting, you must inspect
the saw blade carefully to make sure that
no breakage or damage has occurred during
shipping.
Press the spindle lock button (9), and use the
spanner(12) provided to remove the blade bolt (15)
and outer ange (16). Rotate lower blade guard (4)
clockwise and hold open using the lower blade
guard lever (5) whilst changing the saw blade
(6). Ensure the blade bore is located on the inner
ange (14) and the blade direction arrow points
in the same direction as the lower blade guard (4)
RIGHT
WRONG
11
10
10
12
15
9
14
Fig. 1-1
Fig. 1-2
Fig. 2-1
Fig. 2-2
Fig. 2-3
Fig. 3-1
Fig. 3-2

arrow. Check the blade surface and anges are
clean. Press the spindle lock (9) again and re-t
the outer ange (16) over spindle (17) ats, and
tighten bolt 1/4 turn more than nger tight. Check
the blade is securely clamped.
Warning: Blade teeth are very sharp,
please always wear gloves before tting
the saw blade. For best cutting results , please
ensure the saw blade suited to the material and cut
quality you need.
5. DEPTH OF CUT ADJUSTMENT
Lift the depth adjustment lever (10) and raise the
saw body away from the base plate (3). Set the
depth which shown on scale (11) and push the
lever (10) down to lock (See Fig. 3-1 and Fig. 3-2).
Always add 3mm to your depth of cut so the blade
can cut through the material.
6. BASE PLATE
Adjusting the angle of the base plate (3) enables
bevel cutting (See Fig. 4). The base plate (3) must
always be held rmly against the material being
cut to reduce saw vibration, blade jumping or
blade breakage (See Fig. 1-1)
7. BASE PLATE ANGLE ADJUSTMENT
Loosen the base plate bevel lock button (7) and
rotate the base plate (3) to set the bevel angle
which shown on the bevel scale (18) . Then clamp
the base plate (3) by using the lock (7) (See Fig.
5). Finally, check the angle and ensure the base
plate is rmly clamped.The angle markings (18) on
the scale are accurate for most general purposes
but it is recommended for accurate work to set the
angle with a protractor and make a test cut on other
material. Do not adjust the working depth when
making bevel cuts due to possible inaccuracy.
8. PARALLEL GUIDE ADJUSTMENT
Used for making cuts parallel to a work piece
edge at a chosen distance. Slide the parallel guide
arm through both xtures to achieve the required
cutting distance and tighten screw to lock into
position (24). It can be used from both sides of the
base plate (3).There is a cutting guide notch (19)
on the front of the base plate (3) for using with a
parallel guide (20). For straight cuts, use the 0°
guide mark to align with your parallel guide scale.
RIGHT
WRONG
11
10
10
12
15
9
14
Fig. 1-1
Fig. 1-2
Fig. 2-1
Fig. 2-2
Fig. 2-3
Fig. 3-1
Fig. 3-2
18
7
24
4
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8-1
Fig. 8-2

1500W 190mm Circular Saw ERB566CSW
For a 45° bevel cut, use the 45° guide mark to align
with your parallel guide scale. Securely clamp the
parallel guide (20) (See Fig. 6). Always make a trial
cut to check the setting.
WORKING HINTS FOR YOUR CIRCULAR
SAW
If your power tool becomes too hot, run no load
for 2-3 minutes to cool the motor. Avoid prolonged
usage at very low speeds. Always use a blade
suited to the material and material thickness to be
cut. The quality of cut will improve as the number
of blade teeth increases. Always ensure that the
work-piece is rmly held or clamped to prevent
movement. Support large panels close to the cut line.
Any movement of the material may affect the quality
of the cut.The blade cuts on the upward stroke and
may chip the uppermost surface or edges of your
work piece. When cutting, ensure your uppermost
surface is a non-visible surface when your work is
nished.
MAINTENANCE
Remove the plug from the socket before carrying
out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts
in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with
a dry cloth. Always store your power tool in a dry
place. Keep the motor ventilation slots clean. Keep
all working controls free of dust. Occasionally you
may see sparks through the ventilation slots. This is
normal and will not damage your power tool. If the
supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. For
further information visit www.recycle-more.co.uk.
18
7
24
4
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8-1
Fig. 8-2

PLUG REPLACEMENT
(UK & IRELAND ONLY)
If you need to replace the tted plug then follow the
instructions below.
IMPORTANT
The wires in the mains lead are coloured in
accordance with the following code:
BLUE =NEUTRAL
Brown = Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows. The wire which is coloured blue
must be connected to the terminal which is marked
with N. The wire which is coloured brown must be
connected to the terminal which is marked with L.
Warning:
Never connect live or neutral wires to the earth
terminal of the plug. Only t an approved 13AMP
BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is tted and has to be
removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent
engaging into a socket.
13 Amp fuse approved
to BS 1363
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip
