Ergo Tab EBMT5 User manual
Thank you for choosing this product! We strive to provide you with the
best quality products and services in the industry. Should you have any
Model: EBMT5

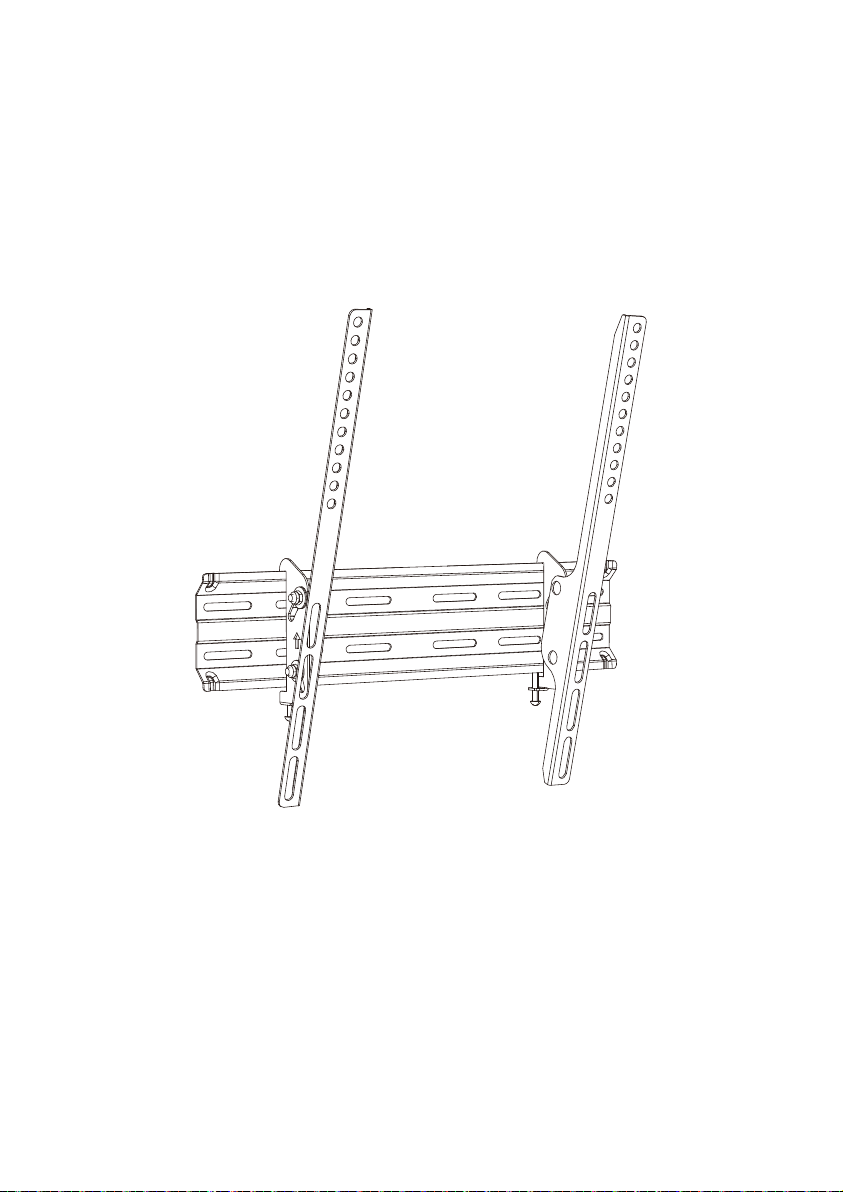

TV Wall Mount Instruction
Manual V1.0
1
IMPORTANT SAFETY INFORMATION
Check the VESA Pattern of TV before the Installation
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
300 mm ≈ 11 3/4 in.
Minimum VESA pattern: 100mm/4 in.(W)x100mm/4 in.(H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 100x100mm/4x4 in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
MAX: 400mm/16 in.
MAX: 400mm/16 in.
Verify Your Wall Construction
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
If you are not sure the
wall construction,
please contact our
customer service at
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete block
and brick walls - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
B C
2
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Warning: This product contains small items that could be a choking
hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, contact our
• Please note: Not all hardware included in this package will be used.
Left TV Bracket x1
02
Right TV Bracket x1
03
Stud Finder Tape Measure Pencil Drill
5/32in. (4mm)
Wood Drill
3/8in. (10mm)
Concrete Drill
3/8in. (10mm)
Socket Wrench
Philips
Screwdriver
Hammer 5/16 in. (8mm)
Wrench
Awl
Spacer
L10mm Spacer
L2.5mm
Spacer
L22mm
x4
B2
x4
B1
x8
C1
Washer (If Needed)
M6
x4
C2
Note: The spacers are
shown in accordance
with the actual size
x4
Wall
Anchor
ø10x60mm
Lag Screw
ST6.3x60 mm
x4
3
Wall Plate x1
01
Note: The lag screw is shown in accordance with the actual size
These anchors are for
concrete or brick walls
ONLY. DO NOT use them in
drywall or wood studs.
CAUTION!

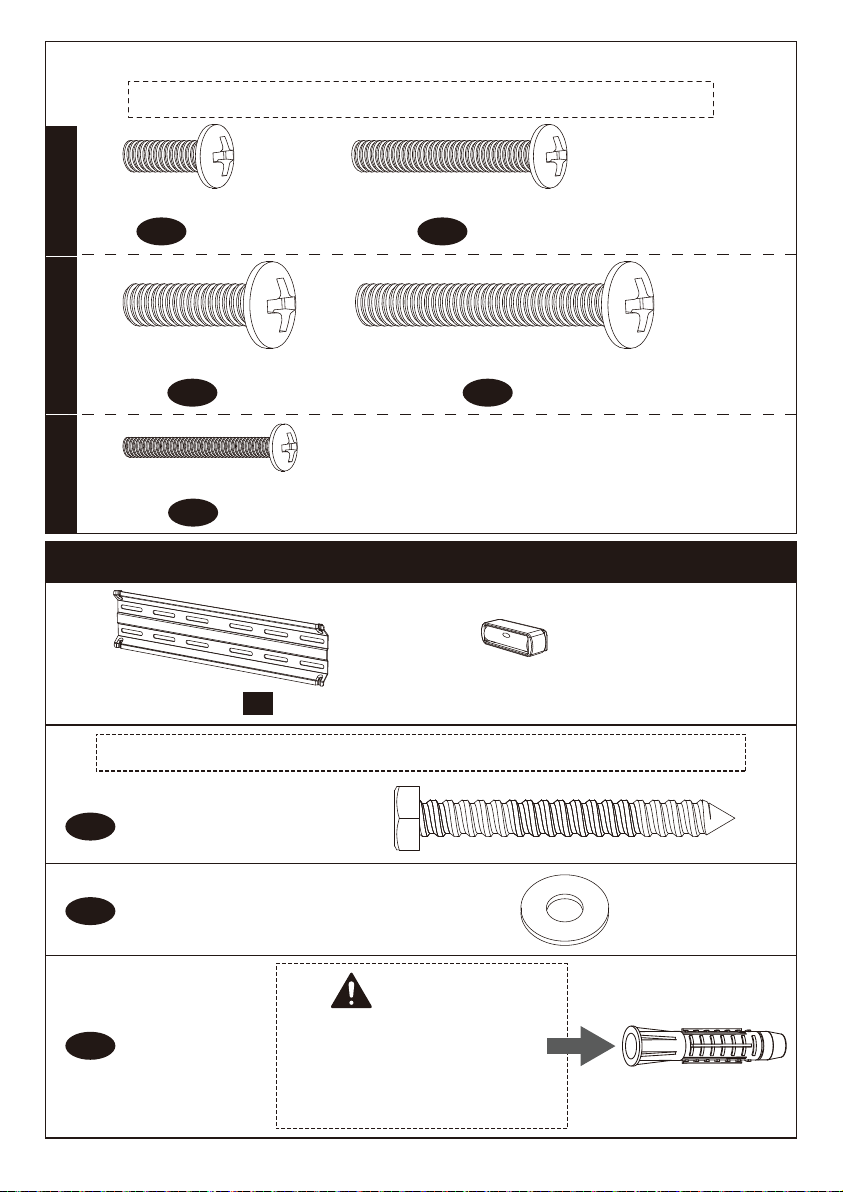

Supplied Parts and Hardware for Step 2
A1
A3
x4 Washer
D6
A2
x1
x4
E1
x4
E2
M8x25mm M8x50mm
Note: The bolts are shown in accordance with the actual size
x4
D1
x4
D2
M6x15mm M6x35mm
x4
F
M4x30mm
TV Bolts (Only one bolt size fits your TV.)
D
E
F
Bubble Level
Only one bolt size fits your TV.
4

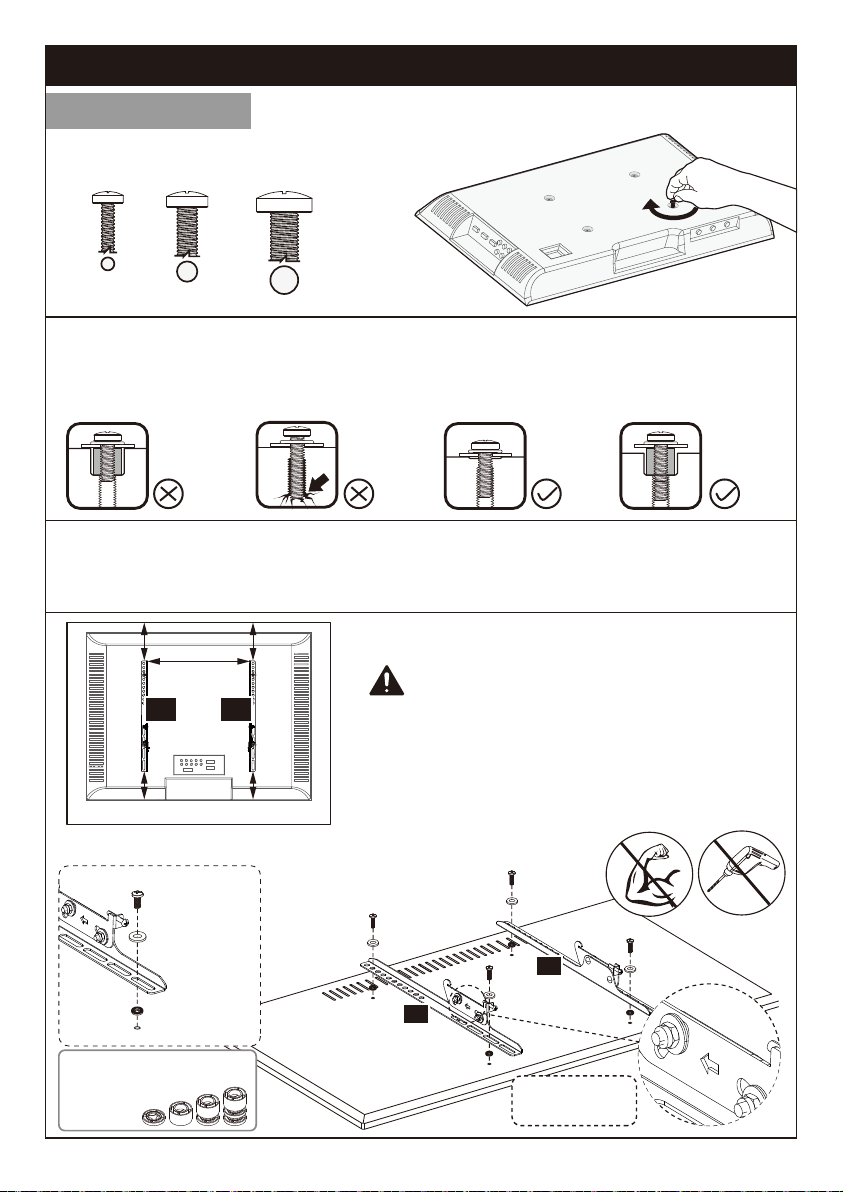

Step 1 Secure the TV Brackets to TV
Select TV Bolts
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
Too Long
Correct Correct
Too Short
CAUTION: Ensure the TV brackets
[02] and [03] are EQUALLY CENTERED
on your TV AND securely fastened in
place.
Option A (For Flat Back TV)
M4 M6 M8
03 02
03
02
C2
(If needed)
D1/E1/F
C1/B1
(If needed)
Note: Keep
the arrow up
Alternate
Spacer
Setups
Option D
5

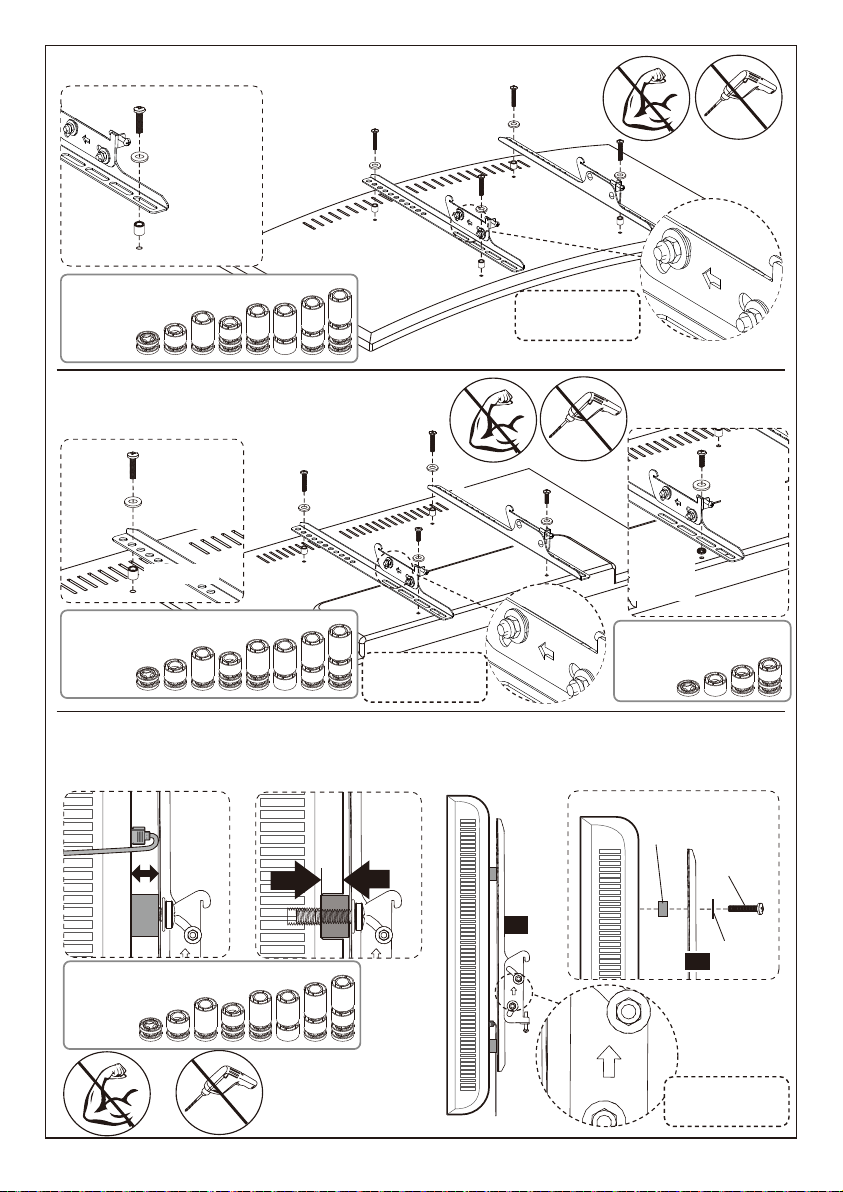

Option B (For Round Back TV)
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
For cable interference or inset holes, use spacers [B1], [B2] and [C1] to create extra
space between the TV and TV brackets
03
C2 (If
needed)
D2/E2/F
B1/B2/C1
03
C2
(If needed)
D2/E2/F
B1/B2/C1
D1/E1/F
C1/B1
(If
needed)
C2 (If
needed)
D2/E2/F
B1/B2/C1
C2
(If needed)
Note: Keep
the arrow up
Note: Keep
the arrow up
Note: Keep
the arrow up
Alternate Spacer
Setups
Alternate
Spacer
Setups
Alternate
Spacer
Setups
Alternate
Spacer
Setups
6

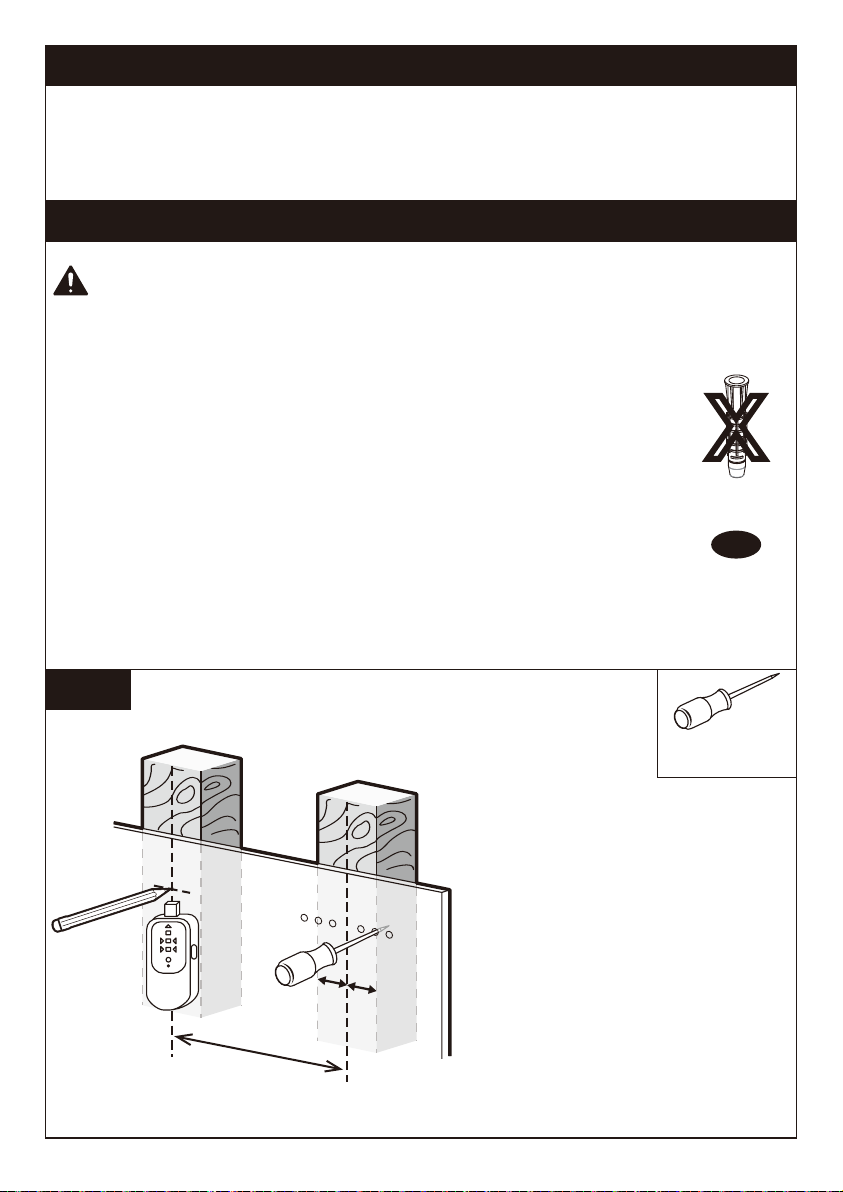

Step 2 Attach the Wall Plate [01] to Wall
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
2A-1
Use a stud finder (not included)
to locate wood studs and use
an awl (not included) to verify
the edges. Mark the edge and
center locations.
16in. (406mm)
awl
(Not lncluded)
Wall
Anchor
X
A3
Step 2A Wood Stud Option
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm)
minimum 1.5 x 3.5 in. (38 x 89 mm)
● Stud center must be verified
Avoid potential personal injury or property damage! DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until the washers
[A2] are pulled firmly against the wall plate [01].
DO NOT USE ANCHOR [A3] FOR THIS STEP
7
2A-2
2A-3
2A-4
Position the wall plate at your
desired height and line up the
holes with your stud center
line. Level the wall plate and
mark the holes.
Drill 4 pilot holes using a
5/32 in.(4mm) diameter drill
bit. Make sure the depth is
not less than 2 23/64
in.(60mm).
Install the wall plate [01]
using lag screws [A1] and
washers [A2]. Tighten the lag
screws [A1] only until the
washers [A2] are pulled firmly
against the wall plate [01] .
3/8 in. (10mm)
Socket Wrench
（Not Included）
01
01
A1 A2
ø5/32 in. (4mm)
2 23/64 in. (60mm)
8
Step 2B Solid Concrete or Concrete Block Option
2B-1
2B-2
WARNING:
Ensure the wall plate is securely fastened to the wall before
continuing to the next step.
● Mount the wall plate [01] directly onto the concrete surface
● Anything covering the wall must not exceed 5/8 in. (16 mm)
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate [01].
Position the wall plate at your
desired height, level the wall plate
and mark the pilot hole locations.
01
Drill 4 pilot holes using a 3/8 in.
(10mm) diameter drill bit. Make
sure the depth is not less than 2
9/16 in.(65mm). Never drill into the
mortar between blocks.
Wall
Anchor
A3
ø3/8 in. (10mm)
2 9/16 in. (65mm)
9
2B-3
3/8 in. (10mm)
Socket Wrench
A3
01
A1 A2
Install wall plate using lag
screws [A1] and washers [A2].
Tighten the lag screws [A1]
only until the washers [A2] are
pulled firmly against the wall
plate. DO NOT over-tighten
the lag screws [A1].
Use the hammer to knock
anchors [A3] into the wall.
Be sure the anchors [A3]
are seated flush with the
concrete surface.
1. Hang the TV with TV brackets onto wall plate [01].
2. Tighten the preassembled bolts [T] to secure TV to wall plate [01].
Locking
T
Step 3 Secure the TV onto the Wall Plate
HEAVY! You may need
assistance with this step.
01
10

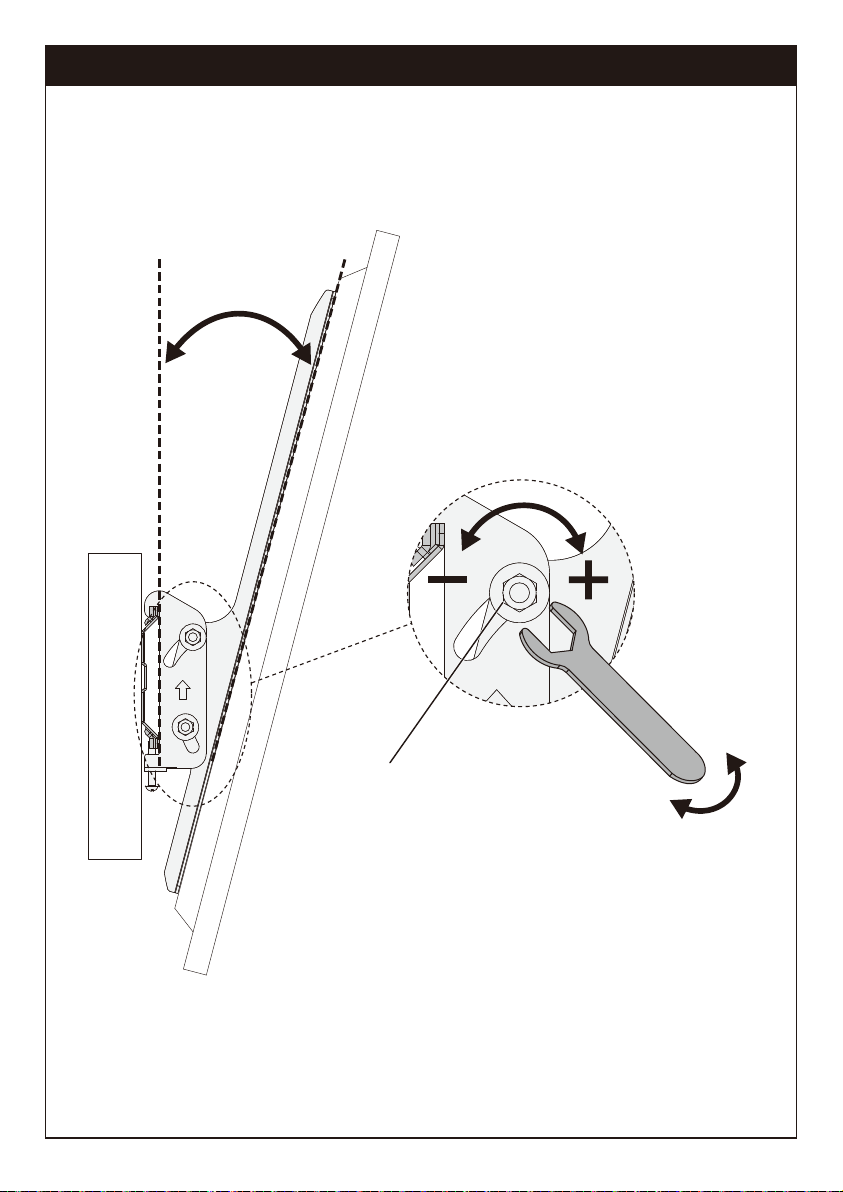

Step 4 Tilt Adjustment
1. Loosen the both tilt nuts [S] slightly.
2. Adjust TV to your desired tilt angle.
3. Retighten both tilt nuts [S] to fix the tilt angle.
Note: Please do not over-loosen the nuts to prevent the TV from falling down.
S
All of us do appreciate your product purchase. We hope that you are as happy with
your product as we designing and manufacturing it for you. We strive to provide
you with the best quality products and services in the industry. If you have any
Thank you again for
choosing this product!
