The Ergo-Jet (5160112) is a fully height-adjustable workstaon providing increased mobility
on a stable ergonomic plaorm as you work. Gas springs support both the backrest and
the seat allowing a range of 15° to 60° of backrest adjustment and ≈8 inches of height
adjustment on the seat. Adjustable foot and arm rests as well as four 360° swivel casters
allow freedom of movement and comfort while working.
• Weight: 158.7 lbs. / 72 kg.
• Backrest and Seat Adjustment: Gas Spring
• Casters: Four 360° Casters (2 locking), Ø75 mm x
25 mm, sleeve bearings, oil resistant, non-marring
rubber wheels
• Seat Materials: Padded Marine Vinyl Backrest and
Seat. Marine Vinyl is abrasion, chemical and oil
resistant
• Tool/Parts Tray: Rugged steel tray for tools and
parts. 1.25 in. / 32 mm deep.
• Frame Materials: Full powder coated, welded
tubular steel
California ProposiƟon 65: This product can expose you to chemicals including styrene and vinyl chloride, which are on the list of over
900 chemicals idenfied by the State of California to cause cancer, birth defects, or other reproducve harm. Always use this product in
accordance with BendPak Ergochair’s instrucons. For more informaon, visit www.p65warnings.ca.gov.
Ergo - Jet SpecificaƟons:
Copyright. Copyright ©2023 BendPak Inc. All rights reserved. You may make copies of this document if you
agree that: you will give full aribuon to BendPak Inc., you will not make changes to the content, you do
not gain any rights to this content, and you will not use the copies for commercial purpose.
Ergo-Jet Product DescripƟon
Ergo-Jet Safety InformaƟon
• Please read this enƟre guide prior to use. Failure to follow the instrucons and safety precauons in this guide can result in serious
injury. By proceeding with setup and operaon, you agree that you fully understand the contents of this guide and assume full
responsibility for the use of this product. Always inspect the Ergo-Jet for loose or damaged components prior to each use. If a problem
exists resolve the issue. If the issue cannot be resolved, cease all use and contact your authorized Ergochair parts provider.
• Always be alert and aware of dangers around you while using this equipment.
• Only use the Ergo-Jet on hard, flat surfaces.
• Always sit down on the Ergo-Jet gently. Avoid shock loads caused by jumping or falling onto the seat.
• Never stand on the Ergo-Jet or use it for a purpose for which it was not designed.
• Do not allow unsupervised children or persons to use this product.
• This product is not a toy. Never use as a skateboard or dolly.
• Beware of all pinch and crush hazards when adjusng the seat and backrest posion on this product, keep hands
and feet clear.
• Be aware that the Maximum Weight limit for the Ergo-Jet is 350 lbs. / 159 kg. Do not remove and hold Vehicle components that, when
combined with your own weight, exceed this maximum weight rang.
• Replace warning labels that are damaged or illegible.
• Do not operate your Ergo-Jet if you find maintenance issues or it operates in an abnormal manner, take it out of service, then contact
BendPak Technical Support, email [email protected] or call [phone] opon 7, then 4.
Assembly and User Guide

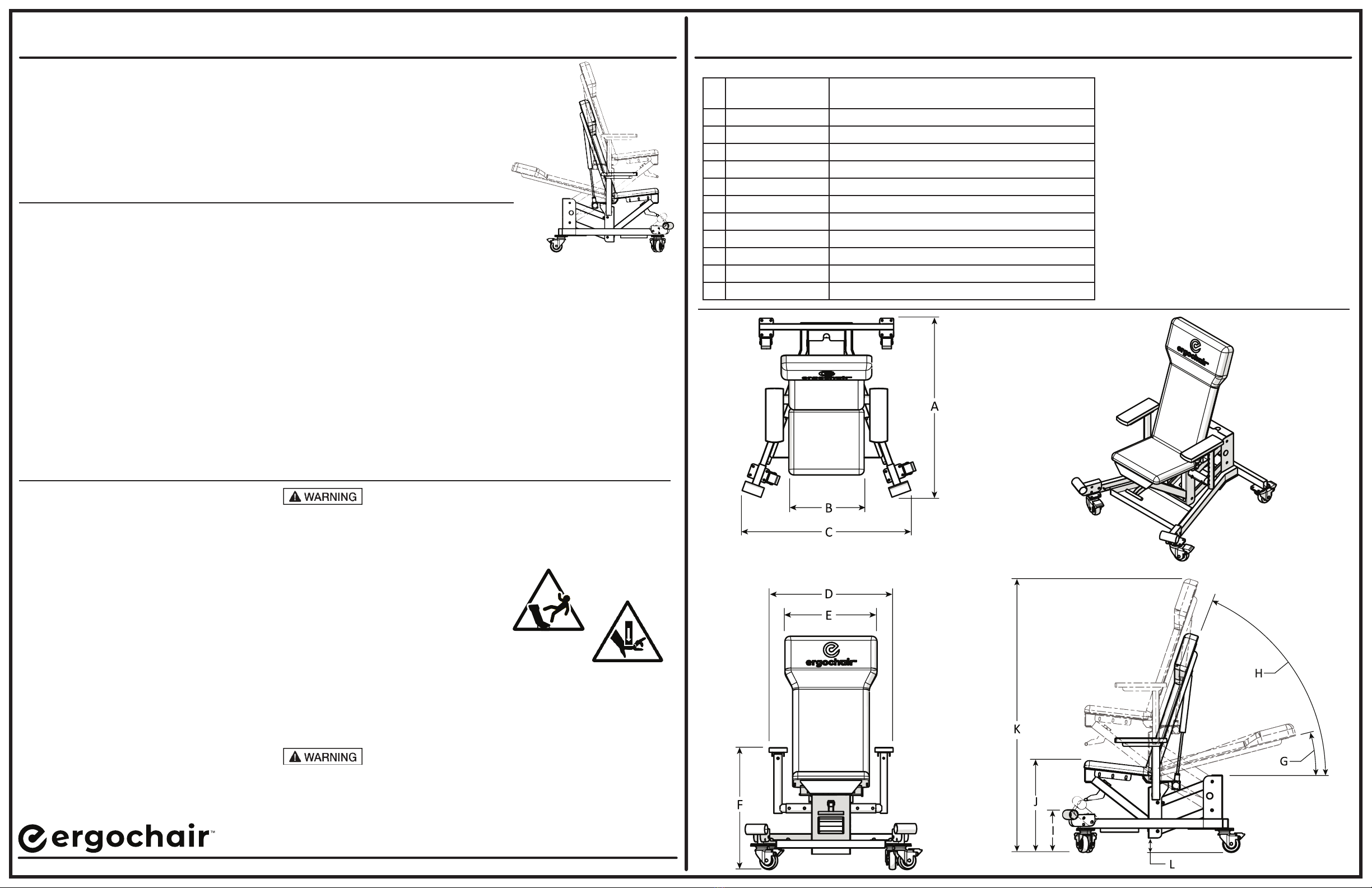

Guide P/N: 5900351 Rev. A- June 2023 A Length 35.25 in. (backrest up) to 47 in. (backrest down) /
894 mm (backrest up) to 1,194 mm (backrest down)
B Seat Width 14.8 in. / 376 mm
C Width 33.5 in. / 850 mm
D Arm Rest Width 24 in. to 29 in. / 610 mm to 737 mm
E Headrest Width 17.8 in. / 452 mm
F Arm Rest Height 27 in. to 36.5 in. / 686 mm to 927 mm
G Min. Backrest Angle ≈15°
H Backrest Angle max. ≈60°
I Foot Rest Height 8.5 in. to 11 in. / 216 to 279 mm
J Seat Height Range 18.75 to 26.75 in. / 476 to 679 mm
K Backrest Height 43.75 to 51.75 in. / 1,111 mm to 1,314 mm
L Ground Clearance 2.5 in. to 4 in. / 63.5 mm to 10 mm
Trademarks. Ergochair and the Ergochair logo, BendPak and the BendPak logo are registered trademarks of BendPak Inc. All other company,
product, and service names are used for idenficaon only. All trademarks and registered trademarks menoned in this Manual are the
property of their respecve owners.
LimitaƟons. Every effort has been made to ensure complete and accurate instrucons are included in this Guide. However, product updates,
revisions, and/or changes may have occurred since this Guide was published. BendPak reserves the right to change any informaon in this
Guide without incurring any obligaon for equipment previously or subsequently sold. BendPak is not responsible for typographical errors in
this Guide. You can always find the latest version of the Assembly and User Guide for your product on the BendPak website.
Warranty. The BendPak warranty is more than a commitment to you: it is also a commitment to the value of your new product. Contact your
nearest BendPak dealer or visit www.bendpak.com/support/warranty for full warranty details.
Go to bendpak.com/support/register-your-product/ and fill out the online form to register your product (be sure to click Submit).
Safety. Your Ergo-Jet was designed and manufactured with safety in mind. However, your safety also depends on proper training and
thoughul operaon. Do not install, operate, maintain, or repair the unit without reading and understanding this User Guide and the labels
on the unit; do not use the Ergo-Jet WorkstaƟon unless you can do so safely!

Assembly and User Guide
P/N 5900351 - Rev. A - June 2023
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
[phone] www.bendpak.com
Copyright ©2023 BendPak Inc. All rights reserved.
Ergo-Jet™ Height-Adjustable WorkstaƟon
Item No. DescripƟon Qty.
1 Ergo-Jet Seat Assm. 1
2 Ergo-Jet Backrest 1
3 Ergo-Jet Arm Rest with Lockpins 2
4 Ergo-Jet Foot Rest 2
5 Swivel Casters 2
6 Locking Casters 2
7 Tool Tray 1
8 Backrest Spring Release Assembly 1
9 Gas Spring 2
10 HHB M6 x 12 (Tool Tray) 4
11 Nut M6 (Tool Tray) 4
12 HHB, M8 x 25 with Gas Spring 1
13 Nut, M8 with Gas Spring 1
14 SHCS, M8 x 20 (Casters) 16
15 M8 Washer, Flat (Casters) 16
16 Lock Washer, M8 Spring (Casters) 16
17 Nut, M8 (Casters) 16
18 SHCS M10 x 55 (Foot Rest) 2
19 Nut, M10 Nyloc (Foot Rest) 2
20 SHCS M12 x 55 (Foot Rest) 2
21 Nut, M12 Nyloc (Foot Rest) 2
22 HHB M14 x 50 2
23 Nut, M14 Nyloc 2
To Lower the Ergo-Jet Backrest:
1. Sit on the seat and lean against the backrest.
2. Pull the backrest spring release handle forward while pushing on the
backrest. The backrest should recline.
3. Release the handle when the backrest reaches the desired angle.
Parts List:
Ergo-Jet Assembly:
1. Open the box and remove the protecve packing foam.
2. Carefully cut the plasc and straps holding the backrest to the seat. Do NOT damage the foam seat or
backrest as you cut away the plasc.
3. Set the backrest aside where it will not be lost or damaged.
4. Remove the parts boxes. One box contains (4) casters, and the other box contains the fasteners bag,
(2) footrests with fasteners and lock pins. Set the components aside where they will not be lost or damaged.
5. Leave the seat on the shipping box. This will provide a clean flat space to assemble the Ergo-Jet.
6. Verify all the components are present using the parts list.
7. Turn over the seat and aach the two locking casters to the front of the Ergo-Jet seat using four sets of SHCS
M8 x 20, flat washers, lock washers, and hex nuts on each caster.
8. Aach the two swivel casters without locks to the rear of the Ergo-Jet seat using four sets of SHCS M8 x 20
with flat washers, lock washers, and hex nuts on each caster.
9. Turn the Jet seat onto its casters and lock the front two casters to prevent unintended movement.
10. Retrieve the backrest and two M14 x 50 hex head bolts and M14 nyloc nuts.
11. Insert the backrest into the brackets on the back of the seat and secure with the hex head bolts and nyloc
nuts. Do not over-Ɵghten. The backrest must move freely between the pivot points created by the hex head
bolts.
12. Retrieve the spring release handle assembly. The spring release handle may be installed on either the right
or le-hand side of the seat.
13. Insert the spring release assembly into the square channel under and behind the seat. Push the spring
release through the square channel unl the threaded opening for the gas spring is visible in the middle
slot.
14. Thread the gas spring rod all the way into the spring release mechanism now visible through the middle slot.
15. Thread the lock nut and pad down the spring rod unl it contacts the spring release mechanism. Make
finger ght.
To Raise the Ergo-Jet Backrest:
1. Remove weight from the backrest.
2. Pull the backrest spring release handle forward. The backrest will rise.
3. Release the handle when the backrest reaches the desired angle.
To Lower the Ergo-Jet Seat:
1. Sit or push down on the Ergo-Jet seat.
2. Pull the seat spring release handle upward and push down on the seat.
3. Release the handle when the seat reaches the desired height.
To Raise the Ergo-Jet Seat:
1. Remove weight from the Ergo-Jet seat.
2. Pull the spring release handle upwards. The Jet seat will rise.
3. Release the handle when the seat reaches the desired height.
15. Retrieve the M8 x 25 hex head bolt and M8 nyloc nut.
16. Secure the top of the gas spring to the mounng bracket on the backrest.
17. Retrieve two footrests and two SHCS M10 x 55 with the M10 nyloc nuts, and
two M12 x 55 with the M12 nyloc nuts.
18. Mount the Footrests using the M12 and M10 fasteners. The footrests may be
mounted in the flat or up posion.
Steps 7-9
Steps 10-11
Steps 12-16
Steps 17-18
Steps 19-21
Ergo-Jet Controls
19. Retrieve the two arm rests with lock pins.
20. Insert each arm rest into the arm weldment behind the seat and secure with
the lock pin.
21. Adjust the height and posion of the arm rests using the lock pins.
To clean the Ergo-Jet:
1. While Marine Vinyl is water, stain and
abrasion resistant, it is sll a porous
material. Wash the vinyl frequently
using soap and water.
2. Wipe the vinyl and the frame and then
dry aer cleaning.
3. If a more powerful cleaner is required,
use a small amount of dish soap and a
sobristle brush.
4. Rinse with water and wipe dry, then
allow to air dry fully.
5. Do not use bleach, vinegar, alcohol or
excessively harsh cleaners.
6. Store the Ergo-Jet in a clean, well
venlated, and dry area.
