Ericsson GE MASTR III User manual

Printed in U.S.A.
LBI-38775D
Mobile Communications
MASTRIII BASE STATION
SYSTEMS COMBINATION PACKAGE
TABLE OF CONTENTS
T/R SHELF . . . . . . . . . . . . . . . . . . . . . . . . . . LBI-38637
SYSTEM MODULE . . . . . . . . . . . . . . . . . . . . . LBI-38764
POWER MODULE . . . . . . . . . . . . . . . . . . . . . . LBI-38752
Maintenance Manual

Copyright© February 1992, Ericsson GE Mobile Communications Inc.
TABLE OF CONTENTS
Page
APPLICATION DIAGRAMS
37" Indoor Cabinet 19D902845P1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation of T/R Shelf 19D902845P2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation of SOR into T/R Shelf 19D902845P7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation of Data Module 19D902845P14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Coax Switch Assembly 19D902845P3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
37" Indoor Cabinet with Duplexer Shelf 19D902845P4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
37" Indoor Cabinet with Automobile Battery Emer. Power 19D902845P5 . . . . . . . . . . . . . . . . . . . . 9
37" Indoor Cabinet with Gel Cell Battery Emer. Power 19D902845P6 . . . . . . . . . . . . . . . . . . . . . . 10
69" Indoor Cabinet with One Station 19D902845P21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
37" & 69" Indoor Cabinet with Auxiliary Receiver 19D902845P8 . . . . . . . . . . . . . . . . . . . . . . . . . 17
69" Indoor Cabinet with GETC Shelf 19D902845P9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation of Modem 19D902845P10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
37" & 69" Indoor Cabinet with Voice Guard GETC 19D902845P11 . . . . . . . . . . . . . . . . . . . . . . . . 19
37" & 69" Indoor Cabinet with Voice Guard E/D Shelf or VGE 19D902845P12 . . . . . . . . . . . . . . . . . 19
37" Indoor Cabinet with Voice Guard E/D Shelf 19D902845P13 . . . . . . . . . . . . . . . . . . . . . . . . . 19
EDACS Cabinet with One Station 19D902845P15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
EDACS Cabinet with Multi-Stations 19D902845P16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
EDACS Open Rack with Multi-Stations 19D902845P16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation of RIC Equipment 19D902845P23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Station Receiver Voting for RS232 19D902845P24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
EDACS Simulcast Station 19D902845P22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
45" Weather-Proof Cabinet 19D902845P25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MODEM Voting Installation 19D902845P26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
CNI Installation 19D902845P27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
HARNESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
INTRODUCTION
This manual contains information for the MASTR III Station including application information, cable diagrams and a parts list
for the cabinet hardware. For additional information refer to the following manuals:
LBI-38636 Installation How to install including Interconnection Diagrams.
LBI-39074 Installation Installation, Configuration and Checkout for EDACS Basic or Level 1 System.
LBI-38754 VHF RF Package Information on the VHF frequency equipment.
LBI-38675 UHF RF Package Information on the UHF frequency equipment.
LBI-39025 800 MHz RF Package Information on the 800 MHz frequency equipment.
LBI-38983 Antenna Systems Information on typical antenna system installations.
LBI-38812 EDACS System Panel Information on the panel used in EDACS applications.
LBI-38894 GETC Information on the GETC equipment.
LBI-38625 Charger/Emer. Power Information on the battery charger and emergency power equipment.
APPLICATIONS
OPTION
NUMBER APPLICATION ASSEMBLY DESCRIPTION
SXCAIS 19D902845P1 Installation of one MASTR III station in a 37" indoor cabinet.
SXRB1J 19D902845P2 Installation of T/R shelf for MASTR III station.
SXSU3A 19D902845P3 Installation of coax switch.
SXDU1J
SXDU1K
SXDU1M
19D902845P4 Installation of VHF(150-162 MHz) duplexer.
Installation of VHF(162-174 MHz) duplexer.
Installation of UHF (450-470 MHz) duplexer.
SXCH1L/M 19D901845P5 Installation of battery charger with automobile battery emergency power in a
37" indoor cabinet.
SXCH1R
SXCH3A 19D902845P6 Installation of battery charger with Gel Cell battery emergency power in a 37" in-
door cabinet.
SXSU3D 19D902845P7 Installation of SOR Relay Kit.
SXMK3C 19D902845P8 Installation of auxiliary receiver in a 37" or 69" cabinet.
SXMD3J 19D902845P9 Installation of GETC shelf in a 69" indoor cabinet.
SXVG3E
SXVG3F 19D902845P11 Installation of GETC shelf for a E/E Voice Guard/Aegis repeater and remote/
repeater in a 37" or 69" indoor cabinet.
SXVV1N
SXVW1J
SXVV1M
19D902845P12 Installation of E/D module (non-1027 version) in a 37" or 69" indoor cabinet.
SXVG3C
SXVG3D 19D902845P13 Installation of E/D module (1027 version) in a 37" or 69" indoor cabinet.
SXDE5B 19D902845P14 Installation of transmit data board.
SXAP3K 19D902845P16 Installation of multi-station in a 69" or 83" indoor cabinet or open rail rack.
SXMNEY
SXMD3M 19D902845P21 19D902845P22 Installation in 69" indoor cabinet or open rail rack.
Installation of simulcast stations.
SXMD1S 19D902845P23 Installation and modification instructions for RIC telephone interconnect.
SXVT1B 19D902845P24 Modification for station receiver voting for RS-232.
19D902845P25 Installation in 45" weatherproof cabinet.
SXVT1L 19D902845P26 Modem Voting installation.
SXCP5T 19D902845P27 CNI installation.
LBI-38775
1

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P1
(19D902845, Sh. 1, Rev. 4)
LBI-38775
2

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 2, Rev. 2)
LBI-38775
3

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 3, Rev. 3)
MASTR III STATION
(19D902845, Sh. 3A, Rev. 2)
LBI-38775
4

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 5, Rev. 3)
MASTR III STATION
(19D902845, Sh. 4, Rev. 1)
LBI-38775
5

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P2, P7 & P14
(19D902845, Sh. 6, Rev. 5)
LBI-38775
6

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 7, Rev. 4)
LBI-38775
7

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P3
(19D902845, Sh. 8, Rev. 5)
MASTR III STATION
19D902854P4
(19D902845, Sh. 9, Rev. 3)
LBI-38775
8

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P5
(19D902845, Sh. 10, Rev. 1)
LBI-38775
9

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P6
(19D902845, Sh. 11, Rev. 1)
LBI-38775
10

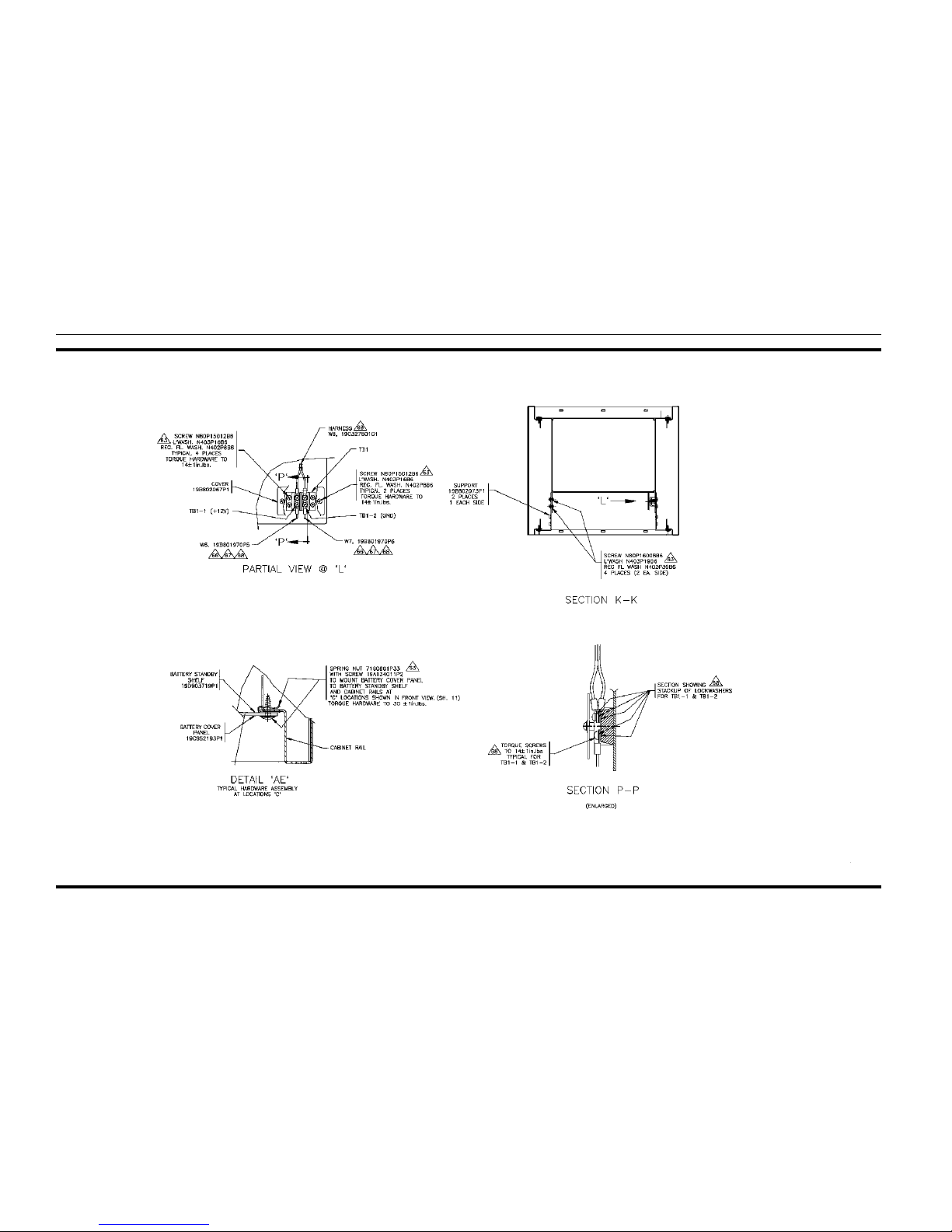

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 12, Rev. 1)
LBI-38775
11

ASSEMBLY DIAGRAM

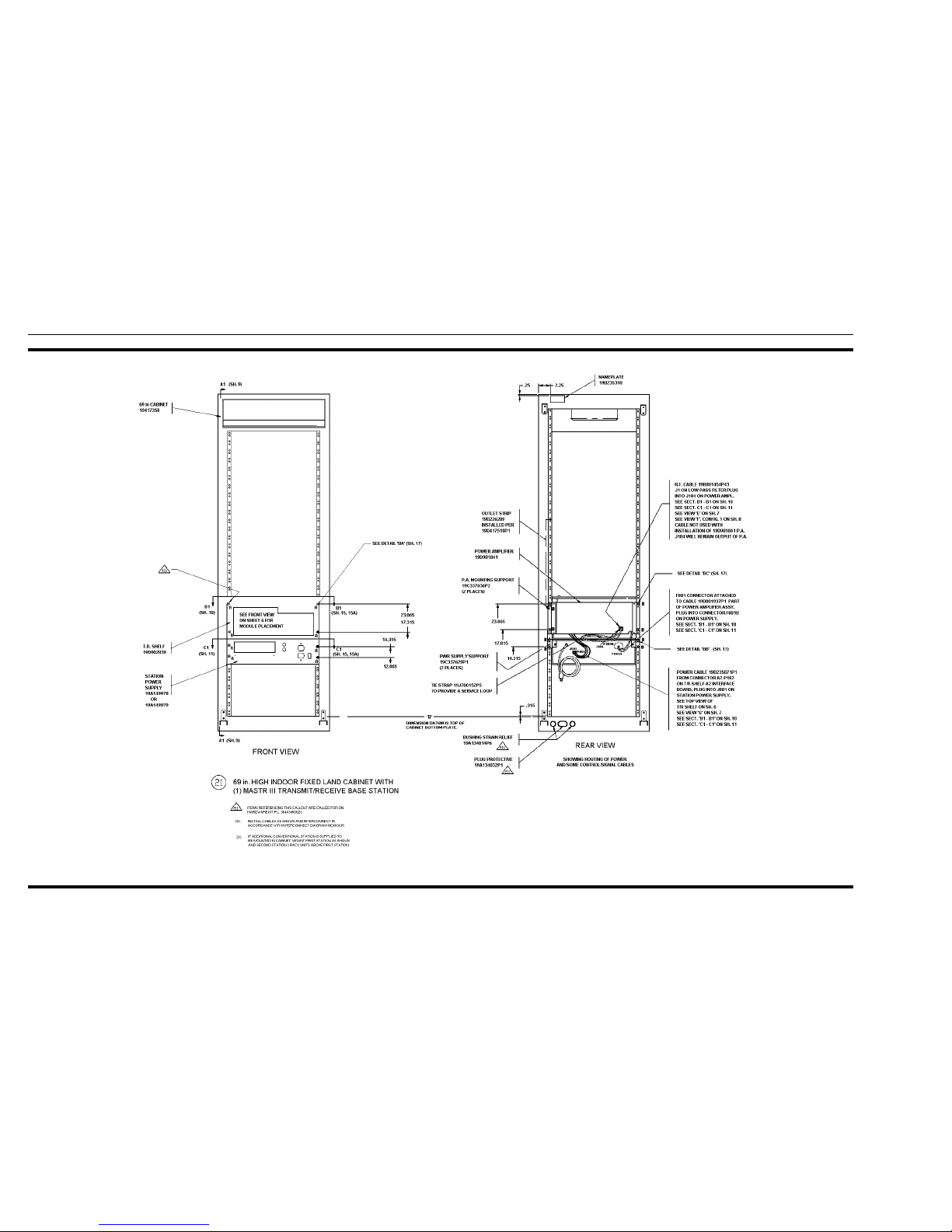

MASTR III STATION
19D902845P21
(19D902845, Sh. 13, Rev. 2)
LBI-38775
12

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 14, Rev. 3)
LBI-38775
13

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 15, Rev. 2)
LBI-38775
14

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845, Sh. 15A, Rev. 2)
LBI-38775
15

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 16, Rev. 1)
LBI-38775
16

ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 17, Rev. 1)
MASTR III STATION
19D902845P8
(19D902845, Sh. 18, Rev. 2)
LBI-38775
17

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P9 & P10
(19D902845, Sh. 19, Rev. 4)
LBI-38775
18

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P11 - P13
(19D902845, Sh. 20, Rev. 4)
LBI-38775
19
