1
IntroducingtheMotherboard
Chapter1
IntroducingtheMotherboard
Introduction
Thank you for choosing the H61H2-M12 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1155
socket for the latest Intel®CoreTM Family/Pentium®/Celeron®processors*1 for high-
end business or personal desktop markets.
This motherboard is based on Intel® H61 Express Chipset for best desktop platform
solution. H61 is a single-chip, highly integrated, high performance Hyper-Threading
peripheral controller, unmatched by any other single chip-device controller. This
motherboard supports up to 16 GB of system memory with dual channel DDR3
1600*2/1333/1066 SDRAM. High resolution graphics via PCI Express x16 slot,
intended for Graphics Interface. In addition, two PCI Express slots are supported. It
implements an EHCI (Enhanced Host Controller Interface) compliant interface that
provides eight USB 2.0 ports (four USB 2.0 ports at the back panel and two USB 2.0
headers support additional four USB 2.0 ports).
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 mouse and PS/2 keyboard connectors, one D_sub (VGA) port, one
LAN port, four USB 2.0 ports, and audio jacks for microphone, line-in and line-out.
In addition, this motherboard supports four SATA 3.0Gb/s connectors for expansion.
*1. When accommodating Intel 3rd Generation CPU, the PCI Express 16X
slot can run at Gen3 speed, which accelerates on 32GB/s rate that effec-
tively delivers double of PCI Express Gen2 speed.
*2. Ivy Bridge CPU required.

2
IntroducingtheMotherboard
Feature
• Accommodates the latest Intel®CoreTM Family/Pentium®/Celeron®pro-
cessors in the LGA1155 package
• Supports “Hyper-Threading” technology CPU
• One PCI Express x16 slot
• Supports 22nm & 32nm Intel®CoreTM micro-architecture
• DMI 5.0GT/s
“Hyper-Threading” technology enables the operating system into thinking
it’s hooked up to two processors, allowing two threads to be run in parallel, both
on separate “logical” processors within the same physical processor.
The motherboard uses an LGA1155 type of socket that carries the following
features:
Processor
Chipset
• Supports DDR3 1600*/1333/1066 DDR3 SDRAM with Dual-channel ar-
chitecture
• Accommodates two unbuffered DIMMs
• Up to 8 GB per DIMM with maximum memory size up to 16 GB
Memory
Audio
• 5.1+2 Channel High Definition Audio Codec
• Meets Microsoft WLP3.x (Windows Logo Program) audio
requirements
• All DACs supports 44.1k/48k/96k/192kHz sample rate
• Software selectable 2.5V/3.2V/4.0V VREFOUT
• Direct Sound 3D. compatible
• Power Support: Digital: 3.3V; Analog: 5.0V
The Intel H61 Chipset is a single-chip with proven reliability and performance.
• Support two PCI Express x1 slots
• Integrated four SATA 3.0 Gb/s Host Controller
• Eight USB 2.0 ports supported
• Serial Peripheral Interface (SPI) support
• Integrated Graphics Support with PAVP 1.5
• Intel®High Definition Audio Controller
*Ivy Bridge CPU required.

3
IntroducingtheMotherboard
The motherboard comes with the following expansion options:
• One PCI Express x16 slot for Graphic Interface
• Two PCI Express x1 slots
• Four SATA 3.0 Gb/s connectors
Expansion Options
The motherboard has a full set of I/O ports and connectors:
Integrated I/O
• One LAN port
• One D-sub (VGA) port
• Four USB 2.0 ports
• One PS/2 keyboard and PS/2 mouse connectors
• Audio jacks for microphone, line-in and 6-ch line-out
The firmware can also be used to set parameters for different processor clock
speeds.
• Power management
• Wake-up alarms
• CPU parameters
• CPU and memory timing
• Graphic parameters
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
1. Some hardware specifications and software items are subject to change
without prior notice.
2. Due to chipset limitation, we recommend that motherboard be operated
in the ambiance between 0 and 50 °C.
Onboard LAN (Optional)
The onboard LAN provides the following features:
• Supports PCI ExpressTM 1.1
• Integrated 10/100 transceiver
• Wake-on-LAN and remote wake-up support
• Supports PCI ExpressTM 1.1
• Integrated 10/100/1000 transceiver
• Wake-on-LAN and remote wake-up support

4
IntroducingtheMotherboard
• LGA1155 socket for the latest Intel®CoreTM Family/Pentium®/
Celeron®processors
• DMI 5.0GT/s
CPU
Specifications
• AMI BIOS with 64Mb SPI Flash ROM
• Support Multi-language BIOS Utility
• Support ECS M.I.B III Utility
Form Factor • Mini-ATX Size, 225mm x 170mm
System BIOS
• Support eBLU*/eDLU/eSF*
AP support
• Intel®H61 Chipset
Chipset
• Dual-channel DDR3 memory architecture
• 2 x 240-pin DDR3 DIMM sockets support up to 16 GB
• Supports 1600*/1333/1066 DDR3 SDRAM
• 1 x PCI Express x16 slot
• 2 x PCI Express x1 slots
• Supported by Intel®H61 Express Chipset
4 x Serial ATA 3.0 Gb/s devices
• VIA VT1705CE 6-Ch HD audio CODEC
• Compliant with HD audio specification
• 4 x USB 2.0 ports
• 1 x D-sub (VGA)
• 1 x RJ45 LAN connector
• 1 x Audio port (Line in, microphone in, line out)
• 1 x PS/2 keyboard & PS/2 mouse connectors
Memory
Expansion
Slots
Storage
LAN
Rear Panel I/O
• Atheros AR8152-B 10/100 Lan
• Atheros AR8151-B Gigabit Lan (Optional)
Audio
• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin ATX Power Supply connector
• 1 x 4-pin CPU_FAN connector
• 1 x 3-pin SYS_FAN connector
• 2 x USB 2.0 headers support additional four USB 2.0 ports
• 4 x Serial ATA 3.0 Gb/s connectors
• 1 x COM header
• 1 x Case Open header
• 1 x ME_UNLOCK header
• 1 x Speaker header
• 1 x Clear CMOS header
• 1 x Front Panel switch/LED header
• 1 x Front Panel audio header
• 1 x LDC header
Internal I/O
Connectors &
Headers
*Microsoft .NET Framework 3.5 is required.
*Ivy Bridge CPU required.

5
IntroducingtheMotherboard
MotherboardComponents

6
IntroducingtheMotherboard
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
LGA1155 socket for the latest IntelϟCoreTM Famil
y
/Pentiumϟ/Celeronϟprocessors
2. CPU_FAN 4-pin CPU cooling fan connector
3. DDR3_1~2 240-pin DDR3 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. SPI_DEBUG SPI debug header-for factory use only
6. SATA1~4 Serial ATA 3.0 Gb/s connectors
7. F_PANEL Front panel switch/LED header
8. F_USB1~2 Front panel USB 2.0 headers
9. CASE CASE open header
10. USBPWR_F1 Front Panel USB power select jumper
11. SPK Speaker header
12. LDC Debug card header
13. COM Onboard serial port header
14. ME_UNLOCK ME unlock header-for factory use only
15. SYS_FAN 3-pin system cooling fan connector
16. F_AUDIO Front panel audio header
17. CLR_CMOS Clear CMOS jumper
18. PCIE1~2 PCI Express x1 slot
19. PCIEX16 PCI Express slot for graphics interface
20. USBPWR_R1 Rear USB/PS2 power select jumper
21. ATX12V 4-pin +12V power connector
1. CPU Socket

7
InstallingtheMotherboard
Chapter2
InstallingtheMotherboard
SafetyPrecautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid dam-
age from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
ChoosingaComputer Case
There are many types of computer cases on the market. The motherboard complies
with the specifications for the Micro-ATX system case. Some features on the
motherboard are implemented by cabling connectors on the motherboard to indica-
tors and switches on the system case. Make sure that your case supports all the
features required.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries a Micro-ATX form factor of 225 x 170 mm. Choose a case
that accommodates this form factor.
InstallingtheMotherboardin a Case
Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.

8
InstallingtheMotherboard
CheckingJumperSettings
This section explains how to set jumpers for correct configuration of the motherboard.
SettingJumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT.
SHORT OPEN
Do not over-tighten the screws as this can stress the motherboard.

9
InstallingtheMotherboard
Checking Jumper Settings

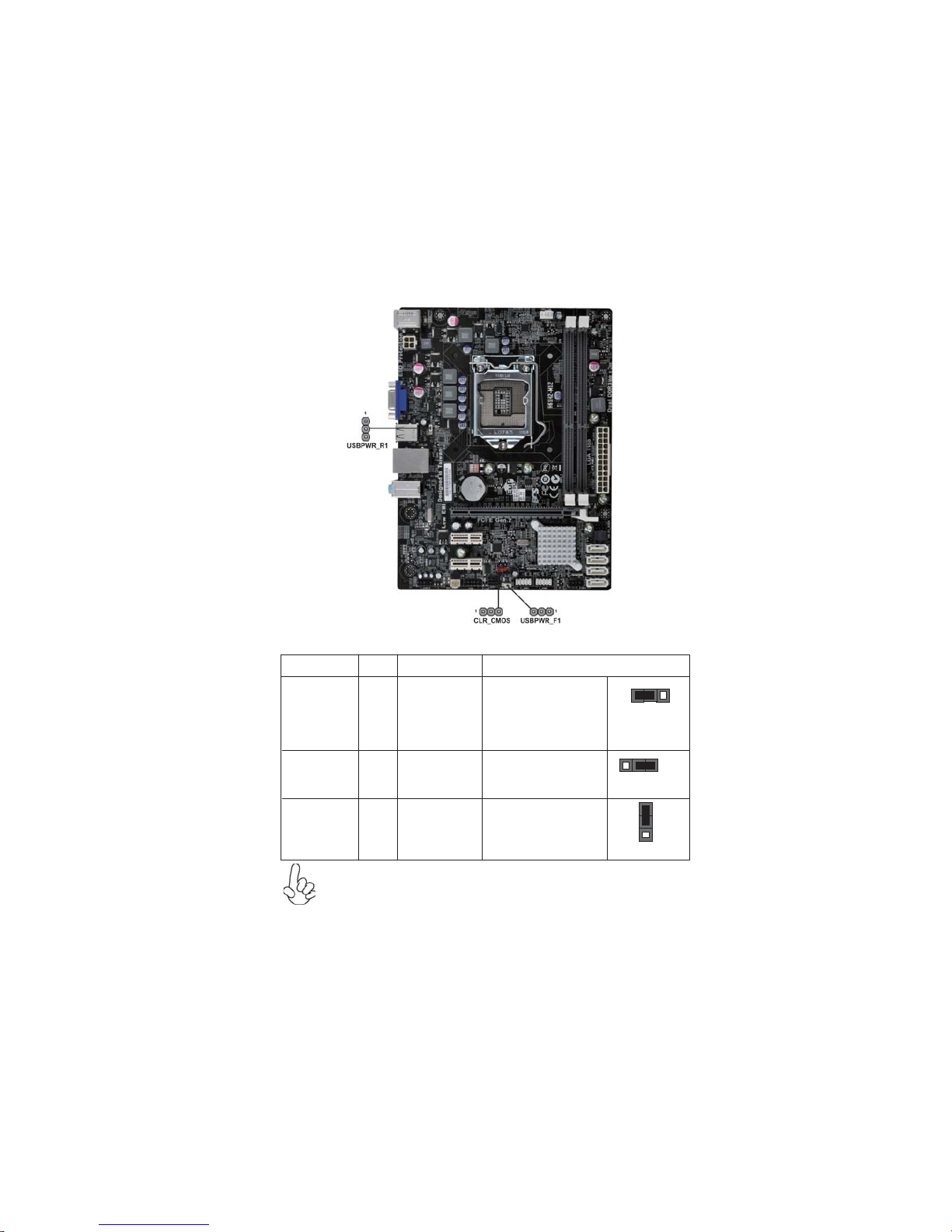

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
JumperSettings
1.To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save and Exit Setup”.
Jumper Type Description Setting (default)
CLR_CMOS 3-pin Clear CMOS 1-2: NORMAL
Before clearing the
CMOS, make sure to
turn off the system.
Front Panel
USB Power
Select Jumper USBPWR_F1
Rear USB PS/2
Power Select
Jumper
USBPWR_F1
USBPWR_R1
3-pin
3-pin
USBPWR_R1
1
1
2-3: CLEAR CLR_CMOS
1
3.It is required that users place the USBPWR_F1 & USBPWR_R1 cap onto
2-3 pin rather than 1-2 pin as default if you want to wake up the computer
by USB/PS2 KB/Mouse.
2.Make sure the power supply provides enough DIMM_5VDUAL voltage
before selecting the DIMM_5VDUAL function.
1-2: VCC
2-3: DIMM_5VDUAL
1-2: VCC
2-3: DIMM_5VDUAL

10
InstallingtheMotherboard
InstallingHardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure that
you DO NOT scratch the motherboard or any of the surface-mount resis-
tors with the clip of the cooling fan. If the clip of the cooling fan scrapes
across the motherboard, you may cause serious damage to the motherboard
or its components.
On most motherboards, there are small surface-mount resistors near the
processor socket, which may be damaged if the cooling fan is carelessly
installed.
Avoid using cooling fans with sharp edges on the fan casing and the clips.
Also, install the cooling fan in a well-lit work area so that you can clearly
see the motherboard and processor socket.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system bus
frequency for the processor. You may be able to change the settings in the system
Setup Utility. We strongly recommend that you do not over-clock processors or
other components to run faster than their rated speed.
This motherboard has an LGA1155 socket. When choosing a processor, consider the
performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity
of internal cache memory and external cache memory.
Warning:
1. Over-clocking components can adversely affect the reliability of the
system and introduce errors into your system. Over-clocking can perma-
nently damage the motherboard by generating excess heat in components
that are run beyond the rated limits.
2. Always remove the AC power by unplugging the power cord from the
power outlet before installing or removing the motherboard or other
hardware components.
Fail-Safe Procedures for Over-clocking
When end-users encounter failure after attempting over-clocking, please take the
following steps to recover from it.
1. Shut down the computer.
2. Press and hold the “Page Up Key (PgUp)” of the keyboard, and then boot the PC
up.
3. Two seconds after the PC boots up, release the “Page Up Key (PgUp)”.
4. The BIOS returns to the default setting by itself.

11
InstallingtheMotherboard
A. Disengaging of the Load Lever
· Press the hook of lever down and pull
it to the right side to release it from
retention tab.
B. Opening of the Load Plate
· Lift the tail of the load lever.
· Rotate the load plate to fully open
position.
C. Removing the Cap
· Be careful not to touch the contact at
any time.
D. Inserting the Package
· Grasp the package. Ensure to grasp
on the edge of the substrate.
· Make sure pin 1 indicator is on your
bottom-left side.
· Aim at the socket and place the
package carefully into the socket by
purely vertical motion.
E. Closing the Load Plate
· Rotate the load plate onto the package
IHS (Intergraded Heat Spreader).
· Engage the load lever while pressing
down lightly onto the load plate.
· Secure the load lever with the hook
under retention tab.
F. Fasten the cooling fan supporting base
onto the CPU socket on the motherboard.
G. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the
CPU cooling fan user’s manual for more
detail installation procedure.
CPU Installation Procedure
The following illustration shows CPU installation components.

12
InstallingtheMotherboard
Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 240-pin
DDR3 1600*/1333/1066. The total memory capacity is 16 GB.
You must install at least one module in any of the two slots.
DDR3 SDRAM memory module table
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Installany remaining DIMM modules.
Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
1. To achieve better airflow rates and heat dissipation, we suggest
that you use a high quality fan with 3800 rpm at least. CPU fan and
heatsink installation procedures may vary with the type of CPU fan/
heatsink supplied. The form and size of fan/heatsink may also vary.
2. DO NOT remove the CPU cap from the socket before installing a
CPU.
3. Return Material Authorization (RMA) requests will be accepted
only if the motherboard comes with the cap on the LGA1155 socket.
Memory module Memory Bus
DDR3 1066 533 MHz
DDR3 1333 667 MHz
*Ivy Bridge CPU required.
DDR3 1600 800 MHz

13
InstallingtheMotherboard
* For reference only

14
InstallingtheMotherboard
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect them
to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can in-
crease the motherboard’s capabilities by adding hardware that performs tasks that are
not part of the basic system.
Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually
configure the card before installation.
Expansion Slots
The PCI Express x1 slots are fully compliant to the PCI Ex-
press Base Specification revision 2.0.
PCIE1~2 Slots
PCIEX16 Slot The PCI Express x16 slot is used to install an external PCI
Express graphics card.

15
InstallingtheMotherboard
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
2. The onboard PCI interface does not support 64-bit SCSI cards.
1. For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.
* For reference only

16
InstallingtheMotherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
F_AUDIO:Front Panel Audio header
This header allows the user to install auxiliary front-oriented microphone and line-
out ports for easier access.
1PORT 1L 2 AUD_GND
3PORT 1R 4PRESENCE#
5PORT 2R 6 SENSE1_RETURN
7SENSE_SEND 8KEY
Pin Signal Name Pin Signal Name
9PORT 2L 10 SENSE2_RETURN
