Thank you for choosing the GeForce6100SM-M motherboard. This motherboard is a high
performance, enhanced function motherboard that supports Socket AM2 AMD Athlon 64
FX/Athlon 64 X2 Dual-Core/Athlon 64/Sempron CPUs for high-end business or personal
desktop markets.
This motherboard is based on NVIDIA®ΜCP61Standard media and communications pro-
cessor (MCP) for best desktop platform solution. MCP61S is a single-chip, highly inte-
grated, high performance HyperTransport peripheral controller, unmatched by any other
single chip-device controller. This motherboard supports up to 16 GB of system memory
with DDR2 800/667/533. DIMMs, high resolution graphics via an PCI Express x 16 slot
(MCP61S only support PCI Express x8), native Ethernet MAC, USB 2.0, 6-channel audio
and SATA support with RAID function.
There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and
keyboard connectors, COM1, LPT1, four USB ports, one VGA port, one optional LAN
port, one optional 1394a port and audio jacks for microphone, line-in, and line-out. This
motherboard is designed in a Micro ATX form factor using a four-layer printed circuit board
and measures 244 mm x 224 mm.

2
Introducing the Motherboard
Feature
Processor
The NVIDIA®MCP61S is a single-chip with proven reliability and performance.
• HyperTransport x16 up and down links at up to 1.0 GHz to the AM2 CPUs
• support PCI Express x8 for external graphics
• PCI 2.3 interface at 33 MHz
• Support 2 SATA2 3.0 Gb/s devices
• Native 10/100 Ethernet MAC supported
• Eight USB 2.0 ports supported
• Fast ATA-133 IDE controller
• High Definition Audio Specification 1.0 compliant
Chipset
HyperTransportTM Technology is a point-to-point link between two devices, it enables
integrated circuits to exchange information at much higher speeds than currently avail-
able interconnect technologies.
• Accommodates AMD Athlon 64 FX/Athlon 64 X2 Dual-Core/Athlon 64/Sempron
processors
• Supports up to 2000 MT/s HyperTransportTM (HT) interface Speeds
This motherboard uses a Socket AM2 that carries the following features:
• DDR2 800/667/533 DDR SDRAM with Dual Channel supported
• Accommodates two unbuffered DIMMs
• Up to 8 GB per DIMM with maximum memory size up to 16 GB
Memory
Audio
• Three Stereo DACs support 16/20/24-bit PCM format for 5.1 channel
audio solution
• ADCs support 44.1k/48k/96k sample rate
• Meets Microsoft WHQL/WLP 3.0x audio requirements
• Direct Sound 3DTM compatible
• Four Stereo DACs support 16/20/24-bit PCM format for 7.1 channel audio
solution
• ADCs support 48k/96k sample rate
• High quality differential CD input
• Power Support: Digital: 3.3V; Analog: 5.0V
• Meets Microsoft WHQL/WLP 2.0 audio requirements
• Direct Sound 3DTM compatible
The onboard Audio provides the following features:
• 8 channels of DAC support 24/20/16-bit PCM format for 7.1 audio solution
• Supports 192K/96K/48K/44.1KHz DAC sample rate
• Power support: Digital: 3.3V; Analog: 3.5V~5.25V
• Meets Microsoft WHQL/WLP 2.x audio requirements
• Direct Sound 3DTM compatible
• DolbyRDigital Encoder output for consumer electronic application

3
Introducing the Motherboard
Onboard LAN (Optional)
The onboard LAN provides the following features:
This motherboard supports Ultra DMA bus mastering with transfer rates of 133/100/66
MB/s.
:
• One PCI Express x16 for Graphics Interface (MCP61S only support PCI
Express x8)
• One PCI Express x1 slot
• Two 32-bit PCI v2.3 compliant slots
• One IDE connectors supporting up to two IDE devices
• One floppy disk drive interface
• Two 7-pin SATA2 connectors
Expansion Options
Integrated I/O
The motherboard comes with the following expansion options:
1394a FireWire (Optional)
• Compliant with single chip host controller of IEEE Std 1394-1995 and IEEE
1394a-2000
• Integrated 400 Mb/s 2-port PHY for the PCI BUS
• 3.3V Power Supply with 5V Tolerant Inputs
The motherboard has a full set of I/O ports and connectors:
• Two PS/2 ports for mouse and keyboard
• One serial port
• One parallel port
• One VGA port
• Four USB ports
• One LAN port (optional)
• One 1394a port (optional)
• Audio jacks for microphone, line-in and line-out
BIOS Firmware
The motherboard uses Award BIOS that enables users to configure many system features
including the following:
• Power management
• Wake-up alarms
• CPU parameters
• CPU and memory timing
The firmware can also be used to set parameters for different processor clock speeds.
Some hardware specifications and software items are subject to change
without prior notice.
• Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation
• Supports Wake-on-LAN function and remote wake-up
• Half/Full Duplex capability
• Integrated 10/100/1000 transceiver
• Supports PCI rev.2.3,32-bit,33/66 MHz
• Crossover Detection & Auto-Correction
• Wake-on-LAN and remote wake-up support
• 10BASE-T/100BASE-TX IEEE 802.3u fast Ethernet transceiver
• Low-power mode
• MII and 7-wire serial interface

4
Introducing the Motherboard
Motherboard Components

5
Introducing the Motherboard

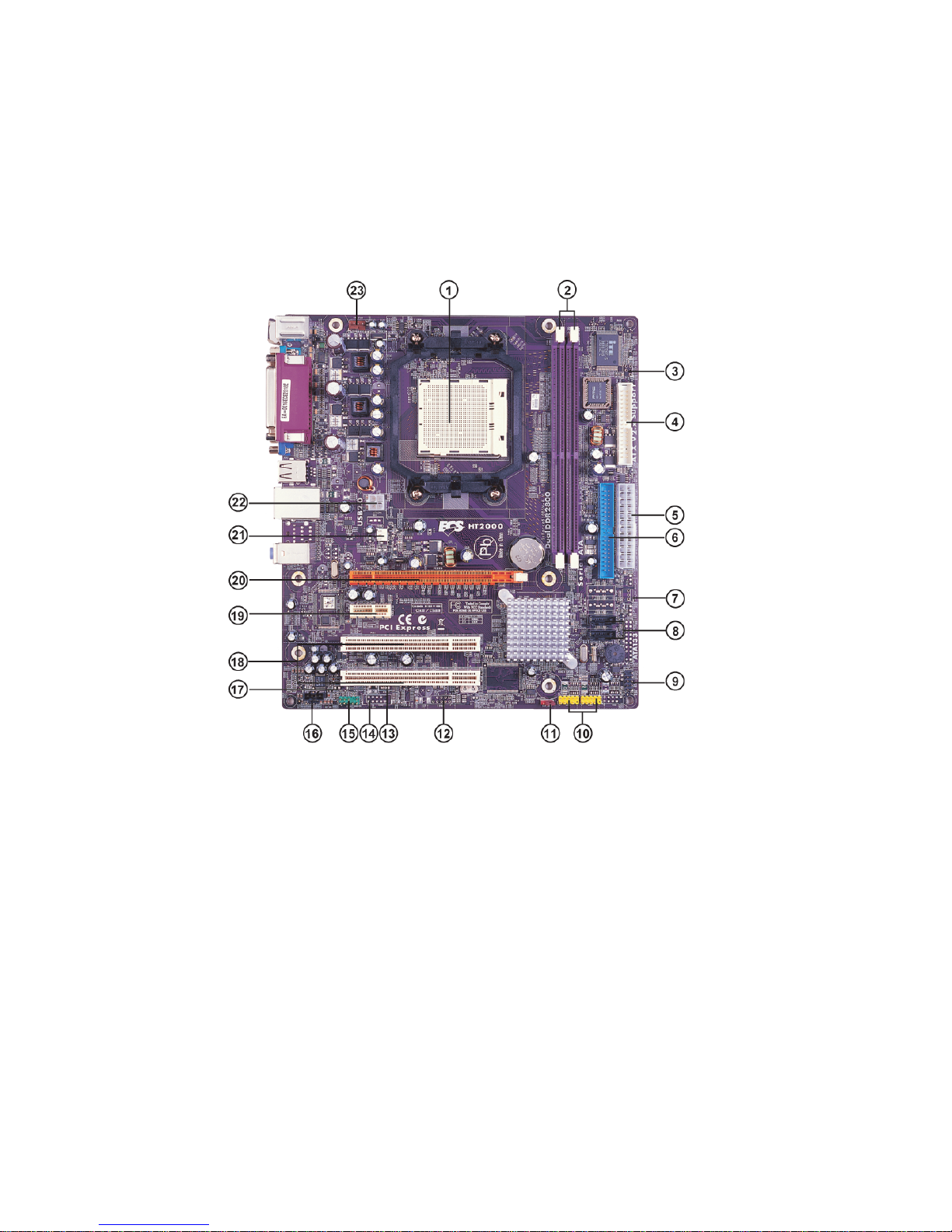

Table of Motherboard Components
13 WOL1* Wake on LAN connector
4 FDD1 Floppy disk drive connector
17 SPDIFO1 * SPDIF out header
LABEL COMPONENT
6 IDE1 Primary IDE connector
21 SYS_FAN1 System cooling fan connector
19 PCIEX1 PCI Express x1 slots
9 PANEL1 Front Panel switch/LED header
12 1394A1* 1394a header
2 DIMM1~2 240-pin DDR2 SDRAM slots
This concludes Chapter 1. The next chapter explains how to install the motherboard.
11 CLR_COMS Clear CMOS jumper
10 USB1~2 Front Panel USB headers
1 CPU Socket
8 SATA1~2 Serial ATA connectors
18 PCI1~2 32-bit add-on card slots
20 PCIEX16 PCI Express x16 graphics card slot
22 ATX12V1 4-pin +12V power connector
Socket AM2 for AMD Athlon 64 FX/Athlon 64
X2 Dual-Core/Athlon 64/Sempron processors
3 IRDA * Infrared header
5 ATX_POWER1 Standard 24-pin ATX power connector
7 PWR_FAN * Power cooling fan connector
14 COM2 * Onboard serial port header
15 AUDIO1 Front panel audio header
16 CD_IN Analog audio output connector
23 CPU_FAN1 CPU cooling fan connector
* Stands for optional component

6
Introducing the Motherboard
Memo

7
Installing the Motherboard
Chapter 2
Installing the Motherboard
Safety Precautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid damage from
static electricity
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
Choosing a Computer Case
There are many types of computer cases on the market. The motherboard complies with
the specifications for the Micro ATX system case. Firstly, some features on the motherboard
are implemented by cabling connectors on the motherboard to indicators and switches on
the system case. Make sure that your case supports all the features required. Secondly, this
motherboard supports one or two floppy diskette drives and two enhanced IDE drives.
Make sure that your case has sufficient power and space for all drives that you intend to
install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template
in the case matches the I/O ports installed on the rear edge of the motherboard.
This motherboard carries an Micro ATX form factor of 244 X 224 mm. Choose a case that
accommodates this form factor.
Installing the Motherboard in a Case
Refer to the following illustration and instructions for installing the motherboard in a case.
Most system cases have mounting brackets installed in the case, which correspond the holes
in the motherboard. Place the motherboard over the mounting brackets and secure the
motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion slots
on your motherboard.

8
Installing the Motherboard
Checking Jumper Settings
This section explains how to set jumpers for correct configuration of the motherboard.
Setting Jumpers
Use the motherboard jumpers to set system configuration options. Jumpers with more than
one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on
the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT
SHORT OPEN
Do not over-tighten the screws as this can stress the motherboard.

9
Installing the Motherboard
Checking Jumper Settings
The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper Type Description Setting (default)
CLR_COMS 3-pin CLEAR CMOS
CLR_COMS
1
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.

10
Installing the Motherboard
Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:

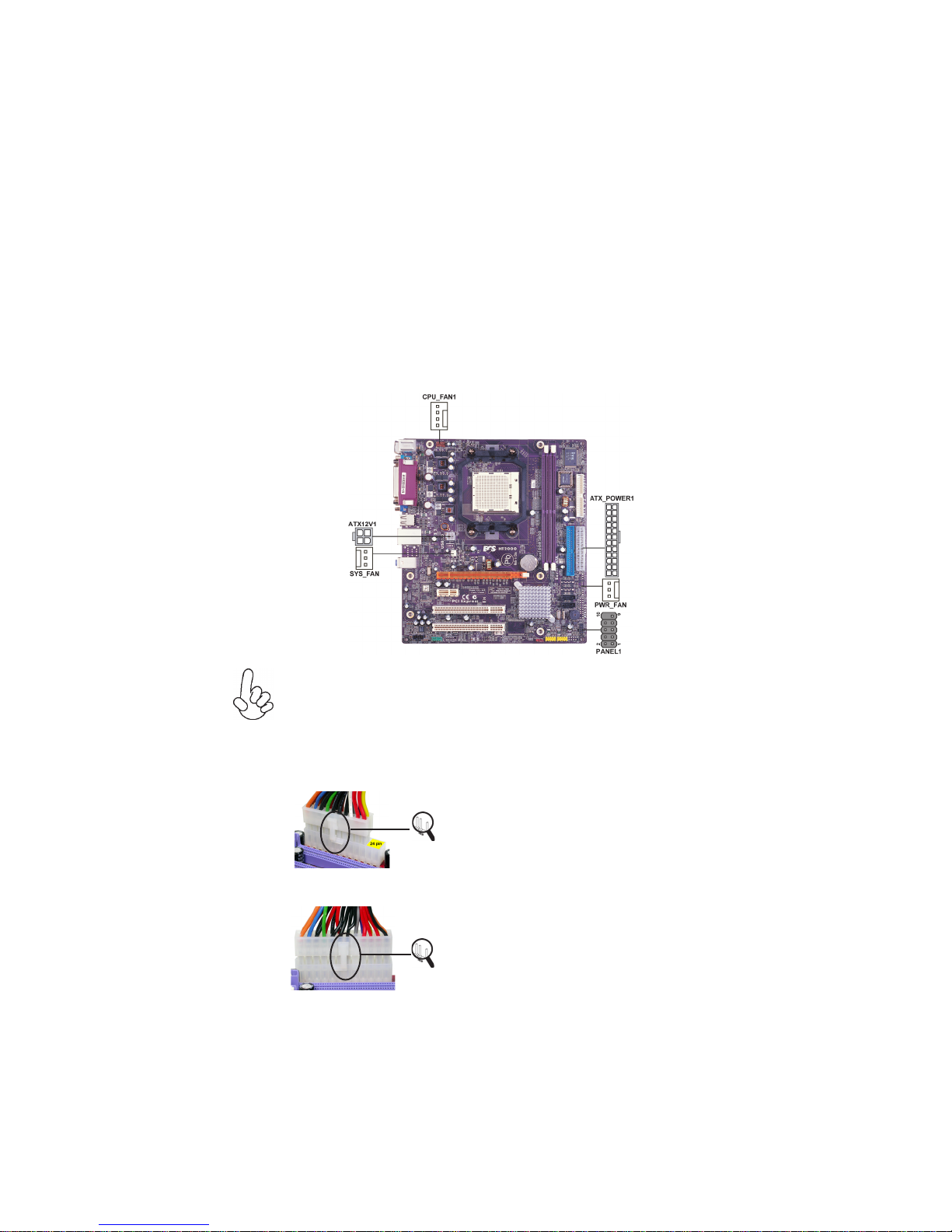

1 Connect the CPU cooling fan cable to CPU_FAN1.
2 Connect the power cooling fan connector to PWR_FAN.
3 Connect the system cooling fan connector to SYS_FAN1.
4 Connect the standard power supply connector to ATX_POWER1.
5 Connect the auxiliary case power supply connector to ATX12V1.
6 Connect the case switches and indicator LEDs to the PANEL1.
Connecting 20/24-pin power cable
Users please note that the 20-pin and 24-pin power cables can both be connected
to the ATX1 connector. With the 20-pin power cable, just align the 20-pin power
cable with the pin 1 of the ATX_POWER1 connector. However, using 20-pin
power cable may cause the system to become unbootable or unstable because of
insufficient electricity. A minimum power of 300W is recommended for a fully-
configured system.
20-pin power cable
24-pin power cable
With ATX v2.x power supply, users please note
that when installing 24-pin power cable, the
latches of power cable cling s to the right side
of the ATX_POWER1 connector latach.
With ATX v1.x power supply, users please note
that when installing 20-pin power cable, the
latche of power cable falls on the left side of
the ATX_POWER1 connector latch, just as the
picture shows.

11
Installing the Motherboard
CPU_FAN1/SYS_FAN1: Cooling FAN Power Connectors
PWR_FAN: Cooling FAN Power Connector (Optional)
1GND System Ground
2+12V Power +12V
3Sense Sensor
Pin Signal Name Function
1GND System Ground
2+12V Power +12V
3Sense Sensor
4PWM CPU FAN control
Function
Pin Signal Name
ATX12V1: ATX 12V Power Connector
ATX_POWER1: ATX 24-pin Power Connector
1+3.3V 13 +3.3V
2+3.3V 14 -12V
3Ground 15 COM
4+5V 16 PS_ON
5Ground 17 COM
6+5V 18 COM
7Ground 19 COM
8PWRGD 20 -5V
9+5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 COM
Pin Signal Name Pin Signal Name
4+12V
3+12V
2Ground
1Ground
Pin Signal Name

12
Installing the Motherboard
Front Panel Header
The front panel header (PANEL1) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
Reset Switch
Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact
switch that is normally open. When the switch is closed, the board resets and runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-
contact switch that is normally open. The switch should maintain contact for at least 50 ms
to signal the power supply to switch on or off. The time requirement is due to internal de-
bounce circuitry. After receiving a power on/off signal, at least two seconds elapses before
the power supply recognizes another on/off signal.
Power/Sleep/Message waiting LED
Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides power
on/off, sleep, and message waiting indication.
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data
is being read from or written to the hard drive. For the LED to function properly, an IDE
drive should be connected to the onboard IDE interface. The LED will also show activity for
devices connected to the SCSI (hard drive activity LED) connector.
Pin Signal Function Pin Signal Function
1 HD_LED_P Hard disk LED (+) 2 FP PWR/SLP *MSG LED (+)
3 HD_LED_N Hard disk LED (-)
5 RST_SW_N Reset Switch (-)
7 RST_SW_P Reset Switch (+)
9 RSVD Reserved
4 FP PWR/SLP *MSG LED (-)
6 PWR_SW_P Power Switch (+)
8 PWR_SW_N Power Switch (-)
10 Key No pin
* MSG LED (dual color or single color)

13
Installing the Motherboard
Installing Hardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure that
you DO NOT scratch the motherboard or any of the surface-mount resistors
with the clip of the cooling fan. If the clip of the cooling fan scrapes across
the motherboard, you may cause serious damage to the motherboard or its
components.
This motherboard has a Socket AM2 processor socket. When choosing a processor, con-
sider the performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity of
internal cache memory and external cache memory.
Warning: Over-clocking components can adversely affect the reliability of
the system and introduce errors into your system. Over-clocking can perma-
nently damage the motherboard by generating excess heat in components
that are run beyond the rated limits.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system bus
frequency for the processor. You may be able to change these settings by making changes to
jumpers on the motherboard, or changing the settings in the system Setup Utility. We
strongly recommend that you do not over-clock processors or other components to run
faster than their rated speed.
On most motherboards, there are small surface-mount resistors near the
processor socket, which may be damaged if the cooling fan is carelessly
installed.
Avoid using cooling fans with sharp edges on the fan casing and the clips.
Also, install the cooling fan in a well-lit work area so that you can clearly see
the motherboard and processor socket.

14
Installing the Motherboard

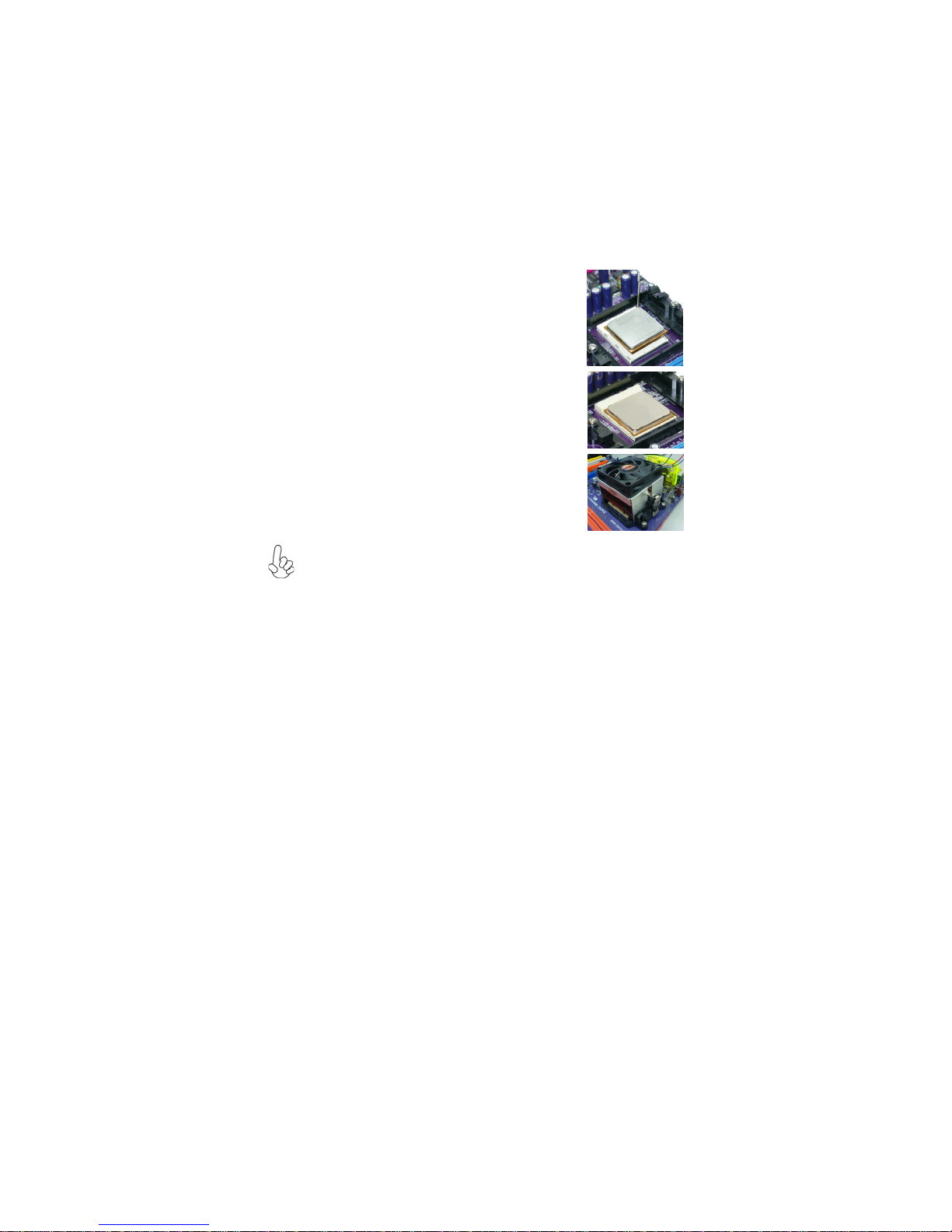

1 Install your CPU. Pull up the lever away from the
socket and lift up to 90-degree angle.
2 Locate the CPU cut edge (the corner with the pin
hold noticeably missing). Align and insert the CPU
correctly.
3 Press the lever down and apply thermal grease on
top of the CPU.
4 Put the CPU Fan down on the retention module and
snap the four retention legs of the cooling fan into
place.
5 Flip the levers over to lock the heat sink in place and
connect the CPU cooling Fan power cable to the
CPUFAN connector. This completes the installation.
CPU Installation Procedure
The following illustration shows CPU installation components.
To achieve better airflow rates and heat dissipation, we suggest that you use
a high quality fan with 4800 rpm at least. CPU fan and heatsink installation
procedures may vary with the type of CPU fan/heatsink supplied. The form
and size of fan/heatsink may also vary.
