ADLINK Technology IMB-T10 User manual

Advance Technologies; Automate the World.
Manual Rev.: 2.00
Revision Date: February 24, 2014
Part No: 50-1X003-1000
IMB-T10
Intel® Atom™ Processor D2550
Industrial Mini-ITX Motherboard
User’s Manual

ii Revision History
Revision History
Revision Release Date Description of Change(s)
2.00 2014/02/24 Initial release

Preface iii
IMB-T10
Preface
Copyright 2014 ADLINK Technology Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, spe-
cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro-
pean Union's Restriction of Hazardous Substances (RoHS) direc-
tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu-
facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.

iv Preface
Using this Manual
Audience and Scope
The IMB-T10 User’s Manual is intended for hardware technicians
and systems operators with knowledge of installing, configuring
and operating industrial grade computers.
Manual Organization
This manual is organized as follows:
Preface: Presents copyright notifications, disclaimers, trade-
marks, and associated information on the proper usage of this
document and its associated product(s).
Chapter 1, Introduction: Introduces the IMB-T10, its features,
applications, and specifications, including functional descriptions
and board layout.
Chapter 2, Hardware Information: Provides technical informa-
tion on connectors, jumpers and pin assignments for configuring
the IMB-T10.
Chapter 3, Getting Started: Describes how to install components
and drivers on the IMB-T10.
Chapter 4, BIOS Setup: Presents information and illustrations to
help understand and configure the system BIOS.
Appendix A, WDT Sample Code: Presents information on under-
standing and configuring the watchdog timer.
Important Safety Instructions: Presents safety instructions all
users must follow for the proper setup, installation and usage of
equipment and/or software.
Getting Service: Contact information for ADLINK’s worldwide
offices.

Preface v
IMB-T10
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
WARNING:
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

vi Preface
This page intentionally left blank.

Table of Contents vii
IMB-T10
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures........................................................................ ix
List of Tables.......................................................................... xi
1 Introduction ........................................................................ 1
1.1 Package Contents ............................................................... 1
1.2 Overview.............................................................................. 2
1.3 Features............................................................................... 2
1.4 Specifications....................................................................... 3
1.5 Block Diagram ..................................................................... 5
1.6 Functional Description ......................................................... 6
1.7 Mechanical Dimensions....................................................... 8
2 Hardware Information........................................................ 9
2.1 Rear I/O Layout ................................................................... 9
2.2 Rear I/O Connector Pin Definitions.................................... 10
2.3 Board Layout ..................................................................... 14
2.4 Onboard Connector Pin Definitions ................................... 16
2.5 Jumper Settings................................................................. 25
3 Getting Started ................................................................. 27
3.1 Screw Holes....................................................................... 27
3.2 Pre-installation Precautions............................................... 27
3.3 Installation of Memory Modules (SO-DIMM)...................... 28
3.4 Expansion Slots (PCI, PCI Express and Mini-PCIe/mSATA) 28
3.5 Driver Installation............................................................... 29
4 BIOS Setup........................................................................ 31

viii Table of Contents
4.1 Introduction........................................................................ 31
4.1.1 UEFI Menu Bar..............................................................31
4.1.2 Navigation Keys.............................................................32
4.2 Main Screen....................................................................... 33
4.3 Advanced Screen............................................................... 34
4.3.1 CPU Configuration.........................................................36
4.3.2 CPU Configuration.........................................................37
4.3.3 Storage Configuration....................................................39
4.3.4 Super IO Configuration..................................................40
4.3.5 ACPI Configuration........................................................41
4.3.6 USB Configuration.........................................................43
4.4 Hardware Health Event Monitoring System....................... 44
4.5 Boot Screen....................................................................... 46
4.6 Security Screen.................................................................. 47
4.7 Exit Screen......................................................................... 48
A Appendix: WDT Sample Code ..........................................51
Important Safety Instructions............................................... 55
Getting Service...................................................................... 57

List of Figures ix
IMB-T10
List of Figures

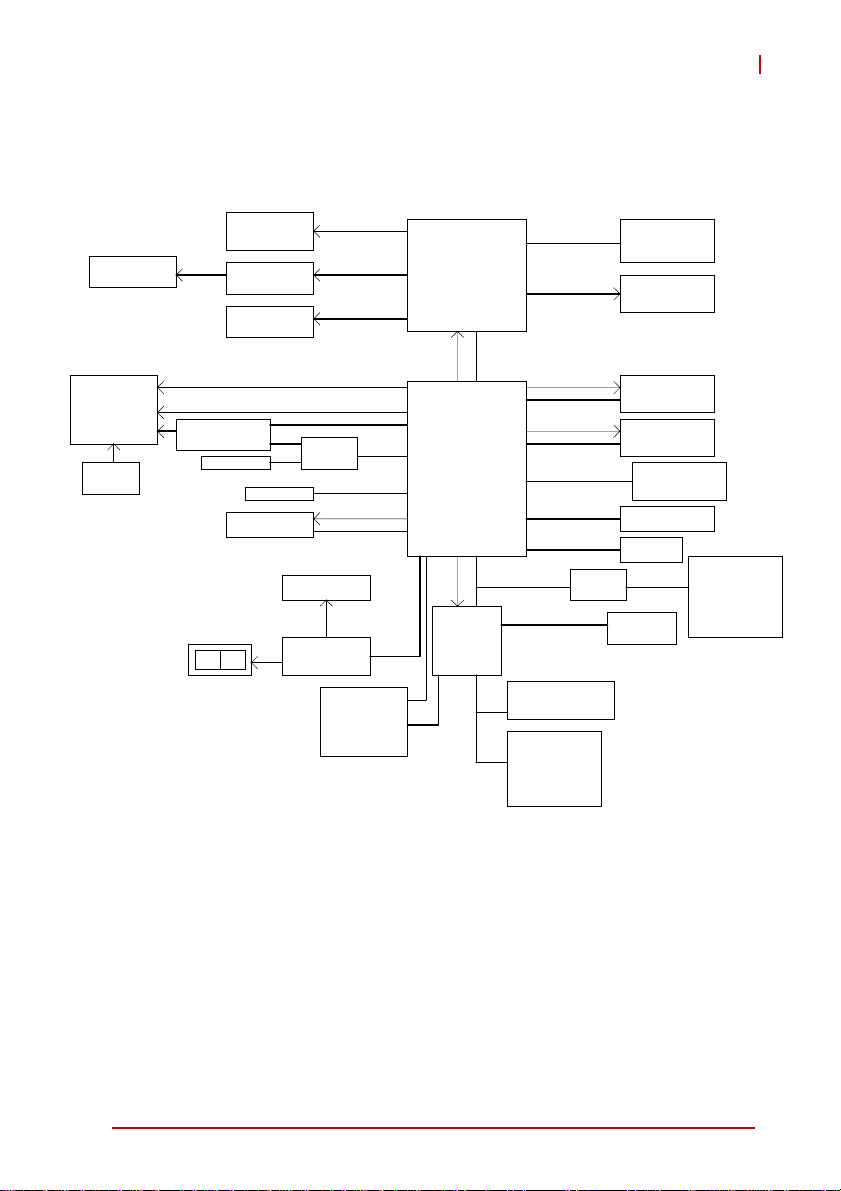

Figure 1-1: IMB-T10 Block Diagram...................................................5

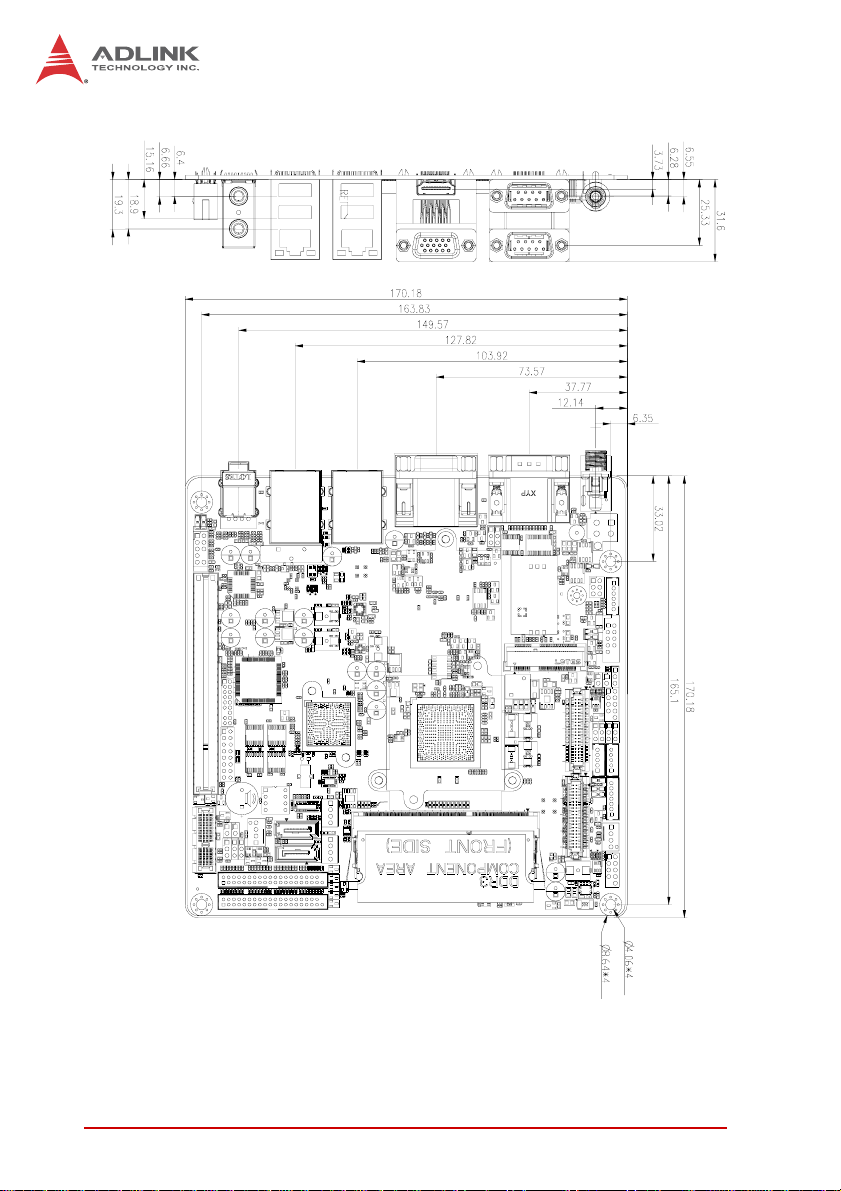

Figure 1-2: IMB-T10 Board Dimensions.............................................8
Figure 2-1: IMB-T10 Rear I/O Layout.................................................9
Figure 2-2: IMB-T10 Board Layout...................................................14

xListofFigures
This page intentionally left blank.

List of Tables xi
IMB-T10
List of Tables
Table 1-1: IMB-T10 General Specifications......................................4
Table 2-1: Board Layout Legend ....................................................15

xii List of Tables
This page intentionally left blank.

Introduction 1
IMB-T10
1 Introduction
This chapter will introduce the IMB-T10, its features, specifica-
tions, functional description, and mechanical layout.
1.1 Package Contents
Please check that your package contains the items below. If
you discover damaged or missing items, please contact your
vendor.
XIMB-T10 Mini-ITX Embedded Motherboard
XI/O shield
WARNING:
DO NOT install or apply power to equipment that is damaged
or if there is missing/incomplete equipment. Retain the ship-
ping carton and packing materials for inspection. Please con-
tact your ADLINK dealer/vendor immediately for assistance.
Obtain authorization from your dealer before returning any
product to ADLINK.

2Introduction
1.2 Overview
The ADLINK IMB-T10 is a Mini-ITX embedded motherboard
based on the Intel® Atom™ Processor D2550 built on 32-nm pro-
cess technology in Micro-FCBGA118 packaging technologies and
the Mobile Intel® NM10 Express Chipset. The IMB-T10 is ideal for
embedded applications requiring fanless operation and ultra-low
power consumption in a standard small form factor motherboard
with a complete set of I/O functions and high-bandwidth network
connectivity. These features, combined with an SO-DIMM socket
supporting DDR3 800/1066 SDRAM up to 4 GB, SATAII/mSATA
storage interfaces, PCI and Mini PCIe expansion slots, VGA,
HDMI, dual-channel and single channel 24-bit LVDS, and audio
interfaces make the IMB-T10 suitable for medical, transportation,
and other applications requiring a low noise/power, space-effi-
cient, multiple display platform.
1.3 Features
XMini-ITX form factor (170 mm x 170 mm)
XIntel® Atom™ Processor D2550:
Z1.86 GHz core frequency
Z1024KB L2 cache
ZMicro-FCBGA559 packaging technology
XDDR3-800/1066 up to 4GB max. (1x 204-pin SO-DIMM
socket)
XSupporting dual independent display
XDsub-15 connector up to 1920 x1200 @ 60Hz
XHDMI connector up to 1920 x1200 @ 60Hz
XOne single channel 24bit LVDS resolution up to 1440 x 900
@ 60Hz and one dual channel 24bit LVDS resolution up to
1920 x 1080 @ 60Hz PCI and Mini PCIe expansion slots
X2x SATA ports 3Gb/s, 9x RS-232 serial + 1x RS-
232/422/484 ports (2 ext., 8 int.)
X2x GbE, 7x USB 2.0 (4 ext., 3 int.)
X1x Mini-DIN for PS/2 keyboard/mouse
XRoHS compliant

Introduction 3
IMB-T10
1.4 Specifications
System
CPU Intel® Atom™ Processor D2550
• 1.86 GHz core frequency
• 1024KB L2 cache
• FCBGA559 package
Chipset • Intel® NM10 Express Chipset
Memory • DDR3 800/1066 SO-DIMM (4GB max.)
• 1x 204-pin SO-DIMM slot
BIOS • AMI® uEFI BIOS, 16Mbit SPI Flash ROM
Audio • Realtek ALC887 HD Audio
• Line-out and mic-in
Watchdog Timer • 1-255 second/minute programmable
Hardware Monitor • CPU/System temperature, fan speed and onboard DC
voltage
Operating System • Microsoft® Windows® 7 32-bit
• Fedora™ 19Display
Graphics
Processor • Intel® Graphics Media Accelerator 3650 integrated in CPU supporting dual independent display
VGA • 1x VGA resolution up to 1920 x 1200 @ 60Hz
HDMI • 1x HDMI (version 1.3a) resolution up to 1920 x 1200 @
60Hz Ethernet
Controller • Realtek RTL8111E GbE controller
Ports • 2x RJ-45 Ethernet port

4Introduction
Table 1-1: IMB-T10 General Specifications
I/O Interfaces
Serial ATA • 2x SATA 3 Gb/s, one shared with mSATA (selected by
jumper)
• 1x mSATA SSD module (Mini-PCIe Full Card form
factor), mSATA SATA shared with PCIe /USB2.0
Onboard I/O • 7x USB 2.0 (4x external, 3x by pin header), one
additional USB 2.0 pin header is available only when
Mini-PCIe card USB 2.0 is not occupied
• 9x RS-232 serial ports (1x external, 8x by pin header),
1x RS-232/422/485 (selected by jumper)
Rear I/O • 2x RJ-45 LAN ports
• 4x USB 2.0 ports
• 1x RS-232 serial port; 1x RS-232/422/485 (COM1)
• 1x D-Sub VGA connector
• 1x HDMI connector
• 1x screw type DC Jack
• 2x audio jacks (line-out and mic-in)
SIM Card • SIM card slot onboard
Expansion Slots • 1x Mini-PCIe full card support
(shared with USB 2.0, mSATA)
•1xPCIslot
• 1x PCIe x1 slot compliant with PCI Express Base 1.0a
specification (only for flying cable solution due to slot
location limitation)
Power
DC Power • 1x Screw type DC-Jack
• +12V DC-in
Mechanical and Environment
Form Factor • Mini-ITX Embedded Motherboard
Dimensions • 170 mm x 170 mm (L x W)
Operating Temp. • 0°C to 60°C
Storage Temp. • -20ºC to 80ºC
Rel. Humidity • 10 - 90% RH
Safety • CE, FCC Class A

Introduction 5
IMB-T10
1.5 Block Diagram
Figure 1-1: IMB-T10 Block Diagram
CH7511B
DMI
SPI Bus
SATA Port0
AMI SPI 16M ROM
PLTRST#
PCIe x1 Bus
PLTRST#
NTC6627UD
NUVOTON
Super I/O
Processor
Line
Out MIC
Atom D2550
Intel
NM10
INTEL
DDR3 x1
Channel A
VGA Conn
800 / 1066 MHz
PLTRST#
Mini PCIE x1
WLAN
High-Speed USB
Rear x4 port
PCIe x1 Bus
PCIe x1 Bus
USB 2.0
PLTRST#
PLTRST#
Realtek
RTL8111E GLAN1
Realtek
RTL8111E GLAN2
PCI Bus
PLTRST#
PCI x1
RTL ALC887
Audio Codec
Audio Header
DDI1
DDI0
HDMI Conn
LVDS2
1-ch/24bits
LVDS
LVDS
Header x4 port
PS/2 KB_MS
Header
GPIO Header
(2x8, 2.0mm Header)
7 GPI
7 GPO
+5V & GND
Rear COM Ports
COM_1(RS232/422/485)
COM_2(RS232)
Internal COM Ports
(2x20, 2.0mm Header)
COM_3(RS232)
COM_4(RS232)
COM_5(RS232)
COM_6(RS232)
LVDS1
2-ch/24bits
LPC Bus
SATA Port1
SATA x1
SATA x1
PI2DBS6212ZHE
(SATA Switch)
NXP CBTL04083BBS
(SATA Switch)
USB 2.0 x 1
SIM Card
socket
PCIe x1 Bus
PCIe x 1 slot
NCT5104D
Internal COM Ports
(2x20, 2.0mm Header)
COM_7(RS232)
COM_8(RS232)
COM_9(RS232)
COM_10(RS232)

6Introduction
1.6 Functional Description
Processor Support
The IMB-T10 embedded motherboard is equipped with the Intel®
Atom™ Processor D2550 in Micro-FCBGA11 packaging technol-
ogy. Implemented in 32nm process technology, the Intel® Atom™
D2550 is power-optimized to deliver robust performance per watt
for cost-effective embedded applications. Features include:
X1.86 GHz core speed and 10 watts TDP
XHyper-Threading Technology
Intel® NM10 Express Chipset
The IMB-T10 is based on the Intel® NM10Express Chipset It pro-
vides rich I/O capabilities and flexibility via high-bandwidth inter-
faces such as PCI Express, PCI, Serial ATA, and Hi-Speed USB
2.0 connectivity, and also provides an Intel® High Definition Audio
interface.
DDR3 memory
To meet the requirements of memory-intensive applications, the
IMB-T10 has a single-channel memory architecture supporting a
DDR3 800/1066 MHz SO-DIMM. The high-bandwidth memory
specification meets the requirements of the latest 3D graphics,
multimedia, and network application, and boosts system perfor-
mance by eliminating bottlenecks.
Intel® Graphics Media Accelerator GMA 3650
The Intel® Graphics Media Accelerator (GMA) 3650 provides an
integrated 3D graphics engine delivering sophisticated graphics
for large display applications. With support for DirectX 9 hardware
acceleration and 640 MHz display clock The Intel GMA 3650 pro-
vides a cost-effective and high-performance graphics solution.
The MB-T10 supports dual independent display technology,
enabling different content to be displayed on two separate display
terminals or a single workspace to be stretched across two display
devices.

Introduction 7
IMB-T10
Gigabit Ethernet
The IMB-T10 is equipped with the Realtek 8111E PCI Express
GbE controller.
Serial ATA
Storage is efficient and secure with the Serial ATA interface. Utiliz-
ing the Intel® NM10, the IMB-T10 supports two Serial ATA devices
capable of reading/writing data at up to 3 Gb/s. The SATA specifi-
cation improves chassis airflow via thinner and more flexible
cables with lower pin count. One of the two SATA interface is
shared with the mSATA module in Mini PCIe form factor (selected
by jumper).
USB 2.0
The IMB-T10 incorporates the Universal Serial Bus (USB) 2.0
specification that increases peripheral connection speed from 12
Mbps (USB 1.1) to 480 Mbps. USB 2.0 is backward compatible
with USB 1.1.
Hardware Monitoring
A built-in, proactive hardware monitoring system monitors the
CPU temperature, system temperature, and voltage levels to pre-
vent overheating and/or component damage, effect timely failure
detection, and ensure stable supply of current for critical mother-
board components.
Watchdog Timer
The watchdog timer (WDT) monitors system operations based on
user-defined configurations. The WDT can be programmed for dif-
ferent time-out periods, such as from 1 to 255 seconds or from 1 to
255 minutes. The WDT generates a reset signal, then a reset
request, after failure to strobe it within the programmed time
period. A register bit may be enabled to indicate if the watchdog
timer caused the reset event. The WDT register is cleared during
the power-on sequence to enable the operating system to take
appropriate action when the watchdog generates a reboot.

8Introduction
1.7 Mechanical Dimensions
Figure 1-2: IMB-T10 Board Dimensions
