Escolta BRAVO HE Series User manual

USER MANUAL
Most opmized way of mutual discussion in full
duplex between a leader and any one of par-
cipants at a meeng while all rest members are
listening.
Listen&Talk-L (HE-L)
OPTIMIZED MUTUAL DISCUSSION
SYSTEM IN FULL DUPLEX FOR GUIDE/LEADER.
Listen&Talk-P (HE-P)
OPTIMIZED MUTUAL DISCUSSION
SYSTEM IN FULL DUPLEX FOR PARTICIPANTS.
BRAVO HE
Listen&Talk

1. General Informaon
1.1 Introducon
The product “Listen&Talk-L” and “Listen&Talk-P”
are the most opmized way of mutual discussion
in full duplex between a leader and any one of
parcipants at a meeng while all rest members
are listening.
It combines quality and versality into the most
compact, simple to operate and easy to use with
state of the art technology.
1.2 Main Features
• Worldwide compable 2.4Ghz ISM band
soluon.
• Full duplex discussion between a leader and
any one of parcipants while all other members
are listening.
• Fully digitalized crystal-clear sound quality
and loud enough audio output over 150m
coverage.
• Easy to put on and stabilized ear set boom
microphone for a leader and high desirable
plug in microphone with comfortable D shape
earphone for parcipants.
• Support for a leader to publish with any
favorite music background or sound thru Line
In input.
• Extremely easy to set up in 3 steps only and
user-friendly features.
• Ultra compact, 50 x88 x15 mm and light
weight, 60g only.

• Long enough baery life over 12 hours.
• Convenient drop in charge or micro USB
charging system.
1.3 Available Accessories
Listen&Talk-L (HE-L)
• Ear set Boom Microphone
• Neck strap
• USB charging cable
Listen&Talk-P (HE-P)
• Plug In Microphone
• D shape earphone
• Neck strap
• USB charging cable
1.4 Oponal Accessories
• 20-slot mulple desktop charger
• 40-slot mulple desktop charger

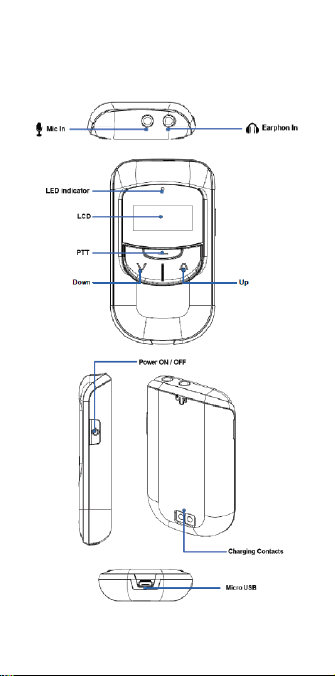

2. Controls and Indicators
2.1 Listen&Talk-L (HE-L)

2.2 Listen&Talk-P (HE-P)

3. Operaon
3.1 Power On/OFF
Press and hold the “Power” buon longer than 2
seconds to turn the device power on.
Aerward, press and hold the “Power” buon
longer than 2 seconds again to turn the device
power o.
3.2. Listen&Talk-L (HE-L)
The transmission is starng automacally as
soon as the power is turned on the device.
On the LCD, , vol 03, and
are displayed.
Its Group number has been set at “00” as a
default.
Plug the Ear set Boom Microphone into the
jack.
Adjust the desired volume level by press 56
Set the Group number to be an equal between
the Listen&Talk-L & Listen&Talk-P and use the
device.

3.3. Listen&Talk-P (HE-P)
On the LCD, , vol 03 are displayed when the
device power on.
The Volume level and Group number have been
set at “03” and “00” as a default.
Plug the Plug Microphone into the plug and
the D shape earphoneinto the jack.
Adjust the desired volume level by press 56
Set the Group number to be an equal between
the Listen&Talk-L & Listen&Talk-P.
Press the PTT buon longer than 1 second and
talk when you want to talk to the leader.
y are displayed when the transmit-
ng is acvated successfully.
on the LCD is displayed for the moment
when any one of other members is talking by
press his PTT buon earlier than you. In that
case, you need to wait unl disappeared.
If you pressed the PTT buon while was
displayed, the PTT is not acvated with a beep
alert.

3.4 Group selecon on Listen&Talk-L and
Listen&Talk-P
With ‘HE-L’ y el ‘HE-P’, press and hold the 5or
6 buon longer than 2 seconds. The “GRP”
on the LCD is blinking. Choose the Group num-
ber by pressing 5or 6 and then release all
the buons longer than 2 seconds to x it.
The blinking of “GRP” on LCD is stopped and the
newly selected Group number is displayed.
3.5 Line In on Listen&Talk-L (HE-L)
It is available to publish with a music back
ground. Connect the cable between Line In
and external audio source by using the Line
In cable and adjust the volume level of music
appropiate.
Note: The Line In cable couldn’t be working. It
is dependent on the wire diagram of external
audio source.
Please pay aenon to match the wire diagram
between the Line In of Listen&Talk-L and the
external audio source correctly.

4. Baery
The rechargeable Li-Ion baery 3.7V, 800mA
is installed in each device, Listen&Talk-L and
Listen&Talk-P.
Plug the USB charging cable into the USB port
and recharge the baery.
The Red color LED in the right side top corner
of device is turned on during the charging and
turned o automacally when the baery is fully
charged.
5. Specicaons
Radio Frequency Type
ISM 2403 MHz ~ 2480 MHz
Type
Full duplex communicaon
Interface radio
ISM 2.4GHz: GFSK Modulaon with Frequen-
cy Hoppingng
Voice Codec
16 KHz / 16 bits
Tx Max Output Power
10 mW
RX Sensivity
-95 dBm
Voice Latency
< 20 ms
Num. of Frequency Channel
80

Channel Spacing
500 KHz
Data Rate
500 Kbps
Freq. Bandwidth
500 KHz
Baery
Li-Ion, 3.7 V 800 mA
Antenna
Internal Chip Antenna
Autonomía
10 hours typically
Distance Range (LOS)
Hasta 150 m.
Frequency response
50 Hz ~ 8 kHz
Maximum operaon Transmiers
2 Transmiers simultaneously
Dimensione
50 x 88 x 15 mm.
Weight
60 grs.
