ESON X9S Installation instructions
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
1/9
X9S UserInstruction
、X9S Features
1、Afterconnected Wi-Fi”, Interactingaspeakerwithvoice
2、The smart speakerincludedBluetoothfunctions
3、Thespeakercan beshared togetherbysomeusers,twoormorespeakerscan be
controlledanytime, Freeconnected.
4、The speakerhasexclusiveAPPtoplaythe cloudmusic,Suchasdailymusic,Shrimp
music.
5、Loginyouramazon account,The speakercan be controlbynetworkingapplianceto
choosethesongs, news, shopping
6、The speakercanbewireless speakerphone function.

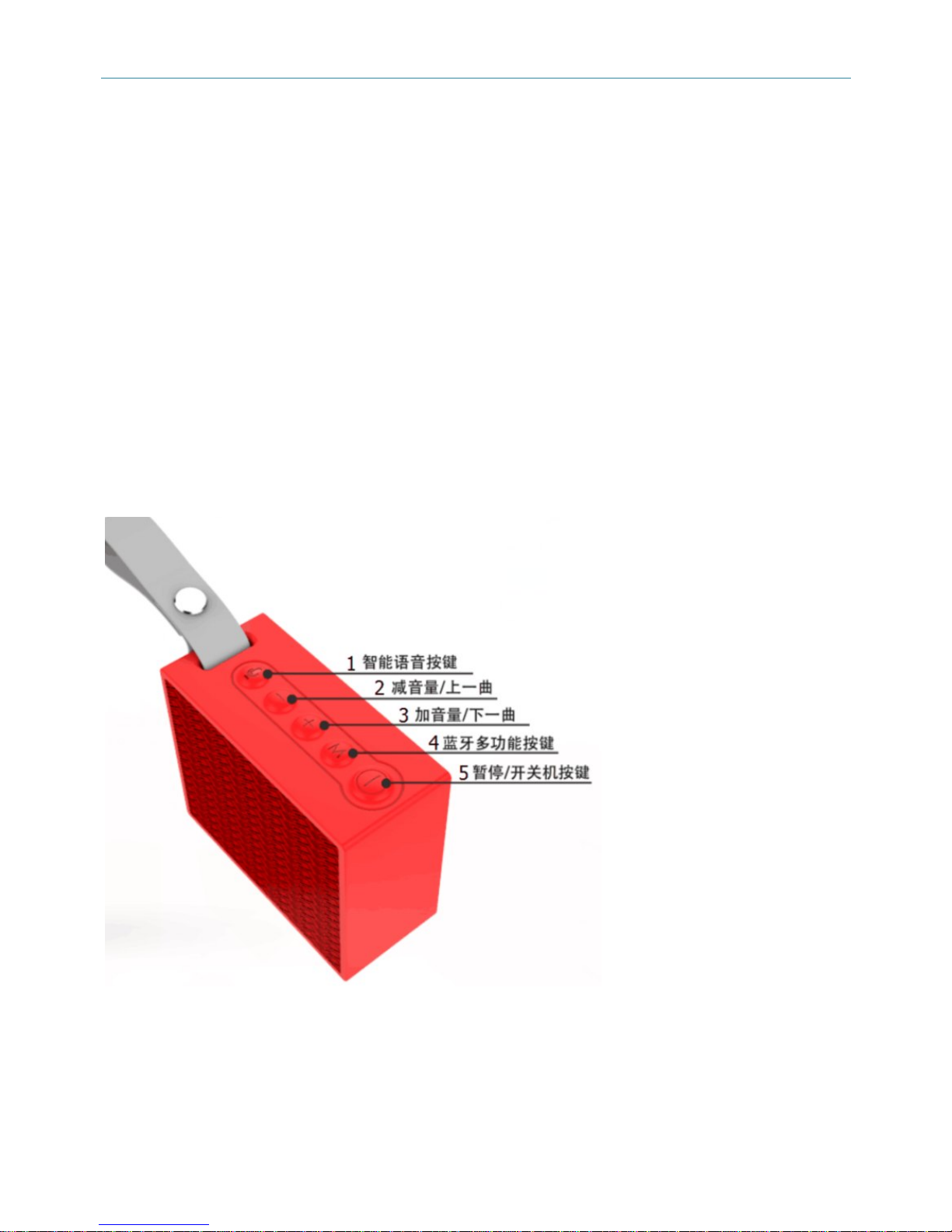

二、Buttoninstructionsoverview
1、Smartvoicebutton:On Wi-Fi”mode,Shortpress toenterthe voiceprompt,On
Bluetooth”mode, Short press toanswer/end acall, Longpress for2secondstorejecta
call.
2、Volumereduce/previoussong:Shortpress toVolumedown,On Bluetooth”mode,Long
press toprevioussong
3、Volumeincrease/next song:Shortpresstovolumeup,On Bluetooth”mode,Longpress
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
2/9
tonext song
4、Multi-functionbutton: Short presstoswitch Bluetooth”and Wi-Fi”.
On Bluetooth”mode,Longpress for2seconds,The currentBluetoothdevicewillbe
disconnected.
On Wi-Fi”mode,Longpress for2secondstoconnectnetwork,Longpress about10 seconds,
the wifiwill be restorefactorysetting.
5、Pause/On/Offbutton:Longpress for3secondstoturnon/off, On Bluetooth”Wi-Fi”mode,
Shortpress toplay/pause.

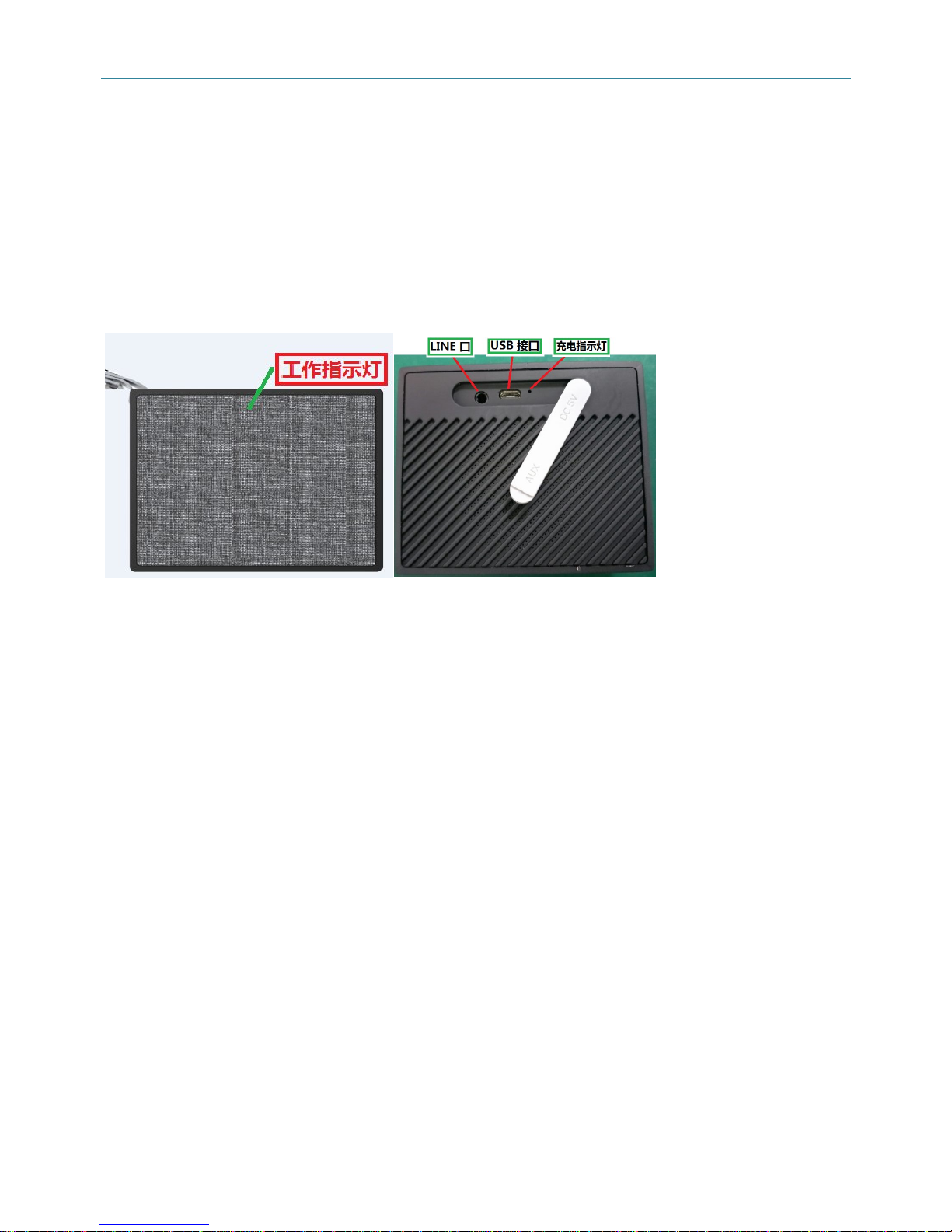

三、Interfacesand Indicatorlight overview
1、WorkingIndicatorlight: ”WIFI”modeforwhitelight, Bluetoothmode”forbluelight
2、ChargeIndicatorlight: Red light
3、Lineport:Externalsound source
4、USB port: Change
四、Operationinstruction：
On/Off：
Longpress for3seconds,WhiteLEDindicatorblinkingwith beep”.
Onpoweron status,Longpress for3seconds,Workingindicatorturnoff with beep”.
Charge
Thespeakercharged bymicroUSBcable,theredindicatorblinking,Indicatorwill turnoff
when itfullycharge.
Chargevoltage: 5.0V ±0.2
Chargeadapteroutput current: 1A.
Bluetoothmode.
1、Shortpress M”buttononstandbymode,blueindicatorblinking,SwitchingtoBluetooth
mode
2、Turnonyourphone’sBluetoothmodetopair.
3、Yourphone’sBluetoothcanbere-connectedforpreviouspaired speaker,blueindicatoris
on.
4、OnBluetoothmode,Short press ON”button toswitchplayorpause.
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
3/9
5、Adjustvolume：Shortpress +”button toincreasevolume,Shortpress -”buttontoreduce
volume
6、Changesongs:Longpress +”buttonfor2secondstoprevioussong,Longpress -”button
for2secondstoreducevolume.
7、Longpress M”buttonfor2secondstocancelconnected Bluetoothdevice,Blueindicator
blinking
8、TurnonotherBluetoothdevicetopair.
LINE IN:
1、Onpoweron mode,Connect3.5mm AudioCableandthespeaker,SwitchtoLineinmode
automatically, the whiteandblueindicatorblinkingtogether
2、Shortpress +” -”buttontoadjust the volume
3、Shortpress on/off”buttontoplayorpause
五、Wi-FiMode
1、TurnonyourcellphoneWIFI, connected successfullywiththe wireless router,remember
the password
2、APP downloadaddress
iOS: https://dln.bz/I/eson/1.0.4725
Eason: https://dln.bz/a/eson/2.8.0.170825
Scan & install
IOS systeminstall APP
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
4/9
Androidsysteminstall APP
Install the Androidsystemappsuccessful
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
5/9
Turnon ”App’’ installation steps
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
6/9
Picture1Picture2Picture3
Screen No.2Clickingthe "WI-FI setupwizard"
Screen No.3Clinking NEXT”
Picture4Picture5Picture6
Picture4:TheAPPWi-Finameisassameasyourcellphone,pleaseenterWi-Fipassword,
Clinkingthe Next”button
Picture5:Longpress the speaker M"buttonfor3secondstill you can hearthevoiceprompts,
Then clinkingthe Next”.
Picture6：The speakerwill connect successfulwithvoicepromptsafterabout1minute
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
7/9

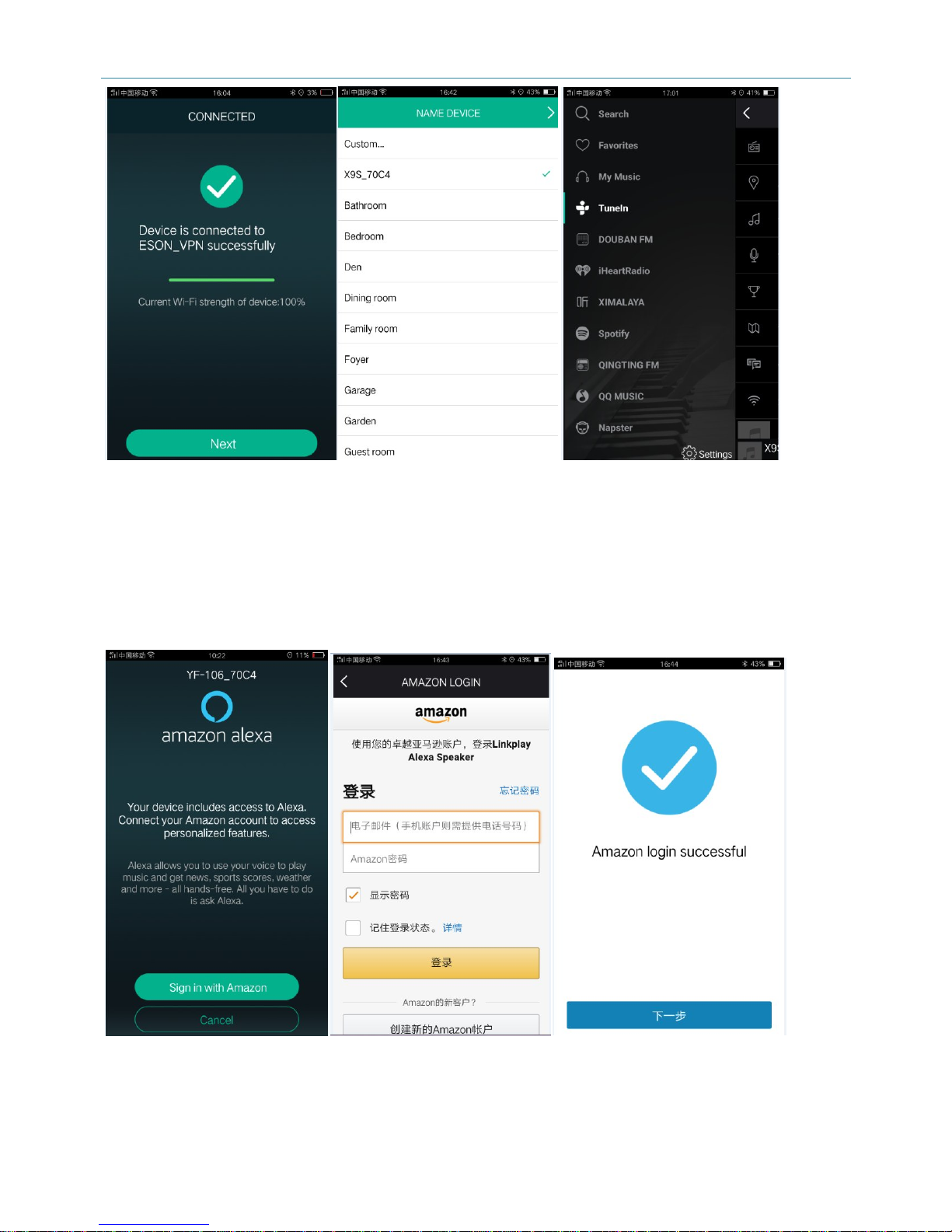

图7图8图9
Picture7: AfterdeviceisconnectedtoWi-Fisuccessful,then clinking Next”toswitchpicture8
Picture8:TheAPP listisusedtoassignasmart speakerplacement.
Picture9: Enteringthepage, choosingothervoiceplatform freely.
Picture10Picture11 Picture12
Picture10:Clinking SigninwithAmazon"tologinyouramazon accounttoswitchpicture11
page
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
8/9
Picture11: EnteringtheAlexaaccountandpasswordtoaccesstoAlexaservice.
Picture12: Signinamazon successful.
六、Amazon useinstruction
1、LoginAmazon successful, Interactingwithavoicespeaker.
Shortpress Microphone”buttonwithvoiceprompt，thenwhiteLEDindicatorison,Takingwith
Alexafreedom,ThewhiteLEDindicatorblinkingfast, The speakerwill readytoansweryour
questions.
2、The speakercanbe controlwithvoicewhen itconnected the smarthomeappliances
七、Productspecifications
Wireless standard：802.11b/g/n,1T1R
Support: IOS/Android/Windows7/8
Bluetoothversion: 4.2
Batterycapacity: 3.7V 1000mAH
SpeakerDriver: 4 Ω5W
Chargetime:2h
Networkworktime:about 4h
x9smartspeakerstreamsmusictoyoursoundsystem.Enjoylisteningtoyourmusicfromcloud
musicserviceprovidersand onlineradiowithoutconnectingyourphonetospeakers.Just
connectx9sspeakerandusetheESONplayerapptoplaymusicwirelesslyoveryourWiFi
Network.
X9S Features
1. Afterconnected Wi-Fi”, Interactingaspeakerwithvoice
2.Thesmart speakerincludedBluetoothfunctions
3.Thespeakercanbesharedtogetherbysomeusers,twoormorespeakerscan becontrolled
anytime, Freeconnected.
4.ThespeakerhasexclusiveAPP toplaythecloud music.
5.Loginyouramazonaccount,Thespeakercanbecontrolbynetworkingappliancetochoose
the songs, news, shopping
Shenzhen Eson TechnologyCo., Ltd.圳市易顺科技有限公司
9/9
6.Thespeakercanbewireless speakerphonefunction.
Get ax9smart speakerat www.esontech.com
StayTuned
Wewill beupdatingthe appregularlytointroducenewmusicserviceprovidersand features.
Signup youremail address togetupdatesat www.esontech.com.
FCC Caution：
Thisdevicecomplieswithpart15 ofthe FCCRules.Operationissubjecttothe followingtwo
conditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustaccept
anyinterferencereceived, includinginterferencethatmaycauseundesired operation.
AnyChangesormodificationsnotexpresslyapproved bythe partyresponsibleforcompliance
couldvoidtheuser's authoritytooperatethe equipment.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigital
device,pursuanttopart15 oftheFCC Rules.Theselimitsaredesigned toprovide reasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates
usesandcanradiateradiofrequencyenergyand,ifnotinstalledand usedinaccordancewith
the instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewill notoccurinaparticularinstallation. Ifthisequipmentdoescause
harmfulinterferencetoradioortelevision reception,whichcan bedetermined byturningthe
equipmentoff andon, theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof
the followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetween theequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiveris
connected.
-Consult the dealeroranexperiencedradio/TV technician forhelp.
Thedevicehasbeen evaluated tomeetgeneralRFexposurerequirement. The devicecan be
used inportableexposureconditionwithout restriction.
