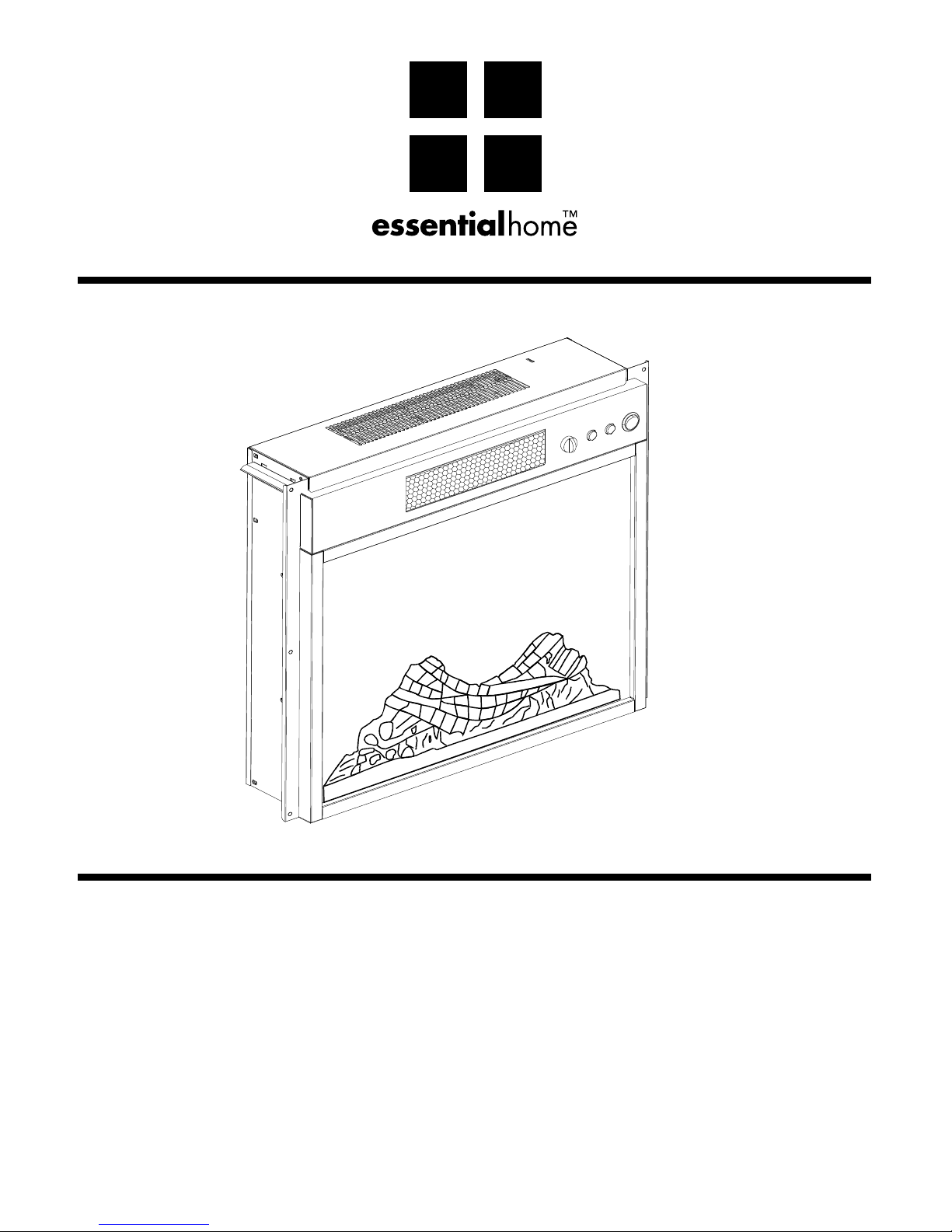

Essential Home SP18-1705-LED User manual

OWNER’S MANUAL
Date of purchase: _____/ _____/ _____
FINLEY FIREPLACE
Product code: 0-08487460-1
UPC code: 817266010267

HOME OWNER＇SINSTRUCTION MANUAL
Insert Model: SP18-1705-LED
ATTENTION
Also Requires-
Wood Fireplace Mantel
CONSUMER SAFETY INFORMATION
PLEASE READ THIS MANUAL BEFORE INSTALLING
AND OPERATING THIS APPLIANCE
WARNING
IF THE INFORMATION IN THIS MANUAL ISNOT FOLLOWED
EXACTLY AN ELECTRIC SHOCK OR FIRE MAY RESULT CAUSING
PRORERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
E-1
ELECTRIC FIREPLACE HEATER
Thank you and congratulations on your purchase of a Prokonian fireplace.
Please read the installation & operating instructions before using this
appliance.
ATTENTION
FIND A LOCATION FOR THE FIREPLACE HEATER THAT IS
PROTECTED FROM DIRECT SUNLIGHT.
FAILURE TO READ ALL INSTRUCTIONS MAY RESULT IN A POSSIBLE
ELECTRIC SHOCK, FIRE HAZARD AND / OR INJURY WILL VOID THE
WARRANTY
Prokonian, Inc.
63 Golden Street
Meriden, CT 06450
U.S.A
Made in China

E-2
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precauons should always follow to
reduce the risk of fire, electric shock, and injury to persons including the
following:
Read all instrucons before
using this appliance.
1.
This appliance is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
If provided, use handles when
moving this appliance .Keep
combusble material. Such as
furniture, pillows, bedding,
papers, clothes and curtains at
least 3 feet (0.9m) from the
front of this appliance and keep
them away from the sides and
rear.
2.
Extreme cauon is necessary
when any heater is used by or
near children or individuals with
disabilies and whenever the
fireplace is le operang and
unaended.
3.
If possible, always unplug this
appliance when not in use.
4.
Do not operate any heater with
a damaged cord or plug or aer
the heater malfuncons or if
it has been dropped or damaged
in any manner. Disconnect power
at service panel and have heater
inspected by a reputable electrician
before reusing.
5.
Any repairs to this fireplace
should be carried out by a
qualified service person.
6.
Under no circumstances
should this fireplace be
modified. Parts having to
be removed for servicing
must be replaced prior
to operang this fireplace
again.
7.
Do not use outdoors.8.
This heater is not intended
for use in bathrooms, laundry
areas and similar indoor
locaons. Never locate heater
where it may dall into a bathtub
or other water container.
9.
Do not run cord under
carpeng. Do not cover cord
with throw rugs, runners or
simailar covering. Arrange cord
away from traffic areas and
where it will not be tripped over.
10.
To disconnect this appliance,
turn controls to the off posion,
then remove plug from outlet.
11.

E-3
This appliance, when installed,
must be electrically grounded
in accordance with local codes
or, in the absence of local codes,
with the current CSA C22.1
Canadian Electrical Code or for
U.S.A. installaons, follow local
codes and the Naonal Electrical
Code, ANSI/NFPA NO.70.
13.
Do not insert or allow foreign
objects to enter any venlaon
or exhaust opening as this may
cause an electric shock or fire,
or damage the appliance.
14.
To prevent a possible fire, do
not block air intakes or exhaust
in any manner. Do not use on
so surfaces, like a bed, where
opening may become blocked.
15.
The heaters must not be
located immediately below
a socket-outlet.
16.
This appliance has hot and arcing
or sparking parts inside. Do not
use it in areas where gasoline.
paint or flammable vapors or
liquids are used or stored. This
fireplace should not be used as a
drying rack for clothing. Christmas
stockings or decoraons should
not be hung in the area of it.
17.
Use this appliance only as
described in the manual. Any
18.
other use not recommended by
the manufacturer may cause fire,
electric shock or injury to persons.
Always plug heaters directly into
a wall outlet / receptacle. Never
use with an extension cord or
reloadable power tap
(outlet / power strip).
19.
This heater has include a VISUAL
alarm to warn that parts of the
heater are geng excessively hot.
If the alarm flashes, immediately
turn the heater off, unplug the
unit and inspect for any objects on or
adjacent to the heater that may
have blocked the airflow or otherwise
cause high temperatures.
DO NOT OPERATE THE HEATER
WITH THE ALARM FLASHING.
20.
Connect to properly grounded
outlets only.
12.

E-4
Grounding pin
Cover of grounded
ou
tlet box
Metal screw
Adapter
Grounding
means
Grounding
pin
Figure 1
A
B
C
D
See figure 1 for the follow
direcons. This heater is for use
on 120 volts. The cord has a plug
as shown at A. An adapter as
shown at C is available for
connecng three-blade grounding
type plugs to two-slot receptacles.
The green grounding plug
extending from the adapter must
be connected. To a permanent
ground such as a properly
grounded outlet box. The adapter
should not be used if a three-slot
grounded receptacle is available.
21.
SAVE THESE INSTRUCTIONS

E-5
PROBLEM SOLUTION
1.No power, logs do not glow. 1a.Check that unit is plugged into
a standard 120 volt outlet.
1b. Press POWER switch several
mes, make sure power is set at
“ON” posion.
2. POWER switch light up and press
the FLAME buon, but no flame effect.
3. Logs Glow, flame effect does not
work
2a. Open the rear cover, then check
the wire connector of LED light bar
is loosen.
2b. Replace with the new LED light
bar.
3a. Open the rear cover, then check
if spinner motor was working. If
not, call customer service.
4. Heater does not blow warm air.
5. Heater doesn’t work, but POWER
and HEATER switches are in the
“ON” posion and thermostat is set.
(see soluon 4b)
5a. Turn all switch to the “OFF”
posion and unplug the unit from
the wall outlet for 5 minutes.
Aer 5 minutes plug the unit back
into wall outlet, and operate as
normal.
6. Flame effect flash and
heater funcon does not
work.
6a. The heater is geng
excessively hot, immediately
turn the heater off, unplug the
unit and inspect for any and
inspect for any objects on or
adjacent to the heater that may
cause high temperatures.
4a.Check the HEATER switch is in
“ON” posion. POWER switch
should light up.
4b. Adjust the temperature seng
to ensure that the thermostat is set
higher that the current room
temperature.
TROUBLE SHOOTING GUIDE

MANTEL LOCATION
ELECTRICAL SPECIFICATIONS
SPECIFICATIONS
Voltage: 120 VAC, 60HZ
Amps: 11.7 amps
Watts: 1400 Watts
CLEARANCE TO COMBUSTIBLES
CLEANING TRIM
E-6
When choosing a locaon for your
new fireplace, ensure that the
general instrucons are followed.
Also for best effect, install the
fireplace out of direct sunlight.
A 15 AMP, 120 Volt, 60 Hz circuit
with a properly grounded outlet is
required. Preferably, the fireplace
will be on a dedicated circuit as
other appliances on the same circuit
may cause the circuit breaker to trip
or the fuse to blow when the heater
is in operaon. The unit comes
standard with 6 fee (1.8m) three
wire cord , exing from the rear of
the fireplace. Plan the installaon to
avid the use of an extension cord. If
an extension cord must be used, it
must be a minimum 14 AWG; three
wires with grounding type plug
connector and rated not less than
1875 was. The cord shall not be
more than 20 feet (6m) in length.
Keep electrical cord, drapery, furniture
and other combusbles at least 3 feet
(0.9m) from the front of the heater and
away from the sides.
Clean the metal trim using a so
cloth, slightly dampened with citrus
oil based product and buff with a
clean so cloth. DO NOT use brass
polish or household cleaners as these
products will damage the metal trim.
Citrus oil based products can be
obtained at supermarkets or
hardware stores.
ELECTRICAL CONNECTION
Cold climate installaon
Recommendaon:
When installing this unit against a
non-insulated exterior wall or chase, it is
mandatory that the outer walls be
insulated to conform to applicable
insulaon codes.

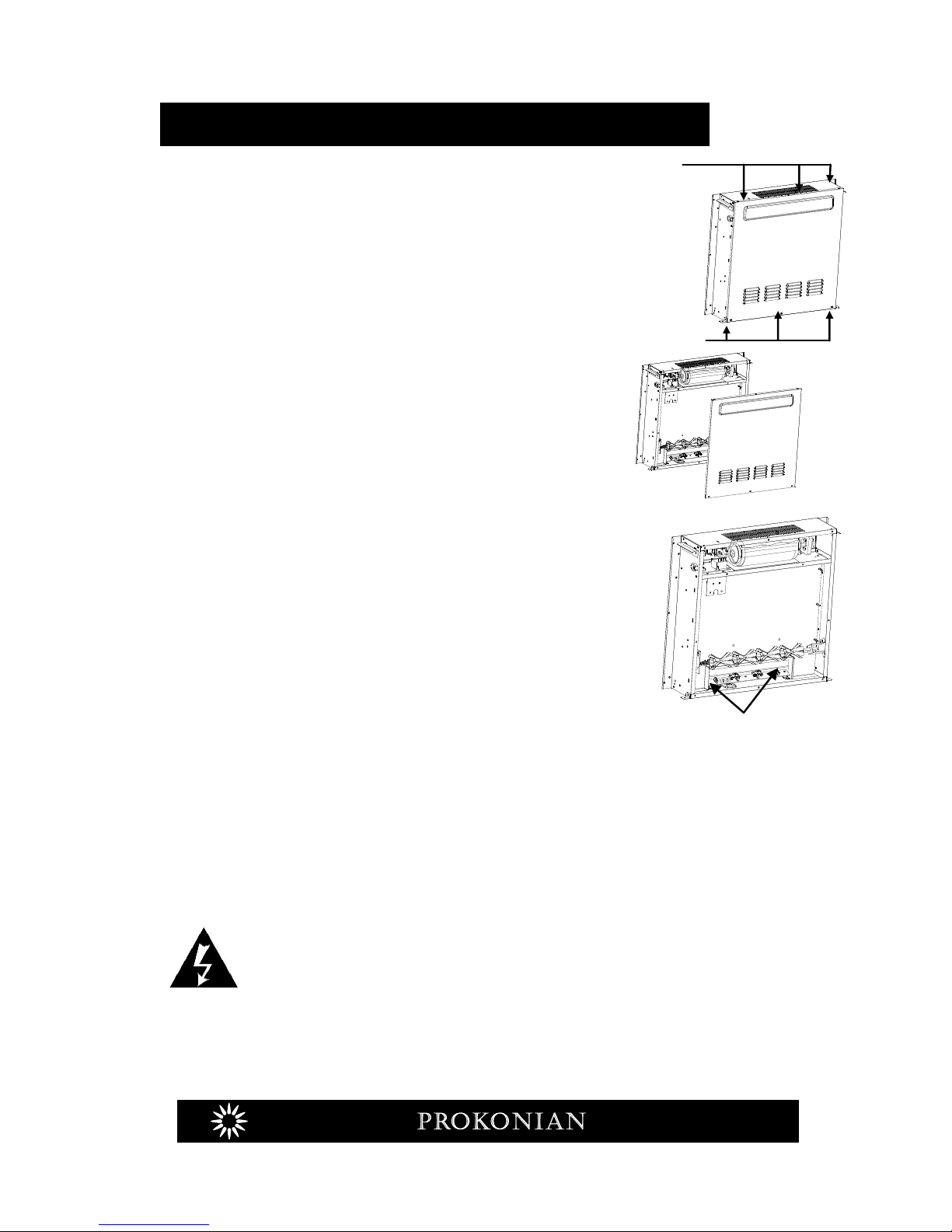

REPLACE THE LED LIGHT BAR (FOR SP18)
Figure a
Figure c
Unscrew this
screw to loose the
LED light bar
3 screw
Figure b
3 screw
6 screw
E-7
This electric fireplace uses one LED light
bar for convenience, if a LED light bulb
burnt out, it is a good idea to replace
the whole LED bar at the same me.
1). Turn the POWER switch off, and
then unplug the power cord from the
wall outlet.
2). If fireplace has been operang, Let
the unit cool at least 2 hours.
3). Unscrew the 6 screw then remove
the back plate (figure a and b)
4). Unscrew the LED light bar from the
bracket, and replace the new LED light
bar in locaon, DO NOT OVERTIGHTEN
THE SCREWS ( figure c ).
5). Follow steps 3 and 4 in reverse order
to reinstall LED light bar and back plate.
NOTE: We supply new LED light bar for this unit. New LED light bar can be
purchased at our customer service centre, please refer to the customer
service informaon.
WARNING: Do not use other LED source. Use of other LED source
may cause the shock of fire, causing property damage or person-
al injury.

E-8
Insert Model:SP18-1705-LED
TO ACCESS CONTROL PANEL – Control panel can be accessed at upper-right
corner of insert.
POWER – The POWER switch supplies power to all of the funcons of the
fireplace.
HEATER – Your fireplace consists of a fan forced wire element heater. The
HEATER switch turns the heater ON and OFF.
FLAME- FLAME buon adjusts the flame effect brightness. Press this buon to
dims the flame effect light unll turn it OFF.
TEMPERATURE – The temperature control knob regulate the temperature level of
the heater. The further of knob is rotated clockwise, the higher of set point
temperature. Turning the knob counter clockwise will lower of set point tempera-
ture. Use this funcon to help regulate the ambient temperature level.
WARNING: During any service of this appliance, the power to the unit must
be turned off. First press the main power switch to off. Then remove the
electrical plug from the wall outlet.
This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilies, or lack of experience and
knowledge, unless they’ve been given supervision or instrucon concerning
use of the appliance by a person responsible for their safety.
The adult should supervise the children to guarantee they won’t play the
product.
OPERATION BY THE CONTROL PANEL
IMPROTANT: THE HEATER MUST BE PROPERLY INSTALLED BEFORE IT IS USED.
TEMP ERAT URE HEATER FL AME POWE R

E-9
WARNING: During any service of this appliance, the power to the
unit must be turned off. First turn the main power switch to the
“OFF” posion. Then remove the electrical plug from the wall
outlet.
MAINTENANCE
WARNING: Make sure the power is turned off before
proceeding. Any electrical repairs or rewiring of this unit
should be carried out by a licensed electrician in accordance
with naonal and local codes
If repairing or replacing any electrical component or wiring, the
original wire roung, color coding and securing locaons must
be followed.
WARNING: Electrical outlet wiring must comply with local
building codes and other applicable regulaons to reduce the
risk of fire, electrical shock and injury to persons.
WARNING: Do not use this fireplace if any part of it has been
under water. Immediately call a qualified service technician
to inspect the fireplace and replace any part of the electrical
system.
WARNING: Disconnect power before aempng any
maintenance or cleaning to reduce the risk of fire, electrical
shock or personal injury.
The motors used on the fan and the flame generator assembly are pre-lubricated
for extended bearing life and require no further lubricaon. However, periodic
cleaning / vacuuming of the fan / heater unit is recommended. Make sure the unit
is turned OFF and unplugged and that the heang element of the heater is cool.
Whenever you are cleaning the heater or fireplace.

BASIC WARRANTY
E-10
Prokonian Inc. (hereinaer referred to collecvely as the (“Company”)
warrants that your new Prokonian Electric Fireplace is free from
manufacturing and material defects for a period of one year from date of
purchase. Subject to the following condions and limitaons.
This electric fireplace must be installed and operated at all mes in
accordance with the installaon and operang instrucons furnished
with the product. Any unauthorized repair, alteraon, willful abuse,
accident, or misuse of the product shall nullify this warranty.
This warranty is non-transferable, and is made to the original owner,
provided that the purchase was made through an authorized supplier of
the company.
The warranty is limited to the repair or replacement of part(s) found to
be defecve in material or workmanship, provided that such part(s) have
been subjected to normal condions of use and service, aer sad defect
is confirmed by the Company’s inspecon.
This warranty does not cover the LED light bar included with the
Prokonian Electric Fireplace.
The Company may, at its discreon, fully discharge all obligaons with
respect to this warranty by refunding the wholesale price of the
defecve part(s).
Any installaon, labor construcon, transportaon, or other related
costs/expenses arising from defecve part(s), repair, replacement, or
otherwise of same , will not be covered by this warranty, nor shall the
Company assume responsibility for same.
The owner/user assumes all other risks. If any including the risk of any
direct, indirect or consequenal loss or damage arising out of the use. Or
inability to use the product, except as provided by law.
1.
2.
3.
4.
5.
6.
7.
PROKONIAN ELECTRIC FIREPLACE MODELS
1 YEAR LIMITED WARRANTY

E-11
E-12
IF WARRANTY SERVICE IS NEEDED
This warranty is void if:
a. The fireplace is subjected to prolonged periods of dampness or
condensaon.
b. Any unauthorized alteraon, willful abuse, accident, or misuse of the
product.
c. You do not have the original receipt of purchase.
Contact the company, at [email protected] or call
[phone] have your warranty, your sales receipt, locaon of
purchase and the model / serial number of your Prokonian products.
For Customer Service
E-Mail: [email protected]
Toll Free Number: [phone]
All other warranes – expressed of implied – with respect to the prod-
uct, its components and accessories, or any obligaons/ liabilies on the
part of the Company are hereby expressly excluded.
The Company neither assumes, nor authorizes any third party to
assume, on its behalf, any other liabilies with respect to the sale of the
Prokonian product.
The warranes as outlined within this document do not apply to non
Prokonian accessories used in conjuncon with the installaon of this
product.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
8.
9.
10.
11.

Made in / Hecho en CHINA for Kmart Corporation, Hoffman Estates, IL 60179
SHOP kmart.com
For questions or comments about the product:
Email: Customerser[email protected] or Call toll-free: [phone]
Please refer to part code when reordering
