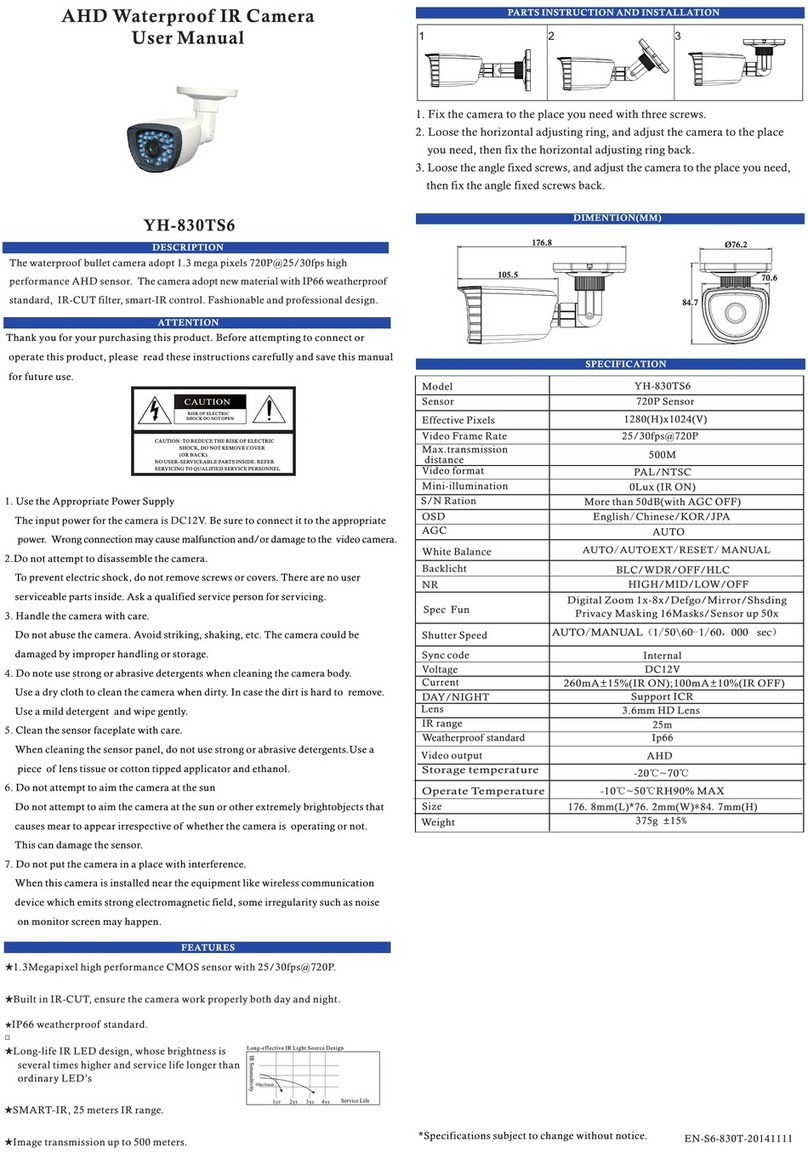

ETAS YH-830TS6 User manual

AHD Waterproof IR
User Manual
Camera
DESCRIPTION
ATTENTION
SPECIFICATION
DIMENTION(MM)
FEATURES
PARTS INSTRUCTION AND INSTALLATION
*Specifications subject to change without notice. EN-S6-830T-20141111
Thank you for your purchasing this product. Before attempting to connect or
operate this product, please read these instructions carefully and save this manual
for future use.
CAUTION
RISK OF ELE CT RI C
SHOCK DO NOT OPEN
CAUTIO N: TO REDUCE THE RIS K OF ELECTRIC
SHOCK, D O NOT RE MOVE COVER
(OR BACK ).
NO USER- SERVICE AB LE PARTS INSIDE. R EF ER
SERVICING TO QUA LIFIED SERVICE PERSONN EL
1.
is DC12V.
2.
3.
4
5.
6.
7.
Use the Appropriate Power Supply
The input power for the camera Be sure to connect it to the appropriate
power. Wrong connection may cause malfunction and/or damage to the video camera.
Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers. There are no user
serviceable parts inside. Ask a qualified service person for servicing.
Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera could be
damaged by improper handling or storage.
. Do note use strong or abrasive detergents when cleaning the camera body.
Use a dry cloth to clean the camera when dirty. In case the dirt is hard to remove.
Use a mild detergent and wipe gently.
Clean the sensor faceplate with care.
When cleaning the sensor panel, do not use strong or abrasive detergents.Use a
piece of lens tissue or cotton tipped applicator and ethanol.
Do not attempt to aim the camera at the sun
Do not attempt to aim the camera at the sun or other extremely brightobjects that
causes mear to appear irrespective of whether the camera is operating or not.
This can damage the sensor.
Do not put the camera in a place with interference.
When this camera is installed near the equipment like wireless communication
device which emits strong electromagnetic field, some irregularity such as noise
on monitor screen may happen.
YH-830TS6
The waterproof bullet camera adopt 1.3 mega pixels 720P@25/30fps high
performance AHD sensor. The camera adopt new material with IP66 weatherproof
standard, IR-CUT filter, smart-IR control. Fashionable and professional design.

★
several times higher and service life longer than
ordinary LED’s
Long-life IR LED design, whose brightness is
★1.3Megapixel high performance CMOS sensor with 25/30fps@720P.
★Built in IR-CUT, ensure the camera work properly both day and night.
★IP66 weatherproof standard.
★SMART-IR, 25 meters IR range.
★Image transmission up to 500 meters.
260mA±15%(IR ON);100mA±10%(IR OFF)
720P Sensor
Model
Sensor
Video format
Sync code
S/N Ration
Mini-illumination
AGC
White Balance
OSD
Voltage
Current
Lens
Operate Temperature
Size
Weight
PAL/NTSC
Internal
AUTO
English/Chinese/KOR/JPA
DC12V
More than 50dB(with AGC OFF)
Shutter Speed
Spec Fun
NR
Backlicht
0Lux (IR ON)
3.6mm HD Lens
Video output AHD
Storage temperature
IR range
Weatherproof standard
25m
Ip66
HIGH/MID/LOW/OFF
BLC/WDR/OFF/HLC
Effective Pixels 1280(H)x1024(V)
Max.transmission
distance 500M
AUTO/AUTOEXT/RESET/ MANUAL
DAY/NIGHT
Support ICR
-10 ~50 RH90% MAX℃ ℃
-20℃~70℃
Video Frame Rate 25/30fps@720P
Digital Zoom 1x-8x/Defgo/Mirror/Shsding
Privacy Masking 16Masks/Sensor up 50x
AUTO/MANUAL（1/50\60-1/60，000 sec）
YH-830TS6
176.8mm(L)*76.2mm(W)*84.7mm(H)
375g ±15%
1. Fix the camera to the place you need with three screws.
2. Loose the horizontal adjusting ring, and adjust the camera to the place
you need, then fix the horizontal adjusting ring back.
3. Loose the angle fixed screws, and adjust the camera to the place you need,
then fix the angle fixed screws back.
1 2 3
70.6
84.7
105.5
176.8 Ø76.2
