AIR ANTENNA SUPPORT
MANUAL
PRODUCT NO: 5861
INSTALLATION INSTRUCTION
AIR ANTENNA SUPPORT

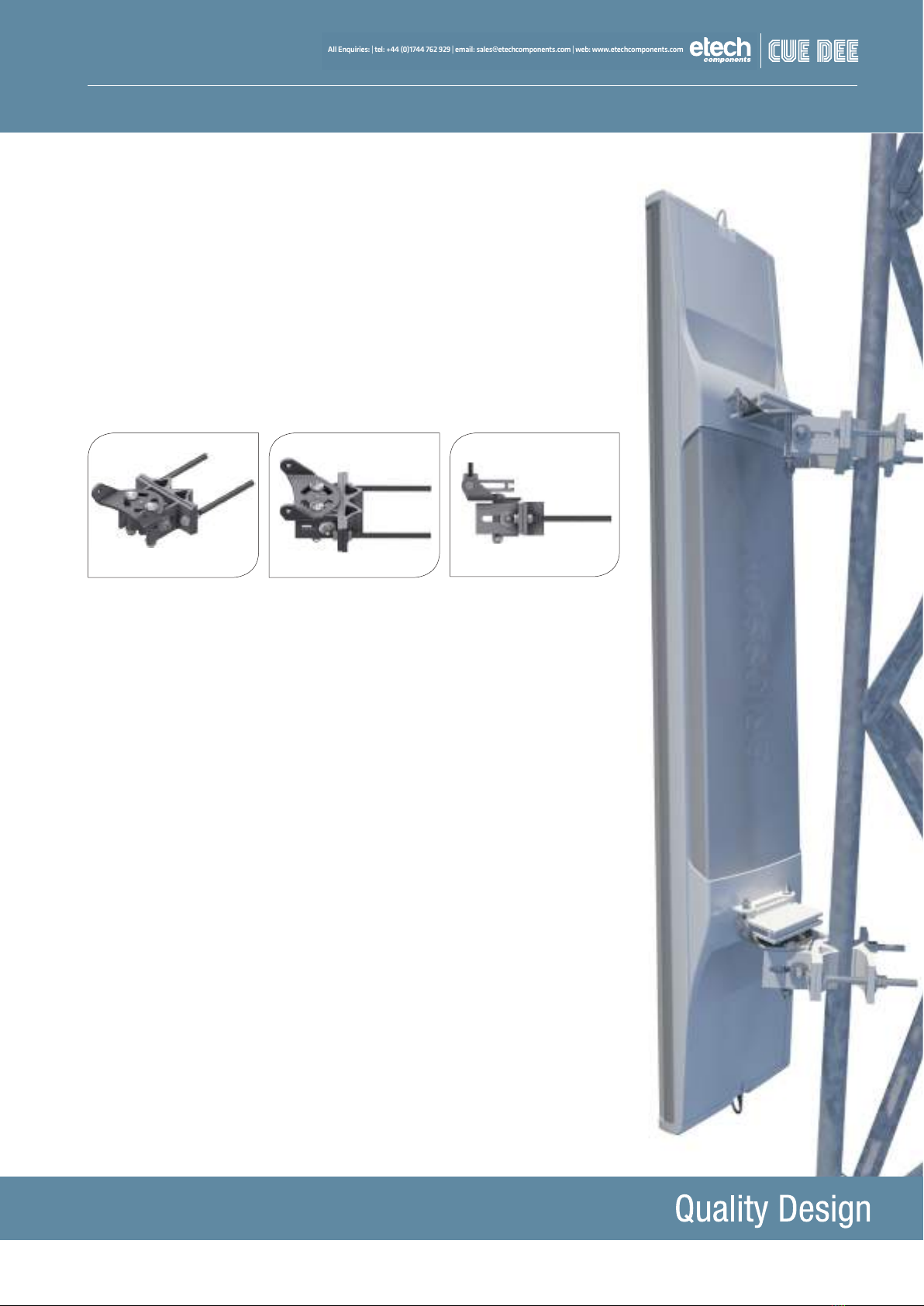

AIR antenna support in two levels for installation of one AIR unit or other
common panel antenna on the market. For installation directly on tower
leg or other vertical structures of various size and shape.
Mounting tube not needed. Including features such as compensation for
inclined tower legs, turnable azimuth and mechanical tilt.
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com

Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
CUE DEE ”YOUR INNOVATIVE PARTNER” 32 CUE DEE ”YOUR INNOVATIVE PARTNER”
Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
AIR ANTENNA SUPPORT AIR ANTENNA SUPPORT
MANUAL MANUAL
PRODUCT NO: 5861 PRODUCT NO: 5861
CONTENTS
1. PRODUCT COVERED IN THIS INSTALLATION INSTRUCTION.................................................... 2
2. PARTS INCLUDED................................................................................................................. 3
3. PACKAGE DIMENSIONS ........................................................................................................ 3
4. PREPARATION OF THE BRACKET........................................................................................... 4
5. MOUNTING THE BRACKET TOWARDS THE ANTENNA............................................................. 7
6. MOUNTING THE ANTENNA TOWARDS THE TOWER LEG ......................................................... 8
6. MOUNTING EXAMPLES......................................................................................................... 10
7. YOUR NOTES........................................................................................................................ 11
1. PRODUCT COVERED IN
THIS INSTALLATION INSTRUCTION
This installation instruction covers the Air antenna support. The support are made of anodized alu-
minium and the fasteners are acid proof stainless steel. This instruction shows howe the brackets
are assembled and mounted towards the Air antenna.
2. PARTS INCLUDED
3. PACKAGE DIMENSIONS
LENGTH: WIDTH: HEIGHT: WEIGHT:
285 mm 190 mm 150 mm 8 kg
ITEM: QTY: ART. NO: PART NUMBER: REV: DESCRIPTION: STANDARD:
1 2 5432 CD 990583-M12 A Clamp Profile, Front
2 2 5433 CD 990584-M12 A Clamp Profile, Back
3 2 5856 CD 990657-02 A Tower Tilt Part
4 2 5855 CD 990657-03 A Rotation Profile
5 2 5863 CD 990657-05 Antenna Tilt Part
6 2 5870 CD 990657-06 B Rotation Part
7 1 2368 KN 6x45 A4 Rivet DIN 660
8 4 2243 M6S M10x30H A4 Hex Head Bolt DIN 933
9 4 1308 BRB M10 A4 Washer DIN 125 A
10 4 1405 LM M10 A4 Lock Nut DIN 985
11 4 1334 M6S M12x35H A4 Hex Head Bolt DIN 933
12 2 1331 M6S M12x160 A4 Hex Head Bolt DIN 931
13 4 5918 M6S M12x200 A4-70 Hex Head Bolt Svetsad
14 4 5884 MVBF M12x100 A4 Cup Head Square Neck Bolt DIN 603
15 16 1309 BRB M12 A4 Washer DIN 125 A
16 4 1318 BRBS M12 A4 Large Washer DIN 9021
17 12 1396 M6M M12 A4 Nut DIN 934
18 10 1406 LM M12 A4 Lock Nut DIN 985
19 4 1310 BRB M16 A4 Washer DIN 125 A
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com

Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
CUE DEE ”YOUR INNOVATIVE PARTNER” 54 CUE DEE ”YOUR INNOVATIVE PARTNER”
Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
AIR ANTENNA SUPPORT AIR ANTENNA SUPPORT
MANUAL MANUAL
PRODUCT NO: 5861 PRODUCT NO: 5861

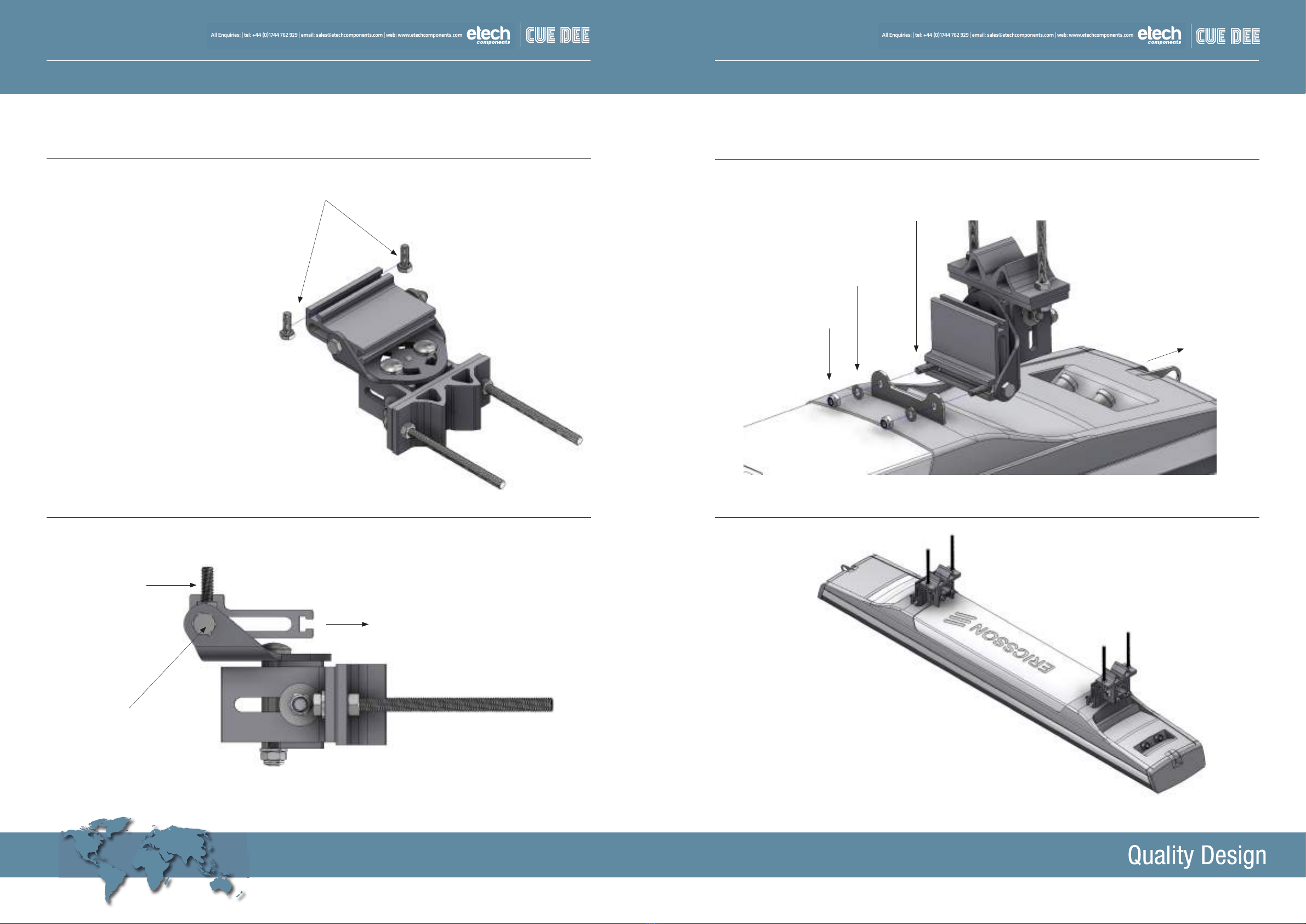

PREPARATION OF THE BRACKET
STEP 1
STEP 2
Preassembled at delivery.
Nut M12
Washer M12
Bolt M12x200
Nut M12
Mount the 2pc M12x200 and tighten M12 nut to moment 57 Nm.
STEP 3
STEP 4
1) Push the parts to its bottom po-
sition and tighten the M12 locking
nut on both sides.
2) Make sure that the rotating plate is in a neutral position like
the picture and tighten the two M12 locking nuts underneath.
Locking nut M12
Washer M12
Antenna Tilt Part Bolt M12x160
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com

Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
CUE DEE ”YOUR INNOVATIVE PARTNER” 76 CUE DEE ”YOUR INNOVATIVE PARTNER”
Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
AIR ANTENNA SUPPORT AIR ANTENNA SUPPORT
MANUAL MANUAL
PRODUCT NO: 5861 PRODUCT NO: 5861
STEP 5
STEP 6
Bolt M10x30
Bolt M10x30
M12x160 bolt
Pull the antenna tilt part to its bottom position like
picture and then tighten the M12x160 bolt.
Slide on the two Bolt M10x30
to the antenna tilt part.
MOUNTING THE BRACKET TOWARDS THE ANTENNA
STEP 7
STEP 8
TIGTENING MOMENT FOR M10 = 45 Nm
M10x30 bolt
M10 Washer
M10 Locking nut
Mount the brackets in two
levels as shown in picture.
Down
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com
All Enquiries: | tel: [phone] | email: [e-mail] | web: www.etechcomponents.com

Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
CUE DEE ”YOUR INNOVATIVE PARTNER” 98 CUE DEE ”YOUR INNOVATIVE PARTNER”
Welcome to visit our homepage for more information and manual downloads.
www.cuedee.com • [email protected]
AIR ANTENNA SUPPORT AIR ANTENNA SUPPORT
MANUAL MANUAL
PRODUCT NO: 5861 PRODUCT NO: 5861

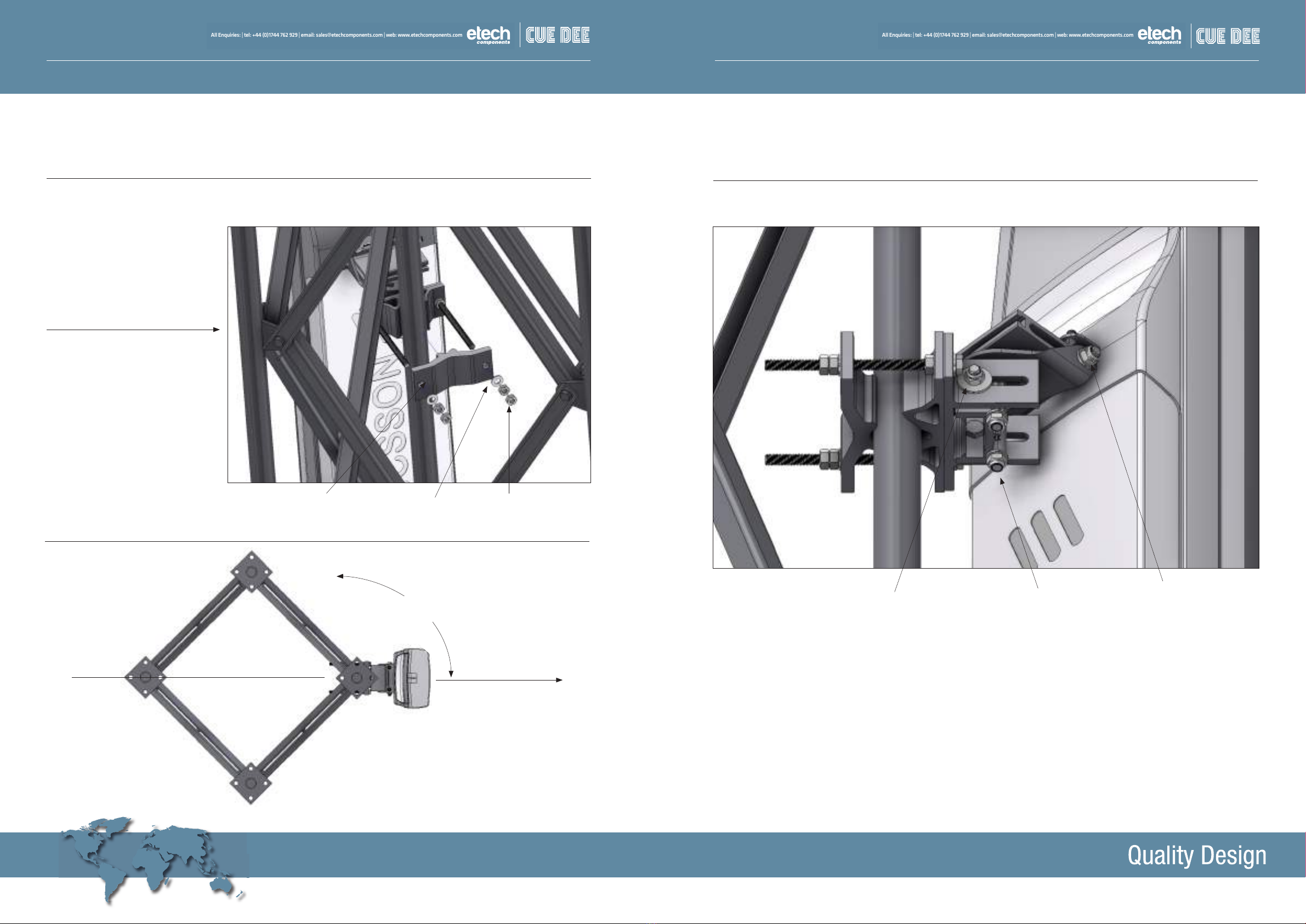

MOUNTING THE ANTENNA TOWARDS THE TOWER LEG
