ETIC RAS-I1128e User manual

RAS-M156e RAS-I1128e
RAS- G134e RASG12e
Remote access server
_________________
User’s guide
Document reference: 9014509-03
_________________

The Remote access server family is manufactured by
ETIC TELECOMMUNICATIONS
13 Chemin du vieux chêne
38240 MEYLAN
FRANCE
TEL : + 33 4-76-04-20-00
FAX : + 33 4-76-04-20-01
e-mail : [e-mail]
web : www.etictelecom.com
Hotline
TEL : + 33 4-76-04-20-05
FAX : + 33 4-76-04-20-01
e-mail : [e-mail]

Content
OVERVIEW
1.
PRODUCT IDENTIFICATION ...................................................................................... 9
2. PRODUCT OVERVIEW.............................................................................................. 10
2.1. Product function........................................................................................... 10
2.2. Remote PC to RAS communication capabilities....................................... 11
2.3. FUNCTIONS OVERWIEW.......................................................................................... 12
INSTALLATION
1 PRODUCT DESCRIPTION......................................................................................... 15
1.1 Leds ............................................................................................................... 15
1.2 Connectors ................................................................................................... 16
1.3 Micro-switches ............................................................................................. 17
2
SUPPLY VOLTAGE ................................................................................................... 17
3 FUSE 17
4 ETHERNET INTERFACE ........................................................................................... 18
5 FANS 18

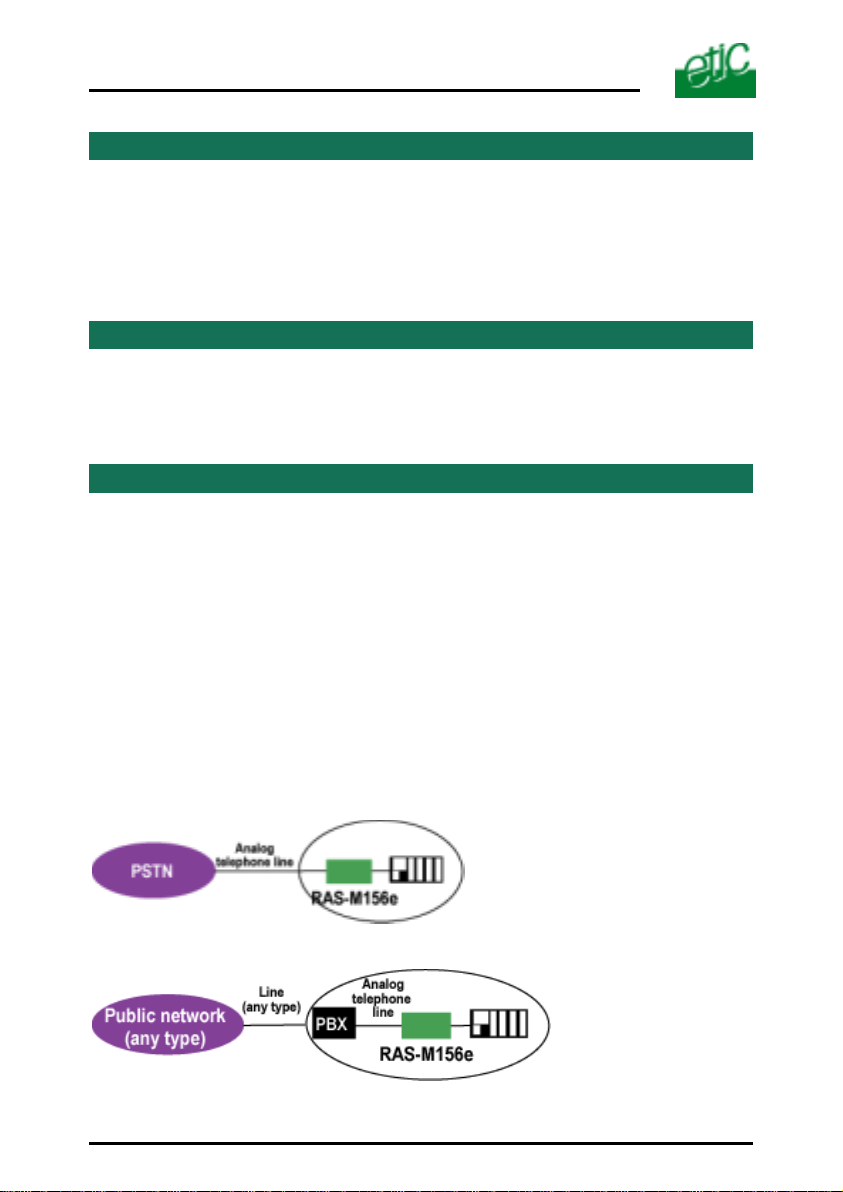

6 TELEPHONE LINE CONNECTION (RAS-M156E) .................................................... 18
7 ISDN CONNECTION (RAS-I1128E)........................................................................... 19

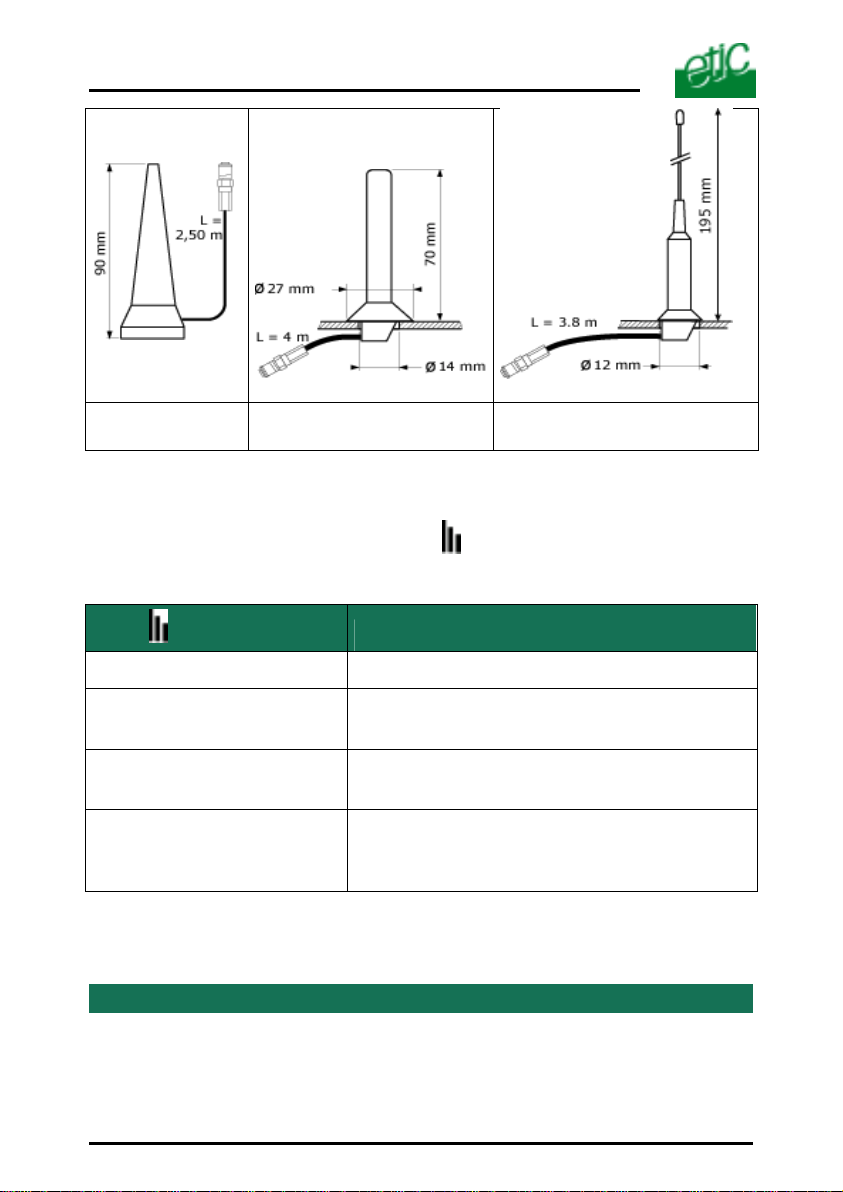

8 GSM PRODUCTS INSTALLATION ( RAS-G134E OR RAS-G12E) ............................... 19
9 GPRS SERVICE AVAILABILITY ( RAS-G12E) ............................................................ 20
10 RS232 / RS485 INTERFACE .....................................................................................21
11 INPUTS / OUTPUTS CONNECTION..........................................................................21
12 INTERNET SUBSCRIPTIONS.................................................................................... 23
12.1 Remote user PC subscription ..................................................................... 23
12.2 RAS subscription ......................................................................................... 23
CONFIGURATION
1
OVERVIEW................................................................................................................. 25
2
CONFIGURATION THROUGH ETHERNET .............................................................. 25
2.1 Configuration with a PC directly connected to the RAS ..........................25
2.2 Configuration through the LAN .................................................................. 26

./.. CONFIGURATION
3
REMOTE CONFIGURATION ..................................................................................... 27
4 WRONG IP ADDRESS OR LOGIN ............................................................................ 28
5 PRODUCT CONFIGURATION................................................................................... 29
5.1 Saving configuration modifications........................................................... 29
5.2 Administration server overview.................................................................. 29
5.3 « System configuration » menu..................................................................31
5.3.1 « IP Protocol» menu.......................................................................31
5.3.2 “User list” menu...............................................................................32
5.3.3 « Target list» menu.........................................................................35
5.3.4 « Date & time » menu.....................................................................35
5.3.5 « Modem » menu............................................................................35
5.3.6 « RS232 RS485 »..........................................................................35
5.3.7 « Save / restore » menu.................................................................35
5.3.8 « Reboot » Menu............................................................................35
5.4 ”Security” menu ........................................................................................... 36
5.4.1 «Administration rights» menu.........................................................36
5.4.2 « Fire-wall » menu.........................................................................36
5.4.2.1 Overview.................................................................................36
5.4.2.2 Building the firewall.................................................................37
5.4.3 « VPN » menu ................................................................................39
5.5 « Internet configuration » menu .................................................................39
5.5.1 “Account” menu...............................................................................39
5.5.2 « Routing » menu ........................................................................40
5.5.3 “Remote control” menu...................................................................42
5.5.4 “Dynamic IP address” menu...........................................................43
5.5.4.1 Transmission of the IP address to a DynDns server...............43
5.5.4.2 Transmission of the IP address inside an email.....................45
5.5.4.3 Transmission of the iP address of the RAS to a FTP server..46
5.6 «IP<>RS » gateway....................................................................................... 47
5.6.1 « Modbus » menu...........................................................................48
5.6.1.1 Definitions...............................................................................48
5.6.1.2 ETIC modbus gateway capabilities.........................................48
5.6.1.3 Modbus server gateway..........................................................49
5.6.1.4 “Modbus client” gateway.........................................................52
5.6.2 "Transparent" menu........................................................................53
5.6.2.1 "Raw client" gateway...............................................................54
5.6.2.2 "Raw server" gateway.............................................................56
5.6.2.3 “Multicast”menu......................................................................58
5.6.3 « Unitelway » menu........................................................................60

./. CONFIGURATION
5.7 « Diagnostic» menu.............................................................................. 61
5.8 « Alarm email» menu (RAS-M156e, RAS-I1128e, RAS-G134e). ................ 61
OPERATION
1
CONNECT TO THE RAS THROUGH THE PSTN OR ISDN OR GSM ...................... 63
1.1 Remote user PC modem.............................................................................. 63
1.2 Setting the PC remote connection..............................................................64
1.3 Connection without callback ......................................................................65
1.4 On demand callback ....................................................................................66
1.5 Safety callback ............................................................................................. 66
1.6 Connect your PC to the machines of the LAN...........................................67
1.7 Web portal..................................................................................................... 67
1.8 Clear the connection.................................................................................... 67
2 SAFE INTERNET CONNECTION .............................................................................. 68
2.1 Step 1 : Connect the RAS to the Internet...................................................70
2.1.1 Internet callback type 1...................................................................70
2.1.2 Internet callback type 2...................................................................71
2.1.3 Internet connection as soon as the RAS is ON...............................71
2.1.4 Internet connection when the digital input 1 is enabled..................71
2.2 Step 2 : Get the RAS IP address (if dynamic)............................................72
2.2.1 Send the IP address to a DynDns server........................................73
2.2.2 receive the RAS IP address inside an email...................................73
2.2.3 Get the IP @ inside an Html page of a FTP server ........................73
2.3 Step 3 : Connect to any remote machine....................................... 74
2.3.1 Connecting to the machines using a VPN...........................74
2.3.2 Connecting to the machines using Dnat............................74
Appendix 1 : Modifying a LAN connection
Appendix 2 : Setting a remote connection
Appendix 3 : Setting a VPN connection

OVERVIEW
Remote access server User’s guide ref 9014509-03
Page 9
1. Product identification
RAS- M156e I1128e G134e G12e
Built-in V90 PSTN modem
•
ISDN 64 Kb/s (SO EURO-ISDN)
•
Built-in GSM modem
•
Built-in GSM-GPRS-EDGE modem
•
1 Ethernet + 1 RS232 / RS485
• • • •
User list
• • • •
Safety callback
• • • •
On demand callback
• • • •
Fire-wall
• • • •
DYNDNS
• • • •
Internet callback
• • • •
VPN (PPTP, IPSEC, TSL) over Internet
• • • •
DNAT
• • • •
Alarm E-mail –SMS
• • • •
Modbus master & slave gateway
• • • •
Raw client and server gateway
• • • •
Telnet gateway
• • • •
Multicast gateway
• • • •
Unitelway gateway
• • • •
IO web server (3 inputs . 1 output)
• • • •
Html Configuration
• • • •
IO Viewer optional software module
• • • •

Overview
Page 10 User’s guide ref. 9014509-03 Remote access server
2. Product overview
2.1. Product function
The RAS provides to authorized users a remote access to the
machines connected either to an IP LAN or to a serial RS232-RS485
interface, as if his PC was directly connected to the LAN or to the
RS232.
On the user PC side, the communication can be set either with a dial
up modem or through an internet access.
Direct dial-up communication Internet communication

Overview
Remote access server User manual ref 9014509-03 Page 11
2.2. Remote PC to RAS communication capabilities
The communication between the remote user and the RAS can be either a
dial-up communication or be established through the internet.
If the communication is established through the Internet, the public IP
address assigned to the RAS can be dynamic or fixed (IP call back and
DynDns functionalities).
The compatibility between the PC modem and line on one hand, and the
RAS on the other hand, is summarized in the table below :
RAS reference ►M156e I1128e G134e G12e
RAS line ►PSTN
analog
ISDN
BRI GSM GSM-
GPRS
PC modem ▼PC line ▼
▼▼▼▼
PC + PSTN modem
PSTN
analog ►Yes No Yes Yes
PC + ISDN adapter
ISDN ►No Yes Yes Yes
PC + ISDN modem / adapter
ISDN ►Yes Yes Yes Yes
PC + GSM modem
GSM ►Yes Yes Yes Yes
PC + GSM-GPRS-EDGE modem
GSM-
GPRS ►Yes Yes Yes Yes
PC + Internet access
Any type
(adsl …) ►Yes Yes Yes Yes
See Installation chapter for technical details.

Overview
Page 12 User’s guide ref. 9014509-03 Remote access server
2.3. Functions overview
Authorized users
The RAS prevents unauthorized access; it manages an authorized users
list; a user name and a password is assigned to each of them.
Safety callback
If that option has been assigned to a user, the RAS calls the user back to
its stored telephone number.
On demand callback
For economical reasons, and if that option has been authorized to a user,
the RAS can callback the user to the telephone number he demands.
Fire-wall
The built-in firewall allows to limit the IP addresses and TCP ports to which
each authorized user can connect.
Internet DynDns and IP callback
The RAS provides DynDns and IP callback functions; that functions allow
to connect the user remote PC to the RAS through the internet even if the
RAS public IP address is dynamic.
Secure connection over Internet (VPN)
The RAS is able to establish a secure connection (VPN) over the internet :
The VPN can be either PPTP for usual use, but also IPSEC or TLS.
With the VPN, a remote authorized user can connect to any machine of
the LAN.
DNAT
If a VPN cannot be established through the internet, the DNAT function
allows the user to access to some machines of the network.
RS to IP gateways
The product includes an up-to-date RS to IP gateway, allowing the user to
connect remotely as well to IP as to asynchronous devices.
Emails – sms
A stored emails or sms can be transmitted each time the digital input is
closed or opened.

Overview
Remote access server User manual ref 9014509-03 Page 13
The RAS can also transmit any email or SMS coming from an SMTP client
connected to the IP network.
Html configuration
The RAS is configured with a PC and a web navigator. The configuration
can be achieved through the ethernet interface or remotely.
For safety reasons, the remote configuration can be forbidden.

Overview
Page 14 User’s guide ref. 9014509-03 Remote access server
Specifications
Dimensions
EMI
Electrical safety
Thunder
Supply voltage
Operating T°
PSTN Modem
ISDN adapter
GSM-GPRS-EDGE
Ethernet
RS232-RS485
RS to IP gateway
Safety protocols
Access control
Callback
Fire-wall
Logs
Configuration
130 x 38 x 108 mm (h, l, p)
EN50082-2
EN 60950
EN61000-4 et -5
(2kW common & differential modes)
RAS-M156e & RAS-I1128e :
9 to 60 VDC- 125 mA at 24 VDC
RAS-G134e & RAS-G12e :
9 to 30 VDC- 170 mA at 24 VDC
0°/ + 60°C without condensation
V90 (56kb/s) compliant to E N CTR21 and US norms
BRI ETSI EURO-ISDN compliant
900-1800-1900 MHZ networks compliant
10 Mb/s
1200 to 115200 kb/s parity N / E / O
Raw client and server
Modbus master & slave
Multicast – Telnet - unitelway
PPP / PAP / CHAP
Callback MS CB
VPN : PPTP, IPSEC, TLS
User list (25 users)
user name & password
Safety callback
On demand callback
IP and TCP ports limitation assigned to each user
Event logs (date and time)
Using an html navigator
Through the LAN or remotely

INSTALLATION
Remote access server User’s guide ref 9014509-03
page 15
1 Product description
RAS-M156e / RAS-I1128e RASG134e / RASG12e
1.1 Leds
Led Function
LINK Ethernet connection OK
DATA Ethernet network activity
RD Characters received from the PSTN or ISDN or GSM
TD Characters transmitted to the PSTN or ISDN or GSM
L
or
L /
Lit : remote connection established
Blinking : GSM only : the number of blinks indicates the
quality of the reception signal
VPN Lit : VPN connection established
Blinking : VPN in progress
Power led

Installation
Page 16 User’s guide ref 9014509-03 Remote access server
1.2 Connectors
2 pins screw-block :
Supply voltage
Pin Signal Function
1
+ RAS-M156e RAS-I1128e :+9 to 60 V – 125 mAat 24 VDC
RAS-G134e RAS-G12e :+9 to 30 V – 170 mAat 24 VDC (on line)
2
- Ground
8 pins :
Inputs / outputs
Pin Signal Function
1 + 3 V DC provided by the RAS
2 IN1 Digital input Nr 1
3 IN2 Digital input Nr 2
4 IN3 Digital input Nr 3
5 OUT1 Relay output 1
6 OUT2 Relay output 2
7 B + RS485 polarity B
8 A - RS485 polarity A
Pin Circuit Designation RAS - Terminal
1 CD 109 Carrier detect ⇒
⇒⇒
⇒
2 RD 104 Data Reception ⇒
⇒⇒
⇒
3 TD 103 Data Emission ⇐
⇐⇐
⇐
4 DTR 108
Data terminal ready ⇐
⇐⇐
⇐
5 GND 102 Ground
6 DSR 107 Data set ready ⇒
⇒⇒
⇒
7 RTS 105 Request to send ⇐
⇐⇐
⇐
8 CTS 106 Clear to send ⇒
⇒⇒
⇒
9 RI 125 Ring indicator ⇒
⇒⇒
⇒

Installation
Remote access server User’s guide ref 9014509-03 Page 17
1.3 Micro-switches
Micro-switches
SW 1
SW 2
OFF
OFF The current IP@ of the product is the stored IP @
ON
OFF The active IP@ of the product is the factory IP@: 192.168.0.128
the IP@ automatically assigned the remote user is 192.168.0.129
OFF
ON The active IP@ is the Ip @ provided by the BOOTP or DHCP
server.
ON
ON
Reserved
2 Supply voltage
RAS-M156e or RAS-I1128e
The supply voltage must be strictly lower than 60 VDC and higher than 9
VDC. The consumption is 125 mAat 24 VDC.
RAS-G134e or RAS-G12e
The power supply module must be powerful enough to provide the peak
current which occur during a GSM communication.
The supply voltage must be strictly lower than 30 VDC and higher than 9
VDC. The consumption is 170 mAat 24 VDC when the product is on-line.
3 Fuse
The power input is protected with a 3A fuse.

Installation
Page 18 User’s guide ref 9014509-03 Remote access server
4 Ethernet interface
The ethernet interface is a 10 Mb/s interface.
To connect a PC directly to the RAS, use the cross wired red cable
provided with the product.
5 Fans
To avoid overheating when the ambient temperature is high, leave a 1 cm
space on each side of the product.
6 Telephone line connection (RAS-M156e)
The RAS-M156e is designed to be connected to an analog telephone
line.
That line can be an analog public line (PSTN subscriber line) or an analog line connected
to a company telephone switch PBX (also called extension line).
If the RAS line is an extension line, connected to a company PBX, it must be a Direct
Inward Dialing line (DDI or DID) in such a way that the remote user can dial the RAS
number and be connected directly to the RAS bypassing the operator.
Important nota : The type of public lines connecting the company PBX to the public
network does not matter; it can be PSTN but also ISDN, for instance.

Installation
Remote access server User’s guide ref 9014509-03 Page 19
7 ISDN connection (RAS-I1128e)
The RAS-I1128e is designed to be connected to a ISDN BRI interface
(EURO-ISDN compliant).
8 GSM products installation ( RAS-G134e or RAS-G12e)
Checking the GSM reception signal level before installing
Before installing the product, check that the GSM reception signal level is
good enough at the location you want to install the product; that test can
be done with a usual mobile phone using the same provider.
The signal level must be good or excellent.
GSM subscription
The micro-sim card must be inserted in the slot located at the top of the
product.
No password must be set.
Antenna
If the cabinet in which the RAS has to be installed is made of metal, the
antenna has to be installed outside the cabinet; for instance on the top of
the cabinet.
The antenna must be ordered separately; the models below are available :

Installation
Page 20 User’s guide ref 9014509-03 Remote access server
ANT200
0 db gain - magnetic ANT200 0 db gain ANT200 3 db gain
Checking the reception signal level after installation
When powering the product on, the L / led gives an indication of the
GSM signal quality :
the L / led Signification
… briefly blinks 3 times The quality of the reception signal is fine
… briefly blinks 2 times The quality of the reception signal is
acceptable
… briefly blinks 1 time The quality of the reception signal is
poor
… is turned off No reception
Is a GSM voice communication possible ?
has the sim card been correctly inserted ?
The Led must blink 3 times to ensure the transmission quality will be good.
9 GPRS service availability ( RAS-G12e)
GPRS and GPRS-EDGE are services using the usual GSM network.
The GPRS service provides an IP permanent connection to the Internet at
a medium data rate.
