Euro chef Cokrhieucac10 User manual

1000mm Island Style Range Hood

User Manual

[Revision 3.0 August 2017]

READ THIS MANUAL CAREFULLY BEFORE USE –FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

1000mm Island Style Range Hood

Safety

•Before installing and using your range hood, be sure to read this user’s manual carefully. It contains

general instructions for installation, use and maintenance of the product.

•Installation and maintenance should be performed by qualified persons only, whom are aware of

installation regulations.

•Failure to install the range hood properly or without due care may void any warranty.

•Before installing, ensure that the appliance is correctly pre-set for local conditions (voltage and plug

type).

•After removing the appliance from its packaging, check for any damage. If damage is found, contact

the retailer.

•The packing materials (plastic bags, polystyrene foam, nails, metal strips, etc.) represent choking or

suffocation hazards and must be kept away from children.

•Do not attempt to alter the appliance.

•The manufacturer is not responsible for any injuries to persons or animals or property damage that

may be caused by the incorrect installation or use of this product.

1000mm Island Style Range Hood
E&OE ©2017 Eurochef 3
Table of Contents
Safety................................................................................................................................................1
Parts Identification...........................................................................................................................4
Included Items..............................................................................................................................4
Installation........................................................................................................................................5
Using the Range Hood ....................................................................................................................8
Setting the Clock..........................................................................................................................8
Using the Fan Timer.....................................................................................................................9
Maintenance .....................................................................................................................................9
Specifications...................................................................................................................................9

1000mm Island Style Range Hood

Parts Identification

Included Items

•Exhaust Unit (includes control panel, motor,

filters and hood) (1)

•Remote Control Unit (1)

•Exhaust Valve (1)

•Mounting Rail (2)

•Flue Cover (2)

•Extension Flue Cover (2)

•Vent Pipe (1)

•Ceiling Mounting Bracket (1)

•Flue Support Bracket (1)

•Long Hanging Bracket (4)

•Short Hanging Bracket (4)

•M8 x 50 Bolt (4)

•M8 Flat Washer (4)

•M8 Lock Washer (4)

•M8 Nut (4)

•M5 x 12 Screw (4)

•M5 x 8 Screw (16)

•#8 Self Tapping Screw (12)

•#6 Self Tapping Screw (2)

EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF EUROCHEF

1000mm Island Style Range Hood

Installation

Ensure that the ceiling is capable of taking at least 35kg weight. •The height between the top of the

cooktop and the bottom of the range hood should be between 650 and 700mm in order for the

range hood to perform effectively. • Ensure that the range hood flue has enough length (640 to

1160mm) to reach the ceiling before proceeding with the installation.

Figure 1

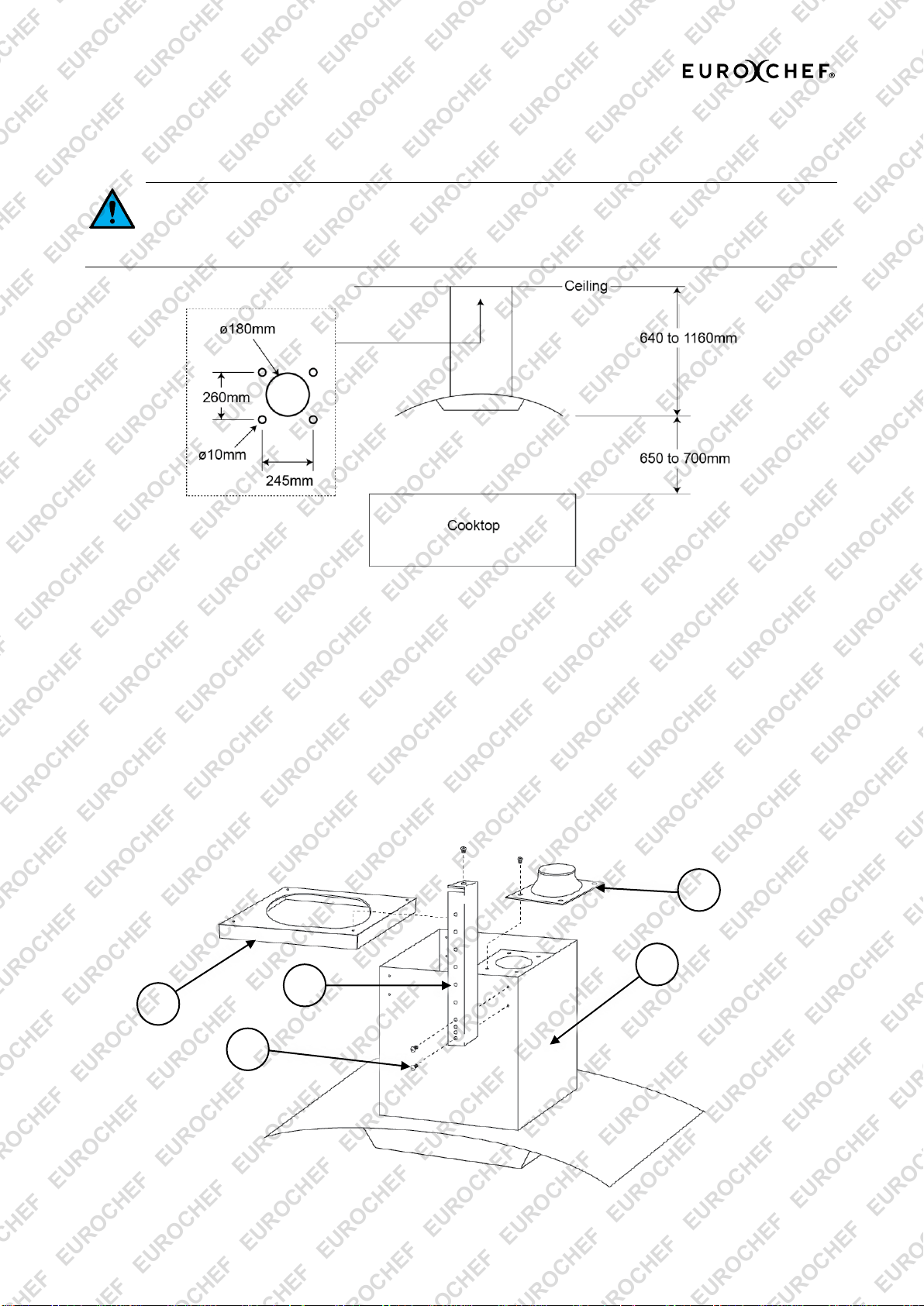

1. Drill 4 10mm diameter holes in the ceiling in a “rectangular” pattern, with holes 245mm apart along the

front of the range hood, and 260mm apart along the side. Ensure the centre of the hole pattern is aligned

to the centre of the cooktop (refer to Figure 1).

2. Make a hole in the ceiling at the centre of the mounting hole pattern that is large enough to allow the

vent pipe to pass through it (approximately 180mm).

3. Refer to Figure 2. Remove the 4 screws holding the rubber exhaust seal in position on the exhaust unit

(1). Place the exhaust valve (5) in position over the seal and secure it using the removed screws.

4. Refer to Figure 2. Attach the 4 short hanging brackets (2) to the top of the exhaust unit (1) using 8 M5x8

screws (3).

5. Refer to Figure 2. Attach the flue support bracket (4) to the top of the short hanging brackets using 4

M5x8 screws. The flue support bracket sits on the inside of the hanging brackets.

Figure 2

1000mm Island Style Range Hood

6. Refer to Figure 3. Attach the 4 long

hanging brackets (6) to the hanging

brackets assembled in step 5 using

4 M5x12 screws (7) and nuts (8).

Position the long hanging brackets

so that the overall length of the flue

provides the correct distance

between the cooktop and range

hood.

7. Attach the ceiling mounting bracket

(9) to the top of the long hanging

brackets using 4 M5x8 screws (3).

The ceiling mounting bracket sits

on the inside of the hanging

brackets.

8. Refer to Figure 4. Attach the partly

assembled range hood to the

ceiling. Use the supplied mounting

rails (10) or some other method that

is capable of holding at least 35kg

in weight. If using the mounting

rails, drill 2 8mm holes for the

mounting bolts, then place the

range hood up against the ceiling

and secure it with 4 M8x50 bolts

(11), flat washers (12), lock

washers (13) and nuts (14).

Figure 3

Figure 4

1000mm Island Style Range Hood

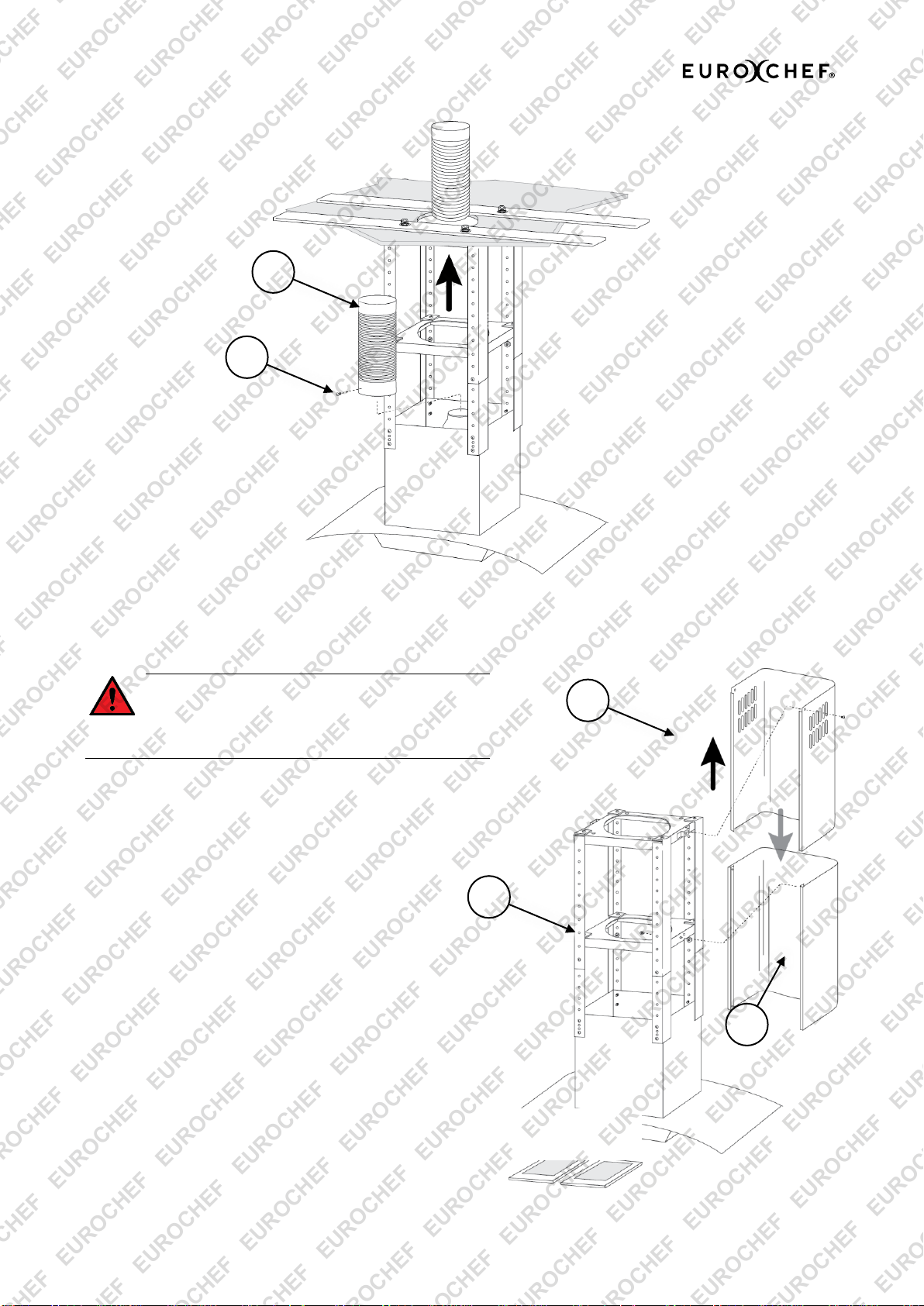

9. Refer to Figure 5. Place the end of the vent pipe (15) over the exhaust valve and secure with 2 #6 self

tapping screws (16). Then, extend the vent pipe up and through the hole in the ceiling. Once in the

ceiling, connect the vent pipe to a suitable vent tube, and pass the range hood power cord up through

the ceiling hole.

When installing the flue covers, take great care

to ensure that the internal range hood wiring is

not pinched or cut into by the flue covers when they are

being installed.

10. Refer to Figure 6. Place the flue extension cover

pieces (18) inside the flue cover pieces (17) –these

are left loose so they can pulled up and into position

later.

11. Install the flue cover (17) by placing each piece on

either side of the flue frame. The bottom edges of the

flue cover fit into the space around the hood of the

exhaust unit. Screw the flue cover pieces to the flue

support bracket using 4 #8 self tapping screws (19).

12. Gently pull the extension flue cover pieces up from

the flue cover until they reach the ceiling. Secure

them to the ceiling mounting bracket using 4 #8 self

tapping screws (19).

13. Connect the range hood to an electrical supply. It is

now ready for use.

Figure 5

Figure 6

1000mm Island Style Range Hood

Using the Range Hood

Once the range hood is correctly installed and connected to the electrical supply, it may be used. For

appliances equipped with remote control, the remote control has similar function buttons. Basic function are:

•Air Extraction –Remove cooking odours and steam etc by activating the exhaust fan. Three speeds are

available.

•Lighting –Illuminate the cooking area.

•Additional Features –The range hood features a clock and fan auto-off timer functions (described

below).

Control

Description

LCD Display

Shows current range hood functions, such as time, fan speed, fan timer etc.

Display –press to activate the display. If the clock has been set, the time will display.

Press and hold to activate timer and clock setting functions (described below).

Lights - Switch the range hood lights on and off. Lights can be operated independently

of any other function.

Slow - Activate low speed exhaust fan operation.

Medium - Activate medium speed exhaust fan operation. When setting the clock, press

to increment minutes. When setting the fan timer, press to reduce the time.

Fast - Activate fast speed exhaust fan operation. When setting the clock, press to

increment hours. When setting the fan timer, press to increase the time.

Not used.

Setting the Clock

The range hood has a clock. The time shows when the display is “on” [that is, the Display button has been

pressed to activate the display].

1. Press the Display button –the display activates.

2. Press and hold the Display button until the display begins flashing, then release the button.

3. Set the hour by pressing the Fast fan speed button.

4. Set the minute by pressing the Medium fan speed button.

5. Press the Power button.

1000mm Island Style Range Hood

Using the Fan Timer

The range hood has a timer function that will automatically stop the fan after a set time. The timer range is 1

to 15 minutes.

1. Press the Display button –the display activates.

2. Press the required fan speed button (Fast, Medium or Slow).

3. Press the Display button to activate the timer mode –the timer defaults to 3 minutes and begins

flashing.

4. Increase the timer length by pressing the Fast fan speed button.

5. Decrease the timer length by pressing the Medium fan speed button.

6. Once you have set the timer, the fan will run until it reaches “zero”.

Maintenance

•Clean all surfaces with suitable household cleaners and a soft, damp cloth. Avoid abrasives and solvents

and flammable substances.

•Clean the filters regularly. Remove the filter, soak it in warm water and mild detergent. Use a soft brush

to clean it.

•Empty and clean the oil catcher regularly. To access it, remove the filters.

•To replace a lamp [Note: Use genuine replacement lamps only.]:

a. Rotate the lamp slowly until the "legs" of the lamp assembly align with the slots in the range hood,

then lower the lamp and carefully disconnect its wiring loom from the range hood wiring.

b. Connect the wiring loom of the replacement lamp to the range hood wiring (the connectors will fit one

way only). Align the "legs" of the lamp assembly with the slots in the range hood and insert the lamp,

then rotate it so the legs are away from the slots and holding the lamp in position.

•Do not directly splash the range hood with water.

•If the product malfunctions, contact an authorised service centre.

Specifications

Electrical

240VAC / 50Hz

Vent Tube Diameter

160mm

Fan Speeds

Filters

Aluminium, multi-layer

Vent Tube Length

1.5m

Power Cord Length

1.4m

Some experts believe the incorrect or prolonged use of almost any product could

cause serious injury or death. For information that may reduce your risk of serious

injury or death, consult the points below and additionally, the information available

at www.datastreamserver.com/safety

•Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and kept

with the product.

•Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /

missing parts, wear or leaks (if applicable).

•Products must be inspected and serviced (if applicable)

by a qualified specialist every 6 months assuming

average residential use by a person of average weight

and strength, above average technical aptitude, on a

property matching average metropolitan specification.

Intended use outside these guidelines could indicate

the product is not suitable for intended use or may

require more regular inspection or servicing.

•Ensure all possible users of the product have

completed an industry recognized training course

before being given access to the product.

•The product has been supplied by a general merchandise retailer that

may not be familiar with your specific application or your description

of the application. Be sure to attain third-party approval for your

application from a qualified specialist before use regardless of prior

assurances by the retailer or its representatives.

•This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft, computer

or ball point pen for example), there is always a small chance of

technical issues that needs to be repaired or may require replacement

of the product or a part. If the possibility of such failure and the

associated time it takes to rectify could in any situation inconvenience

the user, business or employee then the product is not suitable for

your requirements. This product is not for use where incorrect

operation or a failure of any kind, including but not limited to a

condition requiring product return, replacement, service by a

technician or replacement of parts could cause a financial loss, loss of

employee time or an inconvenience requiring compensation.

•If this item has been purchased in error after considering the points

above, simply contact the retailer directly for details of their returns

policy, if required.

Table of contents

Popular Ventilation Hood manuals by other brands

Best

Best WT32I SERIES installation instructions

Kenmore

Kenmore 51891 Operating instructions and parts list

AEG

AEG X78263BV10 user manual

S&P

S&P EBB-250 NT manual

S&P

S&P VA Series manual

ELICA

ELICA LI30TA Use, care and installation guide

Zephyr

Zephyr AK9800 Use, care and installation guide

Silverline

Silverline 4207 instructions

montpellier

montpellier CHG613MSS Installation and operating instructions

FRAM

FRAM FDH-660HRBK manual

Baumatic

Baumatic Pythagora P25SS instruction manual

Zanussi

Zanussi ZHI 600 Instruction booklet

Hotpoint

Hotpoint HLB 6.7.AT operating instructions

AEG

AEG LFU316W user manual

FRAM

FRAM FDH-690RBG manual

Broan

Broan ELITE E661 installation instructions

Whirlpool

Whirlpool AKR 687 - EXTRACTOR OR FILTERING HOOD Installation

Broan

Broan RANGEMASTER RM65000 Series owner's manual

Euro Chef COKRHIEUCAC10 User manual

Popular Ventilation Hood manuals by other brands
