EuroAir CH60IN User manual

Carefully read this cooker hood user instructions before using
Read and save these instructions
C O O K E R H O O D
I N S T R U C T I O N
C O O K E R H O O D
I N S T R U C T I O N
CH60IN
PACKING LIST
NO. NAME QUANTITY
Main body
User instructions
Bracket assembly
Expanding screw
Expanding plug
Screw ST4*10
Plastic Exhaust Pipe
Hood
Alum. filter
Cable ties
Drill hole stenci
Charcoal Filterl
1
1
1
6
6
2
1
2
2
1
1
2
1
2
3
4
5
6
7
8
9
10
11
12

Cooker hood
PREFACE CONTENTS
Preface
Please read the attached documents careful b
, which include important installation, usage, and safety direction.
And please preserve all the documents appropriately for future reference. Our
company does not take any responsibility if problem arise because of ignorance
of the instructions offered by these documents.
efore installing and/or using the
cooker hood
Congratulations on the purchase of our Cooker hood, which is designed to include
many superior features that permit you the fullest expression of your living.
Preface
Information and advice
Contents
Know your cook hood
Using method
Installation
Maintenance
Information and advice---------------- ---------------------- 1------------------------
Parts generalization------------------------ -----------------2-------------------------
Establishment of function---------- ----------------------3----------------------------
Installation position and height--------- --------------------4-------------------------
Fixing the cooker hood--------------- --------------- --- 5------------------------- -----
Exhaust pipe conjunction------------ ------------------------7-------------------------
Installation of chimney--------------- ----------------------- 8--------------------------
C -----------------------------------------------------------------10 lean the metal filter
Replacing Bulb------------------------------------------------------------------------11
Data-------------------- - ----------------------3--------------------- ----------------------
Troubleshooting
Troubleshooting--------- --- -----------------9------------------------- -----------------
Mount the charcoal filter------------------------------------------------------------- 11

INFORMATION AND ADVICE KNOW YOUR COOK HOOD
2Cooker hood 1Cooker hood
Parts generalization
Information and advice
Make sure that all the lighting bulb, oil-filter of the cooker hood are
correctly fixed before using.
Please do not put in or pull out the plug of the power supply with your
wet hand.
.
Please make sure that the power system of your house (current,
voltage, and connecting lead) can satisfy the normal load request of
the cooker hood.
Please do not use fuse with high power capacity
Please do not leave the kitchen at will when you cook using animal tallow
or vegetable oil, so as to avoid damaging the cooker hood because of
overheat or causing a fire by igniting the remaining oil in the cooker hood.
In certain circumstances electrical appliance may be a d anger hazard.
A) There shall be adequate ventilation of the room when the
cooker hood is used at the same time as appliances
b urning gas or other fuels.
B)Do not check the status of the filters while the cooker hood
is operating.
C)Do not touch the light bulb within half an hour after appliance
use.
D)Do not flambe under the cooker hood.
E)Avoid opening gasometer when there is no pan on the stove ,
as it is damaging for the filters and a fire hazard
F)Constantly check food frying to avoid that the overheated
oil may become a fire hazard. .
G) Disconnect the electrical plug prior to any maintenance
H) The power socket must be attainable after installation.
I) The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas and other fuels.
J ) Regulations concerning the discharge of air have to be fulfilled.
.
All packing materials are environmental protections and therefore
recyclable. Please deal with all the materials with environment
protecting attitude.
This cooker hood is designed for family cooking only, so fix it in the
kitchen.
Only maintenance staff with professional training and maintenance
qualification can maintain the cooker hood. Other personnel are not
permitted to open the cooker hood and maintain it, so as to avoid
serious consequences.
If you find obvious damage on the cooker hood, please do not connect
the electrical plug, and contact the local customer service center or
dealer immediately.
If the supply cord is damaged, it must be replaced by the manufacture or
its service agent or similarly qualified person in order to avoid a hazard.
This appliance is not intended for use by persons (including children)
and knowledge,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
with reduced physical,sensory or mental capabilities,or lack of experience
1.Hood 2.
3.Air duct assembly 4.Filter assembly
Main body assembly

4Cooker hood 3Cooker hood
USING METHOD
Data
Power Supply:220-240V ~ 50Hz
Rating:180 watts
Light:Lamp 2 x 40 watts
Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.
This appliance conforms to the
following EC Directive:
This appliance meets the provisions
Of the following directives:
2004/08/EC (electromagnetic compatibility), 2006/95/EC
(electrical equipment designed for use within certain voltage limits) as
amended.
Retention of this instruction book.
Keep this book in a handy place for reference.It contains important
details on the safe and proper use of your appliance.
Not more than 750mm
This cooker hood must be earthed. It must be
put in the indeed earthed socket.
Installation position and height
Please install the cooker hood at the dry place without direct sunlight.
There should be enough intensity and smooth and straight surface
about the metope which is used for fixing the cooker hood. Thus it can
make the cooker hood stable, without any shaking.
The cooker hood should be fixed right above and on the same axis as
the stove.
We recommend that after installation the bottom of the hood should
be not less than 650mm and not more than750mm above the stove's
heating elements and burners.
Not less than 650mm
2
INSTALLATION
1 2 3
0

6Cooker hood 5Cooker hood
INSTALLATION INSTALLATION

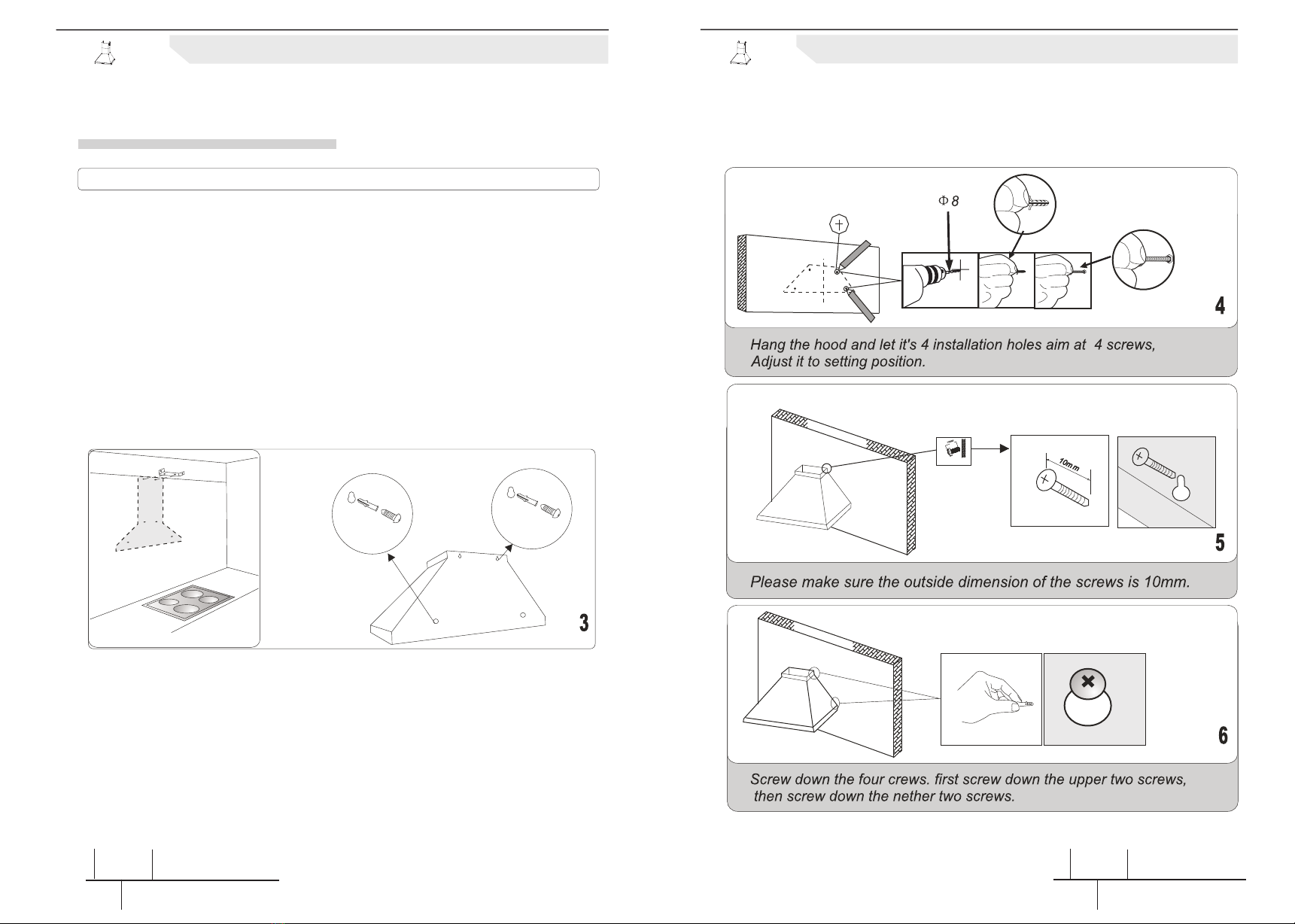

According to the Fig.3, make sure the position of the hoods on the
wall. Then use the stencil to drill four holes Φ8 mm on the wall.
Fix four sets expanding plugs and screws aimed at the four holes.
To install this hood you will require two assistants.
You will need the following tools and material to complete this installation:
*Drill*Flat head screwdriver*Phillips head screwdriver or cordless drill
and Phillips head bit*Tin snips*3/8″nut driver or ratchet with extension
*measuring tape*hand saw or jig saw*electrical tape*duct tape
1. Remove the range hood from the carton.
2. Lay the hood upside down on a table covered with cardboard or paper
to prevent scratching of the table or hood.
3. Hood installation should be within 0.8m radius range from the socket.
Fixing the cooker hood
Ensure the power has been turned off before beginning this installation.

8Cooker hood 7Cooker hood
INSTALLATION INSTALLATION
According to the
dimension of the
chimney fixed bolster,
make sure the position
of the chimney.

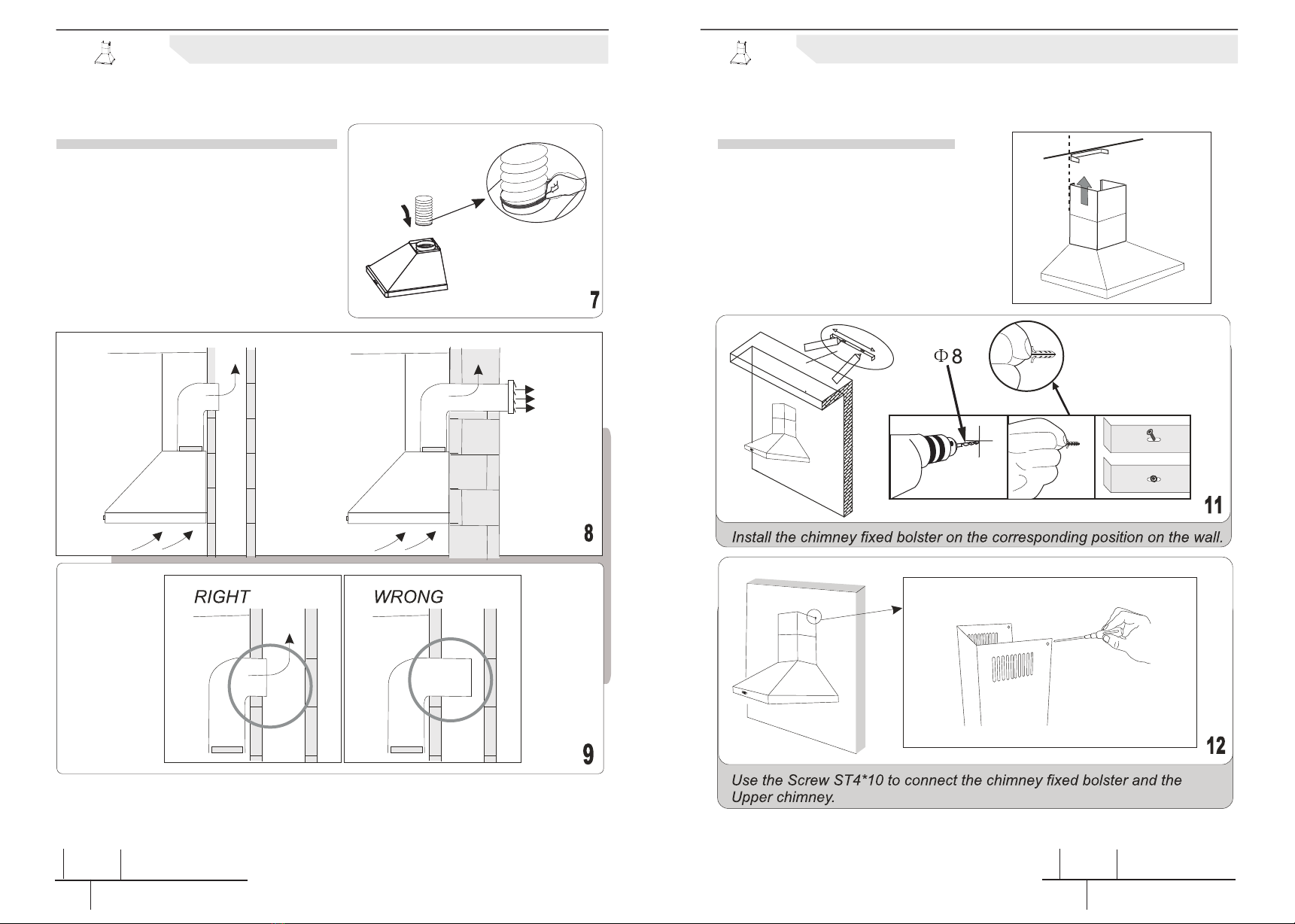

Installation of chimney
10
Exhaust pipe conjunction
To better discharge fume in the
kitchen:
Please select appropriate exhaust
pipe according to damper diameter
size.
Please connect one end of the
exhaust pipe with the cooker hood
and tied with cable ties, and the
other End with public flue or the hole
of the wall.

9Cooker hood 10 Cooker hood
TROUBLESHOOTING MAINTENANCE
Before you assume the worst, check this simple fault-finding guide to
get to the root of the problem:
Troubleshooting
A replacement is probably necessary, but check first
that the bulb is firmly screwed in to its holder. If the
Filament is broken, remember that the light bulbs are not
covered by our guarantee. Remember to disconnect the
mains electricity supply before removing the bulbs
Switch off immediately and check that the setting lever
Is set to the appropriate mode for your application.
Check the grease filter. If it has not been cleaned or be
replaced recently , it might be clogged with grease.
If filter is relatively clean, check charcoal filter. If this
hasn't been replaced for more than six months, remove and
insert a new one. As time goes by,accumulated grease
tends to stifle the charcoal filter in just the same way as the
grease filter, thereby reducing the efficiency of both the fan
and the filter itself.
Check plug, socket and fuses. If these are in order and fault
persists, it could be that an accumulation of grease has
impaired the efficiency of the switch mechanism . Try
rapidly moving switch on and off several times in
succession to clear grease deposit. If fault continues, call
service agent.
Check your cooker hood is switched on at the mains. Next,
check for an unexpected power cut by switching on adjacent
lights etc.
If, having consulted the above diagnostic chart you are still
unable to remedy the situation, please call the Free -phone
service telephone number at the rear of this booklet.
Light bulb doesn't
c o m e o n
Motor is on but no ir
is being sucked up
a
Motor is on but fan
doesn't seem to be
as efficient as
u s u a l
Controls fail to
switch motor on
Appliance does not
work at all
Still not working?
Call the service
a g ent

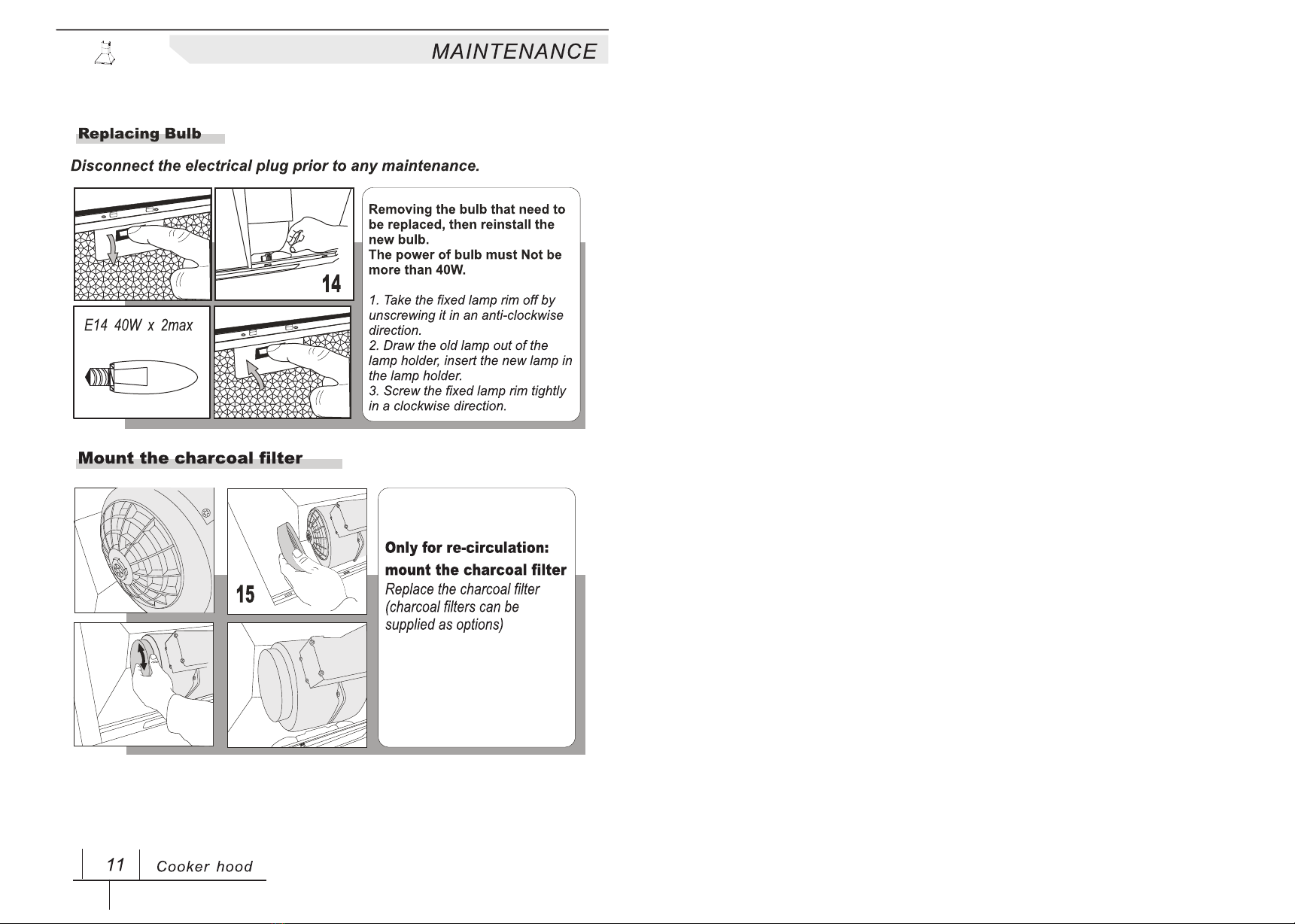

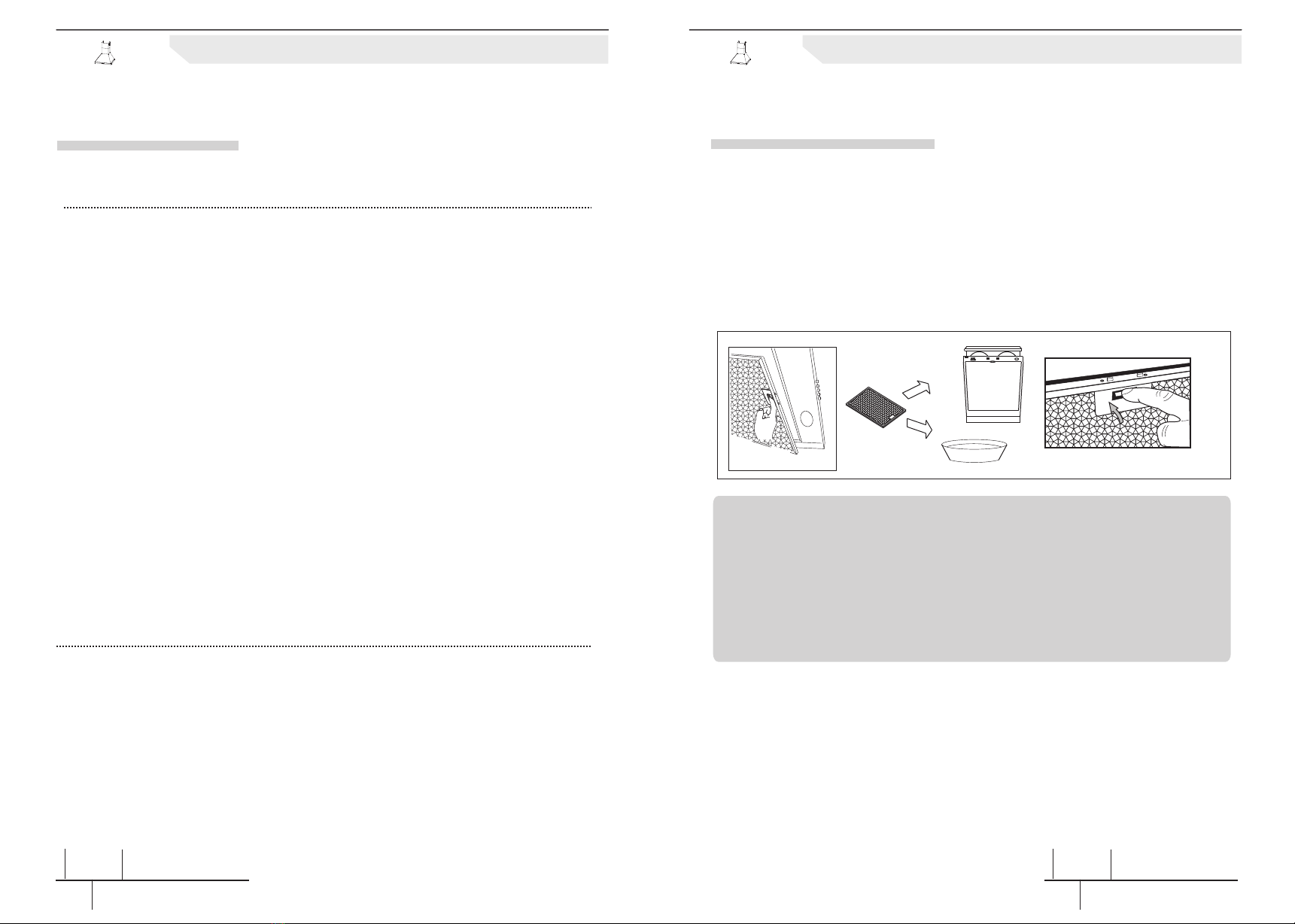

·It is recommendable to clean the metal filter every 2-3 weeks by
carrying out the following instructions:
-Remove the metal filter from the cooker hood and wash it in a
solution of water and neutral liquid detergent , leav ing to soak
-Rinse thoroughly with warm water and leave to dry.
-The metal filter may also be washed in the dishwasher.
-The metal filter may alter in color after several washes.
This is not cause for customer complaint nor replacement of
metal filter.
Dishwasher
C lean the metal filter
13
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
Please disconnect the electric plug prior to clean or maintain the
cooker hood.
Please do not wash the cooker hood with water directly.
Please clean and maintain the cooker hood periodically according to
your using frequency and environment. This can help to keep your
cooker hood work well as well as a long working life.
