Eurocave ShowCave 9180V User manual
Mode d’emploi • User Manual • Gebrauchsanweisung
Modo de empleo • Mode d’emploi • User Manual
Gebrauchsanweisung • Modo de empleo • Mode
d’emploi • User Manual • Gebrauchsanweisung
-1-
1 • DESCRIPTION OF YOUR SHOWCAVE p. 2
2 • IMPORTANT SAFETY RECOMMENDATIONS p. 3
3 • POWER SUPPLY p. 3
4 • CARING FOR THE ENVIRONMENT AND ENERGY SAVING p. 4
5 • INSTALLING YOUR SHOWCAVE p. 4-5
6 • LAYOUT - STORAGE
l- Modular, adaptable storage p. 5
lI- Layout advice for your ShowCave p. 6
lII- Modifying the layout of your ShowCave p. 6
7 • COMMISSIONING YOUR SHOWCAVE
1- Connection p. 6
1- Switching on p. 6
III- Description of the control panel p. 7
IV- Temperature setting p. 7-8
8 • EVERDAY MAINTENANCE p. 8
9 • OPERATING FAULTS p. 9
10 • TECHNICAL FEATURES p. 9
11 • STANDARD WINE SERVING TEMPERATURES p. 9
CONTENTS
-2-

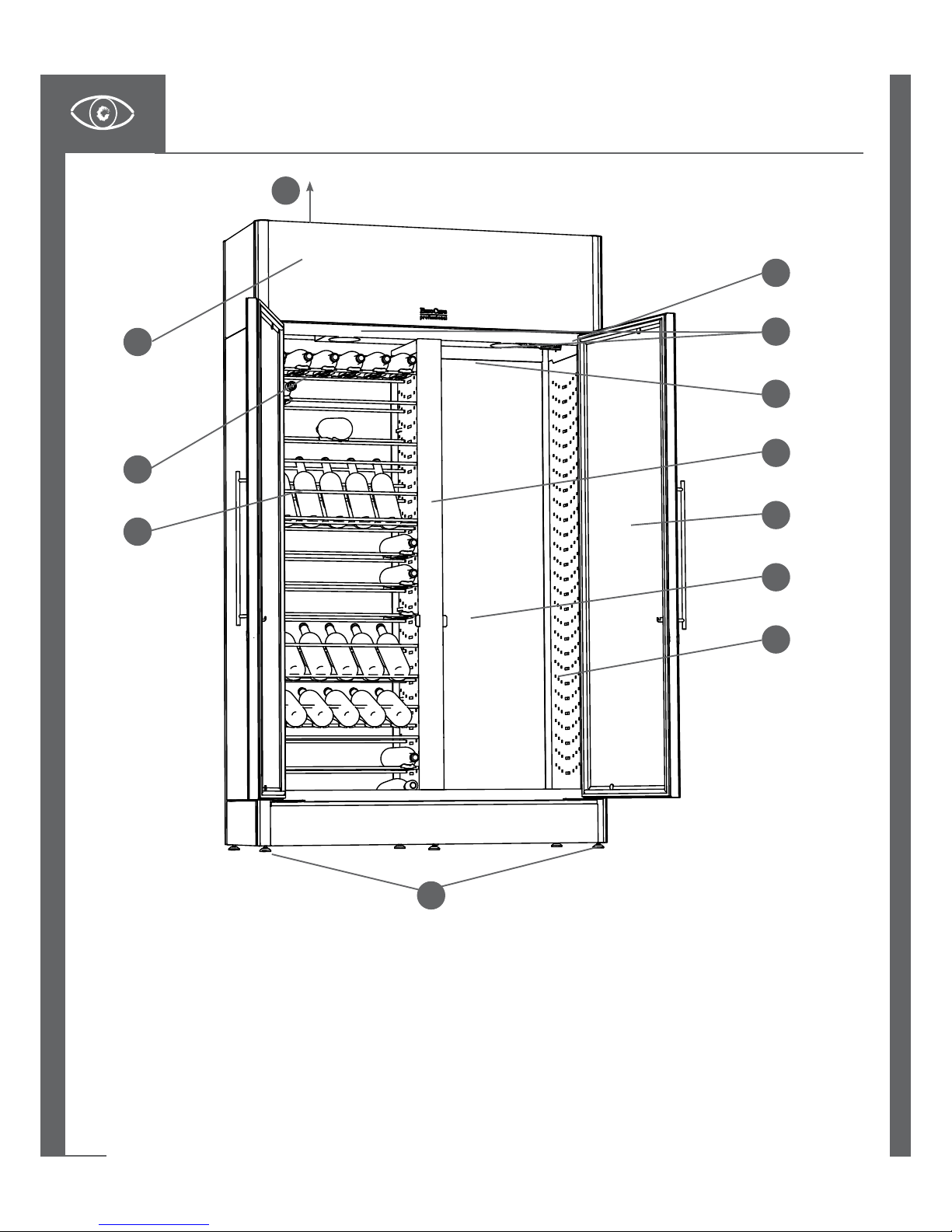

1 - DESCRIPTION OF YOUR SHOWCAVE
1 - ShowCave cabinet body
2 - Full Glass doors, equipped with stainless steel handles
and key lock
3 - ‘‘Main du Sommelier’’ bottle support in ‘‘storage’’
position
4 - ‘‘Main du Sommelier’’ bottle support in ‘‘display’’
position
5 - Back with mirror nish
6 - Transparent walls (PMMA)
7 - 6 adjustable feet for levelling
8 - Cooling unit
9 - Fan outlet
10 - Control panel
11 - Lighting (9 LEDs)
12 - Product identication label
VUES NOTICE VITRINE
4
9
811
12
1
2
5
6
7
3
10
-3-
Warning!
When using your ShowCave, observe certain basic precautions, notably:
- Only use ShowCave for the purpose for which it was designed, as described in this guide.
- Never unplug your ShowCave by pulling the power cable. Firmly grasp the plug and pull to remove it from the wall socket.
Never use a damaged power cable or one showing signs of wear along its length.
- Immediately replace damaged power cables.
- Do not allow children to hang from, climb, sit or stand on your ShowCave’s bottle supports. They could damage your
ShowCave and seriously injure themselves.
- Make sure that you always keep keys out of reach of children, to prevent them from locking themselves inside the cabinet.
- This appliance is only intended for wine storage.
- This appliance was not designed to be used by people (including children) with reduced mental, sensory or physical abilities
or who lack experience and knowledge, unless they are supervised or have been given instructions on how to use the
appliance by a person responsible for their safety. Children must be supervised to ensure
that they do not play with the appliance.
N.B.: for optimal safety, the cabinet is tted with a dual-action lock. To open or close the
door, you must push the key and keep it pushed in whilst you turn it (see diagram).
DANGER : Risk of trapping for children. Before recycling your old wine cabinet:
- Remove the door.
- Leave the bottle supports in place so that children cannot easily climb
inside the appliance.
Never damage your appliance’s refrigerating circuit.
2 - IMPORTANT SAFETY RECOMMENDATIONS
For your personal safety, your ShowCave must be correctly earthed.
The power cable of your ShowCave has a plug to be plugged into a
standard earthed outlet to prevent any risk of electric shock.
Have the power supply socket checked by a qualied electrician who
will tell you whether or not it is correctly earthed and will carry out, if
necessary, work to bring it into compliance with current standards.
Contact your usual EuroCave retailer to change the power cable if it is
damaged. It must be replaced by a EuroCave original manufacturer’s part.
IMPORTANT: all work must be carried out by a qualied electrician.
Ensure that the socket is correctly earthed and that your installation is protected by a
circuit breaker (30 mA*).
*not applicable to some countries
If you are moving to another country, rst check whether or not the supply characteristics of the cabinet correspond
to the country (voltage, frequency).
3 - POWER SUPPLY
-4-
4 - CARING FOR THE ENVIROMENT
AND ENERGY SAVING
Disposing of packaging:
The packaging used by EuroCave is made from recyclable materials.
After unpacking your ShowCave, take the packaging to a refuse collection point. For the most part, it
will be recycled.
Recycling: a caring gesture
Electrical and electronic equipment has potentially harmful effectives on the environment and human
health owing to the presence of dangerous substances.
You must never therefore trash electrical and electronic equipment with unsorted municipal waste.
When you purchase a new EuroCave product (wine cabinet, cellar conditioner, Vin au Verre), you can
entrust recycling of your old appliance to your EuroCave dealer.
Talk to your EuroCave dealer, he will explain to you all the removal and collection procedures set up within the EuroCave
network.
In compliance with legislation concerning protecting and caring for the environment, your ShowCave does not contain
C.F.C.s.
To save energy:
- Install your ShowCave in a suitable place (see chapter 5) and observe the recommended temperature ranges.
- Keep the door open for as short a time as possible.
- Check that the seal is in good condition and that it is not damaged. If it is, contact your EuroCave retailer.
N. B.: when replacing your ShowCave, inquire at the municipal refuse department to find out the correct
recycling procedure.
For refrigerant gases, substances and some parts contained in the wine cabinets, EuroCave uses recyclable
materials which require a special disposal procedure.
Seal the lock to prevent children from accidentally locking themselves inside your ShowCave. Disable
unusable appliances by unplugging them and removing their power cable.
5 - INSTALLING YOUR SHOWCAVE
It is essential that your ShowCave is assembled and installed by qualified technicians. This service
is automatically included when you purchase your ShowCave. If this is not the case, contact your
EuroCave dealer.
The points below must be observed:
When your appliance is delivered, after unpacking, check
the outside of your ShowCave for damage (signs of impact,
buckling...).
Open the doors and check that the inside of your
appliance is intact (walls, Main du Sommelier supports +
shelf rods, door stop, control panel...).
•If there is a problem, contact your EuroCave retailer.
• Decide where you are going to install your ShowCave.
This place must:
• be open to the outside to allow circulation of air
(not in an enclosed cupboard...),
•not be close to any source of heat,
• not be too damp (utility room, laundry room,
bathroom...),
• have a flat, stable floor, which can support a weight
of 500 kg.
• allow ventilation above the appliance (condenser
grill) of at least 20 cm.
• be supplied with power (standard outlet, 16A,
earthed with 30 mA circuit breaker)*.
(* not applicable to some countries)
•Do not place your ShowCave in an area liable to flood.
• Prevent water from splashing on any part of the rear of
the appliance.
•Do not plug several ShowCaves into an adaptor.
-5-
I - Modular, adaptable storage
6 - LAYOUT – STORAGE
The conguration of your ShowCave can be modied to suit your requirements.
The Main du Sommelier supports can store any bottle size 75cl or 1.5 l.
This document is the property of Eurocave company and cannot be comunicate without written agreement.
Ce document est la propriété de la société Eurocave et ne peut être communiqué sans autorisation écrite.
Volume:
Weight:g
General Tolérances:
Range :
Article
1/1
A3
1:20
/ VUES NOTICE
EXEMPLES RANGEMENT BOUTEILLES
Drawing number:
Material:
3D Number / Révision. Scale
Sheet
Size
22/12/2010
x
Exemple 1 (A+D)
Conguration 156 Bouteilles
Exemple 2 (B+C+D+E)
Conguration 132 Bouteilles
This document is the property of Eurocave company and cannot be comunicate without written agreement.
Ce document est la propriété de la société Eurocave et ne peut être communiqué sans autorisation écrite.
Volume:
Weight:g
General Tolérances:
Range :
Article
1/1
A3
1:20
/ VUES NOTICE
EXEMPLES RANGEMENT BOUTEILLES
Drawing number:
Material:
3D Number / Révision. Scale
Sheet
Size
22/12/2010
x
Exemple 1 (A+D)
Conguration 156 Bouteilles
Exemple 2 (B+C+D+E)
Conguration 132 Bouteilles
Main du Sommelier
support in flat position,
capacity: 6 bottles
Main du Sommelier
support in display position,
capacity: 6 bottles
Total configuration 180 bottles Total configuration 90 bottles
Total configuration 120 bottles
Examples of possible configurations
The “Main du Sommelier” supports can be positioned, moved,
removed according to your requirements in order to adapt to the
size of all your bottles.
Each row of bottles can be positioned independently, for an easy, flexible layout of your
ShowCave:
3 positions:
•‘‘lyingat’’foroptimalstorage
•‘‘displayedwithslightincline”toenhanceanddisplayyourbottles
•‘‘displayedwithsharpincline”tomakeyourbottlelabelsevenmorevisible
Each bottle row is designed to store a maximum of 6 75cl bottles.
6 - LAYOUT – STORAGE
II – Layout advice for your ShowCave
Your EuroCave ShowCave was designed to safely hold a maximum number of bottles.
We recommend that you follow the advice below to optimize loading.
- Distribute your bottles as uniformly as possible on the “Main du Sommelier” supports
in your ShowCave (maximum of 6 75cl bottles per row) in order to spread the weight.
- Also ensure that your bottles do not touch the back mirror.
III – Modifying the layout of your ShowCave
To change the location of a bottle support, rst unload the area concerned, then
remove the ‘‘Main du Sommelier’’ supports as well as the stainless steel rods. Finally,
move the rod supports taking care to reposition them according to the diagram
opposite:

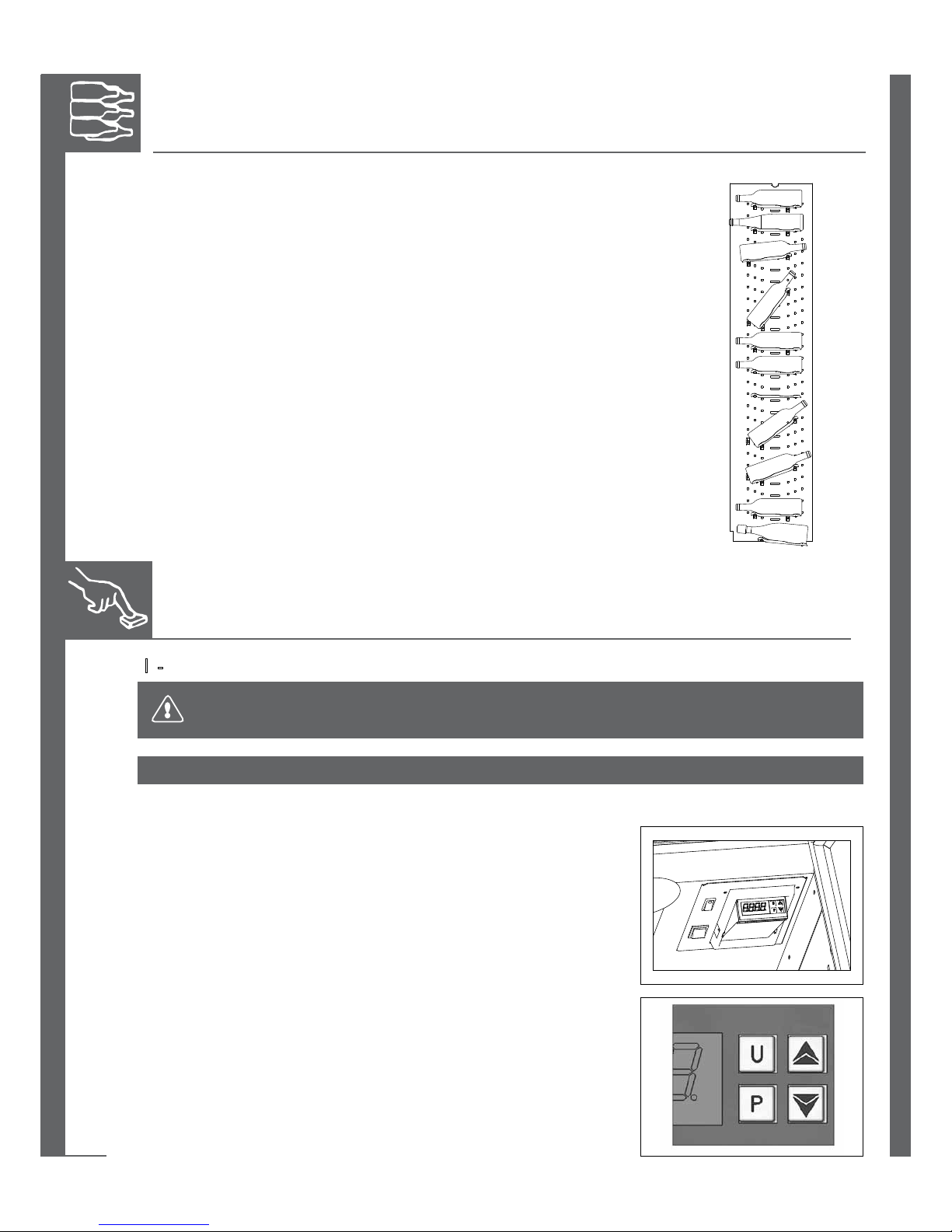

7 - COMMISSIONING YOUR SHOWCAVE
II – Switching on
The control of your ShowCave is built into the upper wall of the right-hand
compartment. To make it appear, press it rmly (push/push system).
Press the “U” button, located on the control panel, until the display is activated.
When the control is powering up, the message “OD” appears. Wait for the
temperature to be displayed. Do not touch any of the control buttons or
unplug your appliance.
1 - Connection
Wait 48hrs before commissioning.
Check that your socket is correctly supplied with power (presence of correct sized fuses, 30 mA* circuit
breaker, in working order) (*not applicable to some countries).
VUES NOTICE VITRINE
Front Back
-6-
-7-
7 - COMMISSIONING YOUR SHOWCAVE
The recommended temperature setting range for storing and maturing wine is 9°C - 15°C, the default
setting is 12°C.
When you make signicant changes to the set temperatures, your ShowCave may take several hours to stabilise and
display the desired temperatures.
The cabinet’s performance is optimised when it is lled to at least 75% of its capacity.
The temperature may require some time to stabilise when you have loaded your ShowCave with a large number of
bottles.
This phenomenon may occur when you use the cabinet for the rst time. It is not the result of an operating fault.
Wait a few days. If, on the other hand, the phenomenon persists, contact your EuroCave retailer.
N.B.: Only prolonged exposure to temperatures outside the recommended range and temperature
fluctuations are harmful to your fine wines.
III – Description of the control panel
The temperature of your ShowCave is set entirely from the control panel.
VUES NOTICE VITRINE
Temperature display
Temperature setting conrmation key
Temperature setting and selection keys
• Temperature display:
Displays the actual temperature
inside your ShowCave.
• U button: allows you to stop
just the compressor (not the fans)
by pressing and holding down the
button.
• P button: allows you to conrm
the temperature setting.
To set the temperature of your ShowCave:
• Press the button , and hold down for a few seconds. The symbol ‘‘SPI’’ will appear alternately with the previous
temperature setting.
• Set the desired temperature using the and buttons.
• Conrm your programming by pressing and holding down button P for a few seconds.
Your programming will automatically be conrmed if no button is pressed in the 15 minutes following programming.
To operate correctly, your ShowCave must be placed in a room with a temperature of 15 - 25°C.
ShowCave on/off button
Lighting on/
off button
N.B.: the U button must
not be used for turning
on and off.
ONLY OPERATE THIS
BUTTON IF TOLD
TO DO SO BY OUR
CUSTOMER SERVICES
DEPARTMENT.
-8-
8 - EVERYDAY MAINTENANCE
9 - OPERATING FAULTS
In some temperature and ambient air humidity conditions, slight condensation may appear on the
doors.This natural phenomenon (dew point) can be corrected by increasing the temperature setting
by 1 or 2°C.
Regular monitoring of your appliance and reporting any faults to your retailer will ensure that your
ShowCave provides you with years of faithful service.
• Vacuuming the condenser’s air inlets and outlets once a year is recommended. This is carried out via the top of your
ShowCave.
•Once a year, thoroughly clean the inside of your ShowCave, after unplugging and unloading it (use a damp cloth, water
and gentle cleaning product), then rinse thoroughly also using a damp cloth).
Your EuroCave ShowCave is a tried and tested appliance. Carrying out the following maintenance
work will ensure its longevity.
Whatever the circumstances, if your appliance does not seem to be operating correctly,
contact your EuroCave retailer.
•When using the cabinet for the first time, if the compressor does not start up, check your power socket
by plugging in any other electrical appliance.
•If the temperature sensor has a fault, the display will show ‘‘EI’’ or ‘‘-EI’’.
•If the permitted temperature range is exceeded, below 3°C, the display will show ‘‘LOI’’, and above 25°C,
the display will show ‘‘HII’’.
Any work on the cooling unit must be carried out by a qualied refrigerationist, who must perform a leak test on the
circuit before powering up again.
In the same way, any work on the electrical system must be carried out by a qualied electrician.
-9-
10 - TECHNICAL FEATURES
Réf.
Dimensions
in (mm) Weight when
empty (kg)
Permitted temperature range Consumption per 24hrs*
(kWh)
H W D** T° min T° max
9180V 2190 1284 499 270 15°C 25°C 8.9
*Consumption per 24hrs measured with an external temperature of 25°C and a temperature setting of 12°C.
Control accuracy: +/-1 °C – Display accuracy: +/- 0.5°C.
** Including handle
Your product complies with the following standards:
1 SAFETY (article 3. of directive 2006/95/EC)
Standard(s) EN60335-1: 2001+ A1 + A2 + A11 + A12 + A13
EN60335-2-24: 2002 + A1 + A2 + A11
2 EMC (Article 3. of directive 2004/108/EC)
Standard(s) EN55014-1/2
French wines
Alsace 10°C
Beaujolais 13°C
Sweet white Bordeaux 6°C
Dry white Bordeaux 8°C
Red Bordeaux 17°C
White Burgundy 11°C
Red Burgundy 18°C
Champagne 6°C
Jura 10°C
Languedoc-Roussillon 13°C
Provence Rosé 12°C
Savoie 9°C
Dry white Loire wines 10°C
Sweet white Loire wines 7°C
Loire reds 14°C
Rhône wines 15°C
Sweet white wines from the
South West
7°C
Red wines from the South West 15°C
Australian wines
Cabernet franc 16°C
Cabernet sauvignon 17°C
Chardonnay 10°C
Merlot 17°C
Muscat à petit grain 6°C
Pinot noir 15°C
Sauvignon blanc 8°C
Semillon 8°C
Shiraz 18°C
Verdhelo 7°C
Other wines
California 16°C
Chilli 15°C
Spain 17°C
Italy 16°C
11 - STANDARD WINE
SERVING TEMPERATURES
http://pro.eurocave.com • EuroCavePro@eurocave.com
Leader dans le domaine de la conservation, la présentation et le service des
vins depuis plus de 30 ans, EuroCave vous propose des solutions adaptées
à chacun de vos besoins. Armoires à vins, rangements, climatiseurs de
cave, système de Vin au verre….n’hésitez pas à contacter votre revendeur
EuroCave pour toute information complémentaire !
Leader in the wine preservation, presentation and service sector for over
30 years, EuroCave offers you solutions adapted to every one of your
requirements. Wine cabinets, storage layouts, cellar conditioners, wine by-the-
glass system… don’t hesitate to contact your EuroCave (or Around Wine)
dealer for further information!
Seit mehr als 30 Jahren führend im Bereich der Lagerung, der Präsentation und
dem Ausschank von Weinen schlägt Ihnen EuroCave Lösungen vor, die jedem
Ihrer Bedürfnisse angepasst sind: Wein-, Zigarrenklimaschränke, Weinkeller-
Kompaktklimaanlagen, Geräte für den glasweisen Offenausschank,Weinkeller-
Regalsysteme. Zögern Sie nicht länger, setzen Sie sich mit Ihren EuroCave-
Händler in Verbindung,wenn Sie noch irgendwelche Fragen haben!
Líder en el campo de la conservación, presentación y el servicio de vinos
desde hace 30 años, EuroCave le propone soluciones adaptadas a cada una
de sus necesidades. Bodegas, estanterías, climatizadores de bodegas, sistemas
de vinos a la copa… ¡Para toda información complementaria, no dude en
contactar a su distribuidor EuroCave!
12/2010 - 500 - 8200191 // Groupe Eurocave - 24 rue Francis de Pressensé - 69628 Villeurbanne cedex - RCS Lyon B320316995
Table of contents
