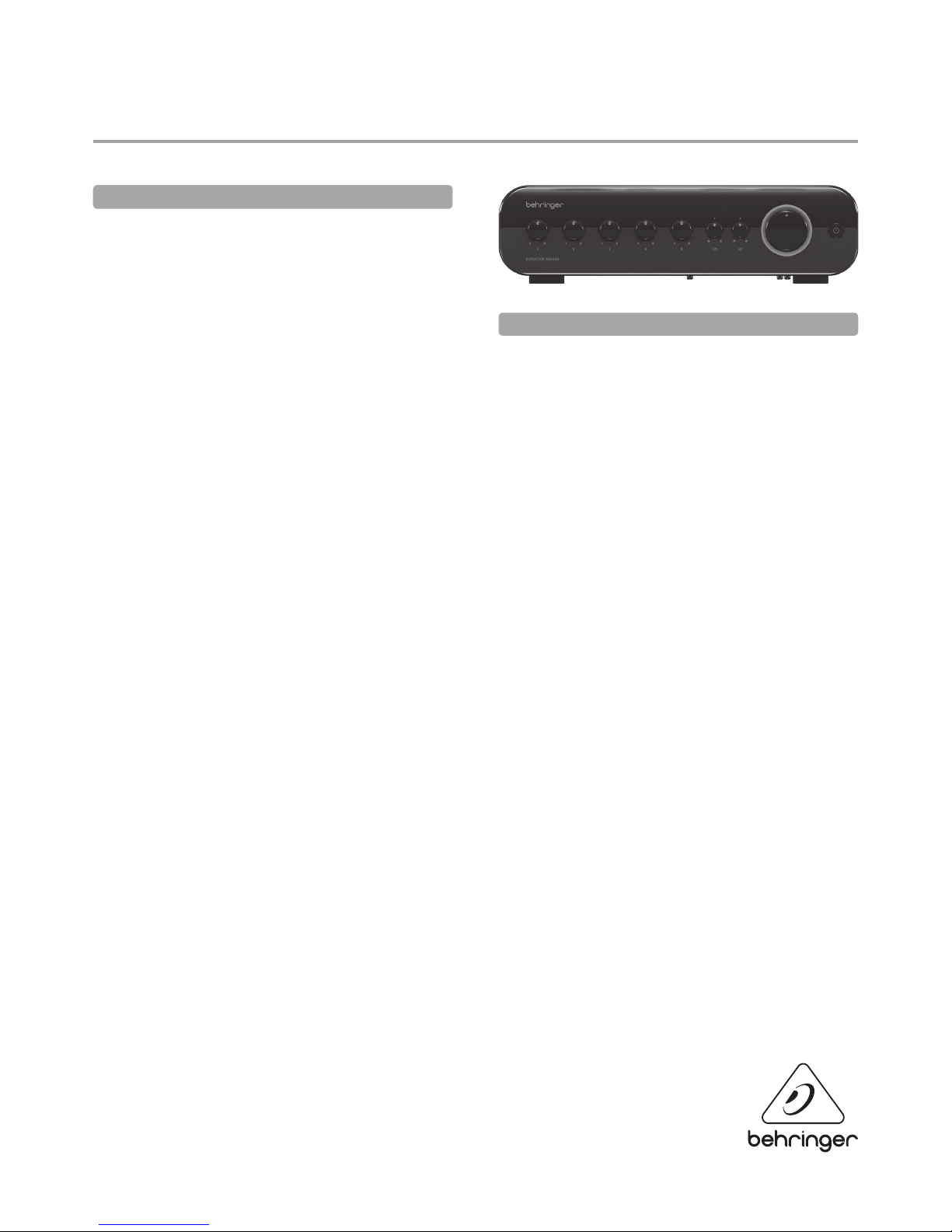

EUROCOM Installed Sound

Combining superior performance and extraordinary

exibility with unprecedented value and style, the

EUROCOM SN2408 mixer-amplier is an innovative

yet practical solution for distributed sound in medium-

complexity environments. Incorporating BEHRINGER’s

exclusive DualDrive technology, the SN2408 is powered

by two independent mono ampliers, one with a high

impedance output that may be set to either 70 or 100 V,

and the other with a standard low-impedance output.

This uniquely versatile conguration addresses the needs

of hybrid distributed/low-impedance systems, allowing

easy installation and conguration of multi-zone setups in

bars, recreation facilities, conference rooms, boardrooms,

hotels, and other venues.

With a sleek, compact exterior that's at home in the chic-

est of settings, the SN2408 can be shelf-mounted within

convenient reach rather than hidden away in a back room.

The clear, intuitive front-panel design, which allows easy

operation by non-technical personnel, includes level

controls for all inputs as well as high and low EQ settings to

optimize the sound for any environment. The front-panel

master volume knob is surrounded by an indicator ring that

glows yellow for power on and ashes red at the onset

of clipping. Paging functions are automated so that user

action is not required to duck background audio

during pages.

The SN2408 includes three input channels that accept

balanced or unbalanced signals via XLR/TRS (1/4-inch)

combination jacks or 4-pin Euroblock connectors. Each

channel is equipped with a three-position switch to select

line, mic, or mic with phantom power (48 V). Two additional

input channels, each with a pair of RCA jacks that are

summed internally to mono, allow playback from external

sources such as CD/MP3 players, cable boxes,

and radio/TV tuners.

Loudspeakers connect via a 4-pin Euroblock connector

wired for both high-Z and low-Z

outputs. Two additional 3-pin Euroblock connections,

each with an associated level control, include a Tel/Page

input for integration with telephone paging systems and

a Zone 2 line-level output to feed a supplemental sound

reinforcement system. Eects send and receive, used to

insert external processing such as dynamics or EQ, is also

provided for each of the two amps using line-level

RCA jacks.

Extensive back-panel control allows the installer to rapidly

customize the SN2408 to the needs of a specic installation.

Switches are provided to select mains voltage (115 or

240 VAC) and high-Z output (70 or 100 V). A Balance control

adjusts the relative levels of the two power ampliers.

Output Assign DIP switches determine which inputs are

Product Overview:

SN2408 Energy-Eﬃcient 80-Watt Mixer Ampliﬁer with Dual 70/100V and 4 Ω Outputs for

Distributed Music, Paging and AV Applications

• Multi-function 80-Watt mixer amplier with dual

70/100 V and 4 Ωoutputs, designed for continuous

operation in distributed music, paging and

AV applications.

• State-of-the-art, energy-saving Switch-Mode

Power technology with up to 80% power eciency

drastically reducing energy cost.

• 2 transformerless, cool-running Class-D ampliers

simultaneously drive 70/100 V and 4 Ω loads with

adjustable Balance control.

• 3 microphone inputs on XLR/TRS or Euroblock

connectors with switchable Mic/Line and

Phantom Power.

• Dedicated Tel/Page input with adjustable gain on

Euroblock connector for paging.

• Assignable Zone 2 output with adjustable gain

control on Euroblock connector.

• Pre Out/Amp In processing loop for each amplier

channel on dual RCA connectors.

• 2 Aux inputs for music or program signals on

RCA connectors.

• Variable voice-activated or contact-activated

music muting.

• Lo and Hi frequency EQ for ultimate sound

adjustment.

• Intuitive front panel with input level controls and

dual-function indicator ring.

• Detachable, locking Euroblock speaker

output connector.

• Independent DC and thermal overload protection

plus automatic limiters for each amplier prevent

overload, clipping and distortion without shutting

down audio.

• Ultra-light, ultra-low noise and ultra-ecient

switch-mode power supply for noise-free audio,

superior transient response and low power

consumption.

SN2408 Features:

EUROCOM Installed Sound

Product Overview (Continued)

included in the Zone 2 output and enable/disable external

processing inserts for each amp. Mute Assign DIP switches

enable/disable mute send and receive signals for the three

main inputs plus Tel/Page, and a Mute Depth control adjusts

the degree of attenuation.

SN2408 operation is both cool and extraordinarily energy-

ecient thanks to transformerless Class-D ampliers that

utilize switch-mode power supplies. The low-Z amplier

delivers 80 W RMS into 8 Ω and 125 W RMS into 4 Ω, while the

high-Z amplier delivers 80 W RMS at 70 V and 160 W RMS at

100 V. Each amplier is protected with DC and thermal

overload protection, as well as by automatic limiting that

prevents overload, clipping, and distortion.

With every detail thought through from both the installer and

end-user perspective, the SN2408 oers the ideal balance

between versatility and ease-of-use, making it a perfect match

for commercial sound requirements in retail, hospitality, oce,

medical, educational, and industrial spaces.

SN2408 Energy-Eﬃcient 80-Watt Mixer Ampliﬁer with Dual 70/100V and 4 Ω Outputs for

Distributed Music, Paging and AV Applications

EUROCOM Installed Sound

SN2408 Energy-Eﬃcient 80-Watt Mixer Ampliﬁer with Dual 70/100V and 4 Ω Outputs for

Distributed Music, Paging and AV Applications

SN2408 Technical Speciﬁcations:

Audio Inputs

Microphone inputs 3 x XLR / ¼" TRS combo jacks

(-50 dBv, 600 Ω balanced)

3 x 4-pin Euroblock (0 dBv,

10 kΩ balanced)

Phantom power +24 VDC

Auxiliary inputs 2 x RCA stereo summed

(0 dB, 10 kΩ unbalanced)

Tel/Page input 3-pin Euroblock (-10 dBv,

600 Ω balanced)

Audio Outputs

Zone 1 speaker outputs 1 x 4-pin Euroblock connector

(LO-Z and HI-Z)

Zone 2 line-level output 1 x 3-pin Euroblock connector

Impedance +4 dBV, 600 Ω balanced

Amplier

Amplier channels LO-Z: 1 x 4 Ω, minimum

HI-Z: 1 x 70 / 100 V, switchable

Power output LO-Z 80 W RMS @ 8 Ω

1 % THD, 1 kHz sine wave 125 W RMS @ 4 Ω

Min. impedance 4 Ω

Power output HI-Z 80 W RMS @ 70V

1 % THD, 1 kHz sine wave 160 W RMS @ 100V

Min. impedance 62.5 Ω @ 70V

62.5 Ω @ 100 V

System Information

Controls 3 x Mic / Line gain (Inputs 1 – 5)

Lo tone: ± 15 dB @ 100 Hz

Hi tone: ± 15 dB @ 10 kHz

Master volume

Tel / Page level

Zone 2 send level

Mute depth

Power on / o

Voltage, 115 / 230VAC

HI-Z mode, 70 / 100V

3 x Phantom / Mic / Line,

3-position dip switch

Mute Assign, 8-position DIP switch

Output Assign, 8-position

DIP switch

Indicators Dual-function indicator ring

(Volume control):

Yellow (Power on) Red (Clip)

Output circuit type 2 x Class D, transformerless

Dual output (LO-Z / HI-Z)

Amplier protection Thermal and DC protection

Automatic limiters

Frequency response 50 Hz – 218 kHz, ± 1 dB @ 1 W

(70 / 100 V)

Dynamic range Mic: 65 dB

Aux: 80 dB

Tel: 78 dB

THD+N 0.05 % @ 1 W, 1 kHz dBr into

8 Ω load

Signal-to-noise ratio 90 dB @ 1% THD+N

Power Supply (Fuses)

Mains voltage Switchable, 100-120 VAC

220-240 VAC~, 50-60 Hz

Fuse T 6.3 A H 250 V

Power eciency 70%

Power consumption 80 W @ 1/8 of max rated output

Mains connector Standard IEC receptacle

Dimensions / Weight

Dimensions (H x W x D) appr. 3.3 x 12 x 14.2" / 83 x 305 x 360 mm

Weight appr. 9.2 lbs / 4.2 kg

EUROCOM Installed Sound

SN2408 Energy-Eﬃcient 80-Watt Mixer Ampliﬁer with Dual 70/100V and 4 Ω Outputs for

Distributed Music, Paging and AV Applications

Summary description: The mixer-amplier shall be of

compact, shelf-mountable multi-input design with built-in

paging functions and two mono transformerless Class D

power ampliers with switch-mode power supplies, one low-Z

and one high-Z (70/100 V) for distributed speaker systems.

Controls and indicators shall include the following:

• Master Volume knob for setting overall volume

• Indicator ring for power (yellow) and clipping

(ashing red)

• HI EQ/LO EQ knobs to adjust the overall treble

and bass

• Input level knobs (1-5) to set the relative level of

each input

• Phantom/Mic/Line switches (3) to select input

channel mode

• Tel/Page input screw pot to adjust telephone

paging input

• Zone 2 output screw pot to adjust the level of the

Zone 2 feed

• Mains voltage switch to select 115 or 240 VAC

• High-Z output switch to select 70 or 100 V operation

• Balance screw pot to adjust the relative output of the

two amps

• Output Assign DIP switches to assign inputs to the

Zone 2 out and to enable/disable external processing

inserts for each amp

• Mute Assign DIP switches to enable/disable muting

• Mute depth screw pot to set ducking of aux inputs

during pages

• Power switch to turn the unit on and o

Connections to the mixer-amplier shall include:

• Mic/Line inputs on three XLR/TRS (1/4-inch)

combination jacks and three 4-pin

Euroblock connectors

• Aux inputs (2 pair), unbalanced line-level RCA,

summed to mono

• Output for both high- and low-Z on a 4-pin

Euroblock connector

• Tel/Page input on a 3-pin Euroblock connector

• Zone 2 line-level output a on 3-pin Euroblock

connector

• Eects inserts on RCA jacks (send and receive for

each amp)

• AC power on IEC jack

Architect’s and Engineer’s Speciﬁcations:

Protections incorporated into the amplier shall include

automatic limiting and independent DC and thermal

overload protection.

Performance criteria met by the mixer-amplier

shall include:

• RMS power output (1 kHz @ 1% THD) for the low-Z

amp of 80/40 W (4/8 Ω) and for the high-Z amp of

80/80 W (100/70 V)

• Frequency Response (1 W, 70/100 V) of 20 Hz-20 kHz,

+/- 1 dB

• Dynamic range of 65 dB for Mic, 80 dB for Aux,

78 dB for Tel

• Distortion (THD+N; 1 W, 1 kHz) of 0.05% into 8 Ω

• Signal to Noise Ratio (1% THD+N) of 90 dB

AC Power requirements of the mixer-amplier

shall be:

• Mains voltage of 115 or 240 VAC at 50~60Hz

• Power consumption at rated power output of 130 W

for 70 V only, 220 W for 100 V only, and 370 W for

100 V and 4 Ω together

• Power eciency of 70%

Physical characteristics of the mixer-amplier

shall be:

• Height x Width x Depth of 3.3 x 12 x 14.2 in

(83 x 305 x 360 mm)

• Net weight of 9.2 lbs (4.2 kg)

Model: The mixer-amplier shall be the BEHRINGER

EUROCOM SN2408.

EUROCOM Installed Sound

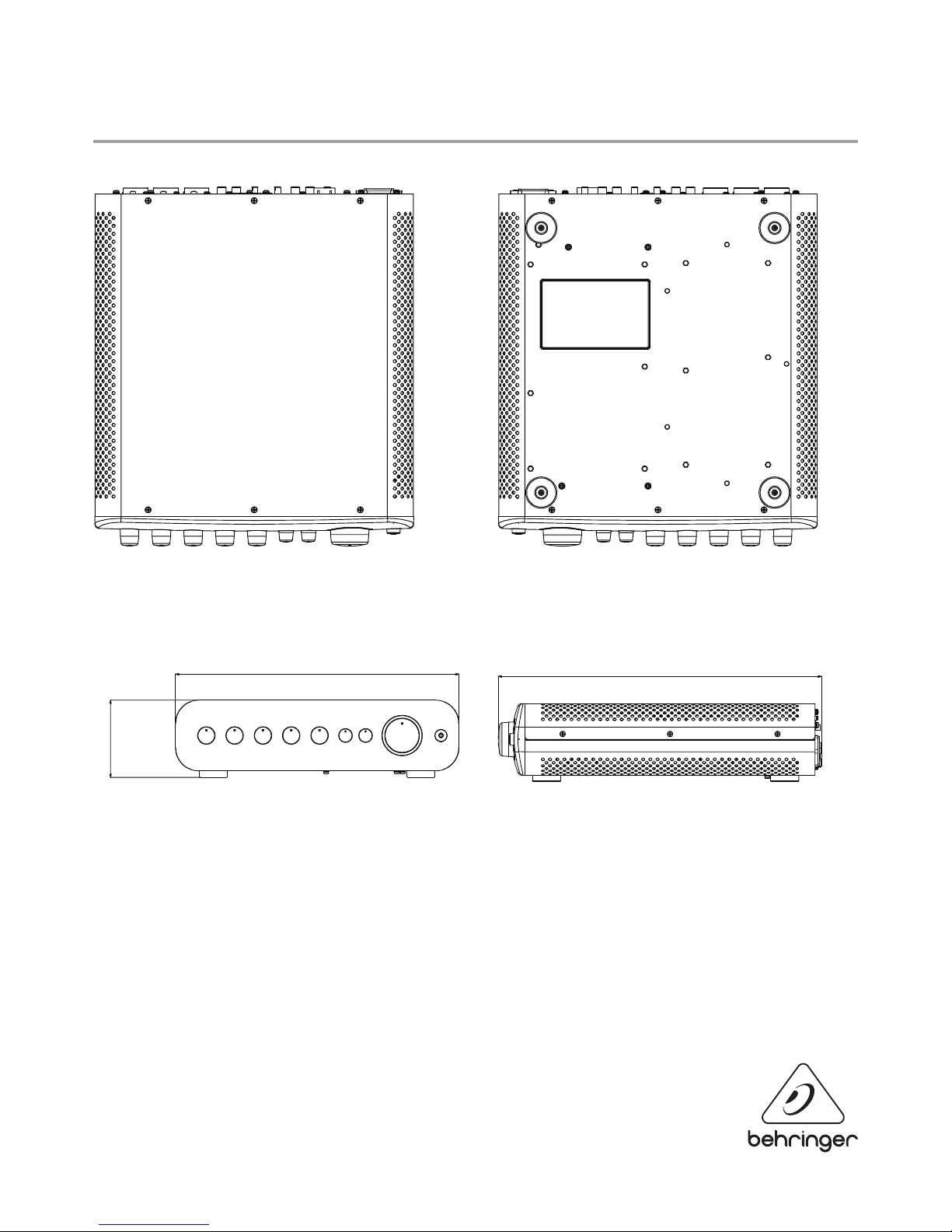

TOP

FRONT SIDE
