Eurocopter AS350 B3 Instruction manual

Eurocopter reserves the right to make configuration and data changes at any time without notice.
The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Eurocopter
EUROCOPTER
AS350 B3
350B3 08.101.01E
Technical
Data
C
M
J
CM
MJ
CJ
CMJ
N
Base_Ecureuil.ai 29/03/2006 12:29:47Base_Ecureuil.ai 29/03/2006 12:29:47

SINGLE ENGINE TWIN ENGINE
ECUREUIL
(Civil Version)
Technical Data
Ecureuil AS350 B2
Ecureuil AS350 B3
FENNEC
(Military Version)
Ecureuil AS355 NP
Armed naval version
torpedo
Fennec AS555 SP
Multi purpose military version
=
Utility or armed aircraft
Fennec AS550 C3
Ecureuil EC130 B4
EUROCOPTER
AS350 B3

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 1
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
Contents
1 – Foreword ................................................................................................... 2H3
2 – General characteristics ............................................................................ 3H4
3 – Baseline Aircraft Definition ...................................................................... 4H9
4 – Recommended mission configurations ................................................ 5H11
5 – Optional equipment ................................................................................. 6H25
6 – Main performance .................................................................................... 7H37
7 – Customer Service Overview .................................................................... 8H56
Manufacturers notice
Attention !
EUROCOPTER, its logo, AS350, EC130 B4, ECUREUIL, STARFLEX, VEMD,
are trade marks of the Eurocopter group.
Eurocopter’s policy is one of on-going product enhancement which means
that alterations in definition, pictures, weights, dimensions or performance
may be made at any time without notice being included in those documents
that have already been issued.
This document cannot thus be taken as an offer or serve as an appendix to a
contract without a prior check as to its validity and prior written agreement of
EUROCOPTER.
The operational or certification regulations, as defined by the local
authorities, can make compulsory the installation of some of the equipment
and recommended solutions, listed in this document. This list does not claim
to cover the whole of the worldwide operational requirements nor the
equipment not specifically related to the helicopter (for example : life jacket)
or necessary for particular missions (for example : supplemental oxygen).
The operator is responsible for ascertaining with his local authorities that the
planned configuration of the helicopter complies with regulatory requirements
for the area(s) of operations and the type(s) of mission(s) considered.

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 2
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
Blank

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 3
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
1- Foreword
The AS350 B3 is "the high performance" version of the single engine ECUREUIL range, beating every other
single engine helicopter in its category. It fulfils the FAR 27 regulation for VFR operation by day and night 0F1.
It offers a Maximum Internal Gross Weight of 2,370 kg / 5,225 lb
1F2and a Maximum all-up weight of
2,800 kg / 6,172 lb in external load configuration. This makes the helicopter perfectly suited for:
Aerial work,
Fire fighting,
Police surveillance,
Passenger Transport,
Hoist operations,
EMS in hot / high ambient conditions,
To optimise the Man-Machine Interface the helicopter is basically fitted with the VEMD (Vehicle and Engine
Multifunction Display) on the instrument panel: a new generation of integrated instrumentation that allows the
pilot to see all the main vehicle and engine parameters at one glance on a dual LCD screen.
The AS350 B3 is powered with a TURBOMECA ARRIEL 2 engine of 847 shp (632 kW) and equipped with a
dual channel FADEC system (Full Authority Digital Engine Control). This engine makes it perfectly suited for
operations in conditions such as mountainous or elevated areas or hot and dry areas. With an under-slung
load capacity of 1,400 kg (3,086 lb) and a high rate-of-climb, this helicopter is the ideal tool to transport
heavy loads and to carry out logging operations in the mountains. When fitted with low skid landing gear, the
maximum cruise speed is 140 kts. This high performance in combination with its high hook capacity makes
the AS350 B3 a very sought-after aircraft for passenger transportation or utility operations.
1By night, in VFR, when the equipment required by operational regulations are installed and serviceable.
2Requires the fittment of the option "Kit to increase Maximum Internal Gross Weight to 2370 kg".

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 4
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
2- General Characteristics
Layout
Passenger-transport
z1 pilot + 5 passengers in standard version
z1 pilot + 4 or 5 passengers in "comfort" version
z1 pilot + 6 passengers in "high density" version
Casualty-evacuation
z1 pilot + 1 stretcher patient + 2 doctors
Cargo carrying
z1 pilot + 3 m³ (105.9 ft³) load in cabin
Weights
Note : Empty weight accuracy : within ± 2 % kg lb
Empty weight, baseline aircraft
(including engine oil and unusable fuel) 1,241 2F12,736
Useful load 1,009 2,224
Maximum all-up weight 2,250 4,960
Maximum cargo-swing load 1,400 3,086
Maximum all-up weight in external load configuration 2,800 6,172
Power plant
1 TURBOMECA ARRIEL 2 turbine engine
Engine ratings
Thermodynamic Power, in standard atmosphere, at sea level : kW ch shp
Take-off power 632 860 847
Maximum continuous power 543 739 728
Usable Fuel capacities
litres US gal. kg lb
Standard fuel tank 540 143 426 939
Auxiliary fuel tank (option) 475 125 375 827
1Refer to pages 9 to 10 for features included in baseline aircraft weight.

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 5
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008

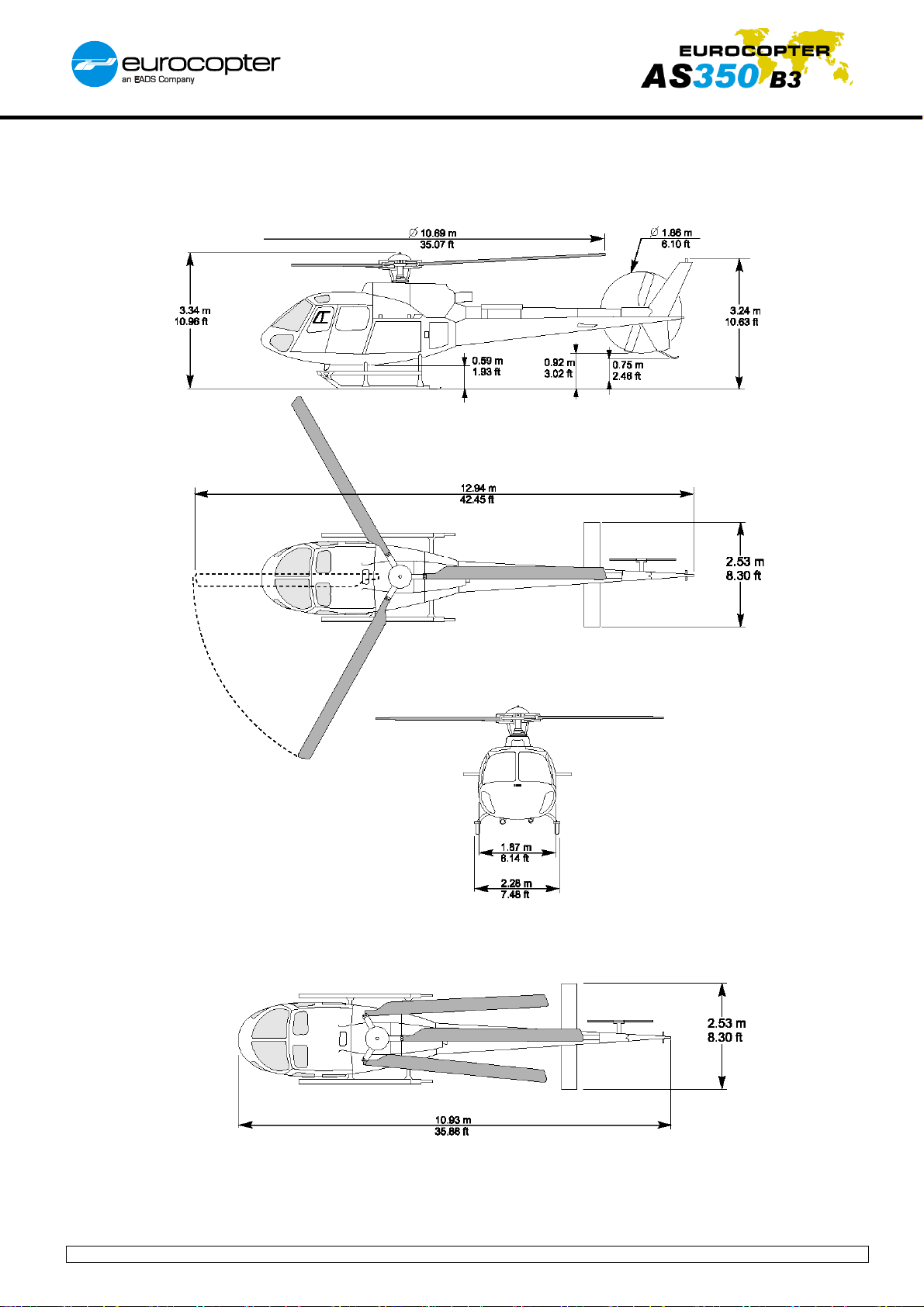

Main dimensions
Dimensions with blades folded

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 6
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
Dimensions of compartments and accesses
Cabin main dimensions
CABIN
Surface
A
2.60 m²
27.98 ft²
Volume 3.000 m³
105.94 ft³
LH HOLD
Surface 0.43 m²
4.62 ft²
Volume 0.235 m³
8.29 ft³
RH HOLD
Surface 0.35 m²
3.76 ft²
Volume 0.200 m³
7.06 ft³
REAR HOLD
Surface 0.55 m²
5.92 ft²
Volume 0.565 m³
19.95 ft³
TOTAL HOLDS
Surface 1.33 m²
14.3 ft²
Volume 1.000 m³
35.30 ft³
Cabin floor
zPilot's safety belt attachment and freight-tie-down rings
Passenger safety belt or freight tie-down rings

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 7
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
Configurations
Standard Layout
STYLENCE
Layout

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 8
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER®and its contents shall not be disclosed. ©EUROCOPTER-2008
Other characteristics
TURBOMECA ARRIEL 2 turbine engine
847 shp (632 kW) take-off power
Triple engine control : one dual channel FADEC
(Full Authority Digital Engine Control) unit plus
Optimized engine ratings according to outside
operations conditions thanks to electronic
governing system (FADEC)
Optimized engine monitoring through the VEMD
Automatic starting sequence
VEMD
Full color LCD display
Fully duplex equipment
Self monitoring at one glance
First Limitation Indication (FLI) with aural warning
Mission parameters calculation
Engine cycle counting
Engine health monitoring
Versatility enhancement
Since year 2001, EUROCOPTER leads a policy of enhancement of the standard definition of the helicopter
ECUREUIL in order to improve its versatility.
A first stage was to equip the ECUREUIL single-engined aircraft with general equipment and capabilities for
mission equipment, most usually selected by the operators.
The second stage was an extension of the "Ready to fly" concept of the last-born child of the family the
EC130 B4 to the whole of the ECUREUIL single-engined aircraft in 2003. The result is that a helicopter in
standard definition can operate in flight VFR day and night in the majority of the countries.
The set of instruments and radiocommunication / radionavigation equipment integrated in the standard
definition since 2003 is :
1 Gyro-horizon 1 VHF/VOR/LOC/GS/GPS
1 Gyro-directional 1 Transponder (mode A+C)
1 Turn and bank indicator 1 Altitude encoder
1 VHF/VOR/LOC/GS 1 ELT (2 frequencies)
1 Course Deviation Indicator 1 ICS + passenger interphone

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.100.01 E 9
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed. ©EUROCOPTER-2008
3- AS350 B3 ECUREUIL - Baseline Aircraft Definition
The helicopter in the definition, presented hereafter, meets the certification standards for day and night VFR operations, set by the following
airworthiness authorities : EASA, FAA, TC. This list is not restrictive and the status of approval by other airworthiness authorities must be
checked. Additional equipment item may be required by the relevant operational regulation (most of them are available in catalogue).
GENERAL
The AS350 B3®is certified with a pilot being on the right side
The standard aircraft is delivered with right side controls and
fixed parts of the removable dual controls (the removable parts
of removable dual controls are optional)
Fuselage comprising the cabin and 3 luggage holds, with floor
tie-down nets and access doors
Tail boom with stabilizer, anti-torque rotor and fin with tail skid
High Skid landing gear with long footsteps (on right side and on
left side), capable of taking handling wheels
Lifting points
Mooring fixtures
Structural reinforcements for wire strike protection system
External paint : fuselage according to standard paint schemes.
Unless modified by optional item, the main rotor head cover
and the skid landing gear are painted in grey.
Internal paint : grey (prevailing colour)
Interior signs and markings : available in either French or
English
CABIN
Cabin floor in light-alloy sheet-metal with tie-down rings
2 pilot and copilot high-back energy-absorbing seats,
adjustable in reach, removable, complete with cushions, safety
belts and shoulder harnesses
2 two-place rear bench-seats, foldable separately, complete
with cushions, safety belts and shoulder harnesses
2 pilot and copilot jettisonable doors each fitted with a sliding
window and with improved side-visibility window
z1 RH large front door
z1 LH front door
Rear right door-extension for passengers and cargo
1 rear left sliding door
Locks on every access to cabin and luggage compartments
Lock on fuel cap
2 tinted upper panes
1 ceiling housing the ventilation ducts and controls (ventilation
controls, rotor brake and fuel cut-off)
Cabin heating
Demisting system for front windscreens
Ram air ventilation duct
Fixed parts for pilot and copilot windshield wipers
1 pilot map case
1 fire-extinguisher
Flight Manual
Interior harmony according to definition in force
INSTRUMENTS
Instruments units : available in either metric or English units
1 airspeed indicator
1 altimeter
1 vertical speed indicator
1 rotor tachometer indicator
1 clock
1 warning panel
1 magnetic compass
1 heated pitot head
1 external side slip indicator
1 control box for light and electrical generation
2 cockpit breaker panels
1 I.C.S. connection to audio warning issued from VEMD®
1 LCD Dual screen Vehicle and Engine Multifunction Display
(VEMD®) providing the following information:
zFirst limitation indicator (FLI)
torquemeter
exhaust gas temperature (T4)
gas generator tachometer (Ng, delta Ng)
zEngine oil temperature/pressure
zFuel quantity and fuel flow and estimated remaining time to
fly
zAmmeter and voltmeter
zOutside Air Temperature (OAT)
zEnhanced usage monitoring functions
IGE/OGE performance calculations
engine cycles counting
engine power check
overlimits display
zVEMD®and peripheral maintenance information
zData downloading capability (software and connection wire
as option)

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.100.01 E 10
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed. ©EUROCOPTER-2008
AVIONICS
1 avionics master switch
1 gyro-horizon
1 gyro-directional
1 course Deviation Indicator
1 turn and bank indicator
1 VHF/VOR/LOC/GS
1 VHF/VOR/LOC/GS/GPS
1 transponder (mode A+C)
1 altitude encoder
1 Emergency Locator Transmitter (2 frequencies)
1 ICS + passenger interphone
POWER PLANT
1 Turboméca ARRIEL 2 632 kW (860 ch – 847 shp) turbine
engine complete with starting, fuel supply and dual channel
digital engine control system (FADEC) with back-up control
system that automatically controls the engine in case of total
failure of the 2 digital channels of the FADEC
1 fuel system including 1 tank of 540 litres (143 US gal.) total
capacity
1 magnetic plug and chip detector
1 engine lubrication and oil cooling system
1 fire detection system
1 air-intake protective grids
1 torque-measurement pick-up
TRANSMISSION SYSTEM
1 main gearbox, anti-vibration mounted, with oil sight gauge,
chip detector, oil temperature and pressure switches, port for
endoscope and self-sealing valve for oil sampling and draining
1 main gearbox oil cooling system
1 engine to main gearbox coupling shaft
1 rotor brake
1 main rotor high and low r.p.m. warning device
1 tail drive carried by five anti-friction bearings
1 tail gearbox with oil sight gauge, chip detector and port for
endoscopic inspection
ROTORS AND FLYING CONTROLS
1 main rotor with 3 composite-material blades around a
STARFLEX®head fitted with spherical thrust bearings
1 anti-torque rotor with 2 composite-material blades
3 main rotor hydraulic servo units
1 tail rotor hydraulic servo unit and a load compensator
ELECTRICAL INSTALLATION
One 150 A, 28 V DC starter-generator
One 15 A.h cadmium-nickel battery
1 ground power receptacle
3 position lights (LED)
1 flashing anti-collision light (LED)
2 fixed landing light
2 cabin dome lights
1 instrument-panel lighting system
Integrated lighting in central console
1 swivelling emergency and reading map light
One 28 V DC cabin power outlet
AIRBORNE KIT (*)
1 pitot head cover
2 static port stoppers
1 engine air-intake blanking cover
1 tail-pipe plug
2 ground handling bogies c/w hydraulic jacking system
1 GHW modification kit
1 lifting ring
2 upper mooring rings
3 main-blade socks
1 tail rotor locking device
1 document holder
1 airborne kit stowage bag
(*) (weight not included in standard aircraft empty weight)

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 11
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
4- Recommended mission configurations
EUROCOPTER proposes different mission configurations for its helicopters. This pre-selected list
of optional equipment should be regarded as a recommended equipment list and can be
complemented by additional equipment from the optional equipment list in chapter 5. Please take
note that there can be incompatibilities between optional equipments. Any modification and/or
complement of the proposed mission configuration must be done in with assistance of a
EUROCOPTER sales representative.
The proposed mission configurations are done by EUROCOPTER using its years of experience in
making helicopters and in coordination with different operators of the AS350 B3 around the world.
For the AS350 B3 the recommended mission configurations are:
Passenger transport mission
Utility mission
Multirole mission
Corporate transport mission (STYLENCE).

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 12
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
4-1 Passenger transport configuration
With its wide, unobstructed 5+1 cabin (6 + 1 in high density) and its high cruising speed, range and payload,
the AS350 B3 can carry more passengers on more round-trips per day than any other helicopter in its class.
The helicopter has been designed to provide its occupants with the highest level of comfort. In addition to the
low vibration level, the passengers will appreciate the feeling of spaciousness and the panoramic view
offered by the large windows.
Access to the cabin is easy due to
its wide doors with convenient
boarding steps. All seats are
facing forward for more comfort.
The large baggage compartments
are easily accessible to allow
quick loading of luggage.
This proven and technologically advanced helicopter carries thousands of tourists, businessmen and VIPs all
over the world in optimum comfort and safety.
Weights
Note : Empty weight accuracy : within ± 2 % kg lb
Empty weight, Passenger transport configuration
(including engine oil and unusable fuel) 1,320 2,910
Useful load 930 2,050
Maximum all-up weight 2,250 4,960
Maximum cargo-swing load 1,400 3,086
Maximum all-up weight in external load configuration 2,800 6,172

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 13
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
Mission configuration
Document
reference
Commercial
reference
Name kg lb
AS350 B3 Baseline aircraft as per 350 B3 08.100.01 E 1,241.0 2,736.0
General Equipment
05-02004-A 05-02004-00-CI Extra charge for customized external paint - level 1 3F1- 4F24.0 8.8
05-23003-A 05-23003-00-CI Engine flushing device without removal of cowlings 0.8 1.8
05-37010-B 05-37010-01-CI Dual controls 3.5 7.7
Specific Mission Equipment
06-42005-A 06-42005-00-CI LH landing light (swivelling in elevation and azimuth) 5F32.5 5.5
06-61002-A 06-61002-00-FP Emergency floatation gear - Fixed Parts 9H35.4 11.9
Interior Cabin Layout
07-00010-A 07-00010-00-CI Comfort layout with sound-proofing 47.0 103.6
Avionics
Standard VFR day and night package (included in Baseline Aircraft)
Thales H321EHM - Gyro-horizon 6F4
AIM 205-1BL - Gyro-directional
UI 9560 - Turn and Bank indicator
Honeywell KX165A - VHF/VOR/LOC/GS
Garmin GI106A - Course Deviation Indicator
Garmin GNS430 - VHF/VOR/LOC/GS/GPS 7F5
Garmin GTX327 - Transponder (mode A+C)
Shadin 8800T - Altitude Encoder
Kannad 121AF-H - Emergency Locator Transmitter 8F6
Garmin GMA340H - ICS 9F7- 10F8
Configuration continued on next page…
1Paint scheme must be approved at the latest 3 months before the delivery of the helicopter.
2Paint scheme comprising a basic shade and 2 or 3 additional shades, with straight separation lines, apart from
standard paint schemes.
3May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
4With slip indicator included when the Turn and Bank indicator is replaced by the stand-by gyro-horizon.
5Delivered with EUROPE map. Subscription to be made by the customer.
62 frequencies: 121.5 MHz, 243 MHz. Compliant with ED 62 and TSO C91A.
7Includes the passenger interphone function.
8I.C.S. compatible only with High level / High impedance headsets.

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 14
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
Document
reference
Commercial
reference
Name kg lb
Avionics
06-67031-A 06-67031-00-CI Kannad 406AF-H - Emergency Locator Transmitter 11F1-12F2
instead of Kannad 121AF-H - Emergency Locator
Transmitter
0.1 0.2
08-22019-A 08-22019-00-CI Garmin GTX330 - Transponder (mode S) 10H2- 13F3
instead of Garmin GTX327 - Transponder (mode A+C)
0.6 1.3
08-51019-A 08-51019-00-CI Thales H321EHM - Stand-by gyro-horizon 11H2
instead of UI 9560 - Turn and Bank indicator
3.0 6.6
08-52012-A 08-52012-00-CI Honeywell KCS55A - Gyro Compass 14F4
with Honeywell KI525A - Horizontal Situation Indicator
instead of AIM 205-1BL - Gyro-directional
and Garmin GI106A - Course Deviation Indicator
3.8 8.4
08-18035-A 08-18035-00-CI David Clark H10-13H - Headset (Qty 6) 15F53.0 6.6
08-21008-A 08-21008-00-CI Thales AHV16 - Radio altimeter 12H25.6 12.3
08-83017-A 08-83017-00-CI VEMD data download kit 16F6- 17F7— —
08-91004-A 08-91004-00-CI Hourmeter 0.1 0.2
13 frequencies: 121.5 MHz, 243 MHz, 406 MHz. Compliant with ED 62 and TSO C91A.
The Programming Data Sheet must be filled and communicated by the customer two months at the latest before
the helicopter's delivery.
2May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
3The mode S identification must be communicated by the customer two months at the latest before the delivery.
4With a selector switch for NAV1/NAV2 selection.
5High level / High impedance headset.
6Delivered in addition to the airborne kit, this kit includes two softwares and a connection wire.
7Allows compliance to JAR OPS 3 Amendment 3 requirement, as defined in Appendix 1
to JAR OPS 3.517 (a) and (b)(5)(i). Requires absolute time data, given through a compatible connection with a
serviceable GPS equipment (Compliance achieved with the baseline aircraft as defined on pages 9 and 10.

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 15
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
Blank

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 16
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
4-2 Utility configuration
The powerful AS350 B3 is everything the world has come to expect from EUROCOPTER – dependable,
comfortable, safe and cost-effective. It fits all types of utility missions, because it has been designed with
adaptability in mind.
The AS350 B3 can be configured and easily re-configured, with a long list of optional equipment for whatever
utility mission in mind. With its lifting power, endurance and heavy-duty composite materials construction, the
AS350 B3 is always up for the most arduous hot and high missions and sling work.
The cockpit includes the dual LCD-screen VEMD, that gives the pilot the possibility to see all the vehicle
parameters at one glance, reducing his workload and enhancing safety. It leaves the pilot the possibility to
concentrate at its mission at hand.
Weights
Note : Empty weight accuracy : within ± 2 % kg lb
Empty weight, Utility configuration
(including engine oil and unusable fuel) 1,277 2,815
Useful load 973 2,145
Maximum all-up weight 2,250 4,960
Maximum cargo-swing load 1,400 3,086
Maximum all-up weight in external load configuration 2,800 6,172

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 17
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
Mission configuration
Document
reference
Commercial
reference
Name kg lb
AS350 B3 Baseline aircraft as per 350 B3 08.100.01 E 1,241.0 2,736.0
General Equipment
05-32001-A 05-32001-00-CI Pilot's windshield wiper 2.6 5.7
05-37010-B 05-37010-01-CI Dual controls 3.5 7.7
Specific Mission Equipment
06-11017-A 06-11017-00-CI Skid wearing plates 1.3 2.9
06-26004-B 06-26004-01-FP RH side electric and de-iced external mirror - Fixed Parts 0.5 1.1
06-26004-01-RP RH side electric and de-iced external mirror
- Removable Parts
2.3 5.1
06-27008-A 06-27008-00-FP Cargo swing (1400 kg - 3,080 lb) - Fixed Parts 4.0 8.8
06-27008-00-RP Cargo swing (1400 kg - 3,080 lb) - Removable Parts 18F113.5 29.8
06-27009-A 06-27009-00-CI Capabilities for extended cargo sling 1.2 2.6
06-42005-A 06-42005-00-CI LH landing light (swivelling in elevation and azimuth) 19F22.5 5.5
Interior Cabin Layout
07-50005-B 07-50005-01-CI Right rear sliding door 20F33.6 7.9
Avionics
Standard VFR day and night package (included in Baseline Aircraft)
Thales H321EHM - Gyro-horizon 21F4
AIM 205-1BL - Gyro-directional
UI 9560 - Turn and Bank indicator
Honeywell KX165A - VHF/VOR/LOC/GS
Garmin GI106A - Course Deviation Indicator
Garmin GNS430 - VHF/VOR/LOC/GS/GPS 22F5
Garmin GTX327 - Transponder (mode A+C)
Shadin 8800T - Altitude Encoder
Kannad 121AF-H - Emergency Locator Transmitter 23F6
Garmin GMA340H - ICS 24F7- 25F8
08-18035-A 08-18035-00-CI David Clark H10-13H - Headset (Qty. 2)26F91.0 2.2
08-83017-A 08-83017-00-CI VEMD data download kit 27F10 - 28F11 — —
1 With Onboard Systems TALON hook.
2 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
3Replaces the standard RH large front door with improved side-visibility window and small rear door.
4With slip indicator included when the Turn and Bank indicator is replaced by the stand-by gyro-horizon.
5Delivered with EUROPE map. Subscription to be made by the customer.
62 frequencies: 121.5 MHz, 243 MHz. Compliant with ED 62 and TSO C91A.
7Includes the passenger interphone function.
8I.C.S. compatible only with High level / High impedance headsets.
9High level / High impedance headset.
10 Delivered in addition to the airborne kit, this kit includes two softwares and a connection wire.
11 Allows compliance to JAR OPS 3 Amendment 3 requirement, as defined in Appendix 1
to JAR OPS 3.517 (a) and (b)(5)(i). Requires absolute time data, given through a compatible connection with a
serviceable GPS equipment (Compliance achieved with the baseline aircraft as defined on pages 9 and 10).

Technical Data
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
350 B3 08.101.01 E 18
This document is the property of EUROCOPTER®; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER® and its contents shall not be disclosed . © EUROCOPTER-2008
4-3 Multirole configuration
The AS350 B3 is designed to handle any mission. Thanks to its wide and unobstructed cabin, it can be
reconfigured easily for everything from utility and heavy load transport, to medical evacuation, SAR, law
enforcement, oil-rig transport and high-density passenger transport.
In its role as law enforcement helicopter its customer uses it for a wide range of law enforcement missions:
surveillance, command and control, transporting small special force units and border patrol missions.
The exceptional lifting power, high endurance and extended range of the AS350 B3 make any job looks
easy. The AS350 B3 can climb to 3,000 meters in 2 minutes and 21 seconds and has more then proved its
performance when it landed on the Mount Everest in a record-breaking event.
Weights
Note : Empty weight accuracy : within ± 2 % kg lb
Empty weight, Multirole configuration
(including engine oil and unusable fuel) 1,321 2,912
Useful load 929 2,048
Maximum all-up weight 2,250 4,960
Maximum cargo-swing load 1,400 3,086
Maximum all-up weight in external load configuration 2,800 6,172
