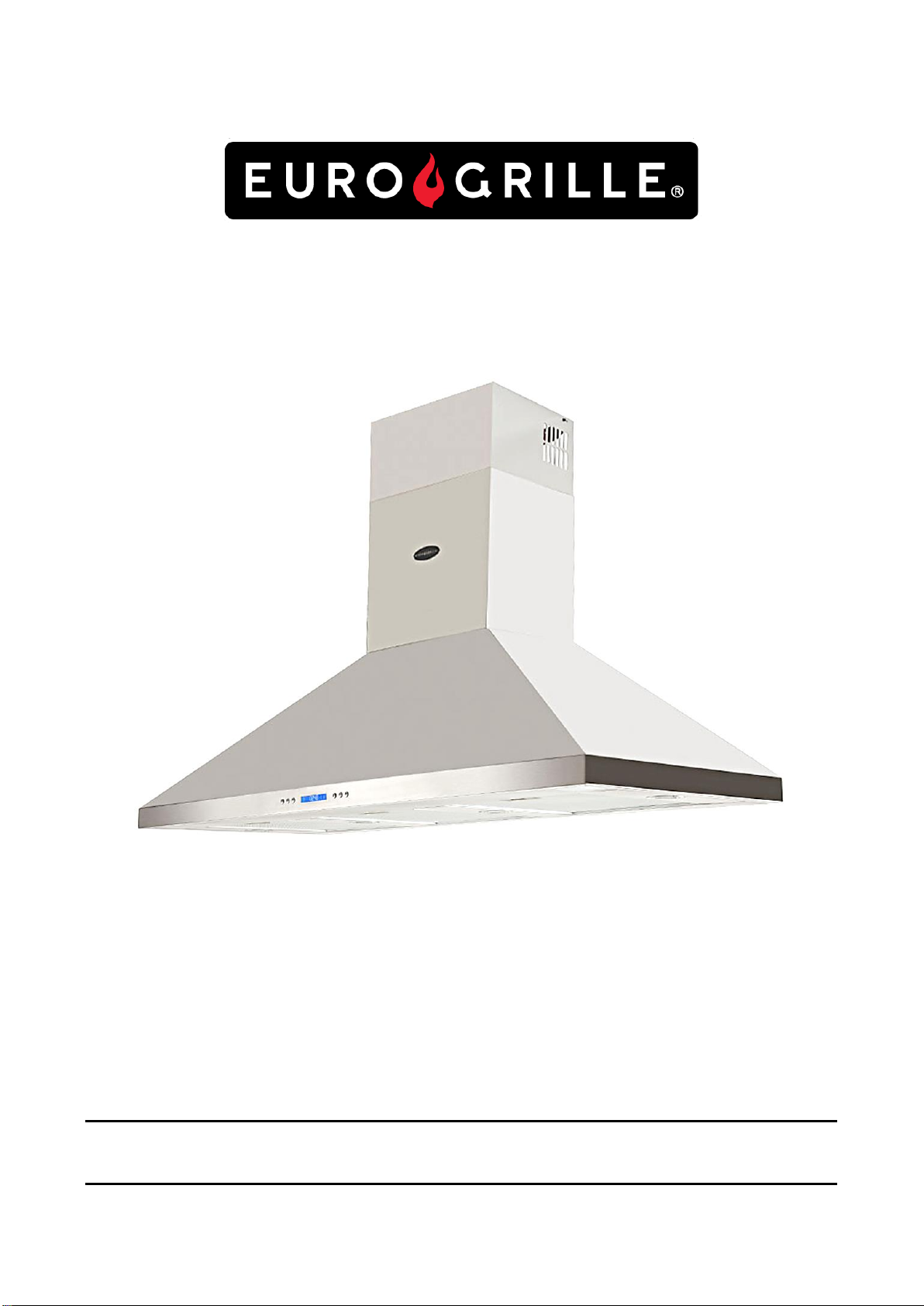

1500mm Wall Mount Range Hood

User Manual

[Revision 2.0 October 2017]

READ THIS MANUAL CAREFULLY BEFORE USE –FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

1500mm Wall Mount Range Hood

Safety

•Before installing and using your range hood, be sure to read this user’s manual carefully. It contains

general instructions for installation, use and maintenance of the product.

•Installation and maintenance should be performed by qualified persons only, whom are aware of

installation regulations.

•Failure to install the range hood properly or without due care may void any warranty.

•Before installing, ensure that the appliance is correctly pre-set for local conditions (voltage and plug

type).

•After removing the appliance from its packaging, check for any damage. If damage is found, contact the

retailer.

•The packing materials (plastic bags, polystyrene foam, nails, metal strips, etc.) represent choking or

suffocation hazards and must be kept away from children.

•Do not attempt to alter the appliance.

•The manufacturer is not responsible for any injuries to persons or animals or property damage that may

be caused by the incorrect installation or use of this product.

1500mm Wall Mount Range Hood
E&OE ©2017 Eurogrille 3
Table of Contents
Safety............................................................................................................................................. 2
Parts Identification........................................................................................................................ 4
Included Items..............................................................................................................................................4
Installation.....................................................................................................................................5
Using the Range Hood..................................................................................................................9
Setting the Clock..........................................................................................................................................9
Using the Fan Timer...................................................................................................................................10
Maintenance................................................................................................................................ 10
Specifications .............................................................................................................................10

1500mm Wall Mount Range Hood

Parts Identification

Included Items

•Exhaust Unit (includes control panel, motors, filters

and hood) (1)

•Exhaust Valve (2)

•Flue Cover (1)

•Extension Flue Cover (1)

•Vent Pipe (2)

•Mounting Bracket (1)

•Flue Support Bracket (1)

•Flue Bracket (1)

•M4 x 20 Screw (4)

•M4 x 10 Screw (8)

•#8 Self Tapping Screw / Wall Anchor (12)

•#6 Self Tapping Screw (4)

EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE EUROGRILLE

1500mm Wall Mount Range Hood

Installation

Ensure that the mounting surface is capable of holding at least 40kg weight. •The height

between the top of the cooktop and the bottom of the range hood should be between 650 and

700mm in order for the range hood to perform effectively. • Ensure that the range hood flue has enough

length (470 to 950mm) to reach the ceiling before proceeding with the installation. • Installation requires 2 or

more people.

Figure 1

1. Refer to Figure 1. Using a pencil or other erasable marker, lightly mark out the vertical centre line of

where the range hood is to be installed –this is generally central to the cooktop. Then, mark a horizontal

line that is to be where the bottom of the range hood will be. Ensure that the line is level.

2. From the first horizontal line, mark a second horizontal line 440mm (17.5") up - this is for the range hood

mounting bracket. At the intersection of the second horizontal line and the centre line, mark out the 4

hole positions for the bracket.

3. Mark a third horizontal line 15mm below the ceiling –this is the for the flue extension mounting bracket.

At the intersection of the third horizontal line and the centre line, mark out the 2 hole positions for the

bracket.

Note: If the wall is gyprock or drywall, and the mounting bracket screws are to screw into the wooden frame

behind the wall, make sure that the holes align with the wooden frame, or there is a suitable material behind

the wall to accept the screws directly.

1500mm Wall Mount Range Hood

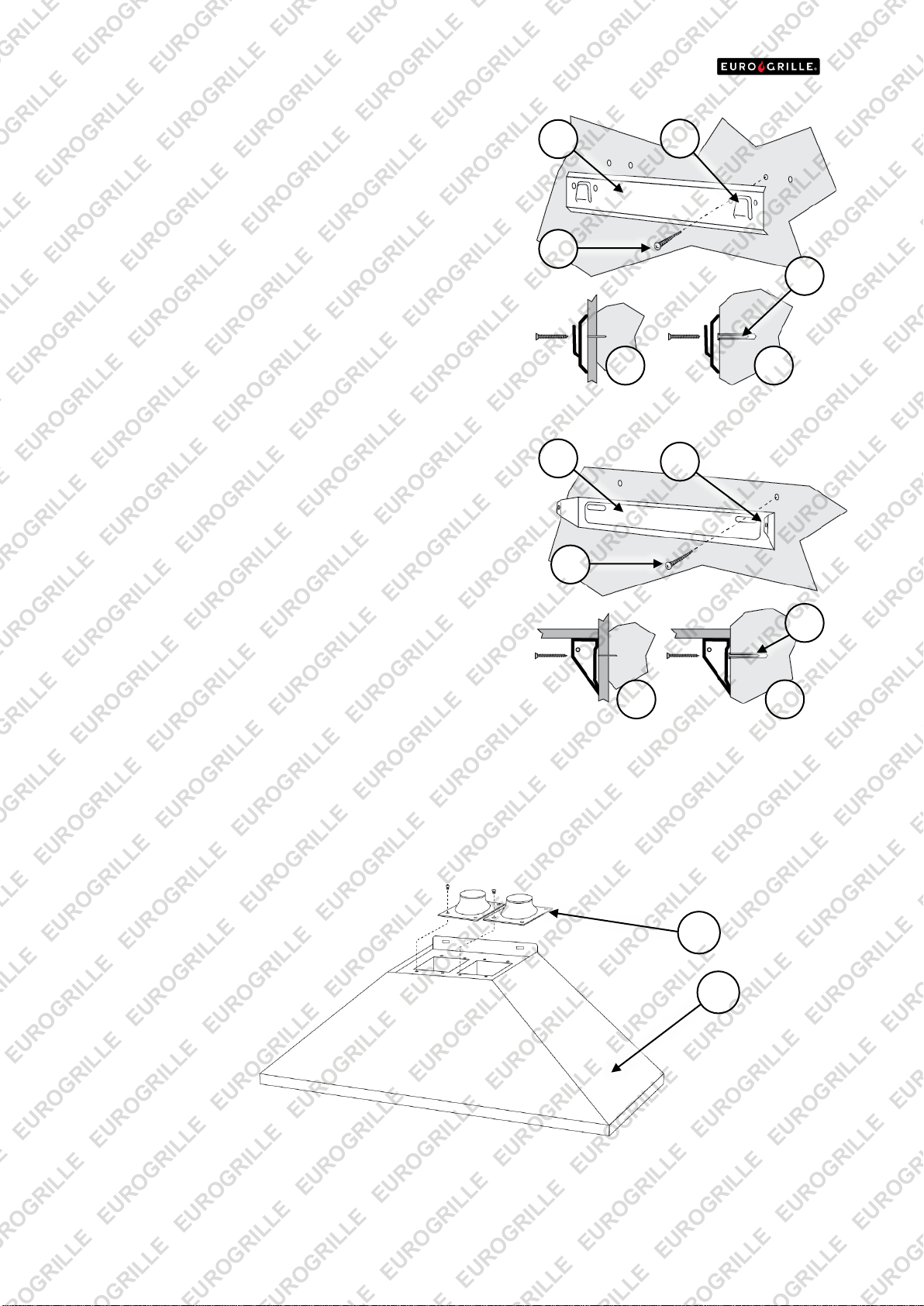

4. Refer to Figure 2. Drill the range hood mounting bracket

(1) holes, then secure the bracket to the wall using 4

mounting screws (2), making sure that the tabs (A)

protruding from the bracket are opposite the wall and

facing upward –the range hood hooks on to these tabs.

Ensure that the bracket is level before tightening the

screws –be careful not to over-tighten the screws and strip

them or cause the wall plugs to spin.

•If the wall is brick, cement or masonry (B), use the wall

plugs (3) –drill 5/16" (approximately 8mm) to a depth

of 50mm (2"), then tap the wall plugs into the holes.

•If the screws are to be installed directly to a non-

masonry wall or suitable material behind the wall (C),

drill a 3mm (1/8") "pilot" hole to a depth of 20mm (3/4")

to enable the screw to "dig in" easily.

5. Refer to Figure 3. Drill the flue extension mounting bracket

(4) holes, then secure the bracket to the wall using 2

mounting screws (2), making sure that the tabs with the

screw holes (D) are up against the ceiling –the flue

extension screws to these tabs. Tighten the screws –be

careful not to over-tighten the screws and strip them or

cause the wall plugs to spin.

•If the wall is brick, cement or masonry (E), use the wall

plugs (3) –drill 5/16" (approximately 8mm) to a depth

of 50mm (2"), then tap the wall plugs into the holes.

•If the screws are to be installed directly to a non-

masonry wall or suitable material behind the wall (F),

drill a 3mm (1/8") "pilot" hole to a depth of 20mm (3/4")

to enable the screw to "dig in" easily.

6. Refer to Figure 1. Make 2 180mm diameter holes for the vent

pipes in the ceiling at approximately 150mm out from the wall

and 100mm either side of the range hood centre-line. The hole positions are not critical as long as they

will be fully shrouded by the flue (flue dimensions are approximately 420mm wide and 300mm deep).

The vent holes can also be made in the wall instead of the ceiling.

7. Refer to Figure 4. Remove the 4 screws holding each rubber exhaust seal in position on the exhaust unit

(4). Place the exhaust valves (5) in position over the seals and secure them using the removed screws.

8. Refer to Figure 5. Place the end of the vent pipes (6) over the exhaust valves and secure them with 4 #6

self-tapping screws (7).

Figure 4

Figure 2

Figure 3

1500mm Wall Mount Range Hood

9. Refer to Figure 6. Lower the flue cover (8) on to the top of the exhaust unit so it is sitting in the recess at

the top of the exhaust unit, then secure it from the rear using 2 M4x10 screws (9).

10. Gently lower the flue extension (10) into the flue cover. If you are not using the flue extension, install the

flue support bracket (11) on the inside of the flue cover and secure it from rear using 2 M4x10 screws (9)

(if the flue support bracket is installed, it may not be possible to slide the flue extension upwards).

11. Refer to Figure 7. Bring the range hood up to the mounting bracket and carefully hook the slots on the

rear of the range hood over the mounting brackets tabs, then allow the range hood to rest against the

wall.

Figure 5

Figure 6

1500mm Wall Mount Range Hood

12. Extend the vent pipes up and through the holes in the ceiling or wall. Once in the ceiling or through the

wall, connect the vent pipe to a suitable vent tube, and pass the range hood power cord up through the

vent pipe hole.

13. Refer to Figure 8. Gently pull the flue extension (10) up from inside the range hood flue (8) until it

reaches the ceiling. Secure it to the flue extension mounting bracket using 2 M4 x 20 screws (12).

14. Connect the range hood to an electrical supply. It is now ready for use.

Figure 7

Figure 8

1500mm Wall Mount Range Hood

Using the Range Hood

Once the range hood is correctly installed and connected to the electrical supply, it may be used. For

appliances equipped with remote control, the remote control has similar function buttons. Basic function are:

•Air Extraction –Remove cooking odours and steam etc by activating the exhaust fan. Three speeds are

available.

•Lighting –Illuminate the cooking area.

•Additional Features –The range hood features a clock and fan auto-off timer functions (described

below).

Control

Description

LCD Display

Shows current range hood functions, such as time, fan speed, fan timer etc.

ON / OFF –Press to switch the range hood ON, and activate the display. If the clock

has been set, the time will display. Press again to switch OFF and cancel any function.

Lights - Switch the range hood lights on and off. Lights can be operated independently

of any other function.

Slow - Activate low speed exhaust fan operation.

Medium - Activate medium speed exhaust fan operation. When setting the clock, press

to increment minutes. When setting the fan timer, press to reduce the time.

Fast - Activate fast speed exhaust fan operation. When setting the clock, press to

increment hours. When setting the fan timer, press to increase the time.

Timer - Activate exhaust fan timer operation. When the range hood is OFF, press to

activate clock setting functions (described below).

Setting the Clock

The range hood has a clock. The time shows when the range hood is "on" [that is, the ON / OFF button has

been pressed to activate the display].

1. Ensure the range hood is OFF [the display is not illuminated but can still be seen].

2. Press the Timer button –the range hood enters clock setting mode and the hour part of the time flashes.

3. Set the hour by pressing the Slow fan speed button to decrease the value, or Medium fan speed to

increase the value.

4. Press the Timer button –the minutes part of the time flashes –set the value using the Slow and

Medium fan speed buttons.

5. Press the Timer button to save the setting and exit clock setting mode.

1500mm Wall Mount Range Hood

Using the Fan Timer

The range hood has a timer function that will automatically stop the fan after 3 minutes.

1. Switch the range hood ON [the display illuminates].

2. Press the required fan speed button (Fast, Medium or Slow).

3. Press the Timer button to activate the timer mode –the timer defaults to 3 minutes and begins flashing.

4. The fan will run until the timer reaches "zero".

Maintenance

NOTE: The LED lamps are designed and made from components that last many thousands of hours use. As

a result, the lamps and are not designed to be replaced.

•Clean all surfaces with suitable household cleaners and a soft, damp cloth. Avoid abrasives and solvents

and flammable substances.

•Clean the filters regularly. Remove the filter, soak it in warm water and mild detergent. Use a soft brush

to clean it.

•Empty and clean the oil catcher regularly. To access it, remove the filters.

•Do not directly splash the range hood with water.

•If the product malfunctions, contact an authorised service centre.

Specifications

Electrical

240VAC / 50Hz

Vent Tube Diameter

160mm

Lamps

4 x 1.5W LED

Fan Speeds

Filters

Aluminium, multi-layer

Vent Tube Length

1.5m

Power Cord Length

1.1m

1500mm Wall Mount Range Hood

Some experts believe the incorrect or prolonged use of almost any product could cause serious

injury or death. For information that may reduce your risk of serious injury or death, consult the

points below and additionally, the information available at www.datastreamserver.com/safety

•Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and kept

with the product.

•Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /

missing parts, wear or leaks (if applicable).

•Products must be inspected and serviced (if applicable)

by a qualified specialist every 6 months assuming

average residential use by a person of average weight

and strength, above average technical aptitude, on a

property matching average metropolitan specification.

Intended use outside these guidelines could indicate

the product is not suitable for intended use or may

require more regular inspection or servicing.

•Ensure all possible users of the product have

completed an industry recognized training course

before being given access to the product.

•The product has been supplied by a general merchandise retailer that

may not be familiar with your specific application or your description

of the application. Be sure to attain third-party approval for your

application from a qualified specialist before use regardless of prior

assurances by the retailer or its representatives.

•This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft, computer

or ball point pen for example), there is always a small chance of

technical issues that needs to be repaired or may require replacement

of the product or a part. If the possibility of such failure and the

associated time it takes to rectify could in any situation inconvenience

the user, business or employee then the product is not suitable for

your requirements. This product is not for use where incorrect

operation or a failure of any kind, including but not limited to a

condition requiring product return, replacement, service by a

technician or replacement of parts could cause a financial loss, loss of

employee time or an inconvenience requiring compensation.

•If this item has been purchased in error after considering the points

above, simply contact the retailer directly for details of their returns

policy, if required.

ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Table of contents

Popular Ventilation Hood manuals by other brands

NuTone

NuTone 113022 Specification sheet

Ariston

Ariston Grease Filter Instructions for intallation

Zephyr

Zephyr MESA DME-M90ASSX installation instructions

Zephyr

Zephyr Essentials Anzio ZAZ-M90AS Use, care and installation guide

Best

Best UP27 Series installation instructions

ELICA

ELICA Glide EGL436SS Use, care and installation guide

Chamberlain

Chamberlain CAPXSTK quick start guide

AEG

AEG DVB5860B user manual

FALMEC

FALMEC E.ion Eolo Isola 45 White Instruction booklet

Siemens

Siemens LB53NAA50 User manual and installation instructions

Logik

Logik L60CHDX13 instruction manual

GoodHome

GoodHome bamia GHAGML90 manual

Logik

Logik L90CHDB10 installation manual

Thermador

Thermador UCV30AB Care & use manual

ROSIERES

ROSIERES RHV 911 Instruction on mounting and use

Gaggenau

Gaggenau AW 27 User manual and installation instructions

DCS

DCS CT-365SS installation manual

Smeg

Smeg KSEI62E user manual

Eurogrille COKRHWEUGAS15 User manual

Popular Ventilation Hood manuals by other brands
