Sirius Satellite Radio SIU3 User manual

Models covered by this instructions:
Notice d’instruction pour les modèles:
SIU3, SIU5, SU404, SU405, SU401, SIU14, SIU24, SIU8
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING
*** AVANT L’INSTALLATION ***
S’ASSURER QUE LES PRODUITS N’ONT SUBI AUCUN DOMMAGE PENDANT LE TRANSPORT
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
*** DOMMAGES DE TRANSPORT ***
DOIVENT ÊTRE NOTIFIÉS DANS LES 5 JOURS SUIVANT LA RÉCEPTION
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
CARE AND USE MANUAL FOR:
NOTICE D’UTILISATION ET D’ENTRETIEN POUR:
ISLAND RANGE HOODS
HOTTES ÎLOT

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of
cooking vapors. DO NOT use to expel ammable substances or any other
materials or vapors.
The installation procedures in this manual are intended for qualied instal-
lers, service technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned o at source before commencing in-
stallation. All electrical wiring must be properly installed, insulated and
grounded and conform to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work
should be replaced, if necessary, to avoid the possibility of a grease re.
Check all joints on ductwork to ensure proper connection and all joints
should be properly taped. Be careful when cutting through ceilings or walls
not to damage any hidden pipes or electrical wiring. Ensure your kitchen has
sucient air return vents to replace the exhausted air.
Fan ducts should always be vented to the outside of your home and never
into spaces within walls, ceilings, lofts or attics. Only use rigid, smooth
steel for ducting. The exhaust point of the blower requires a 6” or 8” round
connection.
2

TABLE OF CONTENTS
3
BEFORE YOU BEGIN 4
MINIMUM AND MAXIMUMS 4
DUCTING 4
Duct Run Calculation 5
ELECTRICAL 5
Electrical Supply 5
INSTALLATION 6
Structural preparation for the hood fan installation 6
Fixing the Main Support Bracket 6
Attaching the range hood to the ceiling 7
Connecting Electricity and Ducting 8
Re-Circulating Requirements 8
Schematic of modular island components 9
OPERATING PROCEDURES 11
General Advice 11
Functions 11
MAINTENANCE 14
Cleaning the Filter 14
Cleaning the Hood 14
Substitution of the LED bar 15
WARRANTY 16

4
BEFORE YOU BEGIN: It is advisable to test
run the range hood before installation.
BEFORE STARTING – please read this en-
tire document and ensure you are fully
conversant with the require-ments and
limitations. These units weigh approxi-
mately 125lbs and therefore require a
minimum of two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsi-
bility in the event of failure to observe the
instructions given here for installation,
maintenance and suitable operation of
the product. The manufacturer further
declines all responsibility for injury due
to negligence and the warranty of the
unit automatically expires due to impro-
per maintenance and/or installation.
MINIMUM AND MAXIMUMS
Min length of power unit structure with
deector connected = 36.6”
Min length of power unit without de-
ector = 32”.
Max length of power unit structure = 48”.
Recommended height from cook top to
underside of hood = 30” for gas, 25” for
electric.
Use the shortest most direct ductwork
route possible. Only use metal ducting
- plastic ducting is generally not permit-
ted by code. Do not use exible metal
ducting as the ridges of the ducting cau-
se severe air turbulence and will signi-
cantly reduce the eciency of any hood
-THIS TYPE OF DUCTING WILL REDUCE
EFFICIENCY BY 50%.
Vent hoods may interrupt the proper ow
of exhaust gases from re-places, gas
furnaces and gas water heaters. To mini-
mize the risk of drawing these lethal ga-
ses back into the home please follow the
heating equipment manufacturers safety
standards and guidelines. Refer to NFPA
and ASHRAE for additional information.
DUCTING
If vented externally, 6” / 150mm round
ducting must be available for the hood
through the ceiling, in line with the cen-
tral vertical axis of the range hood.
If i’s gas range or cook top recomman-
ded 8”.
This unit must have it’s own ductwork.
Do not under any circumstances vent this
unit into any other ductwork or exhaust
ducting in the building.
PLEASE NOTE THAT THE DUCT OUTLET ON
THE TOP OF THE POWER UNIT IS OFF SET
FROM CENTRE AND THEREFORE AN ADJU-
STABLE 6” ROUND BEND WILL BE REQUIRED
TO LINE THE EXHAUST OUTLET WITH THE
6” HOLE IN THE CEILING MOUNT BRACKET.

Duct Run Calculation.
The maximum duct run before eecting
the performance of the hood is 100’. Cal-
culate your duct run by measuring linear
feet and adding the elbows, transitions
and caps based on the table below.
5
Electrical Supply.
This appliance requires 120V/60Hz,
3amp electrical supply – ensure an ap-
propriately qualied person completes
the electrical hook-up. The connection
point for the electrical supply is at the top
of the unit, therefore the electrical supply
must be run down from the ceiling alon-
gside the ductwork.
All electrical and venting hook-ups must
be in place before commencing installa-
tion of the hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electri-
cal codes or prevailing local building co-
des and ordinances are adhered to.
Ensure that the electricity supply is di-
sconnected at source. Do not use an ex-
tension cord or adapter plug with this
appliance.
This appliance must be grounded. Con-
nect to a properly grounded branch
circuit, protected by a 15 amp circuit
breaker.
Maximum Run
6” or 3 1/4 x 10” duct * 100 FT
Deduct
Each 90 elbow used 15FT
Each 45 elbow used 9FT
Each 6” or 3 1/4 x 10” duct
Transition used 1FT
Each 3” 1/4 x 10” to 6”
Transition used 5FT
Side Wall with damper 30FT
Roof Cap 30FT
* Gas range or gas cook top recomman-
ded 8”.

6
Do not switch on the lights with the hood
at on any surface as the in-tense heat will
burn the surface and destroy the lamps.
Connect a power supply to the unit and test
all functions.
Installation of the island hood consists
of xing the ceiling Bracket A substantial
members in the ceiling. The bracket must
be xed to the frame by screwing through
the ceiling into the heavy members insi-
de the ceiling. This is critically important
as the entire hood fan hangs from this
position, and ceiling board alone will
not support the weight of the hood fan.
Discard the plastic wall plugs supplied for
xing the bracket to the ceiling – these are
not appropriate for North American struc-
tures.
Fixing the Main Support Brackets
Using Bracket “A” as a template mark the
ceiling where the xing screws “A” will be
positioned – remember the correct orien-
tation from above. Attach bracket “A” to
the ceiling permanently. If re-circulating,
attach the deector to Bracket “A” before
xing it to the ceiling – refer schematic on
page 5.
The 2 brackets for the support of the chi-
mney (Part A) is to be installed to Bracket A
with the screws (C Fig.1) Fix the structure
on the ceiling by inserting the 2 dowels.
INSTALLATION
Structural Preparation for the Hood
Fan Installation.
The island hood weighs approximately 125
lbs. It is therefore imperative that a sub-
stantial structure is prepared in the ceiling
to attach the range hood to. Ideally block
o an area of at least 12”x12” between the
ceiling joists using 2x4’s. Allow for a hole
through the center of this blocking of at
least 6” in diameter through which to pass
the ductwork and electrical cable.
The underside of the hood must not be
closer than 30” from the cook-top and
ideally not higher than 32”above the
cook-top. It is strongly recommended, at
this point, that calculations and measure-
ments be made and all planning and hei-
ghts be nalized. You will need to t the
appropriate length of ducting to the hood
fan before installing it to the ceiling.
Planning should consist of a test assem-
bly of the power unit and telescoping
structure before attempting to mount
everything to the ceiling. By following
this test assembly you will be able to -
nalize the correct length of the assembly
before mounting it to the ceiling.
Test assembly should include actually
attaching the following items together
– refer schematic of components and
“Fixing the main support brackets”
below – Brackets A, B, C, power unit and
deector if re-circulating.
This is also a good time to test the electrical
functioning of the hood before it is instal-
led. Before switching on the light or lights,
ensure the tape holding the globes in place
has been removed.
The globes gets extremely hot and will very
quickly burn the tape and discolor the glo-
bes irreparably. g. 1

Fix Bracket “C” to the power unit with the
nuts and washers supplied (Items “A” on
the schematic on page 5). Please ensure
that the bracket is installed as shown to
enable full ac-cess to the square plastic
black box and the metal electrical junc-
tion box. Slide Bracket “B” over Bracket
“C” (once again ensure full access to the
plastic and electrical boxes is main-tai-
ned) and x it in place, at the previou-
sly calculated length using the machi-
ne screws denoted by items “B” on the
schematic on page 5.
Check that the plastic aps at the exhaust
outlet for the fan move freely and have not
become jammed during shipping or whilst
working with the power unit. Connect an
appropriate length of ducting to the unit.
Do not x the ducting to the outlet with
screws - use DUCT TAPE.
Only for SU 401,SIU3, SIU5, SIU14, SIU24:
Install the glass as per the instructions
contained in the packaging of the glass.
(only for SU401).
Stand the assembled structure on a clean
soft surface. Ensure the underside of the
hood does not get scratched and slide
the chimneys of the assembled structure
from the top down as per the schema-
tic on page 5. Ensure that the holes for
xing the decorative chimney are cor-
rectly orientated with the holes at the
top of bracket A.
Attaching the Range Hood to the Ceiling.
The entire structure that has been pre-
assembled above, must now be hoisted up
to the ceiling. A few things have to happen
at once here: the slots (as discussed below)
need to be engaged and the ductwork must
make connection with the length of duct-
work on the structure.
7
This will require two strong people –do
not attempt this step on your own. Brac-
ket “B” has slots, position C per Diagram
“A” (refer to page 5), at the top that will
receive the spring clips located on Bracket
“A” –THIS IS A TEMPORARY HOLD ONLY
–DO NOT RELY SOLELY ON THESE CLIPS
TO HOLD THE HOOD UP – THEY WON’T.
Once “hooked” by the spring clips imme-
diately secure the structure with the ma-
chine screws at point “E” on the schematic
on page 5 – this must be done imme-
diately and should not be skipped. Rai-
se the upper chimney to the ceiling and
x it to the bracket “A” with the screws
supplied “D”.
Ensure the entire structure is sturdy - se-
rious injury, death and MAJOR damage
could result should the unit not be well
connected to the frame structure within
the ceiling.
This is of utmost importance – do not go any
further until this has been tested and double
checked – the installer has sole responsibili-
ty for the safe installation of this product.
Only for SU 404-405: Stand the assem-
bled structure on a clean soft surface.
Ensure the underside of the hood does
not get scratched and slide the chimneys
of the assembled structure from the top
down as per the schematic on page 5.
Ensure that the holes for xing the de-
corative chimney are correctly orientated
with the holes at the top of bracket A.

This will require two strong people –do
not attempt this step on your own. Brac-
ket “B” has slots, position C per Diagram
“A” (refer to page 5), at the top that will
receive the spring clips located on Brac-
ket “A” –THIS IS A TEMPORARY HOLD
ONLY –DO NOT RELY SOLELY ON THESE
CLIPS TO HOLD THE HOOD UP – THEY
WON’T. Once “hooked” by the spring
clips immediately secure the structure
with the machine screws at point “E” on
the schematic on page 5 – this must be
done immediately and should not be
skipped.
Ensure the entire structure is sturdy- se-
rious injury, death and MAJOR damage
could result should the unit not be well
connected to the frame structure within
the ceiling.
This is of utmost importance – do not go
any further until this has been tested and
double checked – the installer has sole
responsibility for the safe installation of
this product.
Once the entire structure has been xed
to the ceiling slide the chimneys on the
assembled structure from the bottom up
as per the schematic on page 5. And x
the chimneys with the screws supplied.
Raise the upper chimney to the ceiling
and x it to the bracket “A” with the
screws supplied “D”.
Connecting Electricity and Ducting.
Make sure power is turned o at the
source. Make the electrical connection

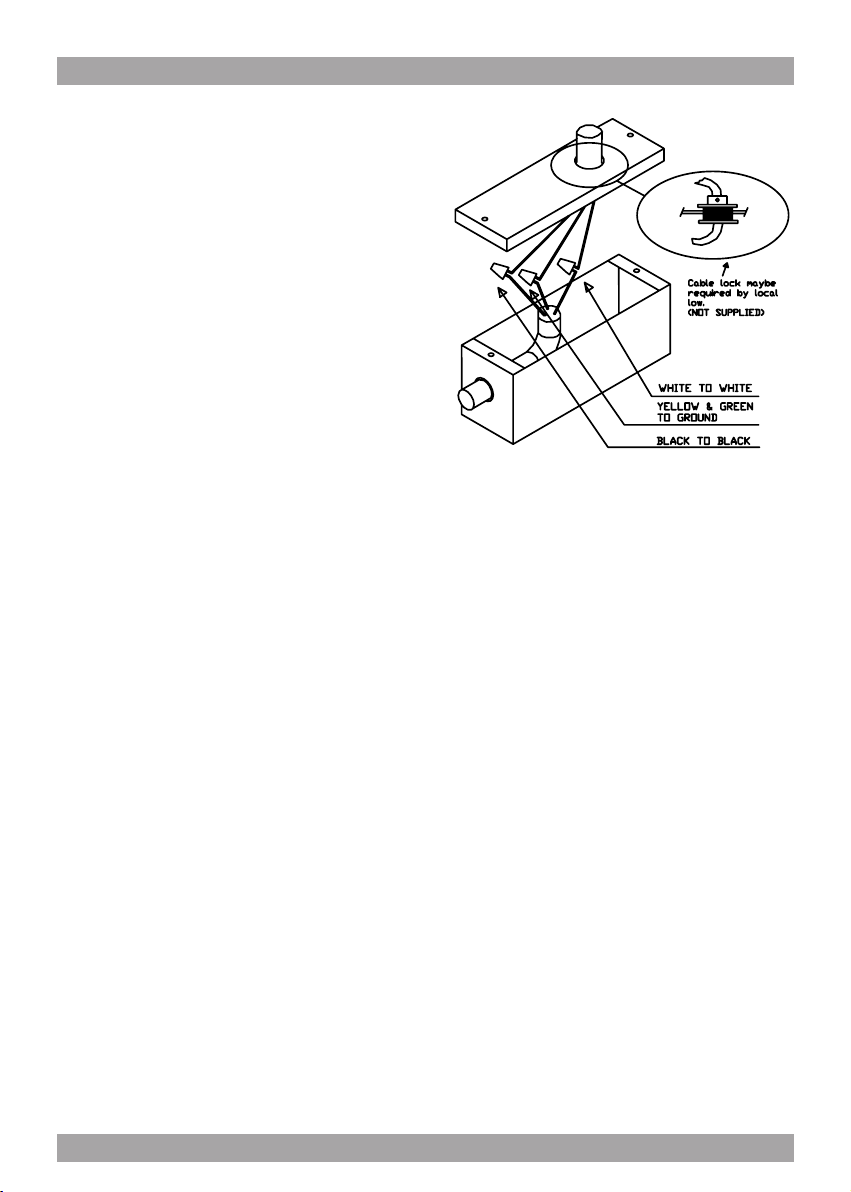

(see gure 2). Test the functioning of the
hood. Slide the upper chimney into place
and attach with the machine screws pro-
vided to Bracket “A”.
Re-Circulating Requirements.
Fit the carbon lter after the installation is
complete – these t in behind the alumi-
num grease lter.
A short length of ductwork must be con-
nected from the exhaust outlet up to the
deector (must be purchased with hood).
The deector, after attaching part B with
screws E connects to the top of Bracket
“A” and forces the air out through the
grills on the side of the chimney section
back into the room. (see diagram C).
8
g. 2

SCHEMATIC OF MODULAR ISLAND COMPONENTS
9
Diagram c – Deector
Deector FOR SU404
Deector FOR SU405
Part B
Part B
E
E
E
E
Bracket
Deector FOR SIU3, SIU5
Part B
Deector attaches to ceiling mount bracket when island hood is installed in re-circu-
lating mode and the air that has passed through the fat and carbon lters is returned
to the room via a short length of 6” round ductwork attached to the power unit and
deector.

10
Diagram b – Securing Bracket “A” to “B”
Please note – this is critically important – do not rely on the spring clips.
Diagram A – Main Assembly
FOR SU404

11
FUNCTION
SIU3 – SIU5 (Fig.3)
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
OPERATING PROCEDURES
Read all the instructions before opera-
ting the appliance. Save these instruc-
tions for future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating
blowers could catch on to hair, ngers
and loose clothing. Keep fan, lters and
surfaces clean of grease and fat. Always
turn hood fan ON when cooking. NEVER
leave cooking unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into
blowers.
Cooking that generates ame is not re-
commended as this hood is equipped
with a thermal overload that will shut
down the motor if it senses excessive
heat. When frying, oil in the pan can ea-
sily overheat and ignite. Heat oil slowly
in an appropriately sized pot (covering
the entire burner) to reduce the risk of
boiling over and burning.
In the event of a range top grease re,
observe the following:
Switch OFF the range hood. Turn o
the cook top then smother ames with
a close tting lid, cookie sheet or other
metal tray. If the ames do not go out
immediately.
EVACUATE AND CALL THE FIRE DEPART-
MENT.
Never pick up a aming pan – you may
be burned. DO NOT USE WATER inclu-
ding wet dishcloths or towels, as a vio-
lent steam explosion may occur.
g. 3
TC models (SIU24) g. 4
A: Light switch On/O
B: Reduce speed
C: Luminous telltale
D: Incrase speed
E: 10 - minute timer
The touch control key allows the function
desired by touching the relative key.
g. 4

SU401 - SU404 – SU405
12

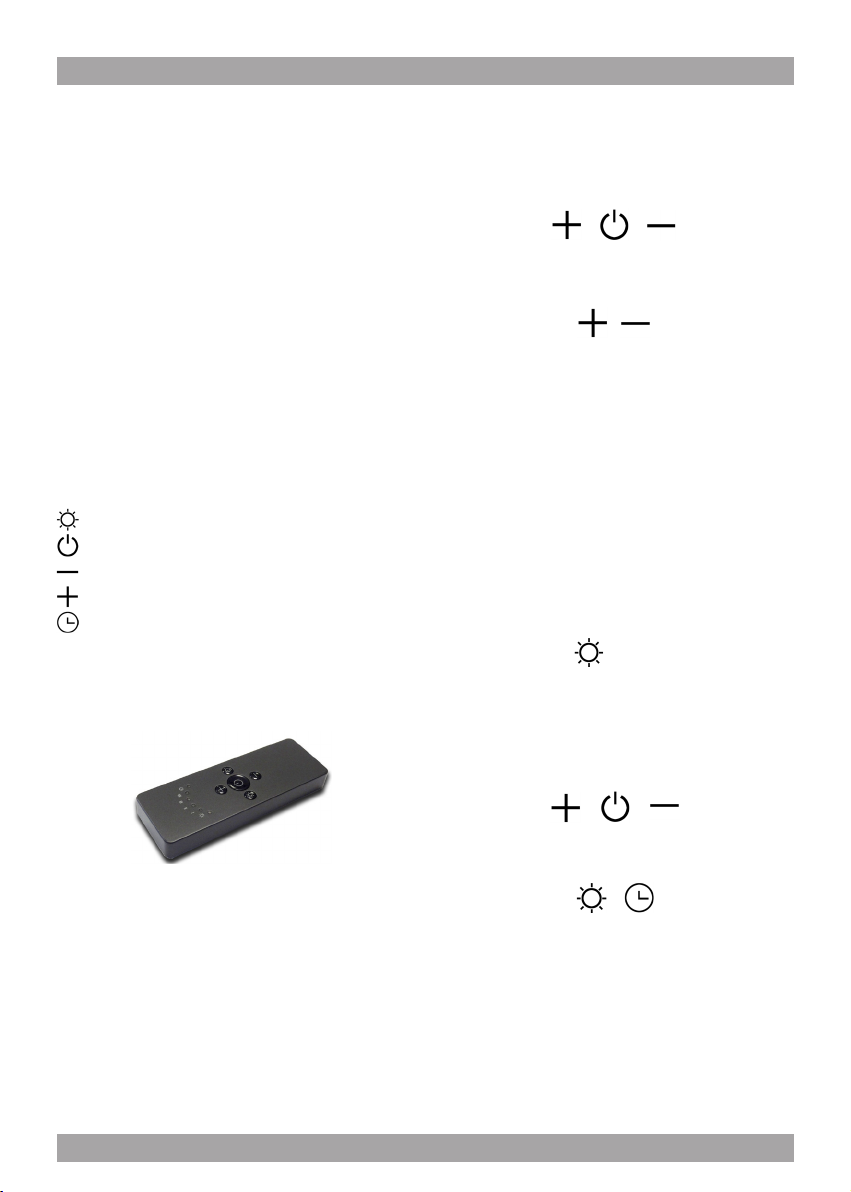

RC001
RADIO CONTROL
Radio control used for the remote operation
of ducted cooker hoods.
TECHNICAL DATA
- Alkaline battery powered: 12 V mod. 23 A
- Operating frequency: 433.92 Mhz
- Combinations: 32.768
- Max. consumption: 25 mA
- Operating temperature: -20 ÷ + 55 °C
- Dimensions: 120 x 45 x 15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons
for cooker hood management, as specied
below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control
unit ready to be used with codes preset in the
Factory
OPERATION MODE
Standard conguration:
Standard conguration requires all “cooker
hoods – radio control - system” to be provi-
ded with the same transmission code. In the
event two cooker hoods – radio control sy-
stem are installed in the same room or near-
by, each system may aect the operation of
the another. Therefore, the code of one radio
control system must be changed.
Generatiing a new transmiissiion code:
The radio control system is provided with
preset codes. Should new codes be required,
proceed as follows: Press simultaneously but-
tons:
for two seconds. When Leds light on, press
buttons:
(within 5 seconds). Leds ashing 3 times in-
dicate
the procedure is completed.
WARNING! This operation deletes perma-
nently the preset codes.
Learniing the new transmiissiion code:
Once the transmission code is changed in the
radio control unit, the electronic central unit
of the cooker hood must be made to set the
new code in the fol- lowing way:
Press the main power-o button of the hood
and then restore power to the electronic con-
trol unit. Within the next 15 seconds, press
the Liight Button to synchronise the cen-
tral unit with the code.
Reset of the Factory coniguratiion:
To restore the Factory conguration, follow
the pro- cedure described below: press si-
multaneously buttons:
for 2 seconds. When Leds light on, press but-
tons:

(within 5 seconds). Leds ashing 6 times indi-
cate the procedure is completed.
WARNING! This operation deletes perma-
nently the preset codes.
Emergency button:
In the event that the radio control does not
work, use the emergency button to switch
the appliance o. After any necessary repai-
rs have been performed, reset the emergency
button.
WARNIING
The battery should be replaced every year
to guarantee the optimal range of the tran-
smitter.
To replace the exhausted battery, take the
plastic lid o, remove the battery and re-
place it with a new one, observing the cor-
rect battery polarities.
Used batteries should be discarded in spe-
cial collection bins.
The below product:
RC001 Radiio Controll
complies with the specications set out in
the R&TTE Directive 99/5/EC.
WARNING
Any adjustments or modications which
have not been expressly approved by the
holder of the legal conformity certicate
may invalidate the user’s rights relating to
the operation of the device.
The products are endowed with an electronic
device which allows the automatic switching
o after 4 hours working from the last ope-
ration.
13

Warning The battery should be repla-
ced every year to guarantee the optimal
range of the transmitter. To replace the
exhausted battery, take the plastic lid
o, remove the battery and replace it
with a new one, observing the cor-
rect battery polarities. Used batteries
should be discarded in special collec-
tion bins.
Cleaning the Hood.
Cleaning of the internal parts should be
done with a clean damp (not excessively
wet) cloth together with regular household
detergent. The external stainless steel ele-
ments should be cleaned with a good qua-
lity foaming stainless steel cleaner. Read
the manufacturers directions. Generally
they recommend that the foam be sprayed
onto a clean dry cloth and then applied to
the stainless steel. Allow the foam to react
on the surface for a few minutes and then
wipe with a clean dry cloth.
On the surfaces that are exposed directly
to heat from the cook-top, it is advisable
to clean these on a regular basis to avoid
the marks from becoming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch
and damage the stainless steel nish.
Glass components should be cleaned with
a product such as Windex.
MAINTENANCE
The hood-fan should provide many
years of trouble free service provided it
is maintained properly.
Cleaning the Filter.
Clean the grease lter either by careful-
ly hand washing, (so as not to dama-
ge the lter design) or, preferably in a
dishwasher. Depending on use, the l-
ters should be cleaned at least every two
weeks in a dishwasher.
If a carbon lter has been tted this
must be replaced at least every 6 mon-
ths as a minimum. Depending on coo-
king style and nature of cooking (greasy
foods, fry’s, curries etc) would probably
require more frequent replacement – if
odors start to manifest themselves when
cooking it is time to replace the carbon
lter . We suggest you retain a spare set.
These can be ordered from the supplier
of your range hood.
Filter requires washing indicator: after
30 hours of use, all the buttons will li-
ght up to remind you that the grease lter
should be cleaned. Follow the instruc-
tions for cleaning lters in this booklet.
Once the grease lters have been cleaned
and replaced, reset by pressing the timer
button (F). Do not rely solely on this indi-
cator. Generally, the grease lter should
be washed on a regular basis to avoid
grease lter res.
The blower should be turned on for ap-
proximately 5 minutes before cooking
in order to establish air currents upward
through the hood. Use the low speeds
for normal use and the higher speeds for
strong odors and fumes.
14

Light Bulb Replacement.
(if in doubt, call 877-474-8770)
FOR SU401 – SU404 – SU405
Turn blower and lights o. Make sure the
lights are cool.
If new lights do not operate, check fuses
and be sure globes and breakers are in-
serted correctly.
Do not remove the entire xture (socket)
as this is very dicult to reinstall. Gently
pry the bulb from the xture using a soft
instrument such as a toothpick. Steel in-
struments will scratch the surface (refer
to gure 5).
Replace the appropriate bulb. Check par-
ts brochure or specication sheets on our
website. Wipe both sides of the glass whi-
lst it is out. Re-insert the glass-blocking
ring and fasten it.
g. 5
FOR SIU3 – SIU5 – SIU14
Turn blower and lights o. Make sure the
lights are cool.
Do not remove the entire xture (soc-
ket) as this is very dicult to reinstall.
Visually inspect the light xture and esta-
blish whether the unit has a smooth or
“toothed” metal ring.
If smooth remove the glass blocking ring
by prying out with a sharp, soft instrument
such as a toothpick (refer to gure 6).
g. 6
Steel instruments will scratch the surface.
Be careful that the lens does not fall out.
If “toothed”, place the tip of your nger
between the lens and the ring. Making
your way around the ring, gently pull
outwards until a point is found where the
ring pulls o .
Replace the appropriate bulb. Check
parts brochure or specication sheets on
our website. Wipe both sides of the glass
whilst it is out.
FOR SIU24
Substitution of the LED bar:
Using an appropriate tool, remove the
LED bar from its seat (refer to Fig. 7), di-
sconnect it electronically using the ap-
propriate connector then substitute it
with a LED bar with same characteristics.
g. 7
15

YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT HYPERLINK
“http://www.siriuscappe.com/canada/warranty.htm”
TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email ad-
dress stated below or call toll free in Canada 1-800-463-2566 and provide the model
number, description of the fault or defect and original date of purchase. Sirius reserves
the right to request proof of original purchase. Sirius will at its sole option and discre-
tion replace products that arrive damaged through shipping, provided shipping damage
is reported as stated above within 5 business days of receipt of the shipped product or
products.
ONE YEAR PARTS & SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace,
without charge, any product or part which is found to be defective under normal use and ser-
vice.
WHO IS COVERED:
Sirius Range Hoods warrants to the original consumer purchaser of its products that such pro-
ducts will be free from defects in materials and workmanship for a period of one year from the
original date of purchase. There are no other warranties, express or implied, including, but not
limited to, implied warranties of merchantability or tness for a particular purpose or applica-
tion.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This
warranty does not cover normal maintenance and service or products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair, faulty installation or
installation contrary to recommended installation instructions. The warranty on glass screens
is limited to manufacturing defects only and expressly excludes cracks and breakages as a
result of faulty installation. Labor and associated costs associated directly with removal and re-
installation are expressly excluded.
The duration of any implied warranty is limited to the one year period as specied for the
express warranty. Some states and provinces do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
For any service request please contact:
Sirius after sale service
Telephone (toll free):1-800-463-2566
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
16 Register Online! www.siriuscappe.com/canada/warranty.htm

INSTRUCTIONS IMPORTANTES POUR
LA SÉCURITÉ
Merci d’avoir choisi une Hotte de Cuisine Sirius.
Veuillez lire attentivement toutes les instructions
avant l’installation et l’utilisation de l’appareil.
Conservez ces instructions an de pouvoir les con-
sulter au besoin.
Cet appareil est destiné à la ventilation générale seulement. NE L’UTILISEZ
PAS pour évacuer des vapeurs ou des substances dangereuses ou explosi-
ves.
Conez l’installation et les réparations uniquement à un professionnel, con-
formément aux normes de sécurité en vigueur.
N’ESSAYEZ PAS d’installer cet appareil par vous-même.
Avant l’installation veillez que l’appareil soit hors tension.
Tout le câblage électrique doit être correctement installé, isolé de mise à la
terre conformément aux codes et aux normes applicables.
Assurez-vous que les conduits d’évacuation sont propres et libres d’accu-
mulation de graisses ou remplacez les conduits pour éviter de provoquer un
incendie.
Vériez que tous les joints du conduit sont bien xés et scellés. Faites atten-
tion lors des travaux de maçonnerie de ne pas endommager des tuyaux ou
câbles électriques. Assurez-vous que votre cuisine est équipée de bouches
de ventilation qui évacuent l’air vicié.
Le conduit de ventilation doit toujours terminer à l’extérieur et jamais dans
des espaces clos, plafonds ou greniers. Pour le conduit utilisez seulement
des éléments rigides en acier lisse.
La sortie de la souante nécessite d’un conduit rond de 6” ou 8”.
17

TABLE DES MATIÈRES
AVANT DE COMMENCER 19
MINIMUM ET MAXIMUM 19
CONDUIT 19
Calcul Longueur Conduit 20
ÉLECTRICITÉ 20
Alimentation Électrique 20
INSTALLATION 21
Préparation Placement de la Hotte 21
Fixation Étrier de Support Principal 21
Fixation de la Hotte au Plafond 22
Branchement Électrique et Conduit 23
Mode Recyclage 23
Schéma des Composants de la Hotte Îlot Classique 24
PROCÉDURES D’UTILISATION 26
Recommandations Générales 26
Fonctions 26
ENTRETIENT 29
Nettoyage des Filtres 29
Nettoyage de la Hotte 29
Replacement de la barre LED 30
GARANTIE 32
18

AVANT DE COMMENCER : On recommande de
vérier le fonctionnement de la hotte avant
son installation.
AVANT DE COMMENCER – lisez attentivement
cette notice an d’avoir les connaissances requi-
ses pour utiliser ce produit. Ce produit pèse env.
125lbs et nécessite donc un minimum de deux
personnes pour son installation.
AVANT DE COMMENCER
Le fabricant décline toute responsabilité en
cas de dommages causés par un non respect
des instructions d’installation, d’utilisation et
d’entretien contenues dans cette notice. Le
fabricant décline toute responsabilité causée
par négligence et la garantie cesse automa-
tiquement en cas de mauvais entretien et/ou
installation du produit.
MINIMUM ET MAXIMUM
Longueur minimale de la structure du groupe
d’alimentation avec déecteur = 36.6”
Longueur minimale du groupe d’alimentation
sans déecteur = 32”
Longueur maximale de la structure du groupe
d’alimentation = 48”
Distance recommandée entre la table de cuis-
son et la partie inférieure de la hotte = 30”
pour table de cuisson gaz, 25” pour table de
cuisson électrique.
Cherchez la voie la plus directe vers l’extérieur.
Utilisez seulement des tuyaux rigides en métal
- les tuyaux en plastiques sont interdit par le
code. N’utilisez pas des conduits métalliques
exibles, du moment que le bord du con-
duit peut provoquer des fortes turbulences et
réduire considérablement le rendement de la
hotte - CE TYPE DE CONDUIT RÉDUIT LE REN-
DEMENT DU 50%.
Les hottes peuvent empêcher la bonne éva-
cuation des fumées des cheminées, des fours
et des chaue-bains à gaz. An de minimiser
le risque que ces gaz mortels peuvent retour-
ner dans la maison, observez les normes de
sécurité et les directives en vigueur.
Consultez les normes NFPA et ASHRAE pour
plus d’informations.
CONDUIT
Si votre hotte à une évacuation d’air vers l’ex-
térieur, le conduit qui passe par le plafond
doit mesurer 6” / 150mm et être en ligne
avec l’axe centrale de la hotte.
Gaz fourneau ou gaz cuisinière recommandé:
8”.
Cet appareil doit avoir son propre condu-
it. La hotte ne doit pas être raccordée à
d’autres conduits d’évacuation de combu-
stion présents dans votre immeuble.
SI LA SORTIE DU CONDUIT DE LA PARTIE
SUPÉRIEURE DU GROUPE ALIMENTATION N’EST
PAS CENTRÉE, UTILISEZ UN COUDE ROND RÉ-
GLABLE DE 6” POUR ALIGNER LA SORTIE D’AIR
AVEC LE TROU DE 6” DANS LE SUPPORT DE
MONTAGE A PLAFOND.
19

Calcul Longueur Conduit
La longueur maximale du conduit qui n’inue
pas sur le rendement de la hotte est de 100”.
Calculez la longueur du conduit en mesurant
les pieds linéaires et en ajoutant les coudes,
les raccords et les bouchons selon le schéma
suivant.
Langueur maximale
6” ou 31/4x10” conduit * 100 FT
Chaque coude 90 nécessite 15FT
Chaque coude 45 nécessite 9FT
Chaque 6” ou 31/4x10” conduit
Raccord nécessite 1FT
Chaque 3’1/4x10” à 6”
Raccord nécessite 5FT
Paroi latérale avec clapet anti retour 30FT
Sortie toit 30FT
Alimentation Électrique.
Cet appareil nécessite 120V/60Hz, une ali-
mentation de 3amp – faites eectuer le bran-
chement électrique par une personne qualiée.
La connexion pour l’alimentation électrique
se trouve au sommet de l’appareil, par con-
séquent, le courant doit descendre le long du
conduit.
Avant d’installer la hotte, tous les travaux de
branchement électrique et d’évacuation des
fumées doivent être eectués.
ÉLECTRICITÉ
ATTENTION : Tous les travaux électriques
doivent être eectués par un électricien
qualié.
An d’assurer la qualité des travaux de con-
struction et d’électricité observez les normes
en vigueur.
Assurez-vous que l’alimentation électrique
est coupée. Evitez d’utiliser une rallonge ou
un adaptateur pendant cette opération.
Cet appareil doit être mis à la terre et le cir-
cuit doit être protégé par un disjoncteur de
15 amp.
Gaz fourneau ou gaz cuisinière recommandé:
8”.
20
