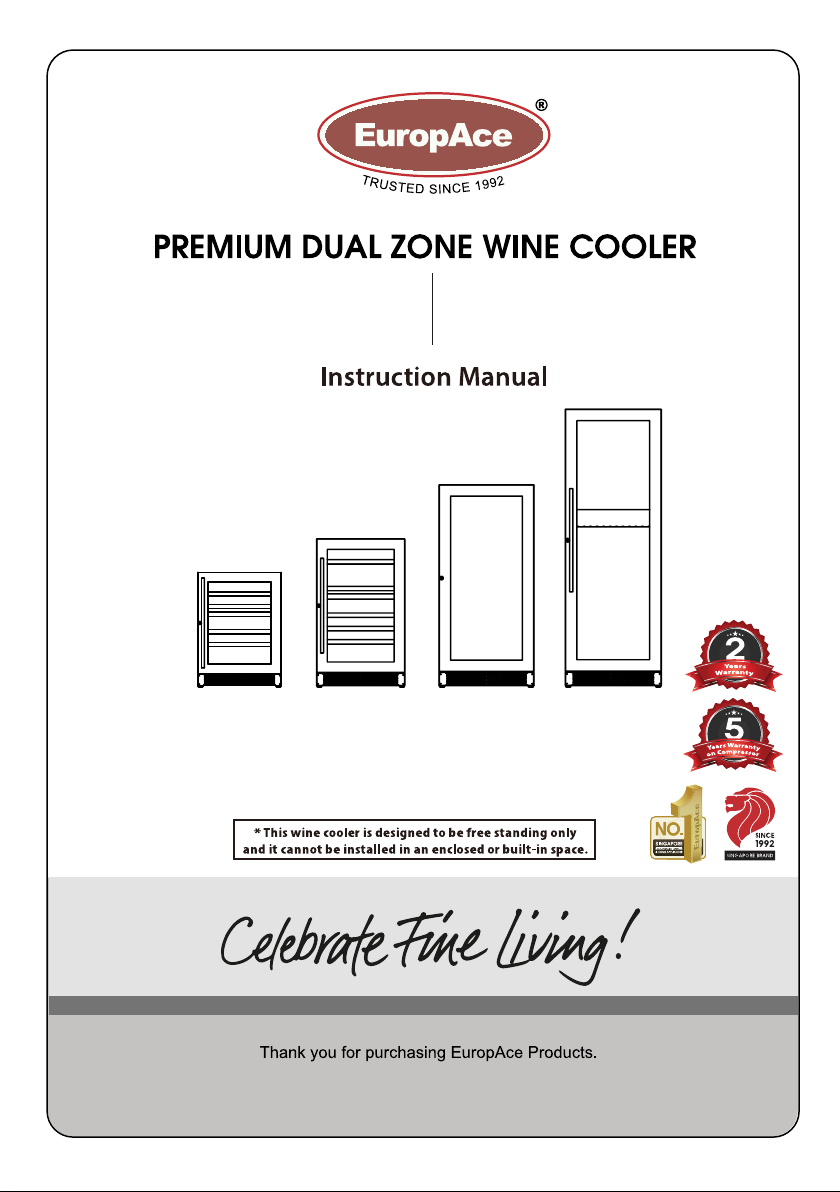

EuropAce EWC 8041S User manual

For optimum performance and safety purpose, please read this operating instruction
manual carefully before using and keep it for future reference.
EWC 8041S
EWC 8121S
EWC 8871S
EWC 8171S
EWC 8041S EWC 8871S EWC 8121S EWC 8171S

WARNING
Europace offers no guarantee for our wine cellar if it is being used for any purpose other
than that for which it was specifically designed. Europace cannot be held responsible for
any error in this manual. Europace is not responsible or liable for any spoilage or damage to
wines or any other contents incidental or consequential to possible defects of the wine cellar.
Warranty applies to the wine cellar only and not to the content of the wine cellar.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
This appliance is intended to be used in household and similar applications such as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
DANGER: Risk of child entrapment. Before you throw away your old wine chiller:
- Take off the doors;
- Leave the shelves in place so that children may not easily climb inside;
- When disposing of the appliance, do so only at an authorized waste disposal centre.
R600a WARNINGS:
For your safety observe the following recommendations.
•This appliance contains a small quantity of R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor
does it increase the greenhouse effect.
•During transportation and installation, ensure that the tubing of the refrigerant circuit
is not damaged.
•Avoid using or manipulating sharp objects near by the appliances.
•Leaking refrigerant can ignite and may damage the eyes.
•In the event any damage does occur, avoid exposure to open fires and any device
which creates a spark. Disconnect the appliance from the mains power.
•Thoroughly ventilate the room in which the appliance is located for several minutes.
•Notify Customer Service for necessary action and advice.
•The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant. The refrigerant quantity contained in this appliance is listed above in
grams; it is also noted on the Rating Plate of the appliance.
The information in this document is subject to modification without any
prior notice. Some models are available in dedicated countries only.
1.

It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repairs to this appliance.
- WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: If you do not use the machine for a long time, please unplug the power
plug from the socket or switch off the power supply.
- WARNING:This appliance is not intended for use by persons (including children)
with reduced Physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety;
- WARNING:Children should be supervised to ensure that they do not play with the
appliance;
- WARNING:Do not use extension cords or ungrounded (two prong) adapters;
- WARNING:If the supply cord is damaged, it must be replaced by the manufacturer,
Its service agent or similar qualified person in order to avoid hazard.
Allow 24 hours before switching on the wine cellar. During this time we recommend
that you leave the door open to clear any residual odors.
BEFORE LOADING & PLUGGING IN THE WINE CELLAR
Recommendations:
The location you have selected for your wine cellar should:
- be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard socket to country standards,
linked to the ground), it is NOT recommended to use a multi-socket or extension lead;
- have a surge protector fitted to the electrical outlet;
- Away from the microwave oven. Certain microwave ovens do not have wave
interference shield. When placed within 1 meter vicinity of the wine cabinet, they may
affect the operation of the wine cabinet.
Notes:
- EWC 8041S , EWC 8871S , EWC 8121S , EWC 8171S models are Both built-in and free-
standing type as per the drawings thereafter.
Wine cellar should be placed where the ambient temperature is proper (Please view the end
of Manual). If the temperature is above or below this range, it will affect the performance of
the cellar. Placing in cold or hot temperature conditions may cause cellar's temperatures
fluctuating, and it will not reach the ideal one.
2.

Grounding instructions:
T
he wine cellar must be grounded in case of wire leakage. Grounding reduces the risk o
f
e
lectrical shock. The wine cellar is equipped with a power cord having a grounding wire an
d
p
lug. The wine cellar plug must be plugged into a properly affixed and grounded electrica
l
o
utlet.
N
ote: In locations where there is frequent lightning, it is advisable to use surge protectors.
I
mproper use of the grounding plug can result in the risk of electric shock. Consult
a
q
ualified electrician or service person if the grounding instructions are not completel
y
u
nderstood.
I
f the supply cord is damaged, it must be replaced by a qualified person in order to avoi
d
e
lectrical hazard.
INSTALLING YOUR WINE CELLAR
U
npack and remove all of the protection and adhesive strips from the packaging around an
d
i
nside the wine cellar.
T
he wine cellar must be positioned such that the plug is accessible. Release the power cord
.
M
ove your wine cellar to its final location. The wine cellar should be installed in a suitabl
e
p
lace where the compressor will not be subject to physical contact.
L
eveling your wine cellar: Wine cellar must be leveled BEFORE loading your wines.
Y
our wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. Europac
e
r
ecommends that you tighten the back feet to the maximum and adjust the front feet to leve
l
t
he wine cellar.
3.

INSTALLATION INSTRUCTIONS FOR BUILT IN WINE CELLARS
4.
1. Europace “Built in” wine cellars are front venting but are not designed to be fully
integrated behind a joinery door.
2. Please follow the installation diagram when installing built-in wine cellars. No less than
the minimum installation dimension, or it will affect the venting of cellar.
3. Europace “Built in” wine cellars draw air from right of ventilation frame and expel
through left of ventilation frame under the front door.
4. Europace “Built in” wine cellars have a power switch located on the control panel so
power point location is not critical.
5. The wine cellar requires a standard 240 volt/10 amp power point. (Or according to
different countries specifications).
6. The power cord is 2.0m in length and is fixed on the right side at the back when looking
from front of cabinet.
7. As with most appliances of today, the wine cellar has sensitive electronic components
which are susceptible to damage through lightning and electricity supply faults. It is
therefore advised to use a power surge protector to avoid problems of this nature.
8. Air vent on door must be provided for Europace built-in wine cellars when a wood door
installed.
In Hot climate zone, an air vent or grid, with a minimum ventilation size of 200mm x 40mm
MUST be cut out at the rear top of the back partitioning or at the top of either side of the
partitioning, allowing cool fresh air full access to flow into the 30mm gap located at the rear
of the cabinet.
This air vent or grid must not be opened on the same side as other appliances such as ovens
or an area that is sealed and without access to fresh cool air. Failing to comply with the
above specifications could result in WARRANTY void.

INSTALLATION DRAWINGS FOR BUILT IN WINE CELLARS
Note: The appliance must be positioned so that the plug is accessible after installed.
DIMENSIONAL DRAWINGS:
EWC 8041S models
EWC 8871S models
5.

EWC 8121S models
EWC 8171S models
6.

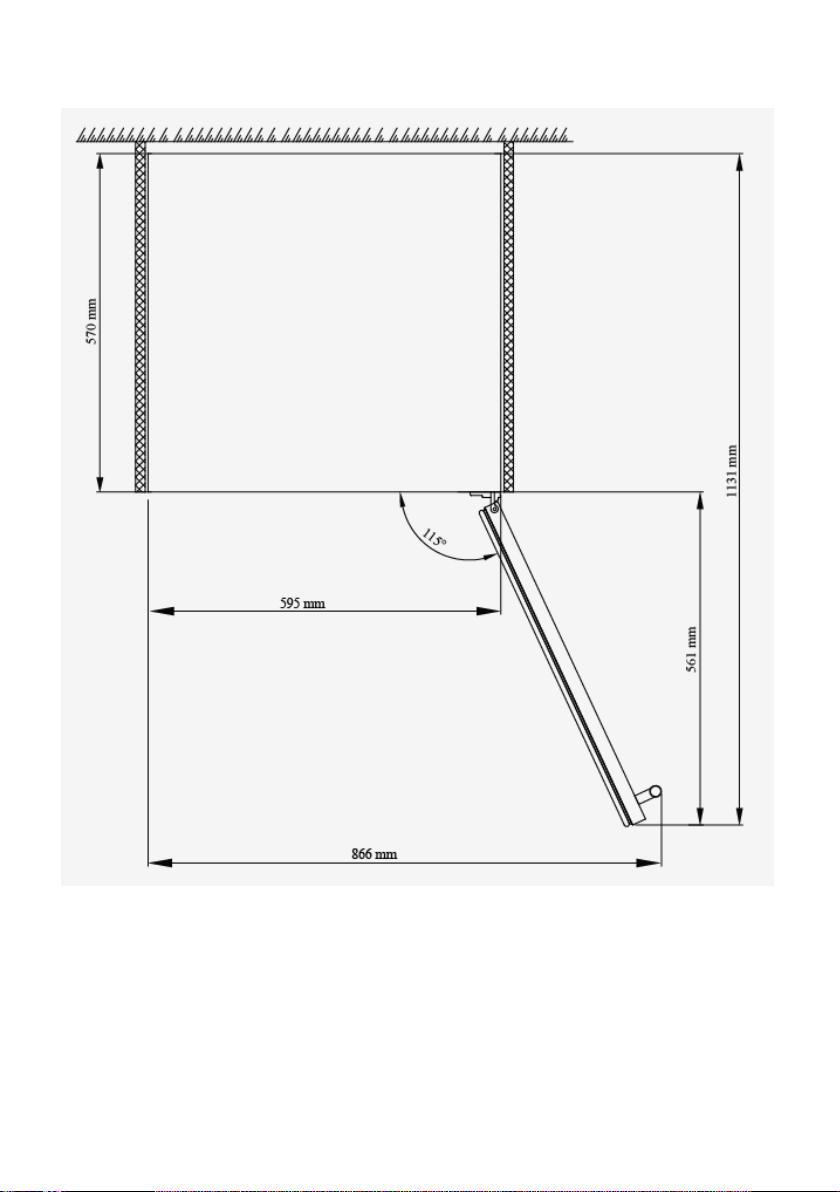

OPEN ANGLE SIZE DRAWINGS:
EWC 8041S models
7.

EWC 8871S
8.
, EWC 8121S , EWC 8171S models

9.

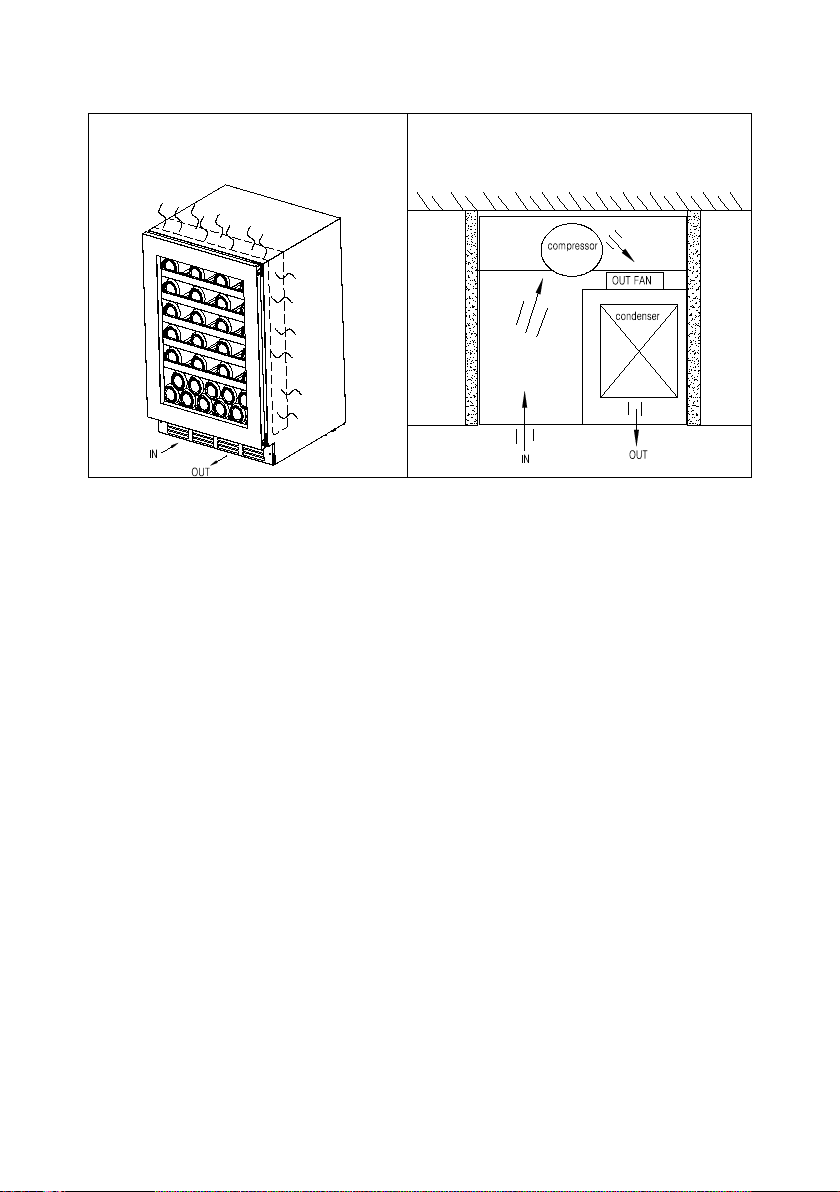

RADIATOR SYSTEM DESCRIPTION
TURNING ON YOUR WINE CELLAR
Plug in and switch on the cellar by pressing on the power button for a few seconds.
When you use the wine cellar for the first time (or restart the wine cellar after having it shut
off for a long time), there will be a few degrees variance between the temperature you have
selected and the one indicated on the LED readout. This is normal and it is due to the length
of the activation time. Once the wine cellar is running for a few hours everything will
stabilize.
Important: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes before
restarting the unit. The wine cellar will not start if you attempt to restart before this time
delay.
Operating Noises
To reach the desired temperature settings, Europace wine cellars, like all wine cellars
operating with compressors and fans, may produce the following types of noises. These
noises are normal and may occur as follows:
- Gurgling sound - caused by the refrigerant flowing through the appliance’s coils.
- Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant
gas to produce cold.
- Fan operating sound - to circulate the air within the wine cellar.
An individual’s perception of noise is directly linked to the environment in which the wine
cellar is located, as well the specific type of models. Europace wine cellars are in line with
international standards for such appliance. Europace will always do its utmost to satisfy its
customers but will not retake possession of the goods due to complaints based on normal
operating noise occurrences.

10.
LOADING YOUR WINE CELLAR
You may load your wine bottles in single or double rows while taking note of the following:
if you do not have enough bottles to fill your wine cellar, it is better to distribute the load
throughout the wine cellar so as to avoid “all on top” or “all below” type loads.
- Do remove or relocate adjustable wooden shelves to accommodate larger type of bottles or
increase the capacity of the cellar by stacking the bottles up when necessary. (See
removing shelves)
- Keep smalls gap between the walls and the bottles to allow air circulation. Like an
underground cellar air circulation is important to prevent mould and for a better
homogeneous temperature within the cellar.
- Do not over load your wine cellar to facilitate air circulation.
- Do not stack more than 1.5 rows of standard 0.75L bottles per shelves to facilitate air
circulation
- Avoid obstructing the internal fans (located inside on the back panel of the wine cellar).
- Do not slide the shelves outwards beyond the fixed position to prevent the bottles from
falling.
- Do not pull out more than one loaded shelf at a time as this may cause the wine cellar to
tilt forward.
- Do not cover the wooden shelves with alloy foil or other materials, as it will obstruct air
circulation.
- Do not move your wine cellar while it is loaded with wines. This might distort the body of
the wine cellar and cause back injury.

TYPES OF REGULATION
Please note that depending on the loading and settings chosen it takes about 24 hours for the
wine cellar to see the temperature stabilizing.
During this time LED seems to move erratically in particular,It is normal and this process
occurs whenever the setting is modified and/or whenever a large amount of bottles are added
to the cellar.
EWC 8041S , EWC 8871S , EWC 8121S , EWC 8171S:Both built-in and free-standing type,
sensor touch controller and LED displayer
Designed to store and mature all wines: red, white and sparkling. These wine cellars
reproduce the ideal conditions for wine storage, at a constant recommended temperature of
12ºC. They can also be set to provide ideal serving temperature for full enjoyment of the
wine’s qualities. Unless stated by the wine maker on the bottle.
TEMPERATURE SETTINGS
Important: The LED displays by default the actual internal air temperature.
The temperature settings are pre-set at the factory as follows. In the event of a power
interruption, all previous temperature settings are automatically erased and it will revert to
the preset temperature settings.
The electrical board of all models comes with memory function.
It is important to understand that there is a difference between the air temperature inside the
wine cellar and the actual temperature of the wine: You will need to wait approximately 12
hours before noticing the effects of temperature adjustment due to the critical mass within a
full wine cellar.
Once the temperature is set, it is strongly advised not to toy with it or adjust frequently. The
thermostat will maintain the temperature inside the wine cellar within a +/- 2.5ºC range. But
the thermal inertia of the wine and the glass is such that within this temperature range, the
actual temperature of the wine will only fluctuate 0.5ºC to 1ºC.

12.

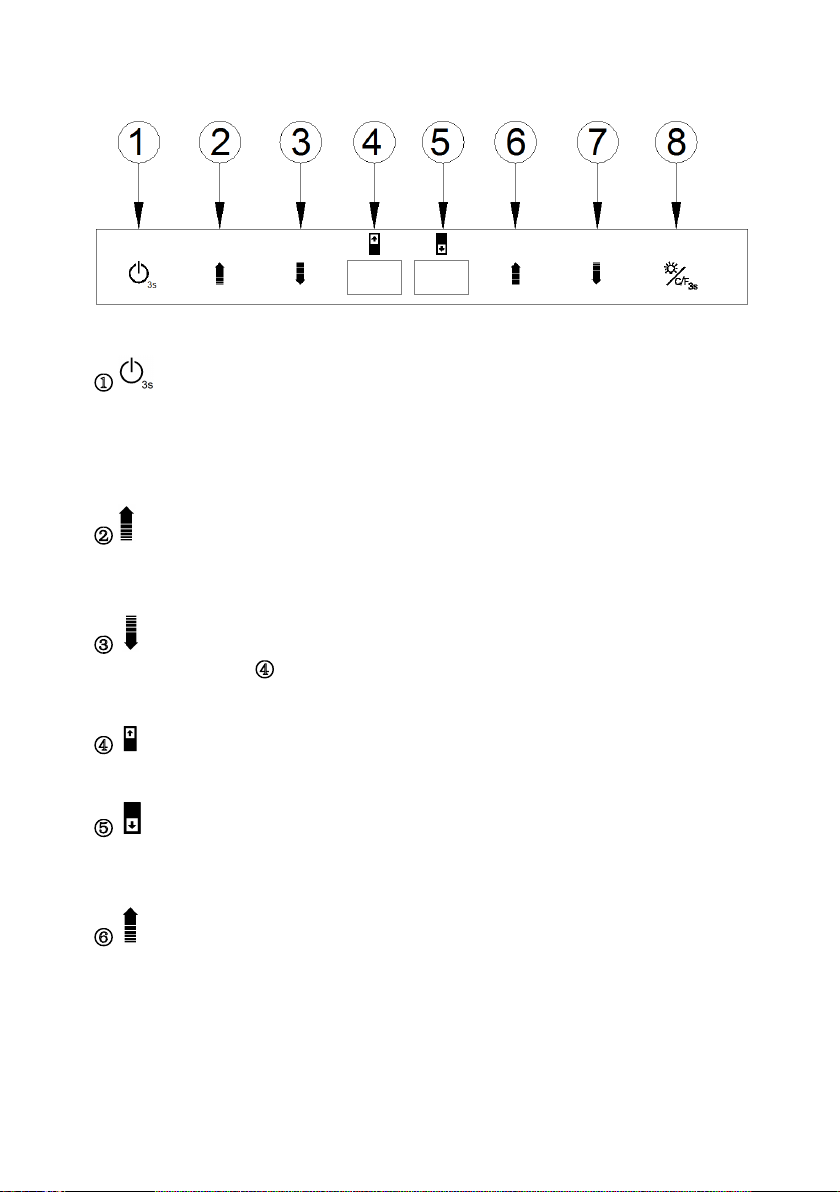

DISPLAY BOARD OPERATING INSTRUCTION:
F
rom left to right:

①“ON/OFF” the power button :
P
ress the button 3 seconds to power off (⑥digital countdown displays 3, 2, 1, press th
e
b
utton for 0.9 seconds after the window just POP countdown numbers). Remark: The othe
r
f
unctions will turn off except light switch when the power turns off. Press again (withou
t
d
elay), the power turns on.

②Upper zone temperature setting up button:
P
ress one time, window ④the set value will increase 1 degree Celsius in the original settin
g
t
emperature, the setting range according to customer requirements.

③Upper zone temperature setting down button :
P
ress one time, window ④the set value will reduce 1 degree Celsius in the original settin
g
t
emperature, the setting range according to customer requirements.

④Window :
D
isplay upper zone temperature, display odd numbers “E1, E2” code.

⑤Window:
D
isplay lower zone temperature, display “E3, E4, E5, E6” code, display power of
f
c
ountdown numbers (3, 2, 1).

⑥Lower zone temperature setting up button:
p
ress one time, window ⑤the set value will increase 1 degree Celsius in the original settin
g
temperature, the setting range accordingly to customer requirements.

13.
⑦Lower zone temperature setting down button:
press one time, window ⑤the set value will reduce 1 degree Celsius in the original setting
temperature, the setting range accordingly to customer requirements.
⑧Lamp button:
Press the button and the lamp turns on, the lamp will turn off once press again.
⑧C/F display conversion function keys:
Set the conversion degrees Celsius / Fahrenheit display, each press this button, the display
window will be into degrees Celsius or Fahrenheit.
ATTENTION PLEASE:
The LED light is artificial control, please turn it off if don’t need light to reach the setting
temperature quickly and reduce energy consumption.

14.
IMPORTANT INFORMATION ABOUT TEMPERATURE
Y
our Europace wine cellar has been designed to deliver optimum conditions for storin
g
a
nd/or serving your wines.
F
ine wines require long and gentle developments and need specific conditions in which t
o
r
each their full potential.
A
ll wines mature at the same temperature, which is a constant temperature set between 12º
C
t
o 14ºC. Only the temperature of “dégustation” (wine appreciation) varies according to th
e
t
ype of wines (see “Wine Serving Temperature Chart” above). This being said and as it i
s
f
or natural cellars used by wine producers for long period of storage, it is not the exac
t
t
emperature that is important, but its consistency. In other words, as long as the temperatur
e
o
f your wine cellar is constant (between 12ºC to 14ºC) your wines will be stored in perfec
t
c
onditions.
N
ot all wines will improve over the years. Some should be consumed at an early stage (2 to
3
y
ears) while others have tremendous ageing capability (50 and over). All wines have a pea
k
i
n maturity. Do check with your wine merchant to get the relevant information.
D
EFROSTING/CONDENSATION/ HYGROMETRY/ VENTILATION
Y
our wine cellar is designed with “Auto-cycle” defrost system. During “Off-cycle” th
e
r
efrigerated surfaces of the wine cellar defrost automatically. Defrost water from the win
e
c
ellar storage compartment drains automatically and part of it goes into a drainage container
,
w
hich is located at the back of the wine cellar next to the compressor. The heat is transferre
d
f
rom the compressor and evaporates any condensation that has collected in the pan. Part o
f
t
he remaining water is collected within the wine cellar for humidity purposes.
T
his system enables the creation of the correct humidity level inside your wine cella
r
r
equired by the natural cork to maintain a long lasting seal.
N
otes: The water collected by condensation, is therefore recycled. Under extremely dr
y
e
nvironmental conditions, you may have to add some water into the water containe
r
p
rovided with your wine cellar.
T
he wine cellar is not totally sealed; fresh air admission is permitted through the drainpipe
.
A
ir is circulated through the cellar by means of a fan/fans and the hollow shelves.
Notes: During the refrigerating cycle, heat is given off and disperses through the external
surfaces of the wine cellar. Avoid touching the surfaces during those cycles.
Signature series are equipped with a triple glazed glass door that has a third internal acrylic
layer to minimize condensation on the glass door.

15.
ADJUSTABLE WOODEN SHELVES
Adjusting & removing the shelves
Note: please adjust and remove the shelf according to the actual purchase of wine.
For easy access to the storage content, you must pull the shelves approximately 1/3 of its
depth out of the rail compartment. These wine cabinets, however, are designed with a notch
on each side of the shelf tracks to prevent bottles from falling.
When removing any of these shelves out of the rail compartment, tilt the shelf as per diagram
and simply pull out, or push in the shelf until it sits on the support brackets securely.
Shelf installation and taking instruction:
Common wooden shelf:

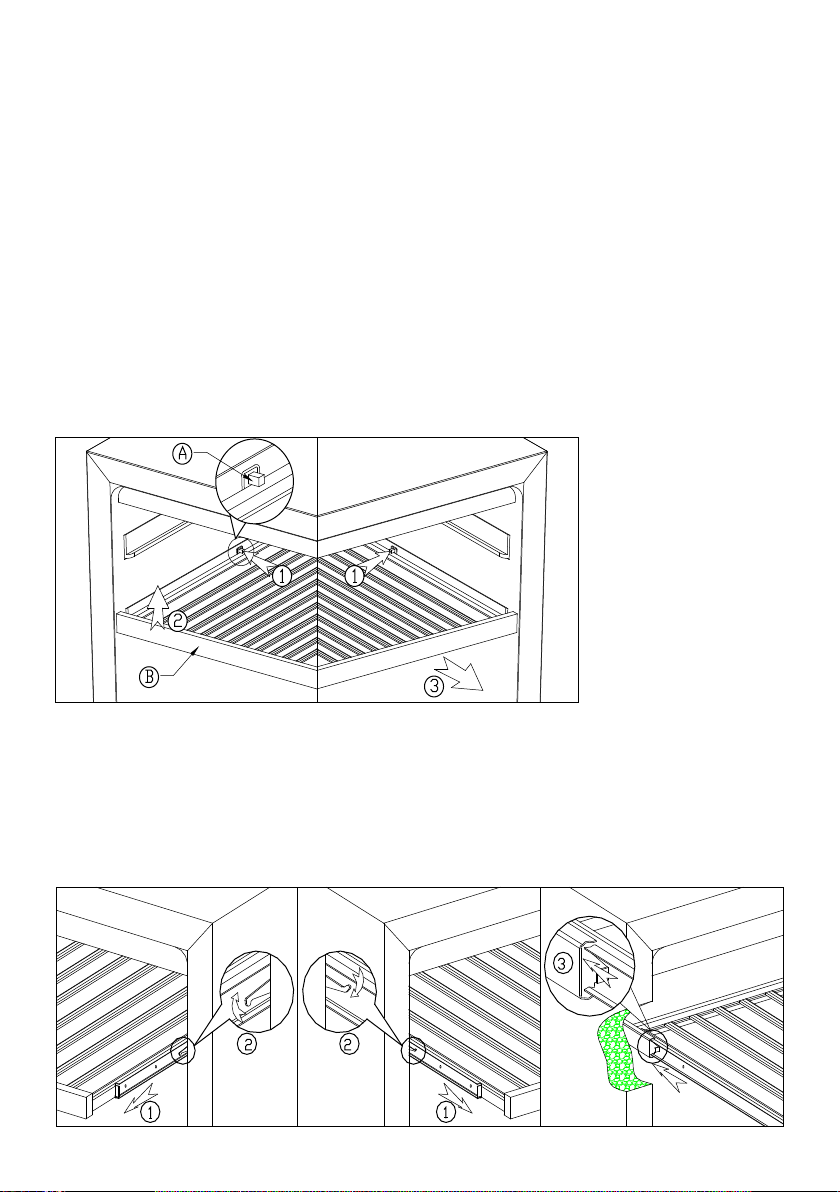

Shelf taking: According to below instruction drawing to press one side of she lf limit pin①,
extract and remove the shelf from the other side of support bracket ②, then take off the shelf
following the arrow mark ③.
Shelf installation will be opposite withshelf taking.
1、”A” is shelf limit pin
2、”B” is shelf
Shelf taking:
According to below instruction drawing to pull out the shelf to support bracket ①,
press two sides of sliding roller buckles and pull out the shelf following the arrow mark ②.
According to below instruction drawing to push in the shelf alignment with two sides of
sliding roller following the arrow mark ③.
Shelf installation:

16.
REVERSIBILITY OF THE DOOR
Warning: To avoid accidents during the process of changing the door, we recommend that
you get assistance. The glass door is heavy and may cause injury if dropped.
-Depending on to the model and the type of handle your wine cabinet is equipped with, you
may have to rotate the door through 180 degrees.
-Depending on the type of handle your wine cabinet is equipped with, the door may not
be reversible or may require that a left or right opening door be ordered to change the
opening side.

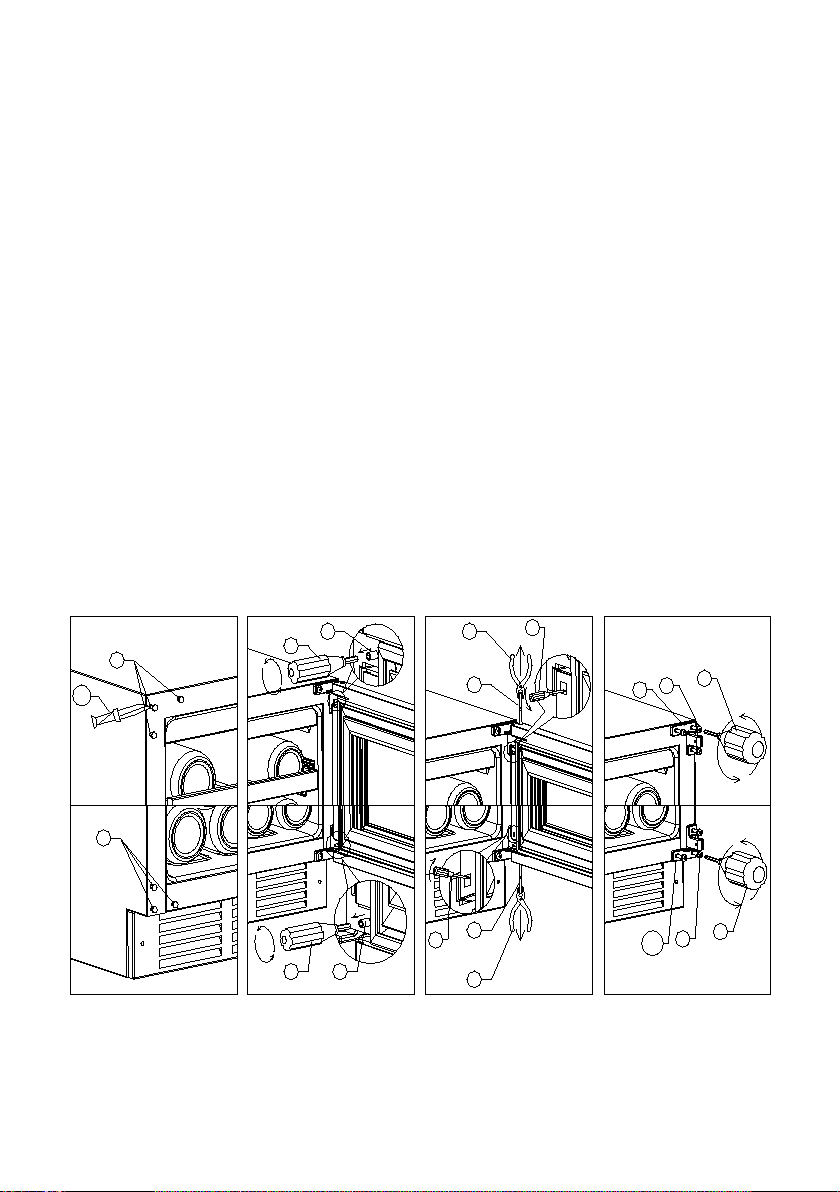

REVERSIBILITY OF THE DOOR
EWC 8041S, EWC 8871S, EWC 8121S, EWC 8171S will use same method to install
the door:
1.To put the cabinet on open operation place;
2.The door opened to the maximum angle, take off the decorative nail on opposite side
(Drawing 1);
3.To disassemble the pivot core of upper and lower door hinge by the inner six angle
screwdriver (Drawing 2);
4.To suck out the door shaft core from the two ends of the top of the door by magnet
(Drawing 3).
5. Take away the door from cabinet after discharge the door core.
6. Discharge the upper and lower door hinge by screwdriver (Drawing 4).
7. To assemble the door on the opposite side with accessories in accessory bag.
12 3
1
1
3
24
5
2 3
5
4
8
4
79
9
10 8
6
6
11
1. Decorative nail 2. M4 six angle screwdriver 3. M4 door limit screw
4. Pincer 5. Door core 6. Slot type screwdriver
7. Upper door hinge 8. Lower door hinge 9. M5 six angle screwdriver
10. Lower door hinge 11. Knife

17.
OPERATION ABNORMALITIES
Ensure that there is power to the electrical supply plug by connecting another electrical
appliance to it. Check fuse, if any. Make sure that the door is closed properly.
If your wine cellar appears to be malfunctioning, unplug it and contact your EuropAce’s
after sales service. Any intervention on the cold circuit should be performed by a
refrigeration technician who should carry out an inspection of the circuit sealing system.
Similarly, any intervention on the electrical circuit should be performed by a qualified
electrician.
Notes: Any intervention performed by a non-authorized EuropAce technician will lead to the
warranty being considered as null and void.
POWER FAILURES
I
n the event of a power interruption, all previous temperature settings are automaticall
y
p
reservation and it will revert to a preset temperature setting. (See preset chart)
M
ost power failures are corrected within a short period of time. An hour or two’s loss o
f
p
ower will not affect wine cellar’s temperatures. To avoid sudden change of temperatur
e
w
hile the power is off, you should avoid opening the door. For longer period of powe
r
f
ailure, do take steps to protect your wine.
I
rrespective of the cause, if you notice either abnormal temperature or humidity level
s
i
nside your wine cellar, be reassured that only long and frequent exposure to thes
e
abnormal conditions can cause a detrimental effect on your wines.
Standard features:
Compressor operated: R600a
- Available in rated voltage/frequency
220V/50Hz
- Automatic defrost
- Humidity : 65% RH +/-10% RH
- Black outer and inner finish
- Internal light
- Adjustable feet x 4
- Triple layers glass door
- Seamless stainless steel finish door frame

18.
TROUBLESHOOTING GUIDE
Common problems may easily be solved, saving you the cost of a possible service call.
Please read carefully the instruction manual and revert to troubleshooting guide chart.
PROBLEM POSSIBLE CAUSE
Wine cellar
does not
operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or the fuse is broken.
Wine cellar is
not cold enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off
frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to the Wine cellar.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does
not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb is out of order.
The light button is “OFF”.
Vibrations. Check to assure that the Wine cellar is level.
The Wine cellar
seems to make
too much noise.
The rattling noise may come from the flow of the refrigerant, which is
normal.
As each cycle ends, you may hear gurgling sounds caused by the flow of
refrigerant in your Wine cellar.
Contraction and expansion of the inside walls may cause popping and
crackling noises.
The Wine cellar is not level.
The door will
not close
properly.
The Wine cellar is not level.
The door was reversed and not properly installed.
The gasket is faulty. (magnet or rubber is spoiled)
The shelves are out of position.

Product Warranty
The Warranty Card is not provided in the product packaging. You can register the product
warranty online at our website https://www.europace.com.sg/ewarranty/ within 7 (seven)
days from the date of purchase. You will enjoy an additional 3 months of the product
standard warranty when you register online. Please produce your E-warranty registration
when requesting for repair and service at our Service Centres nearest to you.
In the event, if you are unable to register the product warranty online you must produce your
purchase receipt/tax invoice and such other documentary proof of purchase of the appliance
when requesting for repair and service.
Product Warranty Coverage
You may nd out your product warranty coverage at the link below before calling our
Customer Service Hotline [phone] or visiting our Service Centre.
http://europace.com.sg/ewarranty/src/cupload/settings_pd-
f/1/1-1-2c899-1563960978-WARRANTY-COVERAGE-19_0221.pdf
TERMS & CONDITIONS OF WARRANTY (THIS WARRANTY IS VALID IN SINGAPORE ONLY)
Your appliance is warranted against faulty design, workmanship or materials for a period of
12 months unless otherwise stated from the date of purchase, subject to the following terms
& conditions herein below:-
1) That the owner shall register the product warranty online at our website www.eu-
ropace.com.sg within 7 (seven) days from the date of purchase.
2) That the appliance shall be used solely for domestic purposes and not for commercial
purposes or any other purposes whatsoever and used strictly under the instruction for
operation as provided by the manufacturers or the appliance.
3) That if any time during the warranty period any part or parts of this appliance is removed,
tampered, modied, adjusted, altered, handled or repaired in any way whatsoever by any
persons other than those authorized by Strategic Marketing (S) Pte Ltd, this warranty shall
immediately cease to be valid and become void.
4) That the owner shall produce the E-warranty registration or tax invoice/receipt and such
other documentary proof of purchase of the appliance to our satisfaction as we may deem
necessary when requesting for repair and service.
5) That our decision on all queries relating to complaints as to defects either of workmanship
or of materials shall be conclusive and the owner shall agree to abide by such a decision. Any
appliance or defective part which has been replaced shall become our property.
6) The terms and conditions of this warranty shall be contained exclusively in this document
and no other presentation of provision, either written or otherwise, regardless of the origin of
the same, shall be accepted as either adding or removing from these terms and conditions.
7) That this warranty shall cease to be valid and void if the appliance is exported or
relocated from Singapore.
8) That there shall be no removal, alteration, defacement, or made illegible/tampered or any
kind of the serial number on the appliance.
9) That the owner shall be fully responsible for the due delivery and collection of the
appliance for any work done according to this warranty. Transportation expenses incurred for
delivery or handling the appliance are chargeable to the owner.
10) Transportation and labour charges apply after the full parts warranty expires. Refer to
https://www.europace.com.sg/ewarranty/ for more information.
