EuropAce EMW 1202S User manual

Thank you for purchasing EuropAce Microwave Oven
For safety purpose, please read this operating instruction manual carefully before using
and keep it for future reference.
Instruction Manual
Microwave Oven EMW 1202S
RELISHING YOUR COOKERY
1

(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to break
or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or
allow soil or cleaner residue to accumulate on sealing surfaces.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface
could be degraded and affect the lifespan of the apparatus and lead to a
dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
2
Approx. 10.7kg
Model:
Rated Voltage:
Power Consumption:
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
EMW 1202S
230V~ 50Hz
20 L
245 mm
1050W
440x343x259mm
(c) Do not operate the oven if it is damaged. It is very important that the
oven door close properly and that there is no damage to the
a)Door (including any dent ),
b)Hinges and latches (broken or loosened),
c)Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except qualified
service personnel.

IMPORTANT SAFETY INSTRUCTIONS
3
When using electrical appliance basic safety precautions should be
followed, including the following:
WARNING!--To reduce the risk of burns, electric shock, fire, injury to
persons or exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in the manual.
Do not use corrosive chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook or dry food. It is not designed
for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped. If the supply cord
is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
5. WARNING: Only allow children to use the oven without supervision
when adequate instructions have been given so that the child is able to
use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:
•When heating food in plastic or paper container, check the oven frequently
to the possibility of ignition.
•Remove wire twist-ties from paper or plastic bags before placing bag in oven.
•If smoke is observed, switch off or unplug the appliance and keep the door
closed in order to stifle any flames.
•Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated in sealed containers
since they are liable to explode.
8. Microwave heating of beverage can result in delayed eruptive boiling,
therefore care has to be taken when handle the container.
9. Do not fry food in the oven. Hot oil can damage oven parts and utensils
and even result in skin burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated
in microwave ovens since they may explode even after microwave
heating has ended.

4
11. Pierce foods with heavy skins such as potatoes, whole squashes,
apples and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred
or shaken and the temperature should be checked before serving in
order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from
the heated food. Potholders may be needed to handle the utensil.
14. Utensils should be checked to ensure that they are suitable for use in
microwave oven.
15. WARNING: It is hazardous for anyone other than a trained person to carry
out any service or repair operation which involves the removal of any
cover which gives protection against exposure to microwave energy.
16. This product is a Group 2 Class B ISM equipment. The definition of Group
2 which contains all ISM (Industrial, Scientific and Medical) equipment
in which radio-frequency energy is intentionally generated and/or used
in the form of electromagnetic radiation for the treatment of material, and
For Class B equipment is equipment suitable for
use in domestic establishments and in establishments directly connected
to a low voltage power supply network which supplies buildings used for
domestic purpose
.
17. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the
appliance.
19. The microwave oven is only used in freestanding.
20. WARNING: Do not install oven over a range cooktop or other heat
-producing appliance. if installed could be damaged and the warranty
spark erosion equipment.
would be avoid .
21. The accessible surface may be hot during operation.
22. The microwave oven shall not be placed in a cabinet.
23. The door or the outer surface may get hot when the appliance is operating.

5
24. The temperature of accessible surfaces may be high when the appliance
is operating.
25. The appliance shall be placed against a wall.
26. Appliance is not to be used by children or persons with reduced physical,
capabilities, or lack of experience and knowledge,
or instruction.
27. Children being supervised not to play with appliance.
28. WARNING: If the door or door seals are damaged, the oven must not
been repaired by a competent person
.
sensory or mental
unless they have been given supervision
be operated until it has
29. The instructions shall state that appliances are not intended to be
operated by means of an external timer or separate remote-control system.
30. The microwave oven is for household use only and not for commercial use.
31. Never remove the distance holder in the back or on the sides, as it
ensures a minimum distance from the wall for air circulation.
32. Please secure the turn table before you move the appliance.
33. Caution: It is dangerous to repair or maintain the appliance by no other
than a specialist because under these circumstances the cover have to
be removed which assures protection against microwave radiation. This
applies to changing the power cord or the lighting as well.
Send the appliance in these cases to our service centre.
34. The microwave oven is intended for defrosting, cooking and steaming of
food only.
35. Use gloves if you remove any heated food.
36. Caution! Steam will escape, when opening lids or wrapping foil.
37. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
erning use of the appliance in a safe way and
instruction conc understand
the hazards involved. Children shall not play with the appliance.Cleaning
and user maintenance shall not be made by children unless they are
aged from 8 years and above and supervised.
38. If smoke is emitted, switch off or unplug the appliance and keep the door
closed in order to stifle.

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
6

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a compentent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
microwave energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml)
along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven."
There may be certain non-metallic utensils that are not safe to use for microwaving.
If in doubt, you can test the utensil in question following the procedure below.
7

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used tocover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use tocover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as acover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap totouch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
UtensilsRemarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
8

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
9

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
(1) Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(2) The minimum installation
height is 85cm.
(3) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(4) Do not remove the legs
from the bottom of the oven.
(5) Blocking the intake and/
or outlet openings can
damage the oven.
(6) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
(7) Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
10

11
Function/Power
Low
Med. Low (Defrost)
Med.
Med. High
High
Timer
Power
Control Panel and Features
OPERATION
Operation Instructions
Output
17%
33%
55%
77%
100%
Notice: When removing food from the oven, please ensure that the oven
power is switched off by turning the timer switch to 0 (zero).
Failure to do so, and operating the microwave oven without food in
it, can result in overheating and damage to the magnetron.
1.To set cooking power by turning the
power knob to desired level.
2.To set the time of cooking by turning
the timer knob to desired time per
your food cooking guide.
3.The microwave oven will
automatically start cooking after
power level and time are set.
4.After the cooking time is up, the unit
will
" Ding " to stop.
5.If the unit is not in use, always set
time to " 0 " .
Defrost

12

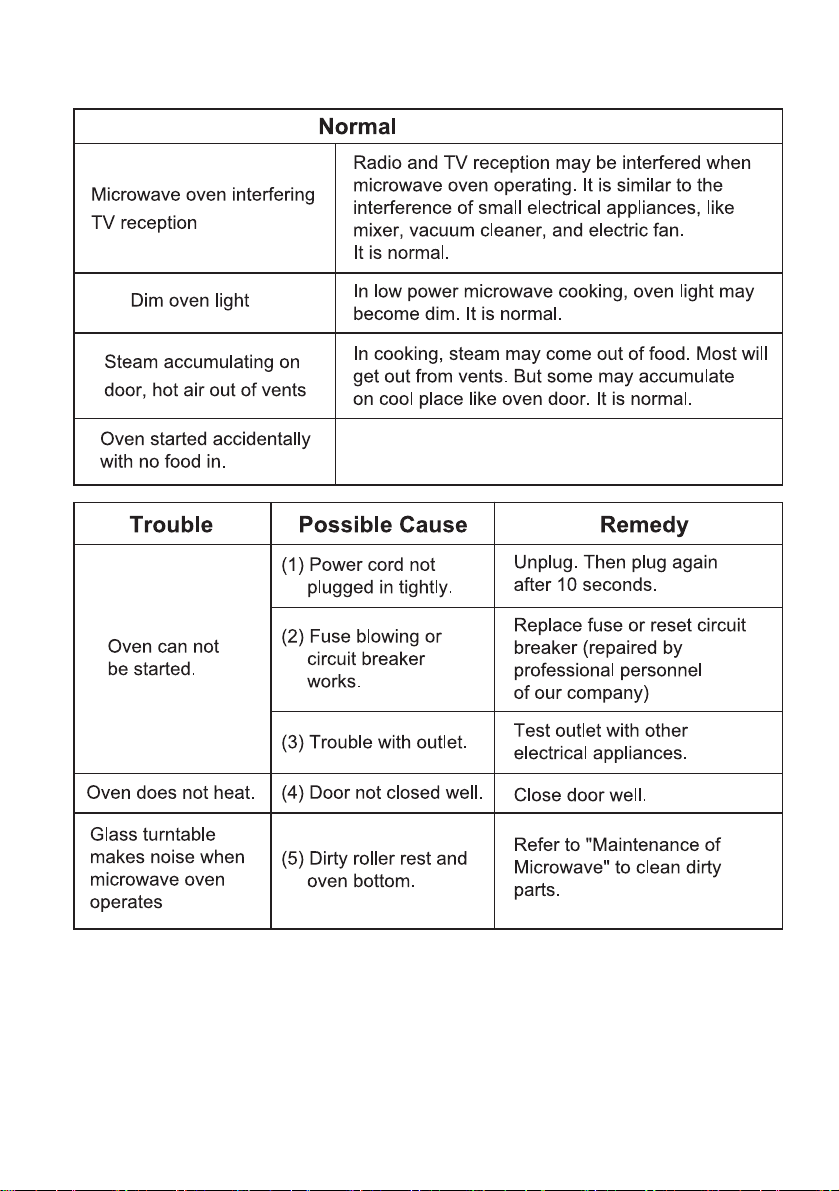

Trouble shooting
It is forbidden to run the unit without any food inside.
It is very dangerous.

Product Warranty
The Warranty Card is not provided in the product packaging. You can register the product
warranty online at our website https://www.europace.com.sg/ewarranty/ within 7 (seven) days
from the date of purchase. You will enjoy an additional 3 months of the product
standard warranty when you register online. Please produce your E-warranty registration when
requesting for repair and service at our Service Centres nearest to you.
In the event, if you are unable to register the product warranty online you must produce your
purchase receipt/tax invoice and such other documentary proof of purchase of the appliance
when requesting for repair and service.
Product Warranty Coverage
You may nd out your product warranty coverage at the link below before calling our Customer
Service Hotline [phone] or visiting our Service Centre.
http://europace.com.sg/ewarranty/src/cupload/settings_pd-
f/1/1-1-2c899-1563960978-WARRANTY-COVERAGE-19_0221.pdf
TERMS & CONDITIONS OF WARRANTY (THIS WARRANTY IS VALID IN SINGAPORE ONLY)
Your appliance is warranted against faulty design, workmanship or materials for a period of
12 months unless otherwise stated from the date of purchase, subject to the following terms &
conditions herein below:-
1) That the owner shall register the product warranty online at our website www.eu-
ropace.com.sg within 7 (seven) days from the date of purchase.
2) That the appliance shall be used solely for domestic purposes and not for commercial
purposes or any other purposes whatsoever and used strictly under the instruction for
operation as provided by the manufacturers or the appliance.
3) That if any time during the warranty period any part or parts of this appliance is removed,
tampered, modied, adjusted, altered, handled or repaired in any way whatsoever by any
persons other than those authorized by Strategic Marketing (S) Pte Ltd, this warranty shall
immediately cease to be valid and become void.
4) That the owner shall produce the E-warranty registration or tax invoice/receipt and such other
documentary proof of purchase of the appliance to our satisfaction as we may deem necessary
when requesting for repair and service.
5) That our decision on all queries relating to complaints as to defects either of workmanship or
of materials shall be conclusive and the owner shall agree to abide by such a decision. Any
appliance or defective part which has been replaced shall become our property.
6) The terms and conditions of this warranty shall be contained exclusively in this document and
no other presentation of provision, either written or otherwise, regardless of the origin of the
same, shall be accepted as either adding or removing from these terms and conditions.
7) That this warranty shall cease to be valid and void if the appliance is exported or
relocated from Singapore.
8) That there shall be no removal, alteration, defacement, or made illegible/tampered or any
kind of the serial number on the appliance.
9) That the owner shall be fully responsible for the due delivery and collection of the appliance
for any work done according to this warranty. Transportation expenses incurred for delivery or
handling the appliance are chargeable to the owner.
10) Transportation and labour charges apply after the full parts warranty expires. Refer to
https://www.europace.com.sg/ewarranty/ for more information.

In addition to the above, this warranty shall be subjected to the following limitations and
exclusions:-
a)The appliance shall be warranted by STRATEGIC MARKETING (S) PTE. LTD. from date of
purchase only for a period of:-
10 years - Heating Element warranty applies to selected models of Storage Water Heaters.
- Tank Leakage warranty applies to selected models of Storage Water Heaters.
8 years - Motor warranty applies only to selected models of Stand Fans (Walk-in warranty).
10 years - Compressor warranty applies to selected models of Refrigerators.
6 years - Motor warranty applies only to selected models of Stand Fans (Walk-in warranty).
- Compressor warranty applies only to selected models of System Air Conditioners
and Portable Air Conditioners.
5 years - Compressor warranty applies to Refrigerators, Freezers, Wine Coolers, Portable Air
Conditioners & Casement Air Conditioners (Outdoor warranty). Transportation is chargeable
from the 2nd year to 5th year.
- Compressor warranty applies to Dehumidiers (Walk-in warranty)
- Motor warranty applies only to selected models of Stand Fans (Walk-in warranty).
3 years - Full parts warranty applies only to selected models of Air Puriers & selected
models of Dehumidiers (Walk-in warranty).
- Heating Element warranty applies only to selected models of Garment Steamers
(Walk-in warranty).
- Motor warranty applies only to selected models of Jet Turbine Fans & selected
models of Air Coolers (Walk-in warranty).
2 years - Motor and internal parts warranty applies only to selected models of Stand Fans,
selected models of Oscillation Power Fans & selected models of Air Puriers
(Walk-in warranty).
- Heating Element warranty applies to selected models of Electric Ovens &
selected models of Kettle Jugs. (Walk-in warranty)
- Motor warranty applies only to selected models of Jet Turbine Fans
(Walk-in warranty).
- Full parts warranty applies only to Wine Coolers of 34 Bottles & above.
1 year - Full parts warranty applies to *Lifestyle Products (cash & carry items), Small
Kitchen Appliances, Fans, Air Coolers, Wine Coolers of 20 Bottles & below, Mini
Bar Fridge (Walk-in warranty)
- Full parts warranty apply to Refrigerators, Air Conditioners & Freezers
(Outdoor warranty).
Check out the warranty coverage of your appliance at www.europace.com.sg
b) The owner waives all or any claims to compensation monetary or otherwise which he/she
may be entitled to and shall agree to accept any compensation whatsoever by way of
additional repairs or otherwise which we in our absolute discretion may deem t to oer. The
giving of compensation shall be subjected to the other provisions of the warranty.
c) This warranty shall not be transferable, negotiable or assignable to any third party.
d) The warranty does not include transport delivery or handling charges incurred in the
transportation of the appliance to and from Strategic Marketing (S) Pte Ltd.
e) Damage caused during transit where the appliance is transported for servicing, repair, or
in relation thereof or connection therewith.
f) In respect of refrigerator and air conditioner only, upon the expiry of 12 months from the
date of purchase, this warranty will not cover transport, refrigerant and labour to install a
new compressor.

g) This warranty will not cover chemical cleaning, maintenance service, general service and
overhaul, which if conrm is chargeable.
h) Defects or fault in the appliance which has been used for commercial purposes or which
have been rented/leased or which have been otherwise subject to other than household use.
i) Claims for damaged/missing parts after 3 days from the original date of goods received will
not be valid.
j) This warranty and the Replacement Scheme does not particularly cover damages and/or
defects arising from
• Usage of wrong electrical supply/voltage.
• Usage not according to the Instruction Manual provided by the manufacturers.
• Misuse, accidents, negligence, abuse, improper installation, or any manner of tampering.
• Normal wear and tear.
• Corrosions rusting or stains.
• Scratches, dents on the unit body, casing or paintwork of the appliance.
• Act of God, re, ood and civil unrest.
• We shall not under any obligation, legal or otherwise to repair this appliance or one to one
exchange if the same shall be required as a result of losses, damages, and malfunctions
arising from any of the causes mentioned in the paragraph.
k) All accessories, external parts and extruded parts such as front panel, casing, door, glass
cover, glass door, cable/cord assembly, batteries, adaptor, plug, remote control, control knob,
buttons, lter, UV lamp, oven tray, wooden rack, exhaust hose, xtures, panels, cover, lid and
lever, plastic parts, fan blades, blade guard, inner pots, brushes, water tanks, attachments
made of glass, plastic and/or porcelain, detachable parts, and other option items are exclud-
ed from this warranty.
All services provided after the warranty period will be chargeable at standard rates deter-
mined by STRATEGIC MARKETING (S) PTE. LTD.
The terms and conditions of this warranty shall be varied except with the written and express
consent or agreement of Strategic Marketing (S) Pte. Ltd. While Strategic Marketing (S) Pte.
Ltd. endeavours to repair any defects after the warranty period, it is subject to availability.
It is hereby expressly provided that any liability of Strategic Marketing (S) Pte. Ltd. for any loss
or damage whatsoever arising from, relating to or in connection with the purchase of the
appliance shall not exceed the purchase price (excluding installation costs) of the appliance.
Similarly, Strategic Marketing (S) Pte. Ltd.’s liability for any breach of this warranty shall be
limited to the purchase price (excluding installation costs) of the appliance.
* Lifestyle Products - Garment Steamer, Humidier, Dehumidier, Air Purier, Mini Bar-Fridge.
* Walk-in warranty - Customers are obliged to bring the warranted products to Strategic
Marketing (S) Pte. Ltd. Service Centre for repair/service during the warranty period.
Ver. 20 _0312
Scan QR Code for
the online Warran-
ty Registration

System Split Aircons | Tel: [phone]| Email: [e-mail] (Twin City)
Portable & Casement Aircons | Tel: [phone] | Email: [e-mail] (Jia Yue)
Refrigerators, Washing machines, Cookers & other major appliances |
Tel: [phone] | Email: [email protected] (TnG)
RELATED PRODUCTS & MAIN CONTACT HOTLINE
