Eurotech Powerpack 90.1 User manual

RANGE HOOD
Thank you for your purchase of this product.
Please read the manual carefully before operating
the appliance.
INSTRUCTION MANUAL

Installation Diagram

Introduction………………………….1
Features……………………………...2
Installation………………………......2
Charcoal filter (Optional)………….4
How To Use…………………………..5
Lamp Change……………………..…6
Safety Information………………….7
Trouble Shooting………………..….8
Electrical Diagram……………..…..9
Specifications……………………….10
Cleaning & Maintenance………….11
Contents

1.1 This appliance has been manufactured with materials
and processes that respect the environment. We hope that
you will continue this important consideration in the
operation of this appliance & the disposal of the packaging
materials, thank you.
1.2 The installation work must be undertaken by a qualified
technician experienced in cooker hood installation. Please
connect the correct power rating (see page 6).
1.3 The manufacturer disclaims all liability for any damage
or injury caused as a result of not following the instructions
for installation contained in the following text.
1.4 The appliance is not intended for use by young children
or infirm persons without supervision.
1.5 Young children should be supervised to ensure that they
do not play with the appliance.
1.6 The maximum number of hobs covered by range hood
should not exceed 5.
1.7 Any modifications to the appliance, electric wire and
plug is dangerous & voids the warranty.
Introduction

2.1 This appliance is manufactured from top quality materials,
and offers superb streamlined effects.
2.2 With high suction power and low noise, it is designed to
remove cooking fumes from your kitchen quietly & effectively.

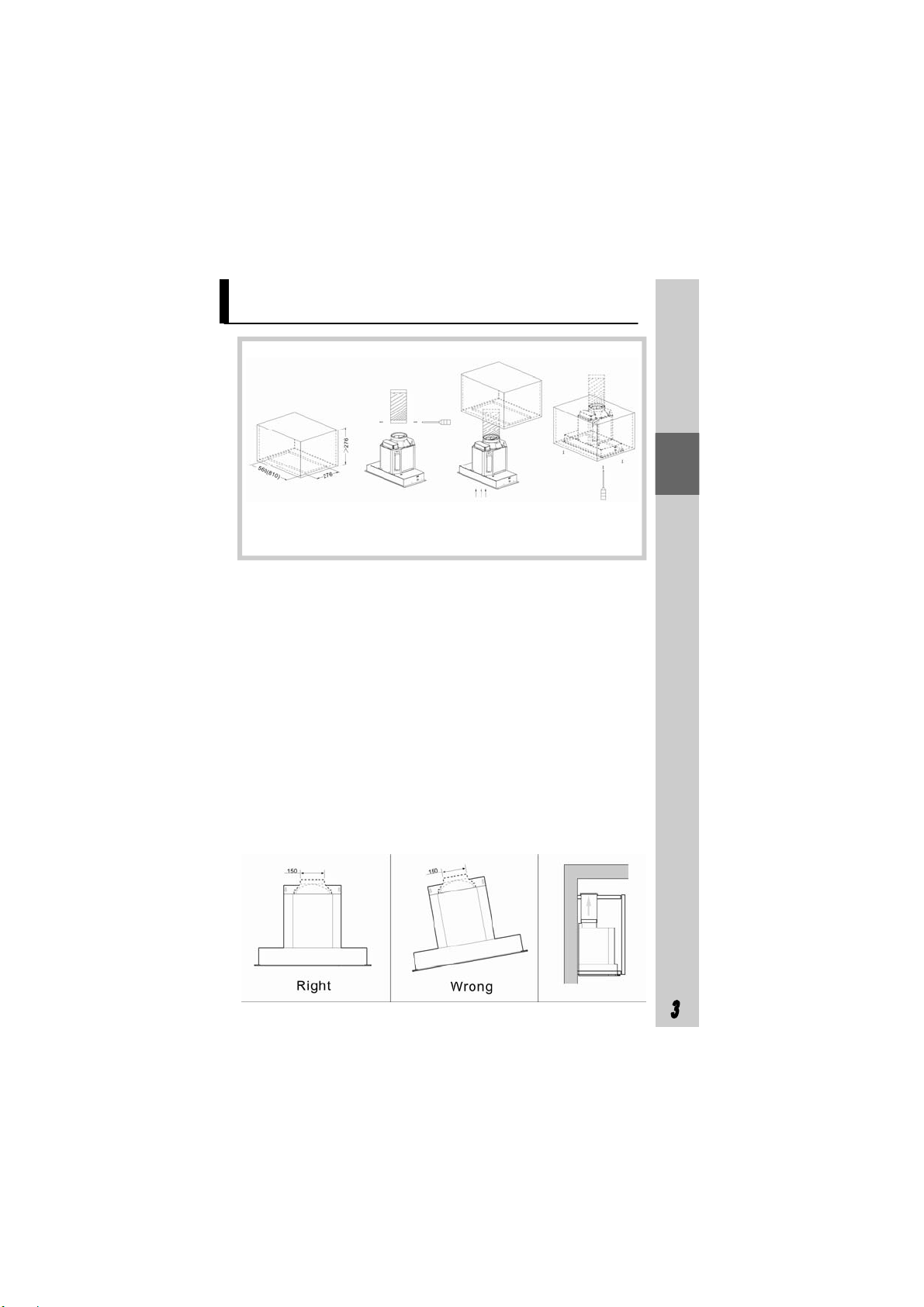

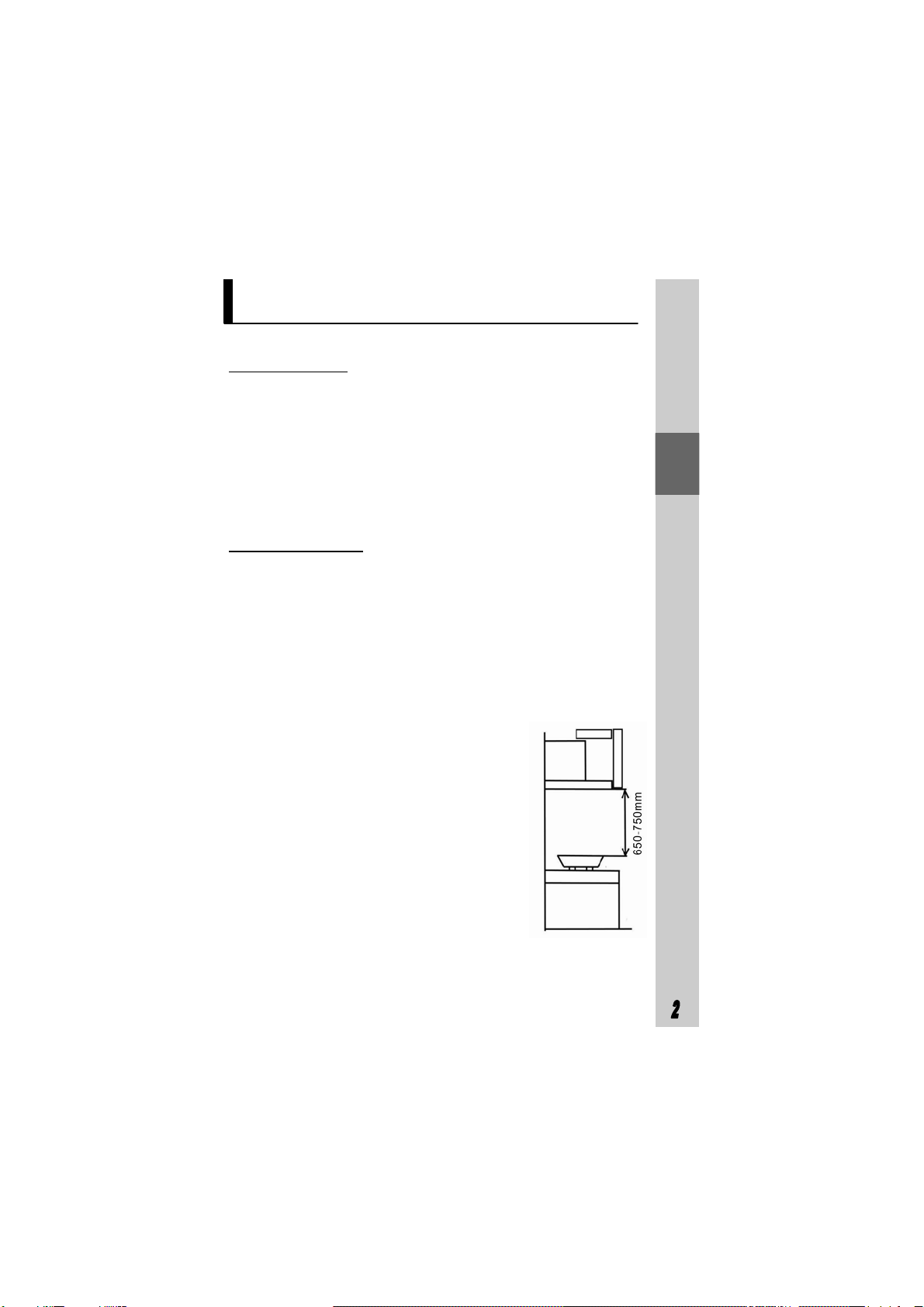

3.1 The range hood should be mounted at a distance of 650-
750mm from the cooking surface for safety & optimum
performance (If the instructions for installation of the gas hob
specify a greater distance, this has to be taken into account) (see
pic1). That exhaust air must not be discharged into a flue which
is used for exhausting fumes from other appliances burning gas
or other fuels.

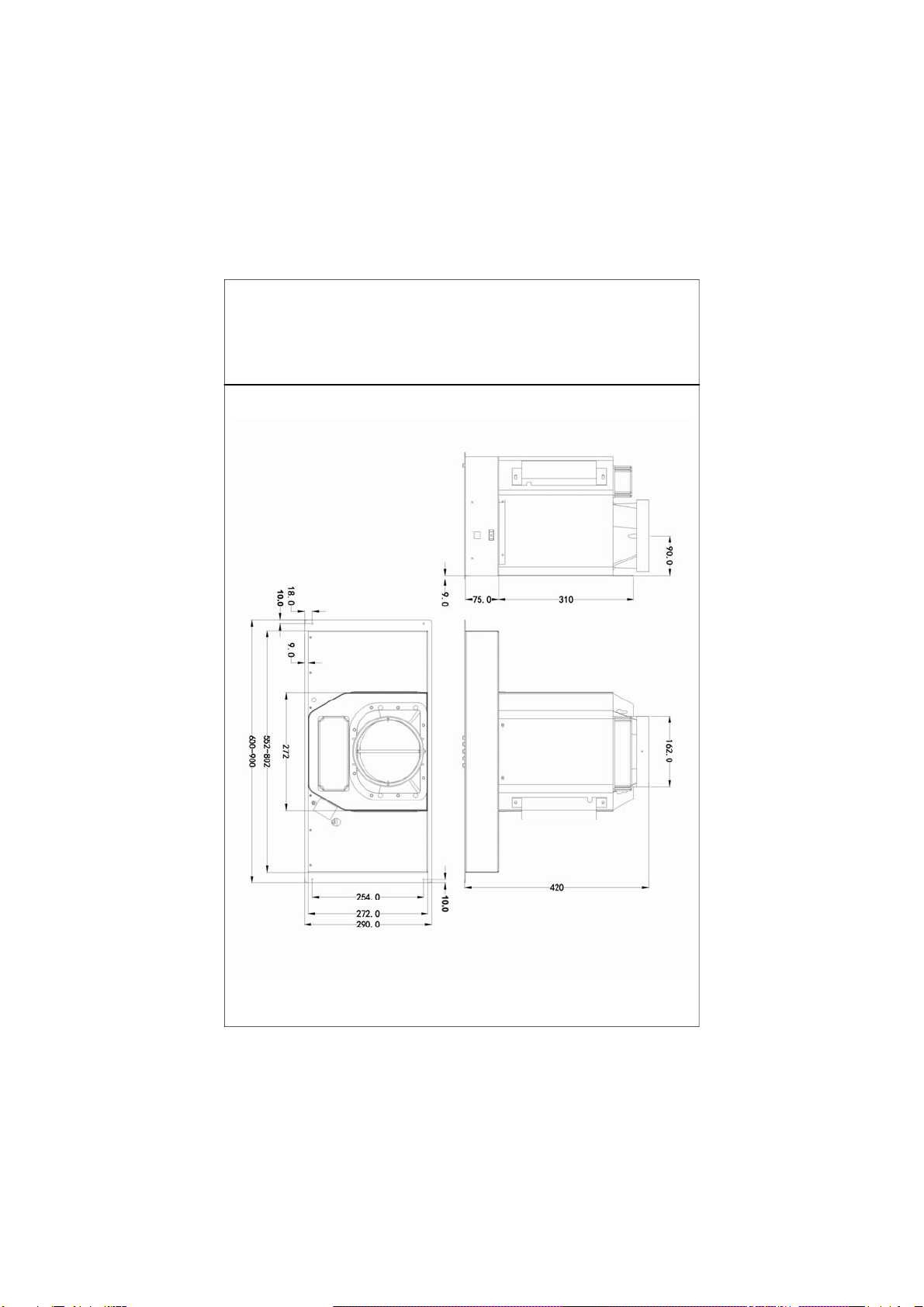

3.2 Fix drilling template on the wall (see pic
2).
3.3 The appliance should be embedded into
the wall unit or another support. This process
should be carried out by 4 screws suitable
for the kind of unit following the instructions
for the drilling of the holes as shown in (see
pic 3).
3.4 Attach the duct to the one way valve, and
connect it to the kitchen outlet vent (see pic
4).
Features
Installation
pic 1

3.5 Ensure that the wall to be installed on is sufficiently
sturdy to carry the weight of the hood. It should be
mounted level for best performance (see illustration).
3.6 Do not connect to a common vent with other appliance
such as gas heater, water heater, laundry dryer etc.
3.7 The duct should not be bent more than ≥120°from the
one way valve outlet to the kitchen vent.
3.8 Check to make sure that the electric chord is not in
contact with sharp edges of the appliance.
3.9 Be sure that the plug is accessible after installation.
pic 2
\\
pic 3
\\
pic 4
\\
pic 5
\\

Charcoal filter (Optional)
Step 1. Take out the charcoal filter from the package.(see pic 6)
Step 2. Buckle the filter on the air cabinet and push it up.
(see pic 7,8,9)
Step 3. push the charcoal filter and let the magnet attract the
air cabinet.(see pic 10)
The hood can be fitted with a charcoal filter which can make
your kitchen cleaner.
pic 6 pic 7 pic 8
pic 9 pic 10

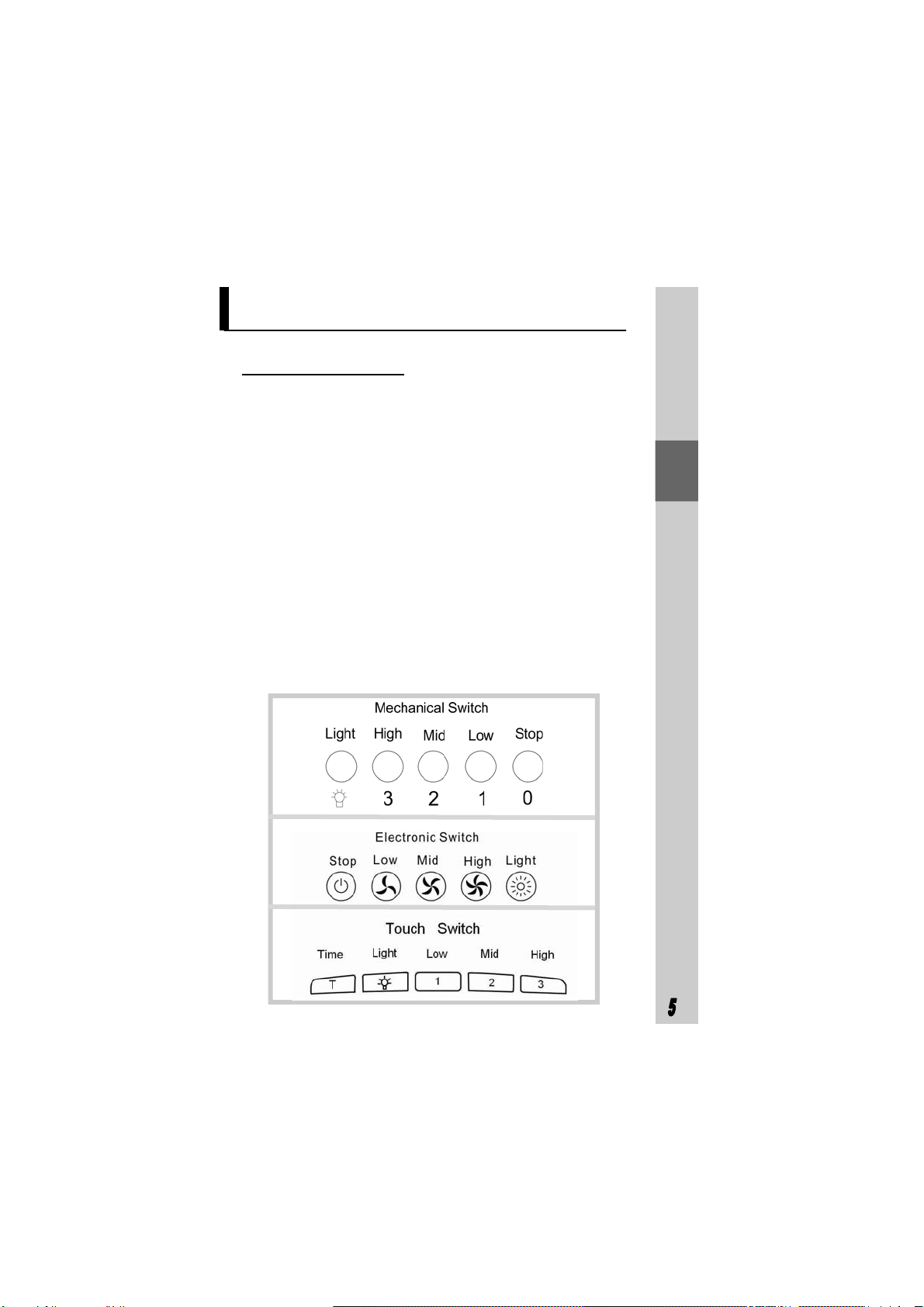

3 Speed
3 Speed adjustment
adjustment
adjustment ( (see
see
see pic 11). pic 11).
◆ Push Stop button, and the motor will stop.
◆ Push the Low button, and the motor runs at low
speed.
◆ Push the Mid button, and the motor runs at mid.
speed.
◆ Push the High button, and the motor runs at high
speed.
◆ Push the Light button, and the two lighting lamps
illuminate. Push it again and the lamp will turn off.
◆ On any speed, push “T” & the delay timer will switch
pic 11
How To Use

1.First turn off the power supply by unplugging from the wall
socket.
2.Remove the filters from the appliance.
3.Unfasten the screws on the stainless steel hood panel.
4.Remove the stainless steel panel before changing the lamp
(see pic 12 & 13).
5.Replace the lamp and then reinstall in the reverse manner.
pic 12
Lamp Change
clip
pic 13

◆ There must permanent & adequate ventilation of the room
when operating the range hood with appliances burning
gas or other fuels.
◆ Do not check the status of the filters when the range hood
is operating, wait at least 30 minutes after switching off to
avoid scalding.
◆ Do not touch the (Halogen) light within 30 minutes after
appliance use.
◆ Avoid operating a gas cooker when there is no pan on the
stove, it is a fire hazard and may cause damage to the
hood filters.
◆ Disconnect the electrical plug prior to any maintenance.
◆ This appliance is not intended for use by young children
and persons unless they have been adequately supervised
by a responsible person to ensure that they can use the
appliance safely.
◆ The range hood is for home use only and is not suitable
for outdoor, barbecue, and other commercial applications.
◆ The range hood and its filter should be cleaned regularly
for best performance.
◆ Before cleaning, please confirm that the power is
switched off.
◆ Building regulations concerning the discharge of exhaust
air have to be fulfilled.
◆ Don’t cook with an open flame under the range hood.
◆ For any technical issues ensure that a suitably qualified
person effects any repairs or inspection.
Safety Information

If any problem occurs, please detach the plug from the
socket and contact the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Problem Cause Solution
Light on, but motor
does not work
The outlet valve is blocked Detach flue and duct then
turn on the hood to check if
the valve opens
The capacitor has failed Call for technical service
The control switch has
failed
Call for technical service
Light does not work,
motor does not work
No power supply Plug another appliance into
the socket to confirm there is
power supply
Fuse has blown Open up the plug and replace
the 13A fuse
Vibration The propeller is damaged
or unbalanced
Call for technical service
The hood is not installed
correctly
Review the installation
instructions & check the
installation again for loose
screws, brackets or
connections
Insufficient suction
effect
The distance between the
hood and the cooker is too
far
Check that the distance is
between 650mm to 700mm
The filters are saturated Clean the filters from grease
residue and replace after
drying.
Trouble Shooting

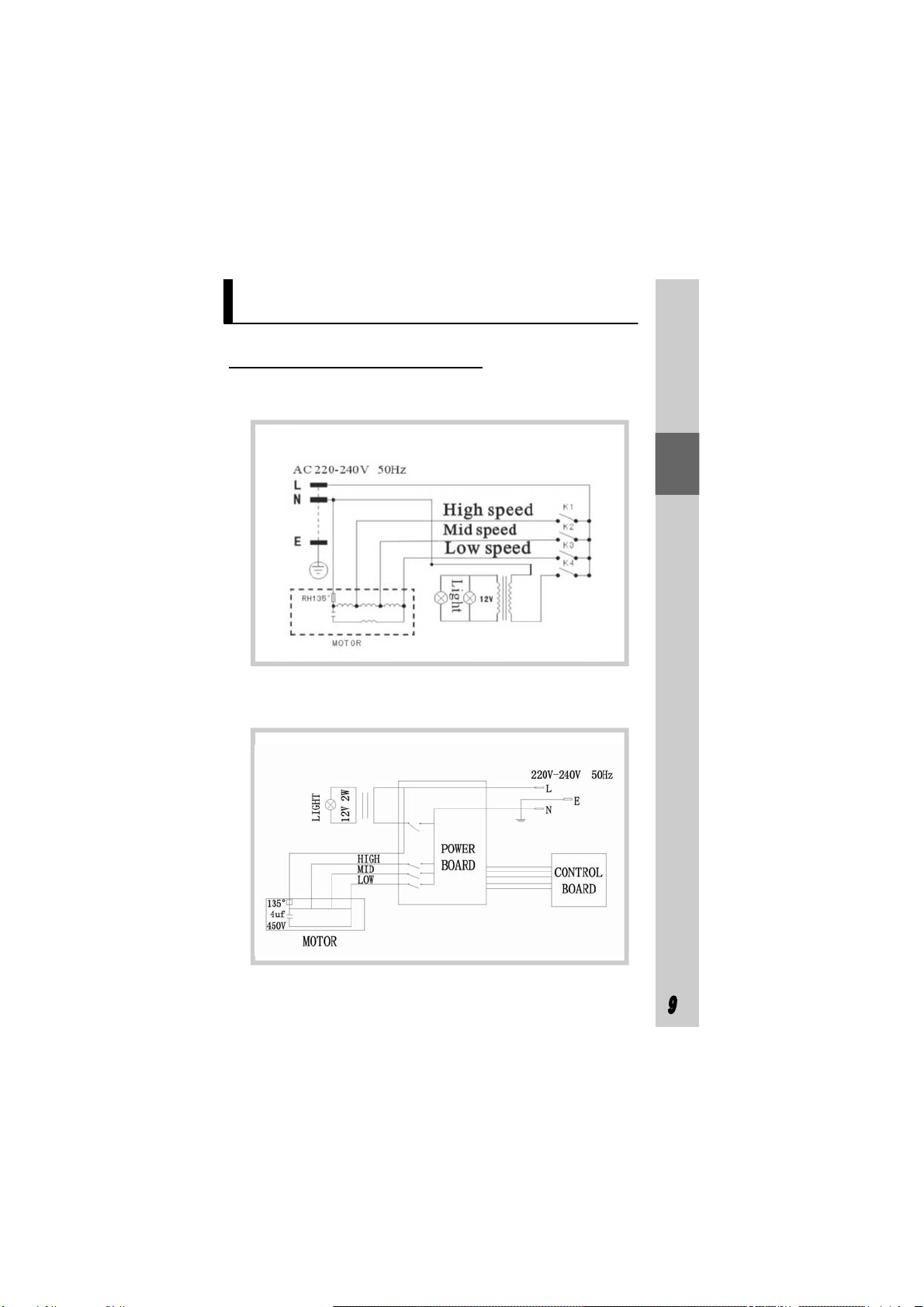

Electrical Diagram
Electronic Control
Mechanical Control

Specifications
Power Supply 220V~240V 50Hz
Lighting Power 1.5W×2
20W×2
Motor Power 138W
288W
Airflow 760m³/h
1200m³/h
Outlet Diameter 150mm
600/900

Warning: Before cleaning, please ensure that the power is
switched off by detaching the plug from the wall socket.
10.1 Clean the surface of hood every week with mild soap
or detergent . Avoid solvents, acid, alkali, scouring pads
or powders that could irreparably damage the stainless
steel surface.
10.2 The grease filters may be washed using mild soap,
detergent or degreasing agent.
10.3 Charcoal filters cannot be cleaned and must be
generally replaced after 6 months of use.
Cleaning & Maintenance
