EVA EVAstream User manual

EVAstream
Electrical connections - PCB Setting
April 2023 - V 1.0

EVAstream Electrical connections - PCB Settings 3
1 About this manual
1.1 Language
This manual is meant for the qualified electrician who performs the electrical connection of the
product. Read and understand this manual before connecting and using this product. This manual is
originally written in English. All other language versions are translations of the original manual.
1.2 Other relevant documents
1.3 Used symbols
This manual contains safety instructions. Ignoring these instructions may lead to injury or damage
to the appliance. Each safety instruction is indicated with a signal word. The signal word corresponds
with the level of risk of the described hazardous situation.
This symbol indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
This symbol indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
This symbol indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
Indicates a situation that, if not avoided, could result in damage to the product
or to the environment.
Document
EVAstream: Mounting - Installation
EVAstream: User manual
EVA LED underwater light
www.evaoptic.com/downloads/
www.evaoptic.com/downloads/
www.evaoptic.com/downloads/
6CAUTION
6DANGER
6WARNING
NOTICE
1 About this manual 3
1.1 Language 3
1.2 Other relevant documents 3
1.3 Used symbols 3
2 Safety 4
2.1 Safety warnings and regulations 4
2.2 General safety instructions 4
3 Product 5
3.1 Intended use and reasonably foreseeable unintended use 5
3.2 Description 5
3.3 Connections 6
3.4 General specifications 6
3.5 Electrical specifications 7
4 Electrical installation 8
4.1 Connect EVAstream turbine to Motor Control Unit 8
4.2 Connect EVA Piezo to Motor Control Unit 10
4.3 Finishing the installation of the Motor Control Unit 12
5 PCB settings - general information 13
5.1 Preparation 13
5.2 EVAstream LEDs 13
6 Controlling with EVA Experience web app 14
6.1 Technical tablet requirements 14
6.2 Network connection 14
6.3 Setting the PCB and WIFI 15
6.4 New network configuration (AP mode) 17
6.5 Home network configuration 20
6.6 Setting for first use 23
6.7 Update Firmware 25
7 Controlling with EVA Piezo (without EVA Experience web app) 26
8 Disposal 27
8.1 Decommissioning 27
8.2 Disposal 27
Attachments - Overview of the EVAstream Control Print 28
Table of contents

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com4 5
3 Product
3.1 Intended use and reasonably foreseeable unintended use
The EVAstream is intended to be used as a counter-current swimming machine. The PIEZO control
panels are intended to be used to control the EVAstream.
3.2 Description
The EVAstream is a counter-current machine. The machine can be equipped with several control
panels and EVA RGBW underwater lighting. The machine is controlled by the motor control unit (MCU).
Risk of product damage. Prolonged disturbance of frequency may permanently damage
the equipment.
lNever place multiple cables in one conduit.
lNever place the motor control unit near a frequency controller.
lFor safety reasons, it is not allowed to mount lights other than EVA Optic to the EVAstream
motor control unit.
230 VAC;
16 A
NOTICE

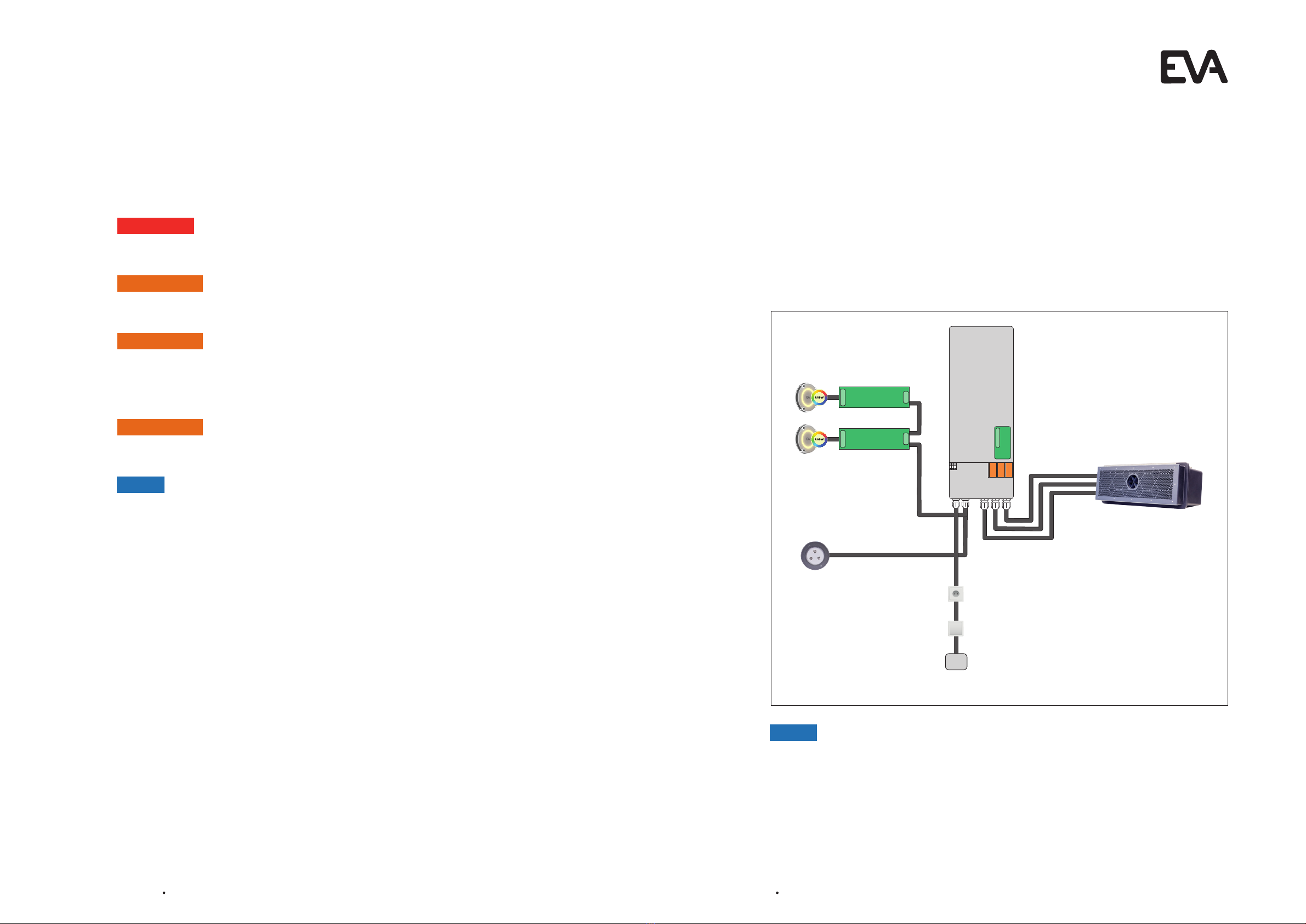

Overview of an EVAstream configuration
Electrical shock hazard. Fatal injury will occur. Switch off all electricity near the pool before
installation or service.
Electrical shock hazard. Risk of electric shock and injury. The product must be installed by a certified
electrician. Incorrect installation will cause electrical hazards.
Electrical shock hazard. Risk of electric shock due to incorrect mounting.
lMake sure you read the enclosed documents carefully.
lNever connect the product to the main power before connecting all loose wires properly.
lAlways disconnect the product from the main power before servicing.
Electrical shock hazard. Risk of electric shock due to leakage of current.
lMake sure to install the turbine with a PE-grounding.
Risk of product damage. Prolonged disturbance of frequency may permanently damage
the equipment.
lNever place multiple cables in one conduit.
lNever place the motor control unit near a frequency controller.
6DANGER
6WARNING
6WARNING
6WARNING
NOTICE
2 Safety
2.1 Safety warnings and regulations
2.2 General safety instructions
Follow the NEN1010 guidelines. Follow the specific installation requirements of IEC 60364-7-702: 2010
(Electric low-voltage installations - Part 7-702: Requirements for special installations, spaces, and
areas – Swimming pools and fountains). Install the controller in or outside of zone 2 (NOT in zones 0
or 1) according to IEC 60364-7-702: 2010. The power supply must be equipped with an earth leakage
circuit breaker (ELCB) with a nominal differential current ≤30mA.
The EVAstream was developed as a counter-current swimming machine for use in a swimming pool.
Use for any other purpose is not permitted. Requests for exceptions to this should be submitted
to the manufacturer for technical analysis. Only after written approval by EVA Tech B.V. may the
EVAstream be applied in any other way than as prescribed in this document.
The general terms and conditions of EVA Tech B.V. apply to all our offers and agreements. EVA Tech
B.V. expressly rejects the applicability of the general (purchasing) conditions of counterparties. The
warranty provisions of the EVAstream and the general terms and conditions of EVA Tech B.V. can be
found at www.evastream.nl

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com6 7
3.3 Connections
3.4 General specifications
L PEN
2
1
3
Connections in the motor control unit:
1. Control print (32 pins)
2. Power connection
3. EVAstream turbine connection
EVAstream
EVA Piezo
DMX
Power input 230 VAC; 10A
Cable motor 5 m, 16 mm2
Extend with max. 20 m using 25 mm2 cable
(Flexible cable of fine copper wire strands)
Cable 10m 7-wired aqua cable
Optional: 30m 7-wired aqua cable
Cable 2 wires > 0.22 mm2 + shield 110 Ohm
3.5 Electrical specifications
AC/DC Power Supply - INPUT FIT PRO MAX
Motor Control Unit FIT PRO MAX
AC/DC Power Supply - OUTPUT FIT PRO MAX
Protections
Short circuit, overload, over voltage, over temperature.
Safety standards
SELV, UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1 + A11, EAC TP TC 004, BSMI CNS14336-1
approved, EN55032 (CISPR32) Class A/B, EN61000-3-2/3, EN61000-4-2/3/4/5/6/8/11, EN55024,
EN61204-3, EN61000-6-2, BSMI CNS13438.
Working temperature
Max. 32ºC, mount in a dry and condensation-free area.
Safety measures
EVA Torque control, Voltage/current control, Mosfet temperature control
Voltage range 180-264 Vac 180-264 Vac 180-264 Vac
254-370Vdc 254-370Vdc 254-370Vdc
Frequency range 47-63Hz 47-63Hz 47-63Hz
AC current (230VAC) 5.5A 9A 11A
Nominal power 1200VA 2000VA 2400VA
Power factor (type) >0.9 >0.9 >0.9
Control input DMX512 DMX512 DMX512
Motor PMSM 3xDC Output RPM range RPM range RPM range
10-100% 10-100% 10-100%
IP rating IP20 IP20 IP20
Dimensions housing 660x185x115 mm (cable gland on bottom)
DC bus voltage (stabilized) 26Vdc 28Vdc 28Vdc
DC bus current 46A 71A 86A

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com8 9
4 Electrical installation
Electrical shock hazard. Fatal injury will occur. Switch off all electricity near the pool before
performing the electrical installation.
6DANGER
Connect the cables from the EVAstream Turbine to the Motor Control Unit:
l Make sure the cables are properly finished (as shown in the photo). Dismantling length
should be 16 mm.
l Place the red, yellow and blue cable (do not change the colors of the cables) in the
terminal block (like the yellow and blue cables in the drawing).
l Secure the cables by closing the orange clamps in the terminal block (with the T-LOX
knee lever connection) with a standard screwdriver (like the red cable in the drawing).
If the cables are not long enough, they can be extended:
You can extend the cable from the Turbine to the Motor Control Unit with max. 20 m. Use the
EVA CCB 16x25 connection box with a 25 mm2or 35 mm2cable.
Go to the next step for installation with an extension for the turbine cables or go directly to step
4.2 if extending the cables is not necessary.
L PEN
4.1 Connect EVAstream turbine to Motor Control Unit
Dismantling cable
Length 16 mm
Cable connections in Motor Control Unit
Connect the EVAstream turbine cables to the Connection box (EVA-CCB-16x25)
 l Connect the cables (3x1x25mm2 cable) attached to the EVAstream turbine to the
connection box.
l The cable connection box must be placed above the ground, in an accessible place.
l Always lay the cables in separate conduits from the EVAstream turbine to the
Motor Control Unit.
Connect the Connection box (EVA-CCB-16x25) to the Motor Control Unit
l Use the EVA-C25M1-x cables (to a maximum cable length of 20 m) to connect the
Connection box with the Motor Control Unit.
l Make sure the cables are properly finished (as shown in the photo). Dismantling length
should be 16 mm.
l Use red, orange and black cables (as shown in the illustration and photo). Do not change
the colors of the cables!
6CAUTION
Electrical shock hazard. Risk of electric shock due to leakage of current:
- Never connect the product to the main power before the installation is finished.
Color scheme of the cables in the Connection Box
Screw the cables into the correct holes
Correct use of the cables in the Connection Box
Dismantling cable
Length 16 mm

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com10 11
Overview of an EVA Piezo configuration (You can have one or both units)
What kind of control unit are you going to use?
EVA Piezo3 and/or EVA Piezo SQ3/SQ4: Go to step 4.2
Only the EVA experience web app?
No electrical connection is needed, go directly to step 4.3
4.2 Connect EVA Piezo to Motor Control Unit
General
l You can install only an EVA Piezo3 or SQ3/SQ4, or you can install both.
l The illustration shows the back side of the EVA Piezo SQ4.
l The buttons of the Piezo SQ3 are installed similar to the first three buttons of the
Piezo SQ4.
l You can put multiple cables into one port.
l Always check the wire coloring of the Pïezo and 12Vdc polarity before installation.
l To extend the cables always use a minimum core diameter of 0.25mm2 with a maximum
cable length of 30 metres. We recommend using cable type LiYY 16 x 0.25mm2
(Lapp Unitronic) or similar.
EVA Piezo3
l Connect the 7 wired cable from the EVA Piezo3 to the Control Print of the Motor Control
Unit on the indicated numbers.
Piezo SQ3 / SQ4
l Connect the blue and one of the red cables from the EVA Piezo SQ3/SQ4 to the Control
Print of the Motor Control Unit.
l Combine the black and the remaining red cables from the EVA Piezo SQ3/SQ4 and
connect to the Control Print of the Motor Control Unit. Group the wires 7, 9, 11, 13, 15, 17, 19,
and 21 to the Piëzo 4 switch, sw 9 (always use a cable with a minimum core diameter of
0.5mm2).
8
10
1 2
3 4
5 6
7
9
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
8
10
12
14
16
18
20
22
1
2
34
Electrical connections on the control print of the Motor Control Unit

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com12 13
4.3 Finishing the installation of the Motor Control Unit
Electrical shock hazard. Fatal injury will occur. Switch off all electricity near the pool before
performing the electrical installation.
6WARNING
Connect the Motor Control Unit to the mains (230 VAC; 16 A)
l Connect the 3 wired cable (230 VAC; 16 A) to the Motor Control Unit on the
indicated L. N. and PE.
l Connect an on/off button (power switch) to the socket and install near to the pool.
L PEN
230 VAC;
16 A
5 PCB Settings - General information
5.1 Preparation
Check if the electrical connections are installed correctly
5.2 EVAstream LEDs
Orange:
DMX is connected or PCB set as master
Green flashing with high sequence:
Starting software on PCB
Green flashing with sequence of 1 sec:
PCB is ready
How do you want to use your EVAstream?
Controlling with EVA Experience web app Go to chapter 6
Options:
lEVAstream + EVA LED underwaterlighting + EVA Piezo
lEVAstream + EVA LED underwaterlighting
lOnly EVAstream
Controlling without EVA Experience web app Go to chapter 7
Options:
lEVAstream controlled by EVA Piezo
lEVAstream controlled by EVA AA-77-SL (DMX)

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com14 15
6 Controlling with EVA Experience web app
6.1 Technical tablet requirements
The EVA Experience Controller can only be operated with a touchscreen tablet,
not with a smartphone.
We recommend a screen size of 9.7 inch to 11 inch for optimal functioning of the web environment.
The following tablet operating systems are generally suitable:
l Android tablets with Android version 12 or higher.
l Apple tablets with iOS 15.3 or higher.
6.2 Network connection
An internet connection is not required to operate the EVA Experience Controller with a tablet. However,
the tablet must be connected to the same WiFi network as the controller. There are 2 options for this:
1. New network (Access Point Mode)
Create a new WiFi network with the EVA Experience Controller, and connect the tablet to this network.
This option is suitable if the home network does not provide sufficient coverage around the pool:
l Due to the EVA Experience Controller’s own network, it is not necessary to further expand the
cover age of the home network.
l Your device is not connected to the internet.
2. Home network
Connect the tablet and the EVA Experience Controller to the home network. This option is preferred if
the home network provides sufficient coverage around the pool:
l The tablet remains connected to the home network while operating the
EVA Experience Controller.
l Switching networks on the tablet is not necessary to operate the controller.
WiFi networks of 2.4 GHz are supported.
1. Setting the Printed Circuit Board (PCB):
Go to the green Printed Circuit Board (EVA SP-ECA-PRO). This is located in the Motor Control Unit
of the EVAstream or in a separate power supply box.
Set the Rotary switches at 000
2. Turn WIFI on for installation
On the green Printed Circuit Board, set the ENA WIFI button to ON by sliding switch 2 to the right.
The green Printed Circuit Board (EVA SP-ECA-PRO) is the master in all cases for control. The EVA
LED underwater lighting and EVA Piezo can be linked to this if desired.
Rotary
switch 1
0
WIFI
turn On
Rotary
switch 2
0
Rotary
switch 3
0
6.3 Setting the PCB and WIFI
Before you want to connect to the home network or create a new network, the rotary switches must
first be set correctly and the WIFI must be switched on.

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com16 17
When the rotary switches of the Printed Circuit Board (EVA SP-ECA-PRO) are set to 000, the
EVA Piezo has the following functions:
EVA Piezo control options:
Button 1: On / stand-by (pause)
Button 2: Slowdown (in 5% increments)
In stand-by start on 30%
Button 3: Speed up (in 5% increments)
In stand-by start on 100%
Button 2+3: Child lock
Button 4: On / Off
6.4 New network configuration (AP mode)
Create a new WiFi network with the Printed Circuit Board (PCB) and connect the tablet to this network.
This option is suitable if the home network does not provide sufficient coverage around the pool.
Connect tablet to Printed Circuit Board (PCB):
Open the screen on the tablet with WiFi connections, and connect to the network:
EVAcontroller AP ###### (or via IP 192.168.4.1)
A screen with the EVA logo will automatically appear. Click on Continue under the logo.
Connect Printed Circuit Board (PCB) to new network:
The following setup screen opens automatically:
1. Select AP Mode next to Network Mode.
2. Enter a self choosen Name for the new network next to Network SSID (only letters and numbers).
3. Enter a self chossen Password next to Password. Minimum 8 characters!
4. Check if evacontroller is filled in next to Hostname.
5. The other settings usually do not need to be changed. Click the save icon at the top right.
1
2
Self choosen Name
Self choosen Password

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com18 19
Connect the tablet to home network:
Open the screen with WiFi connections on the tablet and connect to the new network.
4
Disconnect the wifi connection on the Printed Circuit Board (PCB):
On the Printed Circuit Board (PCB), set the ENA WIFI button to OFF again (slide switch 2 back to the
left). The PCB is now connected to the new network.
WIFI
turn Off
3Connect tablet to EVA Experience web app environment:
Go to your internet browser and enter the following address in the address bar:
http://evacontroller.local (or via IP 192.168.4.1)
You will see the following screen:
The pop-up provides instructions for creating an EVA shortcut icon on your tablet’s desktop
(for easy access to the EVA Experience web app environment in the future).
1. Click on the share icon to the right of the address bar.
2. Select Add to Home Screen.
3. Name the icon EVAstream and select Add.
4. The icon is now added to your tablet’s desktop.
5
Apple IOS
Android

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com20 21
6.5 Home network configuration
Connect the tablet and the Printed Circuit Board (PCB) to the home network. This option is preferred if
the home network provides sufficient coverage around the pool.
Connect tablet to Printed Circuit Board (PCB):
On the tablet, open the screen with WiFi connections, and connect to the network:
EVAcontroller AP ######
A screen with the EVA logo will automatically appear. Click on Continue under the logo.
Connect Printed Circuit Board (PCB) to home network:
The following setup screen opens automatically:
1. Select Station Mode next to Network Mode.
2. Choose your Home network next to Network SSID.
3. Enter your Password next to Password.
4. Check if evacontroller is filled in next to Hostname.
5. The other settings usually do not need to be changed. Click the save icon at the top right.
1
2
Connect the tablet to home network:
Open the screen with WiFi connections on the tablet and connect to the home network.
4
Disconnect the wifi connection on the Printed Circuit Board (PCB):
On the Printed Circuit Board (PCB), switch the ENA WIFI button to OFF (slide switch 2 back to the
left). The PCB is now connected to the home network.
WIFI
turn Off
3

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com22 23
Connect tablet to EVA Experience web app environment:
Go to your internet browser and enter the following address in the address bar:
http://evacontroller.local
You will see the following screen:
The pop-up provides instructions for creating an EVA shortcut icon on your tablet’s desktop
(for easy access to the EVA Experience web app environment in the future).
1. Click on the share icon to the right of the address bar.
2. Select Add to Home Screen.
3. Name the icon EVAstream and select Add.
4. The icon is now added to your tablet’s desktop.
Apple IOS
Android
5
Click on the EVA app icon you created in the previous step, or go to your internet browser and enter
the following address in the address bar:
http://evacontroller.local
You will now see the home page of the EVA Experience web app environment:
Click twice on the gear icon at the top right of the screen to go to the advanced settings
for linked EVA products:
1. Select number of groups at lighting groups and give recognizable names al Zones (block below).
Only enter multiple zones when there are several light groups such as EVAstream Lamps, Jacuzzi
Lamps, etc. NB! The first group is always the lighting group linked to the EVAstream. The lighting in
this group automatically changes color during training.
4. Select the correct EVAstream type at EVAstream type.
1
2
6.6 Settings for first use
Before using the EVA Experience web app environment for the first time, it is advisable to enter a
number of settings:

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com24 25
Click once on the gear icon at the top right of the screen to go to the basic settings:
On this page you can select the color scheme of the web environment, set your language, set a child
lock, create users and link EVAstream training courses to the users:
Setting parental control Select
1. Select Enabled at parental control.
2. Enter first the Mastercode 6738 and after that a own choosen code (4 digits).
From now on you can use both codes (master code and your own code). If you forget your own code,
you can always use the master code to create a new own code.
When the child lock is enabled, you will be asked to enter the code at various times, before use of
the EVAstream.
Set users
1. Select Add New User and enter the name of the user followed by Enter.
2. Add workouts to the user by selecting them in the right menu Programs.
3
Click twice on the gear icon at the top right of the screen to go to the advanced settings. In this
screen click on the download icon at the top right of the screen.
Now follow the steps on the next screen:
1: Click the button Prepare > Ok > Ok
2: Click Select and select the firmware file you saved at 1.
3: Click Update. The new firmware is now installed on your tablet.
4: Will Reboot to restart the EVA Experience web app environment.
1
2
6.7 Update Firmware
It is possible that the EVA Experience web app needs a firmware update, for new or additional
functionality, or to fix any errors in a current firmware version. New versions will be available on our
website.

EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com26 27
7 Controlling with EVA Piezo
(without Experience web app)
Use the following settings when the EVAstream is only controlled by EVA Piezo inside or outside
the pool.
Setting the Printed Circuit Board (PCB):
Go to the green Printed Circuit Board. This is located in the Motor Control Unit of the EVAstream.
Set the Rotary switches at 701
Rotary
switch 1
7
Rotary
switch 2
0
Rotary
switch 3
1
When the rotary switches of the Printed Circuit Board (EVA SP-ECA-PRO) are set to 701, the
EVA Piezo has the following functions:
EVA Piezo control options:
Button 1: On / stand-by (pause)
Button 2: Slowdown (in 10% increments)
In stand-by start on 30%
Button 3: Speed up (in 10% increments)
In stand-by start on 100%
Button 4: On / Off
8 Disposal
8.1 Decommissioning
Electrical shock hazard. Risk of electric shock and injury. Make sure to disconnect the product from
the mains cable before decommissioning.
1. Switch off the power.
2. Switch off the power around the swimming pool.
3. Disconnect the mains cable.
4. Disconnect all other cables.
8.2 Disposal
Before disposing of the different materials, separate them into recyclables, normal waste and special
waste. Comply with local legal regulations and provisions when disposing the product and the
individual components. A product marked with the WEEE symbol must be sent for separate collection
of electrical and electronic devices. Contact your supplier for more information.
6WARNING

EVAstream Electrical connections - PCB Settings www.evaoptic.com28
Attachments
Overview of the EVAstream Control Print
Function Type Port Type Function
Fan 24Vdc - 1 2 + Fan 24Vdc
ppm output 2 - 3 4 + ppm output 2
ppm output 1 - 5 6 + ppm output 1
piezo 4 LED 12Vdc - 7 8 + piezo 4 LED 12Vdc
piezo 4 switch sw 9 10 sw piezo 4 switch
piezo 3 LED 12 Vdc - 11 12 + piezo 3 LED 12 Vdc
piezo 3 switch sw 13 14 sw piezo 3 switch
piezo 2 LED 12 Vdc - 15 16 + piezo 2 LED 12 Vdc
piezo 2 switch sw 17 18 sw piezo 2 switch
piezo 1 LED 12 Vdc - 19 20 + piezo 1 LED 12 Vdc
piezo 1 switch sw 21 22 sw piezo 1 switch
dmx G (shield) G 23 24 G dmx G (shield)
dmx in/out - 25 26 - dmx in/out
dmx in/out + 27 28 + dmx in/out
24Vdc in - 29 30 - 24Vdc out
24 Vdc in + 31 32 + 24 Vdc out

Eva Tech B.V.
De Velde 1
8064 PH Zwartsluis
The Netherlands
www.evaoptic.com March 2023 – V1.0
