Eview EV-604 User manual

GPS/GPRS/GSM vehicle tracking system
- 1 -
EV-604 Vehicle GPS Tracker
EV-604 User Guide V2.0

GPS/GPRS/GSM vehicle tracking system
- 2 -
1, Product Overview
Thank you for using EV-604 Vehicle GPS Tracker. It’s equiped with Quad Bands GSM/GPRS module, Hi-sensitivity U-blox GPS receiver, 8MB flash memory. The
fuel detecting and anti-jamming function will bring u more options for security purpose.
EV-604 supports both GPS tracking and GSM Network Station tracking, which brings you a idea solution with 7-24 position fix with no blind area for locating
your mobile objects.
It can work alone without any third party help, but also could integreate to a monitoring center base by SMS query or TCP connection query.
What’s New?
◆Tracking by GPS satellite and GSM base station (Double-Positioning)
◆GSM Anti-jamming Detection
◆Two way voice communication
◆Support fuel detection
◆Support external power voltage detection
◆GPS antenna cut alarm
◆Built in 8MB flash memory
◆GPRS blind area data re-upload to server.
◆Firmware upgrade over the air.

GPS/GPRS/GSM vehicle tracking system
- 3 -
2, Getting Start, Please follow me!
2.1 Hardware and Accessories:
EV-604 is supplied in a box which includes:
EV604 with back-up battery GPS Antenna GSM Antenna 12pin cable
Relay Microphone

GPS/GPRS/GSM vehicle tracking system
- 4 -

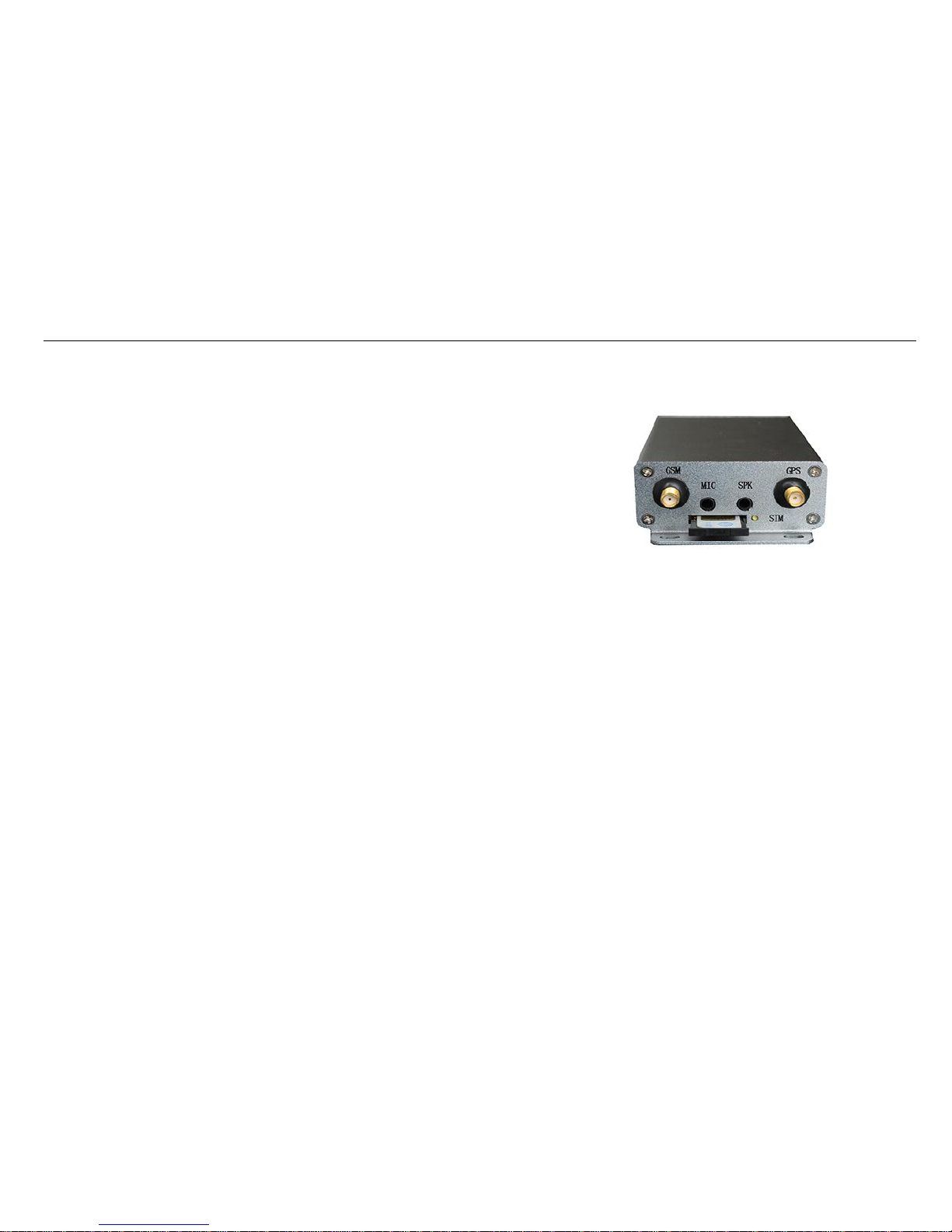

2.2 View
GSM LED (Green)
Dim for 5 times
The unit is being initialized
Flashing(every 3
seconds)
EV604 is connected to the GSM network
Flashing(every 0.1
second)
EV604 is not connected to the GSM network
GPS LED (Yellow)
Dim for 5 times
The unit is being initialized
Flashing(every 3
seconds)
EV604 has a GPS fix
No flashing
EV604 has no GPS fix

GPS/GPRS/GSM vehicle tracking system
- 5 -
2.3 Connection and Installation:
※Your GPS Tracking Device can be installed quickly and easily by a qualified Auto Electrician.
2.3.1 Ensure that your EV604 has a working SIM installed.
※Test before replacing all paneling.
※Check the SIM card has not run out of credit.
※please ensure pin number on SIM card is disabled.
Install the SIM card.
※Press yellow button to eject the SIM card holder and put SIM card on SIM card holder.
※Insert the SIM card holder to the device correctly.
2.3.2 Connect GSM&GPS antenna.
Connect the GSM antenna to EV604.
※The GSM antenna comes in two parts. They must be firmly screwed together to receive a strong signal. This antenna is not all weather but it can receive a
signal through metal. A good position for this antenna is to run the wiring behind the corner post of the vehicle and locate the antenna in the hood lining
behind the sun visor. Once again only screw wiring to device by hand as damage could be caused by the use of a spanner.
Connect the GPS antenna to EV604.
※The GPS antenna is an all weather unit and is magnetized for easy attachment.
※The signal for the GPS cannot penetrate steel, only plastic so the GPS antenna must be located in an open position. The best location is under the plastic

GPS/GPRS/GSM vehicle tracking system
- 6 -
panel near the windscreen wipers or on the inner panel near the hinge of the hood. The lead from this antenna needs to go through the fire wall and screw
to the device firmly by hand only (Do NOT use a spanner or similar device).
2.3.3 Inputs and outputs cable connections must be firm and reliable. The unused electrical wire
should be probably insulated.
2.3.4 Connect the 12pin cable to EV604.
※Input power: 6-30VDC (With polarity protection – The system won’t be damaged by wrong
polarity input but it won’t work)
2.3.5 The device should be installed in a position where it cannot be detected. A suitable position is
to mount the device around the steering column under the dashboard secured by two cable ties.
Wherever you locate the device it should be kept dry, away from excess heat and subject to
minimum vibration.
3 Usages
3.1 GPS information.
The “GPS INFO” means: DATE: 08-09-26(YY/MM/DD); TIME: 15:33:26(HH/MM/SS); LAT: 22.21326446N; LOT: 113.45199584E; Speed: 000.0

GPS/GPRS/GSM vehicle tracking system
- 7 -
3.2 To set the Authorized Number
※It is not mandatory for all three of the authorized numbers to be set, however a minimum of one must always be set.
Set up the 3 authorized mobile phone numbers to track the device.
(Default Password: 123456)
①Command:Password +A +1
Example: 123456A1
※Using your mobile phone, send the following text message to the SIM card phone number: The letter “A” in caps lock followed by 1 (1 is the code used to
register the phone number of the SIM card used to send the SMS), with no spaces in the text, After sending SMS command to the device, it will reply you a
message with following informations:
·1 TEL. OK! +GPS INFO
※To delete this number from stored memory, you can send password+A+0 to the tracker.
②Command:Password +B+1
Note: B must be in capital form.
Example: 123456B1
The device will reply you a message with following information: ·2 TEL. OK! +GPS INFO
※To delete this number from stored memory, you can send password+B+0 to the tracker..
③Command:Password +C+1
Note: C must be in capital form
Example: 123456C1
The device will reply you a message with following information: ·3 TEL. OK! +GPS INFO

GPS/GPRS/GSM vehicle tracking system
- 8 -
※To delete this number from stored memory, you can send password+C+0 to the tracker.
※Only Number A can delete all the three numbers. Number B and C can delete themselves but cannot delete Number A.
3.3 Change password:
Command:Old password + H + new password
Example: 123456H666666
Note: H must be in capital form, send it to EV604 to change your password.
The password now is changed to 666666
※The pre-set password won’t be erased by changing a new sim card.
※Be sure keep the new password in mind, otherwise you have to ask your distributor to restore the original setting in case of losing the new password.
※Make sure the new password is in 6 digits, or else the tracker can not recognize the password.
4. Modify the Time zone:
Command:Password+L++00/-00
Note: the time must amounts be in 2 digits and at maximum 23 hours in value. “+” in the “time zone” portion of the text indicates east. The symbol “-“ in the
“time zone” indicates west.
Example: 123456L+02, the system will add 2 hours based on the UTC time.
123456L-02, the system will minus 2 hours based on the UTC time.
※Default time of the tracker is UTC time.
5.Add user name in SMS content:
Command: Password+U+1, user name

GPS/GPRS/GSM vehicle tracking system
- 9 -
Note: U must be in capital form, send it to EV604 to add user name in SMS content.
Example: 123456U1,Mazad, the tracker will reply “Mazad+GPS info!xxxxxxxx”
6. Locate the car position:
6.1 Track on Demand- Reply with Latitude, Longitude.
Command: Password +F
Note: F must be in capital form, send it to EV604 to acquire GPS information.
Example: 123456F
The device will reply “GPS Info! Date: xxxxxxx; Time: xxxxxxxxx; LAT: xxxxxxxxxx; LOT: xxxxxxxxxx; Speed: xxxxxx

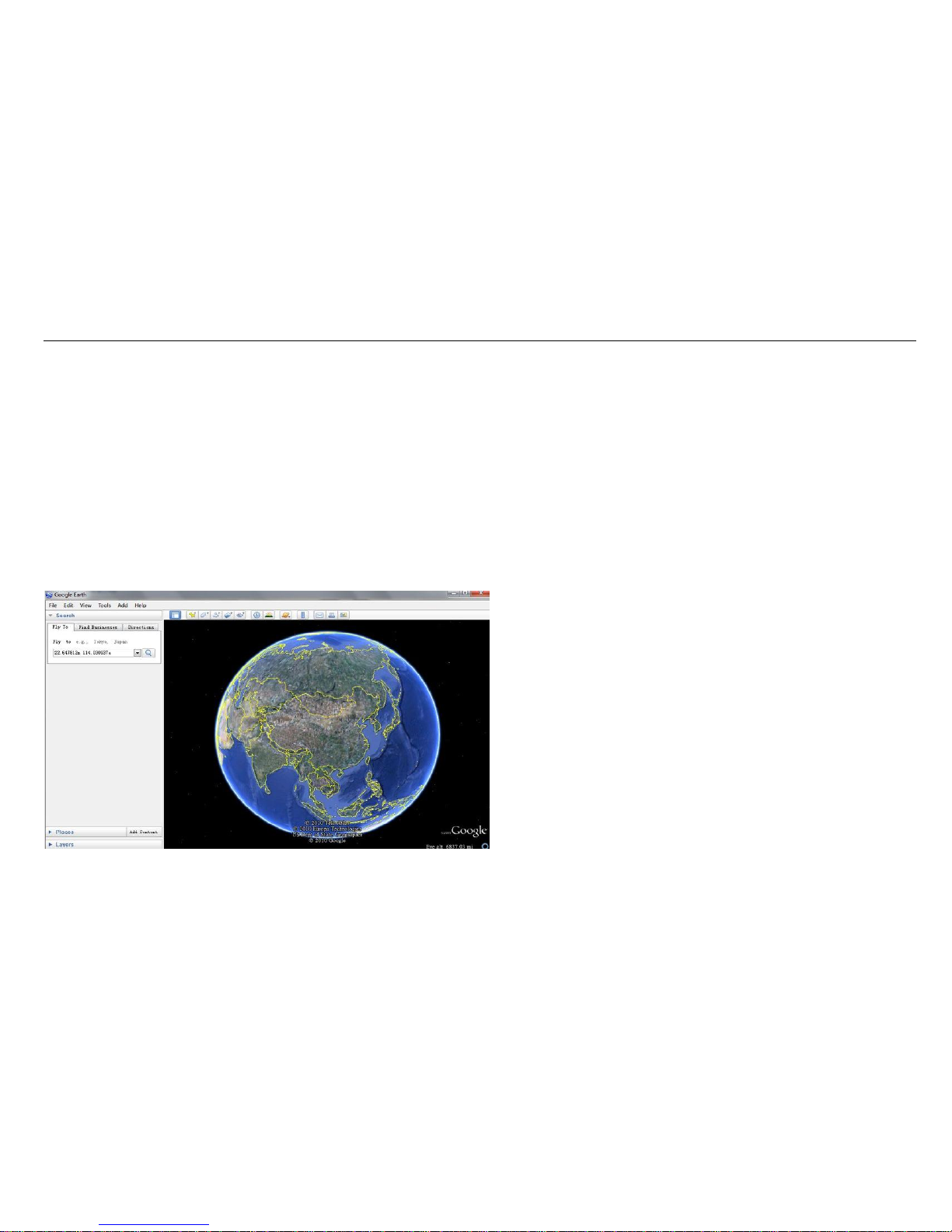

Put position latitude and longitude to Google earth or Google maps. Click on search button, then you will find the position fixed.

GPS/GPRS/GSM vehicle tracking system
- 10 -
6.2 Track on Demand- Reply with Coordinates and Web Link.
Command: Password +FM
Note: FM must be in capital form, send it to EV604 to acquire Location Link.
Example: 123456FM
The device will reply “Date: xxxxxxx; Time: xxxxxxxxx; LAT: xxxxxxxxxx; LOT: xxxxxxxxxx; Speed: xxxxxxkm/h;
http://maps.google.com/map?q=22.6487882,114.030380&hl=en&t=m&z=16
Click on the link then the location can be shown directly on Google Map on your mobile phone.

GPS/GPRS/GSM vehicle tracking system
- 11 -
6.3 Track on Demand- Reply with Coordinates and Real Address.
Command: Password +ADD
Notes: ADD must be in capital form, send it to EV604 to acquire real address. This Function needs GPRS function support!
Example: 123456ADD

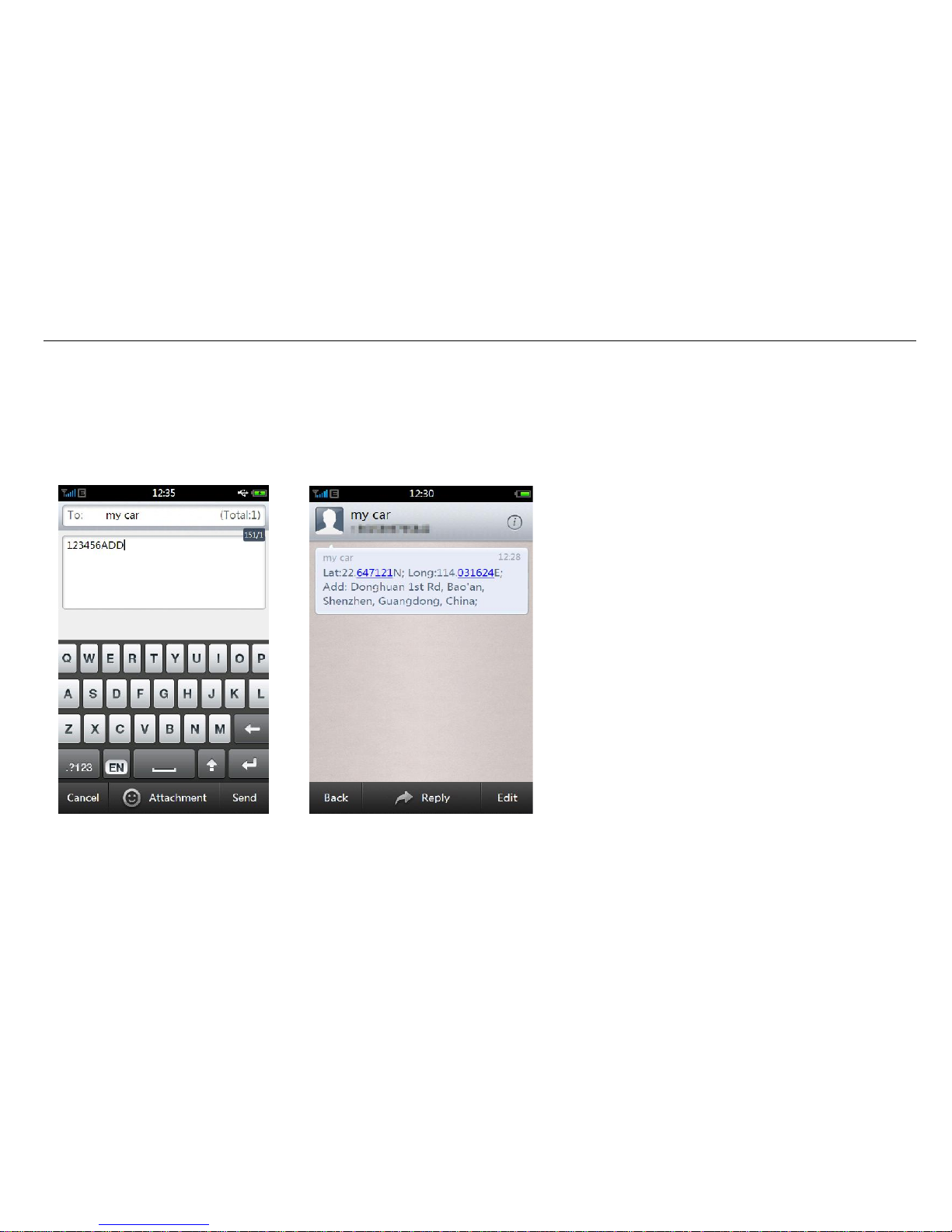

The device will reply “LAT: xxxxxxxxxx; LOT: xxxxxxxxxx; Add: Donghuan 1st road, Bao’an, Shenzhen,Guangdong,China;

GPS/GPRS/GSM vehicle tracking system
- 12 -
6. Track by GSM base station tower
The unit can be tracked by GSM base station tower, If GPS signal is not available for example in room, underground etc, user are able to locate by GSM tower.
However, as compared to GPS satellite, GSM accuracy is proven to be worse than that of GPS. GSM provider utilizes triangulation techniques to try to
pinpoint the location of the device, and GSM base station is further affected by factors similar to GPS in the sense of the barriers affecting signal quality and
the density of GSM towers to assist in the triangulation effort, with some regional areas having errors of 500M-2KM.
Command: Password+GSM+1
Notes: GSM must be in capital form.
Examples: 123456GSM1
The device will send “GSM locate on! +GPS info” to all preset numbers, once the external power cut off.
To disable this function, please send Password+GSM+0 to the device.
7. Low battery alarm:
Note: When the tracker’s voltage is lower than 30%, it will send a SMS alarm “BAT: LOW! + GPS INFO” to all preset numbers.
8. Anti-Jamming function
To be able to use anti-jamming, user needs to connect siren to output, When someone use GSM jammer near the device, the siren will start to scream till
jammer go away.
Command: Password+JDR+1
Notes: JDR must be in capital form.
Examples: 123456JDR1
To disable this function, please send Password+JDR+0 to the device.
9. GEO-FENCE Alarm
Command: Password +I+X,Y,Z,xxxM/KM
Notes: “I, M,KM” must be in capital form.

GPS/GPRS/GSM vehicle tracking system
- 13 -

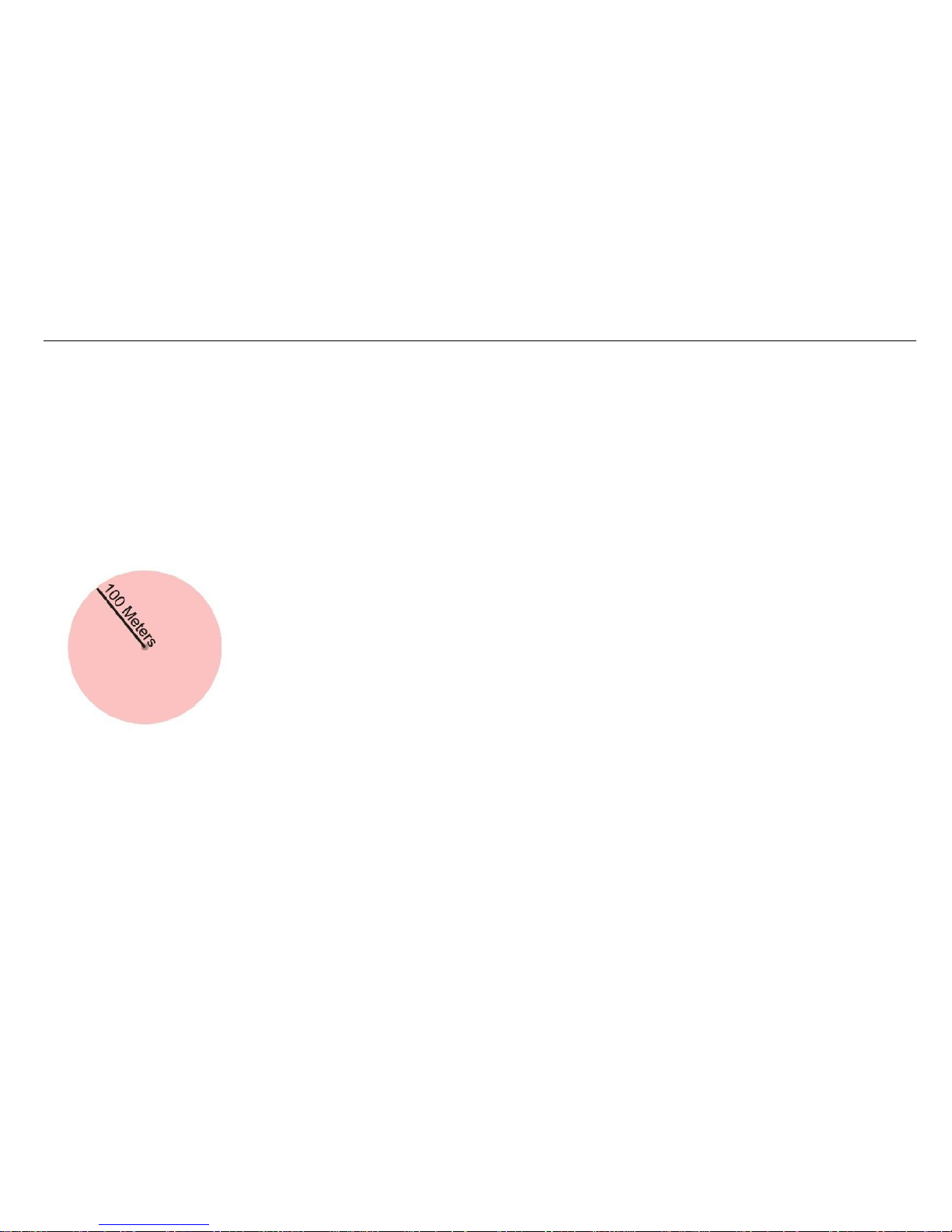

X=No. Of Geofence (1~3), user can set 3 Geofences
Y=0 means to turn off the function
Y=1 means to turn on the functions
Z=1 means to set alarm when the tracker enters the preset area
Z=0 means to set alarm when the tracker breaches the district
xxx is the preset distance to the tracker’s original place, must be three digitals.
M means meters
KM means kilometers
Example: 123456I1,1,1,100M
The device will send the message to the authorized numbers as “Geo Alarm!+GEO info” when it enter the area you set.
(User must set this function when tracker already fixed GPS signal)
To turn off this function, please send Password+I+1,0,0 to the device.
10. Over Speed alarm
Command: 123456+J+1, xxx
Note: J must be English in capital.
J0 means turn off the over speed alert function; J1 means turn on the speeding alert function. xxx should be<250 and must 3 numbers, e.g. 080= 080 km/h.
Example: 123456J1,080

GPS/GPRS/GSM vehicle tracking system
- 14 -
When the object moves exceeds 80 km/h, the unit will send SMS as “Over speed! +GPS info” to the authorized numbers. Send “123456J0,080” to tracker
means turn off the speeding alert function.
11. GPS signal lost and recovery alert (Coordinate saving)
Command: Password+K+1
Note: K must be in capital form.
Example: 123456K1
The device will automatically send the latest available GPS information to the preset numbers when it enters into the area without GPS signal.
If user goes into an area that does not have a GPS signal, such as a tunnel, cave, parking garage, etc. – the device will know where user was 10 minutes before
they went into such an area. The device will send “Before +GPS info” to the preset numbers. This is critical! If a motorcycle/car goes missing – you’ll be able to
know the closest possible location before the GPS signal was lost.
With any SMS sent during the period without GPS signal, the device will reply GPS information to preset numbers soonest as the GPS signal is covered.
To turn off this function, please send Password+K+0 to the device.
12. Auto Tracking
Command: Password+M+1, xxx(M)
Notes: M must be in capital form. The numbers where “xxx” are situated displays the time interval in which the position message will be replayed.
The letter “M” means minute, The setting must be in 3 digits and at maximum 999 in value, which means 001~999
Example: 123456M1,002
The tracker will in turn reply with one position message at 2 minutes.
To turn off this function, please send 123456M0 to the device.
13. Movement Alert
Command: Password+R+1, xxxM/KM

GPS/GPRS/GSM vehicle tracking system
- 15 -
Notes: R must be in capital form. xxx is the preset distance to the tracker’s original place, must be 3 digitals.
M means meters, KM means kilometers
Example: 123456R1, 100M
When the tracker moves out of 100meters, it will send SMS alarm to the preset numbers.
To turn off this function, please send 123456R0 to the device.
14.External power lost Alarm:
Command: Password+N+1
Notes: N must be in capital form.
Examples: 123456N1
The device will send “external power lost +Geo-info” to all preset numbers, once the external power cut off.
To turn off this function, please send Password+N+0 to the device.
15. Listen-in (Voice wiretapping):
Command: Password+P+1
Note: P must be in capital form.
Example: 123456P1
The device will reply “Monitor OK+ GPS INFO”. Authorizes a phone number to make a silence call to the tracker, the track answers the call automatically
and allows the caller to listen to what happens around the tracker. There is no voice indication that the call is in progress.
To turn off this function, please send 123456P0 to the device.
16. GPS antenna cut alarm
Device will send alarm to all authorized numbers and tracking website when GPS antenna is disconnected or cut.

GPS/GPRS/GSM vehicle tracking system
- 16 -
17. Two way voice communication
Device will auto answer incoming call and two way voice conversation start.

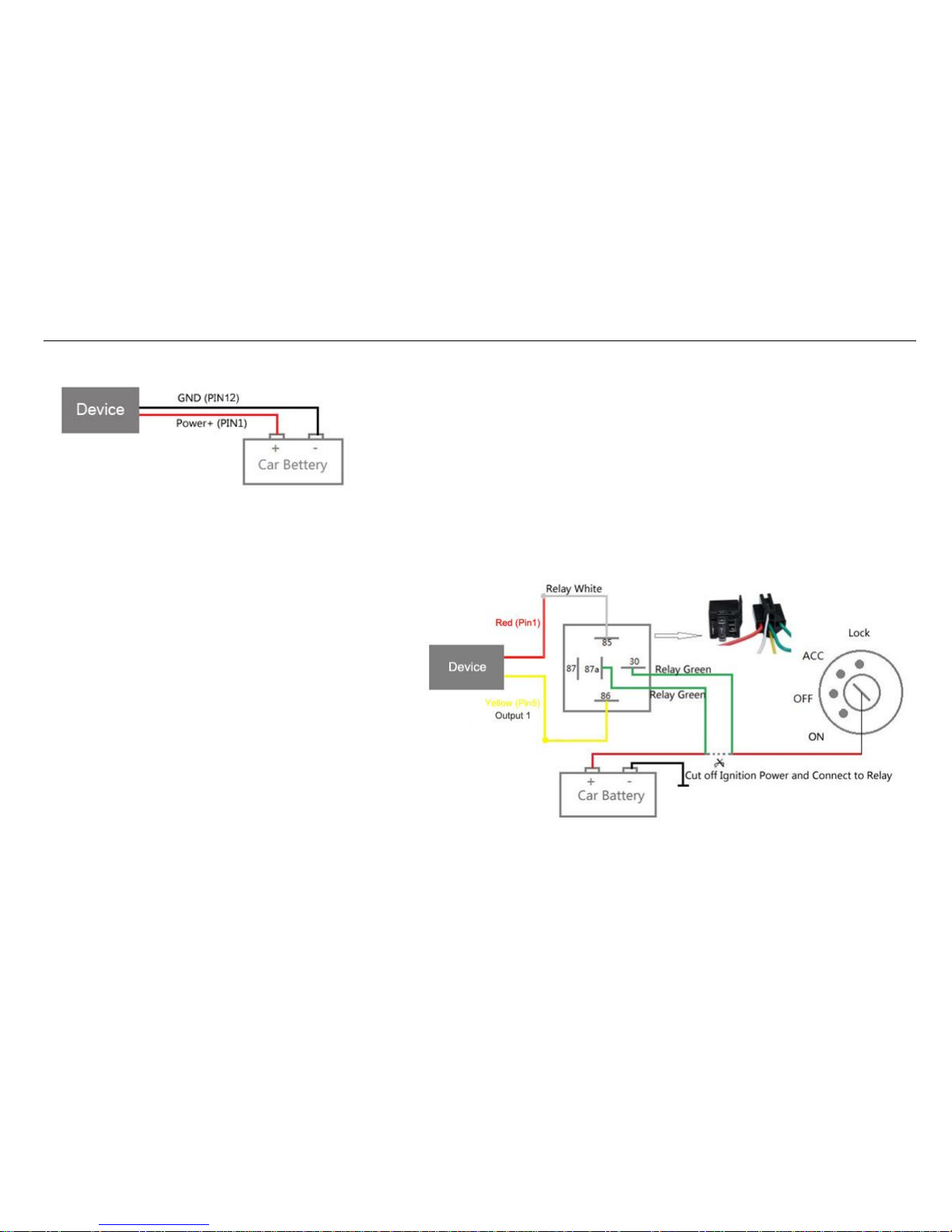

18. Connect with Input/output ports:
1
Power (+)
Analog Input 1
2
Input 1 -
3
Input 2 -
4
Analog Input 2
5
Output 1
6
Output 2
12
GND(-)
11
GND(-)
10
GND(-)
9
Analog Input 3
8
Input 4 +
7
Input 3 +

GPS/GPRS/GSM vehicle tracking system
- 17 -
Note: The connections of these ports are restricted to these alarms/alerts.
Pin Number
Color
Description
1 (Power,AD1)
Red
DC In (power source). Input voltage: 6V~36V. It can detect external power voltage automatically.
2 (IN1-)
Grey
Digital input 1 (negative triggering). Defaulted as SOS
3 (IN2-)
Purple
Digital input 2 (negative triggering). for detecting vehicle door status
4 (AD Input 2)
Blue
12 Bits Resolution Analog Inputs. Default to connect with fuel sensor.
5 (OUT1)
Yellow
Output 1, Default to connect with relay for remote immobilization.
6 (OUT2)
Orange
Output 2, it can be used to connect with horn, vehicle door control etc.
7 (IN3+)
Pink
Digital input 3 (positive triggering)
8 (IN4+)
Green
Digital Input 4(positive triggering), Default to connect with ACC detection.
9 (AD Input3)
White
12 Bits Resolution Analog Inputs. It can be used to connect with temperature, fuel sensor etc.
10 (GND-)
Black
Ground
11 (GND-)
Black
Ground, Connecting to input 1 to be SOS button.
12 (GND-)
Black
Ground, connecting to vehicle power for external power supply.

GPS/GPRS/GSM vehicle tracking system
- 18 -
18.1 Power Connection
Device is able to detect the external power voltage automatically if you connect power cable to power supply, the voltage can be read from SMS and
tracking website.
18.2 Output Control
18.2.1 Cut off engine/oil. (Output 1 ,Pin5)
Command: Password +D
Notes: D must be in capital form, send it to EV604 Phone
number to cut off the engine/oil to immobilize the car.
There is another yellow wire but it’s unnecessary for us. We just
need connect the thin yellow wire with the wire which is from
RELAY port on the device.
Example: 123456D
The device will reply "Relay Cut! +GPS INFO" to confirm the
command has been successfully processed.

GPS/GPRS/GSM vehicle tracking system
- 19 -
Cancel the engine/oil control.
Command: Password +E
Note: E must be in capital form, send it to EV604 to cancel the engine/oil control.
Example: 123456E
The device will reply "Cut Canceled! +GPS INFO" to confirm the command has been successfully processed.
18.2.2 Output 2 control
Orange wire: This is an output +12V. We don’t fix this output, It can be used to connect with horn, vehicle door etc.
Command: Password+X+1
Note: X must be in capital form, send it to EV604 Phone number to control the Door or Siren etc.
Example: 123456X1
The device will reply "On! +GPS INFO" to confirm the command has been successfully processed.
Turn off the output control:
Command: Password+X+0
Note: X must be in capital form, send it to EV604 Phone number to control the Door or Siren etc.
Example: 123456X0
The device will reply "Off! +GPS INFO" to confirm the command has been successfully processed.
18.3 Input control
18.3.1 SOS emergency Alarm
Connect Gray (Pin2 Input 1 - ) & Black (Pin11 GND-) wires to SOS button: Once the SOS button is pressed for more than 3 seconds, an “SOS Alarm” will be sent
to the preauthorized phone number and website. SOS button can be also used for restart the device, push SOS button for 30 seconds without stopping in the
middle, device will restart by itself.

GPS/GPRS/GSM vehicle tracking system
- 20 -
18.3.2 Detecting vehicle door opened/closed
When the door is opened, there will be negative triggering to Input 2 -, and then a detection alarm “Door opened!” will be sent to the server via GPRS
The alert will be sent to WEB only.
18.3.3 Input 3 (positive) connects with car alarm siren. (Example)
Pink wire: this is an input 3+. We don’t fix this input, It can be used to connects with car alarm siren, Once the siren was triggered and screamed for more
than 4 seconds, the device will send message “Siren Alarm!” to the preauthorized phone number and Website.
