Evoke Urban s User manual

Urban S

Table of Contents
1. Important Message from Evoke
2. General Information
3. User-serviceable Components
4. Vehicle Specifications
5. Controls and Instruments
6. Regen
7. Battery Information
8. Charging Information
9. Suspension
10.Storing Your Bike
11.Range
12.Troubleshooting
13.Diagnostics and Errors
14.Maintenance Records

Important Message from Evoke
!"#$%&'()&'*"#+,"#,-(%./&+*#$,0"(%,1%2&#,3,4)4.'%*.,5"'"%.0.)46,74)."54,'",'/4,89":4,;"'"%.0.)4,%*<4%,
."55(#*'0=,>/*+,5&#(&),?*)),-%"9*<4,0"(,?*'/,&,24''4%,(#<4%+'&#<*#$,"@,0"(%,5"'"%.0.)4A+,"-4%&'*"#,&#<,
2&+*.,5&*#'4#&#.4,%4B(*%454#'+=
89":4,*+,."#+'&#')0,*5-%"9*#$,-%"<(.',<4+*$#,&#<,B(&)*'0=,>/4%4@"%4C,'/*+,5&#(&),."#'&*#+,'/4,5"+',.(%%4#',
-%"<(.',*#@"%5&'*"#,&9&*)&2)4,&','/4,'*54,"@,-%*#'*#$=,
D@,0"(,./""+4,'",+4)),0"(%,89":4,1%2&#,3C,%454524%,'",-&++,'/*+,5&#(&),'",'/4,#4?,"?#4%C,&+,*',*+,&#,
*5-"%'&#',-&%',"@,'/4,94/*.)4=,
E#,24/&)@,"@,&)),'/4,89":4,'4&5C,?4,?*+/,0"(,&#,&5&F*#$,G"(%#40,&#<,"-4#C,.)4&%,%"&<+6
H&94,B(4+'*"#+,."#.4%#*#$,"-4%&'*"#,"%,5&*#'4#&#.4,"@,0"(%,5"'"%.0.)4I
!"#'&.',(+6
85&*)
74!/&'
."#'&.'J49":449=."5
89":45"'"%.0.)4+

This manual must
remain with the vehicle
at all times.

General Information
Important labels and locations
Evoke Urban S motorcycle series is an electric
motorcycle. As such, there are warnings you
should be aware of when touching or
disconnecting elements. These labels indicate
that the user should take precautions to avoid
harm, and are frequently seen in the following
areas:
main power connection
phase wire connection
battery charger
battery box
Caution indicates that minor or
moderate injury could happen.
Warning indicates that serious
injury or death may result.
Danger indicates that serious
injury or death will occur.

We strongly advise you not to remove any original
equipment or modify your Urban S in any way that would
change its design or operation. Such changes could
seriously impair your Urban S handling, stability, and
braking, making it unsafe to ride.
Removing or modifying your lights or other equipment
can also make your Urban S illegal.
General Information
Accessories and Modifications
Improper accessories or modifications can cause a
crash in which you can be seriously hurt or killed.
Follow all instructions in this owner’s manual regarding
accessories and modifications.

General Information
Safety precautions
At Evoke, we want all riders to have a great time on their
bikes, while also keeping in mind these precautions to avoid
harm to yourself, your bike, others, and the environment:
1. Wear protective-grade clothing
• It could save your life!
2. Ride defensively
• Give yourself time and space to respond to
other motorist’s actions.
3. Be visible
• Other motorists may have difficulty seeing and
reacting to motorcycles; always ride in the part
of the lane where you are most likely to be
seen.
4. Know your bike and how to use it
• Get formal training on motorcycle operation
and take refresher courses.
5. Never drive while under the influence
• Drugs and alcohol impair judgement and
reaction speed, putting you and other
motorists in danger.
6. Always follow road rules
• This includes speed limits, using proper
signaling, and avoiding weaving between
lanes or other motorists.
7. Use caution in adverse weather conditions
• Your bike and other vehicles need twice the
distance to stop in adverse weather conditions.

General Information
Load limits and riding guidelines
Your Urban S has been designed to carry you and only
one passenger. When you carry a passenger or cargo,
you may feel some difference during acceleration and
braking, but as long as you keep your Urban S well-
maintained, with good tires and brakes, you can safely
carry loads within the given limits and guidelines.
Improperly loading your Urban S can affect its stability
and handling. Even if your Urban S is properly loaded,
you should ride at reduced speeds when carrying
cargo.
Overloading or improper loading can cause a crash and
you can be seriously hurt or killed.
Follow all load limits and other loading guidelines in this
manual.

To keep yourself and others safe, perform a visual spot check on
your bike before each ride:
1. Handlebars
• Make sure handlebars are secure. If they move
during inspection, contact your service provider and
do not ride the bike!
2. Brakes and Brake Fluid Reservoir
• Test both the front and rear brakes. If either of the
brakes are unresponsive, contact your service
provider immediately and avoid riding. Also check
the brake fluid reservoir and refill if necessary.
3. Hoses and Lines
• If any leaks are present, contact your service
provider and be extremely vigilant while riding.
4. Tires
• Make sure nothing is embedded in the tire; check
the tread for wear; gauge the tire’s air pressure, it
should be around 40psi. If problems are present,
contact your service provider.
5. Brake Lights
• Brake lights should turn on when either front or rear
brake is used. If these lights are unresponsive,
contact your service provider and avoid riding at
night.
6. Headlight and Turn Signals
•Confirm all headlight settings and turn signals are
functional. If they are not, contact your service
provider and avoid riding at night.
7. Battery Power Gauge
•Confirm that the bike has sufficient battery power to
get you to your destination.
General Information
Pre-ride spot check

Your bike comes with three separate VIN numbers:
1. On the Motor
2. Carved into the Steering Neck
3. Mounted to the Frame
Be sure to document both and keep the numbers
somewhere safe. In the unfortunate event that your bike
is stolen, the authorities will need both VIN numbers to
help return your bike.
General Information
Identification data
2
1
3

General Information
Maintenance schedule
!"#"""
$%
&"#"""
$%
'"#"""
$%
("#"""
$%
)"#"""
$%
!""#"""
$%
!&"#"""
$%
*+,,-./012-3$0
45
67.-0
8-59+3-%-:,
*.+$-012-3$045
;<,<.0
=:>5-3,7<:
1<:,.<99-.0
=:>5-3,7<:
The following maintenance schedule is recommended for your Urban S.

User-serviceable Components
Maintenance you can do yourself
Throttle Cable
1. Disassemble Right Side Switch Box on the handlebar
2. Remove Throttle Cable from the handle
3. Inject a 2 second burst of Lightweight lubricant down the throttle cable tube
Axles: Front and Rear
1. Inject a 1 second burst of Lightweight lubricant on the left and right side of the
front axle
2. Inject a 1 second burst of Lightweight lubricant on the left and right side of the
rear axle
Kickstand
1. Inject a 1 second burst of Lightweight lubricant on the upper bolt of the
kickstand, securing the kickstand to the frame
Brake Levers
1. Inject a 1 second burst of Lightweight lubricant on the brake lever bolts, both
the left and the right side
2. Squeeze the levers several time to circulate the lubricant
Required Tools:
• Lightweight lubricant
(WD-40)
• Philips head
screwdriver

6<50?5--@0
A33-9-.+,7<:0B"0C!""0$%D2E0
;+F05<G-.
;+F0,<.HI-
;<,<.0,/5-
1<:,.<99-.
17,/J
K7L2G+/#0)"0$%D20BM"0%52EJ
*+,,-./0,/5-
8+,-@0:<%7:+903+5+37,/
?,+:@+.@032+.L-0,7%-0B"C!""N0OPO#0,/573+9E
12+>>7>#0*.+$->0Q0?I>5-:>7<:
R.<:,0S.+$->
8-+.0S.+$->
R.<:,0>I>5-:>7<:
8-+.0>I>5-:>7<:
R.<:,0G2--9
8-+.0G2--9
R.<:,0,7.-
8-+.0,7.-
T.->>I.-
?,<.+L-#0U-7L2,>0Q0O7%-:>7<:>
1I.S0G-7L2,
1+../7:L03+5+37,/
U2--9S+>-
V-:L,2
U7@,20B-F39W0%7..<.>E
?-+,02-7L2,
X.<I:@039-+.+:3-
!Y"0$%D20B)!0%52E
(W"0>-3<:@>
!Z0$U
)(09SC[,
2IS0%<,<.
'""A0O10G+\-03<:,.<99-.0G7,20.-L-:-.+,7\-0S.+$7:L
&""0$%0B!&M0%79->E
!&M0$%0B]M0%79->E
!"YW(\#0]&+20V7,27I%0=.<:0^\<$-0T<G-.T+3$
]W) $U2
'02<I.>0&&"\0B) 2<I.>0!!"\E
OI+90@7>3#0'057>,<:02/@.+I9730Y""F'0%%
?7:L9-0@7>3#0&057>,<:02/@.+I9730&&"F'0%%
'&%%07:\-.,-@0[<.$#0@I+90>2<3$
?7:L9-0>2<3$0.-+.
YW""F!]03+>,0+9I%7:I%
YW""F!]SI79,C7:02IS0%<,<.0GD03+>,0+9I%7:I%0G2--9
!!"D]"C!]
!'"D]"C!]
&)"0$T+D'"T?=
!)M$L
!M"0$L
!Y("0%%0BM'W'07:32->E
&"Y"0%%0B)!W&07:32->E
]!"0%%0B&)W'07:32->E
])"0%%0BY!W&07:32->E
!Y"0%%0BMW&07:32->E

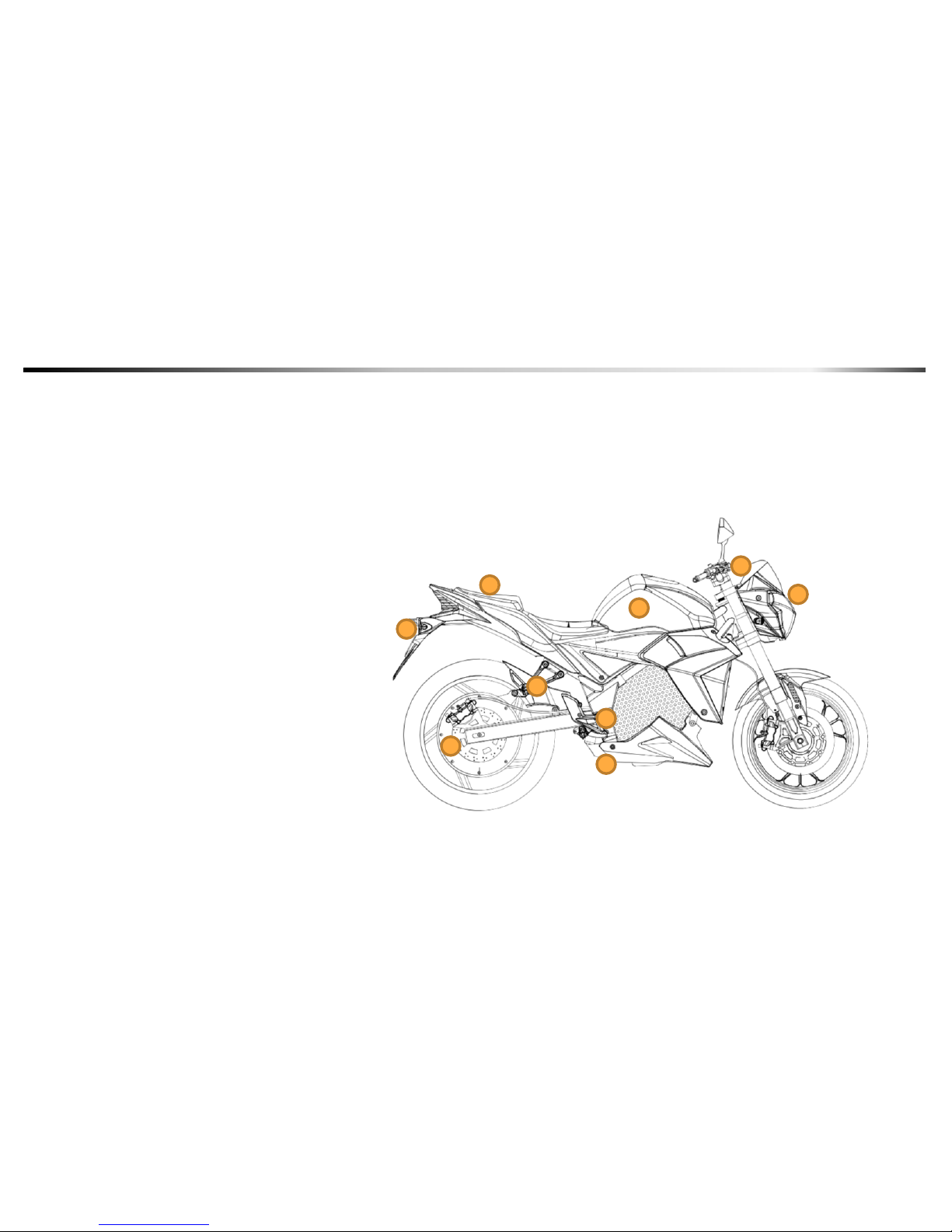

Vehicle Specifications

1. Handlebars
2. Headlight
3. Tank
4. Kickstand
5. Passenger seat
6. Charging port
7. Passenger foot pegs
8. Driver foot pegs
9. Motor
Controls and Instruments
Side Profile with Labels
1
2
3
4
5
6
7
8
9

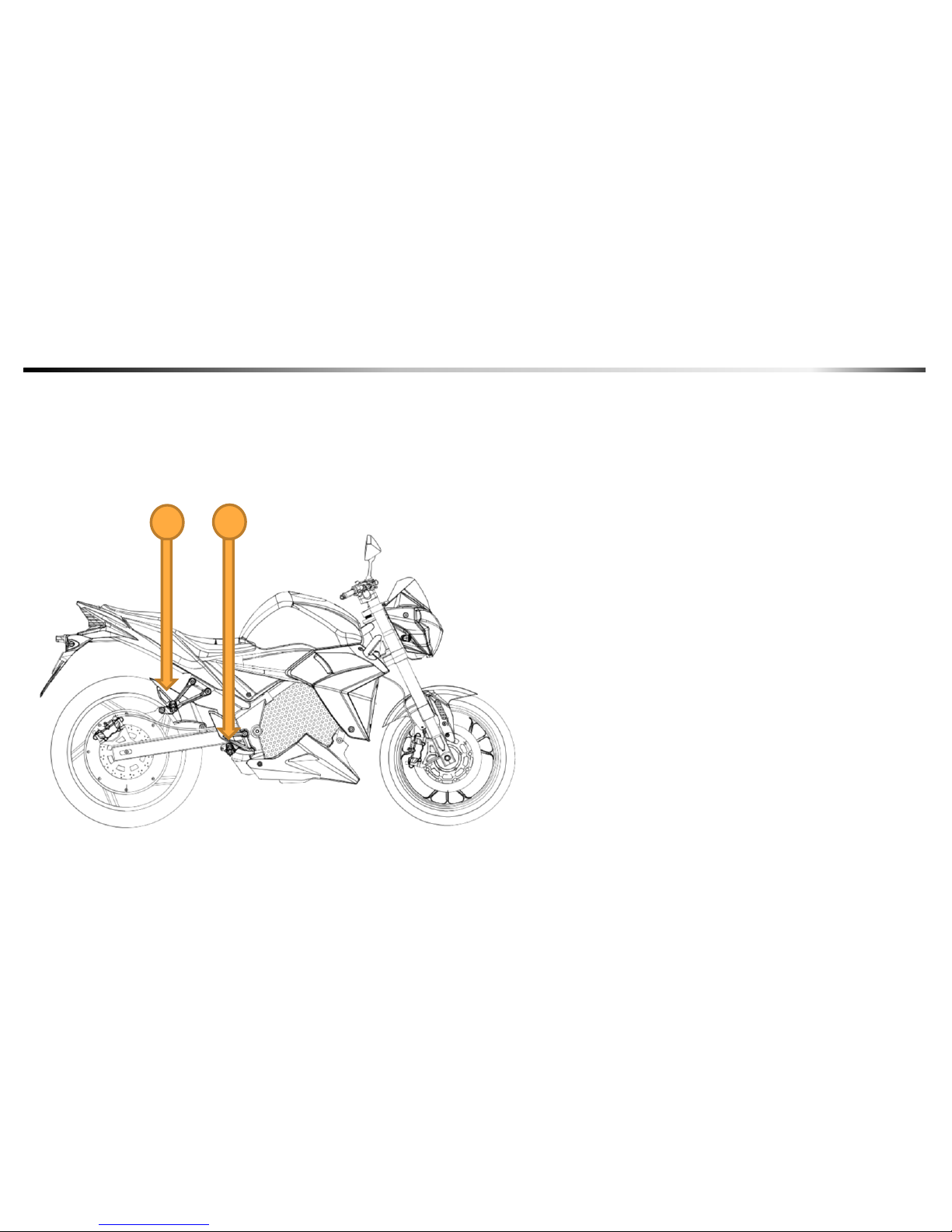

All Evoke Urban S bike are equipped with
two pairs of foot pegs.
The driver’s foot pegs (1) are spring-loaded
and are automatically deployed.
Passenger foot pegs (2) are usually folded in
upright/vertical position. To deploy them,
gently pull the peg into a horizontal position.
Controls and Instruments
Foot pegs
21

Controls and Instruments

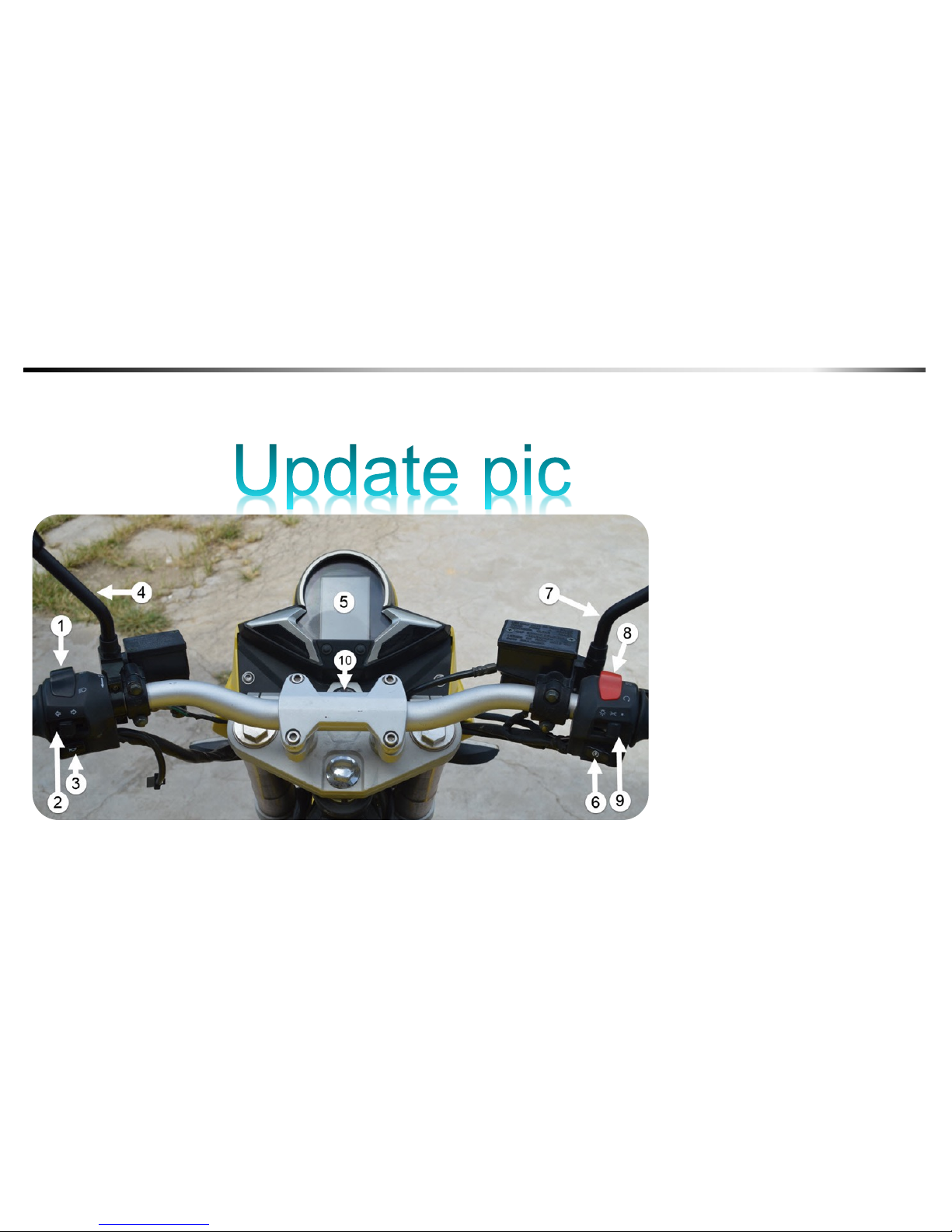

Handlebars
1. High beam
2. Turn signal
3. Horn
4. Left rearview mirror
5. LCD display
6. Wireless starter (optional)
7. Right rearview mirror
8. Throttle Kill Switch
9. Light settings
10. Key switch

Controls and Instruments

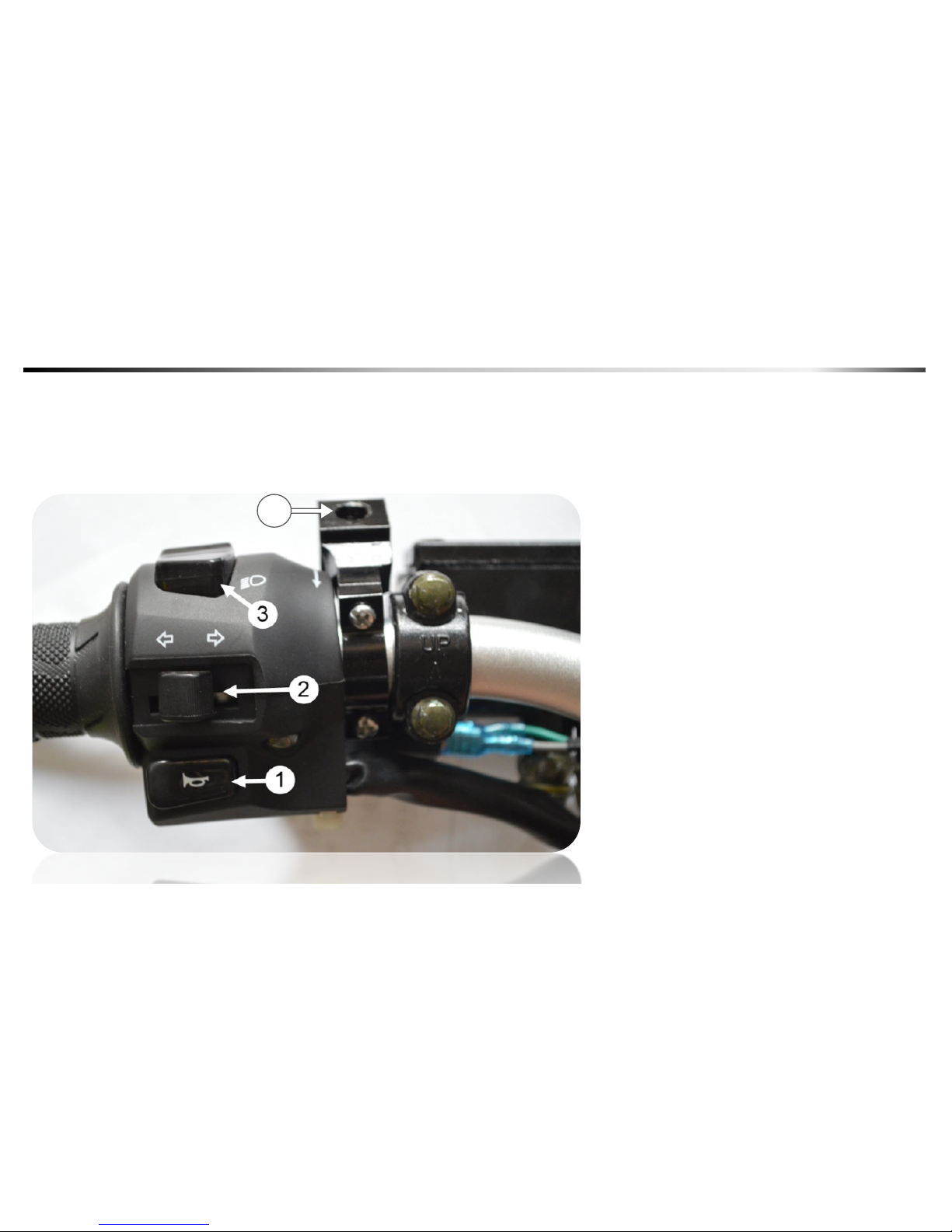

Left Handlebar Switchbox
1. Horn
2. Turn signal
3. High beam
4. Left rearview mirror mount
4

Controls and Instruments

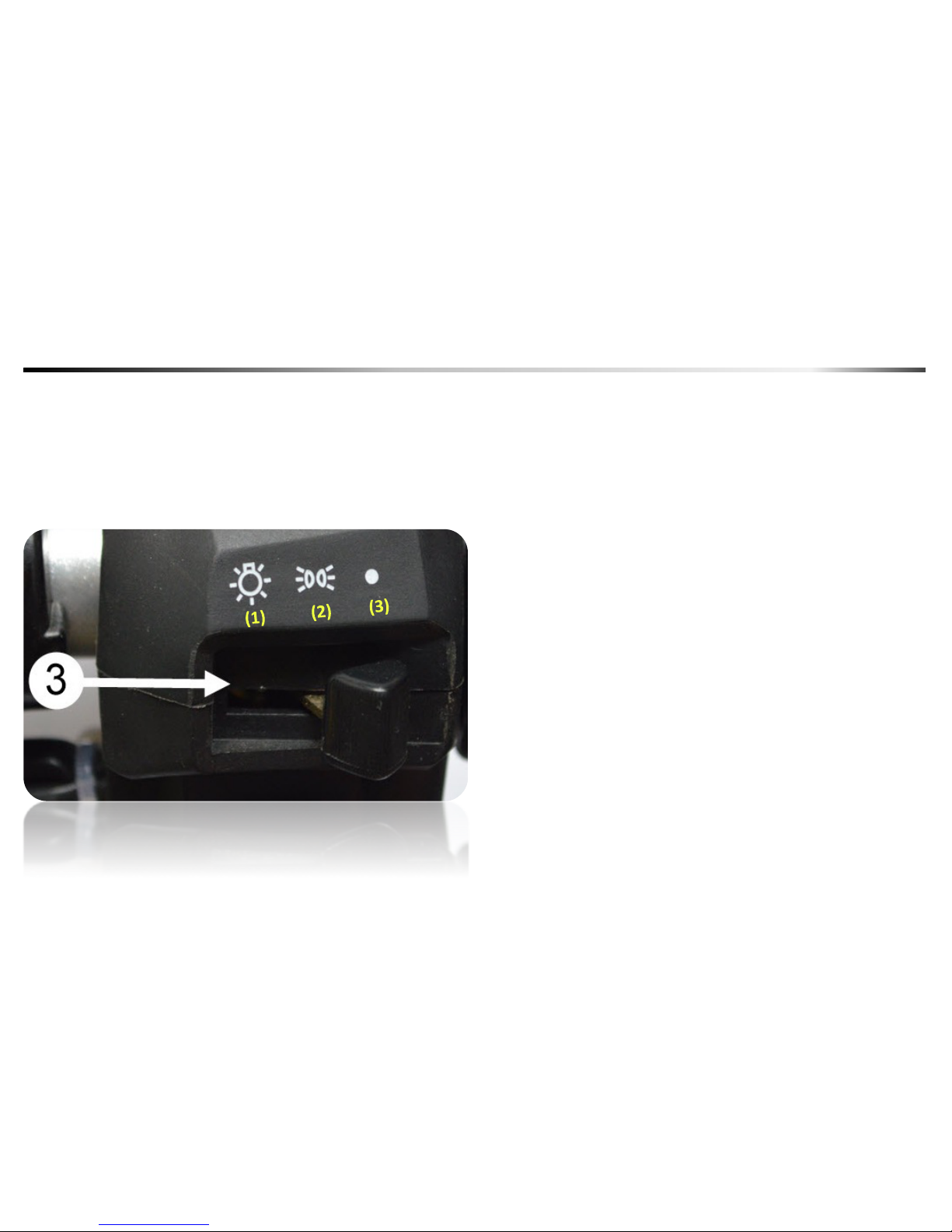

Light settings
Light settings are used to make yourself more
visable when on the road, and to alert other
motorists.
1. Headlights
• To alert other motorists and illuminate the
road
2. Parking Lights
• To make yourself more visible while
parked
3. Off
*Vehicles equiped with DRL will automatically
turn the headlight on when the vehicle is active.

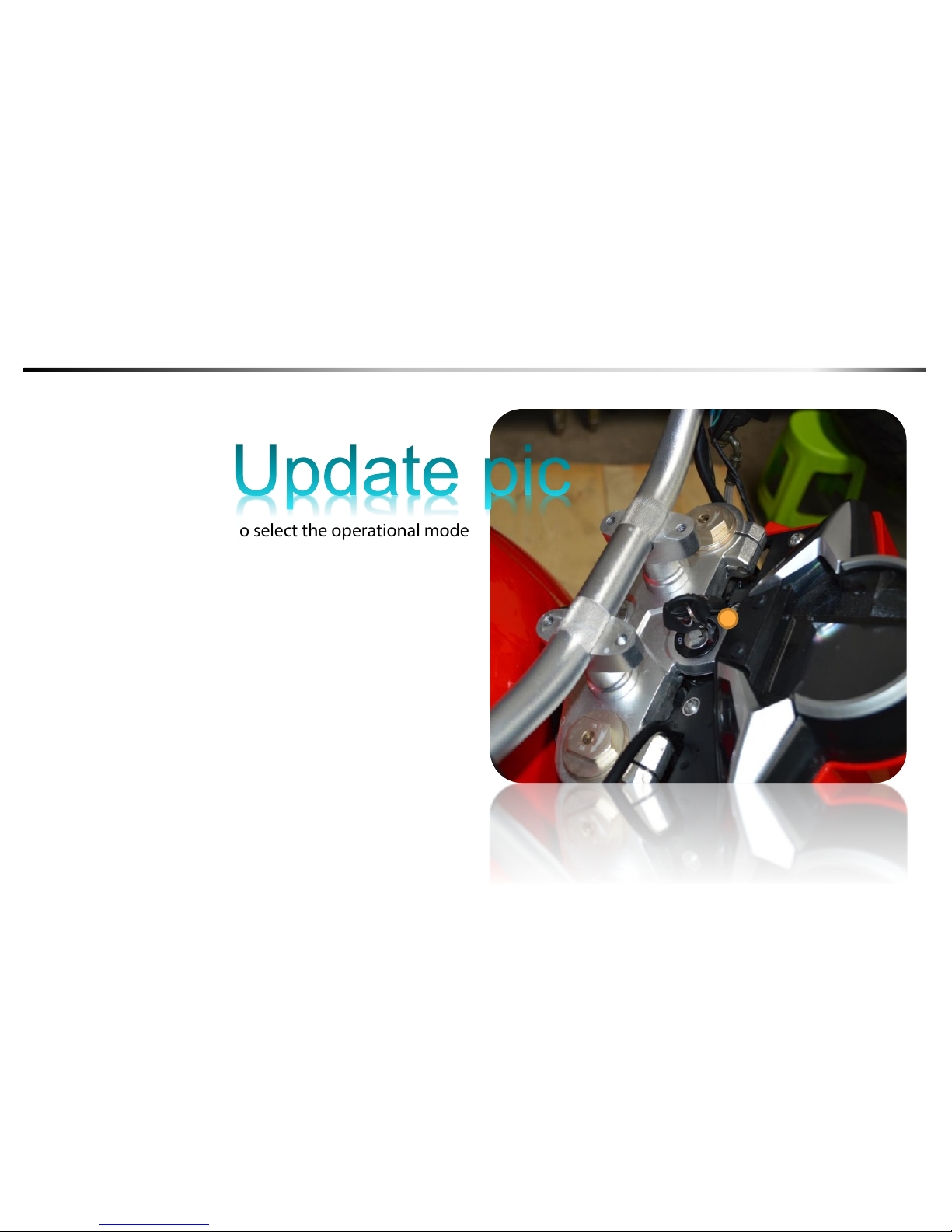

Ignition Switch
The ignition switch is used to select the operational mode
of the bike, either ON or PARK mode, and to lock the
steering for theft prevention.

Controls and Instruments

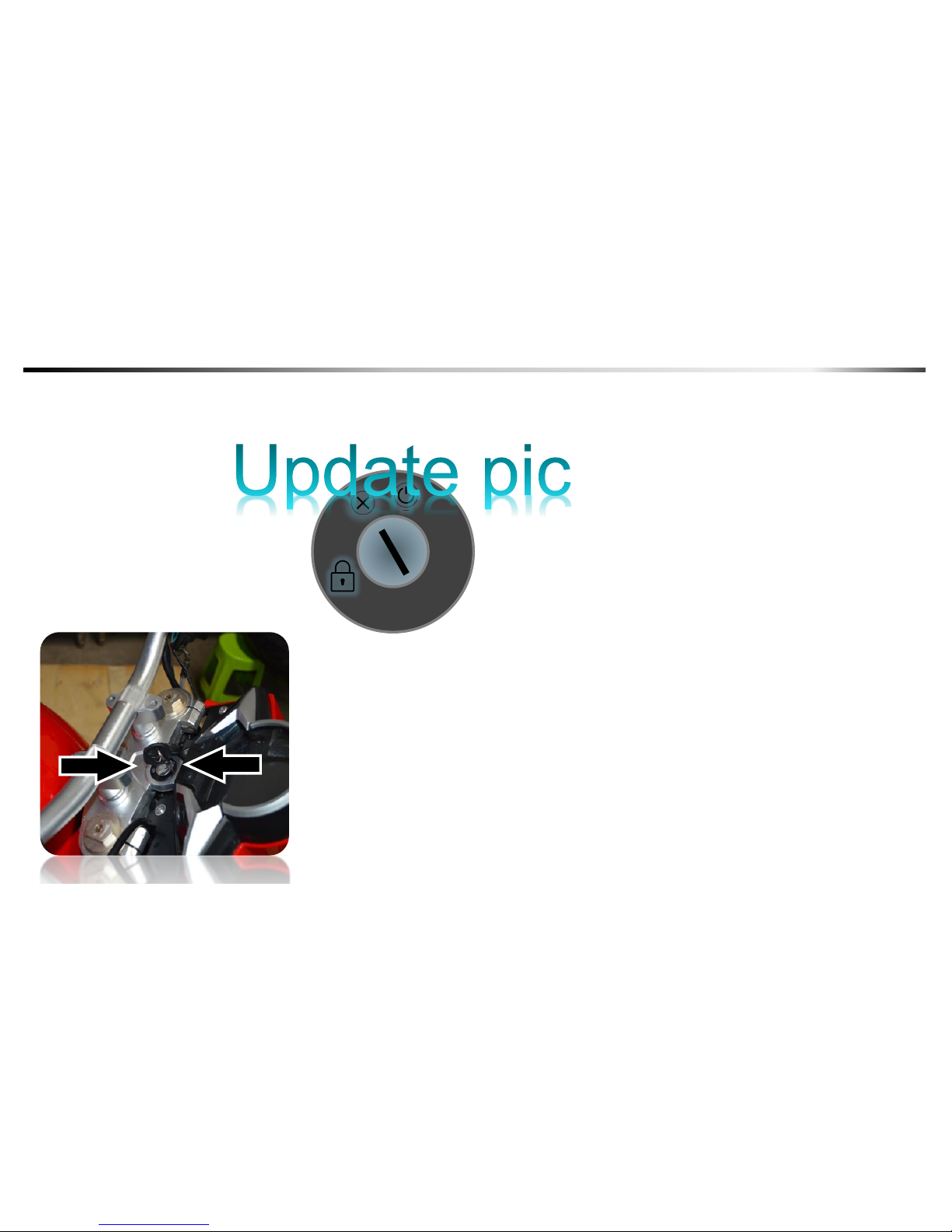

Key switch
1. Off
No electrical circuits function.
2. On
Insert the key and turn clockwise to the On position.
The Urban S powers up. Drive mode can be
engaged.
3. Lock
Turn the handlebar all the way to the left, push
down on the key, and turn counter-clockwise to the
Lock (steering lock) position to lock the steering
head. No electrical circuits function.
