Explore Scientific ReflexSight 0620260 User manual
1

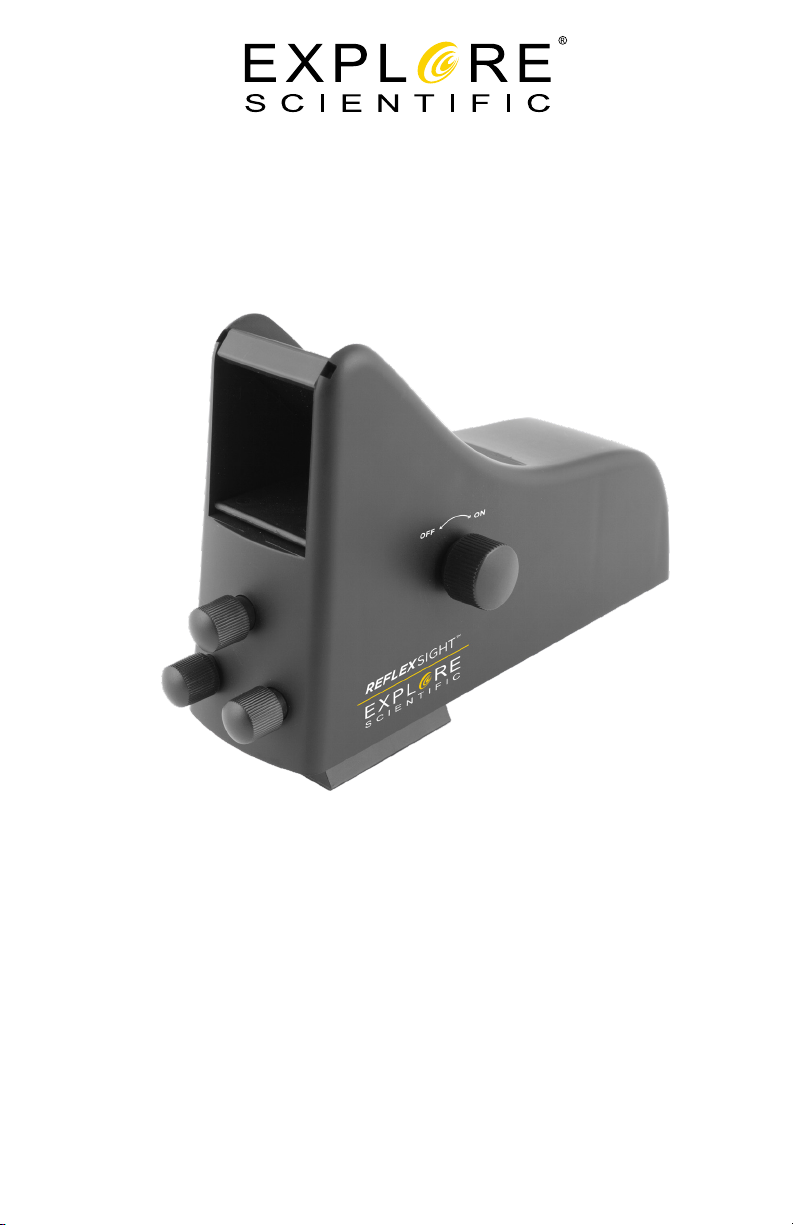

ReflexSight™
Instruction Manual
Art. No. 0620260
2
DE Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere Informationen
zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu nden.
EN Visit our website via the following QR Code or web link to nd further information on this product
or the available translations of these instructions.
FR Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES ¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR) para
ver las versiones disponibles.
IT Desidera ricevere informazioni esaustive su questo prodotto in una lingua specica? Venga a
visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili.
www.bresser.de/P0620260
3
General Warnings / Safety Instructions
This device is not intended for use by individuals (including children)
with limited physical, sensory or mental capabilities or those lacking
in experience and/or knowledge, unless they are supervised by an
individual responsible for their safety or have received instructions from
them regarding the use of the device.
Children must be supervised to ensure that they do not play with the
device.
RISK of BODILY INJURY!
Never use this device to look directly at the sun or in the direct
proximity of the sun. Doing so may result in a risk of blindness.
Not suitable for children under 3 years!
FIRE RISK!
Do not place the device, particularly the lenses, in direct sunlight. The
concentration of light could cause a re.
RISK of ELECTRIC SHOCK!
This device contains electronic components that operate via a power
source (power supply and/or batteries). Children should only use the
device under adult supervision. Only use the device as described in the
manual; otherwise, you run the risk of an electric shock.
Use only the recommended batteries. Always replace weak or empty
batteries with a new, complete set of batteries at full capacity. Do not
use batteries from different brands or with different capacities. Remove
the batteries from the unit if it has not been used for a long time.
The manufacturer is not liable for damage related to improperly installed
batteries!
RISK of FIRE/EXPLOSION!
Do not expose the device to high temperatures. Use only the
recommended batteries. Do not short-circuit the device or batteries,
or throw them into a re. Excessive heat or improper handling could
trigger a short-circuit, a re or an explosion.
NOTES on Cleaning
Clean the eyepieces and/or lenses only with a soft, lint-free cloth,
(e.g. microbre cloth). To avoid scratching the lenses, use only gentle
pressure with the cleaning cloth.
4
Features and Benefits
The Explore Scientic ReflexSight™ uses time-tested functionality re-
imagined with versatility and enhanced performance features. The view
through the device gives the appearance of a deep-red target projected
against the sky, allowing you to use both eyes to help you quickly and
easily “star hop” using visible stars to nd and center objects.
The Explore Scientic ReflexSight™ is an essential zero-power nder for
use on amateur or professional telescopes that can be employed as the
sole or primary sight of a telescope.
Uses 2 AAA-sized alkaline batteries (not included).
Features
• New “multi-dot” reticle design in standard 4.0 degree, 2.0 degree, and
0.5 degree circular patterns that prevents blocking stars in the eld.
• Fits on common “dovetail-style” viewnder bases which will allow the
user to attach the device on almost any telescope without
modication to the telescope itself.
• 1/4 x 20 threaded adapter is built into the base to allow the device to
attach onto a variety of devices such as piggyback camera adapters,
photo tripods, etc.
• Smooth body style eliminates sharp corners and reduces snagging.
• Easy to access battery compartment.
• Comes complete with optical cover.
• Operates on two lightweight and commonly available AAA batteries.
• Low power draw provides long continuous operating time.
• Large, continuously adjustable brightness, smooth-head, control knob
with knurl, that can be operated with gloves on. Full-off click switch.
• Rear-facing, no-tool, three-point parallax smooth-head adjustment
knobs with knurl, that can be operated with gloves on.
• Coated lens for maximum reticle projection performance.
• Compact size.
5

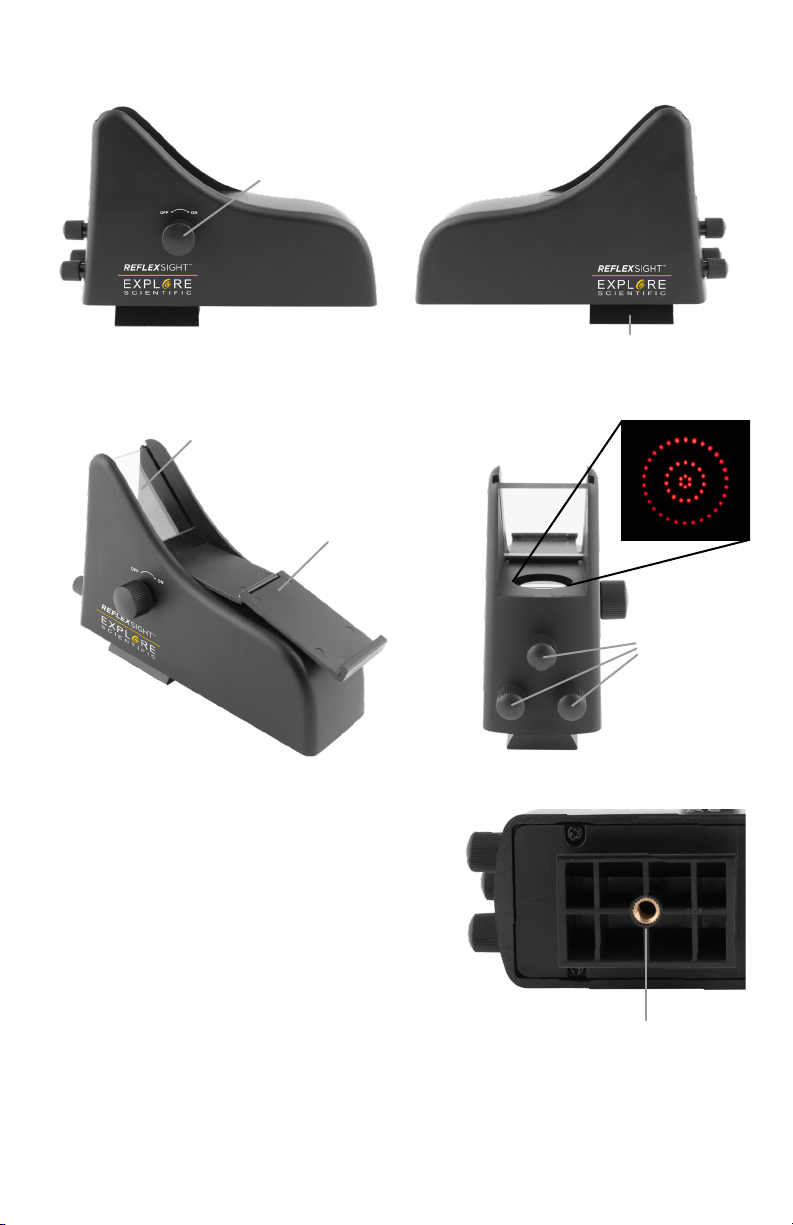

Parts Overview
Parts List
1. ReflectorSight™
2. On/Off & Brightness Knob
3. Dovetail Base
4. Projection Glass
5. Optics Cover
6. Projection Lens & Red Dot Reticle
7. Adjustment knobs
8. 1/4 x 20 Threaded Adapter
1
2
3
4
5
6
7
8
6
How To Use
• To use, remove the folding optics cover by pulling upward from the
projection glass, then pull the entire cover free from the device by
angling the pins from the slots that are on either side of the
projection lens.
• Install two AAA batteries by opening the battery compartment door
(using your ngernail or a small at-edged screwdriver) on the bottom
of the Explore Scientic ReflectorSight™ (note the direction of
polarity for the batteries), then replace the battery door by pushing
down gently until you feel the door snap in place.
• Slide the device into a standard 30mm wide nderscope dovetail base
on the telescope with the parallax adjustment knobs facing rearward.
• Turn the reticle on by rotating the brightness control knob clockwise
to full brightness.
• Aim by sighting your telescope using a low-power eyepiece at the
Moon, a bright star, or a very distant object. Look through the
projection glass of the reector sight (can be used with both eyes
open) and slowly turn (either clockwise or counter-clockwise) each of
the three rearward facing adjustment knobs until the 0.5 degree center
circle pattern is directly over the target. Repeat the process with
higher power on the telescope for greater pointing accuracy.
• Turn the brightness control knob counter-clockwise in order to see
the faintest stars while maintaining enough brightness of the
projected reticle.
• Remove the AAA batteries when storing the device for long
periods of time.
To clean, blow off dust and dirt and use a soft cloth to wipe down the
body. For the optical surfaces use standard optical cleaning tissues or
an optical cleaning cloth.
Specifications
Part no: ES-REFLECT-00
• Plastic housing
• Target dots reect sharply at 9.8 MOA
• Reective coating
• Water resistant
• Coated lens
• Long lasting LED
Overall dimensions:
7 in L x 1.8 in W x 5 in H (18 cm L x 4.7 cm W x 12.7 cm H)
Projection glass: 1.375 in W x 2.165 in L (35mm W x 55mm L)
Weight: 0.55 lb (249 g)
Construction: Metal, glass, and plastic parts
Includes: Reector Sight Device; Product Badge with Serial Number;
Instructions and Warranty; ES Gift-box
7
Disposal
Dispose of the packaging materials by type. Contact your local waste-disposal
service or environmental authority for information on the proper disposal.
Do not dispose of electronic devices in the household garbage! According to the
European Directive 2002/96/EU on Waste Electrical and Electronic Equipment and
its transposition into national law, used electrical equipment must be collected
separately and recycled in an environmentally sound manner.
Observe the current legal regulations when disposing of the device! Information on
proper disposal can be obtained from municipal waste disposal service providers or the
Environmental Agency.
EC Declaration of Confomity
A “Declaration of conformity” in accordance with the applicable directives and
corresponding standards has been prepared by Bresser GmbH. This can be viewed
at any time upon request at
www.bresser.de/download/0620260/CE/0620260_CE.pdf
UKCA Declaration of Conformity
A “Declaration of conformity” in accordance with the applicable directives and
corresponding standards has been prepared by Bresser GmbH. This can be viewed at
any time upon request at
www.bresser.de/download/0620260/UKCA/0620260_UKCA.pdf
Warranty
The regular warranty period is 2 years and begins on the day of purchase. You can consult
the full warranty terms as well as information on extending the warranty period and details
of our services at www.bresser.de/warranty_terms.
www.bresser.de/warranty_terms
Errors and technical changes reserved. · Fouten en technische wijzigingen voorbehouden.
Irrtümer und technische Änderungen vorbehalten.
Manual_0620260_Reector-Sight_en_BRESSER_v042022a
Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.explorescientic.de
Bresser UK Ltd.
Suite 3G, Eden House
Enterprise Way, Edenbridge,
Kent TN8 6HF, Great Britain
