INSTRUCTION MANUAL Ver 1.01
ANTI-VANDAL 30x, 36x, 37x SPEED DOME CAMERA

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
2/46
This lightning flash with arrowhead symbol is intended to alert the user
to the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This exclamation point symbol is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
Before installing and using the camera, please read these instructions
thoroughly and retain them for later reference
WARNING: TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK HAZARD,
DO NOT EXPOSE ELECTRONICS TO RAIN OR MOISTURE

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
3/46
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessories
Do not use attachments or accessories unless recommended by the appliance manufacturer as
they may cause hazards, damage product and void warranty.
4. Water and Moisture
Do not use this product near water or moisture.
5. Installation
Do not place or mount this product in or on an unstable or improperly supported location.
Improperly installed product may fall, causing serious injury to a child or adult, and damage to
the product. Use only with a mounting device recommended by the manufacturer, or sold with
the product. To insure proper mounting, follow the manufacturer's instructions and use only
mounting accessories recommended by manufacturer.
6. Power source
This product should be operated only from the type of power source indicated on the marking
label.
Precautions
Operating
zBefore using, make sure power supply and others are properly connected.
zWhile operating, if any abnormal condition or malfunction is observed, stop using the
camera immediately and then contact your Special dealer.
Handling
zDo not disassemble or tamper with parts inside the camera.
zDo not drop or subject the camera to shock and vibration as this can damage camera.
zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will
ruin your quality of camera.
Installation and Storage
zDo not install the camera in areas of extreme temperature, which exceed the allowable
range.
zAvoid installing in humid or dusty places.
zAvoid installing in places where radiation is present.
zAvoid installing in places where there are strong magnetic fields and electric signals.
zAvoid installing in places where the camera would be subject to strong vibrations.
zNever expose the camera to rain and water.
NOTE: If the camera is installed or rebooted after power failure when ambient temperature is
below the freezing point, the dome cover is frosted. In this case, the frost will be disappeared
NOTICE

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
4/46
after 3 hours after turning on the power. (It is noted that lowest guaranteed operating
temperature is -45℃(-49℉) without wind.)

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
5/46
○
1Introduction
Features
5
Product & Accessories
7
Parts Name & Functions
8
○
2Installation
DIP Switch Setup
9
Installation using Wall Mount Bracket
1
1
Cabling
1
4
○
3Operation
Checking Before Operation
1
6
Preset and Pattern Function Pre-Check
1
6
Start OSD Menu
1
7
Reserved Preset
1
7
Preset
1
8
Scan
1
8
Pattern
1
9
Group
2
0
Schedule
2
1
Other Functions
2
2
OSD Display of Main Screen
2
3
○
4How to use OSD Menu
General Rules of Menu Operation
2
4
Main Menu
2
4
System Information
2
5
Display Setup
2
5
Privacy Zone Mask Setup
2
6
Motion Setup
2
7
Function Setup
2
9
Preset Setup
3
CONTENTS

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
6/46
0
Scan Setup
3
2
Pattern Setup
3
3
Group Setup
3
4
Schedule Setup
3
6
Camera Setup
3
7
System Setup
4
0
System Initialize
4
2
○
5Specifications
Specifications
4
3
Dimension
4
6
Features
Camera Specifications
zCCD Sensor :
CCD
30x 1/4" Interline Transfer CCD
36x 1/4" EX-view HADTM CCD
37x 1/4" Double Density Interline Transfer CCD
zZoom Magnification :
Optical Zoom Digital Zoom Total
30x 30 10 Max. 300
36x 36 12 Max. 432
37x 37 12 Max. 444
zWDR(Wide Dynamic Range) function support. (36x, 37x Only)
zDIS (Digital Image Stabilizer) function support. (37x Only)
zDay & Night Function : ICR(IR Cut filter Removal)
zVarious Focus Mode: Auto Focus / Manual Focus / Semi-Auto Focus.
zIndependent or Global camera settings for each Preset locations.
Powerful Pan/Tilt Functions
zMax. 360°/sec high speed Pan/Tilt Motion
zUsing Vector Drive Technology, Pan/Tilt motions are accomplished in the shortest path.
As a result, time to target view is reduced dramatically and the video on the monitor is
INTRODUCTION
1

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
7/46
very natural to watch.
zUltra low speed (0.05°/sec) enables operator to locate camera to desired target view with
accuracy and ease.
zZoom-proportional pan/tilt speed helps operator to move the camera easily.
Preset, Pattern, Scan, Group, Privacy Mask, Schedule and More…
zMAX. 127 Presets are assignable. All of them have independent characteristics such as
White Balance, Auto Exposure, Label, Alarm Input/Output and so on.
zMax. 8 set of Scan can be stored. This enables to move camera repetitively between two
preset positions with designated speed.
zMax. 4 of Patterns can be recorded and played back. This enables to move camera to
follow any trajectory operated by joystick as closely as possible.
zMax. 8 set of Group action can be stored. This enables to move camera repetitively with
combination of Preset or Pattern or Scan. A Group is composed of max. 20 entities of
Preset/Pattern/Scans.
zMax 8 Privacy Masks can be set up to protect privacy of other people.
z7 rules of Schedule can be assigned by day and time. Appropriate actions (such as Home,
Preset, Group, Pattern and Scan) can be defined for each rule. Also, it is possible to use
Weekday and All days to simplify the rule.
PTZ(Pan/Tilt/Zoom) Control
zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.
zPelco-D/ Pelco-P/ Samsung protocol can be selected as a control protocol in the current
version of firmware.
OSD(On Screen Display) Menu
zOSD menu is provided to display the status of camera and to configure the functions
interactively.
zThe information such as Camera ID, Pan/Tilt/Zoom/Direction, Alarm Input & Output,
date/time, current temperature and Preset can be displayed on screen.
zEach display item can be turned on or off independently.
Alarm I/O Functions
z8 alarm sensor Inputs and 4 relay output are available.
zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled
with photo coupler.
zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various
applications.
zIf an external sensor is activated, camera can be set to move to the corresponding Preset
position.
zRelay outputs can be assigned to work with a certain preset.
INTRODUCTION 1 INTRODUCTION 1

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
8/46
Reserved Presets for Special Purpose
zMost of camera settings are directly changed by calling Reserved Presets, not entering
into OSD menu. For more information, refer to “Reserved Presets” in page 18 of this
manual.

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
9/46
Product & Accessories
Product
zWall Mount Type zCeiling Mount Type
Hexagonal wrench Water proof tape Hole Template Anchor bolts (4pcs)
Housing Safety Cable
Hanger
Instruction Manual Safety Cable
INTRODUCTION
Accessories
1

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
10/46
Parts Name & Functions
zDome Cover Do not detach protection vinyl from dome cover before
finishing all installation process to protect dome cover from
scratches or dust.
In the dome cover, there are Fan and Heater to remove moisture
on the bubble dome.
zSunshield &
Upper housing
Sunshield protect bubble dome cover from the sun rays and
rain fall from. In the sunshield, there is the upper housing
which will contain accommodate PTZ mechanism. Also, the
upper housing will be connected to both mounting brackets and
dome cover.
zWall/Ceiling mount
Bracket
These are used to install the camera on the wall or ceiling and
have junction box. The junction box of the bracket
accommodate inner box.
zInner box The inner has many important roles of connection box between
camera and outside. Top of the box, there are dip switches and
terminal blocks for Power supply, Video, Communication, Alarm
Input/output.
DOME COVER
DOME SAFETY CABLE
HEATER
PTZ MECHANISM
SUN SHIELD &
UPPER HOUSING
FAN/HEATER CABLE
HOUSING SAFETY CABLE
HANGER
INNER BOX
FAN
INTRODUCTION 1

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
11/46
DIP Switch Setup
Before you install the camera, you should set the DIP switches to configure the camera ID,
communication protocol.
ID Setting (1~255)
Protocol Buad Rate
RS-485
Terminate
0x00 : 2400
0x01 : 4800
0x02 : 9600
0x03 : 19200
0x04 : 38400
0x00 : Auto Select
0x01 : Pelco-D
0x02 : Pelco-P
0x03 : SAMSUNG
0x04 : VCLTP
0x05 : KD6
Camera ID Setup
123456
ON
ON
78
zID number of camera is set using binary number. The
example is shown bellow.
Pin 1 2 3 4 5 6 7 8
ID Value 1 2 4 8 16 32 64 128
ex) ID=5 on off on off off off off off
ex) ID=10 off on off on off off off off
zThe range of ID is 0~255. Factory default of Camera ID is 1.
zIf you want to control a certain camera, you must match the
camera ID with Cam ID setting of DVR or Controller.
INSTALLATION
2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
12/46

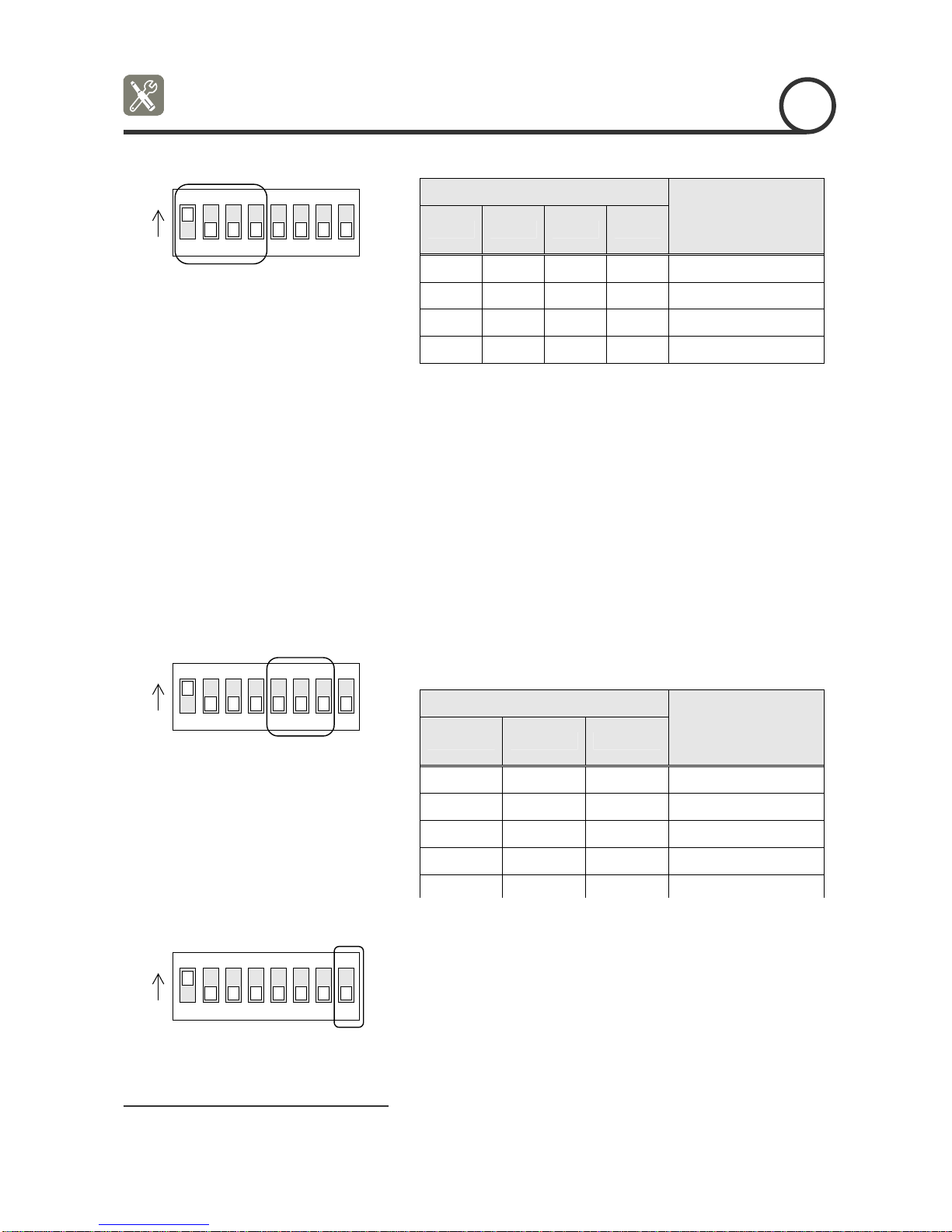

Communication Protocol Setup
123456
ON
ON
78
Communication Baud rate Setup
123456
ON
ON
78
RS-485 Termination Resistor
123456
ON
ON
78
zSelect the appropriate Protocol with DIP switch combination.
Switch State
Pin1 Pin2 Pin3 Pin4 Protocol
OFF OFF OFF OFF Auto Protocol
ON OFF OFF OFF PELCO-D
OFF ON OFF OFF PELCO-P
ON ON OFF OFF SAMSUNG
zIf you set the protocol as Auto Protocol, camera will
automatically recognize the kind of Protocol.
zAuto Protocol supports Pelco-D and Samsung Protocol.
zIf you want to control using DVR or system keyboard, their
protocol must be identical to camera. Otherwise, you can not
control the camera.
zIf you changed camera protocol by changing DIP S/W, the
change will be effective after you reboot the camera.
zFactory default of protocol is “Auto Protocol”
INSTALLATION 2
zPin 8 is used for ON/OFF of RS-485 Termination. Normally, it
must be OFF state. Especially when you have trouble with long
Daisy chain style connection, turn ON this termination switch
of last camera.
~Pin 8 RS-485 Termination Resistor (On/Off)
zSelect the appropriate Baud rate with DIP switch
combination.
Switch State
Pin5 Pin6 Pin7 Protocol
OFF OFF OFF 2400 BPS
ON OFF OFF 4800 BPS
OFF ON OFF 9600 BPS
ON ON OFF 19200 BPS
OFF OFF ON 38400 BPS

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
13/46
Installation using Wall Mount Bracket
①Using the paper template, mark the holes on
the wall.
②After drilling the holes, fix the four anchor
bolts into the holes.
③After locating the wall mount bracket on the
anchor bolts properly. Tighten the nuts for
anchor bolts
④Connect cables to terminal blocks and BNC
in the inner box of junction box. See the
cabling in the next section.
INSTALLATION 2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
14/46
⑤ After hooking the safety cable on the hole
of pipe [1], attach the upper housing to wall
mount bracket by turning it at least seven
turns [2]. To fix the upper body orientation,
turn the handle of double nuts to clockwise
tightly [3].
⑥ Open the dome cover to install the PTZ
camera mechanism. Care must be taken
dome cover is hung by internal safety cable
properly. Plug fan/heater cables into the
connectors in the housing.
2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
15/46
⑦Plug the connector of cable from junction
box into properly. After checking the
orientation of one touch connector in the
upper housing, press the PTZ mechanism into
hook in the upper housing.
⑧ To lock the PTZ mechanism to the upper
housing, press the two black handles till it
sounds snap.
⑨ Close the dome cover. Care must be taken
to locate dome cover by matching the
“Arrow” mark.
⑩ Tighten four screws on the dome cover in
sequence as shown in the picture bellow.
aTo maintain the best sealing, the torque of
each screw must be in the range between 0.5 ~
1.0 N·m (0.37 ~ 0.73 lbf·ft).
1
2
3
4
INSTALLATION
2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
16/46
Cabling
Power Connection
zPlease, check the voltage and current capacity of rated power carefully. Rated power is
indicated in the back of main unit.
Rated Power Input Voltage Range Current Consumption
AC 24V AC 19V ~29V 2.5 A

RS-485 Communication
zFor PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the
same time, RS-485 communication lines of them is connected in parallel as shown below.
INSTALLATION 2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
17/46
GND
IN 5
IN 1
IN 2
IN 3
IN 4
IN 6
IN 7
IN 8
INTERNAL
Video Connection
zConnect with BNC coaxial cable.
Alarm Input Connection
zSensor Input
aIt is noted that short circuit between GND and
Input pin means alarm activation.
If you want to use Alarm Input, the types of sensor must be selected in OSD menu. The
sensor types are Normal Open and Normal Close If sensor type is not selected properly, the
alarm can be activated reversely.
~Normal Open (N.O) Output Voltage is high state when sensor is activated
~Normal Close(N.C) Output Voltage is high state when sensor is not activated
zAlarm Output
There are 4 Alarm Outputs and all of them are Relay contact type. Therefore, you
do not have to care about polarity, AC/DC, and isolations between channels. Care
must be taken for the power capacity of relay contact written above.
INSTALLATION
2

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
18/46
Check points before operation
zBefore power is applied, please check the cables carefully.
zThe camera ID of the controller must be identical to that of the camera to be controlled. The
camera ID can be checked in the System Information of OSD Menu.
zIf your controller supports multi-protocols, the protocol must be changed to match to that of the
camera.
zIf you changed camera protocol by changing DIP switch, the change will be effective after you
reboot the camera.
zSince the operation method can be different for each controller available, refer to the manual for
your controller if camera can not be controlled properly.
Preset and Pattern Function Pre-Check
zCheck how to operate Preset, Group, Scan and Pattern function with controller or DVR in advance
to operate camera function using them. (refer to your System keyboard Manual)
zIf controller or DVR has no pattern button or function, use shortcut keys with preset numbers.
For more information, refer to “Reserved Preset” in this manual.
OPERATION 3

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
19/46
Starting OSD Menu
zFunction Using the OSD menu, Preset, Pattern, Scan, Group and Alarm Input function
can be configured for each application.
zEnter Menu <Go Preset> [95]
Reserved Preset
zDescription Some Preset numbers are reserved to special functions.
zFunction <Go Preset> [95] : Enters into OSD menu
<Go Preset> [131~134] : Runs Pattern Function 1 ~ 4
<Go Preset> [141~148] : Runs Scan Function 1 ~ 8
<Go Preset> [151~158] : Runs Group Function 1 ~ 8
<Go Preset> [161~164] : Sets Relay 1~4 Output to OFF
<Set Preset>
[161~164]
: Sets Relay 1~4 Output to ON
<Go Preset> [170] : Sets Camera BLC Mode to OFF
<Go Preset> [171] : Sets Camera BLC Mode to HIGH
<Go Preset> [174] : Sets Camera Focus Mode to AUTO
<Go Preset> [175] : Sets Camera Focus Mode to Manual
<Go Preset> [176] : Sets Camera Focus Mode to SEMI-AUTO
<Go Preset> [177] : Sets Day & Night Mode to AUTO1
<Go Preset> [178] : Sets Day & Night Mode to NIGHT
<Go Preset> [179] : Sets Day & Night Mode to DAY
<Go Preset> [190] : Sets OSD Display Mode to AUTO (Except Privacy Mask)
<Go Preset> [191] : Sets OSD Display Mode to OFF (Except Privacy Mask)
<Go Preset> [192] : Setting OSD Display Mode to ON (Except Privacy Mask)
<Go Preset> [193] : Sets all Privacy Mask Display to OFF
<Go Preset> [194] : Sets all Privacy Mask Display to ON
<Go Preset> [167] : Zoom Proportional Jog ON
<Set Preset>[167] : Zoom Proportional Jog OFF
<Go Preset>[200] : Digital Zoom ON
<Go Preset>[201] : Digital Zoom OFF
OPERATION 3

ANTI-VANDAL 30x, 36x, 37x SPEED DOM
E
CAMERA
20/46
PRESET 127
127
PRESET 127
127
Preset
zFunction Max. 127 positions can be stored as Preset position. The Preset number can be
assigned from 1 to 128, but 95 is reserved for starting OSD menu.
Camera characteristics (i.e. White Balance, Auto Exposure) can be set up
independently for each preset and they are adjusted by using OSD menu. Four
relay outputs can be controlled in conjunction with one Preset.
zSet Preset <Set Preset> [1~128]
zRun Preset <Go Preset> [1~128]
zDelete Preset To delete Preset, use OSD menu.
Scan
zFunction By using Scan function, you can make camera to move between 2 Preset positions
repeatedly. When Scan function runs, camera moves from the preset assigned as
the 1st point to the preset assigned as the 2nd point in CW(Clockwise) direction.
Then camera moves from the preset assigned as the 2nd point to the preset
assigned as the 1st point in CCW(Counterclockwise) direction.
In case that the preset assigned as the 1st point is same as the preset assigned as
the 2nd point, camera turns on its axis by 360°in CW(Clockwise) direction and
then it turns on its axis by 360°in CCW(Counterclockwise) direction.
Speed can be set up from 1°/sec to 180°/sec.
zSet Scan To set Scan, use OSD menu.
zRun Scan Method1) <Run Scan> [Scan NO.] [Enter]
Method2) <Go Preset> [Scan NO.+140] ex) Run Scan 2 : <Go Preset> [142]
zDelete Scan To delete Scan, use OSD menu.
OPERATION
3
