Eyeris ERN-LWG3065N Supplement

www.eyerisdigital.com
Installation and Operating
Instruction Manual
TRUE WDR WITH SMART IR FUNCTION
NIGHTVISION OUTDOOR BULLET CAMERA
ERN-LWG3065N/LW3065P
ERN-LWG4065N/LW4065P
Thank you for your purchase of this product.
Before attempting to connect or operate this product, please read these instructions
completely.
Product specifications and its contents subject to change without any prior notice.
The picture is for reference, the object as the standard.
Page 1

CONTENTS
1. General Information
- Safety Precaution
- Package contents
2. Installation of Camera
- Camera Connection
- Installation of Camera
- Tips for Camera Location
- Dimension
3. Operation Guide
- Menu Structure
- Function Description
4. Technical Specification
5. Troubleshooting
6. Cleaning and Care
7. Maintenance and Support
Page 2

1.General Information
>Safety Precaution
1.Read these instructions carefully before commissioning the camera in order to avoid
damages caused by improper installation or use.
2.Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged
by improper handing or storage.
3.Use a dry cloth to clean the camera front glass when dirty. When the dirt is hard to
remove, use a mild detergent and wipe gently. Then wipe off the remaining detergent
with a dry cloth.
4.Do not aim the camera at bright objects. Whether the camera is in use or not, never aim
it at the sun or other extremely bright objects. Otherwise, blooming or smears may be
caused.
5.In case of outdoor use, you have to install the camera in a suitable weather protection
case incl. heating element.
6.Operate the camera with the designated voltage only.
7.Use the camera at temperatures within -10 C to +50 C and humidity below 90%.
>Package Contents
1.
2.Operating Instructions
3.Mounting Template Sticker
True WDR With Smart IR Function Nightvision Outdoor Bullet Camera
Caution
To Reduce the risk of electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to qualified
service personnel.
Page 3

2.Installation of Camera
>Camera Connections

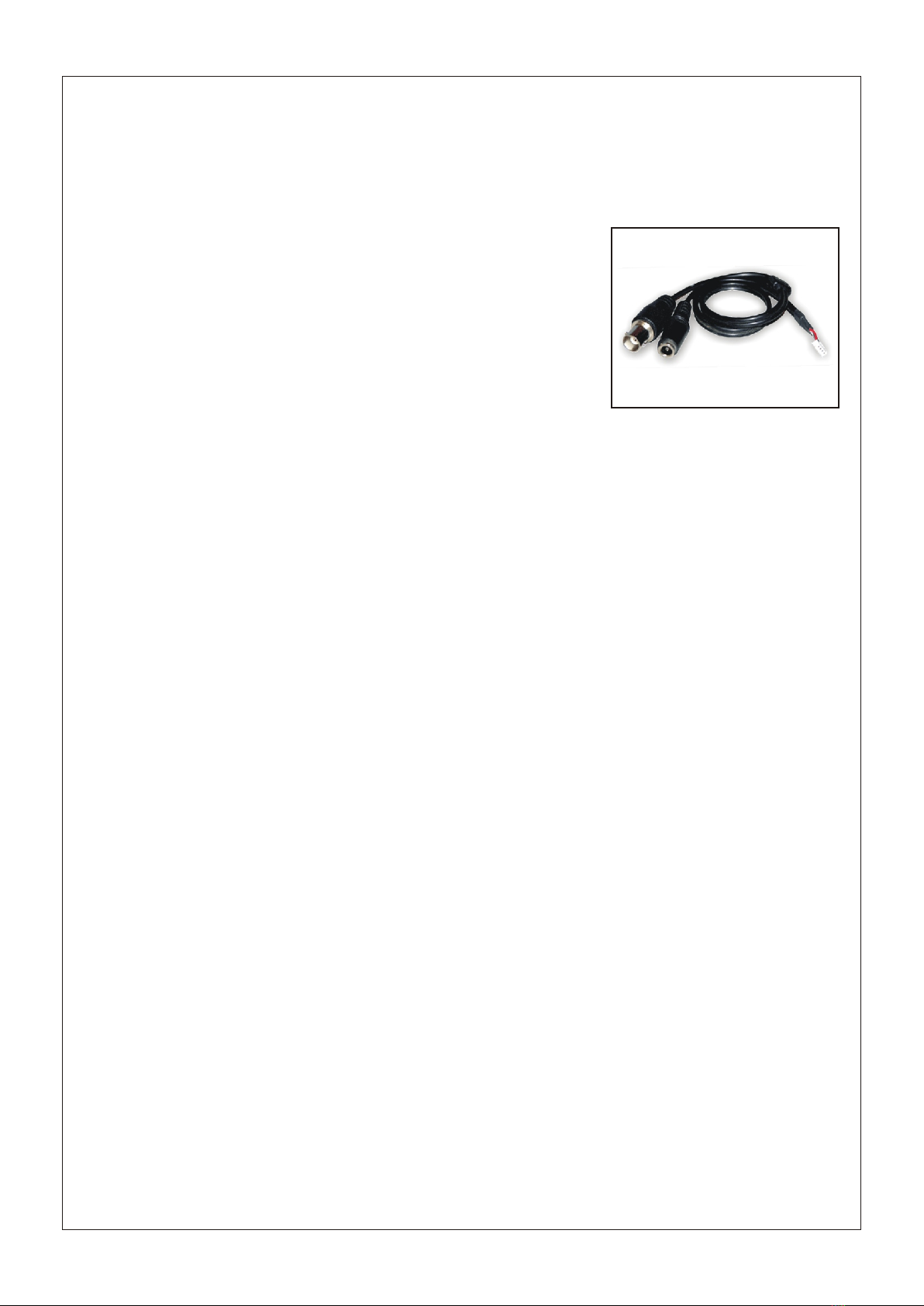

12V DC Power Supply
Use standard 12V DC output power supply with 2.1mm
standard DC power female pin. Before connect power check
power supply polarity (+ and -).
Video Output Connection
Use standard 75 Male BNC pin terminate with Co-axial video cable then connect to
camera video out BNC Female pin.
>Installation of Camera
Mounting Template Sticker: The mentioned technical drawing is for reference only.
Actual size of Mounting Template Sticker is matched with Dome Base. Stick Mounting
Template Sticker supplied for drilling the mounting hole on the mounting surface.
>Tips for Camera Location
1. Never expose the camera to direct sunlight without additional camera housing. Keep
sufficient distance to direct heat sources.
2. Never install the camera at humid, oily or dusty locations without using an additional
housing. (Without additional housing the camera is not suitable for outdoor use)
3. Do not aim the camera towards indoor lighting, the windows, the sunlight or the sky.
(To get good pictures, camera and light should be aimed towards the object)
4. Avoid peak light as background (Also caused by reflection)

Page 4

>Dimension
80mm
140mm
230mm
Page 5

EXPOSURE
COLOR
FUNCTION
SYNC
SETUP
EXIT
WB MODE
R-Y GAIN
B-Y GAIN
DAY&NIGHT
D&N MODE
A-SUP
C-SUP
MIRROR
SHARPNESS
GAMMA
FREEZE
NEGA
3_DNR
D_ZOOM
SLC
DIS
HME
MOTION
MOTION
SET WINDOW
ALL SET
ALL CLEAR
SENSITI
SHOW NDI
DELAY OUT
PRIVACY
MASK 1
MASK 6
MASK 5
MASK 4
MASK 3
MASK 2
SYNC MODE
V_PHASE
CAMERA ID
DPC
MONITOR
LANGUAGE
BAUDRATE
OMNI LENS
TITLE
EXIT
SAVE & EXIT
FACTORY SET
OSD MANU
E. SHUTTER
BLC
LENS
WDR
AGC
SENSE_UP
>Menu Structure
3. Operation Guide :
Page 6

>Function Description
1 Exposure:
Lens : 2 mode DC and Manual with set brightness level
from 0 to 100.
Shutter : 4 Mode - FLK, Fixed, Manual and Auto.
1/100 or 1/120 @ FLK
1/50,1/250,1/500, 1/1000, 1/2000, 1/4000,
1/10000, 1/100000 @ Fixed
BLC (Back Light Compensation) : OFF/ ON with adjust in 5 zone
WDR (Wide Dynamic Range) : OFF/ ON with adjust level range from 0 ~ 10
AGC (Auto Gain Control) : 4 level High, Middle, Low, OFF
SENS UP : OFF/ Auto, adjust with range of X2 ~ X256
2.Color :
W/B Mode : ATW, AWC, Manual
R-Y Gain : Can be set level from 0 ~ 255.
B-Y Gain : Can be set level from 0 ~ 255.
3.Day Night :
D & N Mode : 3 level Auto, Color, B/W
C_SUP (Color Suppression) : Can be set level from 0 ~ 15
A_SUP (Aperture Suppression) : Can be set level from 0 ~ 15
This two above function is used under low light condition. Using these functions you
can get image without noise.
Page 7

4.Function :
Mirror : 4 Mode OFF, Mirror, V-Flip, Rotate
Sharpness : Can be set level from 0 ~ 15
Gamma : 3 Level 0.45, 0.6, 1
Freeze : ON/OFF
Negative Image : ON/OFF
D-Zoom : OFF/ON with adjust with X1.0 to X3.0
3- DNR : four level Off, Low, Middle, High
SLC (Side Light Compensation) : Can be set level from 0 ~ 50
HME : Can be set level from 0 ~ 50
DIS (Digital Image Stabilizer) : ON/OFF
5.Motion : OFF/ON with 16 X 15 selectable zone with
sensitivity level from 0 ~99
6.Privacy Masking : OFF/ON with 6 selectable zone
7.Sync : 2 mode Inter, Auto
8.Setup:
Camera ID : Can be set range from 0 ~ 255
Title Edit : A ~ Z, 0 ~ 9, can set position also
Monitor : 2 mode CRT, LCD
DPC SET (Dead Pixel Cancellation): Can be set white and black level.
This function is used for takes off the dead pixel
Baud rate : can be set diff baud rate like 2400, 4800, 9600,
14400, 19200
9.Exit
Page 8

3. Technical Specification
Video
ERN-LWG3065N/P ERN-LWG4065N/P
Model Number
CCD 1/3" SONY Super HAD II Double Scan CCD
Lens 6 to 50mm DC Auto IRIS
Effective Pixel NTST : 768 x 494, PAL : 752 x 582
Horizontal Resolution 650 TVL
Min. Illumination@Day 0.8 Lux at Day(Cut Off)
Gamma
Scanning Frequency (V)
Scanning Frequency (H)
0.45 Adjustable
NTSC : 59.94KHz, PAL : 50Hz
NTSC : 15.734KHz, PAL : 15.625KHz
S/N Ratio 50dB
Video Output 1V p-p, 75
Sync System 2:1 Internal
Min. Illumination@Night 0.08 Lux At Night(IR LED On)
Operational
Lens DC IRIS / Manual
Exposure Mode Auto/Manual/FLK
Shutter Speed
AUTO
FLK 1/120
Fixed 1/60~1/100,000sec
AUTO
FLK 1/100
Fixed 1/50~1/100,000sec
BLC
ON/OFF
AGC
D-WDR ON/OFF
ON/OFF
SENS-UP 2,4,8,16,32,64,128,256
3-DNR High/Middle/Low/OFF
Freeze ON/OFF
Day/Night Mode Auto/Color/B/W
Digital Image Stabilizer
Privacy Masking
Motion Detection
ON/OFF
On /Off, Supports up to 6 Zone
On /Off, Supports up to 16*15 Zone
Digital Zoom 3X
SLC ON/OFF
Mirror OFF/Mirror/V-Flip/Rotate
Monitor Option CRT/LCD
Page 9

Environmental
Dimensional
Operating Temperature
Humidity
Weight
Housing
Dimension
Protection Class
-10°C ~ 50°C
95%
Outdoor Wall Mount with Cable Managed Bracket
230(L) x 140(H) x 80(W) mm
875g
IP 66
Electrical
Power Supply 12V DC Standard ±10%
Current Consumption 175mA
IR Consumption 2Amp
Color Control
Camera Name
White Balance
Contrast, Sharpness, Hue, saturation
Yes, A to Z, 0 to 9, & etc
ATW / AWB / MANUAl / FIXED
Night Vision
Number of LED
Diameter
IR LED
8 24 16 24
20 ~ 25 Meter 40 ~ 45 Meter
Giant IR Normal IR Giant IR Normal IR
IR Wave Length 850nM
ǿ0.8 ǿ0.8
ǿ0.5 ǿ0.5
IR Distance
