ezOutboard Leisure Series User manual

All rights reserved Golden Motor Technology Co., Ltd 2018

Dear customer,
We are delighted that you have chosen EZ outboard. In terms of
drive technology and efficiency, your EZ outboard is cutting-edge
technology. It has been designed and manufactured with the utmost
care and with a special focus on comfort, user-friendliness, safety,
and has been extensively tested before delivery.
Please take the time to read this operating manual carefully so that
you can use the outboard properly and enjoy it for a long time.
We constantly strive to improve the outboard. Should you have any
comments on the design or use of our products, please do not
hesitate to contact us.
We hope you have a lot of fun with this product.
Your EZ outboard team

TABLE OF CONTENT
To the User ·····························································································1
1 Safety Information ···············································································1
1.1 Outboard motor safety···············································································1
1.2 Boating safety·························································································1
2 Series and Specification········································································3
2.1 Leisure series ·························································································3
2.2 Components···························································································4
2.3 Main Features·························································································4
2.4 Diamensions ··························································································5
2.5 Specification ··························································································6
2.6 Wiring Diagram ······················································································7
2.7 Battery Selection ·····················································································8
2.8 System Protection Characteristics ·································································9
3 Installation and Operation····································································10
3.1 Installation·····························································································10
3.2 Operation ······························································································17
4 Storage and Maintenance······································································19
4.1 Storing outboard motor··············································································19
4.2 Replacement parts····················································································19
5 Warranty································································································19

To the User
EZ outboards are designed to operate safely and
reliably as long as they are used
according to the User’s Guide. Please read this
manual carefully before you start the motor.
Ignoring these instructions can cause property
damage or personal injury. Golden Motor accepts
no liability for any damage caused by actions that
contradict this guide.
In the User’s Guide particularly important
information is distinguished in the following
ways.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards.
Obey all safety messages that follow this symbol
to avoid possible injury or death.
AWARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
A CAUTION indicates special precautions that
must be taken to avoid damage to the electric
outboard or other property.
TIP:
ATIP provides key information to make
procedures easier or clearer.
Note
We continually seek advancements in
product design and quality. Therefore, while
this manual contains the most current
product information available at the time of
printing, there may be minor discrepancies
between your product and this manual. If
there is any question concerning this
manual, please consult your EZ outboards
dealer. To ensure long product life, we
recommend that you use the product and
perform the specified periodic inspections
and maintenance by correctly following the
instructions in the guide. Some countries
have laws or regulations restricting users
from taking the product out of the country
where it was purchased, and it may be
impossible to register the product in the
destination country. Additionally, the
warranty may not apply in certain regions.
When planning to take the product to
another country, consult the dealer where
the product was purchased for further
information. If the product was purchased
used, please consult your closest dealer for
customer registration, and to be eligible for
the specified services.

All rights reserved Golden Motor Technology Co., Ltd. 2019
1
1 Safety Information
1.1 Outboard motor safety
1.11 Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller can
keep moving even when the motor is in
neutral, and sharp edges of the propeller can
cut even when stationary. Stop the motor when
a person is in the water near you. Keep people
out of reach of the propeller, even the motor is
off.
1.12 Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
(personal flotation device) straps, etc. can
become entangled with internal rotating parts
of the motor resulting in serious injury or
death. Keep the top cowling in place whenever
possible. Do not remove or replace the cowling
with the motor running. Only operate the
motor with the cowling removed according to
the specific instructions in the manual. Keep
hands, feet, hair, jewelry, clothing, PFD straps,
etc. away from any exposed moving parts.
1.13 Electric shock
Do not touch any electrical parts while starting
or operating the motor. They can cause shock
or electrocution.
1.14 Modifications
Do not attempt to modify this outboard motor.
Modifications may reduce safety and
reliability, and render the outboard unsafe or
illegal to use.
1.2 Boating safety
This section includes a few of the many important
safety precautions that you should follow when
boating.
1.21 Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most common
factors contributing to boating fatalities.
1.22 Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. we
recommend that you must wear a PFD
whenever boating.At a minimum, children and
non-swimmers should always wear PFDs,.
Everyone should wear PFDs when there are
potentially hazardous boating conditions.
1.23 People in the water
Always watch carefully for people in the
water, such as swimmers, skiers or divers
whenever the motor is running. When someone
is in the water near the boat, stop the motor
immediately.
1.24 Passengers
Consult your boat manufacturer’s instructions
for details about appropriate passenger
locations in your boat and be sure all
passengers are positioned properly before
accelerating.

All rights reserved Golden Motor Technology Co., Ltd. 2019
2
Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves or
sudden changes in speed or direction.
Even when people are positioned properly,
alert your passengers if you must make any
unusual maneuver. Always avoid jumping
waves.
1.25 Overloading
Do not overload the boat. Consult the boat
manufacturer for maximum weight and
number of passengers. Be sure that weight is
properly distributed according to the boat
manufacturer’s instructions. Overloading or
incorrect weight distribution can compromise
the boats
handling and lead to an accident, capsizing
or swamping.
1.26 Avoid collisions
Scan constantly for people, objects and other
boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and keep a
safe distance away from people, objects and
other boats.
·Do not follow directly behind other boats or
Water skiers.
·Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or
understand where you are going.
·Avoid areas with submerged objects or
shallow water.
·Ride within your limits and avoid aggressive
maneuvers to reduce the risk of loss of control
and collision.
·Take early action to avoid collisions.
Remember, boats do not have brakes, and
stopping the motor or reducing throttle can
reduce the ability to steer. If you are not sure
that you can stop in time before hitting an
obstacle, apply throttle and turn in another
direction.
1.27 Weather
Stay informed about the weather. Check
weatherforecasts before boating. Avoid
boating in hazardous weather.
1.28 Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
1.29 Laws and regulations
Know the marine laws and regulations where
you will be boating and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.The motor
controllers are programmable via
smart-phones to setup speed limit, maximum
current, lower voltage limit as you desire to
meet your needs and local authority's
regulations.

All rights reserved Golden Motor Technology Co., Ltd. 2019
3

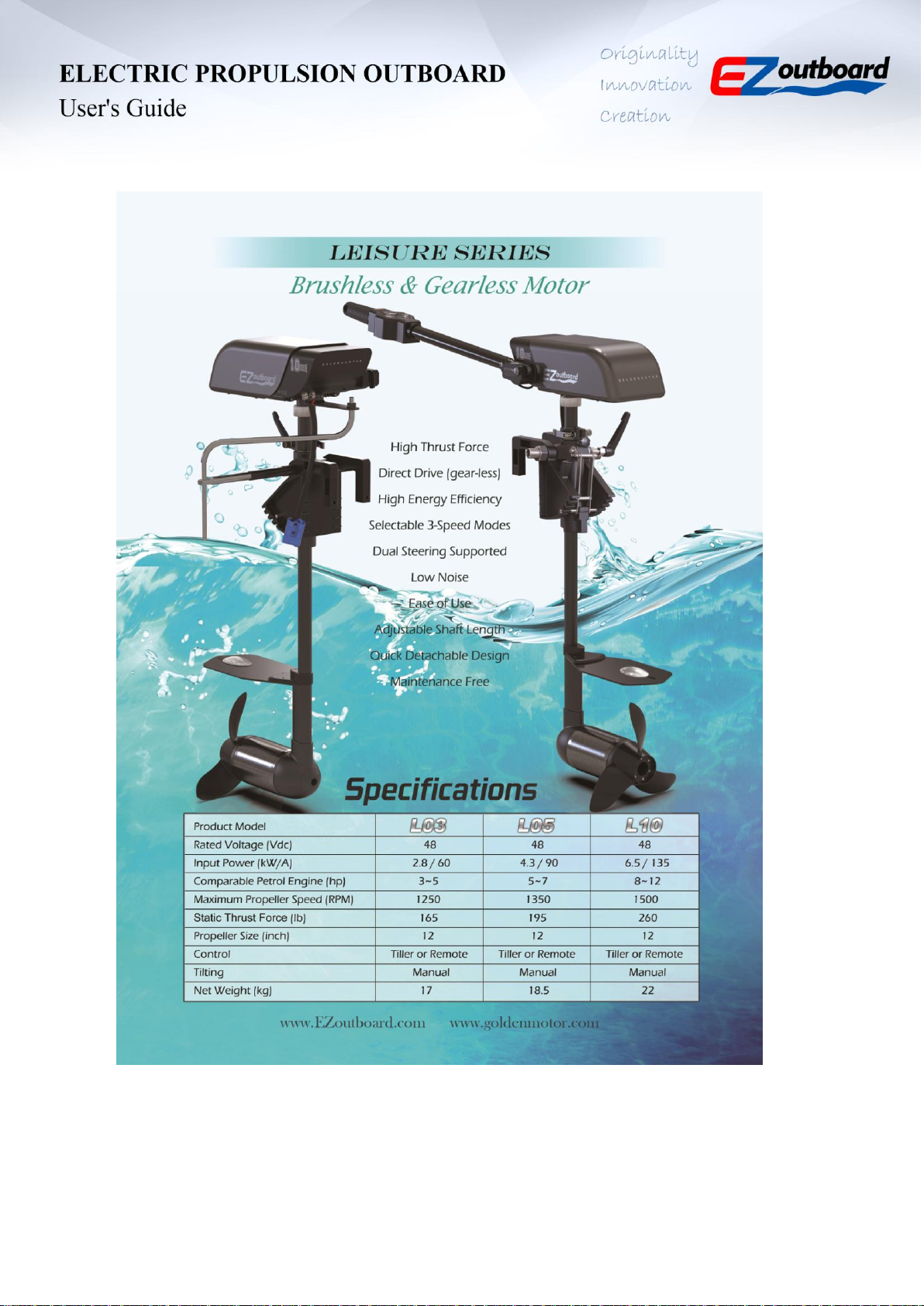

Leisure Series for those who want slower boat speeds, larger thrust force and less
batteries required, very light in weight(15kgs - 22kgs) for easy hand carry and quick
setup (30 seconds only), their propeller speeds are between 1200-1600rpm.
2.1 Specifications

All rights reserved Golden Motor Technology Co., Ltd. 2019
4
2.2 Components
2.3 Main Features
●Brush-less, gear-less, direct drive without speed reduction gear

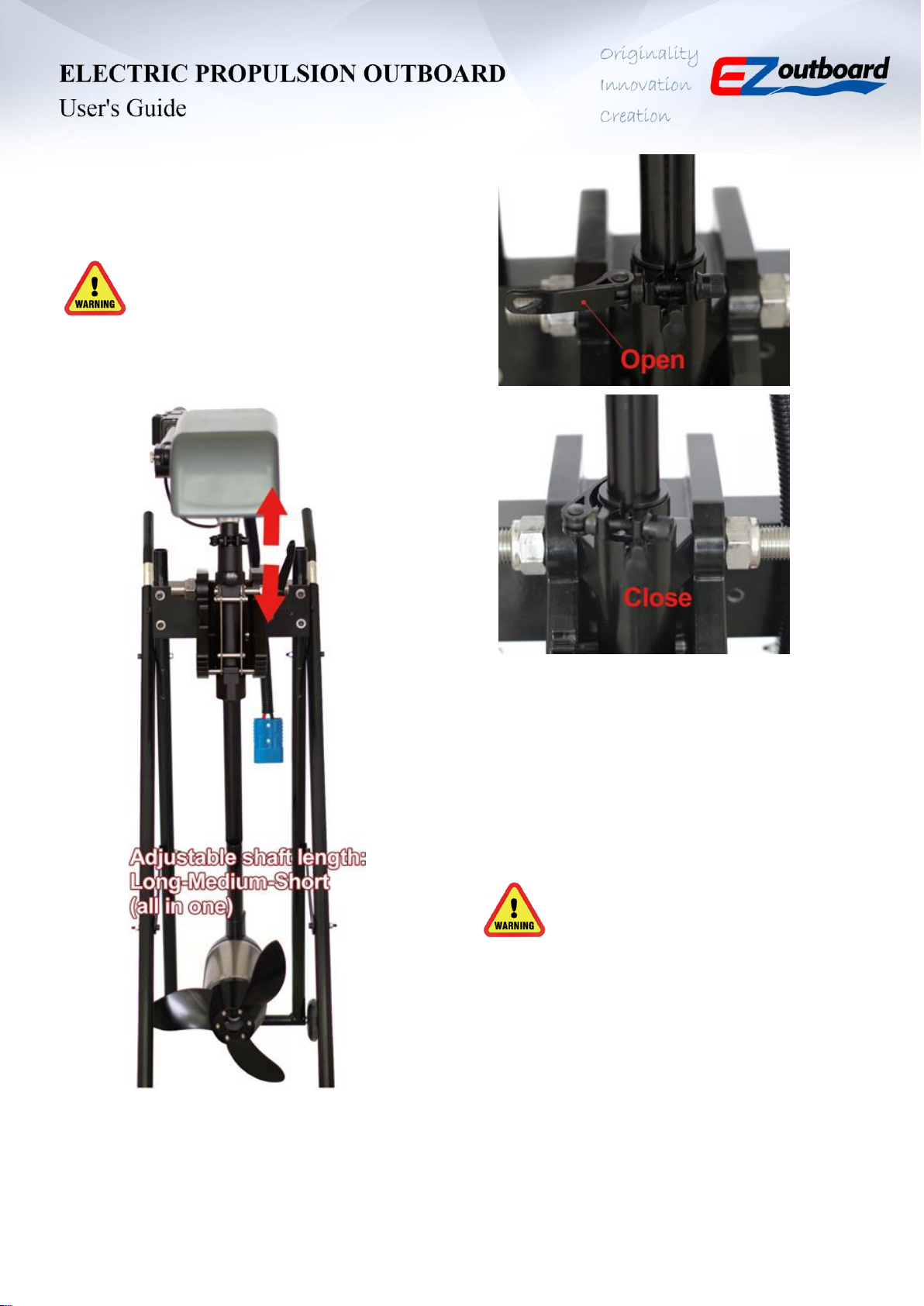

●Shaft length is All-in-One size, user adjustable between long and short
●Support both tiller steering control, and remote steering control
●Take less than 30 Seconds to Setup Outboard
●Support blue-tooth connection to Android smart phones

All rights reserved Golden Motor Technology Co., Ltd. 2019
5

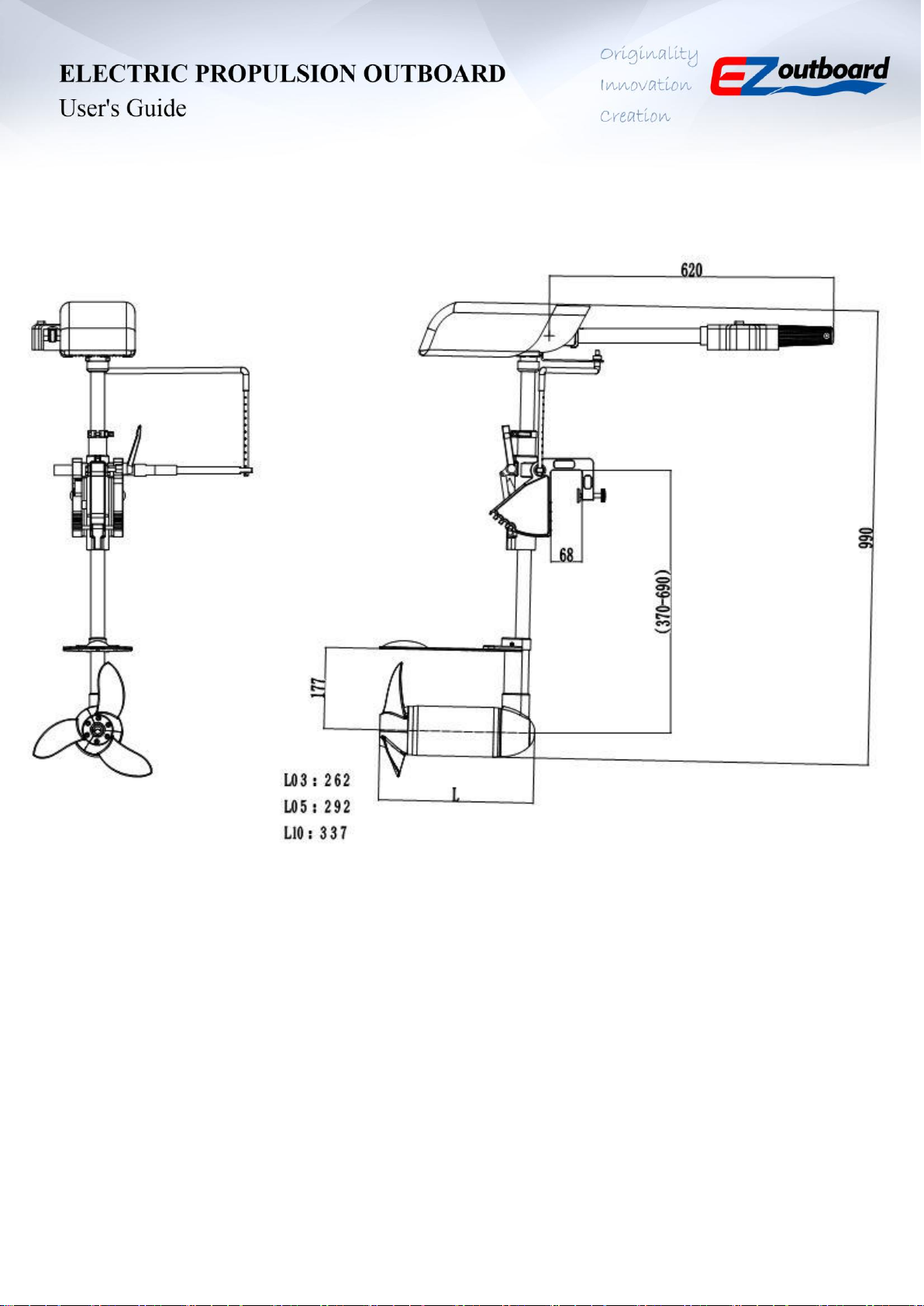

2.4 Dimensions (Unit:mm)

All rights reserved Golden Motor Technology Co., Ltd. 2019
6
2.5 Wiring Diagram

All rights reserved Golden Motor Technology Co., Ltd. 2019
7
2.6 Specifications
Model
Parameters
Measurement
Units
EZ--L03T/R
EZ--L05T/R
EZ--L10T/R
Equivalent Gasoline
Engine Power
HP
3~5
5~7
8~12
Norminal Voltage
V
48
48
48
Input Current
A
60
90
135
Max Propeller Speed
r/min
1250
1350
1500
Packing Length
mm
97
97
97
Packing Width
mm
22
22
22
Packing Height
mm
43
43
43
Transom Height
mm (in.)
381-508 (15-20)
381-508 (15-20)
381-508 (15-20)
Propeller Spec
in.
12
12
12
Net Weight
kg
17
18.5
22
Gross Weight
kg
23.5
25.2
27.8
Thrust
lb
165
195
260
Trim and Tilt System
Manual
Manual
Manual
Control System
Tiller/Remote
Tiller/Remote
Tiller/Remote

All rights reserved Golden Motor Technology Co., Ltd. 2019
8
2.7 Battery Selection
How do I determine the capacity of the
battery pack needed?
Battery is the new form of "fuel" for electric
propulsion outboards, you never need to go to
gasoline station to refuel your outboard
anymore. You only need to recharge your
batteries at home or docking place.
Once you've chosen an electric outboard that
properly fits the weight and efficiency of your
loaded boat, the next task is to size the battery
bank that will store the energy to drive it. The
size of the battery bank will depend on the amp
draw you plan to regularly place upon it and the
range of miles you desire to travel. It is not easy
to know the current draw before you try it as
each boat is different from others in hull shape,
length, load, speed and daily operation hour you
want, not like electric cars which is fixed for
each car model in factory. Our expandable
battery module will make your life much easier
to determine how big the battery bank you need
to meet your purpose. You can just invest one
battery module first to test boat performance
with electric propel outboard and find out
accurate amp draw for your special boat setup
in different speed. After initial boat trial testing,
then you can easily figure out how many such
battery modules required to get the boat speed
and travel duration you want. You can easily
parallel connect multiple expandable battery
modules to form a larger capacity battery bank.
Each battery module is light weight for one
person to carry around. You can always buy
more standalone modules as you need them.
Each module has its own battery management
system (BMS) and charger.
We choose the most safe LiFePO4 battery cells
for our expandable battery modules, the materials
used inside cell will not cause any fire or
explosion. The quality of cell is very consistent
and can last more than 2000 charging cycles. Its
C-rating is 3 times, that means a single 48V50AH
module can output 150A continuously. That's
why you can just buy one or two battery modules
to test the outboard motor performance and amp
draw.
Why we choose 48V system for outboard motor
and battery pack, because it is safe for human and
easy to pass local government regulations.
Of course, you can always use other type of
batteries you can find locally, as long as its output
voltage is 48V, and capacity is enough to drive
the electric outboards.

All rights reserved Golden Motor Technology Co., Ltd. 2019
9
When the outboard fails, the light on the three-speed button will blink, the
linking times shows the error.
System protection features
LED blinking
times
Over-voltage protection
Battery voltage is higher than default value.
1
Under-voltage protection
Battery voltage is lower than default value.
2
Motor over-current protection
Motor phase is short-circuit or phase to B+ is
short-circuit.
3
Stall/Block protection
Motor stall/Block time exceeds default value
4
HALL protection
HALL input is abnormal.
5
MOSFET protection
MOSFET detect abnormal.
6
Phase winding disconnect protection
One of motor phase wires is disconnect.
7
Self-detect error protection
Protection system internal self-defect
abnormal
10
Controller over-heat protection
Controller operation temperature is higher
than default value
11
Throttle protection
Throttle input abnormal
12
Motor over-heat protection
Motor temperature is higher than default
value.
13
Throttle signal is not in zero/original
position
When power on, controller detect throttle
signal is not in zero position, It may be that
the throttle sensor or the controller do not
match, or the throttle is damaged.
14
Controller brake
The controller is in brake status
15
Controller power supply signal not
stable
Controller power signal not stable
16
2.8 System Protection Characteristics

All rights reserved Golden Motor Technology Co., Ltd. 2019
10
3Installation and Operation
3.1 Installation
3.11 Installation indication
Your dealer or other person experienced in
proper outboard motor mounting should show
you how to mount your outboard motor.
There is no more long shaft and short shaft
differences, as EZ outboard products are user
adjustable in transom length to cater for
different boat installations, or boat loads which
may change from time to time. This feature
makes boat builders, owners and outboard
dealers life much easier, no more confusion on
shaft lengths, no more excessive stock for
long, medium and short shaft outboards!

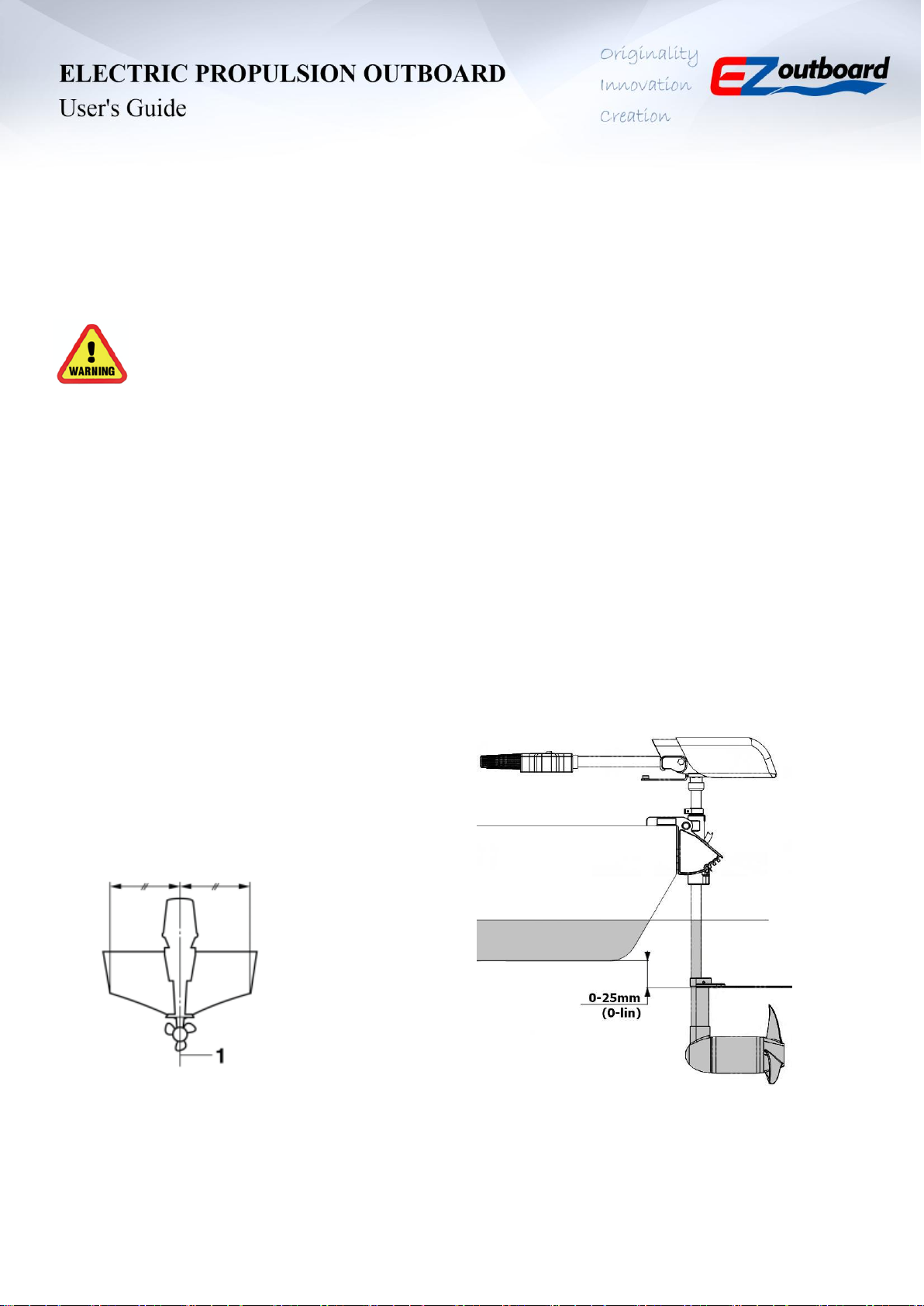

The outboard motor should be mounted so that
the boat is well balanced. Otherwise, the boat
could be hard to steer. For single-motor boats,
mount the outboard motor on the center line
(keel line) of the boat.
Center line (keel line)
3.12 Mounting height
To run your boat at optimum efficiency, the
water resistance (drag) of the boat and
outboard motor must be made as little as
possible. The mounting height of the outboard
motor greatly affects the water resistance. If
the mounting height is too high, cavitation
tends to occur, thus decreasing the propulsion;
and if the propeller tips cut the air, the
motor speed will rise abnormally and cause the
motor overheat. If the mounting height is too
low, the water resistance will increase and
thereby reduce motor efficiency. Mount the
outboard motor so that the anti-cavitation plate
is between the bottom of the boat and a level
25 mm (1 in) below it.
Test runs at different heights can help
determine the optimum mounting height.
Consult your dealer or boat manufacturer for
further information on determining tnting
height.

All rights reserved Golden Motor Technology Co., Ltd. 2019
11
3.13 Installation Instructions
1. When you receive the goods, you will see
this wooden box.
2. Use screw driver to open the wooden box
carefully.
3. Open the wooden box carefully, do not
damage it.
4.Overview of the outboard in opened wooden
box.
5. After opening the box, check parts below:
①Motor Drive Unit
②Controller Unit With Tiller
③Propeller Blades with Screws
④Anti-ventilation Plate with Screws
⑤Safety Key Set
⑥Anderson Connectors for Battery
⑦Hexagon Spanner& Screw driver

All rights reserved Golden Motor Technology Co., Ltd. 2019
12
6. Popeller Installation
Align the hole position and tighten the screws.
7.Anti-ventilation Plate Installation
Make sure the side of five countersunk holes
downward. Align the hole position and tighten the five
countersunk head screws.
8. Outboard Assembly
①Lift the controller parts, and align the hole
position, then plug into the motor parts.
②Tighten the big silver nut.
When align the hole position, make sure the
controller mounting base is parallel to the motor.
①Motor Drive Unit, Warranty voided if
disassembled
②. Safety Key Set shoud be attached to
operator's arm, In case the operator falls over
boat, it can put off the power to prevent boat
from running away under power, or hurting
people.

All rights reserved Golden Motor Technology Co., Ltd. 2019
13

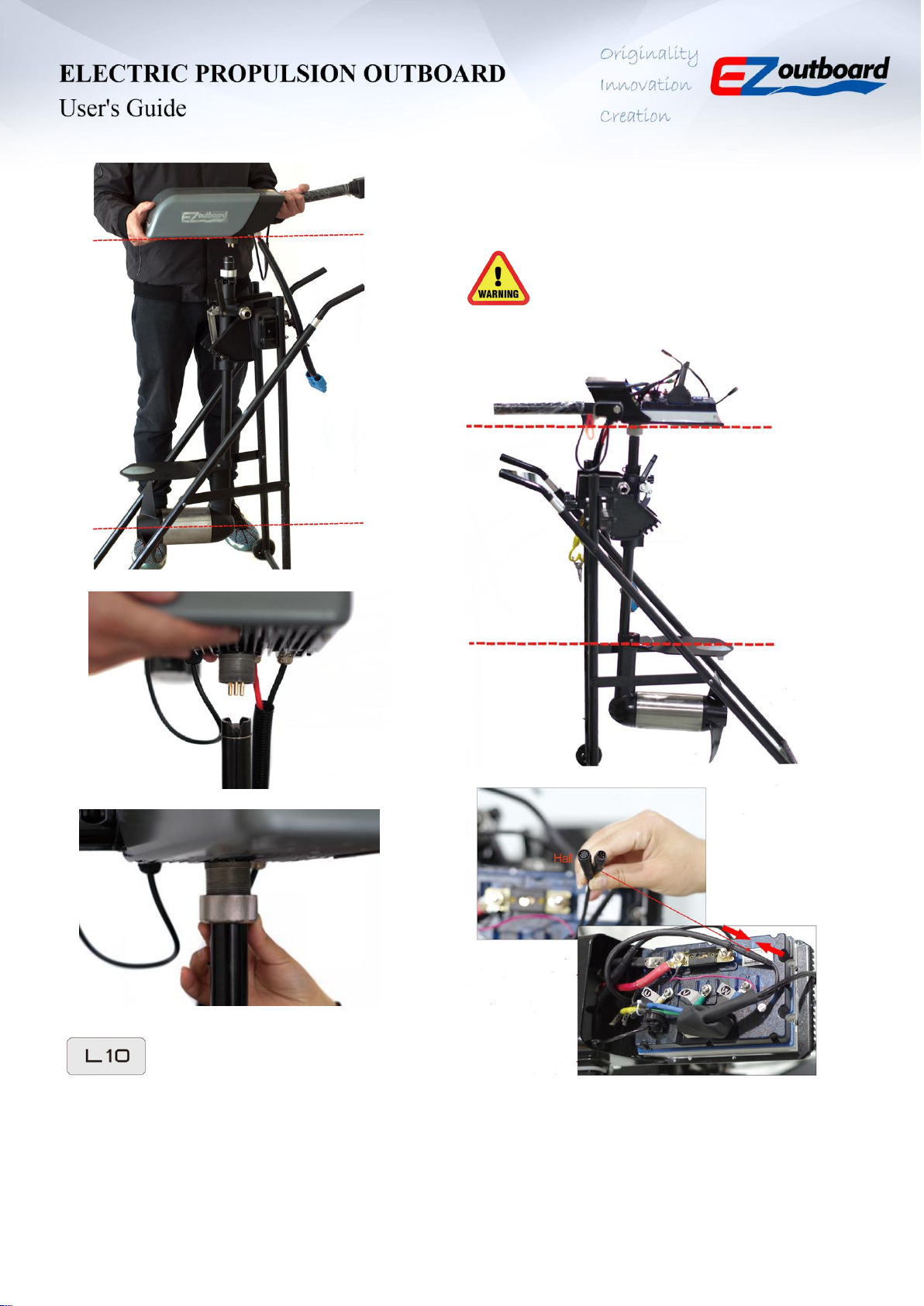

①Open the top cover, and put the four cables( U, V,
W, and hall cable) into the hole.
②Align the hole position, then plug the controller
unit into the motor unit and tighten the big silver nut.
③Wire U, V, W to the controller and connect the hall
cable to the black connector, then close the top cover.
When align the hole position, make sure
the controller mounting base is parallel to the motor.

All rights reserved Golden Motor Technology Co., Ltd. 2019
14
9. Shaft LengthAdjustment
Open the quick release clip, and adjust the shaft up
and down to the length you need, then close the quick
release clip.
Make sure you adjust the shaft length
according to your boat transom height before lifting
to boat.
10. Outboard Trimming
There are 4 holes provided in the bracket to adjust
trim angle.
Open the angle adjustment release handle to adjust
the outboard to a desired angle position, then close
the angle adjustment release handle.
Power off before adjusting the trim angle.
Use caution when trying a trim position for the first
time, improper trim angle can cause loss of energy
and reduce motor speed.

All rights reserved Golden Motor Technology Co., Ltd. 2019
15

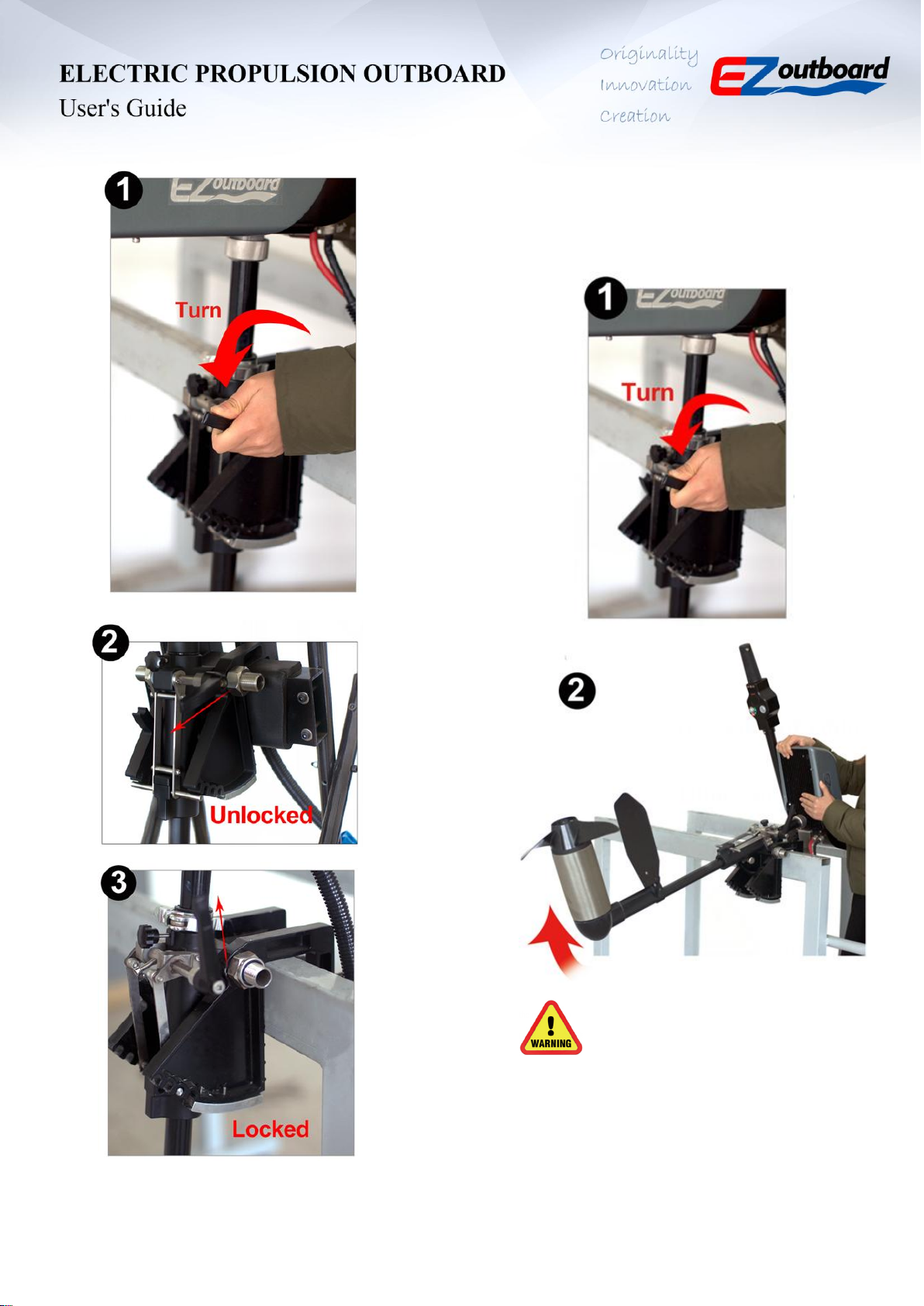

10. Outboard Tilting Up and Down
Tilting up: Open the angle adjustment release handle,
then hold the controller mounting base and slowly
turn it backwards until you hear " click".
Make sue the quick release is parallel to
the motor or the popeller when you tilting up.

All rights reserved Golden Motor Technology Co., Ltd. 2019
16

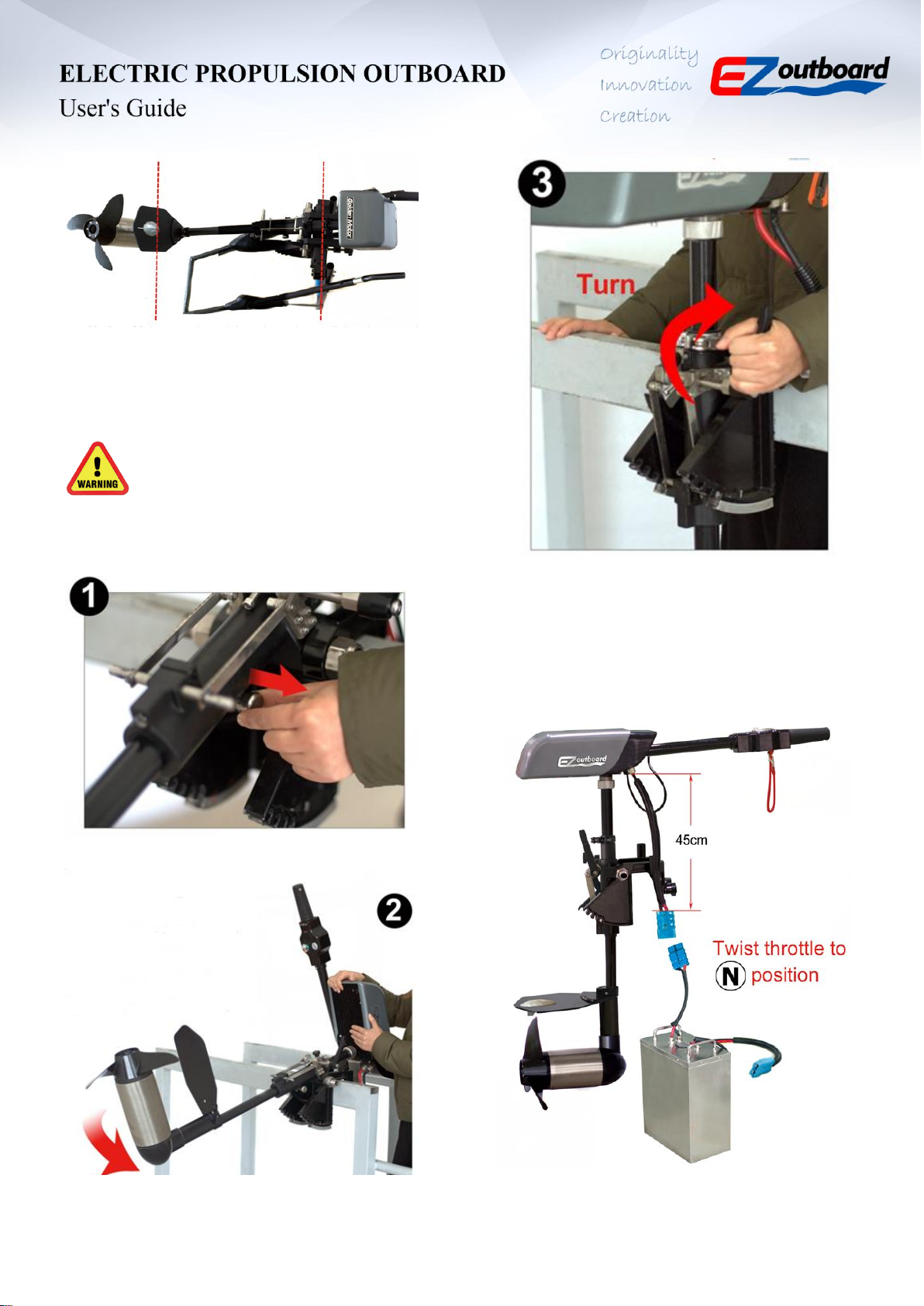

Tilting down: Pull the silver switch out, and
tilt down the outboard slowly, then close the
angle adjustment release handle.
When you pull the silver switch out, please
hold the controller mounting base and turn it slightly
backwards first.
12.Check if battery nominal voltage matches
outboard’s nominal voltage before connecting
battery to outboard.
