Fagor 8065 M User manual

(Ref: 1801)
8065
CNC
Panel PC.

BLANK PAGE
·2·
MACHINE SAFETY
It is up to the machine manufacturer to make sure that the safety of the machine
is enabled in order to prevent personal injury and damage to the CNC or to the
products connected to it. On start-up and while validating CNC parameters, it
checksthestatusofthefollowingsafetyelements. If any of them is disabled, the
CNC shows the following warning message.
• Feedback alarm for analog axes.
• Software limits for analog and sercos linear axes.
• Following error monitoring for analog and sercos axes (except the spindle)
both at the CNC and at the drives.
• Tendency test on analog axes.
FAGORAUTOMATIONshallnotbeheldresponsibleforany personalinjuriesor
physicaldamage caused orsufferedby theCNCresultingfrom anyofthesafety
elements being disabled.
DUAL-USE PRODUCTS
Products manufactured by FAGOR AUTOMATION since April 1st 2014 will
include "-MDU" in their identification if they are included on the list of dual-use
products according to regulation UE 428/2009 and require an export license
depending on destination.
TRANSLATION OF THE ORIGINAL MANUAL
This manual is a translation of the original manual. This manual, as well as the
documents derived from it, have been drafted in Spanish. In the event of any
contradictionsbetweenthedocumentinSpanishanditstranslations,thewording
in the Spanish version shall prevail. The original manual will be labeled with the
text "ORIGINAL MANUAL".
HARDWARE EXPANSIONS
FAGORAUTOMATION shallnotbe heldresponsible foranypersonalinjuriesor
physical damage caused or suffered by the CNC resulting from any hardware
manipulation by personnel unauthorized by Fagor Automation.
If the CNC hardware is modified by personnel unauthorized by Fagor
Automation, it will no longer be under warranty.
COMPUTER VIRUSES
FAGOR AUTOMATION guarantees that the software installed contains no
computer viruses. It is up to the user to keep the unit virus free in order to
guarantee its proper operation. Computer viruses at the CNC may cause it to
malfunction.
FAGORAUTOMATION shallnotbe heldresponsible foranypersonalinjuriesor
physical damage caused or suffered by the CNC due a computer virus in the
system.
Ifacomputervirusisfoundinthesystem,theunitwillnolongerbeunderwarranty.
All rights reserved. No part of this documentation may be transmitted,
transcribed, stored in a backup device or translated into another language
withoutFagorAutomation’sconsent.Unauthorizedcopyingor distributingofthis
software is prohibited.
The information described in this manual may be subject to changes due to
technical modifications. Fagor Automation reserves the right to change the
contents of this manual without prior notice.
Allthetrademarksappearinginthemanualbelongtothecorrespondingowners.
The use of these marks by third parties for their own purpose could violate the
rights of the owners.
It is possible that CNC can execute more functions than those described in its
associated documentation; however, Fagor Automation does not guarantee the
validity of those applications. Therefore, except under the express permission
from Fagor Automation, any CNC application that is not described in the
documentation must be considered as "impossible". In any case, Fagor
Automation shall not be held responsible for any personal injuries or physical
damage caused or suffered by the CNC if it is used in any way other than as
explained in the related documentation.
Thecontentofthismanualanditsvalidityfortheproductdescribedherehasbeen
verified. Even so, involuntary errors are possible, hence no absolute match is
guaranteed. However, the contents of this document are regularly checked and
updatedimplementingthenecessarycorrectionsinalateredition.Weappreciate
your suggestions for improvement.
The examples described in this manual are for learning purposes. Before using
them in industrial applications, they must be properly adapted making sure that
the safety regulations are fully met.

Panel PC.
CNC 8065
·3·
(REF: 1801)
INDEX
About the product - CNC 8065 ..................................................................................................... 5
Declaration of CE conformity and warranty conditions................................................................. 9
Version history - CNC 8065.........................................................................................................11
Safety conditions ........................................................................................................................ 13
Returning conditions................................................................................................................... 17
CNC maintenance ...................................................................................................................... 19
CHAPTER 1 PREVIOUS INFORMATION.
CHAPTER 2 MONITOR-21 MULTITOUCH.
2.1 Specifications................................................................................................................. 24
2.2 General diagram (MONITOR-21 MULTITOUCH).......................................................... 25
2.3 Dimensions. .................................................................................................................. 26
2.4 Enclosure and mounting of the module. ........................................................................ 27
2.4.1 Enclosure design........................................................................................................ 27
2.4.2 Securing the module.................................................................................................. 28
2.5 Voltage supply for the module. ...................................................................................... 30
2.6 Configuring the video signal from the monitor. .............................................................. 31
2.7 Connectors. ................................................................................................................... 32
2.8 Cable characteristics...................................................................................................... 34
2.8.1 VGA video signal........................................................................................................ 34
2.9 OSD (On Screen Display) menu.................................................................................... 35
2.9.1 Using the rear keyboard with the OSD menu............................................................. 35
2.9.2 OSD menu. ................................................................................................................ 36
2.9.3 Locks and unlocks the OSD menu............................................................................. 41
CHAPTER 3 PPC-21W.
3.1 Specifications. ............................................................................................................... 44
3.2 General diagram (PPC-21W)......................................................................................... 45
3.2.1 Networking, without access to the company network. .............................................. 45
3.2.2 Connecting to an ethernet network via the PC-panel. ............................................... 46
3.2.3 Connecting to an Ethernet network through a switch. ............................................... 47
3.3 Dimensions. .................................................................................................................. 48
3.4 Enclosure and mounting of the module. ........................................................................ 49
3.4.1 Ambient characteristics of the enclosure. .................................................................. 49
3.4.2 Enclosure design........................................................................................................ 49
3.4.3 Securing the module.................................................................................................. 51
3.5 Voltage supply for the module. ...................................................................................... 53
3.6 Hardware functionalities................................................................................................. 54
3.6.1 Rear keyboard. .......................................................................................................... 54
3.6.2 Monitor (lower end connectors). ................................................................................ 55
3.6.3 Panel PC (lower end connectors). ............................................................................ 56
3.6.4 Panel PC (top end connectors). ................................................................................ 59
3.7 Configuring the video signal from the monitor. .............................................................. 60
3.8 Connection..................................................................................................................... 61
3.8.1 VGA video signal........................................................................................................ 61
3.8.2 Touch controller. ....................................................................................................... 62
3.8.3 Ethernet (Fast Ethernet / Gigabit Ethernet)................................................................ 63
3.9 OSD (On Screen Display) menu.................................................................................... 65
3.9.1 Using the rear keyboard with the OSD menu............................................................. 65
3.9.2 OSD menu. ................................................................................................................ 66
3.9.3 Locks and unlocks the OSD menu............................................................................. 71
CHAPTER 4 PPC-19.
4.1 Specifications................................................................................................................. 74
4.2 General diagram (PPC-19 )........................................................................................... 75
4.2.1 Point-to-point connection with the CNC. ................................................................... 75
4.2.2 Connecting to an Ethernet network through a switch. ............................................... 76
4.3 Dimensions. .................................................................................................................. 77
4.4 Enclosure and mounting of the module. ........................................................................ 78
4.4.1 Ambient characteristics of the enclosure. .................................................................. 78

Panel PC.
CNC 8065
·4·
(REF: 1801)
4.4.2 Enclosure design. ...................................................................................................... 78
4.4.3 Securing the module.................................................................................................. 80
4.5 Voltage supply for the module. ..................................................................................... 81
4.6 Hardware functionality. Connectors. ............................................................................. 82
4.7 Connection..................................................................................................................... 84
4.7.1 Ethernet (Fast Ethernet / Gigabit Ethernet). ............................................................. 84
CHAPTER 5 FAGORCONNECT APPLICATION.
5.1 Installing the application. ............................................................................................... 85
5.2 The FagorConnect application....................................................................................... 86
5.3 Configure the application............................................................................................... 87
5.4 Work modes...................................................................................................................88
5.5 Diagnosis....................................................................................................................... 89
5.6 Accessing Panel PC resources from the CNC. ............................................................. 89

Panel PC.
CNC 8065
·5·
(REF: 1801)
ABOUT THE PRODUCT - CNC 8065
BASIC CHARACTERISTICS.
Basic characteristics. 8065 M 8065 M Power
Basic Pack 1 Basic Pack 1
Number of execution channels. 1 1 1 1 to 4
Number of axes. 3 to 6 5 to 8 5 to 12 8 to 28
Number of spindles. 1 1 to 2 1 to 4 1 to 4
Maximum number of axes and spindles. 7 10 16 32
Number of tool magazines. 1 1 1 to 2 1 to 4
Limited to 4 interpolated axes. Option Option Option Option
Basic characteristics. 8065 T 8065 T Power
Basic Pack 1 Basic Pack 1
Number of execution channels. 1 1 to 2 1 to 2 1 to 4
Number of axes. 3 to 5 5 to 7 5 to 12 8 to 28
Number of spindles. 2 2 3 to 4 3 to 4
Maximum number of axes and spindles. 7 9 16 32
Number of tool magazines. 1 1 to 2 1 to 2 1 to 4
Limited to 4 interpolated axes. Option Option Option Option
Basic characteristics. 8065 M 8065 M Power 8065 T 8065 T Power
Number of handwheels. 1 to 12
Type of servo system. Analog / Digital Sercos / Digital Mechatrolink
Communications. RS485 / RS422 / RS232
Ethernet
Integrated PLC.
PLC execution time.
Digital inputs / Digital outputs.
Marks / Registers.
Timers / Counters.
Symbols.
< 1ms/K
1024 / 1024
8192 / 1024
512 / 256
Unlimited
Block processing time. < 1 ms

Panel PC.
CNC 8065
·6·
(REF: 1801)
(*) Differential TTL / Sinusoidal 1 Vpp (**) TTL / Differential TTL / Sinusoidal 1 Vpp / SSI protocol / FeeDat / EnDat
Remote modules. RIOW RIO5 RIO70 RIOR RCS-S
Valid for CNC. 8070
8065
8060
8070
8065
8060
8070
8065
- - - D
I
S
C
O
N
T
I
N
U
E
D
8070
8065
8060
8070
8065
8060
Communication with the remote modules. CANopen CANopen CANfagor CANopen Sercos
Digital inputs per module. 8 24 / 48 16 48 - - -
Digital outputs per module. 8 16 / 32 16 32 - - -
Analog inputs per module. 4 4 8 - - - - - -
Analog outputs per module. 4 4 4 - - - 4
Inputs for PT100 temperature sensors. 2 2 - - - - - - - - -
Feedback inputs. - - - - - - 4 (*) - - - 4 (**)
Customizing (on an open system only).
PC-based open system, fully customizable.
INI configuration files.
Tool for display configuration FGUIM.
Visual Basic®, Visual C++®, etc.
Internal databases in Microsoft® Access.
OPC compatible interface

Panel PC.
CNC 8065
·7·
(REF: 1801)
SOFTWARE OPTIONS.

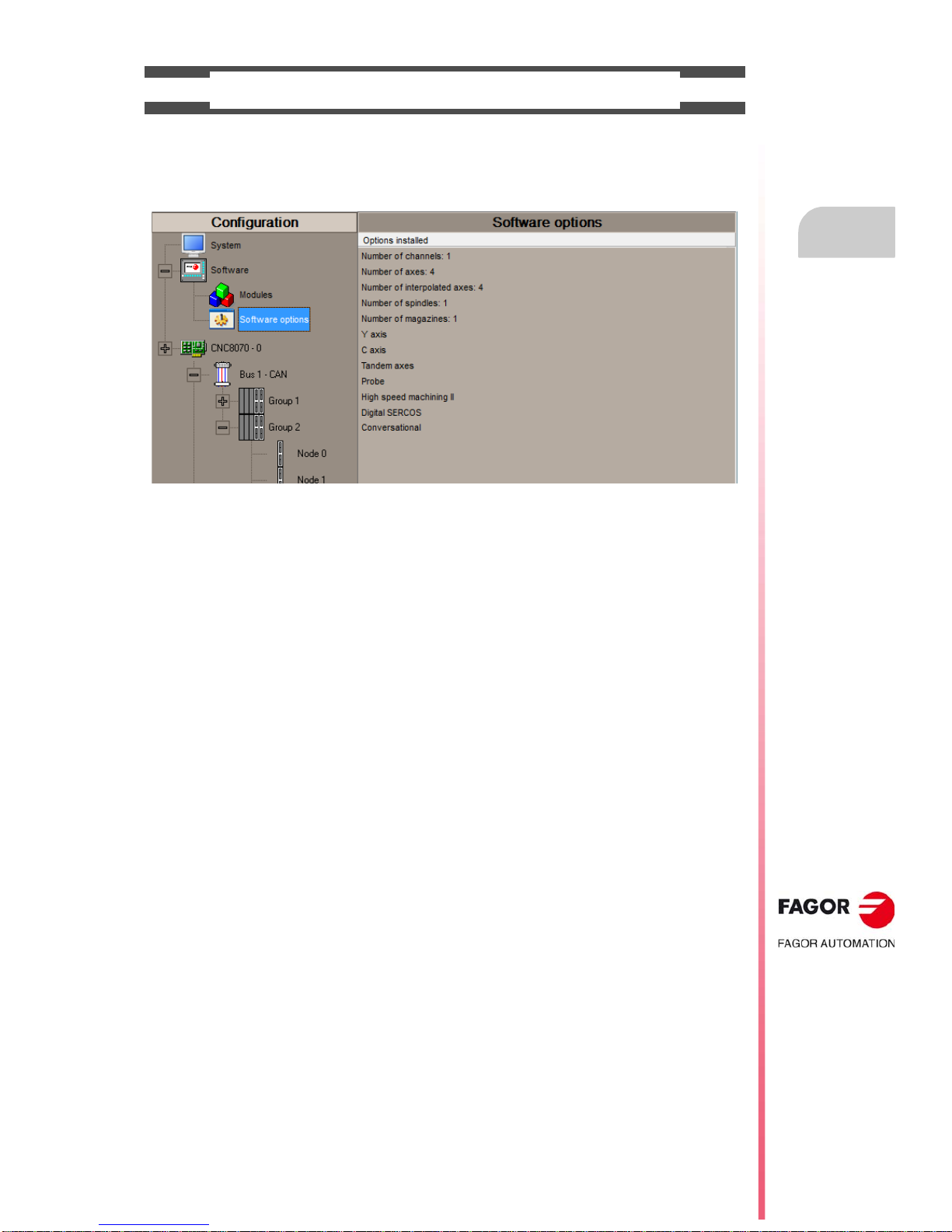

Someofthefeaturesdescribedinthismanualaredependentontheacquiredsoftwareoptions.Theactive
software options for the CNC can be consulted in the diagnostics mode (accessible from the task window
by pressing [CTRL] [A]), under software options.
Consult the ordering handbook for information on the software options available for your model.
SOFT ADDIT AXES
Additional shaft.
Add axes to the default configuration.
SOFT ADDIT SPINDLES
Additional spindle.
Add spindles to the default configuration.
SOFT ADDIT TOOL MAGAZ
Additional tool magazine.
Add tool magazines to the default configuration.
SOFT ADDIT CHANNELS
Additional channel.
Add channels to the default configuration.
SOFT 4 AXES INTERPOLATION LIMIT
Limited to 4 interpolated axes.
It limits the number of axes to 4, where the CNC can also
interpolate these at the same time.
SOFT OPEN SYSTEM
Open system.
The CNC is a closed system that offers all the features
neededtomachineparts.Nevertheless,attimesthereare
some customers who use third-party applications to take
measurements, perform statistics or other tasks apart
from machining a part.
This feature must be active when installing this type of
application, even if they are Office files. Once the
applicationhasbeeninstalled,itisrecommended to close
the CNC in order to prevent the operators from installing
other kinds of applications that could slow the system
down and affect the machining operations.
SOFT DIGITAL SERCOS
Sercos digital bus.
Sercos digital bus.
SOFT EDIT/SIMUL
EDISIMU mode (editing and simulation).
It allows for the editing, modification and simulation of a
part-program.
SOFT DUAL-PURPOSE (M-T)
Dual-purpose machine.
A dual-purpose machine allows for both milling and
turning cycles. On lathes with a Y axis, it allows making
pockets, bosses and even irregular pockets with islands
during milling cycles. Turning cycles can be used by
milling machines which have a rotary axis that functions
as a C axis.
SOFT IEC 61131 LANGUAGE
IEC 61131 language
IEC 61131 is a PLC programming language that is very
popular in alternative markets, which is slowly entering
into the machine-tool market. With this feature, the PLC
may be programmed either in the usual Fagor language
or in IEC 61131 format.
This feature requires the MP-PLUS (83700201)
processor.
SOFT TOOL RADIUS COMP
Compensación de radio.
Toolcompensationallows programmingthe contourto be
machined based on part dimensions of the and without
taking into account the dimensions of the tool that will be
used later on. This avoids having to calculate and define
the tool path based on the tool radius.
SOFT PROFILE EDITOR
Profile editor.
Allows for the part profiles to be edited graphically and to
import dxf files.

Panel PC.
CNC 8065
·8·
(REF: 1801)
SOFT IIP CONVERSATIONAL
Interactive Icon-based Pages (conversational mode).
IIP or conversational mode is specifically designed for
people without any prior programming knowledge or for
those that are not familiarized with Fagor CNC's.
Working in conversational mode is easier than in ISO
mode, as it ensures proper data entry and minimizes the
number of operations to be defined. There is no need to
work with part-programs.
SOFT HD GRAPHICS
HD graphics.
High definition solid 3D graphics for the execution and
simulation of part-programs and canned cycles of the
editor.
During machining, the HD graphics display, in real time,
the tool removing the material from the part, allowing the
condition of the part to be seen at all times. HD graphics
can display up to 4 views of the part, where each can be
rotated, zoomed in or zoomed out. Measurements can
also be made on the part and even sections on the piece
from any angle.
In a multi-channel system, this feature requires the MP-
PLUS (83700201) processor.
SOFT RTCP
Dynamic RTCP (Rotating Tool Center Point).
The dynamic RTCP option is required for interpolation
machining with 4, 5 or 6 axis.
This feature requires the MP-PLUS (83700201)
processor.
SOFT C AXIS
C axis.
It activates the kinematics for working with the C axis and
the associated canned cycles. The CNC can control
several C axes. The parameters of each axis indicate if it
will function as a C axis or not, where it will not be
necessary to activate another axis for the machine
parameters.
SOFT Y AXIS
Y axis for lathe.
It activates the kinematics for working with the Y axis and
the associated canned cycles.
SOFT TANDEM AXES
Tandem axes.
A tandem axis consists in two motors mechanically
coupled (slaved) and making up a single transmission
system (axis or spindle). A tandem axis helps provide the
necessary torque to move an axis when a single motor is
not capable of supplying enough torque to do it.
Whenactivating thisfeature,itshould bekeptin mindthat
foreachtandemaxisofthemachine,anotheraxismustbe
addedto theentire configuration. Forexample, ona large
3-axis lathe (X Z and tailstock), if the tailstock is a tandem
axis, the final purchase order for the machine must
indicate 4 axes.
SOFT SYNCHRONISM
Synchronization of axes and spindles.
The axes and ballscrews may be synchronized in two
ways: in terms of speed or position. The CNC
configurationtakesintoconsiderationthesynchronization
of 2 axes or 2 spindles. Once synchronized, only the
master displays and programs the element.
SOFT KINEMATIC CALIBRATION
Kinematics calibration.
This work mode may be used to calibrate kinematics for
the first time and to re-calibrate itevery so often to correct
any possible deviations originated by the day-to-day
machine work.
SOFT HSSA II MACHINING SYSTEM
HSSA-II machining system.
This is the new version of algorithms for high speed
machining (HSC). This new HSSA algorithm allows for
high speed machining optimization, where higher cutting
speeds,smoothercontours,a bettersurfacefinishingand
greater precision are achieved.
SOFT TANGENTIAL CONTROL
Tangential control.
"Tangential Control" maintains a rotary axis always in the
same orientation with respect to the programmed tool
path. The machining path is defined on the axes of the
active plane and the CNC maintains the orientation of the
rotary axis along the entire tool path.
SOFT PROBE
Probing canned cycles.
The CNC may have two probes; usually a tabletop probe
to calibrate tools and a measuring probe to measure the
part.
Thisoption activatesthe functionsG100,G103 andG104
(for probe movements) and probe canned cycles (which
help to measure part surfaces and to calibrate tools).
SOFT CONV USER CYCLES
Conversational user cycles.
Incorporation of user cycles in conversational mode.
SOFT 70 PROGTL3
ProGTL3 programming language
Another language apart from ISO for the programming of
profiles using a geometric language without the need to
use external CAD systems. This language allows for
program functions to define lines and circles which define
thepointsofintersectiononaprofile,inadditiontomacros
for the creation of solids defined by a flat profile and one
or more section profiles.
SOFT PPTRANS
Part-program translator.
The program translator may be used to convert programs
written in other languages into Fagor ISO codes.
SOFT THIRD PARTY CANOPEN
Third-party CANopen.
Enables the use of non-Fagor CANopen modules.
SOFT FVC UP TO 10m3
SOFT FVC MORE TO 10m3
Medium and large volumetric compensation.
5-axis machines are generally used during the
manufacturing of large parts. The accuracy of the parts is
limited by the machine manufacturing tolerances and is
effected by temperature variations during machining.
In sectors such as the aerospace industry, machining
demands mean that classic compensation tools are
becoming suboptimal. Volumetric compensation FVC
comes in to complement the machine adjusting tools.
When mapping the total work volume of the machine, the
CNCknows theexact positionofthetool atalltimes. After
applying the required compensation, the resulting part is
made with the desired precision and tolerance.
There are 2 choices, which depend on the size of the
machine, being up to 10 m³ and over 10 m³.

Panel PC.
CNC 8065
·9·
(REF: 1801)
DECLARATION OF CE CONFORMITY AND
WARRANTY CONDITIONS
DECLARATION OF CONFORMITY
The declaration of conformity for the CNC is available in the downloads section of FAGOR’S corporate
website. http://www.fagorautomation.com. (Type of file: Declaration of conformity).
WARRANTY TERMS
ThewarrantyconditionsfortheCNCareavailableinthedownloadssectionofFAGOR’scorporatewebsite.
http://www.fagorautomation.com. (Type of file: General sales-warranty conditions.

BLANK PAGE
·10·

Panel PC.
CNC 8065
·11·
(REF: 1801)
VERSION HISTORY - CNC 8065
Here is a list of the features added to each manual reference.
Ref. 1709
Ref. 1801
First version.
Corrected errors.

BLANK PAGE
·12·

Panel PC.
CNC 8065
·13·
(REF: 1801)
SAFETY CONDITIONS
Readthefollowingsafetymeasuresinordertopreventharmingpeopleordamagetothisproductandthose
productsconnectedtoit.FagorAutomationshallnotbeheldresponsibleofanyphysicalormaterialdamage
originated from not complying with these basic safety rules.
PRECAUTIONS BEFORE CLEANING THE UNIT
PRECAUTIONS DURING REPAIRS
In case of a malfunction or failure, disconnect it and call the technical service.
PRECAUTIONS AGAINST PERSONAL HARM
Before start-up, verify that the machine that integrates this CNC meets the 2006/42/EC Directive.
Do not get into the inside of the unit. Only personnel authorized by Fagor Automation may access the
interior of this unit.
Do not handle the connectors with the unit
connected to AC power. Before handling these connectors (I/O, feedback, etc.), make sure that the unit is not powered.
Do not get into the inside of the unit. Only personnel authorized by Fagor Automation may access the
interior of this unit.
Do not handle the connectors with the unit
connected to AC power. Before handling these connectors (I/O, feedback, etc.), make sure that the unit is not powered.
Interconnection of modules. Use the connection cables provided with the unit.
Use proper cables. To prevent risks, only use cables and Sercos fiber recommended for
this unit.
Toprevent arisk ofelectrical shock at thecentral unit,use theproper
connector (supplied by Fagor); use a three-prong power cable (one
of them being ground).
Avoid electric shocks. Topreventelectricalshockandfirerisk,donotapplyelectricalvoltage
out of the indicated range.
Ground connection. In order to avoid electrical discharges, connect the ground terminals
of all the modules to the main ground terminal. Also, before
connecting the inputs and outputsof this product, make sure that the
ground connection has been done.
Inorder toavoidelectrical shock,before turningtheunit onverifythat
the ground connection is properly made.
Do not work in humid environments. In order to avoid electrical discharges, always work with a relative
humidity (non-condensing).
Do not work in explosive environments. In order to avoid risks, harm or damages, do not work in explosive
environments.

Panel PC.
CNC 8065
·14·
(REF: 1801)
PRECAUTIONS AGAINST DAMAGE TO THE PRODUCT
SAFETY SYMBOLS
Symbols that may appear in the manual.
Work environment. Thisunitisreadytobeusedinindustrialenvironmentscomplyingwith
the directives and regulations effective in the European Community.
Fagor Automation shall not be held responsible for any damage
suffered or caused by the CNC when installed in other environments
(residential, homes, etc.).
Install this unit in the proper place. It isrecommended, whenever possible, to install the CNC away from
coolants, chemical product, blows, etc. that could damage it.
This unit meets the European directives on electromagnetic
compatibility. Nevertheless, it is recommended to keep it away from
sources of electromagnetic disturbance such as:
Powerful loads connected to the same mains as the unit.
Nearby portable transmitters (radio-telephones, Ham radio
transmitters).
Nearby radio / TC transmitters.
Nearby arc welding machines.
Nearby high voltage lines.
Enclosures. Itisup tothemanufacturerto guaranteethattheenclosure wherethe
unit has been installed meets all the relevant directives of the
European Union.
Avoid disturbances coming from the
machine. The machine must have all the interference generating elements (relay coils, contactors, motors, etc.) uncoupled.
Use the proper power supply. Use an external regulated 24 Vdc power supply for the keyboard,
operator panel and the remote modules.
Connecting the power supply to ground. The zero Volt point of the external power supply must be connected
to the main ground point of the machine.
Analog inputs and outputs connection. Useshieldedcablesconnectingalltheirmeshestothecorresponding
pin.
Ambient conditions. Maintain the CNC within the recommended temperature range, both
when running and not running. See the corresponding chapter in the
hardware manual.
Central unit enclosure. Tomaintaintherightambientconditionsintheenclosureofthecentral
unit, it must meet the requirements indicated by Fagor. See the
corresponding chapter in the hardware manual.
Power switch. Thisswitchmustbeeasytoaccessandatadistancebetween0.7and
1.7 m (2.3 and 5.6 ft) off the floor.
Danger or prohibition symbol.
This symbol indicates actions or operations that may hurt people or damage products.
Warning or caution symbol.
This symbol indicates situations that certain operations could cause and the suggested actions to prevent
them.
Obligation symbol.
This symbol indicates actions and operations that must be carried out.
Information symbol.
This symbol indicates notes, warnings and advises.
Symbol for additional documentation.
This symbol indicates that there is another document with more detailed and specific information.
i

Panel PC.
CNC 8065
·15·
(REF: 1801)
Symbols that the product may carry.
Ground symbol.
This symbol indicates that that point must be under voltage.
ESD components.
This symbol identifies the cards as ESD components (sensitive to electrostatic discharges).

BLANK PAGE
·16·

Panel PC.
CNC 8065
·17·
(REF: 1801)
RETURNING CONDITIONS
Pack it in its original package along with its original packaging material. If you do not have the original
packaging material, pack it as follows:
1Get a cardboard box whose 3 inside dimensions are at least 15 cm (6 inches) larger than those of the
unit itself. The cardboard being used to make the box must have a resistance of 170 Kg (375 lb.).
2Attach a label to the device indicating the owner of the device along with contact information (address,
telephone number, email, name of the person to contact, type of device, serial number, etc.). In case
of malfunction also indicate symptom and a brief description of the problem.
3Protecttheunitwrappingitupwitharollofpolyethyleneorwithsimilarmaterial.Whensendingacentral
unit with monitor, protect especially the screen.
4Pad the unit inside the cardboard box with polyurethane foam on all sides.
5Seal the cardboard box with packaging tape or with industrial staples.

BLANK PAGE
·18·

Panel PC.
CNC 8065
·19·
(REF: 1801)
CNC MAINTENANCE
CLEANING
The accumulated dirt inside the unit may act as a screen preventing the proper dissipation of the heat
generatedbytheinternalcircuitrywhichcouldresultinaharmfuloverheatingoftheunitand,consequently,
possiblemalfunctions.Accumulateddirtcansometimesactasanelectricalconductor andshort-circuitthe
internal circuitry, especially under high humidity conditions.
To clean the operator panel and the monitor, a smooth cloth should be used which has been dipped into
de-ionized water and /or non abrasive dish-washer soap (liquid, never powder) or 75º alcohol. Never use
air compressed at high pressure to clean the unit because it could cause the accumulation of electrostatic
charges that could result in electrostatic shocks.
The plastics used on the front panel are resistant to grease and mineral oils, bases and bleach, dissolved
detergents and alcohol. Avoid the action of solvents such as chlorine hydrocarbons, venzole, esters and
ether which can damage the plastics used to make the unit’s front panel.
PRECAUTIONS BEFORE CLEANING THE UNIT
Fagor Automation shall not be held responsible for any material or physical damage derived from the
violation of these basic safety requirements.
• Do not handlethe connectors with theunit supplied with power.Beforehandlingtheseconnectors(I/O,
feedback, etc.), make sure that the unit is not powered.
• Do not get into the inside of the unit. Only personnel authorized by Fagor Automation may access the
interior of this unit.

BLANK PAGE
·20·
