Falcon i9042 Manual

F900 SERIES
User, installation and servicing instructions
INDUCTION COUNTER
TOPS
i9042, i9043, i9084, i9085
Read these instructions before use
REV.7
Published:30/08/2017
1717/07/2015
DATE PURCHASED:
MODEL NUMBER:
SERIAL NUMBER:
DEALER:
SERVICE PROVIDER:
T100895

2
Falcon Foodservice Equipment
HEAD OFFICE
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of appliance life, dispose of appliance and any replacement parts in
a safe manner, via a licensed waste handler. Appliances are designed to
be dismantled easily and recycling of all material is encouraged whenever
practicable.
Dear Customer,
Thank you for choosing Falcon Foodservice Equipment.
This manual can be downloaded from www.falconfoodservice.com or scan
here.
IMPORTANT: Please keep this manual for future reference.

3
SYMBOLS
•SPANNER • SCREWDRIVER • COOKING OIL • GREASE
• SPARK IGNITION • FLAME •WARNING • VIEWPORT
•ALLEN KEY •IGNITER

4
These instructions are only valid if the country code appears on the
appliance. If the code does not appear on the appliance, refer to the
technical instructions for adapting the appliance to the conditions for
use in that country.
Installation must meet national or local regulations. Attention must be
paid to: gas safety (installation & use) regulations, health and safety at
work act, local and national building regulations, fire precautions act.

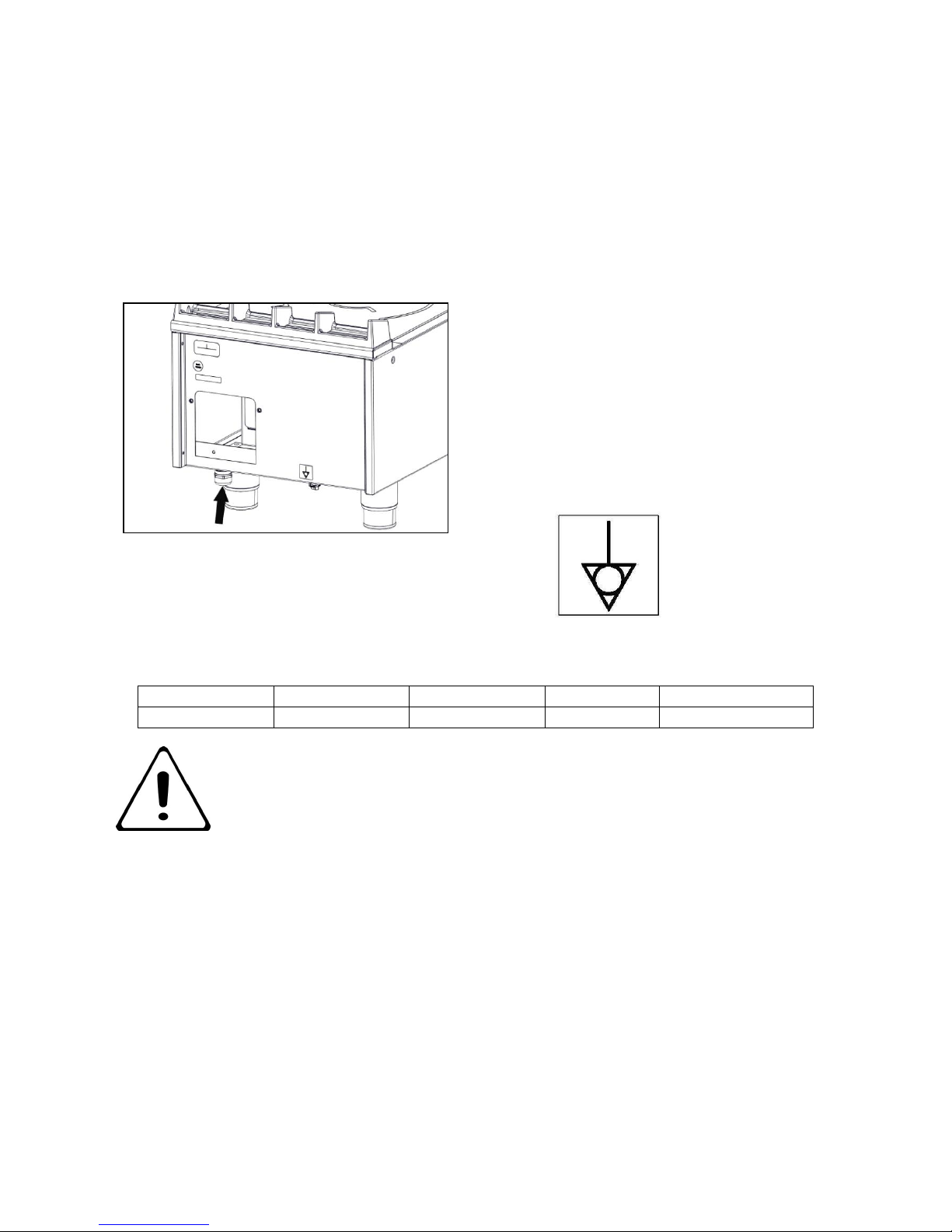

To prevent shocks, all appliances must be earthed.
This equipment is for professional use only and must be used by
qualified persons.
The installer must instruct the responsible person(s) of the correct
operation and maintenance of the appliance.
Only competent persons are allowed to service or convert the appliance
to another gas type.
Gas appliances must have a stop cock fitted in the supply pipe work.
The user must be familiar with the location and operation of this device
in order to turn off the supply of gas in the event of an emergency.
Unless otherwise stated, parts which have been protected by the
manufacturer must not be adjusted by the installer.
Take care when moving an appliance fitted with castors.
The appliance must be serviced regularly by a qualified person. Service
intervals should be agreed with the service provider.
This appliance may be discolored due to testing.

5
CONTENTS
1.0 APPLIANCE INFORMATION...........................................................................6
2.0 OPERATION....................................................................................................7
2.1 COMPONENT PARTS..................................................................................8
2.2 CONTROLS..................................................................................................9
2.3 USING THE INDUCTION HOB................................................................9-10
3.0 CLEANING AND MAINTENANCE .................................................................11
4.0 SPECIFICATION............................................................................................11
5.0 DIMENSIONS / CONNECTION LOCATION ..................................................12
6.0 INSTALLATION..............................................................................................13
6.1 SITING / CLEARANCES.............................................................................13
6.2 ELECTRICAL SUPPLY AND CONNECTION.............................................14
6.3 ASSEMBLY.................................................................................................15
6.4 COMMISSIONING......................................................................................15
6.5 INSTRUCTION TO USER...........................................................................15
6.4 SUITING ................................................................................................16-17
7.0 SERVICING AND CONVERSION..................................................................18
7.1 CONTROL PANEL......................................................................................18
7.2 REMOVING THE GENERATOR............................................................18-19
7.3 REPLACING CONTROL SWITCH/LED INDICATORS...............................20
7.4 HOB ASSEMBLY........................................................................................21
7.5 INDUCTION COIL ASSEMBLY..............................................................21-22
8.0 FAULT FINDING ............................................................................................23
8.1 ERROR CODE TABLE ..........................................................................23-25
9.0 CIRCUIT DIAGRAM..................................................................................26-27
10.0 WIRING DIAGRAM................................................................................28-30
11.0 SPARE PARTS...........................................................................................31
12.0 SERVICE INFORMATION ..........................................................................31

6
1.0 APPLIANCE INFORMATION
This appliance has been CE-marked on the basis of compliance with the relevant EU
directives for the heat inputs, gas pressures and voltages stated on the data plate.
A - Serial No •
B - Model No •
C - Flue Type •
D - Gas Category •
E - Gas Pressure •
F - Gas Type •
G - Gas Rate •
H - Total Heat Input •
I - Electrical Rating •
J - Total Electrical Power •
K - Magnetic Field Frequency •
L - Electrical Phase Loading •

7
2.0 OPERATION
IF GLASS-CERAMIC TOP IS CRACKED OR BROKEN IMMEDIATELY
DISCONNECT APPLIANCE FROM POWER SUPPLY AND CONTACT
YOUR SERVICE AGENT.
THE AIR INTAKE FILTER MUST BE IN POSITION DURING
OPERATION IT SHOULD BE CLEANED REGULARLY AND DO NOT
OBSTRUCT AIR FILTER ENTRY BELOW.
USERS MUST BE MADE AWARE THAT INDIVIDUALS FITTED WITH A
PACEMAKER SHOULD CONSULT THEIR DOCTOR IF IN A CLOSE
PROXIMITY TO THIS UNIT. THIS INDUCTION UNIT EMANATES AN
18KHz TO 20 KHz OUTPUT THAT MAY AFFECT OLDER TYPES OF
PACEMAKER.
USE OF THE CORRECT TYPE OF PAN IS ESSENTIAL FOR
CORRECT OPERATION.
DO NOT PLACE ANY METAL OBJECTS, SUCH AS KITCHEN
UTENSILS, CUTLERY, ALUMINIUM FOIL, OR PLASTIC VESSELS, ON
THE GLASS-CERAMIC TOP.
THE USER MUST ALSO BE AWARE OF POTENTIAL TO HEAT
JEWELLERY AND DISRUPT ELECTRONIC EQUIPMENT PLACED
OVER THE INDUCTION ZONES MAGNETIC FIELD.
DO NOT PLACE CREDIT CARDS, ETC, ON THE GLASS-CERAMIC
TOP AS DATA COULD BE WIPED OFF.
NEVER LEAVE THE INDUCTION HOB UNSUPERVISED WHEN IN
USE. THE GLASS-CERAMIC TOP MUST NOT BE USED FOR
STORAGE.
DAMAGED PANS CAN REDUCE THE APPLIANCE EFFICIENCY.

8
2.1 COMPONENT PARTS
A –Glass hob
B –Filter
C –Cast iron flue capper
D –Control switch

9
2.2 CONTROLS
A–Cooking surface.
B–Control switch.
C–Off position
D–Zone indicator
E- LED
2.3 USING THE INDUCTION HOB
2.3.1 Ensure you use the correct size of pot.
<Ø120 Ø120 –Ø270
2.3.2 Ensure the pots are central in the cooking zone
2.3.3 Ensure you use the correct type of pot





10
2.3.4 Ensure you use a clean flat bottom pan
2.3.5 Turn on control. The green L.E.D will light. If you remove the pot from the cooking
zone the L.E.D will flash at 1 second intervals to indicate that the cooking zone is still
active.






