Falcon Multimax MB1011 User manual

Falcon has teamed up with Groen, leaders in steaming and boiling technology,
based in the USA.
Groen were established in 1907 and are recognised as the world’s largest
manufacturer of steam-jacketed kettles, braising pans and pressureless steamers.
The Products include Floor Standing and Table Top mounted Tilting Kettles with
capacities from 10 to 227 litres. Braising Pans (40 to 152 litre capacity) and
Jacketed Boiling Pans (76 to 303 litre capacity) are also available.
These products add an extra dimension to the comprehensive range of Falcon
equipment used throughout the catering and hospitality industry. Whether its those
special á la carte or banqueting occasions the heavy demands of the armed forces,
prison services, health care and educational establishments, Groen’s partnership with
Falcon assures the caterer the confidence associated with reliable equipment
manufactured to the highest standards.
INTRODUCTION TO STEAM JACKETED KETTLES
Self Contained Floor Model Kettles
Floor Standing Tilting Kettles
Table Top Steam Jacketed Kettles
Floor Kettles –Direct Steam
Direct Steam Table Top Kettles, Options & Accessories
INTRODUCTION TO TILTING BRAISING PANS
Tilting Braising Pans
INTRODUCTION TO HyPerSteam™STEAMERS
What Makes HyPerSteam™Different?
HyPerSteam™Steamers (Counter-Top)
HyPerSteam™Steamers
HyPerSteam™Steamers
Kettle Options and Accessories & Sizing Guide
Braising Pan Menu Guide
HyPerSteam™Menu & Features Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Steam Jacketed Kettles All products that
otherwise might be prepared in a stockpot, can be prepared more quickly
and efficiently in a Groen Steam Jacketed Kettle. There is a Groen Kettle
that is perfect for your operation and menu requirements.
Tilting Braising Pans The Groen Braising Pan
is now considered the most versatile piece of cooking equipment available today.
Excellent for pan frying, kettle & griddle cooking, and braising. The versatility
of the Groen Braising Pan makes it ideal for foodservice operations of all sizes.
HyPerSteam™Steamers The Groen Hypersteam
range of steamers is a true breakthrough in steamer technology. Atmospheric
steam generators coupled with a powerful fan increase steam velocity.
The result is faster cooking times with even cooking temperatures throughout.
Contents

WATER OR
PRODUCT
OUTER
JACKET
INNER
JACKET
STEAM
UNDER
PRESSURE
BOILING
WATER
HEATING
ELEMENTS
(ELECTRIC)
1
Introduction to Steam Jacketed Kettles
Steamjacketedkettlescookfaster,yetcostlesstooperate,andprovidemoreeven,gentleheating.
Howdotheydeliverthisuniquecombinationofpowerandcookingprecision?
The Amazing Thermal Efficiency Of Steam...
Steamcarriesapproximatelysixtimestheenergyofboilingwaterandgivesupthatenergyupon
contactwithacoldersurface.Thissimplefactmakessteamanidealheattransfermedium,and
steamjacketedkettlestheidealwaytocook,reheatandholdawidevarietyofmenuitems.
Unique Kettle Construction...Asteamjacketedkettleisformedfromtwostainlesssteel
hemispheres,whicharenestedandweldedtoformaspaceor“jacket”tocontainsteam.
Groen Kettles Cook Faster
A stock pot only transfers heat on the bottom. A kettle transfers heat through the entire jacketed
bottom and sides. Steam jacketed kettles have 3-4 times more heat transfer surface area than
the same size stock pot, which means faster heat up and faster cook times.
Groen Kettles Are More Efficient
Kettles transfer more of their energy into the food product. Range burners only heat the bottom of
the stock pot and can be inefficient. Groen gas heated kettles are 58-65% efficient and electric
models are even more efficient. Faster cook times mean less energy used and lower fuel bills.
Direct steam kettles can operate from an existing steam source, for even greater energy savings.
Groen Kettles Save Labour
A single chef or cook can prepare larger batches of your soups and other popular menu specialties,
in a steam kettle. With even heating and precise temperature control, there is less need for
constant "pot watching" and frequent stirring. Gear assisted manual and power tilts make product
transfer and portioning fast and easy. With larger single batch capabilities, you can reduce
repetitive work and utilise more automated prep equipment. Kettles are major labour savers.
Groen Kettles Improve Consistency & Reduce Product Loss From Burn-on
Groenkettles don'thave "hotspots" anddon't requireconstant stirring toavoid productburn-on and
scorching.Steam jacketedkettles areideal forpreparation ofdelicate sauces,cream basedsoups,
dessert fillingsand heatsensitive confections.Even unskilledemployees canconsistently cook,reheat
andhold menuitems, batchafter batch,day afterday. Groenkettles aremore "forgiving"than range
toppreparation methodsand theymake employeetraining easier.
Groen Kettles Reduce Heavy Lifting...
Counterbalanced tilting kettles and models equipped with product drawoff valves reduce the need
for heavy lifting and simplify product transfer and portioning.
Groen Kettles Are Easier To Clean...
A Groen kettle can braise that meat, simmer a great sauce and boil three kinds of pasta, with
fewer pans and less pan and utensil washing. And less burn-on means less pot scrubbing.
Kettles Cook Faster & Use Less Energy!
HEATING TIME ENERGY USED
IN MINUTES KWH
70
60
50
40
30
20
10
35Kg OF 18°C WATER TO 100°C
(MIN)
180% LONGER 42% MORE ENERGY
FASTER
SAVE ££
7
6
5
4
3
2
1
(KWH)
GROEN TDB/7-40 KETTLE
GROEN TDB/7-40 KETTLE (2) 20 QUART STOCK POTS ON RANGE TOP SECTION (2) 20 QUART STOCK POTS ON RANGE TOP SECTION

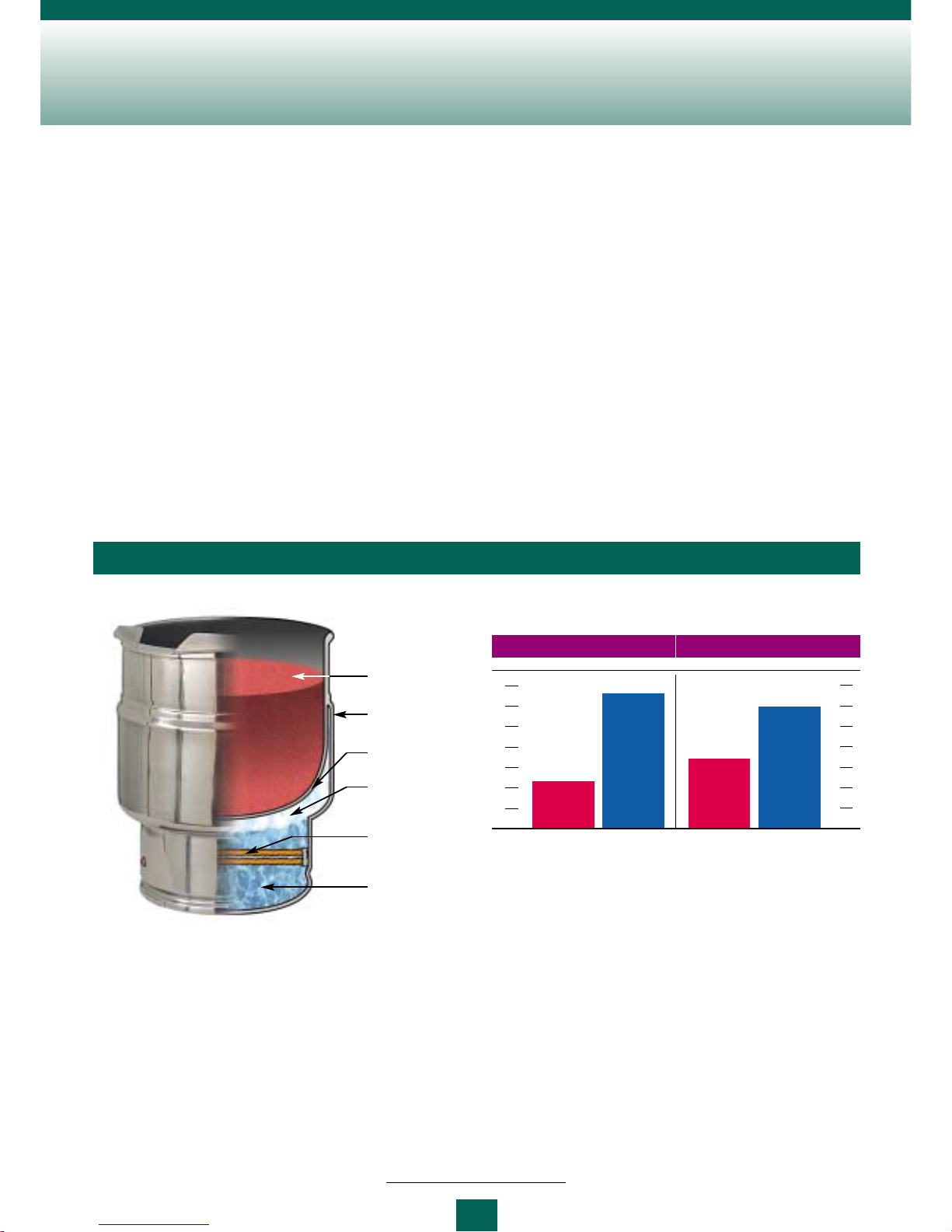

Whensteamentersthatjacketspacefromabuilt-insteamgenerator,itisaself-containedkettle.
Whensteamispipedinfromaremoteboiler,itiscalledadirectsteamkettle.
Efficient Steam Heat Transfer... Whensteamentersthejacket,itexpandstofilltheentire
spaceandtransfersitsenergyloadtotheinnerkettlewallandthenintothewaterorfoodbeing
heated.Heatistransferreduniformlythroughtheentirejacketedhemispheresurfacearea.There
arenohotspotsortemperaturevariations.
The Steam Pressure/Temperature Relationship... Atatmosphericpressure,steamis
100°C.Underpressure,waterboilsandconvertsintosteamattemperaturesabove100°C.
Forexample,at3.5bar,steamis148°C.Theratedmaximumsteampressureofkettlesvariesby
type,buttypicallyis1.5-3.45barandhigheronfoodprocessingandsomecook-chillproduction
kettles.Thisrelationshipbetweenpressureandsteamisimportantifmorerapidheatingor
browning(caramelizationofsugars)isrequiredinasteamkettle.Thenkettlemodelswithhigher
ratedpressuresshouldbeconsidered.
How do Steam Jacketed Kettles Work?
See page 14 for Kettle sizing and options.

Groen self-contained, floor model kettles are perfect for preparing vegetables, stews,
pasta, sauces, soups, gravies and much more. These steam jacketed kettles
out-perform range top cooking with superior energy efficiency, high speed performance
and greater productivity. Each gas or electric heated model makes its own steam.
No remote steam source or boiler is required. All models are thermostatically controlled
to heat and hold any product at the desired temperature, without scorching. Product
transfers are accomplished with a tangent draw-off (stationary models) or a convenient,
self locking tilt mechanism (tilting models).

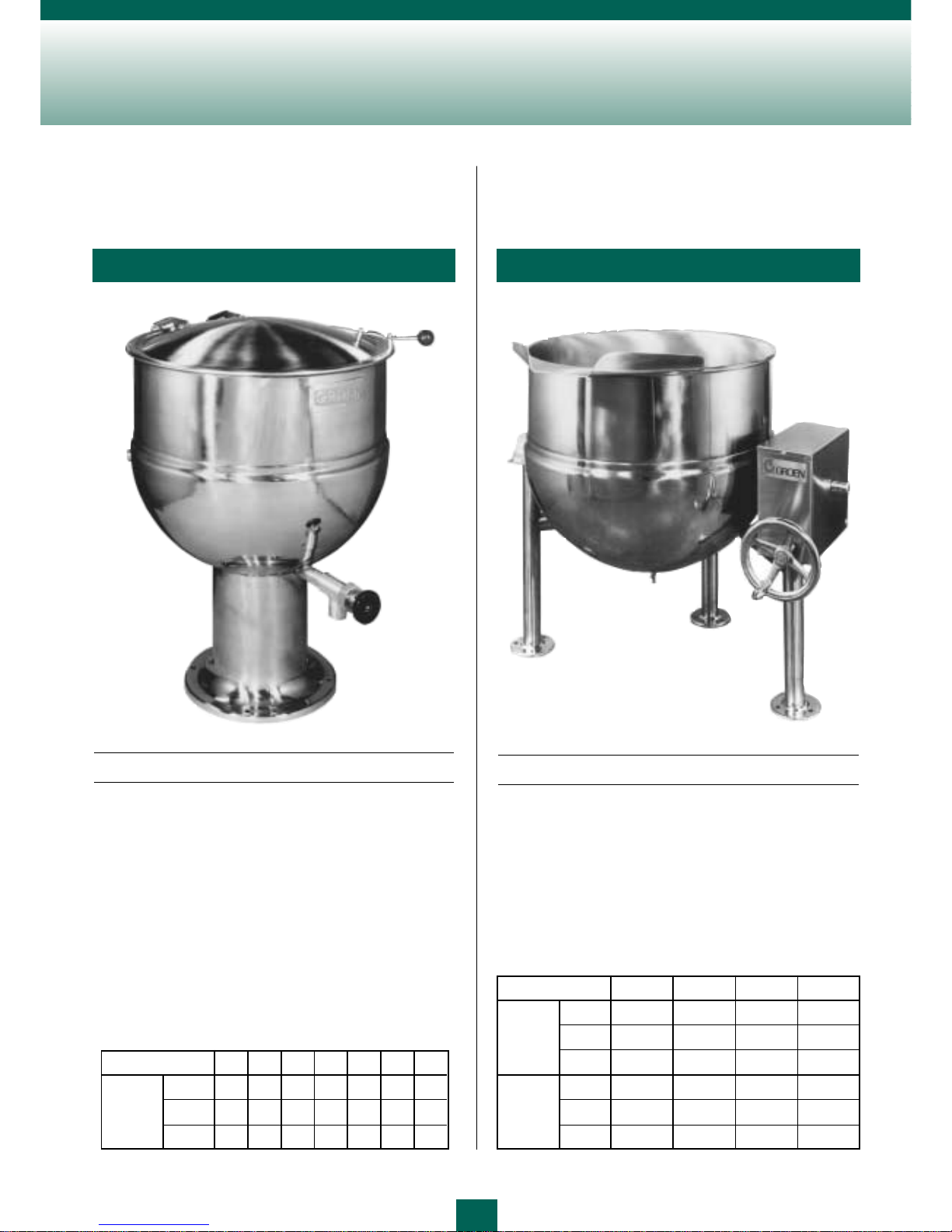

Non-Tilting Kettles
Model EE, Steam Jacketed Boiling Pan

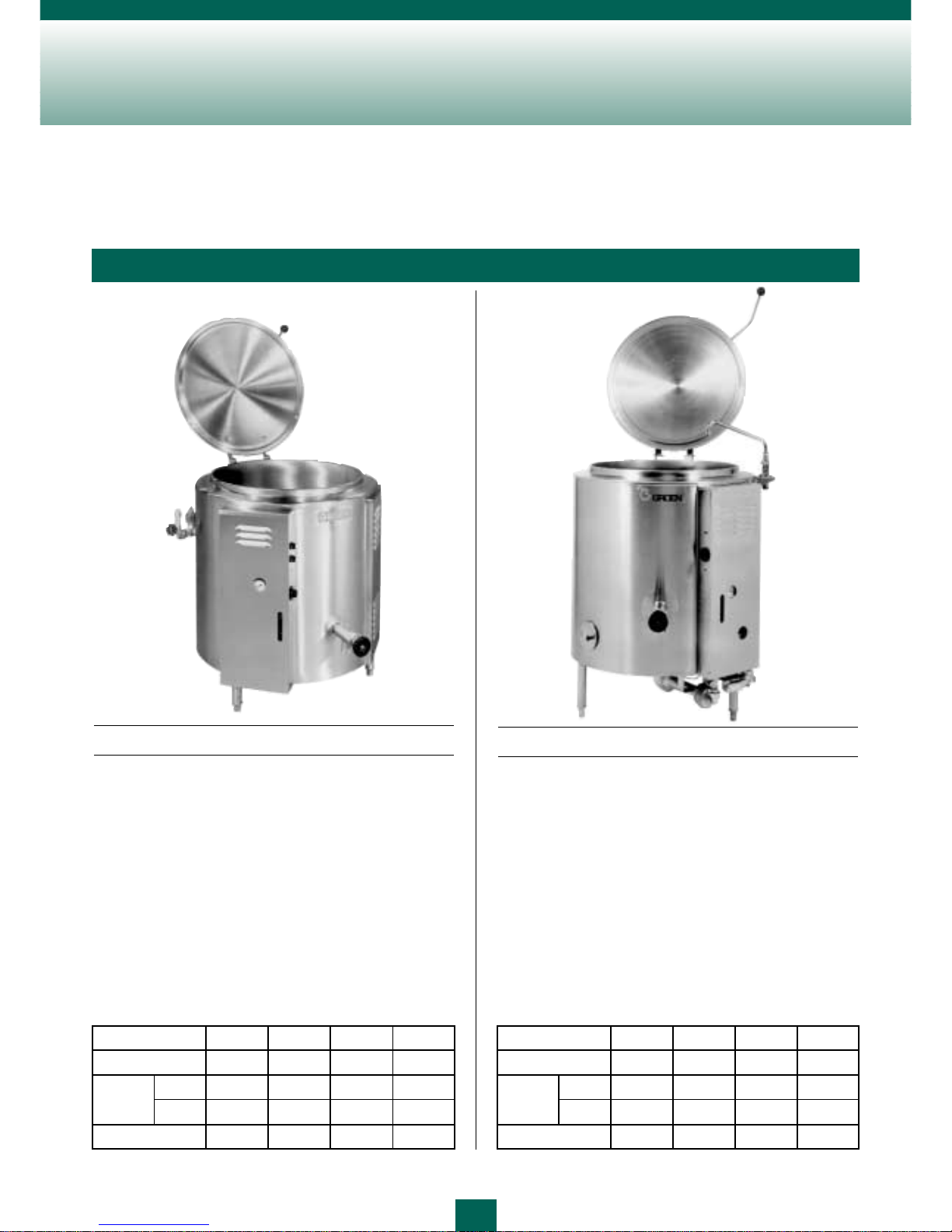

Self Contained Floor Model Kettles
•Electric heated, self-contained steam source
•Air insulated sheathing over hot cooking surfaces
•50mm tangent draw-off valve standard
•Energy saving hinged cover standard
•Precise thermostatic temperature control
•Low water safety control
•Your choice of 76, 151, 227 & 303 litre models
•Options: 75mm tangent draw-off, triple cooking basket inserts (TRI-BC),
water faucets, 316 stainless steel interior
Model AH/1
•Gas heated, self-contained steam source
•Dependable electronic ignition
•Insulated stainless steel sheathing over hot cooking surfaces
•50mm tangent draw-off valve standard
•Energy saving hinged cover standard
•Precise thermostatic temperature control
•Low water safety control
•Your choice of 76, 151, 227 & 303 litre models
•Options: 75mm tangent draw-off, basket inserts, water faucets,
stainless steel interior, spray with flexible hose
Capacity (In litres)
MODELS (Electric) EE-20 EE-40 EE-60 EE-80
76 151 227 303
972 1226 1200 1291
660 813 914 965
12kW 24kW 24kW 36kW
Dimensions
(In mm)
Left to Right
Front to Back
Electric Rating
Capacity (In litres)
MODELS (Gas) AH/1-20 AH/1-40 AH/1-60 AH/1-80
76 151 227 303
991 1143 1245 1295
933 972 1041 1080
100,000
BTU’s/HR 100,000
BTU’s/HR 145,000
BTU’s/HR 145,000
BTU’s/HR
Dimensions
(In mm)
Left to Right
Front to Back
Gas Rating
2

Stationary (Non-Tilting) KettlesTilting Kettles
Model DEE/4
•Electric heated, self-contained steam source
•Smooth gear assisted manual tilting kettle body
•Reinforced bar rim and large butterfly shaped pouring lip
•Precise thermostatic temperature control
•Low water safety control
•Your choice of 76, 151 & 227 litre models
•Options: Cover, 50mm tangent draw-offs, basket inserts,
water faucet with swivel tap, spray with flexible hose
Model DH
•Gas heated, self-contained steam source
•Patented fin tube burner assembly 62-65% efficient
•Dependable electronic ignition
•Smooth gear assisted manual tilting kettle body
•Reinforced bar rim and large butterfly shaped pouring lip
•Precise thermostatic temperature control
•Low water safety control
•Your choice of 76, 151 & 227 litre models
•Options: Cover, 50mm tangent draw-offs, basket inserts,
water faucet with swivel tap, spray with flexible hose
Capacity (In litres)
MODELS Electric MODEL DEE/4 Gas MODEL DH
76 151 227 76
889 1194 1194 889
781 876 924 889
12kW 24kW 24kW 72,000
BTU’s/HR
151
1194
918
100,000
BTU’s/HR
227
1194
1114
150,000
BTU’s/HR
Dimensions
(In mm)
Left to Right
Front to Back
Electric/Gas Rating
3
Floor Standing Tilting Kettles

4

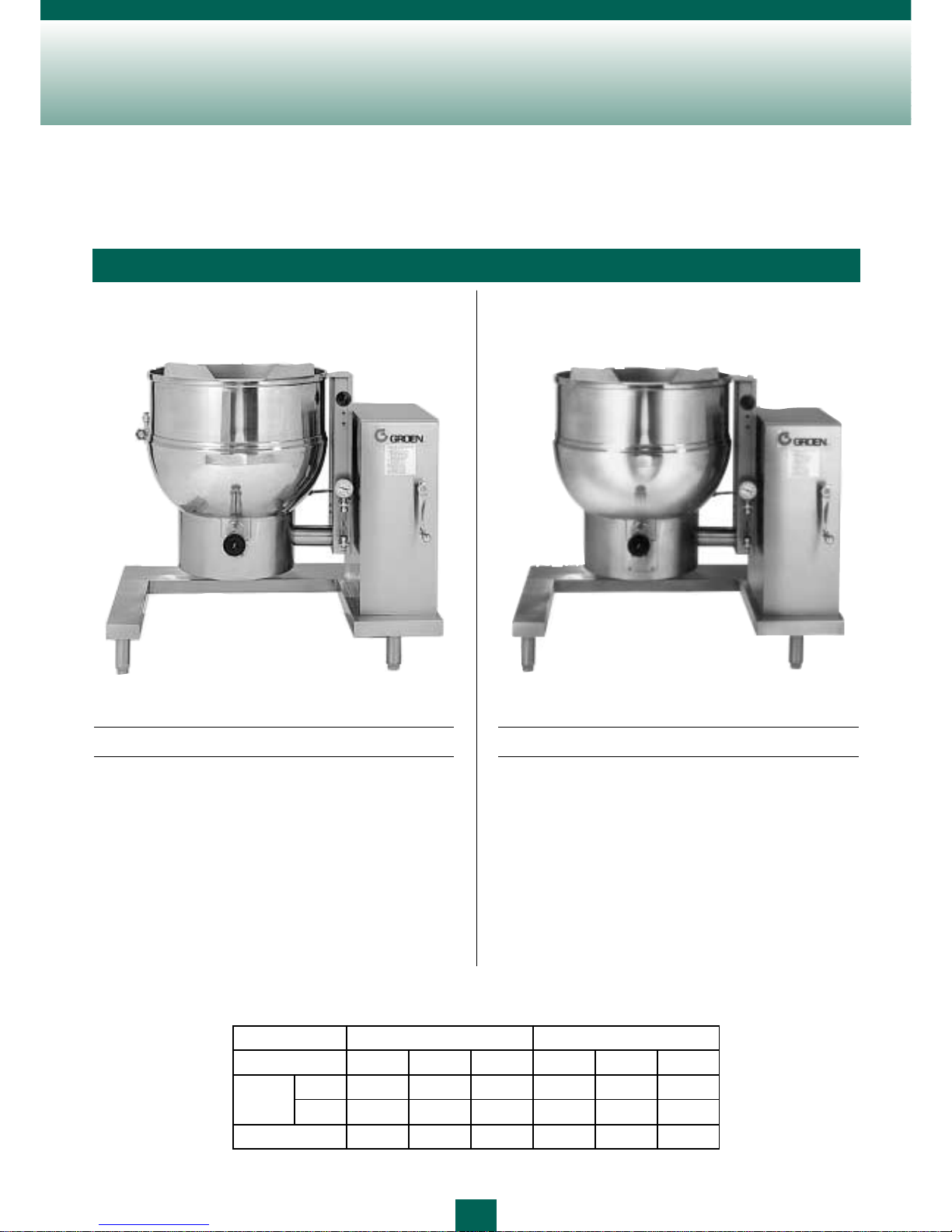

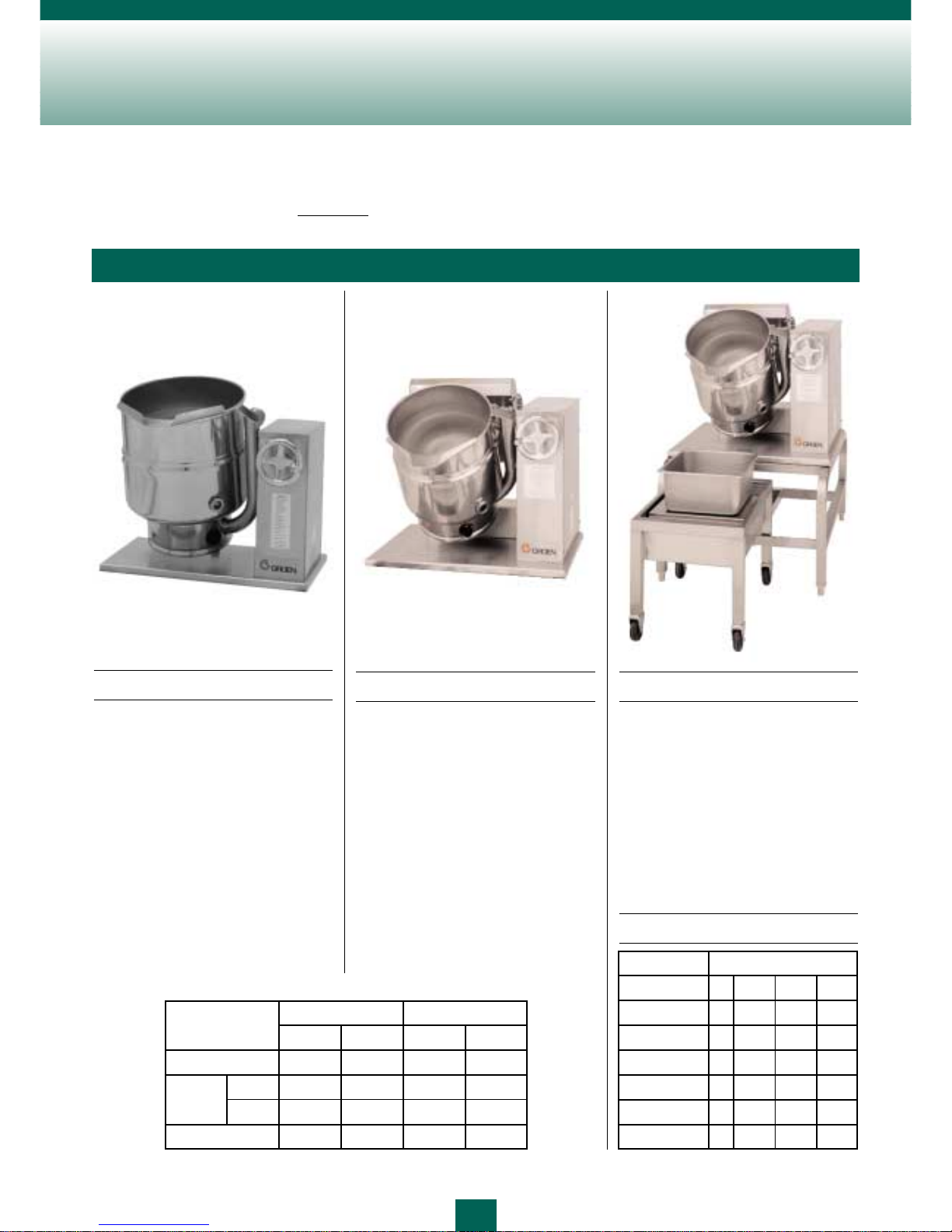

Self Contained Table Top Models
Model TDB/7
Table Top Kettles
•Electric heated, self-contained steam source
•Two thirds jacketed construction
•Counterbalanced manual tilt
•Reinforced bar rim and large butterfly shaped
pouring lip
•Precise thermostatic temperature control
•Low water safety control
•Your choice of 18 and 38 litre models
•Options: Lift-off cover, basket insert,
TS/9 stand, table or cabinet mounting, left hand tilt,
spray with flexible hose
Model TDH
•Gas heated, self-contained steam source
•Patented fin tube burner assembly 62% efficient
•Energy saving electronic ignition standard
•Two thirds jacketed construction
•Counterbalanced manual tilt
•Reinforced bar rim and large butterfly shaped
pouring lip
•Precise thermostatic temperature control
•Your choice of 18 and 38 litre models
•Options: Lift-off cover, basket insert,
TS/9 stand, table or cabinet mounting, left hand tilt,
spray with flexible hose
Model TS/9 Stand
TS/9 STAND ORDERING GUIDE
Groen can provide sturdy, easy to clean stand TS/9
for mounting our table top kettles. It provides the ideal
kettle work height.
New TS/9 stands can be ordered with a pull-out drain
sink, with cover that doubles as a splash shield.
Stand shown with TDB/7 kettle.
Capacity (In litres)
MODELS TDB/7-20
Electric SELF-CONTAINED Gas SELF-CONTAINED
TDB/7-40 TDH-20 TDH-40
18 38 18 38
451 467 686 730
603 670 610 686
6kW 12kW 31,000 BTU’s/HR 52,000 BTU’s/HR
Dimensions
(In mm)
Front to Back
Left to Right
Electric/Gas Rating
MODELS
TDB/7-20 & 40
TDH-20
TDH-40
TD/FPC
TDB/7-20
TDB/7-40
Table of Dimensions (in mm)
Table
Size Width Front to
Back Height
2
3
3
3
3
3
686 711 568
762 940 568
762 940 568
762 940 568
762 940 568
762 1041 568
Groen table top steam jacketed kettles are up to 3 times faster and twice as energy efficient
as range top cooking. From soups and stews to pasta and vegetables, Groen table top
kettles are versatile, labour saving performers. All Groen kettles have a hand polished
finish for easy clean-up and hygiene, and feature a reinforced bar rim to resist hard use.
Compact, table top kettles are available in capacities up to 38 litres and may be direct
steam heated or come with a self-contained gas or electric heated steam source.

5
Whenhouse steamor a remotesteam sourceis available,floor mounted,direct steam
jacketed kettles add productivity and efficiency to any kitchen. Models come in a full
rangeofsizes(from76to568litres) tomeettheproductionrequirementsofanytype
of foodservice operation. Reinforced bar rim and one-piece welded construction make
these kettles the most durable, maintenance free cooking equipment available today.
Non-Tilting Kettles Tilting Kettles
Model PT (Pedestal Mounted) Model FT (Tri-Leg Mounted)
Floor Kettles – Direct Steam
•Direct steam heated
•Two thirds jacketed construction
•All stainless pedestal (Model PT) or Tri-Leg (Model FT) mounting
•50mm tangent draw-off valve standard
•Energy saving hinged cover standard
•Reinforced bar rim construction
•Your choice from 76 through to 568 litres capacity
•Options: 75mm tangent draw-off, triple cooking basket inserts (TRI-BC),
water faucets, stainless steel interior
•Direct steam heated
•Two thirds jacketed construction
•All stainless pedestal (Model D) or Tri-Leg (Model DL) mounting
•Smooth warm and gear assisted manual tilting kettle body
•Reinforced bar rim and large butterfly shaped pouring lip
•Your choice from 76 through to 303 litres capacity
•Options: Cover, tangent draw-off, triple cooking basket inserts (TRI-BC),
water faucets
Model D (Pedestal Mounted) Model DL (Tri-Leg Mounted)
Models
PT & FT
Dimensions
(In mm)
Capacity (In litres) 76 151 227 303
749 851 978 1003
571 724 825 876
914 914 991 1092
378
1054
978
1118
473
1067
1016
1219
568
1168
1130
1219
Front to Back
Left to Right
Rim Height
Capacity (In litres) 76 151 227 303
584 762 864 –
927 1092 1194 –
791 978 1092 –
Model D
Dimensions
(In mm)
Front to Back*
Left to Right
Rim Height
733 876 972 997
921 1092 1194 1245
914 965 1118 1219
Model DL
Dimensions
(In mm)
Front to Back
Left to Right
Rim Height
*Doesn’t include wall clearance. Add 89mm for tangent draw-off.

6

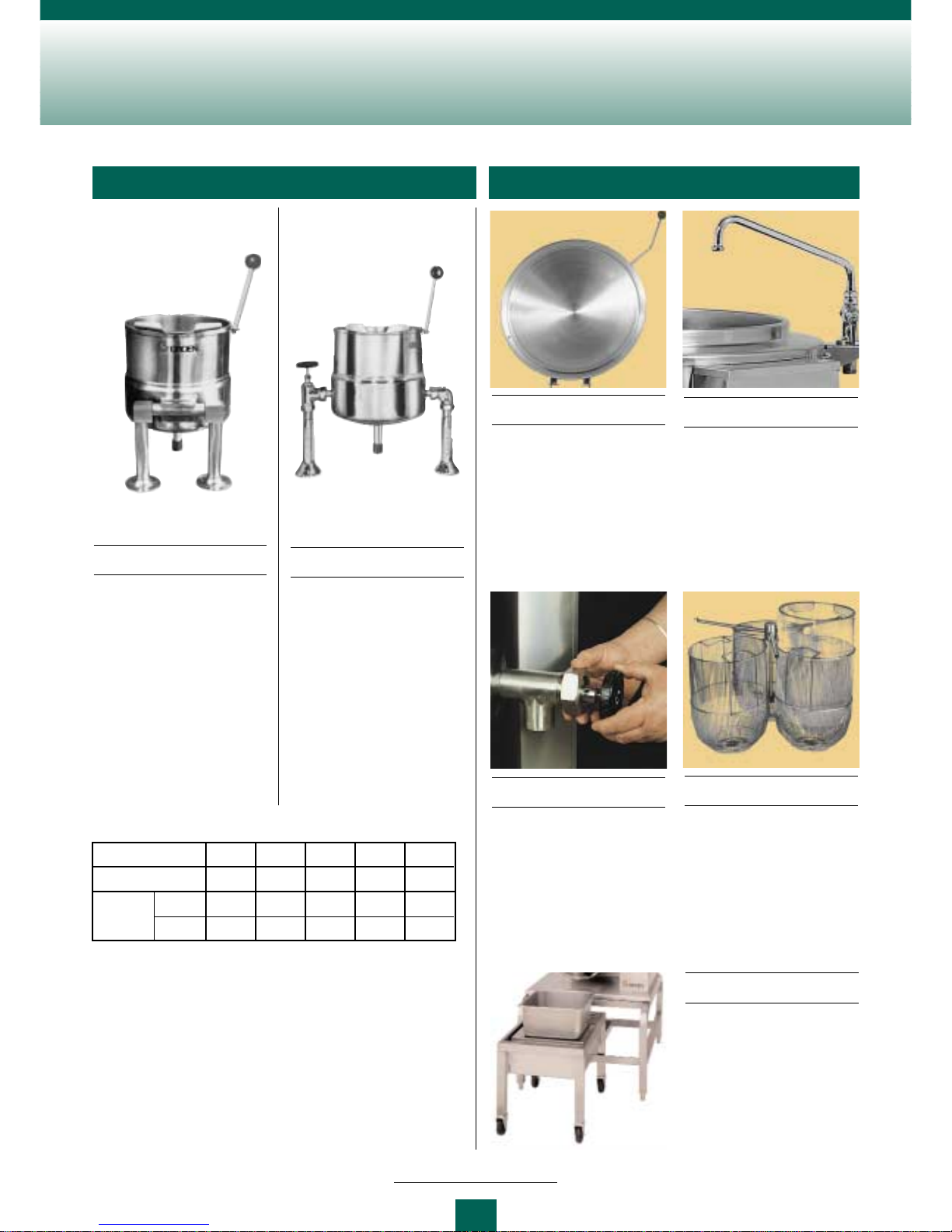

Direct Steam Table Top Kettles Table Top Kettle Options & Accessories
Model TDC/3
•Direct steam heated
•Two thirds jacketed construction
•Counterbalanced manual tilt
•All stainless steel trunnion
support posts
•Reinforced bar rim and large butterfly
shaped pouring lip
•Your choice of 3, 6, 9 & 18
litre models
•Options: Lift-off cover, basket insert,
custom table and cabinet mounting
Model TDA/1-40
•Direct steam heated
•Two thirds jacketed construction
•Counterbalanced manual tilt
•All stainless steel trunnion
support posts
•Reinforced bar rim and large butterfly
shaped pouring lip
•38 litre capacity
•Options: Lift-off cover, basket insert,
custom table and cabinet mounting
Covers
Kettle covers reduce heatup times, save
energy, reduce the heat and humidity load
on ventilation and HVAC systems and make
the kitchen more comfortable for cooks and
staff. Covers also can be used to control
moisture content and reduction during
cooking. Covers are standard on stationary
floor models, with liftoff or hinged covers
available for most other models.
Water Fill Faucets
Every Groen kettle is provided with
a sturdy bracket with knockout,
for mounting a water fill faucet. Available in
single pantry (hot or cold) or double pantry
(hot & cold) styles, fill faucets speed recipe
preparation, eliminate carrying buckets of
water and simplify kettle cleanup.
Draw-off Valves
Groen stationary floor model kettles come
standard with 50mm draw-off valves. Larger
product outlets are available on these
models, to make transfer of thick and chunky
product easier. In addition, draw-off valves
are available on all tilting floor model kettles,
to provide an additional
product transfer option.
Cooking Baskets
Basket inserts are stainless steel wire baskets
designed to make it easier to load, cook and
unload product, when boiling vegetables,
shellfish and pasta.
A single basket is available for table
top models, while floor models can be
ordered with a triple basket set (TRI-BC), for
preparing three different products at the
same time.
Table & Stands
Groen can provide sturdy, easy to clean
stands for mounting our table top kettles.
Please refer to page 4 for details.
Capacity (In litres)
MODELS TDC/3-3 TDC/3-6 TDC/3-10 TDC/3-20 TDA/1-40
3691838
336 387 340 387 502
327 378 327 378 679
Dimensions
(In mm)
Front to Back
Left to Right
See page 14 for further option details.

7

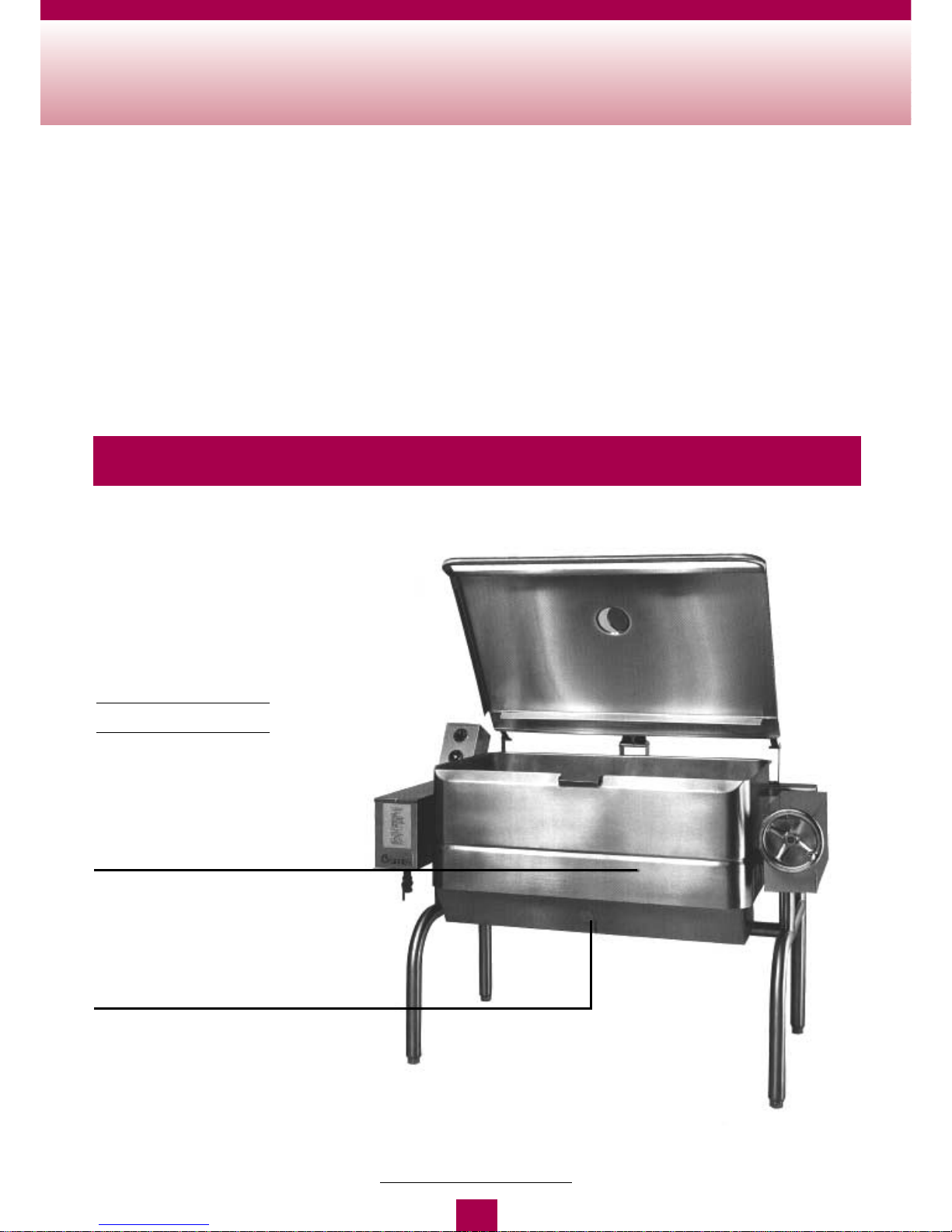

Introduction to Tilting Braising Pans
Groen has continuously refined the basic design to meet the needs of high volume commercial and
institutionalfoodserviceoperations.
The Groen Braising Pan is now considered the single most versatile piece of cooking equipment
availabletoday.
With its unique combination of large griddle surface, liquid capacity, quick tilting body and special
ventedcover,itcanperformthedutiesofarange,grill,oven,kettle,steamer,holdingandthawingoven,
bainmarieandmore…
Noothersinglepieceofequipmentcangriddlecookpancakesandeggsforbreakfast,kettlecooksoup
andgrillhamburgersforlunch;andcookpastawithsauce,steamvegetables,andpreparepuddingor
jellyfordinner.
Groen/Quality…Tilting Braising Pans
TheGroenBraisingPandoesallthisandcanreduceyourenergybill,cutlabour,reducewaste,andproduce
consistentlyhighqualitymeals.
The versatility of the Groen Braising Pan makes it ideal for Commercial and institutional
foodservice operations of all sizes. Whether you are producing a single staple or an extensive
list of special items, a Groen Braising Pan can reduce preparation times, save energy,
increase batch consistency and save effort. A Groen Braising Pan is the logical choice
when replacing a range top, when you remodel your kitchen or when designing
anewfoodserviceoperationfromthegroundup.
See page 15 for menu ideas and cook times.
Heat Transfer Fins
Groenprecisionwelds upto130 heattransfer finstothe bottomof
GasHeatedBraising Panmodels.
Thesefinsensure anevenheat distributionover theentirecooking
surface. ..nohot andcoldspots.
Groen Burner Design
Groen’sGasburnerassemblydesign whichdeliversanaverageefficiency
ratingof60%.
That’sthehighest intheindustryandtranslates intoenergysavings foryou.
HFP Series

8
Tilting Braising Pans
When ordering specify natural or propane (gas).
Capacity (In litres)
MODEL HFP/2-3 HFP/2-4
114 151
1245 1499
956 956
104,000
BTU’s/HR 144,000 BTU’s/HR
Dimensions
(In mm)
Left to Right
Front to Back
Gas Rating
Manual Tilt
Model HFP/2-3
•Gas heated, 60-65% efficient
•Heat transfer fins spread heat evenly
•Dependable electronic ignition
•Easy to clean open leg design
•Smooth action manual tilt (23 turns to full tilt)
•Heavy duty cover with condensate vent
•75mm radius coved pan corners
•Factory installed faucet bracket
•Your choice of two sizes with 230mm pan depth standard
•Options: Water faucet with swivel tap.
The expansive cooking surface of the braising pan readily handles all
griddlework.Kilosofbaconorsausage,dozensofhamburgers,grilled
sandwiches, pancakes or french toast are handled with ease.
Add breakfast or snacks to your menu or back up existing griddles.
Onlyaportionofheatingcapacityisrequiredfor heaviestgriddleloads.
Groen braising pans fry heavy loads of chicken or fish and deep fry
doughnuts,chickenandfishfilletswithextrafastrecoverytimeassured.
Thermostatic control regulates oil temperature to prevent breaking
downandthinning.
Braisingpanscando alltypesofliquidcooking. Total capacitiesrange
from114litres(Size3)through151litres(size4).Widetemperature
rangeprovidesfor simmeringandrapidboiling.Hightemperatureflat
griddlesurfaceisidealforbrowningmeatinthefirststepofstew,chilli,
orchopsueypreparation.
Groen braising pans can be used to roast or bake all types of meat
and poultry. Product is supported in the braising pan on wire racks.
Withcoverclosed,thecookingactionisthesameasaconventionaloven.
Thermostatic control allows cooking at normal temperatures
(66°-93°C).Lowtemperaturewetroastingreducesshrinkageandholdsin
allthenaturalflavour.
Groenbraisingpansarethebestsuitedapplianceforquantity braising
of meat and poultry. Quick browning then simmering with the cover
down,bringsoutthenaturalflavourwhilesealinginthenaturaljuices.
Comparedtoanoven,cookingtimeislessthanhalf.
Griddle Cooking
Pan Frying
Kettle Cooking
Oven Roasting
Braising
Equipment Versatility Critical in Today’s Kitchens

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

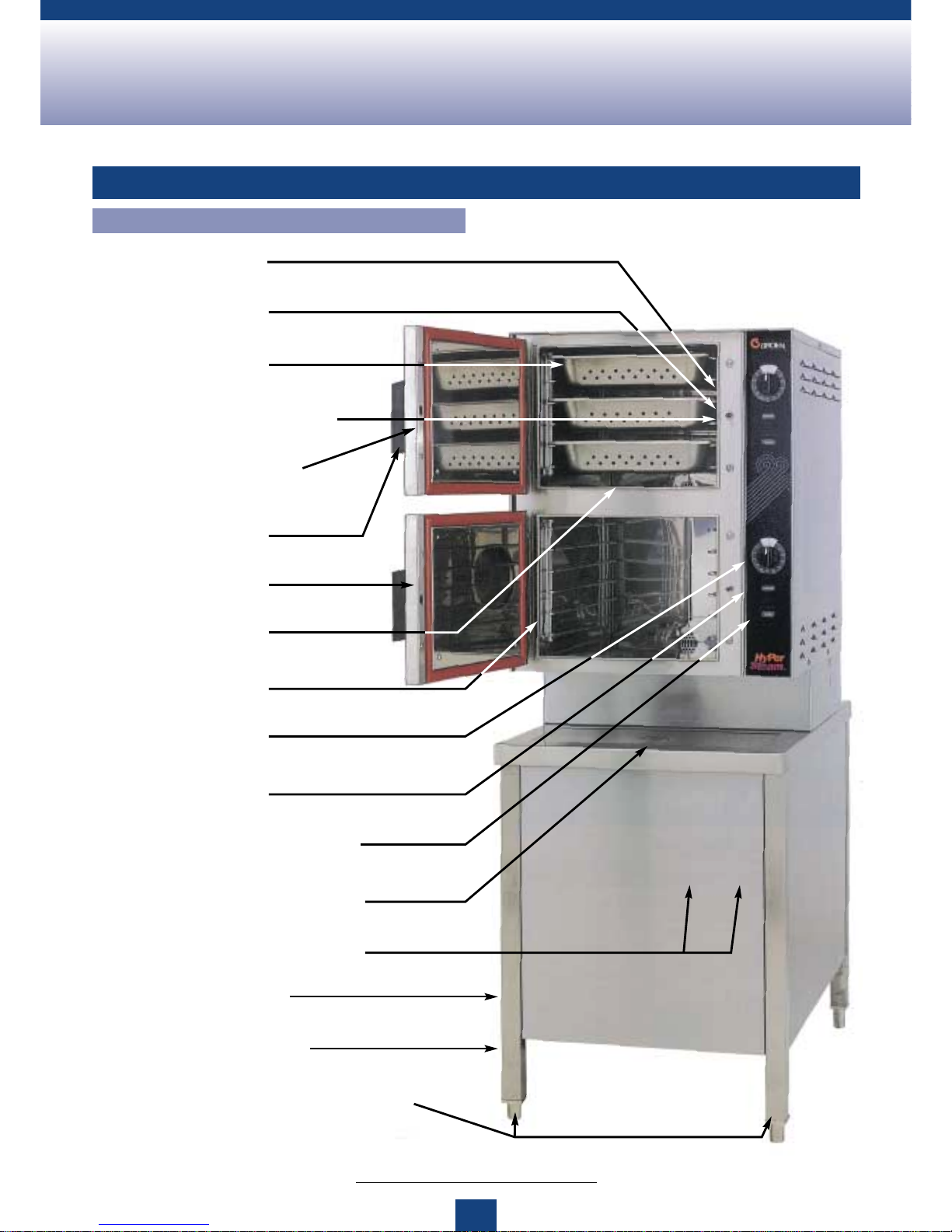

Introduction to HyPerSteam™Steamers
Exclusive HyPerSteam™Features…
Performance Features That Deliver…
9
See page 16 for cooking information and features guide.
Fastersteamvelocityreducescooktimes.
Largeportseliminatescalecommonwithsmallportsorjets.
Allowspropersteamflowaroundmultiple2
1
/ 2 deeppans.
Savesmoney,ensuresdependableoperation…longerunitlife.
Eliminatesodourandflavourtransferbetweenfoods…
aproblemwithno-drainsteamers.
Saferdoordesign…justwarmwhenoperating.
Operatorcanopendoorwhileholdingaloadedpan.
Moreflexibilityforkitchenlayoutandfuturemovement.
Doorwon’tsag,reducesleaks.
Forfrequentusewhentimedcookingisn’trequired.
Simpletouse–simpleemployeetraining.
Helpsprotectunitfromcostlycomponentfailure…remindsoperatortocleangenerator.
Makesitfasterandeasierforoperatortodescale.
Lesswateronthefloor,saferforemployees.
Fewervalves,gaugesandcomponentstofail.
Nocompensatingtimerrequired,nowaitingforcavitytowarmup.
Fastermorningstartup,lesspreheatrequired.Morepancapacityinlessspace.
Helpsreducesedimentandloosescalebuildup.
Powerfulfanincavity
Largesteamentryport(s)
Full3
1
/ 2
“
panslidespacing
Simpleoperatordescalingthroughcavityoraccessport.
Freeventingcavitydrainwith spraycondenser.
Solid,insulatedonepiecedoor
Easyopennohandslatch.
Fieldreversibledoor.
Strongcontinuoushinge.
Constantsteamsetting.
Simplemechanical60minutetimer
“CleanMe”steamgeneratordescalingwarninglight/system.
Integratedcondensatecollectionsinkwithdrain (HY-6Series)
Atmosphericsteamgenerator(TwingeneratorsonHY-6Series).
Warmcavity-trueinstantsteamsystem.
Readytosteamin6-8minutesfromacoldstart.
Narrowunitwidth:6Seriesonly546mm,12&24panmodels816mmwide.
Automaticsteamgeneratorflushingwhenunitisshutoff.

10
What Makes HyPerSteam™Different?
HyPerSteam is a radical departure from traditional convection steamers.
Aware of the problems associated with conventional steamers, Groen
engineers designed a line of steamers that: 1) cook faster; 2) are more
dependable, have fewer parts and problems and 3) can be easily
descaled by the operator. In addition, the HyPerSteam family of steamers are compact,
simple to operate, simple to service, and both energy and water efficient!
HyPerSteam . . . created a new class of steamers.
Let’s review these breakthrough differences in steamer technology . . .
Standard Pressure Boiler
Convection Steamer HyPerSteam™–Twin Atmospheric Steam Generator / Convection Steamer
Standard Steamer Technology
•Large pressure boiler which requires safety valves, water level glass
and pressure gauges.
•Float type water level controls with moving parts.
•Steam channelled through manifolds to small ports or orifices... which can clog
and scale up.
•A pressure boiler that requires descaling by a Service Agent or experienced
maintenance personnel, requires tools, and can cost hundreds of pounds each time.
•Doors that sag, leak, aren’t adjustable . . . often difficult to open, hard and noisy
to close.
•The single large pressure boiler provides steam to multiple cavities. Any boiler
problem disables the entire unit.
•Single large pressure boiler must operate at full capacity, even if you are preparing
a single portion or pan load.
New HyPerSteam™Technology
•Atmospheric steam generator(s) with fewer parts and fewer potential problems.
•Water level sensors...with no moving parts.
•Steam enters cavity through large diameter steam port, which can’t scale up
or clog. Steam is circulated by a powerful fan.
•Operator can descale the unit without tools or a service call, through an easy
access port.
•Door is adjustable, even field reversible. Strong continuous hinge resists sagging,
closes with gentle push or slam, with a no-hands latch.
•Multiple independent steam generators serving each steamer cavity.
One generator/cavity pair still operates, if the other goes down.
•Independent generator/cavity pairs allow use of single cavity for smaller loads...
saves energy and water.
STEAM LINES
ALSO PROVIDE
GENERATOR
ACCESS FOR
DESCALING
TWIN
ATMOSPHERIC
STEAM
GENERATORS
ATMOSPHERIC
CAVITY
ATMOSPHERIC
CAVITY
ATMOSPHERIC
CAVITY
POWER
TAKE-OFF
PROVIDES
STEAM FOR
KETTLE,ETC.
PRESSURE
BOILER
PRESSURE
GAUGE
SOLENOID
VALVES
STEAM
DISTRIBUTION
MANIFOLD
ATMOSPHERIC
CAVITY
STEAM
CIRCULATING
FAN
STEAM
CIRCULATING
FAN

HyPerSteam™Steamers
Mostof theinnovative HyPerSteamperformancefeatures arealso availablein acompact
three pan countertop steamer. And now you can order stacked 3 pan models offering
6 pan capacity, and order a single unit with stacking kit to mount on an existing
Model HY-3E unit.

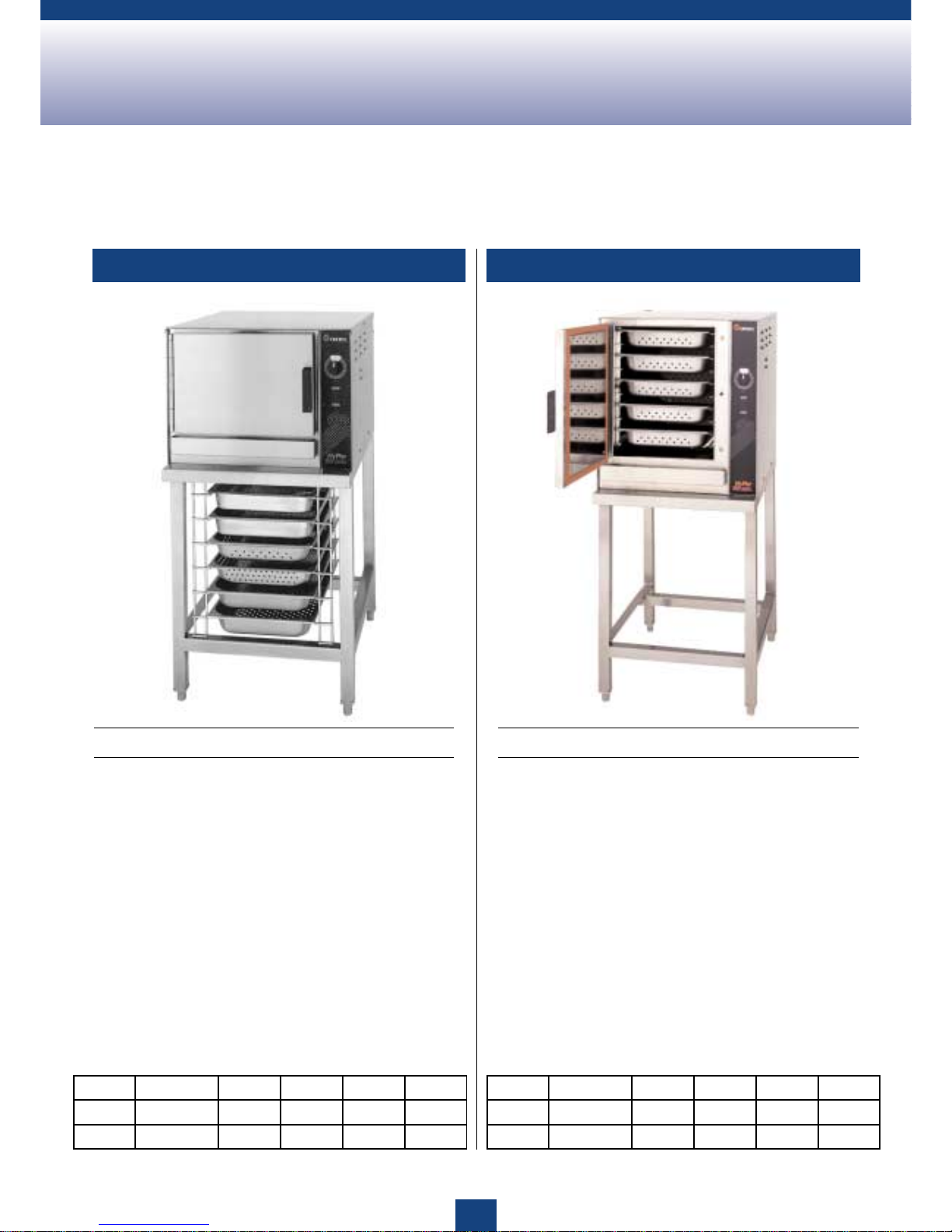

Counter-Top Models Counter-Top HyPerSteam™
Model HY-3E (shown with optional stand and pan racks)
•Atmospheric electric steam generator
•Powerful fan in cavity
•Free venting drain eliminates flavour transfer
•“Clean Me”steam generator descaling warning system
•Simple steam generator descaling through cavity
•Warm cavity –Instant Steam feature
•Rugged field reversible door
•60 minute timer with constant steam setting
•Condensate collection tray under door
•Hidden magnetic door switch
•Condensate collection box standard
•Options include support stand, pan racks for support stand and 100mm legs
Model HY-5E
•15.5kw self contained electric steam generator
•All stainless steel construction
•Powerful fan in cavity
•“Clean Me”descaling warning system
•Simple steam generator descaling
•Rugged field reversible door
•60 minute timer with constant steam setting
•Condensate collection tray under door
•Hidden magnetic door switches
•Options include support stand, stacking kit, pan racks spray condenser.
HY-3E
(2)HY-3E
Model
3
6 (2 x 3)
Pan Capacity
406
838
Height*(mm)
549
549
Width (mm)
783
783
Depth (mm)
1 x 8kW
2 x 8kW
Power Input
*Without Stand
11
HY-5E
HY-5EF
(with stand)
Model
5
5
Pan Capacity
571
1284
Height*(mm)
549
549
Width (mm)
783
783
Depth (mm)
15.5kW
15.5kW
Power Input
*Shown with Stand

12
HyPerSteam is a true breakthrough in steamer technology, designed to eliminate most
common steamer problems. Twin atmospheric steam generators allow independent
operation of each cavity, to match capacity to your production needs and provide a
built-in backup steamer. A powerful fan in each cavity increases steam velocity.
We call this accelerated conduction heat transfer process HyPerDuction. The result is
FASTER COOKINGTIMES! “CleanMe”warning light and easy access for descaling,
allows operator to descale their own steamer without a service call or tools.
Electric HyPerSteam™Gas HyPerSteam™
Model HY-6E
HyPerSteam™Steamers
•Twin, independent electric steam generators
•9kW input per steam generator
•Powerful fan in each cavity
•Free venting drain eliminates flavour transfer
•“Clean Me”steam generator descaling warning system
•Simple steam generator descaling through cavity
•Warm cavity –True instant steam feature
•Rugged field reversible door
•60 minute timer with constant steam setting
•Condensate collection sink with drain
•Hidden magnetic door switch
Model HY-6G
•Twin, independent gas steam generators
•45,000 BTU input each –65% efficient
•Powerful fan in each cavity
•Free venting drain eliminates flavour transfer
•“Clean Me”steam generator descaling warning system
•Simple steam generator descaling through cavity
•Warm cavity –True instant steam feature
•Rugged field reversible door
•60 minute timer with constant steam setting
•Condensate collection sink with drain
•Hidden magnetic door switch
•Standing pilot with electronic ignition standard
HY-6E
HY-6G
Model
6 (2 x 3)
6 (2 x 3)
Pan Capacity
1489
1489
Height (mm)
546
546
Width (mm)
868
868
Depth (mm)
18kW
90,000
BTU’s/HR
Gas/Electric
Rating

All the “HyPerformance…HyReliability”features introduced with the popular
HyPerSteam line are available in larger HyCapacity Models. HyCapacity HyPerSteams are
available in 12 pan models. Two powerful fans and two 38mm diameter steam entry
portsensure fastanduniformcooking.HyCapacity HyPerSteamshavemore pancapacity,
more operator flexibility and require less space than old fashioned pressure steamers.
Therangeofproductsincluded inthisbrochurearecurrently beingsuppliedinto various
applications such as prisons, hospitals, restaurants, hotels and schools.
Falcon Catering Equipment supply the Prison service with Groen equipment with the
mostpopularitems beingtheDH-40,a gasheated152 Litrecapacity tiltingkettleand
the HY 6G, a gas heated six pan steamer. These products have the seal of approval
from the prison service and is on their list of approved equipment.
Hospitals throughout the UK, are reaping the rewards by using Groen equipment.
Notonly arethe unitsvery fuel-efficientbut theycan alsobe usedto preparea variety
of products, thereby reducing the need for additional equipment.
Some other recent examples of sites which have purchased Groen include:

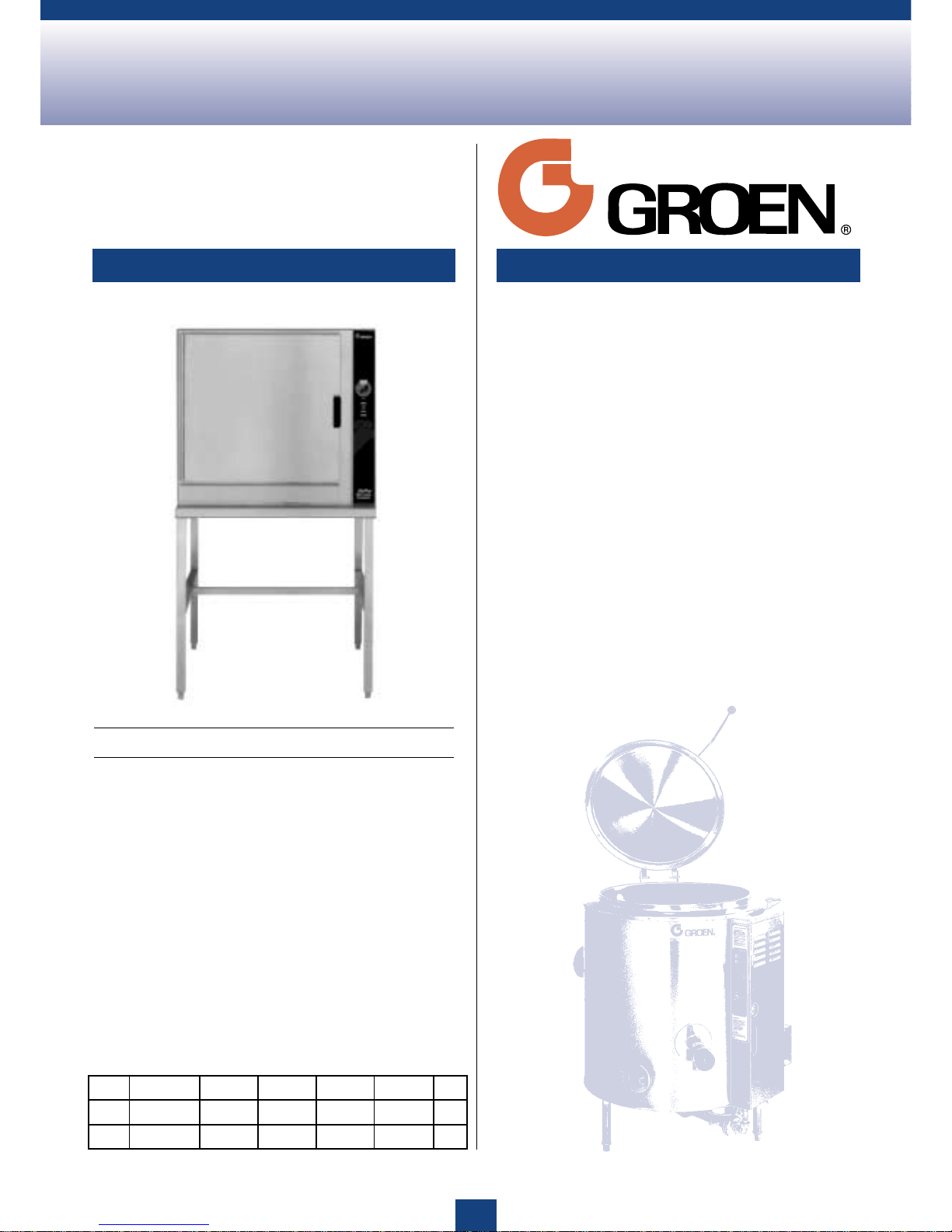

Electric HyCapacity HyPerSteam™The Perfect Choice
Model HY-12E/HY-12G (Single 12 Pan Cavity)
•Powerful 32kW/160,000 BTU/hr atmospheric steam generator
•Two powerful fans per cavity
•Two 38mm diameter steam entry ports per cavity
•Free venting drain eliminates flavour transfer
•Adjustable side rack accepts either steam or bake pans
•Simple steam generator descaling through cavity
•“Clean Me”generator descaling warning system
•Warm cavity –True instant steam capability
•Rugged, insulated, field reversible door
•60 minute timer with constant steam setting
•Ready to steam in 6 minutes, from cold start
•London University
•Marriot Hotels
•Hilton Hotels
•Iceland Frozen Foods
•Northwick Park
HY-12E
(No Stand)
HY-12G
(No Stand)
Model
12
12
Pan Capacity
1753
1753
Height*(mm)
816
816
Width (mm)
1000
1000
Depth (mm)
32kW
160,000
BTU’s/HR
PowerInput
Electric
Gas
Fuel
*Shown with Stand
13
•Quadrant
•John Lewis
•Morgan Stanley Call Centre
•The Seafood Restaurant
•Royal Academy of Music

14
Kettle Options & Accessories
Sizing and Portion Guide
Accessory items will increase the versatility, labour and energy savings of your Groen equipment.
Kettles
TDH ••••• •
EE S*•••S•••
DEE/4 •*•••• ••
AH/1 S*•••S•••
DH •*•••• ••
PT, FT S*•••S•S•
D, DL *•••••S•
TS/9 Stands Cabinet Mounting Hinged
Covers Basket Inserts
Lift-Off Single Triple Fill Faucet Etch Markings 50mm Tangent Draw-Off 75mm Tangent Draw-Off Flanged Feet Kettle Brush Set
S= Standard
•= Available Option or Accessory
*= Available/Hoist Required
TABLE
TOP
FLOOR MODELS
Groen Steam Jacketed Kettles are available in a wide range of types, styles and
capacities. There is a Groen kettle that is perfect for your operation, menu mix and
production volume requirement. See pages 1 - 6 to help you choose the type or style
kettle that is right for you.
Checkoutthetablebelowforhelpinsizingthatkettle.Somethingstorememberwhen
sizing a kettle:
•Itisbetter andoftenmorecost effectivetopurchasea slightlylargerkettlethan your
current volume requires. You can always make a 76 litres batch in a 151 litre kettle.
It will provide extra capacity for growth, carryout business etc.
•Two smaller kettles may provide more production flexibility than one larger kettle,
for use by multiple chefs or simultaneous preparation of several menu items.
•All kettles require head space or “freeboard”for safe operation.
Nominal kettle capacity is the calculated maximum volume when filled to the rim.
You need a minimum 50-75mm of clearance below the rim for stirring and to avoid
boilover etc. This working capacity is about 80% of rim or nominal capacity and the
figure you should use in determining kettle size.
Kettle Size (litres) Number Of Portions Per Batch
Nominal
Capacity
9.5
18.0
38.0
76
151
227
303
Working
Capacity
7.5
14.5
30.5
61
121
182
242
57gms
(2 Oz.)
128
256
512
1024
2048
3072
4096
114gms
(4 Oz.)
64
129
256
512
1024
1536
2048
170gms
(6 Oz.)
42
86
170
341
682
1024
1365
227gms
(8 Oz.)
32
64
128
256
512
768
1024
284gms
(10 Oz.)
25
51
102
204
409
614
819
340gms
(12 Oz.)
21
43
85
170
341
512
682
397gms
(14 Oz.)
18
37
73
146
292
438
585
454gms
(16 Oz.)
16
32
64
128
256
384
512

15
Versatile is the one word that best describes the Groen braising pan. You can roast,
braise, fry, steam cook, kettle cook, thaw, warm and serve in a Groen pan. You can
expand and vary your menu without adding equipment or changing your kitchen layout.
That’s equipment versatility!
Listed below are sample menu items you can prepare in a Groen braising pan. Cook
times are only approximate and don’t include preparation or warm up time. Actual cook
times will depend on the condition and size of ingredients, kitchen temperature and
other variables.
Braising Pan Menu Guide
Menu Item
Breakfast
Scrambled Eggs 100 servings 5 min.
Pancakes 24 11
/2 min/side
French Toast 48 slices 7-8 min.
Sausage 80 servings 5 min.
Bacon 90 servings 10-12 min.
Hash Browns 13.6 kilos 15-17 min.
Potato Pancakes 60 servings 7-8 min.
Poached Eggs 75 servings 5 min.
Snacks
Grilled Cheese 48 7-8 min.
Hamburger 60 (113g) 5 min.
Cheeseburger 60 5 min.
Steak Sandwich 26 (198g) 5 min.
Hot Dogs 34 kilos 7 min.
Meats
Pork Roast 45 kilos 31 /2 hrs.
Beef Roast 45 kilos 21
/2 hrs.
Corned Beef 45 kilos 45 min.
Lamb Roast 45 kilos 21
/2 hrs.
Beef Tips 23 kilos 1 hr.
Veal (sauteed) 9 kilos 25 min.
Ribs 500 portions 2 hrs.
Steak 50 portions 15-18 min.
Pork Chops 50-100 12-15 min.
Ground Beef (frozen) 25 kilos 1 hr.
Taco Meat 79 kilos 1 hr 10 min.
Swiss Steak 61 kilos 1 hr.
Salisbury Steak 350 portions 1 hr.
Pepper Steak 23 kilos 1 hr.
Beef Stroganoff
Italian Roast Beef 91 kilos 21
/4 hrs.
Meat Loaf 16 loaves 11
/2 hrs.
Chicken 68 kilos 40 min.
Turkey 12.7 kilos 2 hrs.
Fish Fillets 50-100 10-14 min.
Quantity/
Portions Approx. Time Menu Item
Other Entrees
Stuffed Peppers 100 portions 55 min.
Crepes 15-20 5 min.
Chicken Cacciatore 500 portions 1 hr.
Chicken A La King 200 servings
Beef Stew 68 ltr 3 hrs.
Chilli 400 servings 20 min.
Spaghetti 100 servings 1-2 hrs.
Chop Suey 68 ltr 2 hrs.
Vegetables
Zucchini 300-400 portions 10-15min.
Green Peppers 5 bushels 35 min.
Corn 4.5 kilos 8 min.
Peas 4.5 kilos 8 min.
Beans 4.5 kilos 15 min.
Carrots 4.5 kilos 8 min.
Potatoes (cut & peeled) 4.5 kilos 25 min.
Side Orders
Noodles 13.6 kilos 5-20 min.
Dumplings 175 portions 10 min.
Crabmeat Stuffing 250 servings 30 min.
Refried Beans 18 kilos 21
/2 hrs.
Potato Salad 37.8 ltr till warm
Gravy 87 ltr 15 min.
Sauces 68 ltr 25 min.
French Fries 50 servings 12 min.
Mexican Rice 100 servings 20 min.
Desserts
Chocolate Mousse 200-300 portions 15 min.
Pudding 850 portions 10 min.
Yogurt 113.5 ltr 1 hr.
Custard 400 servings 8-10 min.
Jelly 400 servings 45 min.
Quantity/
Portions Approx. Time

16
Faster Cook Times
All HyPerSteam Models are designed for optimum cooking performance, with a powerful fan
in the cavity, two in HyCapacity models; adequate spacing between pans; and steam
generators sized to deliver 2-3 KW per pan in electric models and at least 90,000 BTU’s
per hour input in gas models.
Fans strategically located in the steamer cavity increase the velocity of steam, which sweeps
away insulating layers of cold air and condensate, speeding heat transfer to the food.
A minimum of 13mm spacing between pans eliminates nesting of pans and allows better
circulation of steam between full pan loads.
HyPerSteam cook times are often comparable to the cook times delivered by pressure
steamers, if the “pressure up”and “pressure down”time delays are added to the actual
cook times delivered by pressure steamers . . . AND the colour, texture, flavour and
nutritional value is superior to pressure cooked foods.
A Features Guide For Selecting Your Steamer
Some Typical HyPerSteam™Cook Times
HyPerSteam™Menu & Features Guide
Product
Asparagus, Whole Spears
Type/
Condition
Fresh
Weight
of count
227g
Number
of Pans
1-Perf
Cook Time
(Minutes)
3-5
Beans, Green Cut Frozen 2.7kg 3-Perf 5
Beans, Lentils Dry 0.45kg 1-Perf/
Solid 25-30
Beans, Refried Canned 3.4kg 1-Solid 10-12
Beef, Ground (80%) Fresh 1.13kg 1-Perf 4
Broccoli, Florets Fresh 453.5g 1-Perf 4-5
Carrots, Baby Whole Frozen 2.7kg 3-Perf 5
Chicken, Whole (For Deboning) Fresh 1.75kg 1-Perf 34
Corn, Cut Frozen 3.4kg 3-Perf 6
Corned Beef Fresh 1.6kg 1-Perf 26
Halibut, Fillets Frozen 170g 1-Perf 8
Hard Boiled Eggs Fresh 24 3-Perf 13
Product
Hot Dogs (8 per lb.)
Type/
Condition
Frozen
Weight
of count
48-57g
Number
of Pans
1-Perf
Cook Time
(Minutes)
6-8
Lasagna Noodles Dry 1.36kg 3-Perf 17-18
Lobster Tails Frozen 21-200g 3-Perf 13
Mostaccoli, Pasta Frozen/
Cooked 1.36kg 1-Perf/
Solid 10
Potatoes, Red (New) Fresh 1.81kg 1-Perf 18
Potatoes, Whole Russet Fresh 226.8g 1-Perf 40
Rice, White Dry 1.13kg 1-Solid 17-20
Salmon, Fillets Frozen 128g 1-Perf/
Solid 7
Scallops, Bay Fresh 0.9kg 1-Perf 3
Shrimps, Shell On (26-30 count) Fresh 0.9kg 1-Perf 3
Spinach, Block Frozen 4kg 3-Perf 16
*Your actual cook times may vary due to normal differences in raw ingredient quality, portion size, production quality, room temperature, and the condition of product and your steamer at time of preparation.
*Stacked Hy-3E and HY-5E models require multiple electric power connections
•= Standard Feature
Twin Atmospheric Steam Generators
Power Input Per 21
/2” pan
Powerful Fan in Each Cavity
Descaling Indicator System
Easy Descaling Through Cavity
Warm Cavity-Instant Steam Feature
Patented Field Reversible Door
60 Min. Electromechanical Timer
Constant Steam Setting
Condensate Collection Sink With Drain
Hidden Magnetic Door Switch
Single Point Utility Connections*
Built in Condensate Air Break
Power Take-Off For Kettles
Space Saving Unit Width (mm)
single electric
2.67kW
•
•
•
•
•
•
•
Collection Tray
•
•
•
NA
533
single electric
3.1kW
•
•
•
•
•
•
•
Collection Tray
•
•
•
NA
533
•
15,000 BTU’s
•
•
•
•
•
•
•
•
•
•
•
NA
533
•
3kW
•
•
•
•
•
•
•
•
•
•
•
NA
533
2.75kW
•
•
•
•
•
•
•
Collection Tray
•
•
•
NA
813
13,000 BTU’s
•
•
Control Panel Port
•
•
•
•
Collection Tray
•
•
•
NA
813
Key HyPerSteam™Features HY-3E HY-5E HY-6G HY-6E HY-12E HY-12G
