Falken1 Traveller Pro User manual

KSE Music GmbH
Galgenfeldstr. 16a
44797 Bochum
www.kse-music.de
[email protected]
Traveller Pro
Bedienungsanleitung / Manual

The Falken1 Traveller Pro is a multifunctional outdoor amplifier. The amplifier consists of five digital amplification
channels, made up of two microphone channels and three guitar channels. Each channel has dedicated controls
to allow the user to dial in their preferred sound. All channels include gain, EQ and REVERB controls. In addition to these,
the three guitar channels also feature controls for CHORUS. The unit comes complete with two 6.5 inch full-range
speakers, and features a built-in high capacity battery, allowing the user the freedom to use the system wirelessly,
without having to worry about power cables. The Traveller Pro has plenty of clean headroom, allowing your sound to
cut through easily, and is highly sensitive, responding well to even the subtlest of changes in dynamics of both instrument
and voice.
1
TRAVELLER PRO INTRODUCTION

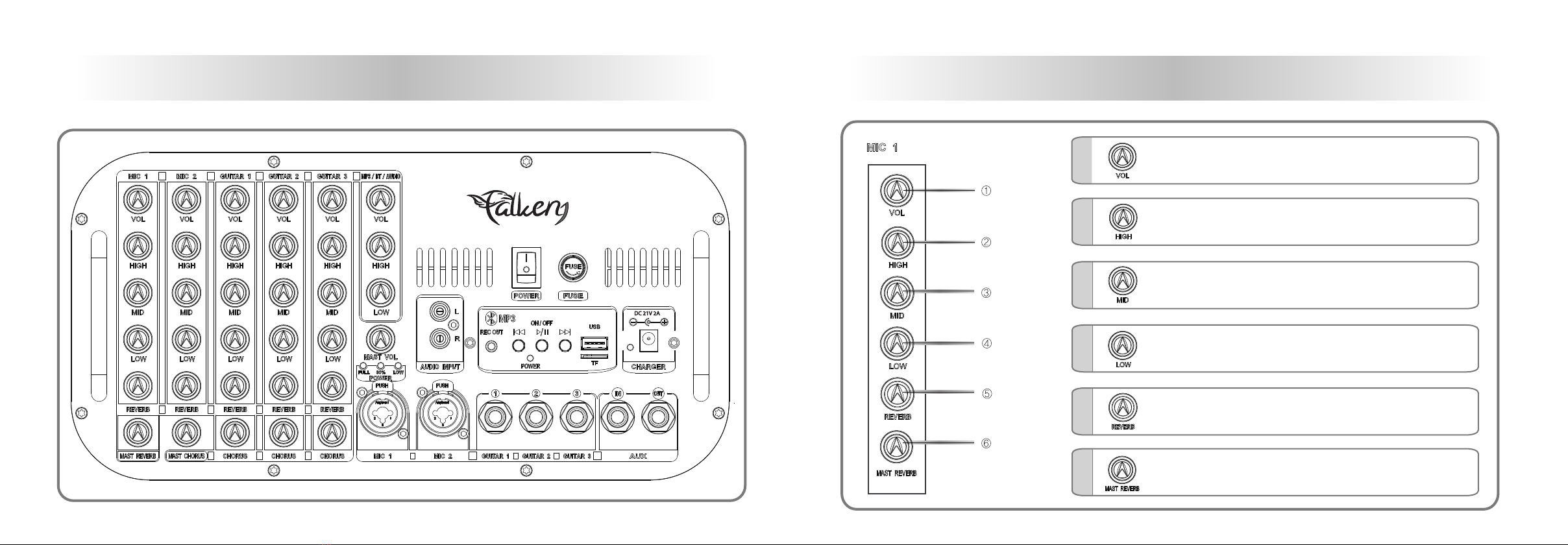

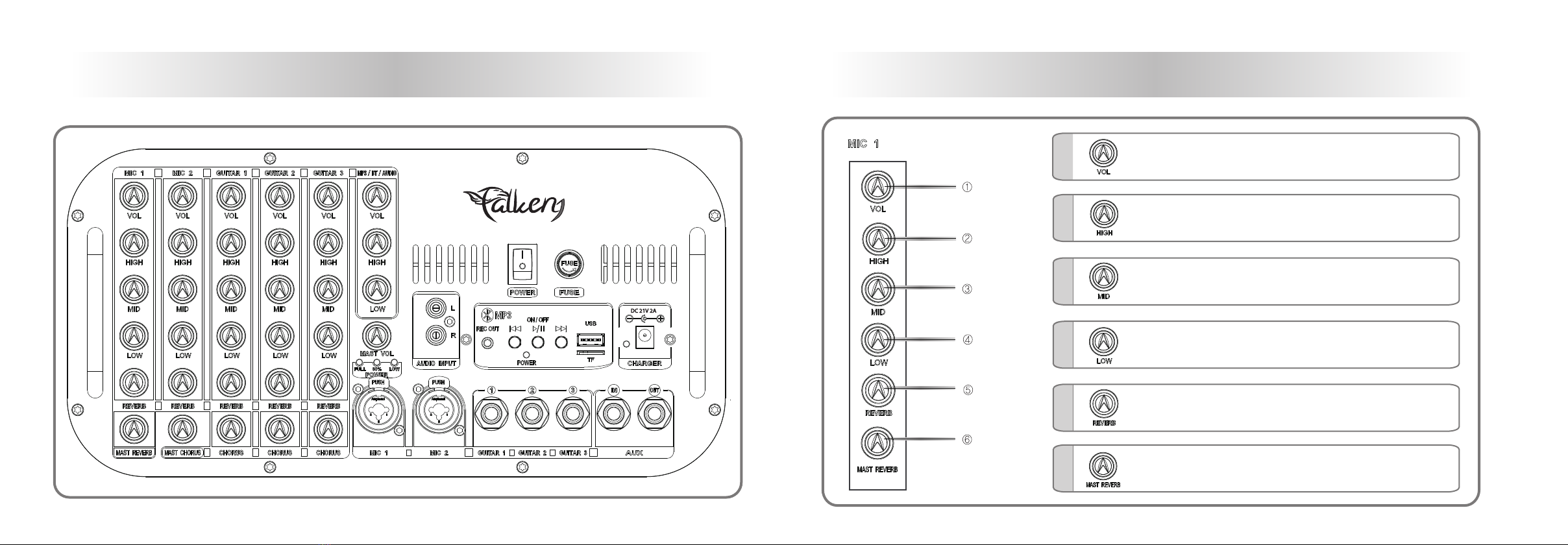

Whole Function Structure Panel
Traveller Pro
2 3
MIC Channel 1
1
2
3
4
Volume knob of MIC Channel 1
5
Treble knob of MIC Channel 1
Middle knob of MIC Channel 1
Bass knob of MIC Channel 1
Reverb knob of MIC Channel 1
Master Reverb knob
6
4

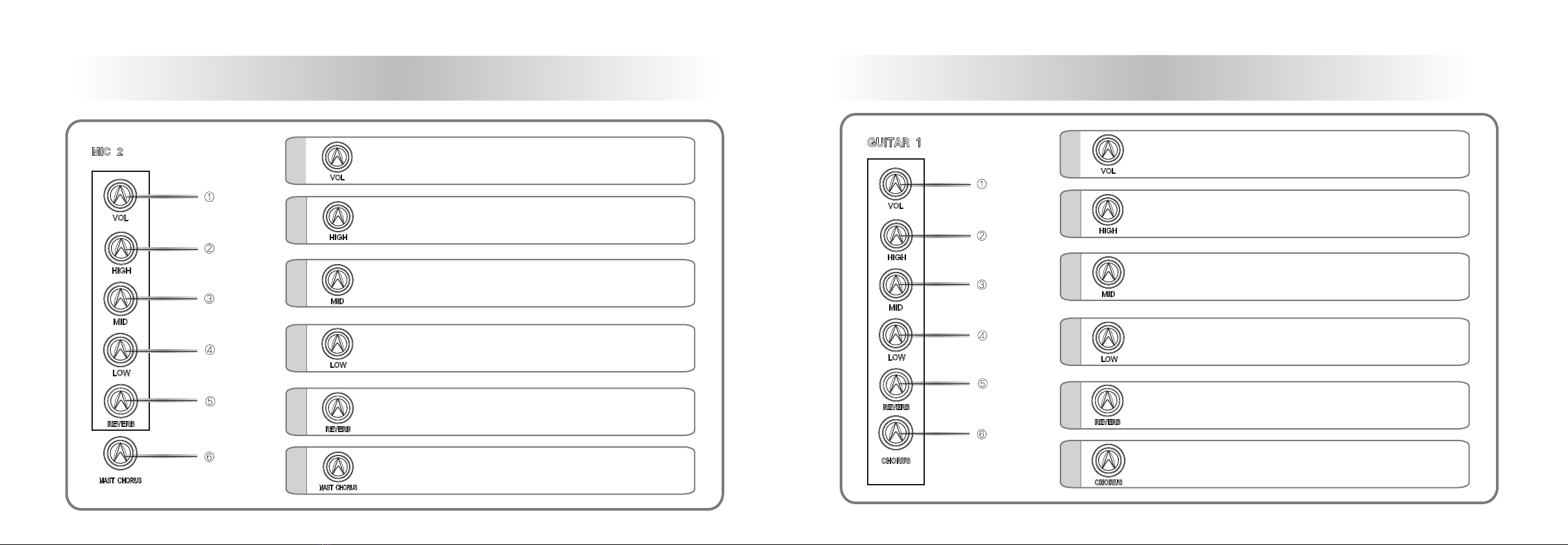

MIC Channel 2 GUITAR Channel 1
45
Volume knob of MIC Channel 2
Treble knob of MIC Channel 2
Middle knob of MIC Channel 2
Bass knob of MIC Channel 2
Reverb knob of MIC Channel 2
Master Chorus knob
1
2
3
4
5
6
1
2
3
4
Volume knob of GUITAR Channel 1
6
5
Treble knob of GUITAR Channel 1
Middle knob of GUITAR Channel 1
Bass knob of GUITAR Channel 1
Reverb knob of GUITAR Channel 1
Chorus knob of GUITAR Channel 1

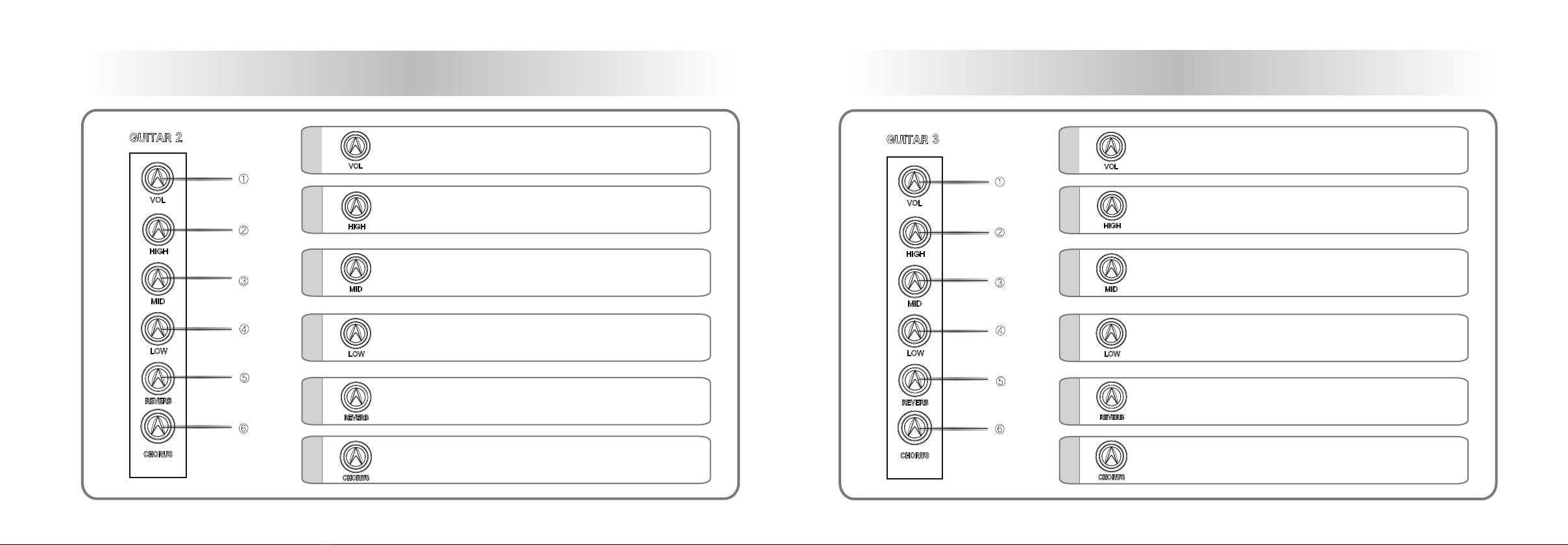

GUITAR Channel 2 GUITAR Channel 3
Volume knob of GUITAR Channel 2
Treble knob of GUITAR Channel 2
Middle knob of GUITAR Channel 2
Bass knob of GUITAR Channel 2
Reverb knob of GUITAR Channel 2
Chorus knob of GUITAR Channel 2
1
2
3
4
6
5
Volume knob of GUITAR Channel 3
Treble knob of GUITAR Channel 3
Middle knob of GUITAR Channel 3
Bass knob of GUITAR Channel 3
Reverb knob of GUITAR Channel 3
Chorus knob of GUITAR Channel 3
1
2
3
4
6
5
67

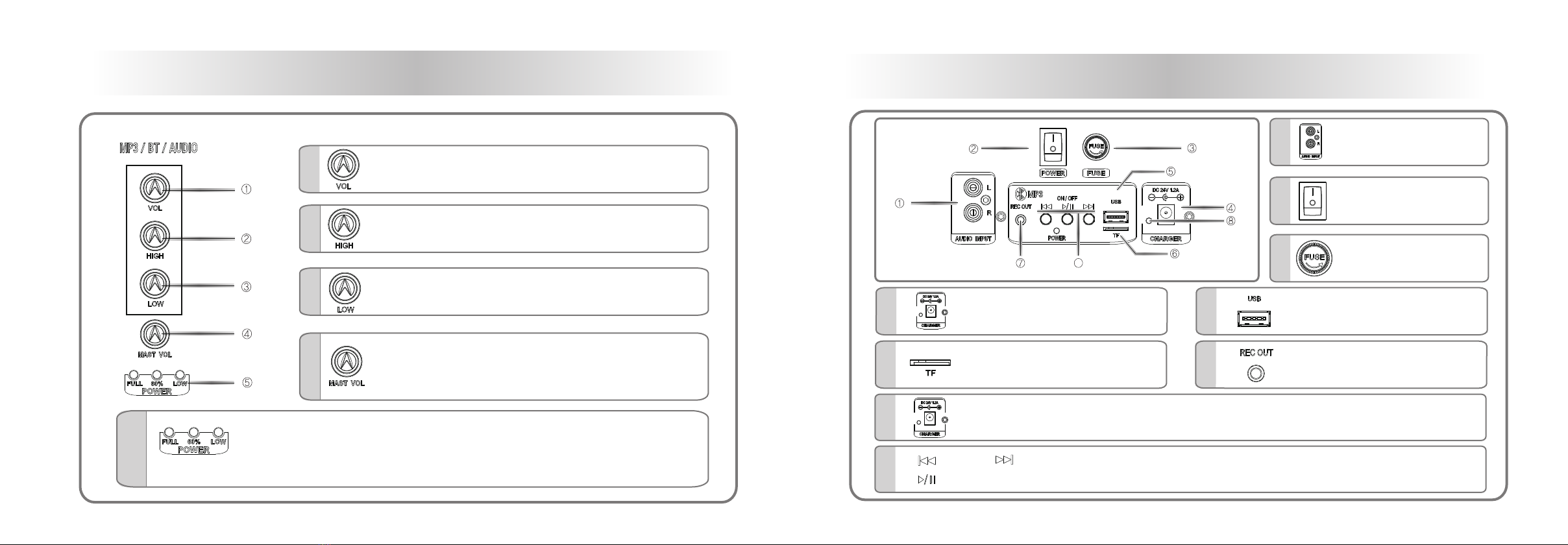

MP3/BT/AUDIO INDICATORS
Volume knob of the USB, Memory card, Bluetooth, audio input
Treble knob of the USB, Memory card, Bluetooth, audio input
Bass knob of the USB, Memory card, Bluetooth, audio input
Master Volume knob of the USB,Memory card, Bluetooth,
audio input
Function Description
Audio Input
Power
Fuse
Charging Jack
Phone Input and Record Output
1
2
3
45
67
MP3
Memory Card Slot
Last Next
Press once: Play and Pause; press and hold for seconds to turn on and o the Bluetooth
Charging Indicator light: it’s RED when charging; when you plug the charger it’ll be blue,
it’s GREEN when fully charged
8
FULL: Power Consumption between 60%-100%
60%: Power Consumption below 60%
LOW: Low Battery, please charge it in time
POWER
9
1
2
3
4
5
89
9

Function Description How to use these functions?
12
3
4
Input of MIC Channel 1 Input of MIC Channel 2
Input of GUITAR channel 1 ,2 ,3
Input of Audio 5Output of Audio
10 11
1. Traveller Pro MAIN POWER
2.FUSE: if there’s any need to change the FUSE, please turn it left, take it out and change it.

3. MIC IN1 MIC IN2 – The input of the Microphone Channel 1 and Channel 2
How to use these functions? How to use these functions?
4. GUITAR IN - The input of the Guitar Channel 1,2,3
12
5. AUX IN AND OUT
6. DC 24V 1.2A CHARGER – AC adapter please use the adapter supplied with the Traveller Pro
13
Traveller Pro

How to use these functions? AUDIO OUTPUT
7. Audio Input – you can connect CD Players, computers and so on.
1. For protecting the speaker or other equipment, please turn down the volume and
shut o the power before you re-connect the unit.
Caution of the Audio Input and Output
14 15
It’s the input for the mixer or recorder.
LR
It’s for connecting the CD player.

For Trio playing at the same time, the using guidance is as follows:
Connect the 1st guitar to the jack of GUITAR 1
Connect the 2nd guitar to the jack of GUITAR 2
Connect the 3rd guitar to the jack of GUITAR 3
DIFFERENT WAYS FOR USING THE TRAVELLER PRO
16 17
Singers OR Players Connect the microphone to the Instruments Guitar Trio
You can sing while playing guitar.
Connect the guitar with the jack of GUITAR
Connect the microphone with the jack of MIC
Microphone
Guitar
Put the Microphone near the instruments for
collecting the sound
Connect the microphone with the jack of MIC
DIFFERENT WAYS FOR USING THE TRAVELLER PRO
GUITAR 1
GUITAR 3
GUITAR 2

The Mixed Output of 2 Mic Channels and 3 Guitar Channels. If there’s two dierent tones of Mic, and, two or more
guitar pickups, you can use this Mixes Output.
Please plug the input of GUITAR IN for the Channel 1,2,3 separately, you can adjust the tone of the dierent
channels according to your liking and balance the dierences of the tone of three Guitar Channels.
Please plug the input of MIC IN for the Channel 1,2 separately, you can adjust the tone of the dierent channels
according to your liking and balance the dierences of the tone of two Mic Channels.
FULL: Power Consumption between 60%-100%
60%: Power Consumption below 60%
LOW: Low Battery, please charge it in time
18
The Mixed Output of 2 Mic Channels and 3 Guitar Channels.
SPECIFICATION
No.
1
PARAMETER ITEMS
System Type Acoustic Phase Inverter
Two Options 18.5V/4400mA/81.4w 18.5V/8800mA/162.8w
Charger Input: AC110V-230V, Output: DC21V/2A
Charging Time 5-6 Hrs
Battery life 7-10 Hrs
Nominal Impedance 4Ω
Rated Power 60W
Peak Power 80W
2
3
4
19
DIFFERENT WAYS FOR USING THE TRAVELLER PRO
Output
The Guitar Pickup
Mic Input Guitar Input

SPECIFICATION SPECIFICATION
Amp’s Input
USB or Memory card Slot
Charger DC 24V 1.2V
MIC 1 Multifunctional 6.35 input jack
Output S.P.L 94±3dB
Frequency Response 40HZ-16KHZ
No. PARAMETER ITEMS
5
MIC Channel -50Db
Nominal Input Level (1KHZ) Guitar Channel -10Db
AUX IN -10Db
Nominal Output Level (1KHZ) AUX OUT -10Db
Audio Input
Phone Record Output / Audio Input
(3.5 Headphone Jack) REC OUT
Amp’s Input
6
7
8
No. PARAMETER ITEMS
8MIC 2 Multifunctional 6.35 input jack
GUITAR 1 Multifunctional 6.35 input jack
GUITAR 2 Multifunctional 6.35 input jack
GUITAR 3 Multifunctional 6.35 input jack
AUX IN 6.35 input jack
20 21

SPECIFICATION
Amp’s Input8 AUX OUT 6.35 input jack
165mm (6.5inch)*2
Case Material
5.6KGS
Loudspeaker
NET WEIGHT
GROSS WEIGHT
9
10
11
12
13 Product’s Dimension(L*W*H) 370(L) * 210(W) * 190(H) mm
ABS
No. PARAMETER ITEMS
14 Packing Dimension(L*W*H) 430(L) * 280(W) * 310(H) mm
SAFETY PRECAUTION
1. Please read the manual before using it.
2. The unit is a precision electronic product, warranty is not valid when the product is ret by yourself.
3. Please keep it in dry Condition.
4. Please note and check the power situation of the unit 8 hours before the performance, to make sure the equipment
can be used, please charge it immediately if the power is not enough and turn it o after using it. For a better protection
of the battery, please charge it every two or three months. If you don’t use it in a long time, please do not keep it turned
on.
5. If it needs to be charged, please use the charger supplied with this amp for safety caution, please do not
use another charger or adapter.
22 23

WARNING
Connect the plug of the amp to
the plug outlet, please ensure it
should be earthed.
Please don’t disassemble (or ret in
any ways)the amp or its adaptor.
Please don’t try to x this unit or
change any parts inside (unless it’s
shown the specic instruction
guiding you to do so). Please contact
your wholesaler or distributor or
KSE Music GmbH when the amp
needs to be repaired.
Please don’t put the unit in the
following places:
1. Places with extreme
temperatures.
2. Moist conditions.
3. Places in steamed and
ue gas condition.
Please keep the amp in the standard
level and ensure its stability. And
never put it on the stands that could
be swayed or have a slanting surface.
Please discard the used batteries
in the certain places according
to your relevant zone.
The amp must be used with the adaptor
supplied. Besides, to be sure
the cable voltage matches the input
voltage marked on the AC Adaptor.
Other AC Adaptors handle dierent
polarity or may be designed for dierent
voltage, if you use them, it might
damage the amp.
Please don’t twist or bend the cable,
even put heavythings onto it, it
might breakthecable and cause a short
circuit.
The damaged cable might cause
re or electric shock.
WARNING
Whenever this unit is used alone
or combined with the preamp,
earphone or loudspeaker, it might
produce a sound levelthat could
causedpermanent
hearing impairment. Please don’t
handle it for a long time in the
highvolume or at a level that is
uncomfortable. You have to
stop using the amp if there’s
any hearing impairment or
earing humming.
Please keep the objects(e.g. am
mable material, coin, pins), or any
kind of liquids(water, soft drinks
etc.) away from the amp.
Please be the supervisor while
the child needs to operate the
unit, until the child can totally do it
alone according to the instruction.
Please dont’t drop it.
Please keep it away from high
heating , e.g. sunlight or re or the like.
Please contact your distributor
before using this unit in another
country (dierent voltage)
Please keep the unit and the AC
adaptor dry.
Please hold the black plastic in position
when you plug into or remove the
AC Adaptor.
24 25

WARNING
If there’s any of the following situation
please turn o the power
immediately, remove the
AC Adaptor from the plugboard
or outlet, and contact the dealer,
distributor or KSE Music GmbH
for technology support.
1. if the AC Adaptor, power cord or
the plug has been damaged;
2. if there’s any smoke or unusual
smell;
3. if some objects or liquids got into
the unit or are spilled onto it
If there’s a possibility
of lightning in your area, please
disconnect the AC Adaptor and all
cords, and turn o the power.
26

27
TRAVELLER PRO
Der Falken1 Traveller Pro ist ein multifunktionaler Akustikverstärker. Der Verstärker besitzt 5 digitale Kanäle,
2 Mikrofon Kanäle und drei Gitarren Kanäle. Jeder Kanal hat diverse Regler, um den Sound individuell einstellen
zu können. Jeder Kanal hat die folgenden Regler: Gain, EQ und REVERB. Darüber hinaus besitzt jeder Gitarren Kanal einen
CHORUS Regler. Der Verstärker ist mit zwei 6.5 Zoll, full-range Speaker und einer Batterie ausgestattet, sodass der
Verstärker auch ohne Stromkabel betrieben werden kann. Der Traveller Pro hat eine enorme Klangbreite.

29
Rückplatte
Traveller Pro
28
Mikrofon Kanal 1
1
2
3
4
Volume Regler Mikrofon Kanal 1
5
Treble Regler Mikrofon Kanal 1
Middle Regler Mikrofon Kanal 1
Bass Regler Mikrofon Kanal 1
Reverb Regler Mikrofon Kanal 1
Master Reverb Regler
6
4

30 31
Mikrofon Kanal 2
Volume Regler Mikrofon Kanal 2
Treble Regler Mikrofon Kanal 2
Middle Regler Mikrofon Kanal 2
Bass Regler Mikrofon Kanal 2
Reverb Regler Mikrofon Kanal 2
Master Chorus Regler
1
2
3
4
5
6
Gitarren Kanal 1
1
2
3
4
Volume Regler Gitarren Kanal 1
6
5
Treble Regler Gitarren Kanal 1
Middle Regler Gitarren Kanal 1
Bass Regler Gitarren Kanal 1
Reverb Regler Gitarren Kanal 1
Chorus Regler Gitarren Kanal 1

32 33
Gitarren Kanal 2
Volume Regler Gitarren Kanal 2
Treble Regler Gitarren Kanal 2
Middle Regler Gitarren Kanal 2
Bass Regler Gitarren Kanal 2
Reverb Regler Gitarren Kanal 2
Chorus Regler Gitarren Kanal 2
1
2
3
4
6
5
Gitarren Kanal 3
Volume Regler Gitarren Kanal 3
Treble Regler Gitarren Kanal 3
Middle Regler Gitarren Kanal 3
Bass Regler Gitarren Kanal 3
Reverb Regler Gitarren Kanal 3
Chorus Regler Gitarren Kanal 3
1
2
3
4
6
5

34 35
MP3/BT/AUDIO INDIKATOREN
Volume Regler für USB, Memory card, Bluetooth, audio input
Treble Regler für USB, Memory card, Bluetooth, audio input
Bass Regler für USB, Memory card, Bluetooth, audio input
Master Volume Regler für USB,Memory card, Bluetooth,
audio input
FULL: Akku zwischen 60%-100%
60%: Akku unter 60%
LOW: Akku gering, bitte auaden
POWER
1
2
3
4
5
Funktionen
Audio Input
Power
Fuse
Ladebuchse
Handy Input und Record Output
1
2
3
45
67
MP3
Speicherkarte
Last Next
1 x drücken: Play und Pause; drücken und gedrückt halten: Bluetooth an- und ausschalten
Ladestatus Anzeige: rot, während es lädt; grün, wenn es vollständig aufgeladen ist
8
9
9
