FAME E-Drum AMP AP-30X User manual

ENGLISH
Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged in any
way, it must be replaced immediately with an original spare part from the manufacturer.
Always make sure that the grounding of the device is maintained. Use only the supplied
power cords and always maintain the side grounded contacts. Make sure that the sockets
used have a properly functioning protective earth.
Failure to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
DANGER! (Hearing damage)
Professional speaker systems are able to generate harmful sound levels. Even the influence
of seemingly harmless sound levels over a longer period of time can lead to permanent
damage to the hearing (from approx. 95 dBA SPL).
Therefore, always wear professional hearing protection (earplugs or capsule ear protectors)
during operation!
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit, or insert objects into the unit.

ENGLISH
Hint! (Operating conditions)
In advance, it must be clarified with the manufacturer whether the device is also suitable
for outdoor use.
Always keep a minimum distance of 20 cm from walls or other structural objects.
Never expose the device to direct rain, moisture or liquids, as this can lead to damage.
Vibrations, dust or sunlight can also cause damage, avoid them!
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains voltage. It
is highly recommended that you fuse your mains socket with a residual current circuit
breaker (FI).
If you do not use your device for a longer period of time or carry out maintenance work,
disconnect the device from the mains in order to minimize danger. The same applies to
storm conditions such as thunderstorms, floods, etc.
Hint! (Fuses)
Replace fuses only with IEC127 type (5x20mm) and the correct rating to ensure optimum
performance! It is forbidden to use short-circuited fuses or to bridge the fuse holder.
Fuses may only be replaced by qualified personnel.
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.
Hint! (Possible damage due to magnetic fields)
Speakers cause a static magnetic field. Ensure sufficient distance from equipment that
may be affected.

ENGLISH
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk of
electric shock.
The exclamation mark symbol draws the user’s attention to important maintains and
operating instructions in the manual.
The lightning warns you of dangerous voltage accessible from the outside. A connection
to any terminal marked with this symbol may only be made with a ready-made cable
that complies with the manufacturer's recommendations or with cables installed by
qualified personnel.
This symbol warns of hot surfaces. To avoid burns - DO NOT touch!
Only suitable for indoor use.
Read the manual
Please read and follow the warnings and recommendations carefully to ensure safe and
trouble-free use.

ENGLISH
Installation:
Be sure to check the unit for damage before use. Use the original packaging or a suitable transport
or storage packaging to protect the product from dust, moisture, etc. when not in use.
During assembly, suitable protective equipment (in particular head protection, gloves and safety
shoes) must be worn and only suitable climbing aids (ladders, scaffolding, etc.) must be used. The
responsibility for this lies solely with the installation company.
The installation may only be carried out by experts and only at mounting points with sufficient load-
bearing capacity, if necessary taking construction requirements into account. The fixing material
(screws, dowels, etc.) specified by the manufacturer in the assembly instructions must be used.
Screw connections must be secured against loosening by suitable measures.
WARNING! (Risk of injury from overturning or falling down)
Improper installation can cause considerable injury and damage!
During transport and installation, ensure that only aids specified by the manufacturer
(e.g. trolleys, stands, tripods, brackets, etc.) are used and always follow the
manufacturer's instructions!
Using this device with sinusoidal, square-wave or other measuring signals at higher
levels will cause serious damage to the device!

ENGLISH
Congratulations on your new FAME E-Drum AMP!
Thank you for choosing a FAME product. Through efficient development and economical
production, FAME enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your FAME Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions,
please contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The product FAME AP-30XE-Drum AMP was designed for use as an amplifier for electric
drums. The device may only be used for this purpose and in accordance with the operating
instructions. Other purposes as well as operation under other operating conditions are expressly
not intended and can lead to damage to property or personal injury! No liability is assumed for
damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.
Content
Quantity
AP-30XE-Drum AMP
1
AC Power cable
1
Manual
1
Scope of delivery:

ENGLISH
Set up:
All connections of the device should be made before switching on. Only use high-quality and
undamaged cables that are as short as possible for the connections.
Connections and controls:
Front panel:
Rear panel:
IMPORTANT!
If the local power supply does not match the power supply of the amplifier, the fuse may be
damaged.
If the amplifier does not operate normally, check the fuse for proper operation.
DRUMS
DRUMS DRUMS AUX AUX BASS TREBLE BLUETOOTH POWERON/OFF

ENGLISH

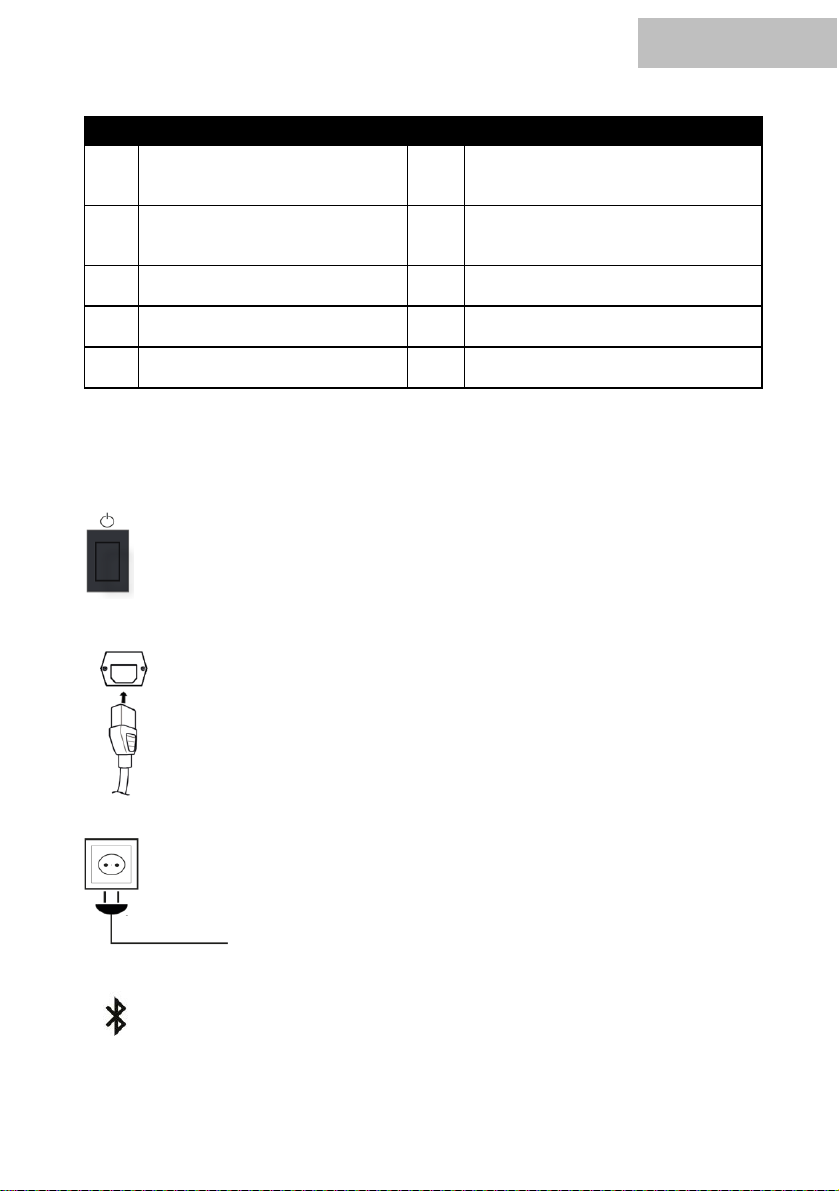

No.
Designation
No.
Designation
1
Drum Sound Input Signal
input from electronic drums (6,35
mm gauge jack)
6
Drum Bass Knob to control low
frequencies level
2
Drum Sound Input Signal
input from electronic drums (3,5
mm gauge jack)
7
Drum Treble Knob to control high
frequencies level
3
AUX Sound Input Signal input
(3,5 mm gauge jack)
8
Bluetooth Bluetooth ON/OFF
4
Drum Volume Knob to control
drums sound volume
9
Power Power switch
5
AUX Volume Knob to control
music volume
10
Power Socket
Connect to power supply:
(The graphs are for general illustration only and may vary slightly depending on the monitor.)
1. Make sure that the amplifier is turned off while connecting/disconnecting the
connections (9).
2. Connect the power supply unit to the power input (10) on the rear panel.
3. Plug the power cord into an appropriate wall outlet.
4. Bluetooth function
To connect bluetooth, press and hold the amp bluetooth
button till that the bluetooth LED light is up. Turn on
the bluetooth function on the mobile phone and
automatically search for bluetooth devices. If the device
name of “ADX-30 AUDIO “is found, it means that the
device has been found. Please click to connect. When
the connection is successful, a "di" sound will be heard.

ENGLISH
Connecting the Drum Sound Input:
(The graphs are for general illustration only and may vary slightly depending on the monitor.)
1. Connect the digital drum source to the drum sound
input (1 / 2) of the monitor with an audio cable (jack
6.35 mm or jack 3.5 mm) when the amplifier is off.
2. The volume of the digital drum can be adjusted with
the drum volume control (4).
Connect the AUX sound input:
(The graphs are for general illustration only and may vary slightly depending on the monitor.)
1. You can play your favourite song with your drums by
simply connecting your external audio device (e.g.
smartphone, MP3 player) to the AUX Sound Input (3).
2. The volume of the external audio device can be
adjusted with the AUX Volume knob (5).
IMPORTANT!
Make sure the ADX-40 volume is set to a low level before connecting.
If plugs are plugged directly into the connectors, interference may occur that could damage the
amplifier.

ENGLISH
Technical data:
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Model
AP-30XE-Drum AMP
Power
30 Watt
Power supply
AC 220 V ~ 50 Hz // 110 V ~ 60 Hz
(please notice details on the of label of AC Power
Socket)
Power consumption
≤ 80 Watt
Speaker specifications
10 inch, 70 Watt coaxial speaker with hight pitch
Dimensions AMP
429 x 362 x 343 mm
Dimensions Box
490 x 422 x 394 mm
Net Weight
11 Kg
Symptom
Troubleshooting
No function
Check the mains connection and the fuse.
No sound playback
Check all cable connections between amplifier and
sound module as well as the mains connection

ENGLISH
Cleaning:
The ventilation grilles of the unit must be cleaned regularly from impurities such as dust and dirt.
Switch off the unit before cleaning and disconnect mains operated units from the mains supply.
Use a lint-free, damp cloth for cleaning. Never use alcohol or solvents for cleaning!
Do not open the device. The device does not contain any assemblies or components that can be
replaced or maintained by the user.
In case of damage, do not put the device into operation under any circumstances. Service work
or repairs may only be carried out by qualified service personnel, in particular in the following
cases:
Objects or liquids have penetrated into the device.
The unit does not operate as normal.
The unit has been dropped or the cabinet has been damaged.
Environmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local waste
disposal office. The regulations valid in your country must be observed!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany

ENGLISH
MS ID: DRU0041686-000
10/2022
Notes
