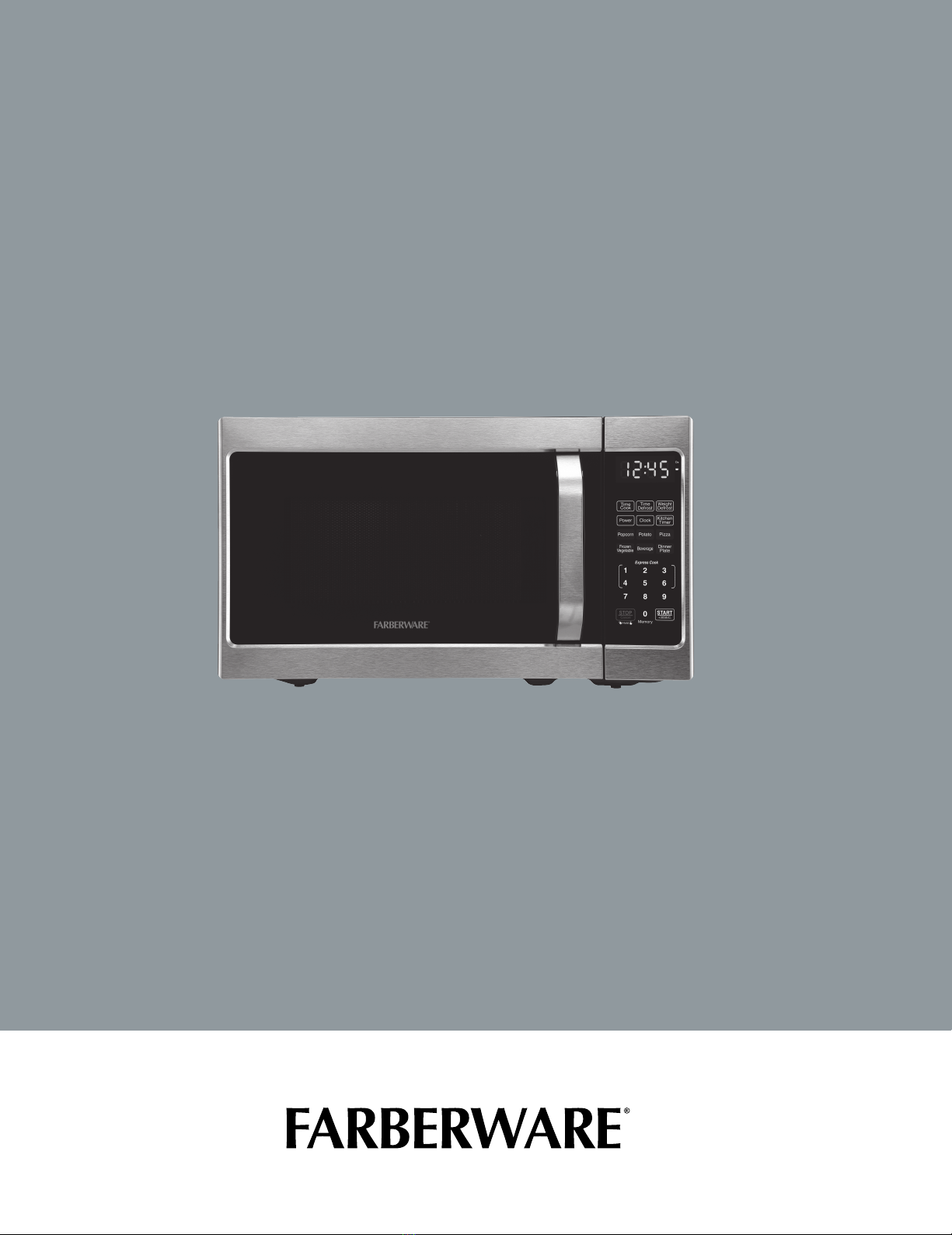

Farberware FMO07AHTBKJ User manual

MICROWAVE OVEN
INSTRUCTION MANUAL
Read these instructions carefully before using your
microwave oven, and keep it carefully. If you follow
the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
Model: FMO07AHTBKJ

Tables of Contents
PRECAUTIONS....................………………………………………….……….. 4
SPECIFICATIONS……………………………………………………..…........… 4
SAFETY………………………………………………………………………..…. 5
GROUNDING………………………………………………………….……..... 6
UTENSILS………………………................................................................... 8
SETTING UP YOUR OVEN……………...................................................... 10
CONTROL PANEL………………………………......................................... 12
OPERATION……………………………….................................................. 13
MAINTENANCE……………………………………………………………….. 19
WARRANTY INFORMATION.……………………………………………….. 20
3

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a)
result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) Theovenshouldnotbeadjustedorrepairedbyanyoneexceptproperlyqualied
service personnel
SPECIFICATIONS
4
ARNING:
This product can expose you to chemicals
including Phthalates or other chemicals which are know to
the State of California to cause cancer birth defects and
other reproductive harm.
For more information, visit www.P65Warnings.ca.gov
n
,
Model: FMO07AHTBKJ
RatedVoltage: 120V~60Hz
Rated Input Power(Microwave): 1050W
Rated Output Power(Microwave): 700W
Oven Capacity: 0.7 cubic feet
Turntable Diameter: 10.0 inches
External Dimensions: 17.3(W)x14.2(D)x10.2(H)inches
Net Weight: Approx 21.9LBbs

2.Readandfollowthespecic:“PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURETO
EXCESSIVEMICROWAVEENERGY”foundonpage4.
3. This appliance must be grounded. Connect only to properly grounded outlet. See
“GROUNDINGINSTRUCTIONS”foundonpage .6
4. Install or locate this appliance only in accordance with the provided installation
instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not
usecorrosivechemicalsorvaporsinthisappliance.Thistypeofovenisspecically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
9.Thisapplianceshouldbeservicedonlybyqualiedservicepersonnel.Contact
nearest authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surface.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
16.Toreducetheriskofreintheovencavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or
other combustible materials are placed inside the oven to facilitate cooking.
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
         
5
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including
the following:
WARNING – Toreducetheriskofburns,electricshock,re,injurytopersonsorexposure
to excessive microwave energy:
1. Read all instructions before using the appliance.

To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
WARNING – Improper use of the grounding can result in a risk of electric shock.
Consultaqualiedelectricianorservicemanifthegroundinginstructionsarenotcompletely
understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary
to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug,
and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the
extension cord shall be equal to or greater than the electrical rating of the appliance.
DANGER – Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death. Do not
disassemble this appliance.
WARNING – Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
6
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
THISCOULDRESULTINVERYHOTLIQUIDSUDDENLYBOILINGOVERWHENTHE
CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter
top or tabletop where it can be pulled on by children or tripped over unintentionally.
RADIO INTERFERENCE
1. Operation of the microwave oven may cause interference to your radio, TV or
similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4.UseonlythespeciedbagsizewhenusingDirectAccessPopcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
isextremelylowinmoisturecancausere,charringorsparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
7

9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
11. Do not attempt home canning in this microwave oven, as it is impossible to be sure
all contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir
liquid before placing the container in the oven and again halfway through cooking time. Let
stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
UTENSILS
!CAUTION – Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches
should be pierced before cooking.
Seetheinstructionson“Materialsyoucanuseinmicrowaveovenortobeavoidedin
microwaveoven.”
There may be certain non-metallic utensils that are not safe to use for microwaving. If in
doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil
in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
8

MATERIALS YOU CAN USE IN MICROWAVE OVEN
Utensils Remarks
Browningdish Follow manufacturer* instructions. The bottom of browning dish must
be at least 3/16 inch (5mm) above the turntable. Incorrect usage may
cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass
jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Paper plates and cups Use for short term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer* instructions. Should
belabeled“MicrowaveSafe”.Someplasticcontainerssoften,asthe
foodinsidegetshot.“Boilingbags”andtightlyclosedplasticbags
should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
9

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils Metal shields the food from microwave energy. Metal
trim may cause arcing.
Metal twist ties Maycausearcingandcouldcauseareintheoven.
Paper bags Maycauseareintheoven.
Plastic foam Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven
and may split or crack.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the
following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
F
G
A
CB
ED
A) Control panel
B)Turntableshaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
10

Turntable Installation
Counter-top Installation
Hub (underside)
Glass tray
Tu
rntable ring assembly
Turntable shaft
a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Bothglasstrayandturntableringassembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorized service center.
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Cabinet:Removeanyprotectivelmfound
on the microwave oven cabinet surface. Do
not remove the light brown Mica cover that
is attached to the oven cavity to protect the
magnetron.
1. Select a level surface that provide enough
open space for the intake and/or outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is
required between the oven and any adjacent
walls. One side must be open.
(1) Leave a minimum clearance of 12 inches
(30cm) above the oven.
2) Do not remove the legs from the
bottom of the oven.
(3)Blockingtheintakeand/oroutletopenings
can damage the oven.
(4) Place the oven as far away from radios
and TV as possible. Operation of
microwave oven may cause interference
to your radio or TV reception.
2. Plug your oven into a standard household
outlet.Besurethevoltageandthefrequency
is the same as the voltage and the frequency
on the rating label.
WARNING – Do not install oven over
a range cook-top or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and the
warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
11

(1) Time Cook
(2) Time Defrost
(3) Weight Defrost
(4) Power (10 power levels available)
(5) Clock
(6) Kitchen Timer
(7) Auto Cook Menu (Popcorn,
Potato, Pizza, Frozen Vegetable,
 Beverage,DinnerPlate)
(8) Number Pad (0-9)
(9) Express Cook (Number Pad 1-6)

time or add time to cooking)
(11) Stop/CANCEL(Before cookingstarts,
press to clear all previous settings;
during cooking, press once to stop
oven; press twice to stop oven and
clear all settings.
(12) Memory function
12
CONTROL PANEL
   
(10)START/ 30SEC.(Begin cooking
+
(1)
(2)
(4)
(5)
(7)
(8)
(11)
(12)
(3)
(6)
(9)
(10)

OPERATION
1. POWER LEVEL
10 power levels are available.
Level 10 9 8 7 6 5 4 3 2 1
Power 100% 90% 80% 70% 60% 50% 40% 20% 10%
Display PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
2. CLOCK SETTING
(1) Press“Clock“,“00:00”willdisplay.
(2) Press the number keys and enter the current time. For example, time is 10:12 now, please
 press“1,0,1,2”inturn.
(3) Press“Clock“tonishclocksetting.“:”willashandtheclockwillbelighted.
(4) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid until
valid numbers are input.
Note:
1.Intheprocessofclocksetting,ifthe“STOP/CANCEL“buttonispressedorifthereisnooperation
within 1 minute, the oven will go back to the former setting automatically.
2. If the clock need to be reset, please repeat step 1 to step 3.
3. MICROWAVE COOK
(1) Press“ COOKTIME ”once,thescreenwilldisplay“00:00”.
(2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes and
99 seconds.
(3) Press“POWER“once,screenwilldisplay“PL10”.Thedefaultpoweris100%power.
Now you can press number keys to adjust the power level.
     
13
30%
Example: To cook the food with 50% microwave power for 15 minutes.
a. Press   once.”00:00”displays.
b. Press“1”,”5”,”0”,”0”inorder.
c. Press“POWER”once,thenpress“5”toselect50%microwavepower.
“ COOKTIME ”
(4) Press “START/ 30sec.“tostartcooking.
+
d.  Press “ to start cooking.
START/ 30sec.“
+

Note:
1.Intheprocessofsetting,ifthe“STOP/CANCEL“buttonispressedorifthereisnooperationwithin1
minute, the oven will go back to the former setting automatically.
2.Youcanskipthestepof“c”andcookat100%microwavepower.
14
5. EXPRESS COOKING
(1) In waiting state, instant cooking at 100% power level with 30 seconds’ cooking time can
4. KITCHEN TIMER
 
(1) Press“Kitchen Timer“once,thescreenwilldisplay 00:00. 
(2) Press the number keys and enter the timer time. (The maximum cooking time is 99 minutes
and 99 seconds.)
(3) Press“ “toconrmsetting. 
(4)When
 thetimertimearrives,thebuzzerwillring5times,screendisplaythe correct time.
Note:
1. The kitchen time is different from 12-hour system, Kitchen Timer is a timer.
2. Kitchen Timer and cooking (including microwave, defrosting, Auto menu) are independent,
all the cooking functions cannot be set during running Kitchen Timer, Kitchen Timer cannot be set
during running other cooking functions.
START/ 30sec.
+
 bestartedbypressing“ “.Eachpressonthesamebuttonwillincrease
cooking time by 30 seconds. The maximum cooking time is 99 minutes and 99 seconds.
START/ 30sec.
+
Note:
During microwave cooking, time defrost , time can be added by pressing
“ “button.
(2) If not ready cooking, press number pads 1-6 to quickly cook from 1-6 minutes at 100% power.
Press """" to increase the cooking time; the maximum cooking time is 99 minutes
“ “
and 99 seconds.
START/ 30sec.
+
START/ 30sec.
+

6. CANCEL QUICKLY
(1) Duringsettingorrunningprocedure,onlypressing“STOP/CANCEL“canstopcurrentstatesand
turn back to the waiting states.
15
7. WEIGHT DEFROST FUNCTION
(1) Press“Weight Defrost“ once, screen will display “dEF1”;
(2) Press numerical buttons to input weight to be defrosted. Input the weight ranged
between 4~100Oz.ZZZ If the weight input is not within 4~100, the input will be invalid.
8. TIME DEFROST FUNCTION
(1) Press“Time Defrost“ , screen will display “dEF2”.once
           
(2) Press number pads to input defrosting time. The effective time range is 00:01~99:99.
            
9. POPCORN
(1) Press“POPCORN“repeatedlyuntilthenumberyouwishappearsinthedisplay,
 “1.75”,”3.0”,”3.5”Ozwilldisplayinorder.
 Forexample,press“POPCORN”once,“1.75”appears.
(3) Press“ “tostartdefrostingandthecookingtimeremainedwillbedisplayed.
START/ 30sec.
+
(3) Press“POWER“once,screenwilldisplay“PL3”.Thedefaultpoweris power.
Now you can press number keys to adjust the power level.
30%
(4)Press tostartdefrosting.Theremainedcookingtimewillbedisplayed.


“START/ 30SEC.“
+
      
(2) Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 soundsvetimesandscreenwilldisplaythe current time.


START/ 30SEC.
+
“ “
10. BEVERAGE
(1) Press“BEVERAGE“repeatedlyuntilthenumberyouwishappearsinthedisplay, 
 cupwilldisplayinorder.Onecupisabout 
Forexample,press“BEVERAGE”once,
120ml.
 “1”appears.
(2)Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 sounds ve times and
“1”,”2”,”3”


“START/ 30SEC.“
+
then turns back to waiting state.

16
11. PIZZA REHEAT
(1)Press“PIZZA“repeatedlyuntilthenumberyouwishappearsinthedisplay,
 “4.0”,”8.0”,”14.0”Ozwilldisplayinorder.
 Forexample,press“PIZZA“once,“4.0”appears.
           
12. POTATO
(1) Press“POTATO“repeatedlyuntilthenumberyouwishappearsinthedisplay,“1”,”2”,”3”
 willdisplayinorder.
 Forexample,press“POTATO”once,“1”appears.
    
13. FROZEN VEGETABLE
(1) Press“FROZENVEGETABLE“repeatedlyuntilthenumberyouwishappearsinthedisplay,
 “4.0”,”8.0”,”16.0”Ozwilldisplayinorder.
 Forexample,press“FROZENVEGETABLE”once,“4.0”appears.
 
 
14. D
(1) Press“ “repeatedlyuntilthenumberyouwishappearsinthedisplay,
 “9.0”,”12.0”,”18.0”Ozwilldisplayinorder.
 Forexample,press“ once,“9.0”appears.
DINNER PLATE
DINNERPLATE”
INNER PLATE
(2)Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 soundsvetimesand  


“START/ 30SEC.“
+
then turns back to waiting state.
(2)Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 soundsvetimesand  


“START/ 30SEC.“
+
then turns back to waiting state.
(2)Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 soundsvetimesand  


“START/ 30SEC.“
+
then turns back to waiting state.
(2)Press tocook,buzzersoundsonce.Whencookingnish,buzzer
 soundsvetimesand  


“START/ 30SEC.“
+
then turns back to waiting state.

Note:
Auto menu can not be set in memory function.
16. MULTI-STAGE COOKING
At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then
defrostingshallbeplacedattherststageautomatically.
Note:
Auto menu cannot work in the multi-stage cooking.
Example: If you want to cook with 80% microwave power for 5 minutes + 60% microwave
power for 10 minutes. The cooking steps are as following:
a. Press  once,thenpress“5”,”0”,”0”tosetthecookingtime;
b. Press“POWER“once,thenpress“8”toselect80%microwavepower.
c. Press  once,thenpress“1”,”0”,”0”,”0”tosetthecookingtime;
d. Press“POWER“once,thenpress“6”toselect60%microwavepower.
“ COOKTIME “
“ COOKTIME “
17
15. MEMORY FUNCTION
         
         
(1) Press“0/MEMORY”tochoosememory1-3procedure.Thescreenwilldisplay1,2,3.
(2) Iftheprocedurehasbeenset,press touseit.Ifnot,continuetoset
the procedure. Only one or two stages can be set.
(3) Iftheprocedurehasnotbeenset,afternishingthesetting,press  once
to
save the
 procedureandturnbacktothewaitingstates.Ifpress itwillstart
cooking at once and save the procedure too.
Example: To set the following procedure as the second memory, that is memory 2.
To cook the food with 80% microwave power for 3minutes and 20 seconds.
The steps are as follow:
a. Inwaitingstates,press“0/MEMORY”twice,stoppressinguntilthescreendisplays“2”.
b. Press“ COOKTIME “once,thenpress“3”,”2”,”0”inorder.
c. Press“POWER“once,”PL10”display,thenpress“8”and“PL8”displays.
d. Press  tosavethesetting.Buzzersoundsoncethen
 Ifyoupress again,theprocedurewillbe asthememory2
operated .
e. If the electricity is not cut off, the procedure will be saved all the time. If it is, the procedure
need to reset.
f. Whenyouwanttorunthesavedprocedure,inwaitingstates,press twice,screen
 displays“2”,thenpress tostartcooking.
“0/MEMORY”


“START/ 30SEC.“
+


“START/ 30SEC.“
+


“START/ 30SEC.“
+


“START/ 30SEC.“
+



“START/ 30SEC.“
+



“START/ 30SEC.“once
+the screen will display" "“2”.
e. Press tostartcooking.


START/ 30SEC.
+

17. INQUIRING FUNCTION
Inthemicrowavecookingstate,press“POWER“toinquiremicrowavepowerlevel,and
the current microwave power will be displayed. After three seconds, the oven will turn back to
the previous state. In multi-stage state, the inquiring way can be done by the same way as above.
18. LOCK FUNCTION FOR CHILDREN
Lock:Inwaitingstate,press“STOP/CANCEL“for3seconds,therewillbealong“beep”denotingthe
entering into the children-lock state, and the lock indicator will light. The screen will display
Unlock:Inlockedstate,press“STOP/CANCEL“for3seconds,therewillbealong“beep”denoting
that lock is released.
Whenthecookingisover,thebuzzerwillsound5“beep”toalertuserthecookingisnished.
(1) Instandbystate,ifthesetclockdigitaltubedisplayscurrenttime,theicon“:“wouldash;
 otherwise,itshows“0:00“.
(2) In setting function state, the screen displays corresponding setting.
(3) In working or pause state, the screen displays surplus cooking time.
(4) Whenthecookingisnish,thescreenwilldisplay Openingthedoororpressing
 “STOP/CANCEL“canmaketheovenenterwaitingstate.
19. COOKING END REMINDING FUNCTION
the correct time.
18
20. OTHER SPECIFICATIONS

.
Inthemicrowavecookingstate,press toinquireCLOCK“ the current time.
“

MAINTENANCE
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
Trouble Possible Cause Possible Remedy
Oven will not
start
a. Electrical cord for oven is not
plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try again.
c. Check instructions.
Arcing or
sparking
a. Materials to be avoided in
microwave oven were used.
b. The oven is operated when empty.
c. Spilled food remains in the cavity.
a. Use microwave-safe cookware only.
b. Do not operate with oven empty.
c. Clean cavity with wet towel.
Unevenly
cooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted completely.
c. Cooking time, power level is
not suitable.
d. Food is not turned or stirred.
a. Use microwave-safe cookware only.
b. Completely defrost food.
c. Use correct cooking time, power level.
d. Turn or stir food.
Overcooked
foods
Cooking time, power level is
not suitable.
Use correct cooking time, power level.
Undercooked
foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted completely.
c. Oven ventilation ports are restricted.
d. Cooking time, power level is not
suitable.
a. Use microwave-safe cookware only.
b. Completely defrost food.
c. Check to see that oven ventilation
ports are not restricted.
d. Use correct cooking time, power level.
Improper
defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe cookware only.
b. Use correct cooking time, power level.
c. Turn or stir food.
19

20


ONE YEAR LIMITED WARRANTY
