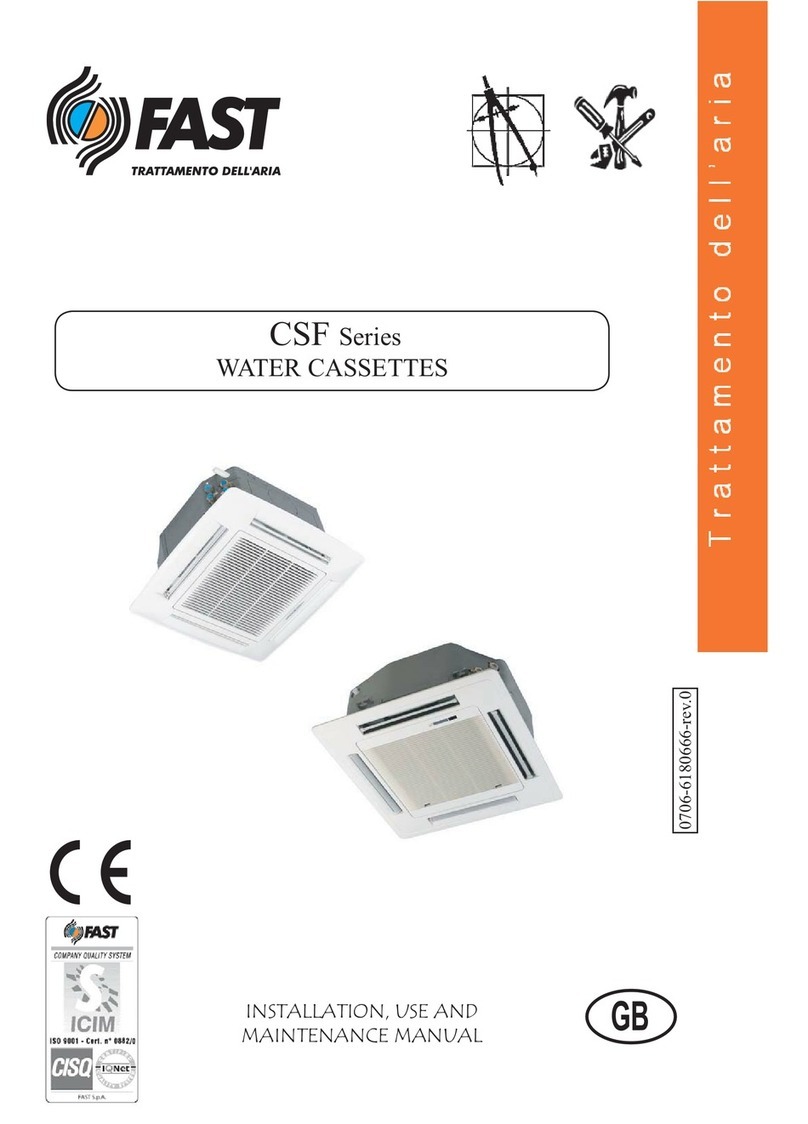

Fast CSF Series User manual

INSTALLATION, USE AND
MAINTENANCE MANUAL
0706-6180666-rev.0
GB
CSF Series
WATER CASSETTES
All manuals and user guides at all-guides.com
all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
CONTENTS
FIRST PART: FOR THE INSTALLER
GENERAL DIMENSION FOR 2 PIPE SYSTEM 3
GENERAL DIMENSION FOR 4 PIPE SYSTEM 4
GENERAL TECHNICAL DATA FOR 2 PIPE SYSTEM 5
Correction coefficient for different speed 5
GENERAL TECHNICAL DATA FOR 4 PIPE SYSTEM 6
Correction coefficient for different speed 6
WORKING LIMITS 7
GENERAL FEATURES AND MAIN COMPONENTS 7
RECOMMENDATIONS FOR THE INSTALLER 7
Unit installation 7-8
RECEIVING, STORING AND MOVING THE UNITS 8
INSTALLATION ACCESSORIES 8
SELECTION OF LOCATION FOR INSTALLATION 8
Recommendations 8
INSTALLATION 8
Fixing the cassette 8-9
Fixing the panel 9
CHANGE OF AIR AND RECIRCULATION SYSTEM
Fresh air intake 9
Air suppl to an adjacent room 9
Fresh air intake wiring diagrams 9
WATER CONNECTIONS
Standard water connection to heating/cooling s stem 9
INSTALLATION OF AUXILIARY CONDENSATE DRAIN PAN -10
CONDENSATE DRAINAGE 10
ELECTRIC CONNECTIONS 10
Acces to the swhitchboard 10
Wiring diagram of 2 pipe s stem (I.R. remote control) 11
Wiring diagram of 4 pipe s stem (I.R. remote control) 11
Wiring diagram of 2 pipe s stem (wall-mounted control CD2/X7)12
Wiring diagram of 4 pipe s stem (wall-mounted control CD2/X7)12
Wiring diagram (without control): CSVN 13
SECOND PART: FOR THE USER
RECOMMENDATIONS FOR THE USER 13
WATER CASSETTE OPERATION 13
I.R. REMOTE CONTROL 14
remote control operation 14-15
WALL-MOUNTED CONTROL: CD2/X7 15-16
Wall-mounted control operation 16
Condensate drain pump operation specifications 16
Pre-heat function 16
Electrical characteristics 16
Detail of wall-mounted control operation 16-17
TIPS FOR BEST USE 17
Energ saving 17
ROUTINE MAINTENANCE 17
Opening the panel 17
Filter cleaning 18
End of season maintenance 18
TROUBLESHOOTING 18
2
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
GENERAL DIMENSIONS FOR 2 PIPE WATER CASSETTES
MODEL CSF21 CSF22 CSF23 CSF24 CSF25 CSF26 CSF27 CSF28
Fans number n° 1 1 1 1 1 1 1 1
Coil numbers n° 1 1 1 1 1 1 1 1
Rows number n° 1 2 2 2 1 2 2 2
H draulic fitting (Ø female gas) Ø 3/4" 3/4" 3/4" 3/4" 3/4" 1" 1" 1"
Depth of the unit (Lu) mm 580 580 580 580 835 835 835 835
Lenght of the unit (Pu) mm 580 580 580 580 835 835 835 835
Height of the unit (Hu) mm 280 280 280 280 240 305 305 305
Depth of the panel (Lp) mm 720 720 720 720 953 953 953 953
Lenght of the panel (Pp) mm 720 720 720 720 953 953 953 953
Height of the panel (Hp) mm 65 65 65 65 80 80 80 80
Air suppl in adjacent room (Ø) A mm 150 150 150 150 - - - -
Air suppl in adjacent room BxH) C mm 350x100 350x100 350x100 350x100 120x80 120x80 120x80 120x80
Fresh air intake (Ø) D mm 65 65 65 65 - - - -
Fresh air intake (BxH) E mm - - - - 120x80 120x80 120x80 120x80
B mm 225 225 225 225 180 325 325 325
X mm 65,5 65,5 65,5 65,5 70 73 73 73
Y mm 55,5 55,5 55, 55,5 75 68 68 68
W mm 100 100 100 100 58 88 88 88
Z mm 146 146 146 146 117 160 160 160
Net weight kg 23,5 24,5 24,5 24,5 37,0 43,0 43,0 45,0
General
features
MOD. CSF21 - CSF22 - CSF23 - CSF24 MOD. CSF25 - CSF26 - CSF27 - CSF28
Fig. 02
Lu
550
515
Pu
X
34.5
Condensate
fitting Ø 24
52
W
Z
Lp
Pp
Hu
B
Hp
C
D
Y
785
Pp
Pu
512
Condensate
fitting Ø 27
Lp
65
57
B
Hu
Y
X
Lu
EC
Hp
A
W
Z
Fig. 01
23
42
20 60
3
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
GENERAL DIMENSIONS FOR 4 PIPE WATER CASSETTES
MODEL CSF41 CSF42 CSF43 CSF44 CSF45 CSF46 CSF47 CSF48
Fans number n° 1 1 1 1 1 1 1 1
Coil numbers n° 2 2 2 2 2 2 2 2
Rows number (standard coil) n° 1 2 2 2 2 2 2 2
H draulic fitting (Ø female gas) Ø 3/4" 3/4" 3/4" 3/4" 3/4" 1" 1" 1"
Rows number (auxiliar coil) n° 1 1 1 1 1 1 1 1
H draulic fitting (Ø female gas) Ø 1/2" 1/2" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4"
Depth of the unit (Lu) mm 580 580 580 580 835 835 835 835
Lenght of the unit (Pu) mm 580 580 580 580 835 835 835 835
Height of the unit (Hu) mm 280 280 280 280 240 305 305 305
Depth of the panel (Lp) mm 720 720 720 720 953 953 953 953
Lenght of the panel (Pp) mm 720 720 720 720 953 953 953 953
Height of the panel (Hp) mm 65 65 65 65 80 80 80 80
Air suppl in adjacent room (Ø) A mm 150 150 150 150 - - - -
Air suppl in adjacent room (BxH) C mm 350x100 350x100 350x100 350x100 120x80 120x80 120x80 120x80
Fresh air intake (Ø) D mm 65 65 65 65 - - - -
Fresh air intake (BxH) E mm - - - - 120x80 120x80 120x80 120x80
B mm 225 225 225 225 180 325 325 325
X mm 65,5 65,5 65,5 65,5 86 73 73 73
Y mm 55,5 55,5 55, 55,5 75 68 68 68
Wmm828282 8258888888
Z mm 100 100 100 100 117 160 160 160
M mm 146 146 146 146 - - - -
N mm 159 159 159 159 - - - -
Net weight kg 23,5 24,5 24,5 24,5 37,0 43,0 43,0 45,0
MOD. CSF41 - CSF42 - CSF 43 - CSF44 MOD. CSF45 - CSF46 - CSF47 - CSF48
Fig. 04
Lu
550
515
Pu
X
34.5
Condensate
fitting Ø 24
52
W
N
Lp
Pp
Hu
B
Hp
C
D
Y
785
Pp
Pu
512
Condensate
fitting Ø 27
Lp
65
57
B
Hu
Y
X
Lu
EC
Hp
A
W
Z
Z
M
Fig. 03
42
23
20 60
General
features
4
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
Above mentioned technical data are calculate at the following operating conditions:
- Maximum fan speed
- Standard unit without ducts
(A) Cooling: inlet water temperature: 7 °C; Outlet water temperature: 12 °C; Inlet air temperature: 27 °C w.b. 19 °C d.b.
(B) Heating: inlet water temperature: 70 °C; Outlet water temperature: 60 °C; Inlet air temperature: 20 °C
(C) Heating: inlet water temperature: 50 °C; Same water flow as in cooling; Inlet air temperature: 20 °C
(D) Air flow and fan speed: fancoil performances with cleaned filter
(E) Sound power level: Sound power measured following ISO 23741
(F) Electrical data referred to the maximum available speed
GENERAL TECHNICAL DATA: 2 PIPE SYSTEM
W 1.980 2.870 3.260 4.490 5.730 6.760 8.080 10.540
Frig/h 1.707 2.474 2.810 3.871 4.940 5.828 6.966 9.086
W 1.505 2.009 2.347 3.233 4.182 4.934 5.979 7.588
Frig/h 1.297 1.732 2.023 2.787 3.605 4.254 5.154 6.541
kPa 20,6 26,1 40,2 50,4 35,1 34,3 37,3 53,9
m.c.a. 2,06 2,61 4,02 5,04 3,51 3,43 3,73 5,39
W 2.720 3.830 4.940 6.150 6.550 7.790 9.310 12.010
kcal/h 2.345 3.302 4.259 5.302 5.647 6.716 8.026 10.353
kPa 16,9 21,4 32,9 41,3 29,7 29,1 31,6 45,7
m.c.a. 1,69 2,14 3,29 4,13 2,97 2,91 3,16 4,57
l/h 341 494 561 773 986 1.163 1.390 1.814
l/s 0,095 0,137 0,156 0,215 0,274 0,323 0,386 0,504
W 4.540 6.390 8.240 10.250 10.790 12.820 15.310 19.890
kcal/h 3.914 5.509 7.103 8.836 9.302 11.052 13.198 17.147
kPa 17,4 22,1 34,0 42,7 28,8 28,1 30,6 44,2
m.c.a. 1,74 2,21 3,4 4,27 2,88 2,81 3,06 4,42
l/h 391 550 709 882 928 1.103 1.317 1.711
l/s 0,108 0,153 0,197 0,245 0,258 0,306 0,366 0,475
m3/h 543 611 680 815 832 1087 1087 1274
m3/s 0,151 0,170 0,189 0,226 0,231 0,302 0,302 0,354
g/min. 700 785 830 1100 540 610 610 630
dB(A) 51 53 57 62 54 58 58 62
W 58 126 126 124 58 126 126 124
A 0,41 0,57 0,57 0,66 0,41 0,57 0,57 0,66
Total cooling capacit
Sensible cooling capacit
Heating capacit
Water flow
Water pressure drops in heating
Air flow
Speed of the fan
Sound power level
Motor electrical power
Electrical supply: 230V / 1 / 50Hz
A
Heating capacit
C
Water flow
A-C
Water pressure drops in cooling
A
Water pressure drops in heating
C
B
D
E
F
1 0,55 0,58 0,49 0,56 0,80 0,79 0,78 0,80
2 0,73 0,75 0,68 0,67 0,87 0,88 0,87 0,86
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,57 0,58 0,51 0,56 0,82 0,79 0,80 0,80
2 0,75 0,75 0,70 0,67 0,89 0,88 0,89 0,86
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,57 0,59 0,51 0,57 0,82 0,80 0,80 0,81
2 0,75 0,76 0,70 0,68 0,89 0,89 0,89 0,87
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,47 0,46 0,44 0,43 0,75 0,71 0,73 0,73
2 0,64 0,65 0,65 0,65 0,84 0,84 0,86 0,84
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
CORRECTION COEFFICIENT FOR THE DIFFERENT SPEED
Total cooling capacit
Sensible cooling capacit
Heating capacit
Air flow
Motor electrical input
MODEL CSF21 CSF22 CSF23 CSF24 CSF25 CSF26 CSF27 CSF28
MODEL CSF21 CSF22 CSF23 CSF24 CSF25 CSF26 CSF27 CSF28
5
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
Above mentioned technical data are calculate at the following operating conditions:
- Maximum fan speed
- Standard unit without ducts
(A) Cooling: inlet water temperature: 7 °C; Outlet water temperature: 12 °C; Inlet air temperature: 27 °C w.b. 19 °C d.b.
(B) Heating: inlet water temperature: 70 °C; Outlet water temperature: 60 °C; Inlet air temperature: 20 °C
(C) Heating: inlet water temperature: 50 °C; Same water flow as in cooling; Inlet air temperature: 20 °C
(D) Air flow and fan speed: fancoil performances with cleaned filter
(E) Sound power level: Sound power measured following ISO 23741
(F) Electrical data referred to the maximum available speed
GENERAL TECHNICAL DATA: 4 PIPE SYSTEM
W 1.450 2.020 2.860 3.460 4.790 5.910 7.040 9.300
Frig/h 1.250 1.741 2.466 2.983 4.129 5.095 6.069 8.017
W 1.204 1.515 2.174 2.664 3.496 4.313 5.210 6.696
Frig/h 1.038 1.306 1.874 2.297 3.014 3.718 4.491 5.772
kPa 21,8 26,2 40,6 45,4 26,7 41,9 41,9 49,5
m.c.a. 2,18 2,62 4,06 4,54 2,67 4,19 4,19 4,95
l/h 250 348 492 595 824 1.017 1.211 1.600
l/s 0,069 0,097 0,137 0,165 0,229 0,282 0,336 0,445
W 970 1.640 1.840 2.310 4.190 5.140 6.130 7.450
kcal/h 836 1.414 1.586 1.991 3.612 4.431 5.284 6.422
kPa 30,8 29,2 34,2 39,8 35,7 22,3 29,7 40,7
m.c.a. 3,08 2,92 3,42 3,98 3,57 2,23 2,97 4,07
l/h 83 141 158 199 360 442 527 641
l/s 0,023 0,039 0,044 0,055 0,100 0,123 0,146 0,178
W 2.280 2.950 4.360 5.310 6.880 8.480 10.110 12.340
kcal/h 1.966 2.543 3.759 4.578 5.931 7.310 8.716 10.638
kPa 33,2 31,4 36,8 42,8 38,4 24,0 32,0 43,8
m.c.a. 3,32 3,14 3,68 4,28 3,84 2,4 3,2 4,38
l/h 196 254 375 457 592 730 870 1.062
l/s 0,054 0,071 0,104 0,127 0,164 0,203 0,242 0,295
m3/h 543 611 680 815 832 1087 1087 1274
m3/s 0,151 0,170 0,189 0,226 0,231 0,302 0,302 0,354
g/min. 700 785 830 1100 540 610 610 630
dB(A) 51 53 57 62 54 58 58 62
W 58 126 126 124 58 126 126 124
A 0,41 0,57 0,57 0,66 0,41 0,57 0,57 0,66
Electrical supply: 230V / 1 / 50Hz
A
C
C
A
C
B
D
E
F
1 0,54 0,57 0,48 0,55 0,79 0,78 0,77 0,79
2 0,72 0,74 0,67 0,66 0,86 0,87 0,86 0,85
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,56 0,57 0,50 0,55 0,81 0,78 0,79 0,79
2 0,74 0,74 0,69 0,66 0,88 0,87 0,88 0,85
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,56 0,58 0,50 0,56 0,81 0,79 0,79 0,80
2 0,74 0,75 0,69 0,67 0,88 0,88 0,88 0,86
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
1 0,46 0,44 0,42 0,42 0,74 0,70 0,72 0,72
2 0,63 0,63 0,64 0,63 0,83 0,83 0,85 0,83
3 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00
CORRECTION COEFFICIENT FOR THE DIFFERENT SPEED
MODELLO CSF41 CSF42 CSF43 CSF44 CSF45 CSF46 CSF47 CSF48
A
MODEL CSF41 CSF42 CSF43 CSF44 CSF45 CSF46 CSF47 CSF48
Total cooling capacit
Sensible cooling capacit
Heating capacit
Air flow
Total cooling capacit
Sensible cooling capacit
Heating capacit
Water flow
Water pressure drops in heating
Air flow
Speed of the fan
Sound power level
Motor electrical power
Heating capacit
Water flow
Water pressure drops in cooling
Water pressure drops in heating
Motor electrical input
Water flow
6
All manuals and user guides at all-guides.com
all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
WORKING LIMITS
Maximum inlet water temperature 70 °C
Minimum inlet water temperature + 4 °C
Maximal working pressure 8 bar
Maximal inlet air temperature 32 °C
Minimal inlet air temperature + 4 °C
ATTENTION!
Air stratification increases with the raise of inlet water temperature!
GENERAL FEATURES AND MAIN COMPONENTS
1 Airflow direction louvers
2 Air intake grille with filter
3 Airflow direction louvers
4 Indicator lights
5 Power
6 Sleep mode
7 Timer mode
8 Infrared remote control receiver
9EMERGENCY switch (used to switch on the air conditioner manuall ,
without using the remote control, following the order given below).
OFF COOL HEAT
Fig. 6
Fig. 5
ON
OFF
CSF 21-24
41-44
POWER SLEEP TIMER EMERGENCY
OFF
COOL
HEAT
CSF 25-25
45-48
MOTOR FAN GROUP
Single-inlet centrifugal fan with staticall and d namicall balanced plastic
impeller. The 3-speed electric motor, made to international standards,
has an overload cut-out and the run capacitor alwa s connected. The
motor is directl coupled to the fan and cushioned with flexible mountings.
It is particularl efficient
and low noise.
DÉCOR PANEL
The décor panel has an innovative design so that the appliance ma
be used in both dwellings and business premises. The white (RAL 9003)
panel is made in lightweight but strong plastic. Fixing to the load-bearing
structure is quick and eas . 4 adjustable louvers ensure best air
distribution throughout the room. Central intake grille with filter for
cleaning the air. The grille ma be removed to access internal parts
without having to remove the panel from the ceiling.
ELIMINATION OF CONDENSATION
Condensate collecting s stem comprising:
- internal plastic tra for collecting condensation coming from the heat
exchanger;
- external auxiliar plastic tra for collecting condensation coming from
the valves and connecting pipes.
Electric pump, which is an integral part of the appliance and connected
to the external fitting.
WALL REMOTE CONTROL (accessory)
Wall remote control with 10 m wire
RECCOMENDATIONS FOR THE INSTALLER
Upon receiving the unit check for an damage, which should be reported
immediatel . For the water cassette to operate correctl , it should be
installed according to the instructions given in this manual. Removal of
a water cassette after it has been installed is an operation that requires
special training: if this is necessar , please consult our dealer. After
installation, explain the correct operating procedure to the customer
using the booklet as a reference. Leave this manual with the customer
since it is part of the kit supplied with the appliance.
Take care not to scratch the units when handling them.
UNIT INSTALLATION
- Read this instruction manual thoroughl before starting installation.
- This unit complies with the low-voltage (EEC/73/23) and electromagnetic
compatibl (EEC/89/336) directives.
- The installation should be carried out b a qualified installer.
- Follow all current national safet code requirements. In particular
ensure that a properl sized and connected ground wire is in place.
- Check that the voltage and frequenc of the mains power suppl are
as required for the unit to be installed; the available power source
must be adequate to operate all other appliances connected to the
same line.
- Ensure that national safet code requirements have been followed
the main suppl circuit.
- Where necessar , use field-supplied 25 mm I.D. PVC pipe of appropriate
length and with the correct thermal insulation for the condensate drain
extension.
- After installation thoroughl test s stem operation and explain all
s stem functions to the owner.
- Use this onl for factor approved applications: the unit cannot be
used in laundr or stream pressing premises.
!
WARNING!
- Disconnect the mains power supply switch before servicing the system
or handling any internal parts of the unit.
- The manufacturer declines any liability for damage resulting from
modifications or errors in the electrical or water connections.
- Failure to observe the installation instructions, or use the unit under
conditions other than those indicated in table Operating limits of this
manual, will immediately invalidate the unit warranty.
- Failure to observe electric safety codes may cause a fire ha ard in
the event of short circuits.
- Do not install or use damaged units.
- In case of malfunction turn the unit off, disconnect the mains power
supply and contact a qualified service engineer.
- Maintenance must only be carried out by qualified personnel.
- All of the manufacturing and packaging materials used for this appliance
are biodegradable and recyclable.
- Dispose of the packaging material in accordance with local
requirements.
STRUCTURE
Made in heav -gauge galvanised sheet, the structure comes complete
with external brackets on the 4 corners for eas fixing to the ceiling.
Thermal-acoustic insulation: lining (pol st rene), external cladding (closed
cell). Set-up for distribution of air to adjacent rooms through knock-out
holes, either circular Ø 150 mm or rectangular 350x100 mm (CSF 21-
24 and 41-44), and rectangular 120 x 80 mm (CSF 25-28 and 45-48),
located on two sides of the appliance. Set-up for external air intake
through Ø 65 mm circular knock-out hole (CSF 21-24 and 41-44).
Rectangular 120x80 mm knock-out (CSF 25-28 and 45-48). Located on
a squared off corner of the appliance.
HEAT EXCHANGER
Coil in copper piping expanded into aluminium fins in continuous block.
The headers have easil accessible female gas fittings and air
vent/drainage valve located on the squared off corner of the appliance.
AIR FILTER
The filter comprises a plastic frame holding the filtering membrane.
Inserted in the inner part of the front panel, it ma be easil removed
and cleaned using a vacuum cleaner followed b washing with water.
ON
OFF
7
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
FIXING THE PANEL
After installation of the unit, mount the grille using the 4 screws provided
(fig. 12).
!
N.B.: It is very important to fix the grille in the right position
for correct connection of the receiver panel to the unit.
Fig. 12
Use a spirit level (fig. 10) to make sure that the unit is level and check
that it is securel fixed to the ceiling. In high humidit environments,
metal supports must be insulated using adhesive insulating material.
Fig. 11
To fix the unit to the ceiling, use the threaded bar and suitable screw
anchors as shown in fig. 09 (material not included in the suppl ).
C
B
D
A
Fig. 10
Fig. 07
ATTENTION!
Catch up the cassette on the four
corners. Don't lift or move the unit
through the exchanger pipelines or
the exhaust pipe condense.
!
- to fix the panel only use the four supplied screws. Do not use other
kinds of screws or you could dama e the condensate drain pan.
- Do not bend or narrow the unit piping.
- Do not remove the cap from the unit piping until immediately before
connecting the pipes.
- To prevent deformation of the air intake grille, do not overtighten the
screws.
CHANGE OF AIR AND RECIRCULATION SYSTEM
- Side knockouts allow connection of a duct for fresh air intake and for
conditioning an adjacent room.
- Remove the external prepunched anti-condensate insulator and
remove the knockout panels using a punch.
FRESH AIR RENEWAL
Remove the pol st rene partition and insert the baffle plate.
Use material purchased locall that is suitable for continuous operation
with temperatures of 60°C. The ducts ma be in flexible pol ester (with
steel spiral core) or in corrugated aluminium lagged with anti-condensate
material (fibreglass 12±25 mm thick). Upon completion of installation,
surfaces that have not been insulated ma be covered with anti-
condensate insulating material (e.g.: 6 mm thick expanded neoprene).
Failure to comply with these instructions could cause dripping due
to the condensate; the manufacturer cannot be held responsible
for any damage. An additional fan for external air intake (installer's
responsibilit ) must be connected to the terminal block as per the
enclosed diagrams. Fan operation is in parallel to the damper
(electrothermal control valve), so that it stops when the valve closes.
Install an air inlet grille on the outside, with an inspectable filter holding
frame to prevent the entr of dust and leaves, which could irreparabl
obstruct the unit heat exchanger coil.
RECEIVING, STORE AND MOVING THE UNITS
At the moment of the deliver of the unit, make sure that it corresponds
to the one indicated on the transport document. Check the integrit of
the packing and the unit. Should there be an differences with the original
order or an damages, anomalies, or incomplete suppl , please point
it out on the deliver note and inform the firm straight awa . Never install
or use damaged apparatuses. The unit can be stored in room protected
from bad weather with temperature between the -20°C and the +55°C.
Transport the packed unit near as possible to the installation place. To
avoid an damage to the unit, the plastic part (frontal panel and grille)
are furnished separatel . The handling and the installation could be
facilitated c use of an elevator(fig. 07).
INSTALLATION ACCESSORIES
n. 1 Cardboard mounting template;
n. 2 Batteries;
n. 1 Remote control;
n. 1 Auxiliar drain pan;
SELECTION OF CASSETTE INSTALLATION LOCATION
!
RECCOMENDATION!!
- The unit must be installed in a solid and vibration-free ceiling.
- There should be no obstruction of the air flow into and out of the unit
and the air should be evenly distributed throughout the whole room.
- Do not install the unit near sources of heat, steam or inflammable
gases.
- Install the unit near an electric socket or connect it directly to the
power supply.
- Do not install the unit in a place, which is exposed to direct sunlight.
- The selected place should allow easy drainage of the condensed
water.
- Periodically check appliance operation and leave sufficient space for
maintenance around the appliance, as shown in the figure 08.
- Install the unit so that the filter is easily accessible.
INSTALLATION
FIXING THE CASSETTE
Select a place of installation where there can be a clearance of a least
100 cm (see fig. 07) around the appliance. Make sure that the installation
does not interfere with existing electric wiring or plumbing. Establish the
position and size of the hole in the ceiling using the external diameter
of the cardboard mounting template (fig. 08).
>100
100 < H > 350
Fig. 08
Fig. 0
Select the final position of the unit in the ceiling using the references
printed on the cardboard mounting template (fig. 09).
8
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
!
ATTENTION!
1) Ducting air to an adjacent room requires the closure of at least
the corresponding duct end.
2) When valves are installed, the air ducts to the "D" adiacent
room are unusable (pict. 13).
!
ATTENTION!
- Always use suitably sized wrenches to fix or slacken the water
pipes.
- It is essential to insulate pipes, valves and connections correctly
in order toavoid the formation of condensation, which could
drip into suspended ceilings causing considerable problems.
The water connections are fixed to the unit bod to avoid damage when
pipes are connected. It is advisable to tighten the connection with a
wrench. The upper coil connection is fitted with an air valve and the
lower connection with a drain valve, suitable for a 10 mm wrench or
screwdriver. (The coil is onl partiall drainable; it is advisable to blow
air into the coil for complete drainage)
INSTALLATION OF AUXILIARY DRAIN PAN
a) Remove the plastic cap from the condensate drain outlet on the
water cassette. Do NOT push the cap into the cassette. Fit the
nozzle into the hole (auxiliar condensate drain pan outlet).
b) Fix the auxiliar drain pan to the unit using the relative screws
provided in the kit, ensuring that the condensate pan is level
There is the possibility of draining water from 200 mm above the
level of the unit. To drain the condensate at a higher level, install
condensate drain pump with collecting tra and float valve. A float valve
is recommended to stop the flow of water in the event of pump failure.
Fig. 13
A
B
C
Fig. 16
2%
50
A few examples are shown schematicall below of condensate drainage
connection in a correct (fig. 20-21) and incorrect manner (fig. 22-23).
Fig. 1
< 200 mm
Fig. 17
Fig. 20
CORRECT!
E
D
F
Fig. 15
3 wa motor-operated
valve
Water inlet
Tap
Tap
Water outlet
AIR SUPPLY TO AN ADJACENT ROOM
Remove the pol st rene, taking care not to damage the behind heat
exchanger coil to the rear.
Do not use the two knockout side openings for air ducting to an adjacent
room simultaneousl .
Fig. 18
AKnockout for air suppl to an adjacent room Ø 150 mm
BKnockout for air suppl to an adjacent room 350x100 mm
CKnockout for fresh air intake Ø 65 mm
DKnockout for air suppl to an adjacent room 120x80 mm
EKnockout for air suppl to an adjacent room 120x80 mm
FKnockout for fresh air intake 120x80 mm
FRESH AIR RENEWAL WIRING DIAGRAM
WATER CONNECTIONS
STANDARD WATER CONNECTION TO HEATING/ COOLING SYSTEM
!
ATTENTION! IT IS COMPULSORY TO INSTALL THE VALVE!
PE
L N
C
N
L
B
D
A
C
M
PE
L N
C
N
L
B
D
A
C
M
C2
N
LEGEND
A Fan circuit breaker
B Fan control rela 230V Fig. 14
2 PIPES SYSTEM 4 PIPES SYSTEM
C Antifreeze fresh air protection
D Fresh air fan motor
!
IMPORTANT! If the drain pan plastic cap is removed, remember
to seal it with silicone when replacing it!
CONDENSATE DRAINAGE
!
ATTENTION! CONDENSATE DRAINAGE IS FUNDAMENTAL FOR
GOOD OPERATION OF THE WATER CASSETTE. LAG THE PIPES
SUITABLY AND CORRECTLY.
To ensure a correct flow of the condensed water, the water drainage
pipe must have a slope of 2% without obstructions. Install a trap at least
50 mm deep in order to avoid unpleasant smells.
9
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
CORRECT!
!
ATTENTION! if the condensate drainage alarm is activated, the
zone valve is closed and the fan turned off.
Fig. 21: The condensate drain hose should be fixed using intermediate
mounts to prevent deformation of the hose. The drain hose should slope
slightly downwards to encourage drainage of the condensed water.
Fig. 21
Fig. 23
Fig. 22
WRONG!
Fig. 24
WIRING DIAGRAM
ACCESS TO THE SWITCHBOARD
!
ATTENTION!
Before carrying out electrical connections, ensure that the electricity
supply has been cut off, checking that the on-off switch is in the
OFF position.
Onl qualified electricians should carr out the electrical connections.
Check that the mains suppl is single-phase 230 Vac/1/50 Hz (± 10%).
Operating the appliance with voltages outside the above limits could
cause malfunction and renders the warrant null and void.
The fan coil power suppl line should be fitted with at least a switch
isolator in conformit with European standard EN60947-3. Make sure
that the electrical s stem is suitable for providing not onl the working
current required b the appliance, but also the necessar current for
powering household and other electrical appliances alread in use. An
electrical and mechanical alterations or tampering render the warrant
null and void.
The motor and accessories power cables in channels or conduits should
remain inside the same until the are inside the appliances.
To access the switchboard, proceed as follows:
1 Open the cassette grille;
2 Remove the metal covers first removing the screws;
3 Carr out the wiring;
4 Replace the metal covers and close the unit panel.
Fig. 20: When several units are installed near to each other and only
one condensate drain hose is used, make sure that the capacity of the
hose is sufficient and that it is positioned on a slightly lower level than
the appliance.
Fig. 23: The drain hose is on the same lever as unit
Fig. 22: The drain hose is bent or points upwards.
WRONG!
10
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH I.R. (CSF 21-24 ST + CSF 25-28 LT)
LEGENDA
Connector
Earth
LPhase
NNeutral
Com Common
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safet switch (90x90 cassette:
when opening the filter panel, the
unit will stop)
P1,P2,..., Pn Terminals
HIHG MEDIUM LOW L N
brown
red red red red red red red red
yellow yellow
blue
black black
black
rosso
black black
yellow
black
red Electrical supply
230Vac/50 Hz
L
N
CHeat/cool al e
230Vac/50 Hz
Earth
FS
relay 9
relay 4 relay 6
relay 2 relay
relay 3
P23
P 8 P 9
P20
P26P27
P25 P24 P 3 P 2
P
P 0
P9 P8 P7 P6 P5 P4 P3 P2 P
LCD4
AIR CONTROL
TRANSFORMER
WATER TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
led led led
Timer Sleep Power
I.R. RECEIVER
REC
SW
P
LS1
NO
NC
C
DP SM
Fig. 25
buzzer
yellow/green
bianco
yellow/green
white
red
blue
black
yellow/green
brown
M1
1
white
red
blue
black
yellow/green
brown
WIRING DIAGRAM OF 4 PIPE SYSTEM WATER CASSETTE WITH I.R. (CSF 41-44 ST + CSF 45-48 LT)
L N
brown
red red red red red red
blue
yellow
black
red
black black
yellow
black
red Electrical supply
230Vac/50 Hz
L
N
C1 Cool al e
230Vac/50 Hz
Earth
relay 9
relay 4 relay 6
relay 2 relay
relay 3
P23
P 8 P 9
P20
P26P27
P25 P24 P 3 P 2
P
P 0
P9 P8 P7 P6 P5 P4 P3 P2 P
LCD4
AIR CONTROL
led led led
Timer Sleep Power
REC
SW
P
LS1
NO
NC
C
DP SM
Fig. 26
buzzer
blue
N
C2
black
Heat al e
230Vac/50 Hz
FS
red red
blue
black black
yellow/green
white
yellow/green
white
red
blue
black
yellow/green
brown
M1
1
white
red
blue
black
yellow/green
brown
LEGENDA
Connector
Earth
LPhase
NNeutral
Com Common
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safet switch (90x90 cassette:
when opening the filter panel, the
unit will stop)
P1,P2,..., Pn Terminals
HIHG MEDIUM LOW
TRANSFORMER
WATER TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
I.R. RECEIVER
11
All manuals and user guides at all-guides.com
all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
WIRING DIAGRAM OF 2 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CSF 21-24 SP + CSF 25-28 LP)
WIRING DIAGRAM OF 4 PIPE SYSTEM WATER CASSETTE WITH WALL MOUNTED CONTROL (CSF 41-44 SP + CSF 45-48 LP)
Fig. 27
HIGH MEDIUM LOW L N
brown
red red red red red red
yellow yellow
black
rosso
black black
yellow/green
yellow
black
red
L
N
C
FS
relay 9
relay 4 relay 6
relay 2 relay
relay 3
P23
P 8 P 9
P20
P26P27
P25 P24 P 3 P 2
P
P 0
P9 P8 P7 P6 P5 P4 P3 P2 P
LCD4
AIR CONTROL C
DP SM
buzzer
MODE
TEMP
POWER TIMER SLEEP COMP
SW
LV
HR
MIN
START
STOP
SLEEP
MODE
FAN
H
TEMP
COOL
SLEEP
SLEEP
CLOCK
START
STOP
LS1
NO
NC
Fig. 28
L N
brown
red red red red red red
blue
yellow
black
red
black black
white
yellow/green
yellow
black
black
L
N
C1
relay 9
relay 4 relay 6
relay 2 relay
relay 3
P23
P 8 P 9
P20
P26P27
P25 P24 P 3 P 2
P
P 0
P9 P8 P7 P6 P5 P4 P3 P2 P
LCD4
AIR CONTROL C
DP SM
buzzer
blue
N
C2
black
Cool al e
230Vac/50 Hz
Heat al e
230Vac/50 Hz
FS
MODE
TEMP
POWER TIMER SLEEP COMP
SW
LV
HR
MIN
START
STOP
SLEEP
MODE
FAN
H
TEMP
COOL
SLEEP
SLEEP
CLOCK
START
STOP
LS1
NO
NC
red red
blue
black black
M1
1
white
yellow/green
white
red
blue
black
brown
white
red
blue
black
yellow/green
brown
red red
blue
black black
M1
1
white
yellow/green
bianco
red
blue
black
brown
white
red
blue
black
yellow/green
brown
nero
LEGENDA
Connector
Earth
LPhase
NNeutral
Com Common
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safet switch (90x90 cassette:
when opening the filter panel, the
unit will stop)
P1,P2,..., Pn Terminals
LEGENDA
Connector
Earth
LPhase
NNeutral
Com Common
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Drain pump (230Vac/50Hz)
FS Float switch (NC)
LS1 SM limit switch (60x60 cassette)
Safet switch (90x90 cassette:
when opening the filter panel, the
unit will stop)
P1,P2,..., Pn Terminals
Earth
TRANSFORMER
WATER TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
Electrical supply
230Vac/50Hz
Heat/cool al e
230Vac/50 Hz
OPTIONAL:
TEMPERATURE
CONTROLLER
HIGH MEDIUM LOW
Earth
TRANSFORMER
WATER TEMPERATURE SENSOR
AIR TEMPERATURE SENSOR
Electrical supply
230Vac/50Hz
OPTIONAL:
TEMPERATURE
CONTROLLER
12
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
SECOND PART:
FOR THE USER
RECCOMENDATION FOR THE USER
Read the precautions carefull and carr out the procedures correctl
- In case of failure or malfunction, always apply to authorised
service personnel. An attempt to remove parts, or to maintain the
appliance can expose the user to danger of electrical shock. The
cassette does not contain parts on which maintenance can be carried
out b the user.
-In case of relocation, apply to service personnel authorised to
carry out this operation as well as the new installation
- Do not insert fingers or objects of any kind into airflow outlets
or air intake grilles. There is a fan inside the appliance, which turns
at high speed and could cause severe personal injur . Pa particular
attention to children.
- Do not allow the cold airflow to blow on you directly for long
periods of time. Direct and prolonged exposure to cold air can be
dangerous for our health. Pa particular attention to rooms where
there are children, elderl or sick people.
- In case of air conditioner malfunction (e.g. smell of burning), stop
appliance operation immediately, release the dedicated automatic
switch and apply to authorised service personnel. Prolonged use
of the appliance in these conditions can cause fire or electrocution.
- During installation of the appliances, avoid letting children or
disabled have access to the working area. Accidents can occur.
- Install the appliance and the remote control at least two metres
away from television or radio units and from lamps that could
irradiate them directly. An interference of radio signals can cause
operating problems.
- Do not block or cover the airflow intake and delivery grilles.
The obstruction of these openings causes a reduction of the operating
efficienc of the water cassette, with consequent possible failure or
damage.
- Do not use the water cassette for applications such as the storage
of foods, plants, precision equipment or works of art. The qualit
of the objects that are stored could deteriorate.
-Do not expose animals or plants to the direct airflow from the
appliance.
Prolonged direct exposure to the cold airflow from the water cassette
can have a negative effect on animals and plants.
- Do not direct the airflow of the air conditioner towards fireplaces
or other heating appliances. An airflow directed towards the fire can
cause incorrect combustion and fire.
- Air the room occasionally while using the appliance. An insufficient
change of air can cause an insufficienc of ox gen in the room.
- Do not allow the air conditioner to come into contact with water.
The electrical insulation could be damaged with consequent possible
risk of electrocution.
-Check installation conditions in order to identify possible
damage. After prolonged use, appl to specialised service personnel
to control the installation conditions of the air conditioner.
- Do not use flammable gas near the air conditioner.
- Always use the appliance with the air filter installed. Using the
air conditioner without the air filter can cause an excessive
accumulation of dust or deposits inside the unit, with consequent
possible malfunctioning.
- Release the automatic switch if the unit is not going to be
used for long periods of time.
- Remove the batteries from the remote control if it is not going
to be used for a long period of time. Remove the batteries in order
to prevent possible problems caused b loss of electrol te. In case
of accidental contact of the batter liquid with the skin, e es or mouth,
wash the affected part immediatel with plent of water, and see a
doctor.
- Please shut off the unitONLY using the ON/OFF switch (infrared
or wall-mounted remote control). If ou shut off the unit without
using the ON/OFF switch (ex. change between cool and heat) the
condensate pump stops and the overflowing risk is possible.
!
FAILURE TO COMPLY WITH THE INSTALLATION INSTRUCTIONS
GIVEN IN THIS MANUAL RELIEVES THE MANUFACTURER OF
ALL AND ANY LIABILITY. INCORRECT INSTALLATION COULD
CAUSE MALFUNCTIONING OR FAILURE OF THE APPLIANCE.
IT COULD ALSO REPRESENT A HAZARD FOR THE USER.
WATER CASSETTE OPERATION
The water cassette has been designed to create the ideal climatic
conditions for the comfort of the occupants of the room. It can provide
full automatic cooling, dehumidif ing and also heating. The air is drawn
in b the fan through the intake grille in the front panel and then passes
through the filter, which retains the dust. The air then proceeds through
the fins of a "heat exchanger": this is a finned coil, which cools and dries
or heats the air. Finall the fan sends the air into the room; the direction
of the outgoing airflow can be adjusted b means of the motor-driven
direction louver.
WIRING DIAGRAM WITHOUT CONTROL (CSF 21-24 and 41-44)
Fig. 2
High speed (III)
Med. speed (II)
Loe speed (I)
FRONTAL PANEL
Drain pump electrical supply
(230Vac/50 Hz
black
red
Lou er motor electrical supply
(mo imentazione230Vac/50 Hz )
Fan motor electrical supply
(230Vac/50 Hz)
red
black
black
black
white
black
blue
red
black
red
brown
white
white
black black
black
red
blue
brown
white
black
blue
red
yellow/green
yellow/green
Com
LEGENDA
Connector
Earth
M1 Fan motor (230Vac/50Hz)
SM Louver motor (230Vac/50Hz)
DP Condensate pump
(230Vac/50Hz)
FS Float switch (NC)
Com Common
TM Timer
blue
13
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
THE INFRARED REMOTE CONTROLLER
1 Turns the cassette ON or OFF.
2 Selects operating mode following the order given below:
FAN (fan), COOL (cooling), DRY (dehumid ing), HEAT (heating),
AUTO (automatic operation)
3 Sets the required temperature between 18°C and 30°C. The
temperature is increased or decreased b pressing and
respectivel .
4 Selects the fan speed, following the order given below: AUTO
(automatic), HIGH (high), MED (medium), LOW (low)
5Activates the SLEEP function. This function automaticall adjusts
the temperature in order to provide maximum comfort during the
nighttime hours and save energ .
6 Selects the current time on the remote control displa .
7 Increases the hours on the displa
8 Increases the minutes on the displa
Sets timed switching on
10 Sets timed switching off
11 Confirms the settings to the appliance.
12 Activates or deactivates louver movement.
13 Adjusts the louvers in order to direct the airflow in the best direction
!
The unit ives a beep to confirm that it has received each button
command correctly.
Battery replacement
When:
- no beep of confirmation is received from the unit;
- the liquid cr stal displa is not working.
How:
- Pull the cover downwards as shown in the drawing to the side (2 T pe
AAA 1.5V batteries).
- Insert new batteries pa ing attention to the + and - s mbols.
N.B.: Only use new batteries. Remove the batteries from the remote
control when the water cassette is not used.
Fig. 30
13
12
5
10
4
3
8
7
1
6
11
2
_
+
_
+
1,5 V
1,5 V
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Fig. 35
COOLING When the MODE button is pressed and COOL is selected,
the cassette cools the room and at the same time reduces the humidit
in the air. To start the cooling c cle, use the TEMP buttons and to
set a temperature which is lower than the room temperature. For example:
if there is a temperature of 28°C in the room, a temperature lower than
27°C should be set in order for the compressor and cooling to start. The
appliance automaticall adjusts operating c cles in order to keep the
room at the required temperature. Upon completion of settings, press
the SEND button and listen for the beep to make sure that the appliance
has received the command.
I.R. REMOTE CONTROL OPERATIONS
FAN When the MODE button is pressed and the FAN mode is selected,
the cassette will operate as an electrical fan onl
DEHUMIDIFYING When the MODE button is pressed and the DRY
mode selected, the cassette alternates cooling and fan c cles. This
mode is used to dehumidif the air without excessivel altering the room
temperature.
Operation is full automatic: the appliance itself controls the fan speed.
HEATING When the MODE button is pressed and the HEAT mode is
selected, the cassette will heat the room. To start the heating c cle, use
the TEMP buttons and to set a temperature which is higher than
the room temperature. For example: if there is a temperature of 18°C
in the room, a temperature higher than 19°C should be set in order for
the compressor and heating to start. Upon completion of settings, press
the SEND button and listen for the beep to make sure that the appliance
has received the command.
AUTOMATIC OPERATION Access this mode b pressing the MODE
button. In the AUTO mode the electronic control automaticall selects
the operating mode according to the room temperature (measured b
the built-in sensor):
- if the room temperature drops below 18°C, the appliance will start the
heating c cle. This will continue until the temperature rises to above
20°C;
- if the room temperature is above 26°C the appliance will start the
cooling c cle. This will continue until the temperature drops below 24°C.
14
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
SETTING THE CLOCK Press the CLOCK button and the corresponding
part of the displa starts to blink. Set the actual time using the HR (hour)
and MIN (minute) buttons. Once this operation has been completed,
confirm the setting b pressing the SEND button and listen for the beep
to make sure that the appliance has received the signal.
!
IMPORTANT!
Before setting timed switching on, set the required operating mode
and fan speed. Then switch the air conditioner off.
Fig. 38
Fig. 36 Fig. 40
Fig. 41
ON
OFF
Fig. 42
WARNING! Do not position the
louvers manually as this may
damage the delicate mechanism
that moves them.
!
WALL-MOUNTED CONTROL: CD2/X7
MODE
TEMP
POWER TIMER SLEEP COMP
SW
LV
HR
MIN
START
STOP
SLEEP
MODE
FAN
TEMP
COOL
SLEEP
SLEEP
CLOCK
START
STOP
DRY
HEAT FAN
Fig. 43
7
8
10
10
1
2
3
4
5
6
11
Fig. 37
!
WARNING!
Once the switch on and/or the switch off time is expired, it will be
automatically canceled from the internal memory. Switch on and switch
off time need to be setted each time the user necessitate.
AIRFLOW ADJUSTMENT The SW button activates the louvers and the
airflow is directed alternatel upwards and downwards to obtain even
distribution throughout the room.
N.B.: During cooling they should be positioned hori ontally. During
heating they should be directed downwards (as hot air tends to rise).
Fig. 3
FAN SPEED ADJUSTMENT When the FAN button is pressed, one of
the following fan speeds can be selected: AUTO - HIGH - MED - LOW.
In the AUTO mode, the electronic control automaticall selects the fan
speed according to the difference between the set temperature and the
room temperature. This function automaticall increases the fan speed
if a greater cooling or heating effect is required.
SLEEP MODE Access this mode b pressing the SLEEP button. The
s mbol will appear on the displa , as shown in the drawing to the side.
The SLEEP mode automaticall adjusts the temperature to make the
sleeping environment more comfortable during the night. During the
cooling or dehumidifying modes the set temperature is increased gradually
by 2°C during the first two hours of operation. During the heating mode
the set temperature is decreased gradually by 2°C during the first 2
hours of operation. Timed switching off can also be set together with the
SLEEP mode.
TIMED SWITCHING ON To set timed switching on, the appliance must
be off.
Press the START button and the corresponding part of the displa starts
to blink.
Set the time for timed switching on using the HR and MIN buttons. The
subsequent switching off time ma also be set b pressing the STOP
button and setting the required time using the HR and MIN buttons.
Confirm the new setting b pressing the SEND button and listen for the
beep to make sure that the appliance has received the signal.
TIMED SWITCHING OFF To set timed switching off, the appliance must
be on or the timed switching on function must be set. Press the STOP
button and the corresponding part of the displa starts to blink. Set the
time for timed switching off using the HR and MIN buttons. The subsequent
switching on time ma also be set b pressing the START button and
setting the required time using the HR and MIN buttons. Confirm the
new setting b pressing the SEND button and listen for the beep to make
sure that the appliance has received the signal.
1Selects the operating mode in the order given below: FAN (fan),
COOL (cooling), DRY (dehumidif ing), HEAT (heating), AUTO
(automatic operation)
2Sets the required temperature between 18°C and 30°C. The
temperature is increased b pressing and .
3FAN Selects the fan speed in the order given below: AUTO
(automatic), H (high), M (medium), L (low)
4Activates the SLEEP mode. This mode automaticall adjusts the
temperature in order to provide maximum comfort during the nighttime
hours and save energ .
5Increases the hours on the displa .
15
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
lenta
Set
0 5 10 30
FAN
SPEED
Fig. 45
15 20 25 35
OFF
40 45 5023 °C
COIL TEMPERATURE [Ti]
Fan  As for heat.
Cool-heat (automatic)
If the unit is in the cool mode, the pump follows the cool operation.
If the unit is in the heat mode, the pump follows the heat operation.
PRE-HEATING FUNCTION
Pre-heating function is used to avoid cold air in HEAT mode when the
valve is open. The valve remains open also if within 3 minutes the coil
temperature has not reached the 35°C
ON
OFF
ON
OFF
B
A
Fig. 44
AUTO HIGH MEDIUM LOW
Fig. 46
6Increases the minutes on the displa .
7Turns the cassette ON or OFF.
8Activates or deactivates louver movement (optional).
Adjusts the louvers in order to direct the airflow in the best direction (optional).
10 Selects the exact time on the remote control displa .
11 Sets timed switching off.
12 Sets timed switching on.
WALL-MOUNTED CONTROL OPERATIONS
Self-diagnosis
The s stem comes with a self-diagnosis circuit to monitor the
microprocessor functions. In the event of malfunction this circuit
automaticall resets the microprocessor.
System memory
The s stem stores the set parameters (such as the operating status,
fan speed, etc.) in its non-volatile storage. After a power failure, the
cassette will automaticall resume operation with the same parameters
that were set prior to the blackout (except the SLEEP and TIMER modes
which will be erased). An change to the parameters will be saved in
the non-volatile storage after 5 seconds.
Situation of normal operation
The POWER indicator light is on if the cassette was switched on via the
I.R. remote control.
The TIMER indicator light is on if the AUTO START and AUTO STOP
modes are active.
The SLEEP indicator light shows the temperature compensation during
the SLEEP mode.
Situation of alarm
1) The POWER, SLEEP and TIMER indicator lights blink continuously.
The s stem is protected b the cutting off of power to all the outputs.
This t pe of alarm is generated b one events:
a) Condensate drain pan float:
Remed : check the condensate drainage circuit (pump, float, drain hoses).
2) The SLEEP indicator lights blink continuously. This t pe of alarm
is generated b one events:
a) Coil water temperature above 80 °C.
Remed : check coil water temperature.
3) POWER indicator light blinks continuously. This t pe of alarm is
generated b two events:
a) When 3 minutes have elapsed from the start of the COOL or DRY
c cles, coil temperature is above 25° C. The s stem is protected b
the cutting off of power to the valve output.
Remed : check the coil water temperature and correct valve operation.
b) When 3 minutes have elapsed from the start of the HEAT c cle, coil
temperature is not above 20° C. The s stem is protected b the cutting
off of power to the valve output.
Remed : check the coil water temperature and correct valve operation.
4) TIMER indicator light blinks continuously (fig. 44 A):
Air temperature sensor and water temperature sensor are damaged
or not connected.
5) TIMER indicator light blinks intermittently (fig. 44 B): the filters
must be cleaned.
When the cassette has been operating for more than 500 hours, a
warning is displayed as a reminder to clean the filter.
N.B. Reset by cutting off the power for at least 10 seconds.
CONDENSATE DRAIN PUMP OPERATION SPECIFICATIONS
Cool  Unit in operation: the pump operates continuousl until the set
temperature is reached; when 3 minutes have elapsed from the start of
the c cle, if the water reaches the float and opens its contact, the unit
instantl shows an alarm through the fast blinking of the indicator lights
Con the panel (the power is cut off to all the outputs). Unit switched off
b remote control, or with set temperature satisfied, or within 3 minutes
preceding c cle start: when the water reaches the float, its contact opens
and activates the pump for 3 minutes; when the 3 minutes have elapsed,
if the float does not close its contact again (water drainage), the unit
shows an alarm (fast blinking of the indicator lights).
Dry  As for cool.
Heat - Unit in operation or switched off b remote control: the pump is
never activated.
If Ti<23°C, fan is OFF.
If 23<Ti<35°C, fan runs at minimum speed
If Ti>35°C, fan runs at setted speed.
ELECTRICAL CHARACTERISTICS
 Power suppl 1Ph from 185 to 255 VAC, 50/60Hz
 Power consumption Less than 8 VA in stand-b
 Valve activation time dela 3 minuts ± 5 seconds
Temperature:
 Room temperature accurac ±1°C
 Coil temperature accurac ±2°C
 Storage temperature 0¸70°C
 Operating temperature 10¸80°C
 Setting temperature range 18¸30°C (+1°C step)
 ON/OFF temperature differential 1°C
DETAILS OF WALL-MOUNTED CONTROL
The following commands be given b the buttons on the eall-mounted
control.
Switching on/off
Press the POWER button to switch the cassette on or off. When the
s stem has been switched on, it will operate according to the settings
shown on the displa . The POWER indicator light on the displa comes on.
Fan
Press the FAN button to select the fan speed (high, medium, low or auto
mode). The displa instantl shows the operating status.
Auto mode
When the fan speed is set in the auto mode, the speed is adjusted
automaticall according to the difference between the room temperature
and the set temperature:
 If the difference is 3°C or more, the speed is HIGH;
 If the difference is 2°C, the speed is MEDIUM;
 If the difference is 1°C or less, the speed is LOW;
Note: the FAN button is only active in the FAN, COOL, HEAT and AUTO
modes. It cannot be used in the DRY (dehumidifying) mode.
OPERATING MODE
FAN
The writing FAN appears on the air-conditioner control displa . In this
mode the unit operates as a fan onl . The SLEEP, TEMP and TEMP
buttons are not used.
COOL
The writing COOL appears on the air-conditioner control displa . The
unit operates in the air-conditioning mode.
- the zone valve starts if Troom Tset+1
- the zone valve stops if Troom Tset
In an case activation of the zone valve is subject to 3 minutes dela
each time it stops.
DRY
The writing DRY appears on the air-conditioner control displa . The unit
FAN COOL DRY HEAT AUTO
Fig. 47
16
All manuals and user guides at all-guides.com
all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
Fig. 4
Fig. 50
TIPS FOR BEST USE
- Connect the cassette to a dedicated power socket protected b a
magnetothermal circuit breaker of suitable capacit for the electrical
input of the appliance.
- When the water cassette starts or stops, especiall in the heating
mode, creaking sounds ma be heard. This is caused b thermal
expansion of the unit parts.
- Mist ma sometimes be produced b the cassette for a few seconds
in the cooling mode. This is quite normal and is caused b the
difference in temperature between the air flowing out of the appliance
and the air in the room.
- Do not place heat sources near to the cassette as this could deform
the plastic parts.
- Do not insert objects into the air intakes or outlets when the cassette
is in operation.
- Do not place objects in a position that ma obstruct the passage of
the air into the unit as this could affect appliance efficienc .
ENERGY SAVING
- Do not open or close doors and windows too often. Constant
exchange of heat with the outside affects the working of the appliance.
- Do not set too high a temperature (in the heating mode) or too low
(in the cooling mode).
- Do not install the appliance where it is exposed to direct sunlight.
- Use the TIMER for the timed switching on of the appliance, to avoid
the cassette operating needlessl while ou are out of the house.
- Use the SLEEP function during the night.
ROUTINE MAINTENANCE
!
ATTENTION!
Turn off the automatic circuit breaker before carrying out any
cleaning operations. Use a cloth dampened with lukewarm water
(max 40°C) and mild detergent to clean the cassette. Do not use
solvents or harsh detergents.
OPENING THE PANEL
To open the grille turn the plastic screws present on the grille b 90° (1/4
of a turn) (fig. 49) and gentl pull the panel downwards without forcing
the hinges that fasten it to the appliance.
operates in the dehumidif ing mode to reduce the percentage of humidit
in the room.
HEAT
The writing HEAT appears on the air-conditioner control displa . The
unit operates in the air-conditioning mode.
- the zone valve starts if Troom Tset+1
- the zone valve stops if Troom Tset
In an case activation of the zone valve is subject to 3 minutes dela
each time it stops.
AUTO
The writings COOL and HEAT appear on the displa simultaneousl .
Temperature setting
The setting temperature can be set in the range of 18°C-30°C b pressing
TEMP and TEMP buttons. The LCD on the displa unit will show
the setting temperature.
Louver swing (optional)
Press the SW button to start/stop louver swing.
Louver direction adjustment (optional)
Press the LV button to change the angle of the louvers (which are
controlled b the louver motor):
- if the button is pressed and released, the angle of the louvers is
changed ver slightl .
- if the button is pressed and held, the angle of the louvers continues
to change until the button is released;
SLEEP
Press the SLEEP button to start the sleep function. The s mbol
appears on the displa . In the cooling mode, the set temperature is
automaticall raised b 1°C after one hour. Similarl in the heating mode,
the temperature is decreased b 1°C after one hour.
22.0
23.0
0 1 2 HOURS
ROOM TEMPERATURE
SLEEP MODE START
COOLING MODE
Increase of 1°C
after 1 hour
Fig. 48
Note:
- when the system is set in the SLEEP mode, press the SLEEP button
to cancel the function;
- when the system is set in the SLEEP mode and the TEMP button is
pressed, it increases the temperature from the last setting by 1°C;
- when the system is set in the SLEEP mode and the cassette is turned
off (also due to power failure), the SLEEP function is cancelled.
Clock
To set the clock:
 Press the  button until the displa blinks;
 Press the HR button to set the hour;
 Press the MIN button to set the minutes;
 Press the  again. The time displa stops blinking.
Automatic start
The cassette can be programmed in advance to switch on.
 Press the START button until the time in the START section of the
displa blinks;
 Press the HR button to set the hour;
 Press the MIN button to set the minutes;
 Press the START button again. The displa stops blinking.
To cancel this function, press the START button again.
Automatic stop
The cassette can be programmed in advance to switch off.
 Press the STOP button until the time in the STOP section of the
displa blinks;
 Press the HR button to set the hour;
 Press the MIN button to set the minutes;
 Press the STOP button again. The displa stops blinking.
To cancel this function, press the STOP button again.
WARNING! Once the switch on and/or the switch off time is expired,
it will be automatically canceled from the internal memory. Switch on
and switch off time need to be setted each time the user necessitate.
Attention: to make cleaning easier, the grille may be removed
completely since the receiver panel is positioned on the fixed frame
of the unit (see fig. 50).
FILTER CLEANING
Filter cleaning is essential for the good appliance efficienc .
1 Remove the filters b pulling them gentl sidewa s and pressing
lightl on the points shown in fig. 51.
Fig. 51
2 Clean the filters with a vacuum cleaner or wash them with lukewarm water
and mild detergent.
3 Make sure the filters are dr before replacing them in the appliance.
17
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
Fig. 52
4
3
2
4 Do not expose the filters to sunlight
!
N.B.: Never operate the cassette without the air filters.
END OF SEASON MAINTENANCE
- Clean and replace the filters.
- On a sunn da leave the cassette running in fan mode for a few
hours to allow the inside of the unit to dr completel .
- Remove the plug or turn off the automatic circuit-breaker.
TROUBLESHOOTTING
1 If the appliance does not switch on, check:
- that the mains suppl is reaching the unit;
- that the plug is properl inserted;
- if the circuit breaker has tripped;
- if there been a failure in the mains suppl .
2 If the cooling (or heating) effect seems less than normal, check:
- that the temperature has been set correctl ;
- if a window or door has been opened;
- the filters for clogging;
- for obstacles that prevent the free circulation of air;
- if the cassette is exposed to direct sunlight.
18
All manuals and user guides at all-guides.com

INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
WATER CASSETTES
19
All manuals and user guides at all-guides.com

The technical data in the following documentation are not binding.
FAST reserves the right to make all the modifications considered
necessary for improving the product at any time.
FAST S.p.A. TRATTAMENTO DELL'ARIA
35044 Montagnana (PD) - Italy
Via Luppia Alberi, 170
Tel. [phone] - Fax [phone]
E-mail: [e-mail]
http://www.fastaer.com
0706-6180666-rev.0
All manuals and user guides at all-guides.com
