SAFETY INFORMATION
3
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play
with the appliance. Cleaning and user maintenance shall not be
made by children unless they are aged from 8 years and above
and supervised.
This appliance is not intended for use at altitudes above 2000m.
IMPORTANT! IMPORTANT SAFETY INSTRUCTIONS:
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE.
WARNING!
Do not use the appliance without the turntable and turntable
support. Do not use the appliance when empty.
WARNING!
If the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person.
WARNING!
It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure
to microwave energy.
WARNING!
Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 3

4
This appliance is intended to be used in household and similar
applications such as: staff kitchen areas in shops, offices and
other working environments; farm houses; by clients in hotels,
motels and other residential environments; bed and breakfast
type environments.
Only use microwave-safe containers and utensils.
Metallic containers for food and beverages are not allowed during
microwave cooking.
Do not leave the oven unattended when using disposable plastic,
paper or other combustible food containers.
The microwave oven is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads, slippers,
sponges, damp cloth and similar may lead to risk of injury,
ignition or fire.
If food being heated begins to smoke, DO NOT OPEN THE
DOOR. Turn off and unplug the oven and wait until the food has
stopped smoking. Opening the door while food is smoking may
cause a fire.
Microwave heating of beverages can result in delayed eruptive
boiling, therefore care has to be taken when handling the
container.
The contents of feeding bottles and baby food jars shall be stirred
or shaken and the temperature checked before consumption, in
order to avoid burns.
Do not cook eggs in their shells and whole hard boiled eggs
should not be heated in microwave ovens since they may
explode even after microwave cooking has ended.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 4

5
CARE AND CLEANING
Door:
To remove all trace of dirt, regularly clean both sides of the
door, the door seals and sealing surfaces with a soft, damp
cloth. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
Oven interior:
For cleaning, wipe any splatters or spills with a soft damp cloth
or sponge after each use while the oven is still warm. For
heavier spills, use a mild soap and wipe several times with a
damp cloth until all residues are removed. Do not remove the
waveguide cover. Make sure that mild soap or water does not
penetrate the small vents in the walls which may cause damage
to the oven.
Do not use spray type cleaners on the oven interior.
Clean the
waveguide cover, the oven cavity, the turntable and turntable
support after use. These must be dry and free from grease. Built-
up grease may overheat and begin to smoke or catch fire.
Oven exterior:
The outside of your oven can be cleaned easily with mild soap
and water. Make sure the soap is wiped off with a moist cloth,
and dry the exterior with a soft towel.
Control panel:
Open the door before cleaning to de-activate the control panel.
Care should be taken when cleaning the control panel. Using a
cloth dampened with water only, gently wipe the panel until it
becomes clean. Avoid using excessive amounts of water. Do
not use any sort of chemical or abrasive cleaner.
Turntable and turntable support:
Remove the turntable and turntable support from the oven.
Wash the turntable and turntable support in mild soapy water.
Dry with a soft cloth. Both the turntable and the turntable
support are dishwasher safe.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 5

6
IMPORTANT!
Clean the oven at regular intervals and remove any food
deposits. Failure to maintain the oven in a clean condition
could lead to a deterioration of the surface that could
adversely affect the life of the appliance and possibly result
in a hazardous situation.
Care should be taken not to displace the turntable when
removing containers from the appliance.
IMPORTANT!
A steam cleaner should not be used.
The microwave oven is intended to be used built-in.
The appliance and its accessible parts become hot during use.
WARNING!
Children should be kept away to prevent them burning
themselves.
IMPORTANT!
Do not use commercial oven cleaners, steam cleaners,
abrasive, harsh cleaners, any that contain sodium
hydroxide or scouring pads on any part of your microwave
oven.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 6

1. Remove all packaging and check carefully for
any signs of damage.
2. Fit the fixing bracket to the right hand side of
the kitchen cupboard using the installation
sheet and two screws supplied.
3. Fit the appliance into the kitchen cupboard
slowly and without force until it clips into the
brackets. Ensure the appliance is stable and
centralised.
4. Fix the oven on the left hand side using the two
screws supplied.
5. The front frame of the appliance should seal
against the front opening of the cupboard.
IMPORTANT!
Do not install this appliance in kitchen
cupboards without the specified 45mm rear
chimney. Inadequate ventilation could
adversely affect the performance and life of
the appliance.
Do not install this appliance in kitchen
cupboards that are adjacent to sources of
heat and steam such as hobs and cook
tops. Such sources could adversely affect
the performance and life of the appliance.
7
INSTALLING THE APPLIANCE
4,5
5,5
595
390
min.
380
292
352
452
45
min.560
min.
300
380
45
560
350
600
INSTALLATION
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 7

8
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 8

9
• The electrical outlet should be readily
accessible so that the unit can be unplugged
easily in an emergency. Or it should be
possible to isolate the oven from the supply by
incorporating a switch in the fixed wiring in
accordance with the wiring rules.
• The power supply cord may only be replaced
by an electrician.
• If the supply cord is damaged it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
• The socket should not be positioned behind the
cupboard.
• The best position is above the cupboard, see
(A).
• Connect the appliance to a single phase
230-240 V/50 Hz alternating current via a
correctly installed earth socket. The socket
must be fused with a 10 A fuse.
• Before installing, tie a piece of string to the
power supply cord to facilitate connection to
point (A) when the appliance is being installed.
• When inserting the appliance into the high-
sided cupboard, DO NOT crush the power
supply cord.
• Do not immerse the power supply cord or plug
in water or any other liquid.
• Do not allow the power supply cord to run over
any hot or sharp surfaces, such as the hot air
vent area at the top rear of the oven.
CONNECTING THE APPLIANCE TO THE
POWER SUPPLY
(A)
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 9

10
Do not use the microwave oven to heat oil for deep
frying. The temperature cannot be controlled and
the oil may catch fire. To make popcorn, only use
special microwave popcorn makers.
Individuals with PACEMAKERS should check with
their doctor or the manufacturer of the pacemaker
for precautions regarding microwave ovens.
Never spill or insert any objects into the door lock
openings or ventilation openings. In the event of a
spill, turn off and unplug the oven immediately and
call an authorised ELECTROLUX service agent.
Never modify the oven in any way.
Only use the turntable and the turntable support
designed for this oven. Do not operate the oven
without the turntable.
To prevent the turntable from breaking:
• Before cleaning the turntable with water, leave
the turntable to cool.
• Do not put hot foods or hot utensils on a cold
turntable.
• Do not put cold foods or cold utensils on a hot
turntable.
Neither the manufacturer nor the dealer can
accept any liability for damage to the oven or
personal injury resulting from failure to observe the
correct electrical connection procedure. Water
vapour or drops may occasionally form on the
oven walls or around the door seals and sealing
surfaces. This is a normal occurrence and is not an
indication of microwave leakage or a malfunction.
Concerning the lamp(s) inside this product and
spare part lamps sold separately: These lamps are
intended to withstand extreme physical conditions
in household appliances, such as temperature,
vibration, humidity, or are intended to signal
information about the operational status of the
appliance. They are not intended to be used in
other applications and are not suitable for
household room illumination.
ADDITIONAL ADVICE
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 10

11

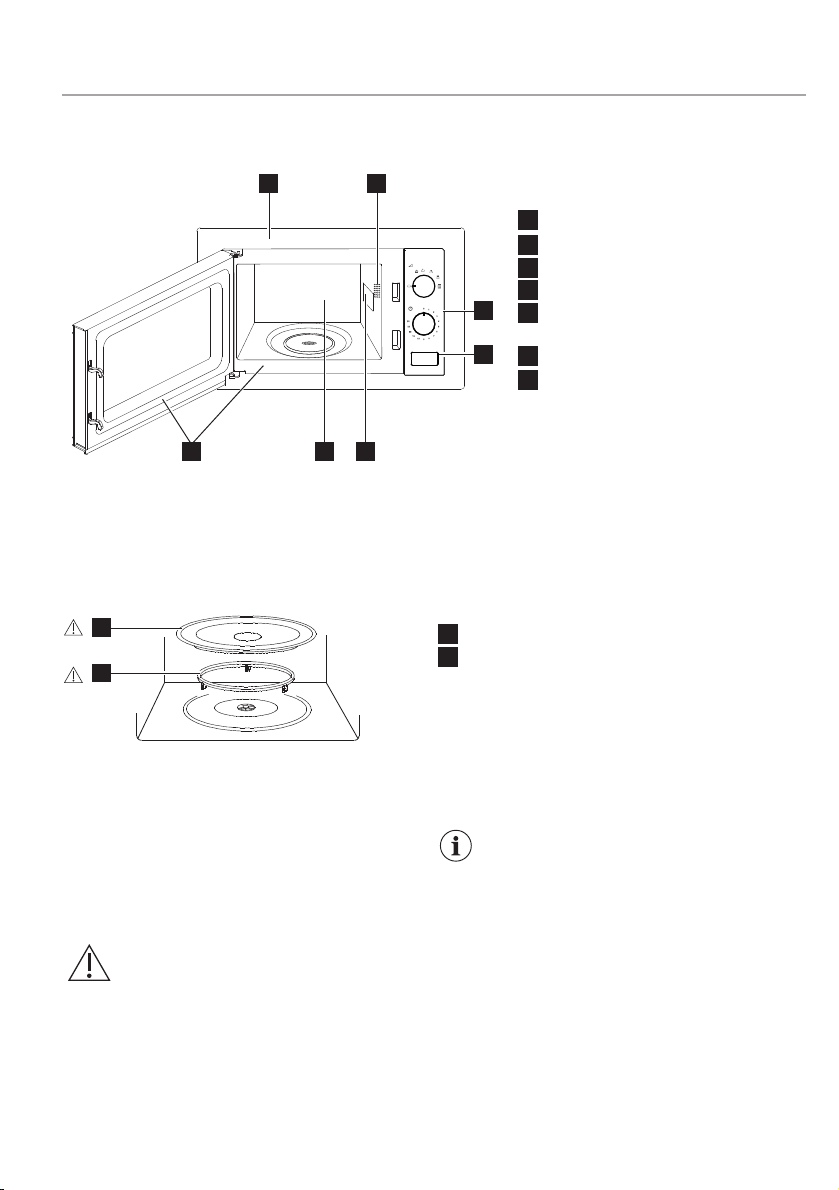

Check to make sure the following accessories are
provided:
Turntable
Turntable support
• Place the turntable support on the floor of the
cavity.
• Then place the turntable on the turntable
support.
• To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim
when removing them from the oven.
When you order accessories, please
mention two items: part name and model
name to your dealer or an authorised
ELECTROLUX service agent.
MICROWAVE OVEN
Front trim
Oven light
Control panel
Door open button
Waveguide cover
(do not remove)
Oven cavity
Door seals and sealing
surfaces
1
2
3
4
5
6
7
1
3
4
67
ACCESSORIES
1
2
5
2
PRODUCT DESCRIPTION
1
2
WARNING!
Do not operate the microwave oven without these parts fitted.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 11

12

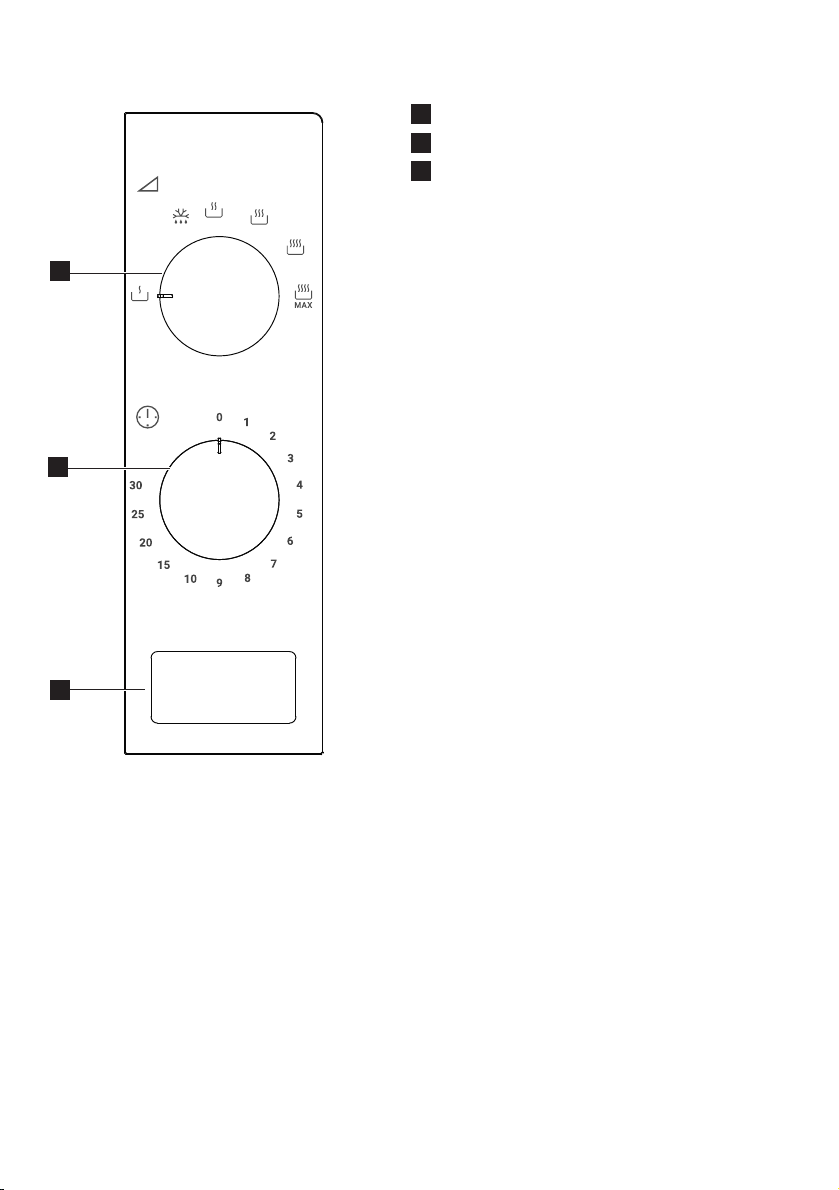

CONTROL PANEL
Power / Action Selector
Timer Knob
Door open button
1
2
3
3
2
1
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 12

13
MICROWAVE COOKING
Microwave cooking allows you to customize the
cooking power and time. Maximum cooking time is
30 minutes.
Example: To cook for 5 minutes on medium high.
1. Open the oven door and place the food inside.
Close the door.
2. Rotate the power / action selector to medium
high.
3. Rotate the timer knob to enter the cooking time
and start cooking.
As soon as the timer knob is rotated the
oven will start cooking. When selecting time
for less than 2 minutes, turn timer past
2 minutes and then return to the correct
time. Power levels that are too high or
cooking times that are too long may
overheat foods resulting in a fire.
CAUTION: Always return the timer back to
the zero position when food is removed
from the oven or when the oven is not in
use. To stop the oven during cooking push
the door release button.

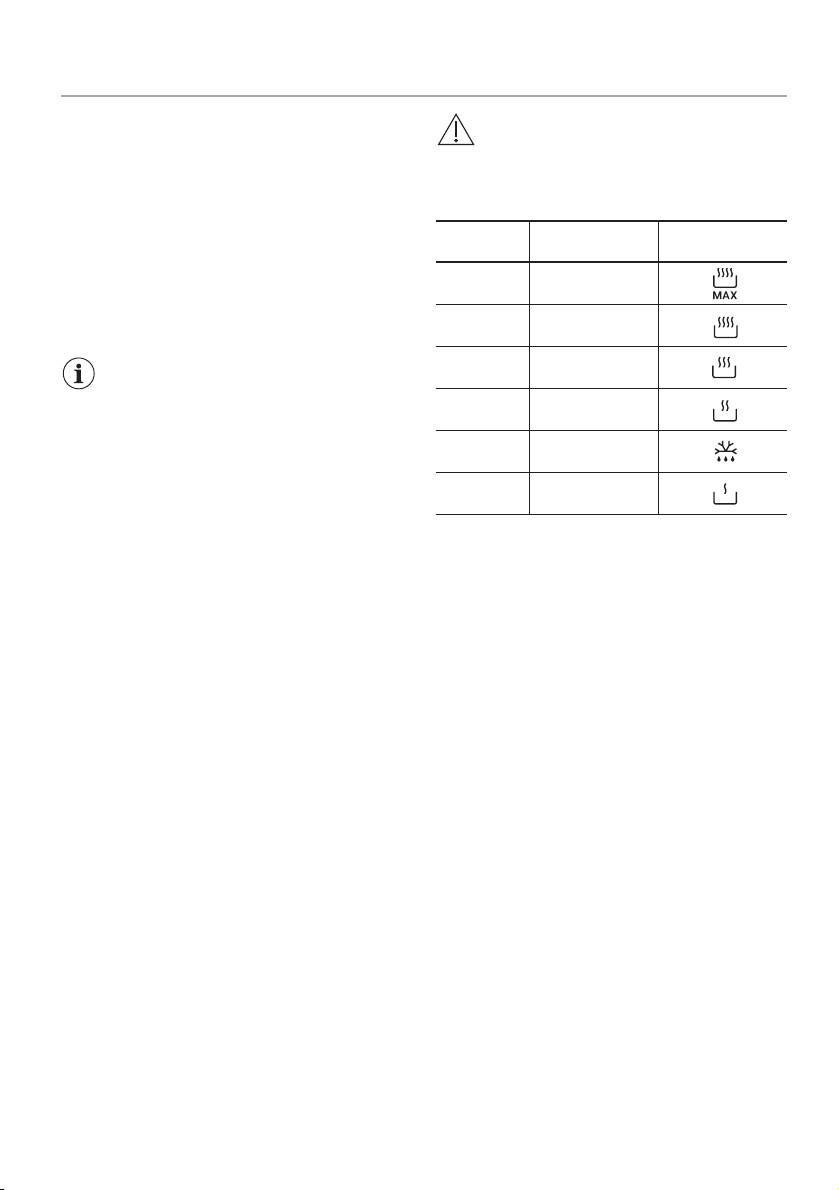

Power
Output Description Icon
100 % High
88 % Medium High
73 % Medium
52 % Medium Low
42 % Defrost
20 % Low
OPERATION
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 13

14
HINTS AND TIPS
MICROWAVE SAFE COOKWARE
Cookware Microwave
safe Comments
Aluminium foil/
containers
3/ 7Small pieces of aluminium foil can be used to shield food from
overheating. Keep foil at least 2 cm from the oven walls, as
arcing may occur. Foil containers are not recommended unless
specified by the manufacturer. Follow instructions carefully.
China and ceramics 3/ 7Porcelain, pottery, glazed earthenware and bone china are
usually suitable, except for those with metallic decoration.
Glassware
e.g. Pyrex ®
3Care should be taken if using fine glassware as it can break or
crack if heated suddenly.
Metal 7It is not recommended to use metal cookware when using
microwave power as it will arc, which can lead to fire.
Plastic/polystyrene e.g.
fast food containers
3Care must be taken as some containers warp, melt or discolour
at high temperatures.
Freezer/roasting bags 3Must be pierced to let steam escape. Ensure bags are suitable
for microwave use. Do not use plastic or metal ties, as they may
melt or catch fire due to the metal arcing.
Paper-plates, cups and
kitchen paper
3Only use for warming or to absorb moisture. Care must be taken
as overheating may cause fire.
Straw and wooden
containers
3Always attend the oven when using these materials as
overheating may cause fire.
Recycled paper and
newspaper
7May contain extracts of metal which will cause arcing and may
lead to fire.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 14

15
Microwave cooking advice
Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating
time. Care should be taken as overheating can lead to fire.
Size For even cooking make all the pieces the same size.
Temperature of
food
The initial temperature of food affects the amount of cooking time needed.
Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.
Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks).
Cover Use vented microwave cling film or a suitable lid.
Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking
or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish,
chicken, sausages).
IMPORTANT! Eggs should not be heated using microwave power as they may
explode, even after cooking has ended (e.g. poached, hard boiled).
Stir, turn and
rearrange
For even cooking it is essential to stir, turn and rearrange food during cooking. Always
stir and rearrange from the outside towards the centre.
Stand Standing time is necessary after cooking to enable the heat to disperse equally
throughout the food.
Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g.
legs and wings on a chicken).
MICROWAVE COOKING ADVICE
Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open
containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid
steam burns.
Always stand back from the oven door when opening to avoid burns from escaping steam and
heat. Slice stuffed baked foods after heating to release steam and avoid burns.
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 15

16
Problem Check if . . .
The microwave appliance is
not working properly?
• The fuses in the fuse box are working.
• There has not been a power outage.
• If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is not
working?
• The door is properly closed.
• The door seals and their surfaces are clean.
The turntable is not turning? • The turntable support is correctly connected to the drive.
• The ovenware does not extend beyond the turntable.
• Food does not extend beyond the edge of the turntable preventing it from
rotating.
• There is nothing in the well beneath the turntable.
The microwave will not
switch off?
• Isolate the appliance from the fuse box.
• Call an authorised ELECTROLUX service agent.
The interior light is not
working?
• Call your authorised ELECTROLUX service agent. The interior light can be
exchanged only by a trained authorised ELECTROLUX service agent.
The food is taking longer to
heat through and cook than
before?
• Set a longer cooking time (double quantity = nearly double time) or
• If the food is colder than usual, rotate or turn from time to time or
• Set a higher power setting.
TROUBLESHOOTING
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 16

17
Recycle materials with the symbol . Put the
packaging in applicable containers to recycle it.
Help protect the environment and human health
and recycle waste electrical and electronic
appliances.
Do not dispose of appliances marked with the
symbol with household waste. Return the
product to your local recycling facility or contact
your municipal office.
1) This Product fulfils the requirement of the European standard EN55011.
In conformity with this standard, this product is classified as group 2 class B equipment.
Group 2 means that the equipment intentionally generates radio-frequency energy in the form of
electromagnetic radiation for the heat treatment of food.
Class B equipment means that the equipment is suitable to be used in domestic establishments.
2) Internal capacity is calculated by measuring maximum width, depth and height.
Actual capacity for holding food is less.
AC Line Voltage 230-240 V, 50 Hz, single phase
Distribution line fuse/circuit breaker Minimum 10 A
AC Power required: Microwave 1.2 kW
Output power: Microwave 700 W (IEC 60705)
Microwave Frequency 2450 MHz1) (Group 2/Class B)
Outside Dimensions: FMSN5S 595 mm (W) x 390 mm (H) x 312 mm (D)
Cavity Dimensions 315 mm (W) x 198 mm (H) x 294 mm (D)2)
Oven Capacity 17 litres2)
Turntable ø 245 mm, glass
Weight approx. 12.7 kg
TECHNICAL INFORMATION
ENVIRONMENT CONCERNS
ZANUSSI_EN230_17LSOLO_SBI_BASE_AE31UICTO_Layout 1 18/01/2022 15:13 Page 17

18
sommAire
1. Avertissements importAnts de sécurité ............................................................19
2. instALLAtion ........................................................................................................................24
3. vue d’ensembLe de L’AppAreiL .....................................................................................29
4. Fonctionnement ...............................................................................................................31
5. Astuces et conseiLs .......................................................................................................32
6. en cAs d'AnomALie de Fonctionnement..................................................................34
7. cArActéristiques techniques...................................................................................35
8. inFormAtions environnementALes..........................................................................35
ZANUSSI_French_17LSOLO_BASE_SBI_AE31UICTO_Layout 1 18/01/2022 15:13 Page 18

19
Avertissements importAnts de sécurité
IMPORTANT ! Avertissements de securite
importAntes : Les Lire Attentivement et Les
conserver soiGneusement pour
consuLtAtions uLterieures.
cet appareil peut être utilisé pardes enfants d’aumoins 8 ans et
pardes personnes dont les capacités physiques, sensorielles ou
mentales sont réduites ou qui manquent d’expérience ou de
connaissances, à condition qu’ilssoient supervisés ou qu’ilsaient
reçudes instructions préalables concernant l’utilisation en toute
sécurité de l’appareil et qu’ilsen comprennent les dangers. Les
enfants ne doivent se servir du four que sous la surveillance d’un
adulte. Les enfants ne doivent pasnettoyer l’appareil ni effectuer
d’opérations d’entretien utilisateur, à moins qu’ilsaient aumoins
8 ans et qu’ilslefassent sous surveillance.
cet appareil n’est pasdestiné à être utilisé à des altitudes de plus
de 2 000 m.
ADVERTISSEMENT !
sila porte ou les joints de la porte sont endommagés, le
four ne doit pasêtre utilisé avant d'avoir été réparé parune
personne compétente.
ADVERTISSEMENT !
n'utilisez pasl'appareil sans leplateautournant et son
support. nepasutiliser l'appareil lorsqu'il est vide.
ADVERTISSEMENT !
il est dangereux pour toute personne autre qu'une
personne compétente d'effectuer toute opération de
maintenance ou de réparation qui implique leretrait d'une
couverture qui protègecontre l'exposition aux micro-ondes.
ZANUSSI_French_17LSOLO_BASE_SBI_AE31UICTO_Layout 1 18/01/2022 15:13 Page 19

20
ADVERTISSEMENT !
Les liquides ou autres aliments ne doivent pasêtre
réchauffés dans des récipients fermés carilsrisquent
d'exploser.
cet appareil est conçupour une utilisation domestique et des
situations similaires telles que : dans les cuisines réservées au
personnel de commerces, bureaux et autres environnements de
travail ; dans les exploitations agricoles ; parles clients dans les
hôtels, motelset autres environnements résidentiels; dans les
chambres d’hôtes et structures similaires.
n’utilisez que des récipients et des ustensiles conçus pour les
fours à micro-ondes.
Les récipients métalliques contenant des aliments ou des
boissons ne sont pascompatibles avec la cuisson au
micro-ondes.
surveillez lefour lorsque vous utiliser des récipients en matière
plastique à jeter, des récipients en papier ou tout autre récipient
pouvant s’enflammer.
Lefour micro-ondes est conçupour réchauffer des aliments et
boissons. son utilisation pour sécher des aliments ou vêtements,
ou pour chauffer des coussins chauffants, chaussons, éponges,
chiffons humides et articles similaires peut provoquer des risques
de blessures, d’inflammation de la matière ou d’incendie.
siles aliments que chauffelefour viennent à fumer, n’ouvreZ
pAs LA porte. mettez lefour hors tension, débranchez la
prise du cordon d’alimentation et attendez que la fumée se soit
dissipée. ouvrez lefour alors que les aliments fument peut
entraîner leur enflammation.
Lechauffageparmicro-ondes des boissons peut avoir comme
conséquence l'ébullition éruptive retardée, donc lesoin doit être
pris en manipulant lerécipient.
Lecontenu des biberons et des pots d'aliments pour bébés doit
être remué ou secoué et la température doit être vérifiée avant
ZANUSSI_French_17LSOLO_BASE_SBI_AE31UICTO_Layout 1 18/01/2022 15:13 Page 20
