This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children should be supervised to ensure
that they do not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they
are aged from 8 years and above and supervised.
This appliance is not intended for use at altitudes above
2000m.
IMPORTANT! IMPORTANT SAFETY
INSTRUCTIONS: READ CAREFULLY AND KEEP
FOR FUTURE REFERENCE.
WARNING!
If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person.
WARNING!
It is hazardous for anyone other than a competent
person to carry out any service or repair operation
that involves the removal of a cover which gives
protection against exposure to microwave energy.
WARNING!
Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
This appliance is intended to be used in household and
similar applications such as: staff kitchen areas in shops,
offices and other working environments; farm houses; by
SAFETY INFORMATION
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 3

4
clients in hotels, motels and other residential
environments; bed and breakfast type environments.
Only use microwave-safe containers and utensils.
Metallic containers for food and beverages are not allowed
during microwave cooking.
Do not leave the oven unattended when using disposable
plastic, paper or other combustible food containers.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
If food being heated begins to smoke, DO NOT OPEN
THE DOOR. Turn off and unplug the oven and wait until
the food has stopped smoking. Opening the door while
food is smoking may cause a fire.
Microwave heating of beverages can result in delayed
eruptive boiling, therefore care has to be taken when
handling the container.
The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
Do not cook eggs in their shells and whole hard boiled
eggs should not be heated in microwave ovens since they
may explode even after microwave cooking has ended.
Care and cleaning
Door:
To remove all trace of dirt, regularly clean both sides of
the door, the door seals and sealing surfaces with a soft,
damp cloth. Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since they
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 4

5
can scratch the surface, which may result in shattering of
the glass.
Oven interior:
For cleaning, wipe any splatters or spills with a soft damp
cloth or sponge after each use while the oven is still
warm. For heavier spills, use a mild soap and wipe
several times with a damp cloth until all residues are
removed. Do not remove the waveguide cover. Make
sure that mild soap or water does not penetrate the small
vents in the walls which may cause damage to the oven.
Do not use spray type cleaners on the oven interior. Heat
up your oven regularly by using the grill. Remaining food
or fat splashed can cause smoke or a bad smell.
Clean
the waveguide cover, the oven cavity, the turntable and
turntable support after use. These must be dry and free
from grease. Built-up grease may overheat and begin to
smoke or catch fire.
Oven exterior:
The outside of your oven can be cleaned easily with mild
soap and water. Make sure the soap is wiped off with a
moist cloth, and dry the exterior with a soft towel.
Control panel:
Open the door before cleaning to de-activate the control
panel. Care should be taken when cleaning the control
panel. Using a cloth dampened with water only, gently
wipe the panel until it becomes clean. Avoid using
excessive amounts of water. Do not use any sort of
chemical or abrasive cleaner.
Turntable and turntable support:
Remove the turntable and turntable support from the
oven. Wash the turntable and turntable support in mild
soapy water. Dry with a soft cloth. Both the turntable and
the turntable support are dishwasher safe.
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 5

6
Rack:
This should be washed in a mild washing up liquid
solution and dried. The rack is dishwasher safe.
IMPORTANT!
Clean the oven at regular intervals and remove any
food deposits. Failure to maintain the oven in a
clean condition could lead to a deterioration of the
surface that could adversely affect the life of the
appliance and possibly result in a hazardous
situation.
Care should be taken not to displace the turntable
when removing containers from the appliance.
IMPORTANT!
A steam cleaner should not be used.
The microwave oven is intended to be used built-in.
The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating
elements.
WARNING!
Keep children away from the door and accessible
parts that may become hot when the grill is in use.
Children should be kept away to prevent them
burning themselves.
IMPORTANT!
Do not use commercial oven cleaners, steam
cleaners, abrasive, harsh cleaners, any that contain
sodium hydroxide or scouring pads on any part of
your microwave oven.
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 6

7

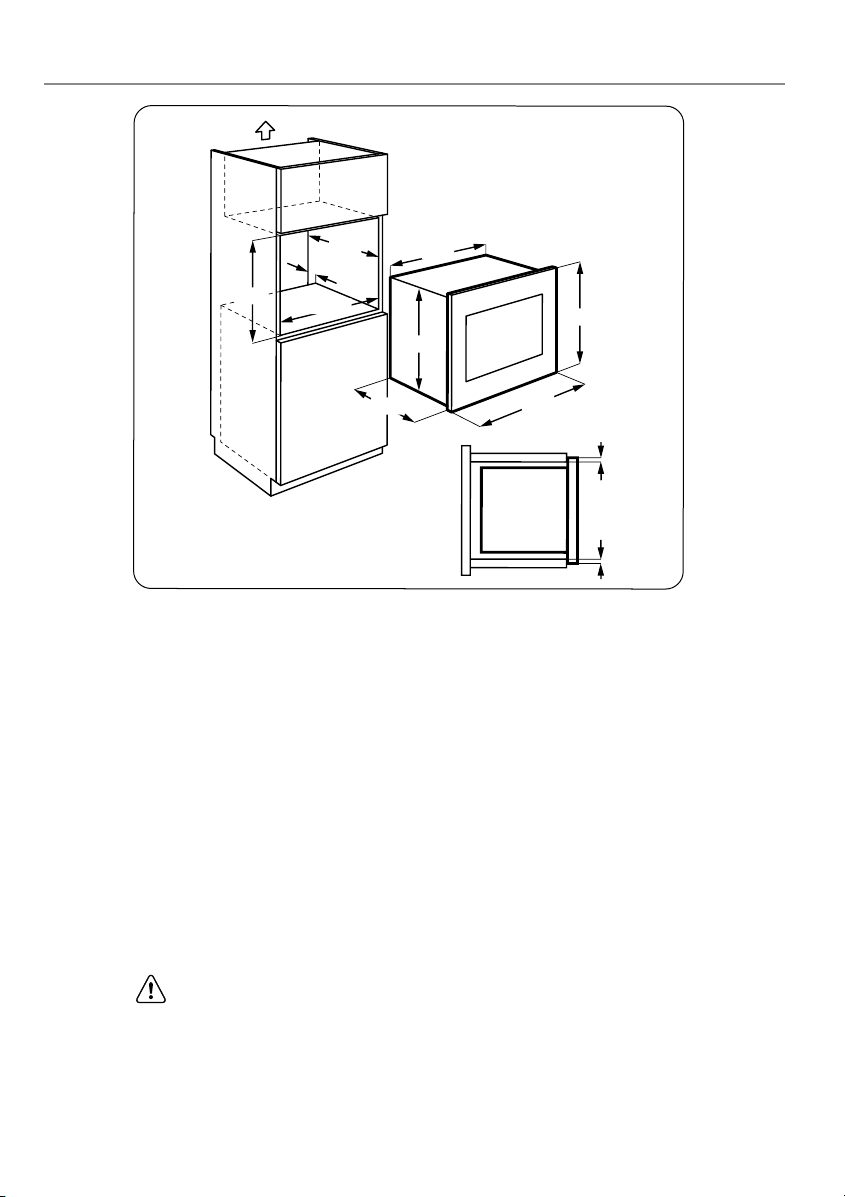

Installing the appliance
1. Remove all packaging and check
carefully for any signs of damage.
2. Fit the fixing bracket to the right hand
side of the kitchen cupboard using the
installation sheet and two screws
supplied.
3. Fit the appliance into the kitchen
cupboard slowly and without force until
it clips into the brackets. Ensure the
appliance is stable and centralised.
4. Fix the oven on the left hand side using
the two screws supplied.
5. The front frame of the appliance should
seal against the front opening of the
cupboard.
IMPORTANT!
Do not install this appliance in kitchen
cupboards without the specified
45mm rear chimney. Inadequate
ventilation could adversely affect the
performance and life of the appliance.
INSTALLATION
4,5
5,5
595
390
min.
350
380
327
352
452
45
min. 560
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 7

8
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 8

9
• The electrical outlet should be readily
accessible so that the unit can be
unplugged easily in an emergency. Or
it should be possible to isolate the oven
from the supply by incorporating a
switch in the fixed wiring in accordance
with the wiring rules.
• The power supply cord may only be
replaced by an electrician.
• If the supply cord is damaged it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• The socket should not be positioned
behind the cupboard.
• The best position is above the
cupboard, see (A).
• Connect the appliance to a single
phase 230-240 V/50 Hz alternating
current via a correctly installed earth
socket. The socket must be fused with
a 16 A fuse.
• Before installing, tie a piece of string to
the power supply cord to facilitate
connection to point (A) when the
appliance is being installed.
• When inserting the appliance into the
high-sided cupboard, DO NOT crush
the power supply cord.
• Do not immerse the power supply cord
or plug in water or any other liquid.
• Do not allow the power supply cord to
run over any hot or sharp surfaces,
such as the hot air vent area at the top
rear of the oven.
Connecting the appliance to the
power supply
(A)
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 9

10
Do not use the microwave oven to heat oil
for deep frying. The temperature cannot be
controlled and the oil may catch fire. To
make popcorn, only use special
microwave popcorn makers.
Individuals with PACEMAKERS should
check with their doctor or the manufacturer
of the pacemaker for precautions
regarding microwave ovens.
Never spill or insert any objects into the
door lock openings or ventilation openings.
In the event of a spill, turn off and unplug
the oven immediately and call an
authorised ELECTROLUX service agent.
Never modify the oven in any way.
Only use the turntable and the turntable
support designed for this oven. Do not
operate the oven without the turntable.
To prevent the turntable from breaking:
• Before cleaning the turntable with
water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a
cold turntable.
• Do not put cold foods or cold utensils
on a hot turntable.
Do not use plastic containers for
microwaving if the oven is still hot from
using the GRILL mode because they may
melt. Plastic containers must not be used
during above modes unless the container
manufacturer says they are suitable.
Neither the manufacturer nor the dealer
can accept any liability for damage to the
oven or personal injury resulting from
failure to observe the correct electrical
connection procedure. Water vapour or
drops may occasionally form on the oven
walls or around the door seals and sealing
surfaces. This is a normal occurrence and
is not an indication of microwave leakage
or a malfunction.
WARNING!
After GRILL mode the oven cavity,
door, oven cabinet and accessories
will become very hot. Before cleaning,
make sure they are completely cool.
Additional advice
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 10

11
Check to make sure the following
accessories are provided:
Turntable
Turntable support
High rack
• Place the turntable support on the floor
of the cavity.
• Then place the turntable on the
turntable support.
• To avoid turntable damage, ensure
dishes or containers are lifted clear of
the turntable rim when removing them
from the oven.
When you order accessories, please
mention two items: part name and
model name to your dealer or an
authorised ELECTROLUX service
agent.
Microwave oven
Grill heating element
Front trim
Oven light
Control panel
Door open button
Waveguide cover
Oven cavity
Door seals and sealing
surfaces
1
2
3
4
5
6
7
8
Accessories
1
2
3
1
2
3
1
4
5
78 6
32
PRODUCT DESCRIPTION
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 11

12
Control panel
Power / Action Selector
Timer Knob
Door open button
1
2
3
3
2
1
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 12

Microwave cooking
Microwave cooking allows you to
customize the cooking power and time.
Maximum cooking time is 30 minutes.
Example: To cook for 5 minutes on
medium high.
1. Open the oven door and place the food
inside. Close the door.
2. Rotate the power / action selector to
medium high.
3. Rotate the timer knob to enter the
cooking time and start cooking.
As soon as the timer knob is rotated
the oven will start cooking. When
selecting time for less than 2 minutes,
turn timer past 2 minutes and then
return to the correct time. Power
levels that are too high or cooking
times that are too long may overheat
foods resulting in a fire.
CAUTION: Always return the timer
back to the zero position when food
is removed from the oven or when the
oven is not in use. To stop the oven
during cooking push the door release
button.
Grill
Grill cooking is particularly useful for thin
slices of meat, steaks, chops, kebabs,
sausages and pieces of chicken. It is also
suitable for hot sandwiches and au gratin
dishes. Maximum cooking time is
30 minutes.
Example: To grill for 12 minutes.
1. Open the oven door and place the food
inside. Close the door.
2. Rotate the power / action selector to
grill.
3. Rotate the timer knob to enter the
cooking time and start cooking.
IMPORTANT! The rack is
recommended for grilling.
Combi cooking
Combi cooking combines the
microwave and the grill functions at
different time periods during cooking.
Maximum cooking time is 30 minutes.
Example: To set Combi cooking for
25 minutes.
1. Open the oven door and place the food
inside. Close the door.
2. Rotate the power / action selector to
Combi. 1.
3. Rotate the timer knob to enter the
cooking time and start cooking.
Description Icon Suitable for
Grill Browning food
Combi. 1 Fish, potatoes,
au gratin
Combi. 2 Pudding,
omelettes, baked
potatoes
Combi. 3 Poultry
13
Power
Output Description Icon
100 % High
81 % Medium High
58 % Medium
36 % Defrost
18 % Low
OPERATION
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 13

14
HINTS AND TIPS
Microwave safe cookware
Cookware Microwave
safe Comments
Aluminium foil/
containers
3/ 7Small pieces of aluminium foil can be used to shield food
from overheating. Keep foil at least 2 cm from the oven
walls, as arcing may occur. Foil containers are not
recommended unless specified by the manufacturer.
Follow instructions carefully.
China and ceramics 3/ 7Porcelain, pottery, glazed earthenware and bone china are
usually suitable, except for those with metallic decoration.
Glassware
e.g. Pyrex ®
3Care should be taken if using fine glassware as it can
break or crack if heated suddenly.
Metal 7It is not recommended to use metal cookware when using
microwave power as it will arc, which can lead to fire.
Plastic/polystyrene
e.g. fast food
containers
3Care must be taken as some containers warp, melt or
discolour at high temperatures.
Freezer/roasting
bags
3Must be pierced to let steam escape. Ensure bags are
suitable for microwave use. Do not use plastic or metal
ties, as they may melt or catch fire due to the metal arcing.
Paper-plates, cups
and kitchen paper
3Only use for warming or to absorb moisture. Care must be
taken as overheating may cause fire.
Straw and wooden
containers
3Always attend the oven when using these materials as
overheating may cause fire.
Recycled paper and
newspaper
7May contain extracts of metal which will cause arcing and
may lead to fire.
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 14

15
Microwave cooking advice
Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less
heating time. Care should be taken as overheating can lead to fire.
Size For even cooking make all the pieces the same size.
Temperature of
food
The initial temperature of food affects the amount of cooking time needed.
Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.
Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken
drumsticks).
Cover Use vented microwave cling film or a suitable lid.
Pierce Foods with a shell, skin or membrane must be pierced in several places before
cooking or reheating as steam will build up and may cause food to explode
(e.g. potatoes, fish, chicken, sausages).
IMPORTANT! Eggs should not be heated using microwave power as
they may explode, even after cooking has ended (e.g. poached, hard
boiled).
Stir, turn and
rearrange
For even cooking it is essential to stir, turn and rearrange food during cooking.
Always stir and rearrange from the outside towards the centre.
Stand Standing time is necessary after cooking to enable the heat to disperse equally
throughout the food.
Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves
(e.g. legs and wings on a chicken).
Microwave cooking advice
Use pot holders or oven gloves when removing food from the oven to prevent burns.
Always open containers, popcorn makers, oven cooking bags, etc., away from the face
and hands to avoid steam burns.
Always stand back from the oven door when opening to avoid burns from escaping steam
and heat. Slice stuffed baked foods after heating to release steam and avoid burns.
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 15

16
Problem Check if . . .
The microwave appliance
is not working
properly?
• The fuses in the fuse box are working.
• There has not been a power outage.
• If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is
not working?
• The door is properly closed.
• The door seals and their surfaces are clean.
The turntable is not
turning?
• The turntable support is correctly connected to the drive.
• The ovenware does not extend beyond the turntable.
• Food does not extend beyond the edge of the turntable preventing
it from rotating.
• There is nothing in the well beneath the turntable.
The microwave will not
switch off?
• Isolate the appliance from the fuse box.
• Call an authorised ELECTROLUX service agent.
The interior light is not
working?
• Call your authorised ELECTROLUX service agent. The interior
light can be exchanged only by a trained authorised
ELECTROLUX service agent.
The food is taking longer
to heat through and cook
than before?
• Set a longer cooking time (double quantity = nearly double time) or
• If the food is colder than usual, rotate or turn from time to time or
• Set a higher power setting.
TROUBLESHOOTING
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 16

17
Recycle materials with the symbol . Put
the packaging in applicable containers to
recycle it.
Help protect the environment and human
health and recycle waste electrical and
electronic appliances.
Do not dispose of appliances marked with
the symbol with household waste.
Return the product to your local recycling
facility or contact your municipal office.
ENVIRONMENT CONCERNS
1) This Product fulfils the requirement of the European standard EN55011.
In conformity with this standard, this product is classified as group 2 class B equipment.
Group 2 means that the equipment intentionally generates radio-frequency energy in the
form of electromagnetic radiation for the heat treatment of food.
Class B equipment means that the equipment is suitable to be used in domestic
establishments.
2) Internal capacity is calculated by measuring maximum width, depth and height.
Actual capacity for holding food is less.
AC Line Voltage 230-240 V, 50 Hz, single phase
Distribution line fuse/circuit breaker Minimum 16 A
AC Power required: Microwave
Grill
1.200 kW
1.000 kW
Output power: Microwave
Grill
700 W (IEC 60705)
1000 W
Microwave Frequency 2450 MHz1) (Group 2/Class B)
Outside Dimensions: FMSN6D 595 mm (W) 390 mm (H) 354 mm (D)
Cavity Dimensions 315 mm (W) x 210 mm (H) x 329 mm (D)2)
Oven Capacity 20 litres2)
Turntable ø 245 mm, glass
Weight approx. 13.5 kg
TECHNICAL INFORMATION
1_ZANUSSI_EN230_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 06/01/2020 07:24 Page 17

18
Lors de sa fabrication, cet appareil a été construit selon des normes, directives et/ou
décrets pour une utilisation sur le territoire français.
Pour la sécurité des biens et des personnes ainsi que pour le respect de
l’environnement, vous devez d’abord lire impérativement les préconisations
suivantes avant toute utilisation de votre appareil.
Pour éviter tout risque de détérioration de l’appareil, transportez-le dans sa position
d’utilisation muni de ses cales de transport (selon modèle).
Au déballage de celui-ci, et pour empêcher des risques d’asphyxie et corporel, tenez les
matériaux d’emballage hors de la portée des enfants.
Pour éviter tout risque (mobilier, immobilier, corporel,…), l’installation, les raccordements
(eau, gaz, électricité, évacuation selon modèle), la mise en service et la maintenance de
votre appareil doivent être effectués par un professionnel qualifié.
Votre appareil a été conçu pour être utilisé par des adultes. Il est destiné à un usage
domestique normal. Ne l’utilisez pas à des fins commerciales ou industrielles ou pour
d’autres buts que ceux pour lesquels il a été conçu. Vous éviterez ainsi des risques
matériel et corporel.
Débranchez votre appareil avant toute opération de nettoyage manuel. N’utilisez que
des produits du commerce non corrosifs ou non inflammables. Toute projection d’eau ou
de vapeur est proscrite pour écarter le risque d’électrocution.
Si votre appareil est équipé d’un éclairage, débranchez l’appareil avant de procéder au
changement de l’ampoule (ou du néon, etc.) pour éviter de s’électrocuter.
Afin d’empêcher des risques d’explosion et d’incendie, ne placez pas de produits
inflammables ou d’éléments imbibés de produits inflammables à l’intérieur, à proximité
ou sur l’appareil.
Lors de la mise au rebut de votre appareil, et pour écarter tout risque corporel, mettez
hors d’usage ce qui pourrait présenter un danger: coupez le câble d’alimentation au ras
de l’appareil. Informez-vous auprès des services de votre commune des endroits
autorisés pour la mise au rebut de l’appareil.
Attention: l’aliment cuit ou réchauffé au micro-ondes est beaucoup plus chaud que le
récipient. Remuez et testez la température de l’aliment avant de le consommer pour
empêcher de se brûler.
Veuillez maintenant lire attentivement cette notice pour une utilisation optimale de
votre appareil.
2_ZANUSSI_French_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 21/01/2020 10:01 Page 18

19
1. AVERTISSEMENTS IMPORTANTS DE SécuRITé.....................................................20
2. INSTALLATION .................................................................................................................25
3. VuE D’ENSEMbLE DE L’APPAREIL ..............................................................................30
4. FONcTIONNEMENT ........................................................................................................32
5. ASTucES ET cONSEILS ................................................................................................33
6. EN cAS D'ANOMALIE DE FONcTIONNEMENT...........................................................35
7. cARAcTéRISTIquES TEchNIquES............................................................................36
8. INFORMATIONS ENVIRONNEMENTALES ...................................................................36
SOMMAIRE
2_ZANUSSI_French_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 21/01/2020 10:01 Page 19

20
cet appareil peut être utilisé par des enfants d’au moins 8
ans et par des personnes dont les capacités physiques,
sensorielles ou mentales sont réduites ou qui manquent
d’expérience ou de connaissances, à condition qu’ils
soient supervisés ou qu’ils aient reçu des instructions
préalables concernant l’utilisation en toute sécurité de
l’appareil et qu’ils en comprennent les dangers. Les
enfants ne doivent se servir du four que sous la
surveillance d’un adulte. Les enfants ne doivent pas
nettoyer l’appareil ni effectuer d’opérations d’entretien
utilisateur, à moins qu’ils aient au moins 8 ans et qu’ils le
fassent sous surveillance.
cet appareil n’est pas destiné à être utilisé à des altitudes
de plus de 2 000 m.
IMPORTANT ! AVERTISSEMENTS DE SEcuRITE
IMPORTANTES : LES LIRE ATTENTIVEMENT ET
LES cONSERVER SOIGNEuSEMENT POuR
cONSuLTATIONS uLTERIEuRES.
ADVERTISSEMENT !
Si la porte ou les joints de la porte sont
endommagés, le four ne doit pas être utilisé avant
d'avoir été réparé par une personne compétente.
ADVERTISSEMENT !
Il est dangereux pour toute personne autre qu'une
personne compétente d'effectuer toute opération
de maintenance ou de réparation qui implique le
retrait d'une couverture qui protège contre
l'exposition aux micro-ondes.
AVERTISSEMENTS IMPORTANTS DE SécuRITé
2_ZANUSSI_French_20LGRILL_SBI_BASE_AE25UICTO_Layout 1 21/01/2020 10:01 Page 20
