FCC EM-XSW2 User manual

I
FCC Part 15
EMI TEST REPORT
of
E.U.T. : XS WIRELESS
MODEL : EM-XSW2
FCC ID : DMOEMXSW2
Frequency Range : 2433MHz~2473MHz
for
APPLICANT : Sennheiser Electric Corp.
ADDRESS : 1 Enterprise Drive, Old Lyme, CT 06371, USA
Test Performed by
ELECTRONICS TESTING CENTER, TAIWAN
NO. 34. LIN 5, DINGFU VIL., LINKOU DIST.,
NEW TAIPEI CITY, TAIWAN, 24442, R.O.C.
TEL : [phone] FAX: [phone]
http：// www.etc.org.tw; e-mail：[email protected]
Report Number : 16-11-RBF-029-01

ETC Report No. : 16-11-RBF-029-01 FCC ID: DMOEMXSW2
II
TEST REPORT CERTIFICATION
Applicant : Sennheiser Electric Corp.
1 Enterprise Drive, Old Lyme, CT 06371, USA
Manufacturer : Sennheiser electronic GmbH & Co. KG
Am Labor 1
30900 Wedemark, Germany
Factory : MASCOT ELECTRIC CO., LTD
NO. 85, CHANGXING 1ST ST., RENDE DIST., TAINAN CITY 717,
TAIWAN
Description of EUT
a) Type of EUT : XS WIRELESS
b) Trade Name : SENNHEISER
c) Model No. : EM-XSW2
d) Power Supply : AC/DC Adapter
(1) Model: FW8002/16
I/P: AC100-240V, 50-60Hz, 110mA
O/P: 12Vdc, 400mA
(2) Type: NT12-5CW
Model: SSC-5WVI-12 120050
I/P: AC100-240V, 50/60Hz, 0.2A
O/P: 12Vdc, 0.5A, 6W
e) Frequency Range : 2433MHz~2473MHz
Regulation Applied : FCC Rules and Regulations Part 15 Subpart C
I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the
procedures given in ANSI C63.10-2013, and the energy emitted by the device was founded to be
within the limits applicable. I assume full responsibility for accuracy and completeness of these
data.
Note: 1. The result of the testing report relate only to the item tested.
2. The testing report shall not be reproduced expect in full, without the written approval of
ETC.
Summary of Tests
Test Results
Radiated Emission Pass
Conducted Emission Pass
Band Edge Requirement Pass
Duty Cycle N.A.
20dB Bandwidth Pass

ETC Report No. : 16-11-RBF-029-01 FCC ID: DMOEMXSW2
III
Date Test Item Received : Nov. 22, 2016
Date Test Campaign Completed :Nov. 25, 2016
Date of Issue : Dec. 06, 2016
Test Engineer :
(Brian Huang, Engineer )
Approve & Authorized Signer :
S. S. Liou, Section Manager
EMC Dept. II of ELECTRONICS
TESTING CENTER, TAIWAN

ETC Report No. : 16-11-RBF-029-01 FCC ID: DMOEMXSW2
IV
Table of Contents Page
Cover Page…………………………………………………………………………………………..I
TEST REPORT CERTIFICATION…………………………………………………………….…..II
Table of Contents…………………………………………………………………………………..IV
1 GENERAL INFORMATION ...................................................................................................... 1
1.1 Product Description...................................................................................................................... 1
1.2 Characteristics of Device ............................................................................................................. 1
1.3 Test Methodology ........................................................................................................................ 1
1.4 Test Facility.................................................................................................................................. 1
2 PROVISIONS APPLICABLE ..................................................................................................... 2
2.1 Definition ..................................................................................................................................... 2
2.2 Requirement for Compliance ....................................................................................................... 3
2.3 Restricted Bands of Operation ..................................................................................................... 5
2.4 Labeling Requirement.................................................................................................................. 5
2.5 User Information .......................................................................................................................... 6
3. SYSTEM TEST CONFIGURATION ......................................................................................... 7
3.1 Justification .................................................................................................................................. 7
3.2 Devices for Tested System........................................................................................................... 7
4 RADIATED EMISSION MEASUREMENT.............................................................................. 8
4.1 Applicable Standard..................................................................................................................... 8
4.2 Measurement Procedure............................................................................................................... 8
4.3 Measuring Instrument ................................................................................................................ 10
4.4 Radiated Emission Data ............................................................................................................. 11
4.4.1 RF Portion......................................................................................................................................... 11
4.4.2 Other Emissions ................................................................................................................................. 17
4.5 Field Strength Calculation ......................................................................................................... 21
4.6 Photos of Radiation Measuring Setup........................................................................................ 22
5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 24
5.1 Standard Applicable................................................................................................................... 24
5.2 Measurement Procedure............................................................................................................. 24
5.3 Conducted Emission Data .......................................................................................................... 25
5.4 Result Data Calculation ............................................................................................................. 29
5.5 Conducted Measurement Equipment ......................................................................................... 29
5.6 Photos of Conduction Measuring Setup..................................................................................... 30
6 ANTENNA REQUIREMENT ................................................................................................... 31
6.1 Standard Applicable................................................................................................................... 31

ETC Report No. : 16-11-RBF-029-01 FCC ID: DMOEMXSW2
V
6.2 Antenna Construction................................................................................................................. 31
7 BAND EDGES MEASUREMENT ............................................................................................ 32
7.1 Standard Applicable................................................................................................................... 32
7.2 Measurement Procedure............................................................................................................. 32
7.3 Measurement Equipment ........................................................................................................... 33
7.4 Measurement Data ..................................................................................................................... 33
8. DYTY CYCLE............................................................................................................................ 36
8.1 Standard Applicable................................................................................................................... 36
8.2 Measurement Equipment ........................................................................................................... 36
8.3 Measurement Data ..................................................................................................................... 36
9. BANDWIDTH OF EMISSION................................................................................................. 38
9.1 Applicable Standard................................................................................................................... 38
9.2 Measurement Procedure............................................................................................................. 38
9.3 Measurement Equipment ........................................................................................................... 39
9.4 Measurement Data ..................................................................................................................... 39

ETC Report No. : 16-11-RBF-029-01 Sheet 1 of 41 Sheets
FCC ID: DMOEMXSW2
1
1 GENERAL INFORMATION
1.1 Product Description
a) Type of EUT : XS WIRELESS
b) Trade Name : SENNHEISER
c) Model No. : EM-XSW2
d) Power Supply : AC/DC Adapter
(1) Model: FW8002/16
I/P: AC100-240V, 50-60Hz, 110mA
O/P: 12Vdc, 400mA
(2) Type: NT12-5CW
Model: SSC-5WVI-12 120050
I/P: AC100-240V, 50/60Hz, 0.2A
O/P: 12Vdc, 0.5A, 6W
e) Frequency Range : 2433MHz~2473MHz
1.2 Characteristics of Device
The EUT is a Wireless Microphone Receiver with 2.4GHz SYNC function.
1.3 Test Methodology
Both conducted and radiated emissions were performed according to the procedures
illustrated in ANSI C63.10-2013. Other required measurements were illustrated in separate
sections of this test report for details.
Measurement Software
Software Version Note
e3 Version 6.100618b Radiated Emission Test
e3 Version 6.100421 Conducted Emission Test
1.4 Test Facility
Location of the Test site: No.34, Lin 5, Dingfu Vil., Linkou Dist., New Taipei City, Taiwan
24442, R.O.C.
Designation Number: TW2628.

ETC Report No. : 16-11-RBF-029-01 Sheet 2 of 41 Sheets
FCC ID: DMOEMXSW2
2
2 PROVISIONS APPLICABLE
2.1 Definition
Unintentional radiator:
A device that intentionally generates and radio frequency energy for use within the device, or
that sends radio frequency signals by conduction to associated equipment via connecting
wiring, but which is not intended to emit RF energy by radiation or induction.
Class A Digital Device:
A digital device which is marketed for use in commercial or business environment; exclusive
of a device which is market for use by the general public, or which is intended to be used in
the home.
Class B Digital Device :
A digital device which is marketed for use in a residential environment notwithstanding use
in a commercial, business of industrial environment. Example of such devices that are
marketed for the general public.
Note : A manufacturer may also qualify a device intended to be marketed in a commercial,
business, or industrial environment as a Class B digital device, and in fact is
encouraged to do so, provided the device complies with the technical specifications
for a Class B Digital Device. In the event that a particular type of device has been
found to repeatedly cause harmful interference to radio communications, the
Commission may classify such a digital device as a Class B Digital Device,
Regardless of its intended use.
Intentional radiator:
A device that intentionally generates and emits radio frequency energy by radiation or
induction.

ETC Report No. : 16-11-RBF-029-01 Sheet 3 of 41 Sheets
FCC ID: DMOEMXSW2
3
2.2 Requirement for Compliance
(1) Conducted Emission Requirement
For an intentional radiator that is designed to be connected to the public utility (AC)
power line, the radio frequency voltage that is conducted back onto the AC power line on
any frequency or frequencies within the band 150kHz to 30MHz shall not exceed the
limits in the following table, as measured using a 50MH/50 ohms line impedance
stabilization network (LISN). Compliance with the provisions of this paragraph shall be
based on the measurement of the radio frequency voltage between each power line and
ground at the power terminal. The lower limit applies at the band edges.
Frequency
MHz
Quasi Peak
dBμV
Average
dBμV
0.15 - 0.5 66-56 56-46
0.5 - 5.0 56 46
5.0 - 30.0 60 50
(2) Radiated Emission Requirement
For unintentional device, according to §15.109(a), except for Class A digital devices, the
field strength of radiated emissions from unintentional radiators at a distance of 3 meters
shall not exceed the following values:
Frequency
MHz
Distance
Meters
Radiated
dBμV/m
Radiated
μV/m
30 - 88 3 40.0 100
88 - 216 3 43.5 150
216 - 960 3 46.0 200
Above 960 3 54.0 500
For intentional device, according to §15.209(a), the general requirement of field strength
of radiated emissions from intentional radiators at a distance of 3 meters shall not exceed
the above table.

ETC Report No. : 16-11-RBF-029-01 Sheet 4 of 41 Sheets
FCC ID: DMOEMXSW2
4
For intentional radiator device, per §15.249(a), the field strength of emissions shall
comply with the following :
Frequency
MHz
Distance
Meters
Fundamental
dBμV/m mV/m
Harmonic
dBμV/m μV/m
902 - 928 3 94 50 54 500
2400 - 2483.5 3 94 50 54 500
5725 - 5875 3 94 50 54 500
24000 - 24250 3 108 250 68 2500
In accordance with §15.249(e), limits shown in above table are based on average limits
for frequencies above 1000 MHz, and frequencies below 1000 MHz are based on quasi
peak. However, the peak field strength of any emission shall not exceed the maximum
permitted average limits by more than 20 dB.
(3) Spurious in Out Band Requirement
For intentional device, according to §15.249 (d), emissions radiated outside of the
specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB
below the level of fundamental or to the general radiated emission limits in §15.209.
(4) Antenna Requirement
For intentional device, according to §15.203, an intentional radiator shall be designed to
ensure that no antenna other than that furnished by the responsible party shall be used
with the device.

ETC Report No. : 16-11-RBF-029-01 Sheet 5 of 41 Sheets
FCC ID: DMOEMXSW2
5
2.3 Restricted Bands of Operation
Only spurious emissions are permitted in any of the frequency bands listed below :
MHz MHz MHz GHz
0.090 - 0.110 16.42-16.423 399.9-410 4.5-5.25
0.495 - 0.505 ** 16.69475 - 16.69525 608-614 5.35-5.46
2.1735 - 2.1905 16.80425 - 16.80475 960-1240 7.25-7.75
4.125-4.128 25.5-25.67 1300-1427 8.025-8.5
4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2
4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5
6.215-6.218 74.8-75.2 1660-1710 10.6-12.7
6.26775-6.26825 108-121.94 1718.8-1722.2 13.25-13.4
6.31175-6.31225 123-138 2200-2300 14.47-14.5
8.291-8.294 149.9-150.05 2310-2390 15.35-16.2
8.362-8.366 156.52475 - 156.52525 2483.5-2500 17.7-21.4
8.37625-8.38675 156.7-156.9 2655-2900 22.01-23.12
8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0
12.29-12.293 167.72-173.2 3332-3339 31.2-31.8
12.51975-12.52025 240-285 3345.8-3358 36.43-36.5
12.57675-12.57725 322-335.4 3360-4400 Above 38.6
13.36-13.41
** : Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz
2.4 Labeling Requirement
The device shall bear the following statement in a conspicuous location on the device:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

ETC Report No. : 16-11-RBF-029-01 Sheet 6 of 41 Sheets
FCC ID: DMOEMXSW2
6
2.5 User Information
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual.
The Federal Communications Commission Radio Frequency Interference Statement includes
the following paragraph.
This equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio / TV technician for help.

ETC Report No. : 16-11-RBF-029-01 Sheet 7 of 41 Sheets
FCC ID: DMOEMXSW2
7
3. SYSTEM TEST CONFIGURATION
3.1 Justification
For both radiated and conducted emissions, the system was configured for testing in a typical
fashion as a customer would normally use it. The peripherals other than EUT were connected
in normally standing by situation.
All measurement were intentional to maximum the emissions from EUT by varying the
connection cables(if applicable), therefore, the test result is sure to meet the applicable
requirement.
3.2 Devices for Tested System
Device Manufacturer Model / FCC ID Description
XS WIRELESS* Sennheiser electronic
GmbH & Co. KG
EM-XSW2 / DMOEMXSW2 ---
Remark “*” means equipment under test.

ETC Report No. : 16-11-RBF-029-01 Sheet 8 of 41 Sheets
FCC ID: DMOEMXSW2
8
4 RADIATED EMISSION MEASUREMENT
4.1 Applicable Standard
For intentional radiators, according to §15.249 (a), the fundamental field strength shall not
exceed 94 dBµV/m and the harmonics shall not exceed 54 dBµV/m. For out band emission
except for harmonics shall be comply with §15.209 or at least attenuated by 50 dB below
the level of the fundamental.
4.2 Measurement Procedure
1. Setup the configuration per figure 1 and 2 for frequencies measured below and above 1
GHz respectively.
2. For emission frequencies measured below 1 GHz, a pre-scan is performed in a shielded
chamber to determine the accurate frequencies of higher emissions will be checked on a
open test site. As the same purpose, for emission frequencies measured above 1 GHz, a
pre-scan also be performed with a 1 meter measuring distance before final test.
3. For emission frequencies measured below and above 1 GHz, set the spectrum analyzer
on a 100 kHz and 1 MHz resolution bandwidth respectively for each frequency measured
in step 2.
4. The search antenna is to be raised and lowered over a range from 1 to 4 meters in
horizontally polarized orientation. Position the highness when the highest value is
indicated on spectrum analyzer, then change the orientation of EUT on test table over a
range from 0。 to 360。with a speed as slow as possible, and keep the azimuth that
highest emission is indicated on the spectrum analyzer. Vary the antenna position again
and record the highest value as a final reading. A RF test receiver is also used to confirm
emissions measured.
5. Repeat step 4 until all frequencies need to be measured were complete.
6. Repeat step 5 with search antenna in vertical polarized orientations.
7. Check the three frequencies of highest emission with varying the placement of cables
associated with EUT to obtain the worse case and record the result.

ETC Report No. : 16-11-RBF-029-01 Sheet 9 of 41 Sheets
FCC ID: DMOEMXSW2
9
Figure 1 : Frequencies measured below 1 GHz configuration
RF Test
Receiver
Search
Antenna
3m
4m
1m
Turn
Table
EUT
0.8m
Antenna Tower
Ground Plane
Figure 2 : Frequencies measured above 1 GHz configuration
S
p
ectr u m
Ana ly z e r
Hor n A n t e n n a
3 m
4 m
1m
T u r n
T a b l e
E U T
Ant e n n a T o w e r
Am
p
l i
f
i e r
1.5
m

ETC Report No. : 16-11-RBF-029-01 Sheet 10 of 41 Sheets
FCC ID: DMOEMXSW2
10
4.3 Measuring Instrument
The following instrument are used for radiated emissions measurement:
Equipment Manufacturer Model No. Calibration Date Next Cal. Date
Test Receiver Rohde & Schwarz ESVS30 2015/12/05 2016/12/04
EMI Test Receiver Rohde & Schwarz ESL 2016/03/26 2017/03/25
Bi-Log Antenna ETC MCTD 2786 2016/07/15 2017/07/14
Log-periodic Antenna EMCO 3146 2016/07/05 2017/07/04
Double Ridged Guide
Horn Antenna EMCO 3116
2016/10/05 2017/10/04
Biconical Antenna EMCO 3110 2016/07/05 2017/07/04
Double Ridged
Antenna EMCO 3115
2016/10/05 2017/10/04
Double Ridged
Antenna EMCO 3115
2016/10/07 2017/10/07
Amplifier HP 8449B 2016/07/18 2017/07/17
Amplifier HP 83051A 2015/12/17 2016/12/16
Amplifier HP 8447D 2016/08/09 2017/08/09
EMI Test Receiver Rohde & Schwarz ESU 40 2015/12/05 2016/12/04
LOOP Antenna EMCO 6512 2016/10/12 2017/10/11
Measuring instrument setup in measured frequency band when specified detector function is
used :
Frequency Band
(MHz)
Instrument Function Resolution
bandwidth
Video
Bandwidth
RF Test Receiver Quasi-Peak 120 kHz N/A
30 to 1000
Spectrum Analyzer Peak 100 kHz 100 kHz
Spectrum Analyzer Peak 1 MHz 1 MHz Above 1000
Spectrum Analyzer Average 1 MHz 10 Hz or
≥ 1/T
(Note 1)
Note 1:
VBW = 10 Hz, when the duty cycle is no less than 98%.
VBW ≥ 1/T, when duty cycle is less than 98% where T is the minimum transmission duration
over which the transmitter is on and is transmitting at its maximum power control level for the
tested mode of operation.

ETC Report No. : 16-11-RBF-029-01 Sheet 11 of 41 Sheets
FCC ID: DMOEMXSW2
11
4.4 Radiated Emission Data
4.4.1 RF Portion
Site :CHAMBER #2 Date :2016-11-22
Limit :2.4GHZ PEAK Ant. Pol. :HORIZONTAL
EUT :XS WIRELESS Model :EM-XSW2
Power Rating :120V 60Hz Temp. :23°C
Engineer :Brian Huang Humi. :68 %
Test Mode :TX RX-LO 2433 - MI 2452 - HI 2472.8MHz
Freq
MHz
Reading
dBuV
Correction
Factor
dB
Result
dBuV/m
Limits
dBuV/m
Over limit
dB
Detector
2433.0000 95.3 -5.8 89.5 94.0 -4.5 Average
2433.0000 96.5 -5.8 90.7 114.0 -23.3 Peak
2452.0000 95.7 -5.8 89.9 94.0 -4.1 Average
2452.0000 97.0 -5.8 91.2 114.0 -22.8 Peak
2472.8000 96.0 -5.7 90.3 94.0 -3.7 Average
2472.8000 97.2 -5.7 91.5 114.0 -22.5 Peak
Note :
1. Result = Reading + Corrected Factor
2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier Gain (if any)
3. The margin value=Limit - Result
4. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : 16-11-RBF-029-01 Sheet 12 of 41 Sheets
FCC ID: DMOEMXSW2
12
Site :CHAMBER #2 Date :2016-11-22
Limit :2.4GHZ PEAK Ant. Pol. :VERTICAL
EUT :XS WIRELESS Model :EM-XSW2
Power Rating :120V 60Hz Temp. :23°C
Engineer :Brian Huang Humi. :68 %
Test Mode :TX RX-LO 2433 - MI 2452 - HI 2472.8MHz
Freq
MHz
Reading
dBuV
Correction
Factor
dB
Result
dBuV/m
Limits
dBuV/m
Over limit
dB
Detector
2433.0000 94.4 -5.8 88.6 94.0 -5.4 Average
2433.0000 95.5 -5.8 89.7 114.0 -24.3 Peak
2452.0000 94.7 -5.8 88.9 94.0 -5.1 Average
2452.0000 95.8 -5.8 90.0 114.0 -24.0 Peak
2472.8000 95.3 -5.7 89.6 94.0 -4.4 Average
2472.8000 96.5 -5.7 90.8 114.0 -23.2 Peak
Note :
1. Result = Reading + Corrected Factor
2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier Gain (if any)
3. The margin value=Limit – Result
4. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : 16-11-RBF-029-01 Sheet 13 of 41 Sheets
FCC ID: DMOEMXSW2
13

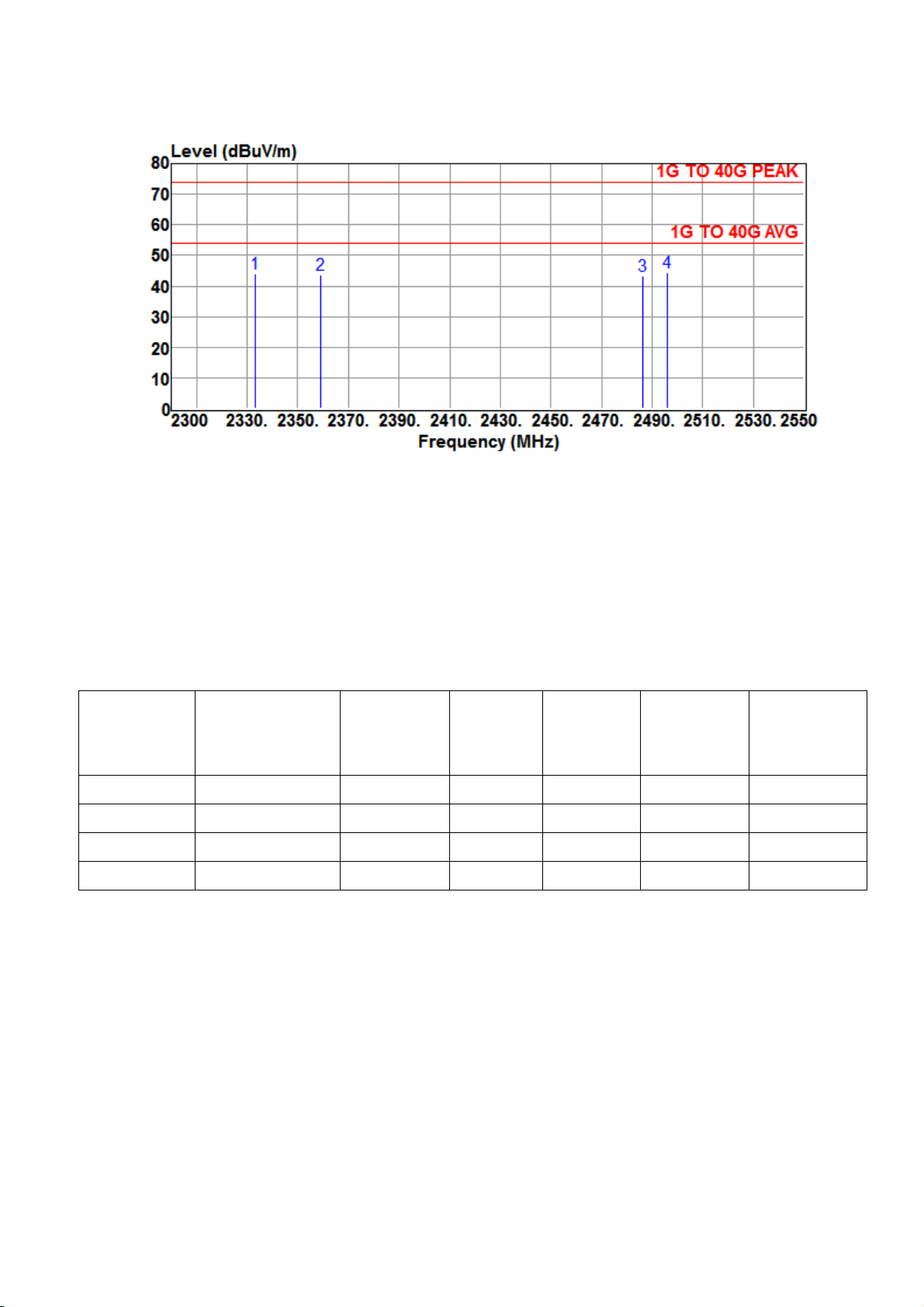

Site :CHAMBER #2 Date :2016-11-22
Limit :1G TO 40G PEAK Ant. Pol. :HORIZONTAL
EUT :XS WIRELESS Model :EM-XSW2
Power Rating :120V 60Hz Temp. :23°C
Engineer :Brian Huang Humi. :68 %
Test Mode :TX RX-LO 2433 - MI 2452 - HI 2472.8MHz
Freq
MHz
Reading
dBuV
Correction
Factor
dB
Result
dBuV/m
Limits
dBuV/m
Over limit
dB
Detector
4866.0000 43.6 1.4 45.0 54.0 -9.0 Average
4866.0000 50.6 1.4 52.0 74.0 -22.0 Peak
4904.0000 44.0 1.5 45.5 54.0 -8.5 Average
4904.0000 51.1 1.5 52.6 74.0 -21.4 Peak
4945.6000 44.3 1.6 45.9 54.0 -8.1 Average
4945.6000 51.4 1.6 53.0 74.0 -21.0 Peak
Note :
1. Result = Reading + Corrected Factor
2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier Gain (if any)
3. The margin value=Limit - Result
4. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : 16-11-RBF-029-01 Sheet 14 of 41 Sheets
FCC ID: DMOEMXSW2
14
Site :CHAMBER #2 Date :2016-11-22
Limit :1G TO 40G PEAK Ant. Pol. :VERTICAL
EUT :XS WIRELESS Model :EM-XSW2
Power Rating :120V 60Hz Temp. :23°C
Engineer :Brian Huang Humi. :68 %
Test Mode :TX RX-LO 2433 - MI 2452 - HI 2472.8MHz
Freq
MHz
Reading
dBuV
Correction
Factor
dB
Result
dBuV/m
Limits
dBuV/m
Over limit
dB
Detector
4866.0000 42.0 1.4 43.4 54.0 -10.6 Average
4866.0000 49.0 1.4 50.4 74.0 -23.6 Peak
4904.0000 42.3 1.5 43.8 54.0 -10.2 Average
4904.0000 49.3 1.5 50.8 74.0 -23.2 Peak
4945.6000 42.5 1.6 44.1 54.0 -9.9 Average
4945.6000 49.8 1.6 51.4 74.0 -22.6 Peak
Note :
1. Result = Reading + Corrected Factor
2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier Gain (if any)
3. The margin value=Limit - Result
4. The expanded uncertainty of the radiated emission tests is 3.53 dB.

ETC Report No. : 16-11-RBF-029-01 Sheet 15 of 41 Sheets
FCC ID: DMOEMXSW2
15
Site :CHAMBER #2 Date :2016-11-22
Limit :1G TO 40G PEAK Ant. Pol. :HORIZONTAL
EUT :XS WIRELESS Model :EM-XSW2
Power Rating :120V 60Hz Temp. :23°C
Engineer :Brian Huang Humi. :68 %
Test Mode :OPERATION MODE
Freq
MHz
Reading
dBuV
Correction
Factor
dB
Result
dBuV/m
Limits
dBuV/m
Over limit
dB
Detector
2333.0000 42.0 2.0 44.0 74.0 -30.0 Peak
2359.0000 41.5 2.0 43.5 74.0 -30.5 Peak
2486.5000 41.2 2.2 43.4 74.0 -30.6 Peak
2496.0000 42.2 2.2 44.4 74.0 -29.6 Peak
Note :
1. Result = Reading + Corrected Factor
2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier Gain (if any)
3. The margin value=Limit - Result
4. Peak measurements are compared to the average limit - as peak measurements are below the
average limit, they also comply with the peak limit.
5. The expanded uncertainty of the radiated emission tests is 3.53 dB.
