Fedora S7 User manual

Instruction manual

Contents
1. Safety precautions
2. Product components
3. Parts list
4. Assembly
Frame/wheels assembly
Seat/safety guard assembly
Seat/frame assembly
5. How to operate
Unfolding
Converting the seat
Adjusting the seat reclining
The brake
Front wheel lock
Safety belt (5-point harness)
Safety guard
Canopy
Foot rest
Detaching/attaching the shopping basket
Folding
6. Installation/ removal of the seat
7. Cleaning & maintenance
Warranty

1. Safety precautions
Please read through the instruction manual before using the product.
Type B is suitable for infants between 7months and 2 years of age. It is recommendable to limit the continuous use of the
product within one hour.
Do not put more baby than fixed number. Do not put the baby other place than hammock.
Make sure that safety belt (5-point harness) is fastened before using.
Do not let the baby stand alone in the center of the stroller.
Do not lift or move the stroller with the baby in the stroller.
Tighten the safety belt to fit the baby in order to prevent the baby from falling out.
It is important to make sure that the stroller is completely unfolded and stretched, and the safety locking device is perfectly
locked every time seating the baby in the stroller.
Keep the speed of the stroller within walking speed of the protector.
Do not run at the cross road with traffic signals. Do not run even on the flatland.
Do not put toys or objects with strings around the baby in the seat of the stroller.
Take the baby out of the stroller at uneven land including the heel, slope, stairs and escalator and move the stroller separately.
Protector’
Care needs to be taken so the baby’s fingers or toes are not caught in the gap when reclining the backrest.
converting the handle and operating the canopy.
Stroller may be overturned by the change of center of gravity, if the baby in the stroller moves too much towards shoulders,
right, left, forward or backward.
Caution: This seat is unsuitable for babies under six months of age.
Do not place hot or heavy object on the tray.
Danger
Warning
Caution
Caution
Improper handling may cause the user high level of danger including death or heavy injury and an absolute emergence.
Improper handling may cause the user high risk of danger including death or heavy injury.
Improper handling may cause the user the risk of injury or property damage.
Please keep the instruction manual in the safe place for continuous safe use of the product.
For infant below 6 months of age, fasten crotch belt in addition to waist belt for use.
special care is required even on the mild slope.
·Make sure that baby is taken out before starting such adjustments.
s
Danger “Warning” and “caution” signs are classified in accordance with the expected danger in case of failure of meeting
safety precautions. Therefore, it is important to follow the instructions.
“”
,

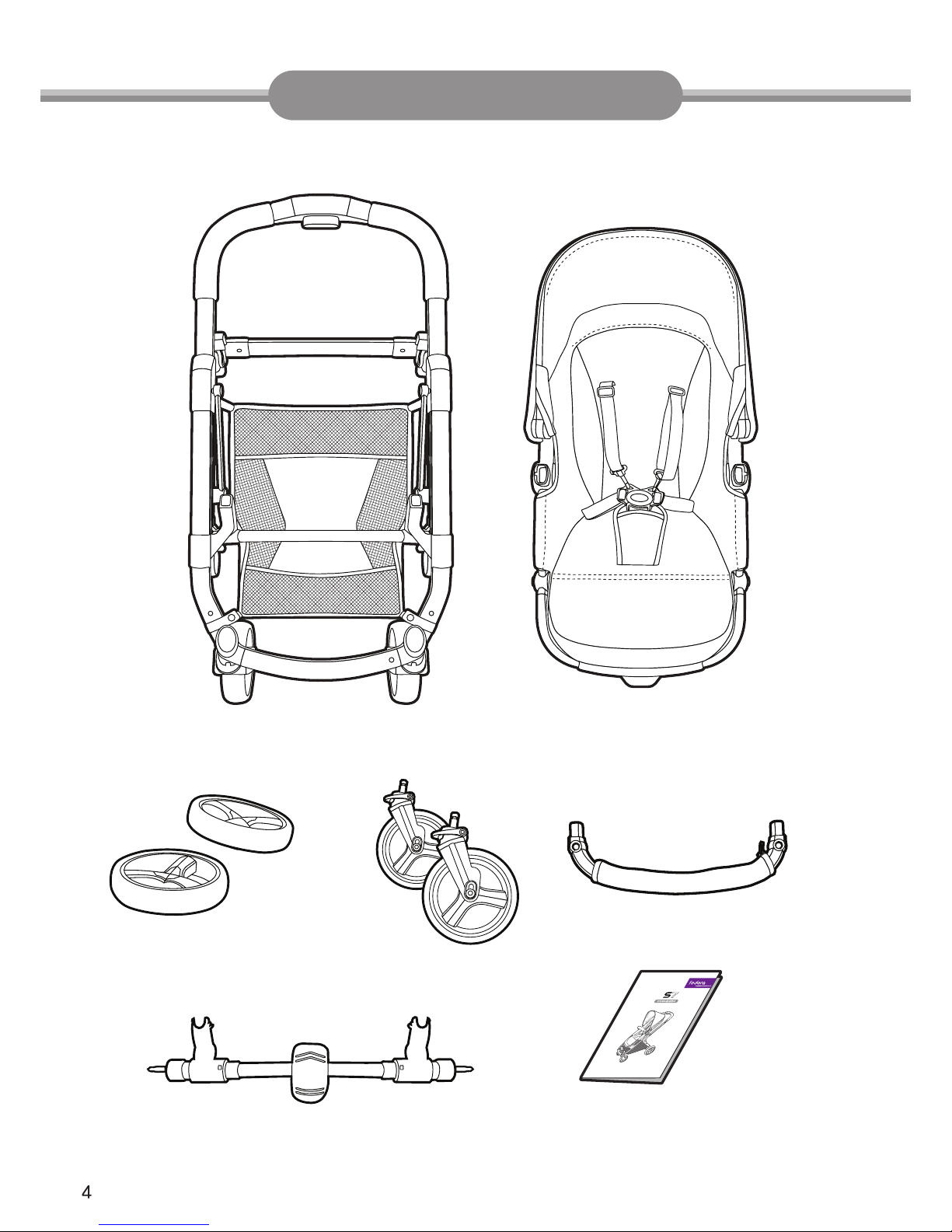

2. Product components
Frame Seat
Rear wheel (left, right) Front wheel (left, right)
Safety guard
Brake assay
Manual

3. Parts list
Safety lock device
Folding button
Seat reclining
lever
Seat release button
Brake
Basket
Swivel front
wheel lever
Footrest
Safety belt
Safety guard
Canopy
(5 point harness)
Shopping

4. Assembly
1. Frame/wheel assembly
1. Front wheel assembly: insert the front wheel bar in the arrow direction into the A part (in the left and
right sides of the frame) as shown in the picture ① until there is a clicking sound.
2. Rear wheel assembly : Press the release button in the middle of the rear wheel as in the picture ①
and combine with the axle of rear wheel as in the picture ②. Follow the same way for the other side
of wheel.
Warning
Check once again to make sure that the wheels are properly combined with wheel axle and the axle is
properly combined with the frame.

4. Assembly
2. Seat / Safety guard assembly
Seat Safety guard
3. Frame/ Seat assembly
1. Insert the guard into A position in the left and right of the seat in arrow direction until there is a clicking
sound.
Seat
Frame
Clicking
1. Combine by inserting the seat into the frame holes in the right and left of the frame until there is a
clicking sound.
Warning
Check once again to make sure of correct installation to prevent safety accident.

5. How to operate
1. Unfolding
1. Push the safety lock device on the upper part of handle to the arrow direction as in the picture ① to
indicate unlock signal.
2. With the folding button pulled to the arrow direction as shown in the picture ②.
3. lift the handle to the arrow direction as shown in the picture ③.
4. When unfolding the stroller, pull the handle fully and unfold until there is a clicking sound.
5. Make sure the safety line (in green color) is shown after unfolding. Safety line should be seen before
using.
6. When using the stroller, push the safety lock device to the opposite direction of the arrow (picture ①)
so that the lock indicator appears.
Warning
Do not press the folding button while driving to avoid safety accident caused by releasing the lock device.
Using the stroller without showing the safety line (green) may cause accident. Therefore, make sure that the
stroller is correctly unfolded before using.

2. Converting the seat
5. How to operate
1. Press the attaching/detaching/converting buttons (one each on the right and left as shown in the
picture ①) and lift the seat from the frame holes to the arrow direction.
2. Change the seat direction as shown in the picture ② and combine as shown in the picture ③ for use.
Make sure that the seat is clear without baby before converting the seat direction.
Make sure that baby is taken out before converting the seat.

5. How to operate
3. Adjusting the seat angle
1. Lower the back plate with the seat adjusting
lever on the back plate lifted.
3 steps are available for angle adjustment. Warning
4. The Brake
Locking the brake Unlocking the brake
1. Press down the brake lever fully to lock the brake and lift the brake lever to unlock the brake.
Danger
Do not leave the baby alone in the stroller even if the brake is locked, in order to avoid any accident.
Use the product after checking whether the brake is locked or unlocked.
Make sure that baby is taken out before adjusting the
seat angle.

4. How to operate
5. Front Wheel Lock
1. Press down the front-wheel locking lever to
allow rotation of the wheel and lift the lever to
lock the rotating function.
6. Safety belt (5-point harness)
1. Press A part of the harness and pull the buckles
to the arrow direction to release the safety belt.
2. To fasten the safety belt, insert both sides of
buckles in the opposite direction of the arrow until
there is a clicking sound.
Make sure of fastening the safety belt when seating
the baby.
Adjust the belt to fit the baby’
Danger
Make sure of fastening the safety belt when seating the baby.
Adjust the belt to fit the baby’
s body shape.
s body shape.

5. How to operate
7. Safety Guard
Installation of the safety guard Push in the right and left part of the safety guard to the arrow direction.
Separation of the safety guard Pull the guard to the arrow direction with the attaching/detaching buttons
(one each on the right and left) pressed as shown in the picture ②.
Warning
Make sure of installing the safety guard when seating infant.
8. Canopy

5. How to operate
Attaching/detaching the canopy
1. To detach the canopy, pull the canopy attaching/detaching lever
from the frame as shown in the picture ①.
2. Separate the Velcro tape in the back part marked A as shown in
the picture ②.
3. Take the reverse order to attach the canopy.
Adjusting the canopy angle
1. Push and pull the canopy to adjust the angle.

Warning
5. How to operate
9. Footrest
1. Find the desired angle using the buttons (one per each side) fully pressed. 3 steps are available for
adjustment.
Do not seat the baby on the foot rest. Do not let the baby climb on
the foot rest.
10. Attaching/detaching the shopping basket

5. How to operate
Detaching the shopping basket
1. Separate the 3 snap buttons from B part of the basket pipe.
2. Take out the basket loops from A. (on the left and right).
Attaching the shopping basket
1. Take the reverse order to attach
the shopping basket.
Warning
Do not exceed 5kg in the shopping basket.
11. Folding
1. Push the safety lock device on the upper part of the handle to the arrow direction as in the picture ①
so that release indicator appears.
2. With the folding button pulled to the arrow direction as in the picture②,
3. turn the folding lock device in the right side of the pipe to arrow direction to release as shown in the
picture ③.
4. Fold the stroller by pulling down the handle to the arrow direction as in the picture ④.
5. Self-standing for storing is available as in the picture ⑤.

6. Installation/Removal of the Seat
1. Separate the canopy pack in the right and left as in the picture ①.
2. Separate the Velcro tape in A part at the back of the seat as in the picture ②.
3. Separate the zipper at the B part at the back of the seat as in the picture ③ and take out the sub-foot
rest from the seat.
4. Separate the shoulder belt clip by lifting it to the arrow direction as in the picture ④.
5. Push in the shoulder belt to the shoulder belt hole as in the picture ⑤.
6. Take out the back rest support from the back of the seat as in the picture ⑥.
7. Take reverse order to install the seat.

7. Cleaning and Maintenance
For safe and long term use of the product, it is important to check the condition of the fabric regularly.
Cleaning the stroller
Baby fabric detergent should be used in lukewarm water under 30C to wash fabrics.
Do not use chemical detergent, oily detergent, or cleaning apparatus.
Be careful of using washing machine, as it may reduce the life of fabric.
When cleaning the frame, use soft cleaning agent (cloth pad, cotton) to prevent the peeling.
Attention
There may be slight discoloration by washing. This is natural because the product contains no color-fixing
agent, commonly used to keep the color but harmful to human health.
Drying
Dry the product in the cool place with good ventilation after washing.
Attention
Do not leave the fabric in the direct sunlight for a long time to avoid discoloration of fabric.
Maintenance
For safe and long term use of the product, it is important to check the condition of the fixing nuts and
bolts of the frame and other parts. In case of any problem found, stop using the product and contact the
customer center of PREBEBE (1688 - 1375), the official sales coporation of FEDORA.
In case there is noise around the wheels, apply adequate amount of lubricant or liquid grease and remove
the residues.
Frame
Wheel
Hand wash in 30˚C water chloride bleaching dry-cleaning

8. Warranty
PREBEBE, the official sales corporation of FEDORA distributes and sells authenticated products
that have passed the stringent quality control. PREBEBE warrants the quality of FEDORA
products as long as the product is purchased from its official dealers.
Warranty service lasts for a year after receiving the product. However, some cost for our service
will be required for the following cases:
- Malfunction caused by abnormal operation other than instructed in the manual
- Any maintenance work done by the 3rd party other than PREBEBE
- Malfunction caused by natural disaster
- Malfunction by non-carefulness and/or accident
- Other malfunction which is not caused by faulty product
- Abrasion of consumable parts that can happen during the regular use
- Replacement of parts by loss or breakage
- For products purchased from the dealers of PREBEBE Korea, warranty service is limited to
Korea and services for overseas purchases are not available.
Replacement and return of the product
Exchange and return of unused product is available within 7 days of receiving the product (as per electro-trade act 17-1).
In case the product is not returnable because over 7 days have passed after receiving or there is any trace of using the
product, the product will be under A/S. (However, if the product is faulty, part replacement is available.)
If the product does not fall under exchange/return regulation, the product will be under A/S. Please contact our customer
center (1688 -1375) for more details.
Fast treatment for exchange/returns is available for the offline transactions by using the shop where the product was purchased.
For replacement/return of online purchases, please contact directly the internet shopping mall where the product was purchased.
Deliveries for exchanges/returns should be made through the designated home delivery company after registration with the
shop where the product was purchased or with PREBEBE. Additional home delivery cost may occur in case of using other
courier than the designated delivery service company.
We do not accept the replacements/returns for the following cases, due to loss or damage done to the value of the product.
In case the tag is removed from the product
In case the packaging is damaged
In case of breakage or loss of any component or part
In case there is trace of using the product (contamination or marks of assembly)
Breakage, malfunction, contamination caused by carelessness of the user
We are not able to offer exchange/return services to users abroad.
In case the price for the product or parts has changed after purchasing due to changes in the manufacturer’
we do not accept any request for refund or compensation for the price gap for the product or parts. Dealers’
orders may be cancelled without prior notice. Customers will have to pay for delivery/return charges in case of request for
return and refund because of change of mind.
PREBEBE is not responsible for any returns without prior registration for exchange or returns (Do not fail to register with the
shop where the product was purchased or PREBEBE customer center for returns.)
Please send your questions or complaints to PREBEBE homepage (www. Prebebe.co.kr) or our customer center (1688-1375),
and we will answer as promptly as we can.
[Complaint/exchange/refund] Please call customer center 1688-1375 (open 10:00 ~ 17:00 / Lunch break: 12:00 ~ 13:00)
[For A/S inquiries] call A/S center 031-318-1008 (weekday open hours 09:00 ~17:30 / lunch break 13:00 ~ 14:00)
-
-
-
-
-
-
-
-
s price,

Fedora manufactures products up to safety standards.
Copyright on this content remains vested in PREBEBE. Information listed herein may change without notice.
PREBEBE holds no responsibility for error or omission in the description contained herein.

54-13, Unji-ro, Tanhyeon-myeon, Pa ju-si,
Official Sales Corporation for FEDORA
Gyeonggi-do
Customer center
