WARNINGS AND PRECAUTIONS
• This product is electrical, therefore at no time or under any circumstances should it be immersed in
water or any other liquid as this may result in serious injury or death and will invalidate your warranty.
• Do not handle any of the equipment with wet hands.
• Keep this equipment away from moisture or excessive heat, cold and dust.
• Do not expose this equipment to electrostatic discharges
• Never place any heavy objects on the equipment.
• Do not place the amplifier on any computer equipment as the strong magnetic field may cause
damage.
• It is advisable when leaving the house, or during a thunderstorm, to disconnect the equipment from
the mains supply.
• Always turn off the amplifier before making or changing any connections on the rear of the amplifier.
• Always ensure that the volume control is set to minimum before switching on the amplifier.
• Do not plug a signal input into any of the speaker or bass output sockets, as this will damage the
amplifier.
• In normal use the amplifier will run warm to the touch. Always leave an airspace of at least 75mm
to the sides, top and back of the amplifier to allow for cooling.
• There are no user serviceable components inside the amplifier. Please refer all servicing to your
authorised dealer. Any unauthorised repairs or adjustments will invalidate the warranty.
BE CONSIDERATE TO THE ENVIRONMENT:
Always turn this amplifier off when not in use.
SPECIFICATIONS
• 2 Horn speakers/8 Ohm
• 2 Bass speakers/8 Ohm
• Integrated Amplifier/Bi-amped class A/B
• 16 Watts times four into 8 Ohms
• Frequency response 75Hz–20KHz+/- 5dB
• This product conforms with the EMC Directive and the Low Voltage Directive.
4 5
English
FHOO7 Instruction Manual V2 19/2/08 18:08 Page 4

Phono input
3.5mm stereo
input socket
Bass Level Adjust
Mains input voltage select
Manually set for your territory
If unsure please consult your dealership
AC power input
Fuse size ~230V FUSE T800mAL/250V
~115V FUSE T1.6AL/250V
Rear elevation of amplifier
~230V FUSE T800mAL/250V ~115V FUSE T1.6AL/250V
English
6
SETTING UPYOUR MINI SYSTEM
Carefully unpack the speakers and amplifier taking care not to scratch any component.
Ensure that the switch on the back of the amplifier is set to the correct voltage for your territory, if you
are unsure what the correct setting is, please contact yourAuthorised Dealer. Please ensure that you
use the correct fuse type in the pop out tray beneath the mains input socket on the back
of the mini amplifier:
~230V FUSE T800mAL/250V
~115V FUSE T1.6AL/250V
Undo and lay out the cables and connect up the speakers following the labels on the rear of the amplifier
and the diagrams contained in the booklet.
The amplifier will take inputs with a standard phono lead (Phono Input) or a 3.5mm mini stereo jack lead
(3.5mm stereo input socket).
Do not plug an input signal into any of the speaker or bass outputs as this will damage the
amplifier!
When all the connections are made,check that the volume is set at minimum and then turn the amplifier
on and carefully adjust the volume.The relative Bass level can then be adjusted with the potentiometer
(Bass Level Adjust) on the rear panel.

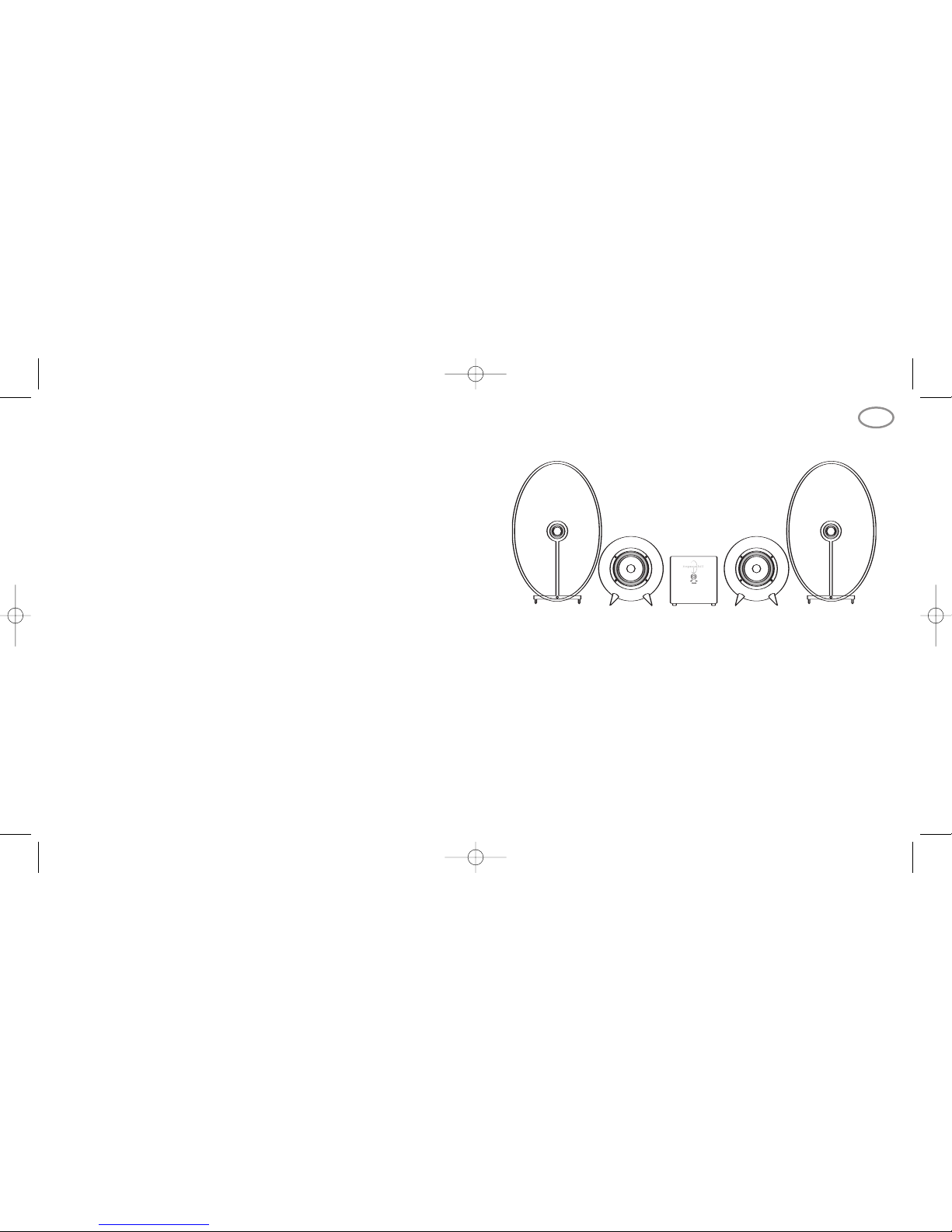

The speakers can be set up in a variety of ways but will need some space between them for a good
stereo image. They are also fairly directional and will sound at their best when directed towards the
listening position.
FHOO7 Instruction Manual V2 19/2/08 18:08 Page 6

Rear elevation of amplifier
Rear elevation of amplifier
~230V FUSE T800mAL/250V ~115V FUSE T1.6AL/250V
230V FUSE T800mAL/250V 115V FUSE T1.6AL/250V
8
RIGHT HAND SPEAKER SET UP
FHOO7 Instruction Manual V2 19/2/08 18:08 Page 8

Rear elevation of amplifier
~230V FUSE T800mAL/250V ~115V FUSE T1.6AL/250V
11
English
Optional FHOO8
Subwoofer not included.

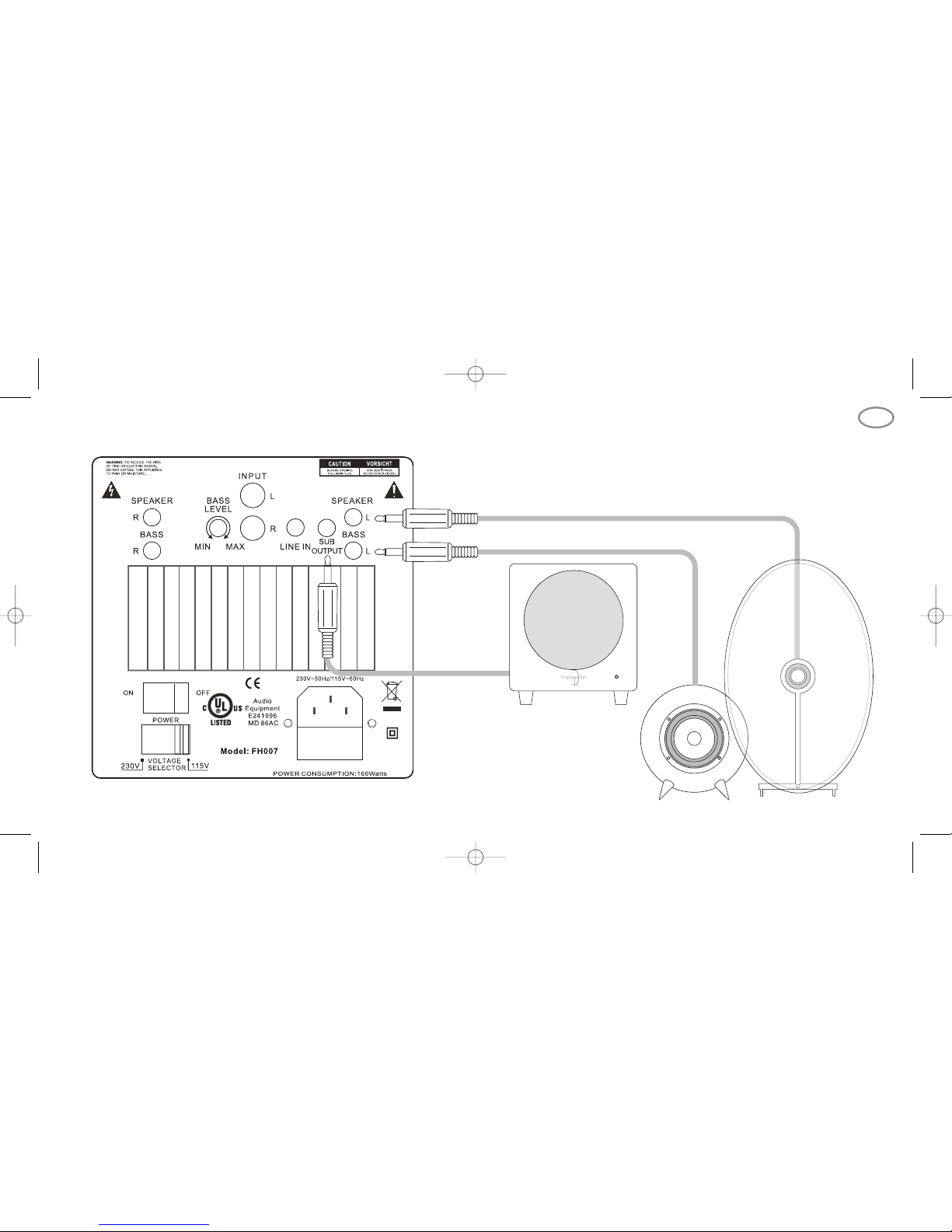

If you wish to add the FHOO8 Subwoofer to your system, please use the lead provided and insert
it into the socket marked “SUB OUTPUT” next to the “LINE IN” socket on the back of the mini
system amplifer as illustrated below.
10
LEFT HAND SPEAKER & OPTIONAL SUBWOOFER SET UP
