Ferguson PHT-1008 User manual

User manual
English

WARNING !!!
Ferguson TV receivers support recording on external hard disk drives (HDDs) and flash
memories (pendrives). In all instances the correct operation of the recording function
depends on the type of connected memory! You must read the following limitations.
REMEMBER:
1. In order to use an external USB memory the memory must support the USB
2.0 standard. To ensure stable recording and playback you must use a
memory with a recording speed of 9 0 MB/s or greater. Slower hard disk
drives and flash memories may not function properly have problems with
recording (image jitter) or not function at all!!!
2. Only disks with one basic NTFS or FAT32 partition (we recommend using the
NTFS format) will function properly. If you do not have such a format prepare
the disk on your computer before connecting it to the receiver.
3. Highly fragmented or used memories may also not operate smoothly or
correctly.
4. External hard disk drives should be autonomously powered since the built-in
USB port is unable to provide sufficient power.
5. Only one of the two USB ports can be used at the same time!
CAUTION
1. Under no circumstances should you disconnect the USB device from the
receiver during recording or playback. Disconnecting during operation may
cause damage to the receiver and/or flash memory and to the recorded data.
2. Do not touch the working device (and in particular the USB connector) with
wet hands. Risk of electric shock and permanent damage to the receiver!
2

SAFETY MEASURES
We request that you read the instruction manual and recommendations set forward therein.
Also remember to correctly position the TV antenna!
In order to avoid an electric shock never open the housing. Damage to the
warranty seal shall void the warranty.
Disconnect the device from the mains during thunderstorms or when it is not to
be used for an extended period of time. Please remember that the warranty does
not cover damage to the equipment caused by a lightning strike.
Do not expose the device to direct sunlight. Place it away from sources of heat
and humidity. Do not cover ventilation ducts in order to ensure the correct
circulation of air.
Place the device horizontally on a flat even and stable surface.
If you move the device from a room that is warm to one that is cold (or vice
versa) wait at min. 1 hour before connecting it to the mains. Otherwise
problems may arise.
The device should be placed away from vases bottles aquariums and other water
containers in order to avoid damage. Do not touch the mains plug with your bare
hands.
Do not place any objects on the housing of the device. This may cause
overheating and reception problems.
Before commencing maintenance or installation work disconnect the receiver from the mains.
Do not clean the receiver with alcohol or liquids containing ammonia. If necessary clean it with
a soft lint-free cloth wetted with a gentle solution of water and soap.
•Do not connect any cables when the mains plug is in the socket.
•Check the condition of your cables. Damaged cables may cause a fire.
•Please disconnect the receiver from the mains before connecting any cables.
DOWNLOADABLE SOFTWARE
Ferguson has taken every effort to provide users with software updates in order to ensure that
the parameters of the TV television receiver are up to date. Ferguson reserves itself the right to
amend change or modify the software used in the TV television receiver as it shall choose and
without prior notification. The latest version of the software is available on the website
http://www.ferguson-digital.eu
3

ABOUT THE INSTRUCTION MANUAL
Ferguson Sp. z o.o. has made every effort to provide the most current information about its
products. Ferguson Sp. z o.o. does not grant any guarantee as to the contents of the present
instruction manual and disclaims any implied guarantees concerning market value or suitability
for specific purposes. The information contained herein is an instruction intended to enable the
correct usage and maintenance of the receiver.
Ferguson Sp. z o.o. reserves itself the right to introduce amendments changes or translations
of the instruction manual without prior notification thereof. For this reason we recommend you
regularly visit our website in order to obtain the latest information.

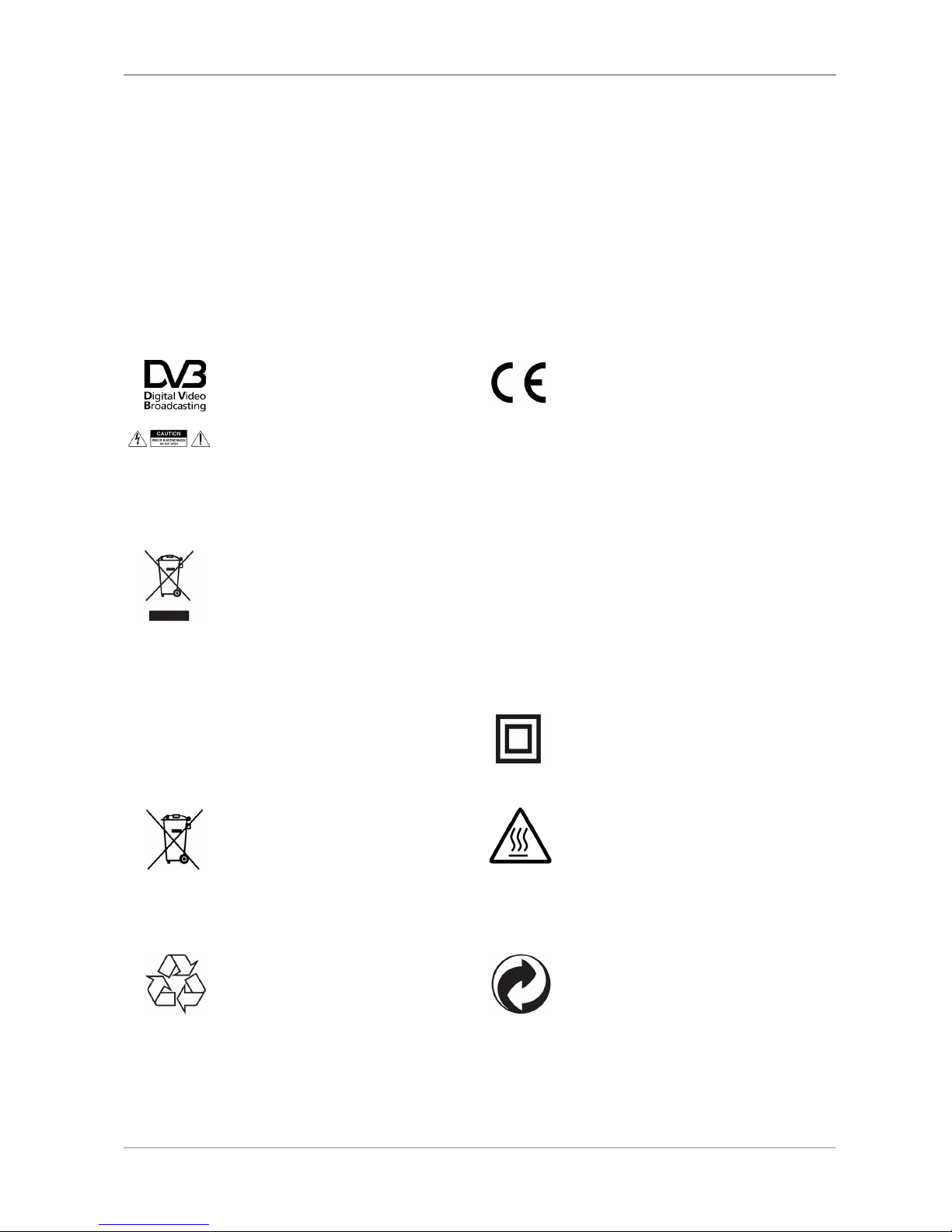

MARKINGS AND SIGNS APPLIED TO THE RECEIVER
Digital signal transmission logo.
This logo informs that the receiver
conforms to the Digital Video
Broadcasting standards.
CE logo.
The logo informs that the receiver
conforms to the terms and conditions of
Directive 2004/108/EC concerning
observance by Member States of provisions
regulating electromagnetic compatibility
and to the terms and conditions of
Directives 2006/95/EC concerning
observance by Member States of provisions
regulating low voltage electricity and safety
with relation to the handling and operation
of electrical equipment.
Risk of electric shock – do not open.
This notice warns the user not to open
the receiver housing. The housing may
be opened solely by authorized service
technicians.
When this crossed-out wheeled bin
symbol is attached to a product it
means that the product is covered by
the European Directive 2002/96/EC.
Please inform yourself about the local
separate collection system for electrical
and electronic products.
Please act according to your local rules
and do not dispose of your old products
with your normal household waste.
Correct disposal of your old product
helps to prevent potential negative
consequences for the environment and
human health.
R&TTE Hereby Ferguson Sp. z o.o. declares
that the device is in compliance with
the essential requirements and other
relevant provisions of Directive 1999/5/EC.
You can find the Declaration of Conformity
on www.deklaracje.ferguson.pl
This product has been designed tested and
manufactured according the European
R&TTE directive 1999/5/EC.
Double insulation logo.
This logo informs that the receiver is an
electrically safe device provided that it is
used in accordance with the
recommendations set forward in the
chapter concerning safety.
Your product contains batteries covered
by the European Directive 2006/66/EC
which cannot be disposed with normal
household waste. Please inform yourself
about the local rules on separate
collection of batteries because correct
disposal helps to prevent negative
consequences for the environmental
and human health.
Hot surface mark
CAUTION: HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heat sink
may become hot when operating this
product continuously. Do not touch hot
areas especially around the “Hot surface
mark” and the top panel.
Your product is designed and
manufactured with high quality
materials and components which can
be recycled and reused.
When this logo is attached to a product it
means a financial contribution has been
paid to the associated national recovery
and recycling system.
4

Identification of Controls
Main Unit
1.SOURCE
2. SETUP
3.ENTER
4.UP
5. DOWN
6.LEFT
7. RIGHT
8.AV OUT
9.AV IN
10. Earphone Socket
11.ON/OFF
12.DC IN 9-12V
13. ANT.
14. HDMI INPUT
15.USB
5

Identification of Controls
Remote control unit
8.FAV
Open Favorite Programs List Menu
9.TV/RADIAO
Switch between TV and Radio source
10.EXIT
11.DISPLAY
display the information of the current
signal
12.SOURCE
DTV/AV/MEDIA/HDMI INPUT.
13.VOL +
Adjust VOLUME.
14. MUTE
Mute the sound
15. SUBTITLE
Press SUBTITLE repeatedly during
playback to view a different
subtitle languages if available.
16.AUDIO
Press AUDIO repeatedly during playback
to hear a different audio
language or audio track if available.
17.STOP
18.PLAY/PAUSE
19.RETURN
20.TTX
21.EPG
show EPG information.
22.  BUTTON
Previous option.
23.  BUTTON
Next option.
24.  BUTTON
Fast forward
25.  BUTTON
Fast backward
1.POWER
On/off the power supply
2.VOL -
Adjust VOLUME.
3.0-9 NUMBER BUTTON
Selects numbered items in a menu.
: Cursor button
4.RED/GREEN
Some specific function
5.REC
Record digital service
6.ENTER
Confirm and Enter
7. SETUP
Main Menu/Return
6

SETUP MENU
Picture Menu
Section Picture Menu Items Value Default Value
1 Picture Mode Standard/ Optimal Soft/
Vivid / User
Standard
2 Brightness 0~100 50
3 Contrast 0~100 50
4 Sharpness 0~10 5
5 Colour 0~100 50
6 Tint 0~100 50
7 Color Temperature Standard Warm Cool Standard
8 Noise Reduction Off Low Middle High Middle
9 Reset -- --
Notes: The Brightness Contrast Sharpness Colour and Tint can be set only when “Picture
Mode” is “User” otherwise they are be set as relevant default value.
7

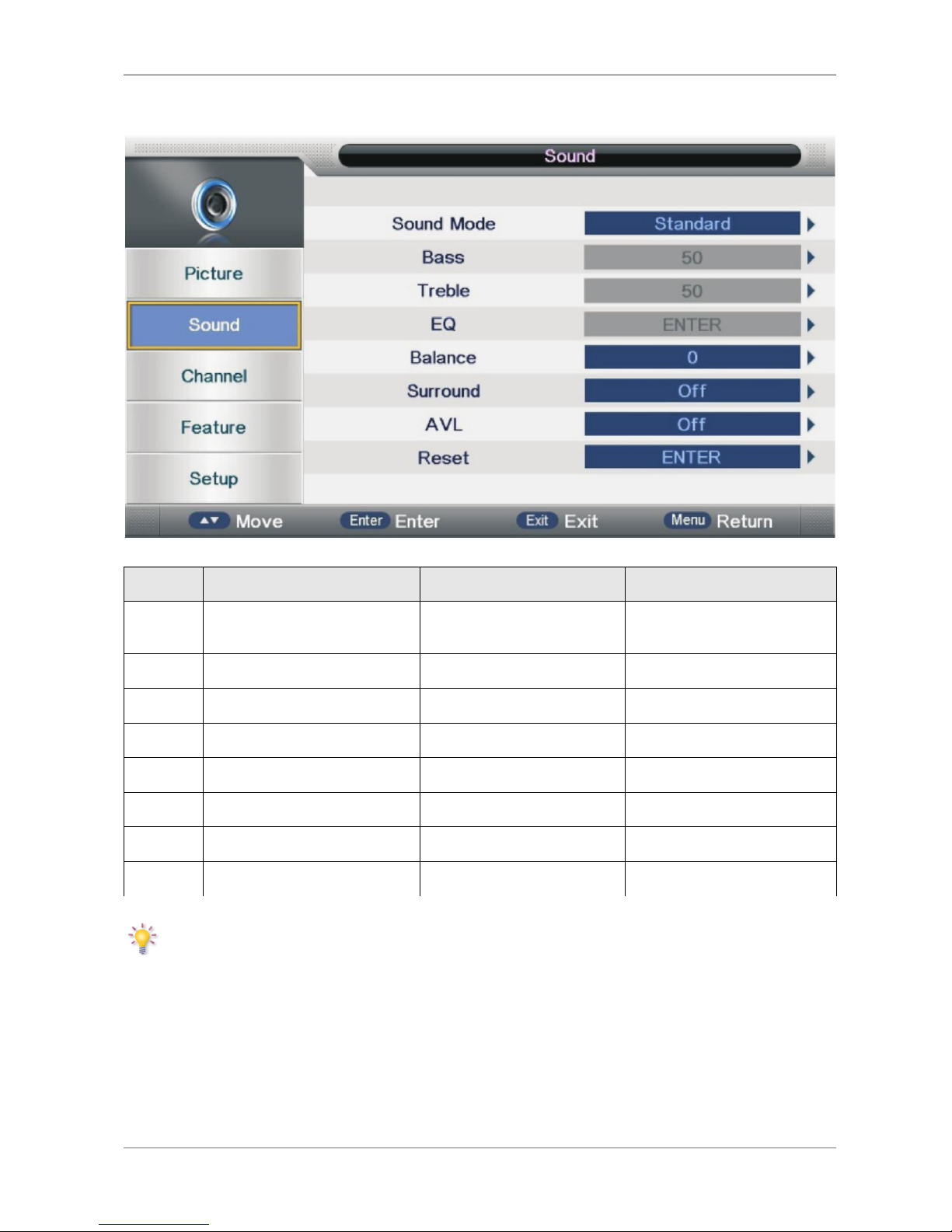

Sound Menu
This section will introduce some properties setting about system Sound.
Section Sound Menu Items Value Default
1 Sound Mode Standard Movie Music
Speech User
Standard
2 Bass 0~100 50
3 Treble 0~100 50
4 EQ ENTER(EQ setting menu) ENTER
5 Balance -50~50 0
6 Surround Off On Off
7 AVL (Audio Volume Leveler) Off On Off
8 Reset ENTER (OK Cancel) Cancel
Notes: The Bass and Treble can be set only when “Sound Mode” is “User” otherwise they
will be set as relevant default value.
8

TV Channel MENU
Functions in this page
Channel Management: To manage (Delete/Rename/Swap/Lock/ Skip) all channels.
Favorite Management: To set favorite channels.
Country: Set Country’s type different countries adjust to different search condition.
Auto Search: select auto search.
Digital Manual Search: To search digital channel by entering parameters manually.
LCN On/Off: On or off LCN
9

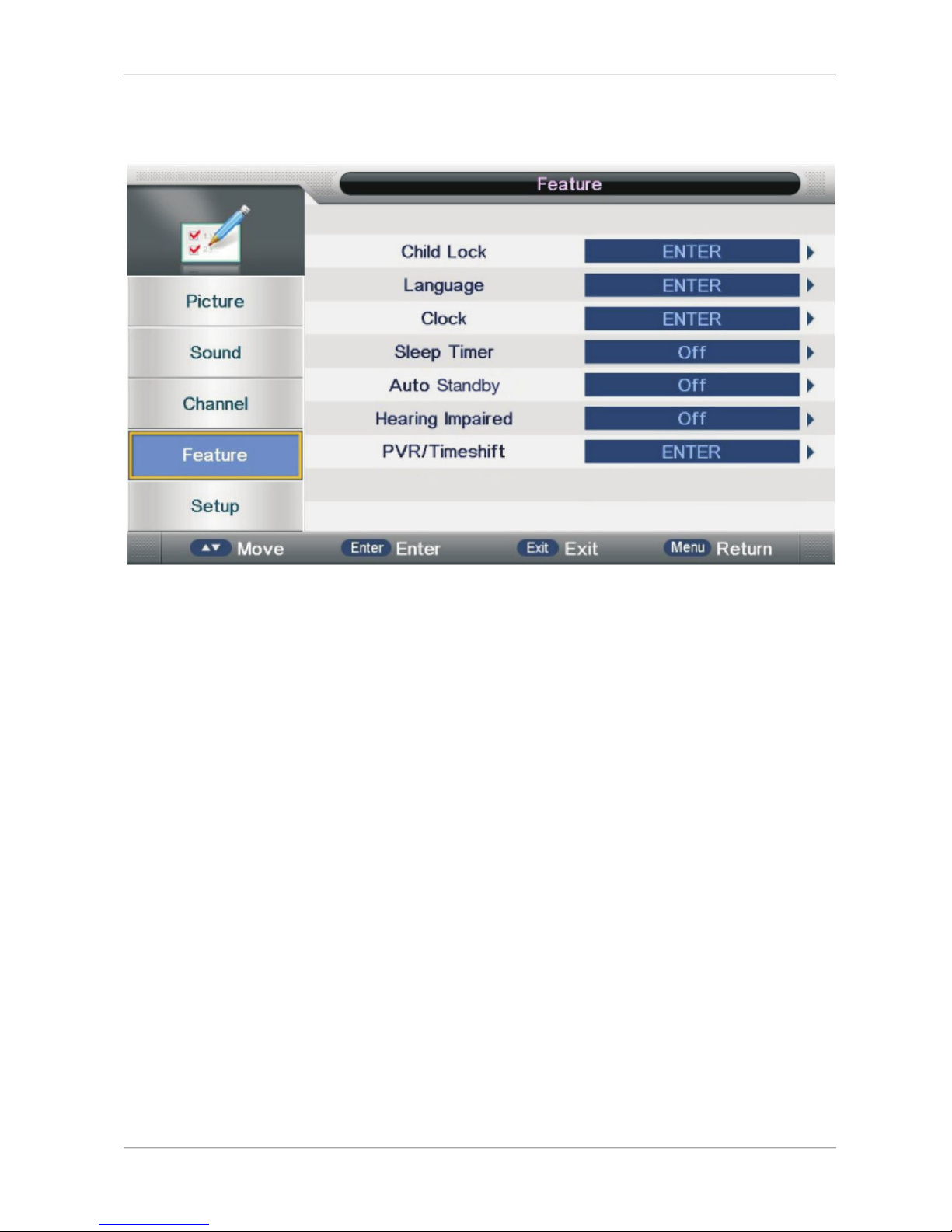

Feature Menu
This chapter will describe the function of Feature in Main Menu.
Child Lock: Enter the Child Lock sub page
The Child Lock sub page:
1 Child Lock
On: turn on Child Lock. User need to enter password to watch the channels which are
locked. Also need to enter password when user tries to change settings in items like
“reset system”/“reset database” etc.
Off: turn off Child Lock.
2 KeyPad Lock
On: turn on KeyPad Lock. Keypad event will get no response if it is On.
Off: turn off KeyPad Lock.
3 Parental Lock
Off: turn off Parental Lock.
4-18: turn on Parental Lock and set the age levels permitted to watch the program.
4 Change Pin Code
KEY_RIGHT or KEY_ ENTER to enter the pin code changing page.
Language: System language setting includes OSD Language Preferred Subtitle Preferred
Audio Teletext Language.
Clock: It is used to check out the current system time and set time zone/DST.
10

Sleep Timer: When TV is running start sleep function by setting Sleep Timer in any case. This
function allows the TV power off within a period of time automatically. Supported time period
are: Off 15 Mins 30Mins 45Mins and 60Mins.
Auto Standby: When TV is running Auto Power Off function can be start by setting Auto Power
off Timer in any case. This function allows user to power off the TV within a period of time.
Supported time period are: Off 3 Hours 4 Hours.
Hearing impared: This function offers a subtitle such as a “stroke on the door” or “the bell
starts to ring” for the current scene in case that the user is weak in hearing.

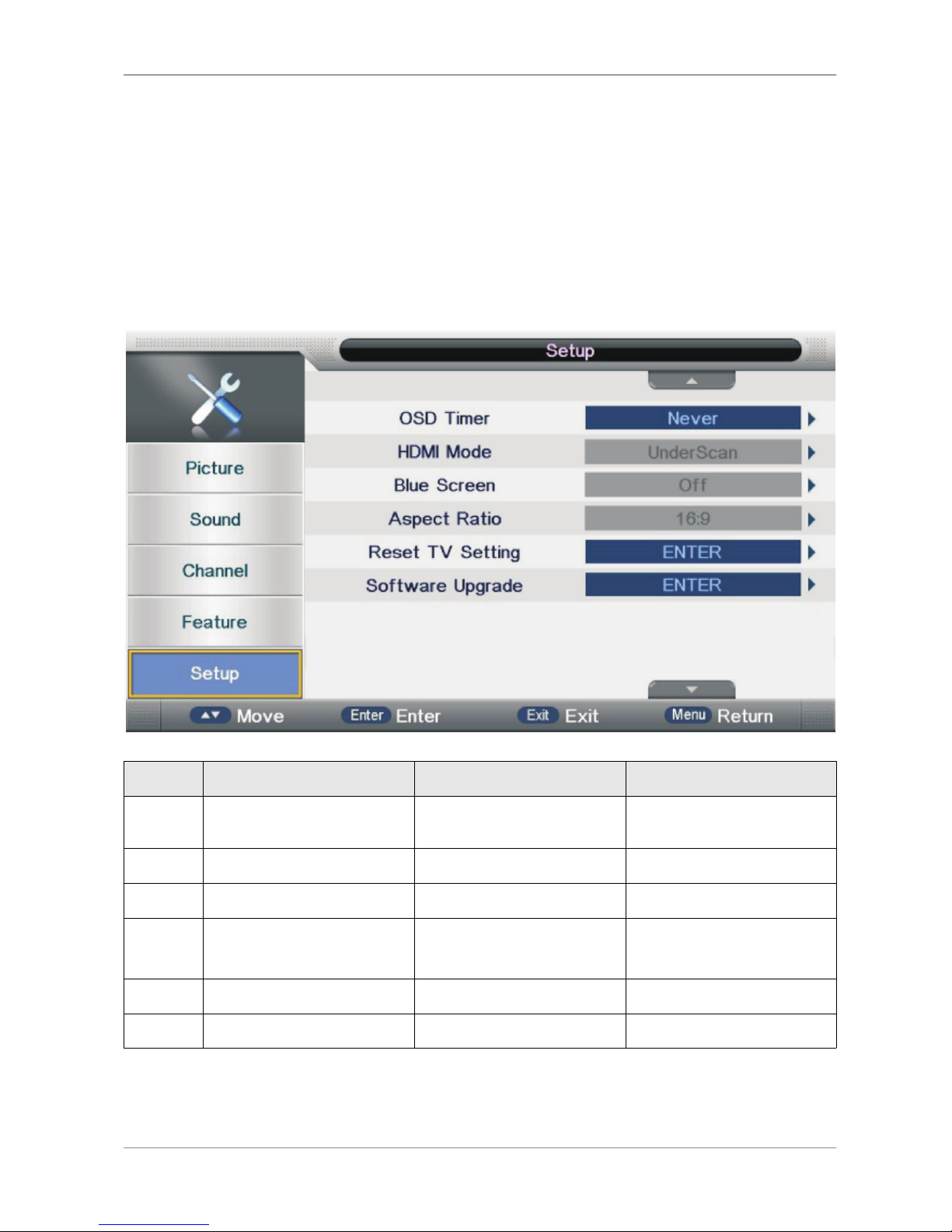

Setup Menu
This chapter will describe the function of Setup in Main Menu.
Section Setup Menu Items Value Default
1 OSD Timer 5 10 15 20 25 30
(Seconds) Never
Never
2 HDMI Mode (Auto PC Video) Auto
3 Blue Screen (Off On) Off
4 Aspect Ratio (Auto 4:3 16:9 Full
Zoom1 Zoom2 Panorama)
16:9
5 Reset TV Setting “ENTER“ --
6 Software Upgrade “ENTER“ --
11

Media Menu
Select media （Press source key）
Multimedia Home Page manages all the information of media.
KEY_RIGHT/KEY_LEFT can help to switch the items. KEY_ENTER
will confirm the selected item and enter the detailed menu.
Sub Items:
1. Photo (bmp jpg jpeg gif png photos playback)
2. Music (mp3 ogg music playback)
3. Movie (Movie playback)
4. PVR (PVR files playback)
5. E-book (ttx e-book playback)
Menu shows as follows:
Not all files with those extensions are playable - some files may include not supported
codecs and/or settings.
Supported video files containers: AVI MTS M2TS MPG MKV MP4 M4V MOV M2V VOB TS
|
|-> video codec supported in containers: mpeg2 XVID H.264 (up to 8 RF)
|-> audio codec supported in containers: MP3 OGG AC3
12

Technical Specifications
Item Sub Item Parameter
Tuner Input Frequency 170~230MHz
470~860MHz
RF Input level -25~-82dBm
IF Bandwidth 7MHz and 8MHz
Modulation QPSK 16QAM 64QAM
Video Decoder Format MPEG4 AVC/H.264 HP@L4
MPEG2 [email protected]
Output Port CVBS
Audio Decoder Format MPEG-1 (layer1&2&3)
Audio output Stereo
Power Voltage DC 9V (1.5 A)
Working Power ≤ 12W
Product Fiche
Commercial Brand: FERGUSON
Model No. PHT-1008
Energy efficiency class A
Visible screen size
(diagonal approx.) (inch/cm)
10 1
cali
25 5
cm
On mode average power consumption (Watt) 9
Annual energy consumption
(kWh/annum)
13 14
Standby power consumption (Watt) 0 5
Off mode power consumption (Watt) 0
Display resolution (px) 1024×600
13
