OPERATOR’S
MANUAL
FAST-Vac
Grass Collection Systems
44”, 48” & 52” Mower Decks
with Setup Instructions
IMPORTANT NOTE:
These FAST-Vac Systems fit
2005 and newer Model Year
product equipped with the rubber
discharge chute.
5103132
Rev: E
System Number: Description: Fits Models: Serial Number Range:
5600001 2 Bag System - 44” Mower Deck IS500Z
IS1500Z All
5600002 2 Bag System - 48” Mower Deck IS1500Z
S50X
S150X
All
5600003 3 Bag System - 48” Mower Deck IS1500Z
S150X All
5600004 3 Bag System - 52” Mower Deck IS1500Z
S150X S/N: 2012628762 & Below
5600007 3 Bag System - 52” Mower Deck IS1000Z S/N: 2531 & Above
5600061 3 Bag System - 52” Mower Deck IS2000Z S/N: 2012628762 & Below
5600148 3 Bag System - 52” Mower Deck IS1500Z
S150X S/N: 2012628763 & Above
5600150 3 Bag System - 52” Mower Deck IS2000Z S/N: 2012628763 & Above

Not for
Reproduction
bwww.ferrismowers.com | www.snapperpro.com
General Information
Thank you for purchasing this quality-built Ferris or Snapper Pro product. We’re pleased that you’ve placed your
confidence in the Ferris or Snapper Pro brand. When operated and maintained according to the instructions in
this manual, your Ferris or Snapper Pro product will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with this
machine and how to avoid them. This machine is designed and intended to be used and maintained according
to the manual for finish cutting of established lawns and is not intended for any other purpose. It is important that
you read and understand these instructions thoroughly before attempting to start or operate this equipment.
DATE PURCHASED / FECHA COMPRADA
Briggs & Stratton Power Products Group, LLC.
Copyright © 2016 Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved.
FERRIS is a trademark of Briggs & Stratton
Corporation Milwaukee, WI, USA.
SNAPPER PRO is a trademark of Briggs & Stratton
Corporation Milwaukee, WI, USA.
Contact Information:
Briggs & Stratton Power Products Group, LLC.
5375 N. Main St.
Munnsville, NY 13409-4003
[phone]
www.ferrismowers.com
www.snapperpr.com

Not for
Reproduction
1
TABLE OF CONTENTS
SAFETY RULES & INFORMATION.................... 2
Safety Decals..........................................................3
Safety Icons............................................................4
GENERAL OPERATING INSTRUCTIONS ......... 6
Before Operation.....................................................6
Mowing with the Double / Triple Catcher................6
After Operation........................................................7
Storing the Grass Catcher......................................7
Mowing Without the Blower....................................7
INSTALLATION................................................... 8
Rear Suspension Adjustment.................................8
Ball Joint Hardware Replacement ..........................9
Prepare Discharge Chute Opening.......................10
Preparing the Blower Mount for Assembly ..........11
Blower Assembly ..................................................12
Mower Deck Preparation......................................14
Blower Installation.................................................16
Collector Installation..............................................18
Weight Mount Installation .....................................24
BLOWER & COLLECTOR REMOVAL ............. 27
MAINTENANCE .................................................28
Maintenance Schedule .........................................28
Check the Blower Housing and Impeller ..............28
Check the Conditioning of the Collection Bags....28
Lubrication ............................................................28
Unplugging a Clogged Unit...................................29
TROUBLESHOOTING........................................30

Not for
Reproduction
2www.ferrismowers.com | www.snapperpro.com
GENERAL WARNINGS
• Know the mower controls, safety rules and how
to stop quickly. READ AND UNDERSTAND THE
MOWER OPERATOR’S MANUAL.
• Read and obey all safety decals.
• Wear appropriate ear, eye and breathing
protection.
• Only allow responsible adults, who are familiar
with the instructions, to operate the unit.
• Disengage the electric clutch (PTO). Shut off the
engine and wait for all moving parts to stop before
attaching, adjusting, or disconnecting any part of
the collection system.
• Check the collection system to make sure it is
bolted tightly to the rider.
• DO NOT operate the mower without either the
entire grass catcher or the deflector in place.
• Turn off the PTO switch to disengage the blades
when not mowing.
• DO NOT mow in reverse. Always look down and
behind before and while travelling in reverse.
• DO NOT turn sharply when travelling alongside a
building or any object. Slow down before turning.
• DO NOT carry passengers on the rider.
• When blower assembly is removed from the
mower deck, the deflector must be properly
installed.
• Collector bags are subject to deterioration
and wear during normal use. Inspect the bag
periodically for tears, holes or weak spots and
replace with a new bag that meets manufacturer’s
durability standards.
• If the mower stalls or the turbo blower chute plugs:
1. Disengage the electric clutch (PTO);
2. Stop the engine and remove the key;
3. Set the parking brake, and wait for all moving
parts to stop.
4. Remove the foreign object or clear the chute
with a piece of wood before restarting the
engine. NEVER place hands into blower
housing to clear jammed object. Blower
may rotate when object is removed.
• For added rider stability and to prevent tipping or
loss of control:
a. Use reduced speed on uneven ground and
when turning corners.
b. Reduce loads on hillsides. It is recommended
that the collection system be kept no more
than half full when negotiating any slopes. Start
mowing on slopes when the collection system
is empty.
c. Mow across the face of slopes; not up and
down.
• Never operate on slopes greater than 17.6%
(10°).
Read these safety rules and follow them closely. Failure to obey these rules could result in loss
of control of unit, severe personal injury or death to you, or bystanders, or damage to property or
equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
The triangle in text signifies important cautions or warnings which must be followed.
Safety Rules & Information
SAFETY RULES & INFORMATION

Not for
Reproduction
3
Safety Rules & Information

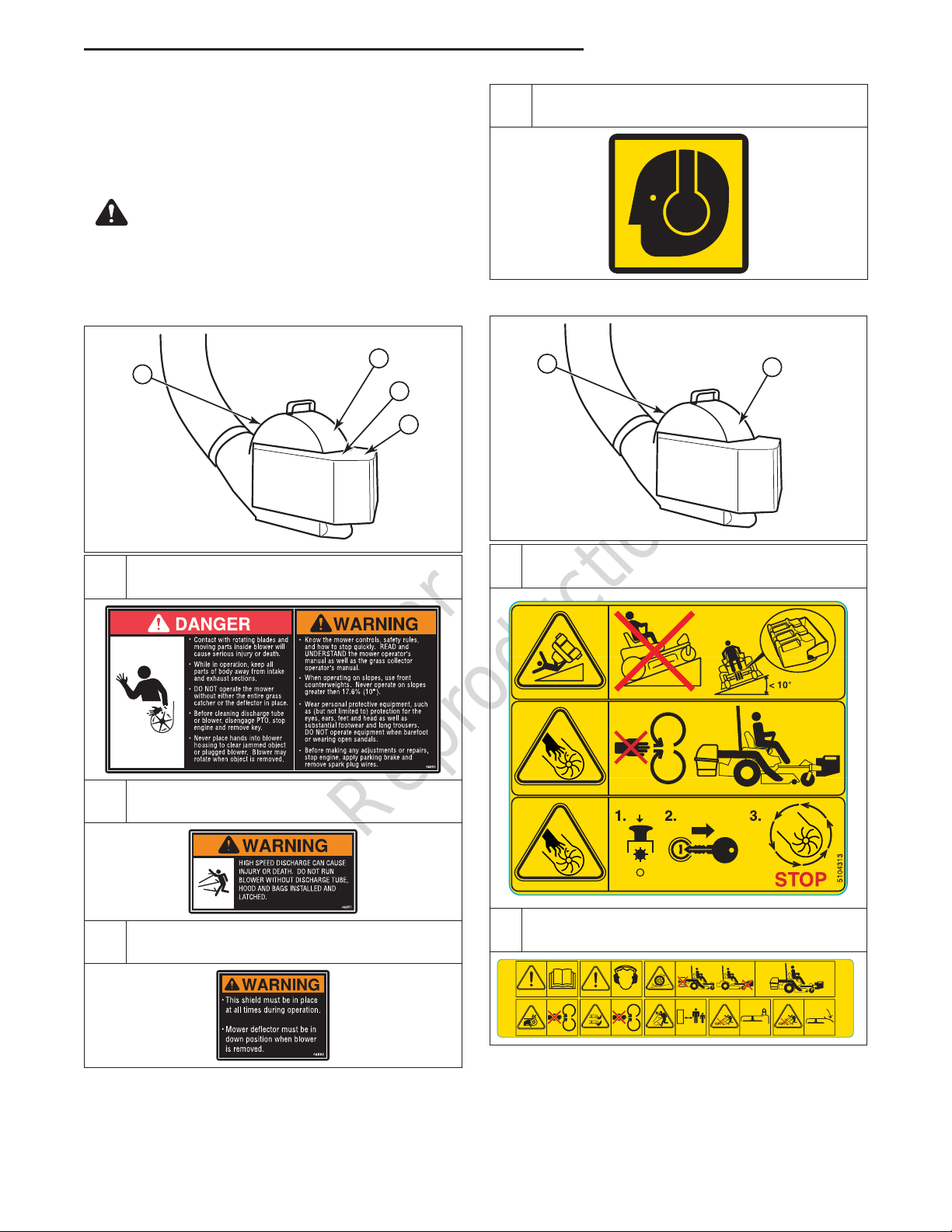

Safety Decals
Before operating your unit, read the safety decals. The
cautions and warnings are for your safety. To avoid a
personal injury or damage to the unit, understand and
follow all the safety decals.
WARNING
If any safety decals become worn or damaged,
and cannot be read, order replacement decals
from your dealer.
Previous Units with Text Decals
A
B
C
D
A. Part Number: 3046850 - “Decal, Danger/
Warning”
B. Part Number: 3046851 - “Decal, Warning-
Blower”
C. Part Number: 3046883 - “Decal, Warning-
Shield”
D. Part Number: 7027733 - “Decal, Ear
Protection”
Current Units with Icon Decals
AB
A. Part Number: 5104313 - “Decal, Blower,
Small, Icons”
B. Part Number: 5104314 - “Decal, Blower,
Main, Large, Icons”

Not for
Reproduction
4www.ferrismowers.com | www.snapperpro.com
Safety Rules & Information

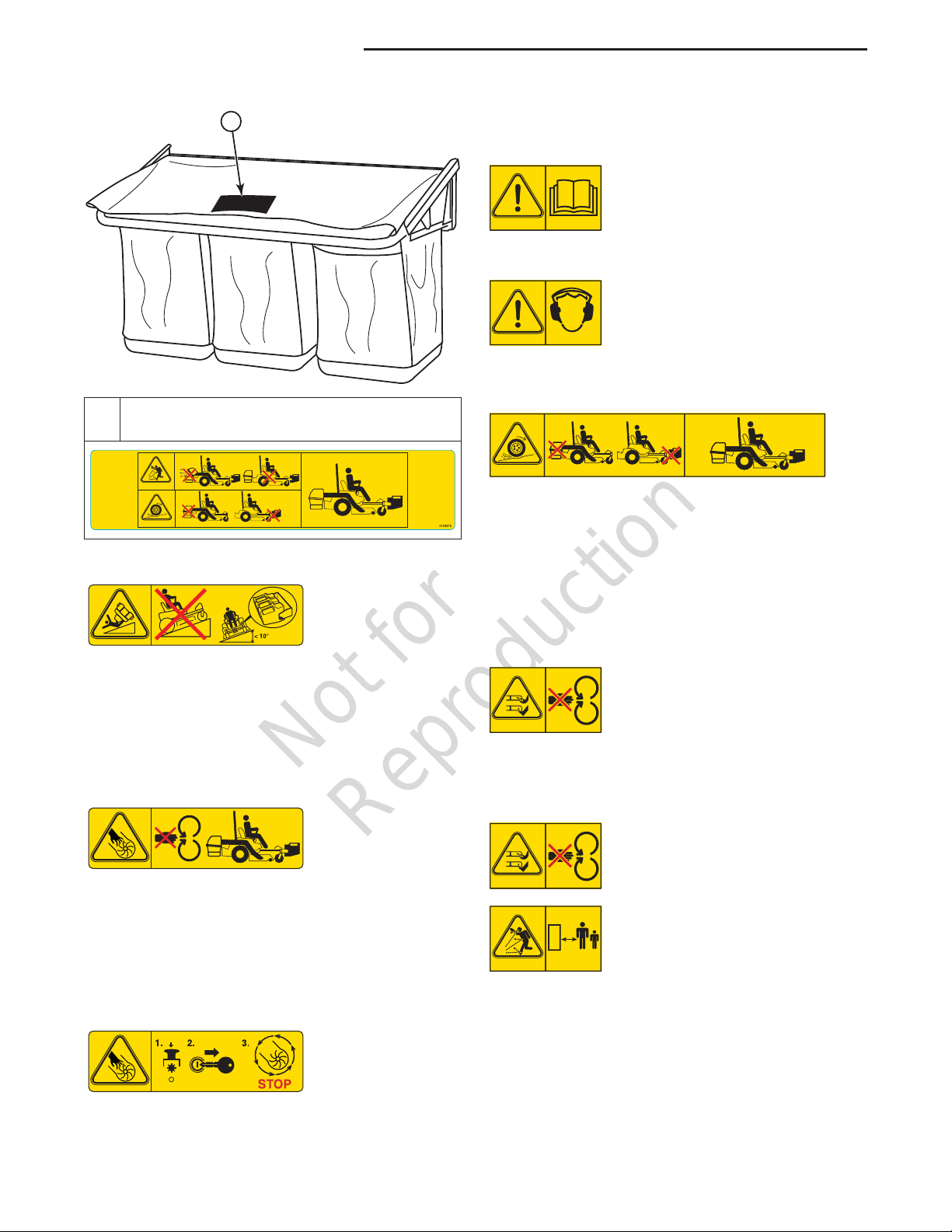

2-Bag & 3-Bag Collector Hood
A
A. Decal, Container, Icons (Sewn into fabric of
collector hood)
Safety Icons
Danger - Rollover hazard:
• Do not operate up or down slopes or without the
front counter balance weights.
• Operate on slopes only if under 10 degrees.
• Always use front counterbalance weights while
operating on slopes.
Warning - Amputation and thrown objects hazard:
• To avoid injury from rotating parts (of the blower).
• Stay clear of parts and keep all shields and guards
in place.
• Operate blower only with entire collection system
installed and latched closed.
Warning - Amputation and thrown objects hazard:
• Disengage the blower (blades) and remove
the ignition key, wait for all parts to stop before
disconnecting or unlatching any parts attached to
blower or collection system.
Warning - Read the Operator’s Manual.
Caution - Always wear hearing protection when
operating.
Warning - Loss of traction and control hazard:
• Do not operate with only the collection system
installed.
• Do not operate with only the front counter balance
weights installed.
• Operate only with both the entire collection system
and front counter balance weights installed and the
collection system closed and latched.
Danger - Dismemberment:
• This machine can crush and cut. Keep hands
away from belts and pulleys.
Danger - Amputation and thrown objects hazard:
• To avoid injury from rotating blades, stay clear of
deck edge and keep others away.

Not for
Reproduction
5
Safety Rules & Information
Danger - Thrown objects hazard:
• Do not mow without discharge chute or entire
grass catcher in place.
Warning - Thrown objects hazard:
• Do not open collection system container with
engine running.
• Do not operate with blower or collection system
tube unlatched or missing.
• Operate only with both the entire collection system
and front counterbalance weights installed and the
collection system closed and latched.
Warning - Loss of traction and control hazard:
• Do not operate with only the collection system
installed.
• Do not operate with only the front counter balance
weights installed.
• Operate only with both the entire collection system
and front counter balance weights installed and the
collection system closed and latched.

Not for
Reproduction
6www.ferrismowers.com | www.snapperpro.com
Before Operation
Clear the lawn of all sticks, stones, wire and other
debris which may be caught or thrown by the mower
blades.
Check grass condition. If wet, wait until later in the
day. If grass is wet, the grass catcher is likely to
become plugged.
For efficient bagging, air circulation under the
mower deck, through the chute and into the bag
is very important.
For this reason, BEFORE YOU BEGIN MOWING
you should make certain the underside of the mower
and the underside of the catcher lid are free from
grass and debris.
Make sure that there is a snug fit between mower
deck, blower housing, tubes, and grass catcher
cover.
Mowing with the Double / Triple Catcher
Always operate with throttle at full speed when
mowing.
Always wear hearing protection when operating
grass catcher.
Grass should be cut often, and not too short. If grass
is too long or lush it may be necessary to keep
ground speed to a minimum or to cut only half the
width of the mower to prevent clogging. If grass is
long, operate with mower in high cutting position
for first pass, cutting again in a lower position on a
second pass.
Do not open the cover with mower engaged.
If a large amount of cut grass is spilling out from
under deck, the tube may be plugged or the bags
may be full— discontinue mowing, stop the rider,
disengage the PTO and then empty the catcher or
clear the tube.
WARNING
ALWAYS shut off the tractor. disengage
the PTO, and allow all moving parts to stop
BEFORE disconnecting or clearing tube, or
emptying catcher.
Before leaving the operator’s position for any
reason, engage the parking brake, disengage
the PTO, stop the engine and remove the key.
To reduce fire hazard, keep the engine, rider
and mower free of grass, leaves and excess
grease. Do not stop or park rider over dry
leaves, grass or combustible materials.
CAUTION
This machine produces sound levels
in excess of 85 dBA at the operator’s
ear and can cause hearing loss though
extended periods of exposure.
Wear hearing protection when operating this
machine.
General Operating Instructions
GENERAL OPERATING INSTRUCTIONS

Not for
Reproduction
7
After Operation
Remove any debris from the the screen on the
underside of the lid. Note: The lid screen can be
partially removed for easier cleaning and should be
cleaned regularly.
The blower housing and tube should be removed for
cleaning.
Inspect the grass bags for wear or damage. Make
sure that there is a snug fit between mower deck,
blower housing, tubes, and grass catcher cover.
Storing the Grass Catcher
Clean the grass catcher thoroughly using a mild
detergent (other products may damage the tube).
Remove any debris from the the screen on the
underside of the lid. The screen can be partially
removed for easier cleaning.
If paint has been scratched on metal parts, touch
up with paint, or apply a thin film of oil to prevent
corrosion.
Store in a dry area. Hang the catcher and catcher
bags to dry thoroughly before storing for a long period
of time. Always store away from moisture.
Mowing Without the Blower
For operation without the blower, the deflector must
be properly installed in the down position.
To remove the blower, reverse the installation steps.
General Operating Instructions

Not for
Reproduction
8www.ferrismowers.com | www.snapperpro.com
Figure 1. Rear Suspension Adjustments
POSITION #1
(FACTORY SET) POSITION #2
(GRASS BAGGER)
Installation
INSTALLATION
Rear Suspension Adjustment
(Ferris Models Only)
For IS1500Z & IS2000Z Models:
The upper mounting position #2 (See Figure 1)
should be used when a rear-mount grass bagger
system is installed.
To adjust the upper mounting position:
1. Park machine on a flat, level surface. Disengage
the PTO, stop the engine and engage the parking
brake.
2. Raise the rear of the machine and secure with
jackstands. The jackstands must be under the
bumper. Chock the front wheels to prevent the
machine from rolling.
3. Position the jack under the cross member that ties
the suspension arms together and slowly raise
the rear suspension to relieve the pressure on the
upper shock mounting bolts.
NOTE: This will require small adjustments to the
jack’s position. The shock should move freely on the
mounting bolt when the pressure is relieved.
4. Remove the upper shock mounting hardware and
pivot the shock to the position #2 (see Figure 1).
Adjust the jack to align the shock mounts to the
shocks.
5. Reinstall the upper shock mounting hardware and
tighten securely.
6. Remove the jack from under the suspension cross
member.
7. Remove the jackstands from under the machine.
For All Other Ferris Models:
More spring pre-load should be used with heavy
weight operators.
To adjust the spring pre-load:
1. Park machine on a flat, level surface. Disengage
the PTO, stop the engine and engage the parking
brake.
2. Raise the rear of the machine and secure with
jackstands. Chock the front wheels to prevent the
machine from rolling.
3. Remove the rear drive tires.
4. See Figure 1. Using the supplied spanner
wrench (p/n 5022853), insert the tip of the wrench
into the notch in the pre-load adjuster. While
holding the wrench in place with one hand, turn
counter-clockwise to increase the pre-load, turn
clockwise to decrease the pre-load. Make sure
both shocks are set to the same amount of pre-
load.
5. Reinstall the rear drive tires. Torque the lug
bolts to 85-95 ft/lbs. (115-129 Nm). Remove the
jackstands from under the machine.
NOTE: Spanner wrench is located under the seat on
the right-hand side of the machine.
WARNING
Use two hands when adjusting the shock
springs. This will prevent the wrench from
slipping while pressure is being applied.

Not for
Reproduction
9
Installation
Ball Joint Hardware Replacement
(Ferris IS2000Z & IS2500Z Models with 52” Mower
Decks Only)
The hardware and spacers that secure the rear ball
joint (A, Figure 2) on the right hand front suspension
arm has to be replaced with the hardware and spacer
included with this kit. This change is necessary to
provide clearance for the blower unit and must be
completed before blower unit installation.
To replace the ball joint spacers and hardware:
1. Lower the front of the mower deck down onto
wooden blocks to relieve the tension on the front
deck hanger chains. Jack up the front of the
tractor frame until the weight is lifted off the front
caster wheels.
2. Remove the 3/4”-10 X 3-1/2” bolt (A, Figure 3)
and 3/4-16 nylon lock nut (B) that attaches the ball
joint (C) to the frame (D). Discard the bolt, and .75
X 1.75 X 1.00 spacer (E). Retain the .75 X 1.00 X
.25 spacer (F) and 3/4-16 nylon lock nut.
3. Install the new 3/4”-16 X 2-1/2” thin-headed bolt
(G), through the new .76 X 1.06 X .07 spacer
(H), the ball joint, the .75 X 1.00 X .25 spacer (F)
retained in step #2, the frame and secure using
the 3/4-16 nylon lock nut (B) previously removed.
A
F
C
E
B
D
G
H
C
F
B
D
Figure 3. Replacing the Ball Joint Hardware
A. 3/4-16 X 3-1/2” Bolt
B. 3/6-16 Nylon Lock Nut
C. Ball Joint
D. Frame
E. .75 x 1.75 x 1.00 Spacer
F. .75 x 1.00 x .25 Spacer
G. 3/4-10 X 2-1/2” Thin Headed Bolt
H. .76 X 1.06 X .07 Spacer
Figure 2. Location of Ball Joint
A. Ball Joint to be Replaced
A

Not for
Reproduction
10 www.ferrismowers.com | www.snapperpro.com
Installation
1-1/2"
(3,8 cm)
5/8"
(1,6 cm) 3/8" Drill
Figure 5. Discharge Chute Mount
Prepare Discharge Chute Opening
Remove the Discharge Chute & Deck Guard
1. Remove the discharge chute (A, Figure 4), chute
mount rod (B) and mounting hardware.
NOTE: Retain the discharge chute, chute mount rod,
and mounting hardware. If the blower is removed from
the unit they need to be reinstalled for safe operation.
2. Remove the chute lock bolt (C) and nut.
3. Remove the deck guard (D). Save the bolts and
washers, as they will be required in a later step.
Remove the Deflector Plate
1. Loosen and remove the hardware (E, Figure 4)
that secures the deflector plate (F) to the mower
deck (G).
2. Remove the deflector plate.
3. Save the plate and hardware. When operating the
unit without the collection system installed, the
user will experience a better cutting quality if the
deflector plate in reinstalled.
A
B
C
D
F
E
H
G
Figure 4. Remove Chute & Guard
A. Discharge Chute
B. Chute Mount Rod
C. Chute Lock Bolt
D. Guard
E. Deflector Plate Mount Hardware
F. Deflector Plate
G. Mower Deck
H. Discharge Chute Rod Mount Hardware
Drill Hole in Discharge Chute Bracket
1. Examine the discharge chute mount bracket
on the mower deck (see Figure 5). If the hole
pattern looks like the one shown, you must drill a
3/8” hole in the location specified in Figure 5.

Not for
Reproduction
11
Installation

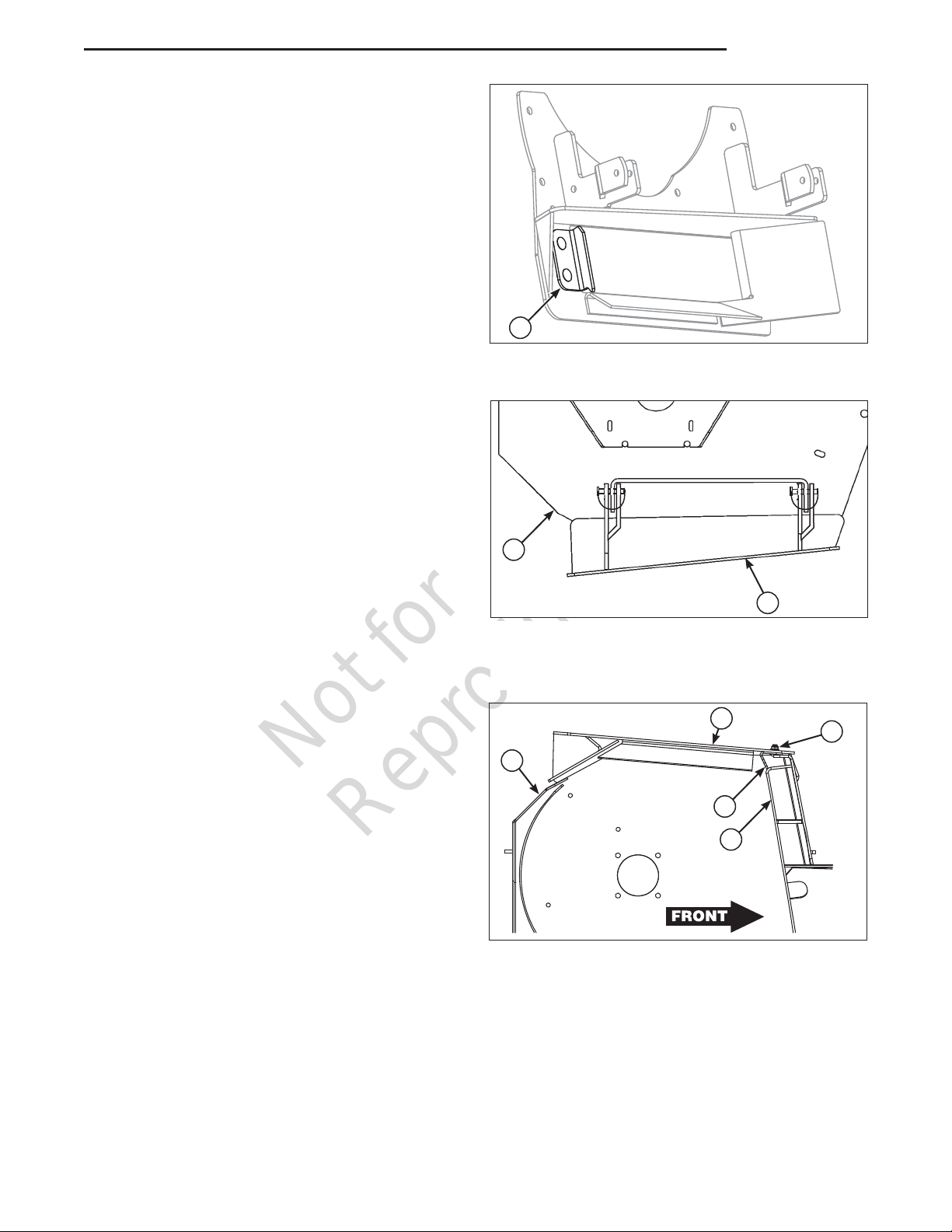

Figure 7. Install Blower On Deck (Notice Pin
Orientation)
A. Blower Mount
B. Mower Deck
Preparing the Blower Mount for Assembly
Inspecting the Blower Mount Assembly
Some blower mounts are equipped with an adjustable
deflector bracket (A, Figure 6). If your blower mount
is equipped with an adjustable deflector bracket it will
need to be adjusted prior to performing the Blower
Assembly procedure. If not, proceed with the Blower
Assembly procedure.
Adjusting the Blower Mount Assembly Adjustable
Baffle
1. Temporarily install the blower mount (A, Figure 7)
onto the mower deck (B). Refer to Figure 7 for
the position of the pins w/ lanyards in relationship
to the chute mount bracket on the mower deck.
The pins w/ lanyards fit into the same holes that
the chute mount rod was installed.
2. Loosen the two (2) 5/16” nylock flange nuts (A,
Figure 8) that secure the deflector bracket (B) to
the blower mount (C).
3. Slide the deflector bracket up against the front
baffle (D) of the mower deck (E) .
4. Tigthen the two (2) 5/16” nylock flange nuts.
5. Remove the blower mount and pins w/ lanyards
from the mower deck.
A
Figure 6. Inspecting the Blower Mount Assembly
A. Adjustable Deflector Bracket
D
B
A
C
E
Figure 8. Adjusting the Deflector Bracket
A. 5/16” Nylock Flange Nuts
B. Deflector Bracket
C. Blower Mount
D. Front Baffle
E. Mower Deck
B
A

Not for
Reproduction
12 www.ferrismowers.com | www.snapperpro.com
Installation
Blower Assembly
1. Remove the existing 5/16-18 x 5/8” flange head
bolts (B, Figure 9) from the blower housing (A).
2. Install the blower mount plate (C) onto the blower
housing and reinstall the 5/16-18 x 5/8” flange
head bolts. Tighten securely.
3. Install three (3) 3/8-16 x 1” bolts and nylon lock
nuts (D) through the blower mount plate and
blower. The bolt heads must be installed on the
inside of the blower housing.
B
DC
B
A
44” & 48” Models
4. Loop the idler spring (A, Figure 10) through the
1/4” x 2” eyebolt (B). Install the eyebolt through
the L-bracket on the blower mount and install the
1/4-20 nylock flange nut (C). Tighten the nut until
the eyebolt contacts the L-bracket.
52” Models
4a.Reverse the direction of the spring anchor bolt
(D).
Remove the spring anchor bolt from the idler arm
(E) and reinstall the spring anchor bolt so that the
idler spring is installed on top of the idler arm
4b.Loop the idler spring (A, Figure 10) through the
1/4” x 2” eyebolt (B). Install the eyebolt through
the L-bracket on the blower mount and install the
1/4-20 nylock flange nut (C). Tighten the nut until
the eyebolt contacts the L-bracket.
C
AB
Figure 10. Install Idler Spring
A. Idler Spring
B. 1/4” x 2” Eyebolt
C. 1/4-20 Nylock Flange Nut
D. Spring Anchor Bolt
E. Idler Arm
ED

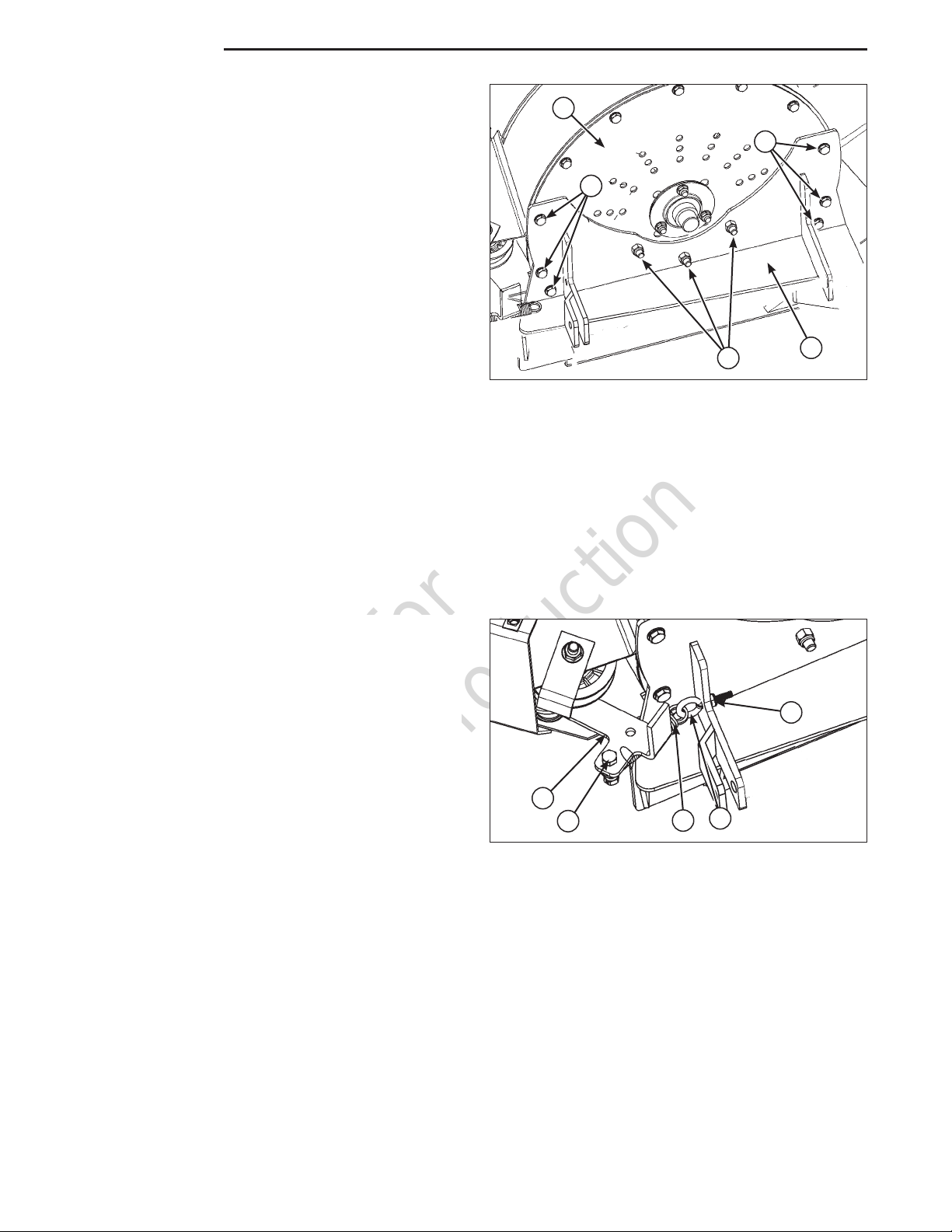

Figure 9. Install Blower Mount Plate
A. Blower Housing
B. 5/16-18 x 5/8” Bolts (existing)
C. Blower Mount Plate
D. 3/8-16 x 1” Bolts & Nylon Lock Nuts (3X)

Not for
Reproduction
13

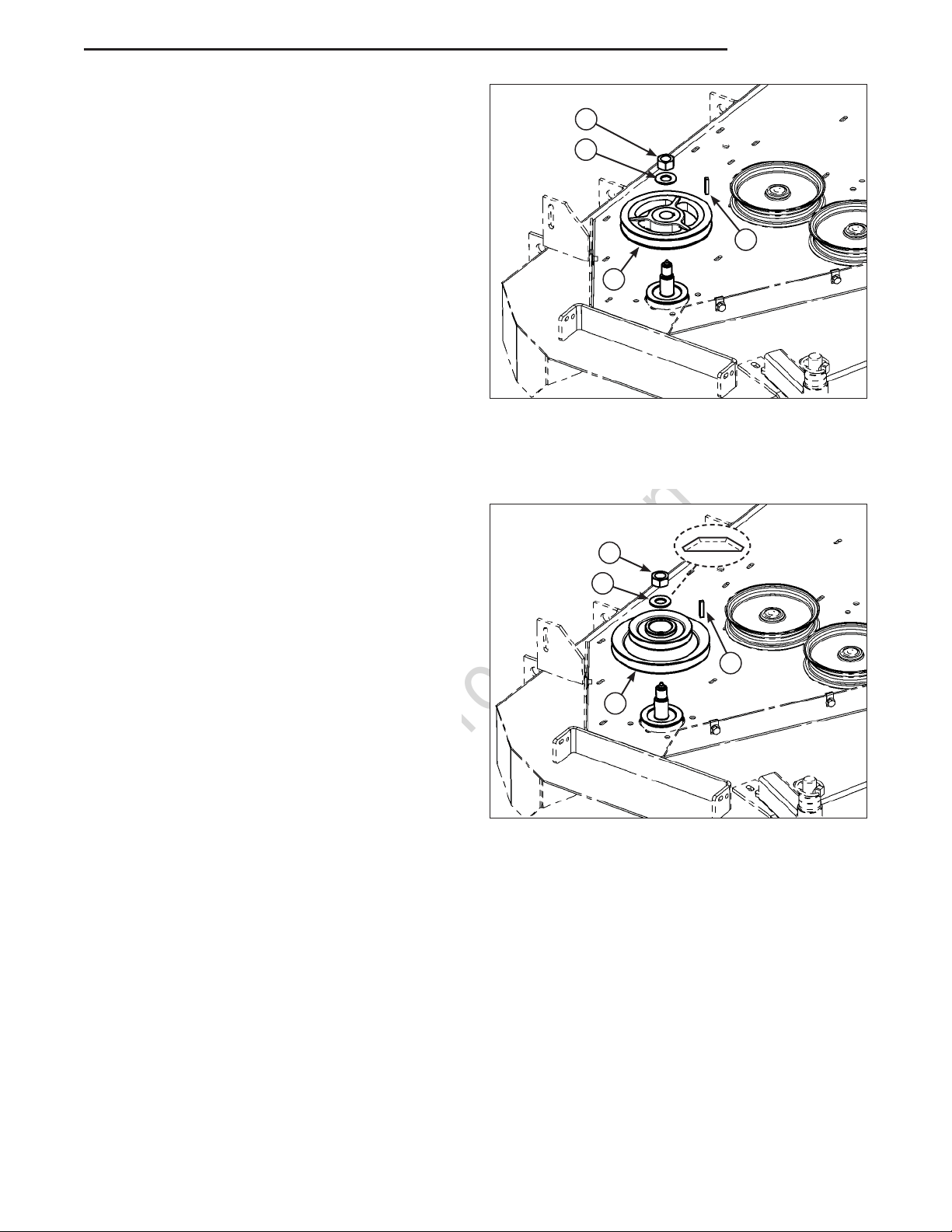

5. Remove the blower belt guard and set aside.
6. Install the impeller drive pulley (A, Figure 11) onto
the impeller shaft (B) as described in Figure 11.
Install the 1/4” x 1-1/2” long key (not shown) in the
pulley.
7. Align the pulley groove with the appropriate slot
as described in Figure 11. Tighten the set screws
in the pulley.
8. Reposition the 3/8-16 x 6” bolt if required to line
up with the pulley groove.
9. Check the position of the idler pulley (A, Figure
12). The position must be aligned with the
position of the pulley (outer row of holes for pulley
hub pointing in, inner row of holes for pulley hub
pointing out). Reposition if necessary.
Inner Slot
Align pulley groove
with slot (outer slot
with pulley hub in
OR inner slot with
pulley hub out)
Figure 11. Install Impeller Drive Pulley
Inner Row
Outer Row
Figure 12. Check Idler Pulley Position
A. Idler Pulley
A
Hub pointing OUT:
52” Models
Hub pointing IN:
44” Models
48” Models
Installation
Outer Slot
44” Models
48” Models 52” Models

Not for
Reproduction
14 www.ferrismowers.com | www.snapperpro.com

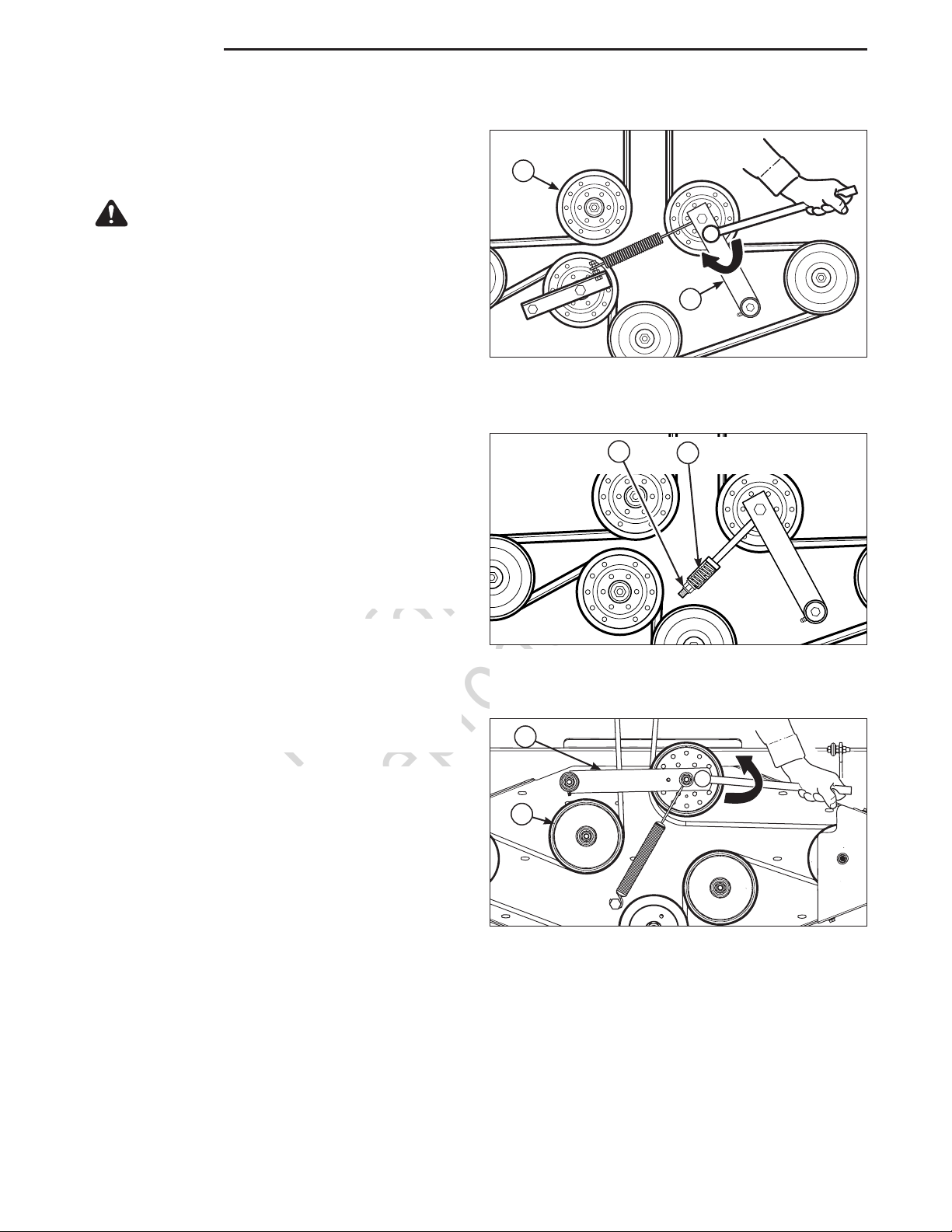

S50X, IS2000Z & S150X Series:
IS500Z & IS1500Z (52” Models):
1. Using a 1/2” breaker bar, place the square end in
the square hole located in the end of the idler arm
(A, Figure 15). Carefully rotate the breaker bar
counter-clockwise, which will relieve the tension
on the belt exerted from the idler arm.
2. Slide the drive belt over the edge of the stationary
idler pulley (B). Carefully release the tension on
the breaker bar. Remove the belt from the right-
hand (discharge side) spindle pulley.
IS1000Z Series (52” Model):
1. Loosen the spring compression nut (B, Figure 14)
to release the belt tension.
2. Slide the drive belt over the edge of the idler
pulley and then remove the belt from the right-
hand (discharge side) spindle pulley.
A
Figure 14. Mower PTO Belt
A. Belt Tension Spring
B. Spring Compression Nut
B
Figure 15. Mower PTO Belt
A. Idler Arm
B. Stationary Idler Pulley
A
Figure 13. Mower PTO Belt
A. Idler Arm
B. Stationary Idler Pulley
B
IS500Z & IS1500Z Series (44” Models):
1. Using a 1/2” breaker bar, place the square end
in the square hole located in the end of the idler
arm (A, Figure 13). Carefully rotate the breaker
bar clockwise, which will relieve the tension on the
belt exerted from the idler arm.
2. Slide the drive belt over the edge of the stationary
idler pulley (B). Carefully release the tension on
the breaker bar. Remove the belt from the right-
hand (discharge side) spindle pulley.
WARNING
IS500Z, 1000Z, IS1500Z, IS2000Z, S50X, &
S150X Models:
Use extreme caution when rotating the idler
arm with the breaker bar, due to the increased
tension in the spring as the idler arm is being
rotated. Injury may result if the breaker bar is
prematurely released while the spring is under
tension.
Installation
A
B
Remove the Spindle Belt
Identify and follow the correct procedure for your unit.
Mower Deck Preparation

Not for
Reproduction
15
Installation
Install the Double Spindle Pulley

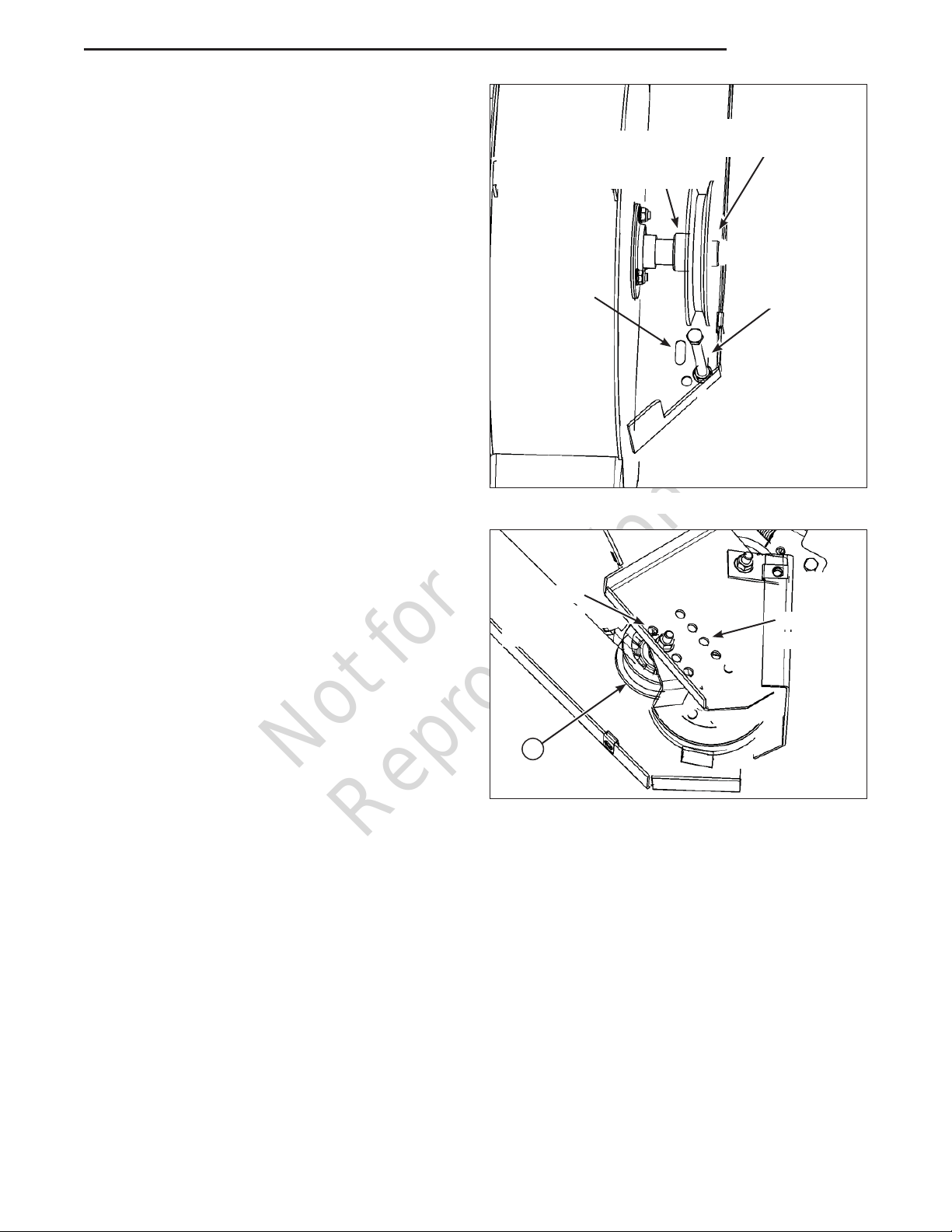

1. Install the double spindle pulley (C, Figure 17)
and 1/4” key (D) onto the spindle shaft.
2. Install the 3/4” spring washer (B) with the cone
facing up (see insert, Figure 17). Install the 3/4-
16 hex nut (A) and torque to 85-90 ft. lbs (115-122
Nm). Use a 1” wrench on the flats of the blade
end of the spindle shaft to prevent the shaft from
spinning.
Figure 17. Install Double Spindle Pulley
A. 3/4-16 Hex Nut
B. 3/4” Spring Washer
C. Double Spindle Pulley
D. 1/4” Key
A
B
C
D
Remove the Spindle Pulley
1. Remove the 3/4-16 hex nut & 3/4” spring washer
(A & B, Figure 16) securing the spindle pulley (C)
to the spindle shaft. Use a 1” wrench on the flats
of the blade end of the spindle shaft to prevent the
shaft from spinning. Save the 1/4” key (D).
Figure 16. Remove Spindle Pulley
A. 3/4-16 Hex Nut
B. 3/4” Spring Washer
C. Spindle Pulley
D. 1/4” Key
A
D
C
B

Not for
Reproduction
16 www.ferrismowers.com | www.snapperpro.com
Installation
Reinstall the Spindle Belt
Refer to “Remove the Spindle Belt” on page
14 and reverse the order for reinstalling the
belt.

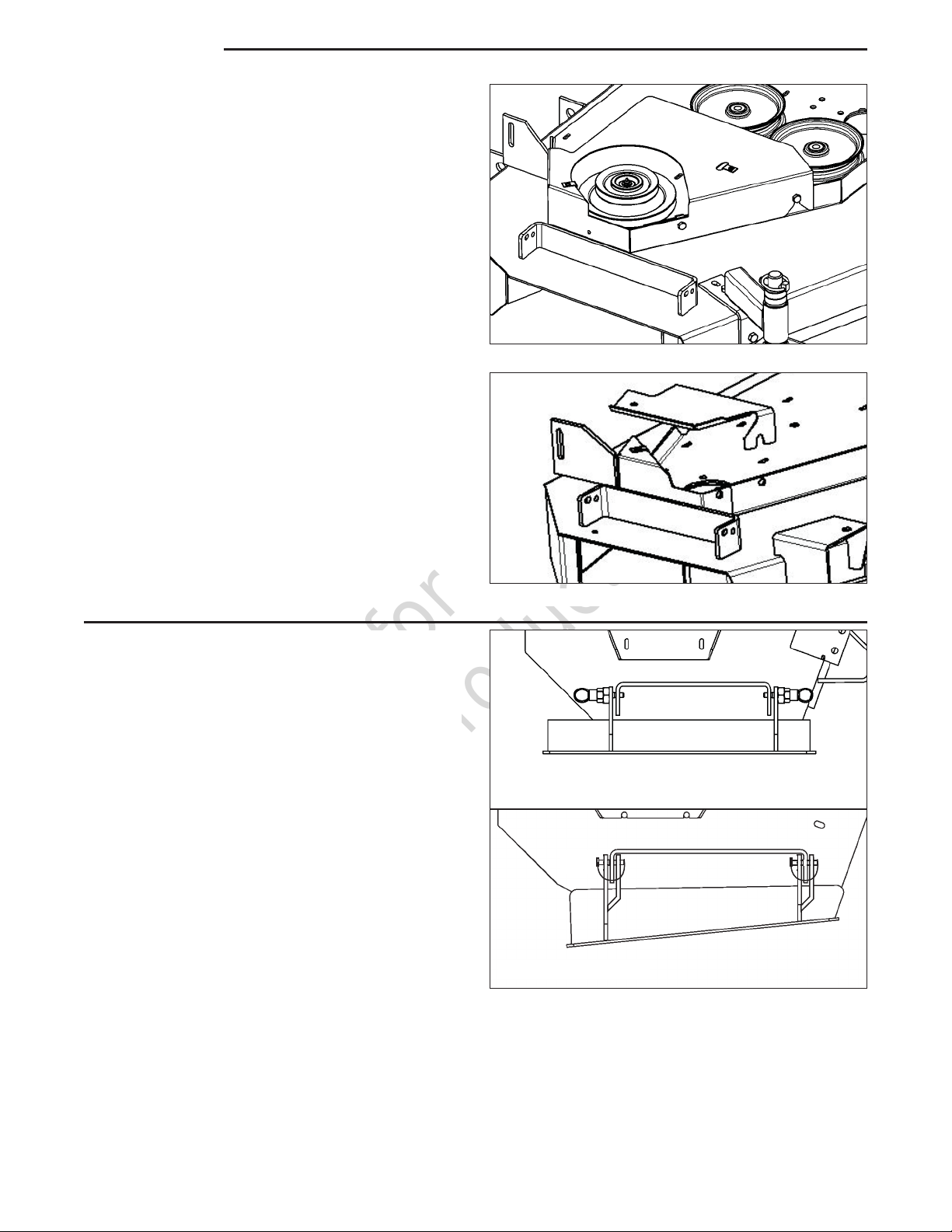

Install the Deck Guard
1. Install the new deck guard onto the mower deck
and secure with the hardware previously removed
(see Figure 18).
NOTE: The IS2000Z with 52” deck has a 2-piece
deck guard. Install as shown in Figure 19.
Figure 18. Install Guard
Figure 19. Install Guard - IS2000Z with 52” Deck
Blower Installation
Install the Blower
1. Install the blower onto the mower deck. Refer
to Figure 20 for the position of the quick pins in
relationship to the chute mount bracket on the
mower deck. The quick pins fit into the same
holes that the chute mount rod was installed.
Figure 20. Install Blower On Deck (Notice Pin
Orientation)
Old Style Mounts
New Style Mounts

Not for
Reproduction
17
Installation
2. Install the blower drive belt. Refer to Figure 21
for the proper belt routing. It may be required to
loosen the idler pulley mounting hardware to get
the belt past the belt keeps.
IMPORTANT NOTE: The gray area denotes the flat
side of the belt. V-side of belt must contact v-groove
pulleys, flat side of belt must contact flat pulleys.
Figure 21. Install Belt
3. Check the belt tension by measuring the distance
from the center of the v-idler pulley (A, Figure
22) mounting bolt and the blower housing. This
should measure between 3 - 3-3/8” (7,6 - 8,6 cm).
4. If measurement falls outside of this range, you
must move the idler pulley (B) either forward or
back to achieve the proper belt tension.
NOTE: If pulley position needs to be adjusted, make
sure that it is reinstalled in the same row of holes as
determined in the blower assembly (Step 9, page
13).
3" - 3-3/8"
(7,6 - 8,6 cm)
Figure 22. Check Belt Tension
A. V-Idler Pulley
B. Idler Pulley
B
A
A
BC
C
Figure 23. Install Guards
A. Blower Belt Guard
B. Deck Guard Top
C. Knob
5. Install the blower belt guard (A, Figure 23) and
secure with the flange head bolts previously
removed.
6. Install the deck guard top (B) and secure with the
supplied knobs (C).

Not for
Reproduction
18 www.ferrismowers.com | www.snapperpro.com
Installation
Install Collector Mount Plate
Identify and follow the correct procedure for your unit.
(1000Z & IS1000Z Series)
1. Remove the hardware securing the rear bumper
screen (A, Figure 24) to the top and bottom
bumpers (A, B). Save the 3/8” bolts and washers
from the lower bumper.
2 .Install the collector mount plate (Figure 25) on to
the lower bumper and secure with the previously
removed 3/8” bolts, 3/8” washers (B) and new 3/8-
16 nylock flange nuts (E).
3. Install the 3/8-16 x 1-1/2” bolts and 3/8” washers
(C) through the top mount holes as shown in
Figure 26. Install the support bar (D) and secure
with the 3/8-16 nylock flange nuts (E).
AB
C
Figure 24. Remove Bumper Screen
A. Screen
B. Top Bumper
C. Lower Bumper
E
D
A
B
E
Figure 25. Install Collector Mount Plate
A. Mount Plate
B. 3/8” Bolts & Washers (previously removed)
C. 3/8-16 x 1-1/2” Bolts & 3/8” Washers
D. Support Bar
E. 3/8-16 Nylock Flange Nuts
C
Collector Installation
