INDEX - VICS(VEHICLE INSTRUCTION CARD)
FIAT VEHICLES
Page Vehicle Details
1Index n/a
2Supplement (Electronic Parking Brake, etc) n/a
3500 4 seats / 3 door hatchback
4500X 5 seats / 5 door SUV (2x4 or 4x4)
5Tipo 5 seats / 5 door hatchback
6
7
INDEX PAGE 1

LOCATION
The diagrams above indicate example locations of the electronic parking brake (A) which is labelled with the universal icon symbol:
ACTIVATION
The EPB will normally auto activate. If will also activate if seat belts are not being worn, or when luggage placed on top of seats activates the system. To
enable the system to function correctly, fasten seatbelts, and remove luggage from the seats and store it securely in the boot. Pull the switch labelled A to
manually apply the parking brake. The warning lamps on both the switch and instrument panel will light up to confirm its activation.
DEACTIVATION
The EPB will normally auto release. Depress the brake or accelerator pedal to auto release it, or press the switch (A) to manually release it. The
associated warning lamps on both the switch and dashboard instrument panel will go out to confirm its deactivation. Note: seatbelts should be fastened,
and luggage should not be placed on seats.
WHEN DRIVING AWAY
The parking brake will deactivate automatically when driving away, and it also prevents the vehicle from rolling back unintentionally for a few seconds
when starting on a gradient. This works by driving off in a normal way, the parking brake will automatically release and the vehicle will start moving in the
desired direction.
On vehicles fitted with an automatic gear box, you can apply the parking brake when stopping briefly at traffic lights etc., to avoid the vehicle creeping
forward. When you drive off the parking brake will be automatically released.
INFORMATION
Vehicle specifications are subject to change. This vehicle does not include any manufacturer handbooks or manuals.
VEHICLE INSTRUCTION CARD SUPPLEMENT
No responsibility is accepted for inaccuracies or misunderstanding caused by the wording of this guide. If in any doubt ask a member of staff for assistance.
FIAT VEHICLES

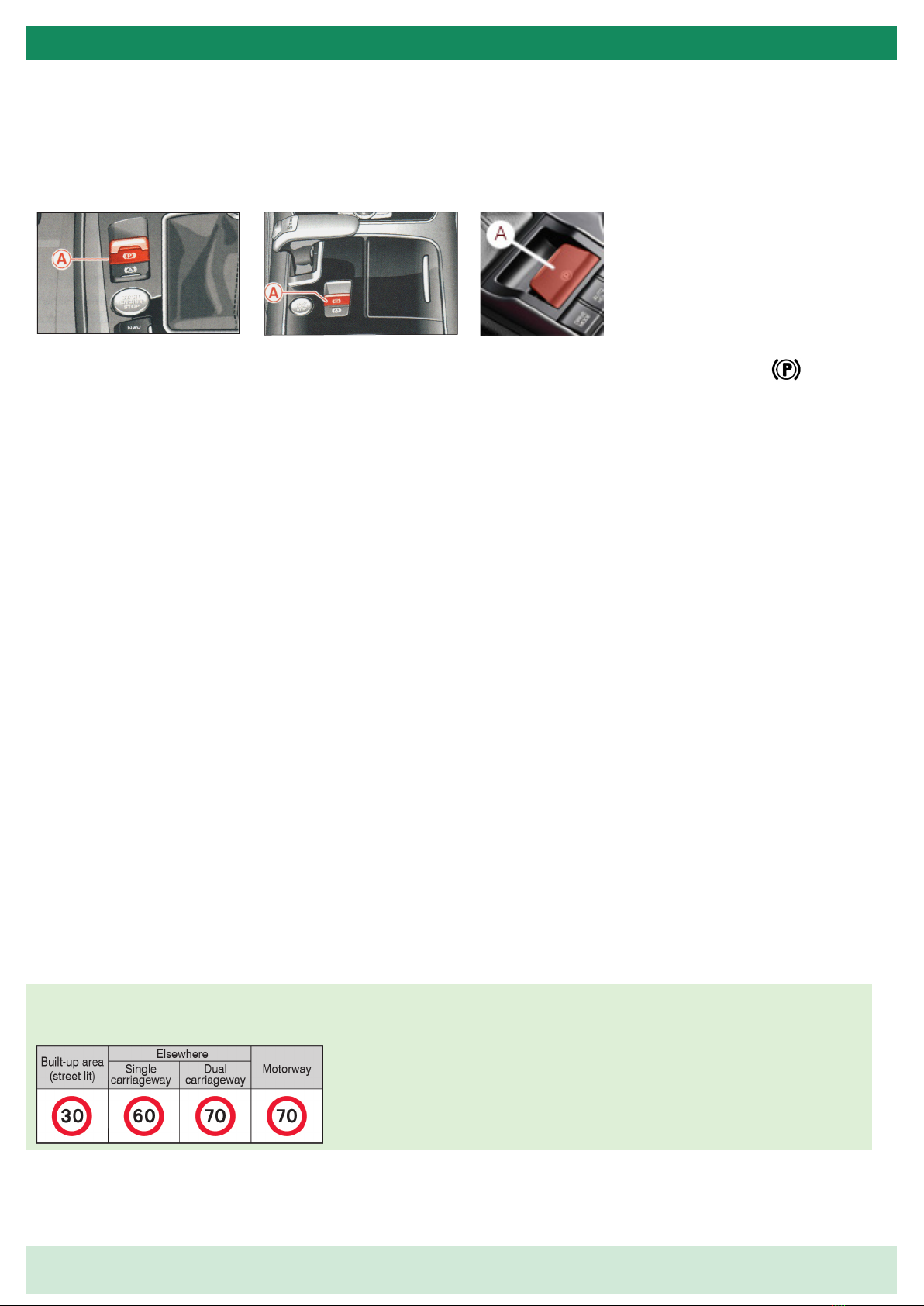

Where fitted, the electronic parking brake replaces the mechanical handbrake and is designed to prevent the vehicle from accidently rolling away. This
system offers convenience and safety features in addition to those normally associated with a mechanical handbrake. Please refer to the primary Vehicle
Instruction Guide for information about other operational instructions.
06-11-2016
ELECTRONIC PARKING BRAKE (EPB)
Don’t panic! Despite seeing a new light pop-up on your instrument panel, unless it is red it is likely the car is still running fine, and while there may be a
problem to attend to, proceed with confidence and patience.
RED indicates a potentially serious problem or safety issue. Attend to it! Red may also indicate an important reminder.
YELLOW or orange means something needs to be serviced or repaired soon. If it is flashing, it is important that you contact your rental agent for advice.
GREEN or blue is only telling you that a system is on or operating normally.
WARNING LIGHTS AND WHAT THEY MEAN
Deadlock / safelock messages shown on the instrument display when the engine is turned off simply indicate that once you exit the vehicle and lock the
doors, they’re effectively deadlocked and anyone left in the car wouldn’t be able to get out in the event of an emergency. The warning is nothing to worry
about and is just a standard advisory message.
DEADLOCKS
A seatbelt warning light may illuminate when the engine is turned on. This may mean that the electronic parking brake (EPB) becomes auto activated to
prevent vehicle movement. To deactivate these warning lights, and turn off the auto activation of the EPB in this instance, ensure all passengers fasten
their seatbelts, and remove any luggage from on top of the seats. For safety secure all luggage inside the boot.
SEATBELT WARNING LIGHTS
Unless indicated otherwise by road traffic signs and/or local road regulations and/or dictated by weather conditions, the Highway Code states that
provided always it is safe to do so, a passenger vehicle may be driven at the following MAXIMUM speeds (MPH):
DRIVING RESTRICTIONS AND/OR CONDITIONS
Drivers are reminded that they are responsible for the consequences arising out of their failure
to comply at all times with the requirements of any applicable Road Traffic Regulations, the
Highway Code and/or to the road conditions prevailing at the time and in the locality through
which they are driving the vehicle.
Europcar accepts no responsibility or liability for any costs, claims, penalties, fines or any other
circumstances arising out of or in connection with the driver’s failure to comply with all and any
road restrictions and/or conditions.

design and production by : Drake Enterprises Limited - Phone : [phone]
CHILD SEATS
FUEL IN CASE OF BREAKDOWN DRIVER’S SEAT
Vehicle specifications are subject to change. When the engine is turned off, ensure that the starter switch is in position II when operating electrical items such
as door mirrors and windows, etc. This vehicle does not include any manufacturer handbooks or manuals.
No responsibility is accepted for inaccuracies or misunderstanding caused by the wording of this guide. If in any doubt ask a member of staff for assistance.
Use hazard lights. Attempt to park
in a safe position.
Use an emergency phone rather
than a mobile as emergency
services will then know the location
of the vehicle.
Never use a child seat in a front
passenger seat which is fitted with
an active airbag (SRS). Follow all
fitting instructions carefully.
Check seat positioning and security
before use.
VEHICLE INSTRUCTION CARD
TYRE PRESSURES (COLD)
CONTROLS
When parked, the handbrake should be fully
applied with the vehicle left in first or reverse
gear for vehicles equipped with manual
transmission or P (Park) for vehicles with
automatic transmission.
CAUTION!
For assistance after an accident/incident, please call 0800 0280 999
For assistance after a breakdown or help with tyres or windscreens please refer to the numbers on the tax disc holder.
USEFUL INFORMATION ABOUT YOUR VEHICLE
TYRE HELPLINE
In the event of having a punctured tyre
please call the Europcar Tyre Helpline
0800 0280 999 for ANY assistance.
NOTE: Vehicles are not usually supplied
with a tyre repair kit (for vehicles that use
this in lieu of a spare wheel).
Key / remote control operated central dead locking. Depress the door central locking switch on the driver’s door to lock the
doors from the inside. Doors auto lock on vehicle motion.
Some models are fitted with a remote anti-theft alarm. Passive arming of immobiliser when key is removed.
Centrally locked. Use the remote key or internal boot release switch to unlock / open. Press the badge logo on the boot to
open it.
Internal electric adjustment via a control pad on the driver’s door.
Electric front operated via control buttons on adjacent to gear shift lever. Manually operated rear.
If fitted. Electric tilt / slide panoramic sunroof. Use the roof mounted switchgear to operate it.
Ensure gear selector is in neutral (or N or P if automatic) and handbrake is on. Place ignition key into key slot and turn it to
start/stop the engine. Select desired gear. Release handbrake and brake pedal and gently press the accelerator to move the
vehicle. The vehicle may feature automatic engine start/stop technology - auto restart on depression of the clutch.
Located under flap on rear offside. Lift the edge of the flap to open it, centrally locked, twist off the cap anticlockwise.
Pull bonnet release lever located to the lower left of the front passenger footwell. Unhook catch under bonnet.
The rear seat is divided into sections which can be folded separately. To release the seat press the seat unlocking catch and
fold the seat down. To return the seat to normal use, raise the seat and push it firmly to engage the seat lock. Check it is
locked before using the seat.
NOTE: This vehicle is not usually supplied with a conventional spare wheel and tyre, in the event of having a
punctured tyre please call the Europcar Tyre Helpline 0800 0280 999 for assistance. Lift the carpet cover over the
recess inside the boot to access spacesaver spare wheel, tools and jack. Move the vehicle to firm / level ground. Turn the
engine off, select first gear (or P if automatic). Apply the handbrake or parking brake. Only use the specific reinforced jack
points on the underside of the vehicle. Crank the jack to lift the vehicle.
To change gears press the button on the shift lever and move the lever forwards or backwards in the gear gate. Select N
for neutral, Pwhen leaving the vehicle, Rfor reversing (the vehicle must be at a complete standstill before this gear can be
selected). For normal driving select Dwhere the transmission will use all available forward gears automatically (a ‘kickdown
‘ facility is provided when the accelerator is pressed all the way to the floor past the normal acceleration point forcing the
transmission to select a lower gear to obtain maximum acceleration. To manually select gears move the gear shift lever into
the + and - positions to change gears up or down. Release pressure on the accelerator to return to normal accelerator use).
Whenever the vehicle is at a standstill apply the handbrake.
VIC-FIA-01 / 23-06-2012
FIAT 500
10
Tilt
Lumbar
Legroom
3
4 SEATS
3 DOOR HATCH
Ensure you use the correct fuel
type. Only use unleaded petrol
in petrol vehicles (see inside of
filler flap).
Fuel Tank Capacity:
35.0 litres
Check tyre pressure regularly
Legal minimum tread depth is 1.6 mm
175/65 R14
185/55 R15
Consult the tyre pressure tables found on
the driver’s door B-pillar or inside the fuel
filler cap.
This vehicle may not carry a spare wheel,
or is supplied with a spacesaver spare.
1Heating & Ventilation
2Hazard Lights
3Starter Switch
4Headlights
5Sidelights
6Indicators
7Wipers
8Rear Screen Wipers
9Horn
10 Bonnet Release
11 Heated Rear Screen
12 Rear Fog Lamp
13 Front Fog Lamp
4 / 5 / 6 7 / 8
2
1
9
Height
11
Locking the doors?
Anti-theft system?
Opening the boot/tailgate?
Adjusting door mirrors?
Opening the windows?
Operating the sunroof?
Starting the engine?
Opening fuel filler cap?
Releasing the bonnet?
Folding the rear seats?
How to change a tyre?
How to drive an automatic?
12 / 13
1 3
2 4 R
5
P
R
N
D
or
Fold front seats to access rear.
+
-

design and production by : Drake Enterprises Limited - Phone : [phone]
CHILD SEATS
FUEL IN CASE OF BREAKDOWN DRIVER’S SEAT
Vehicle specifications are subject to change. When the engine is turned off, ensure that the starter switch is in position II when operating electrical items such
as door mirrors and windows, etc. This vehicle does not include any manufacturer handbooks or manuals.
No responsibility is accepted for inaccuracies or misunderstanding caused by the wording of this guide. If in any doubt ask a member of staff for assistance.
Use hazard lights. Attempt to park
in a safe position.
Use an emergency phone rather
than a mobile as emergency
services will then know the location
of the vehicle.
Never use a child seat in a front
passenger seat which is fitted with
an active airbag (SRS). Follow all
fitting instructions carefully.
Check seat positioning and security
before use.
VEHICLE INSTRUCTION CARD
TYRE PRESSURES (COLD)
CONTROLS
When parked, the handbrake should be fully
applied with the vehicle left in first or reverse
gear for vehicles equipped with manual
transmission or P (Park) for vehicles with
automatic transmission.
CAUTION!
For assistance after an accident/incident, please call 0800 0280 999
For assistance after a breakdown or help with tyres or windscreens please refer to the numbers on the tax disc holder.
USEFUL INFORMATION ABOUT YOUR VEHICLE
TYRE HELPLINE
In the event of having a punctured tyre
please call the Europcar Tyre Helpline
0800 0280 999 for ANY assistance.
NOTE: Vehicles are not usually supplied
with a tyre repair kit (for vehicles that use
this in lieu of a spare wheel).
Key / remote control operated central dead locking. Depress the door central locking switch on the driver’s door to lock the
doors from the inside. Doors auto lock on vehicle motion.
Some models are fitted with a remote anti-theft alarm. Passive arming of immobiliser when key is removed.
Centrally locked. Use the remote key or internal boot release switch to unlock / open. Press the badge logo on the boot to
open it.
Internal electric adjustment via a control pad on the driver’s door.
All electric operated via control buttons on driver’s door.
If fitted. Electric tilt / slide panoramic sunroof. Use the roof mounted switchgear to operate it.
Ensure gear selector is in neutral (or N or P if automatic) and electronic parking brake is on. Place ignition key into key
slot and turn it to start/stop the engine. Select desired gear. Release handbrake and brake pedal and gently press the
accelerator to move the vehicle. The vehicle may feature automatic engine start/stop technology - engine automatically turns
off when stationary, with gears in neutral, and pedals are not depressed - auto restart on depression of the clutch (or brake
for auto).
Located under flap on rear offside. Lift the edge of the flap to open it, centrally locked, twist off the cap anticlockwise.
Pull bonnet release lever located to the lower left of the front passenger footwell. Unhook catch under bonnet.
The rear seat row is divided into sections which can be flat-folded. To release the seat press the seat unlocking catch and
fold the seat down. To return the seat to normal use, raise the seat and push it firmly to engage the seat lock. Check it is
locked before using the seat.
NOTE: This vehicle is not usually supplied with a conventional spare wheel and tyre, in the event of having a
punctured tyre please call the Europcar Tyre Helpline 0800 0280 999 for assistance. Lift the carpet cover over the
recess inside the boot to access the spacesaver spare wheel, tools and jack. Move the vehicle to firm / level ground. Turn
the engine off, select first gear (or P if automatic). Apply the electronic parking brake. Loosen the wheel nuts by turning
them anticlockwise (do not remove them) before jacking up. Only use the specific reinforced jack points on the underside
of the vehicle. Fit the jack. Crank the jack to lift the vehicle. Completely loosen / remove nuts and wheel and replace with the
spacesaver spare. Refit / tighten the wheel nuts. Lower the vehicle. Tighten the wheel nuts.
To change gears press the button on the shift lever and move the lever forwards or backwards in the gear gate. Select N
for neutral, Pwhen leaving the vehicle, Rfor reversing (the vehicle must be at a complete standstill before this gear can be
selected). For normal driving select Dwhere the transmission will use all available forward gears automatically (a ‘kickdown
‘ facility is provided when the accelerator is pressed all the way to the floor past the normal acceleration point forcing the
transmission to select a lower gear to obtain maximum acceleration. To manually select gears move the gear shift lever into
the + and - positions to change gears up or down. Release pressure on the accelerator to return to normal accelerator use).
Whenever the vehicle is at a standstill apply the electronic parking brake.
The drive mode selector dial adjacent to the gear selector can be used to select three types of 4x4 driving modes - this is
only available if the vehicle is fitted with 4x4 wheel drive.

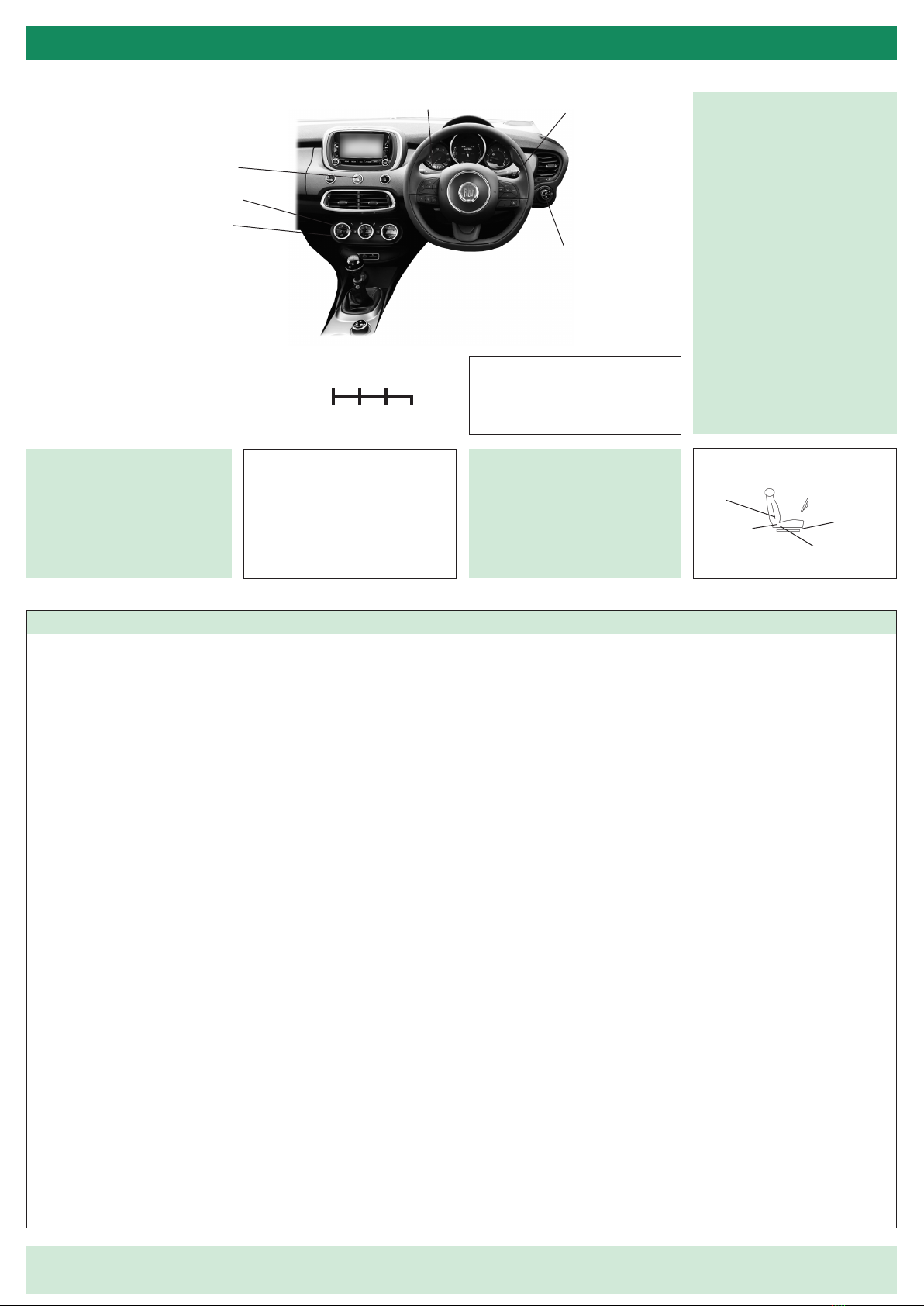

VIC-FIA-02 / 24-10-2015
FIAT 500X
10
Tilt
Lumbar
Legroom
3
5 SEATS
5 DOOR SUV (2X4 OR 4X4)
Ensure you use the correct fuel
type. Only use unleaded petrol
in petrol vehicles (see inside of
filler flap).
Fuel Tank Capacity:
48.0 litres
Check tyre pressure regularly
Legal minimum tread depth is 1.6 mm
R16
R17
R18
Consult the tyre pressure tables found on
the driver’s door B-pillar or inside the fuel
filler cap.
This vehicle may not carry a spare wheel,
or is supplied with a spacesaver spare.
1Heating & Ventilation
2Hazard Lights
3Starter Switch
4Headlights
5Sidelights
6Indicators
7Wipers
8Rear Screen Wipers
9Horn
10 Bonnet Release
11 Heated Rear Screen
12 Rear Fog Lamp
13 Front Fog Lamp
14 Electronic parking brake
47 / 8
2
1
9
Height
11
Locking the doors?
Anti-theft system?
Opening the boot/tailgate?
Adjusting door mirrors?
Opening the windows?
Operating the sunroof?
Starting the engine?
Opening fuel filler cap?
Releasing the bonnet?
Folding the rear seats?
How to change a tyre?
How to drive an automatic?
Using 4x4 mode?
P
R
N
D
+
-
or
1 3 5
24 6 R
9
14
4 / 5 / 6 / 12 / 13

design and production by : Drake Enterprises Limited - Phone : [phone]
CHILD SEATS
FUEL IN CASE OF BREAKDOWN DRIVER’S SEAT
Vehicle specifications are subject to change. When the engine is turned off, ensure that the starter switch is in position II when operating electrical items such
as door mirrors and windows, etc. This vehicle does not include any manufacturer handbooks or manuals.
No responsibility is accepted for inaccuracies or misunderstanding caused by the wording of this guide. If in any doubt ask a member of staff for assistance.
Use hazard lights. Attempt to park
in a safe position.
Use an emergency phone rather
than a mobile as emergency
services will then know the location
of the vehicle.
Never use a child seat in a front
passenger seat which is fitted with
an active airbag (SRS). Follow all
fitting instructions carefully.
Check seat positioning and security
before use.
VEHICLE INSTRUCTION CARD
TYRE PRESSURES (COLD)
CONTROLS
When parked, the handbrake should be fully
applied with the vehicle left in first or reverse
gear for vehicles equipped with manual
transmission or P (Park) for vehicles with
automatic transmission.
CAUTION!
For assistance after an accident/incident, please call 0800 0280 999
For assistance after a breakdown or help with tyres or windscreens please refer to the numbers on the tax disc holder.
USEFUL INFORMATION ABOUT YOUR VEHICLE
TYRE HELPLINE
In the event of having a punctured tyre
please call the Europcar Tyre Helpline
0800 0280 999 for ANY assistance.
NOTE: Vehicles are not usually supplied
with a tyre repair kit (for vehicles that use
this in lieu of a spare wheel).
Key / remote control operated central dead locking. Depress the door central locking switch on the dashboard to lock the
doors from the inside. Doors auto lock on vehicle motion.
Some models are fitted with a remote anti-theft alarm. Passive arming of immobiliser when key is removed.
Centrally locked. Use the remote key or internal boot release switch to unlock / open. Press the badge logo on the boot to
open it. The boot floor level can be set at various heights to accommodate storage.
Internal electric adjustment via a control pad on the driver’s door.
All electric operated via control buttons on the driver’s door. Or manually operated rear.
If fitted. Electric tilt / slide panoramic sunroof. Use the roof mounted switchgear to operate it.
Ensure gear selector is in neutral (or N or P if automatic) and handbrake is on. Place ignition key into key slot and turn it to
start/stop the engine. Select desired gear. Release handbrake and brake pedal and gently press the accelerator to move
the vehicle. The vehicle may feature automatic engine start/stop technology - where engine auto shuts off when gears are in
neutral, vehicle is stopped, and foot pedals are not depressed - engine auto restarts on depression of the accelerator.
Located under flap on rear offside. Lightly press the edge of the flap to open it, centrally locked, twist off the cap
anticlockwise.
Pull bonnet release lever located to the lower left of the front passenger footwell. Unhook catch under bonnet.
The rear seat is divided into sections which can be flat-folded separately. To release the seat press the seat unlocking catch
and fold the seat down. To return the seat to normal use, raise the seat and push it firmly to engage the seat lock. Check it is
locked in position before using the seat.
Lift the carpet cover over the recess inside the boot to access the tools, spacesaver spare wheel and jack (note: some
vehicles may not be supplied with a spare wheel). Move the vehicle to firm / level ground. Turn the engine off, select first
gear (or P if automatic). Apply the handbrake or parking brake. Only use the specific reinforced jack points on the underside
of the vehicle. Crank the jack to lift the vehicle. NOTE: This vehicle is not usually supplied with a conventional spare
wheel and tyre, in the event of having a punctured tyre please call the Europcar Tyre Helpline 0800 0280 999 for
assistance.
To change gears press the button on the shift lever and move the lever forwards or backwards in the gear gate. Select N
for neutral, Pwhen leaving the vehicle, Rfor reversing (the vehicle must be at a complete standstill before this gear can be
selected). For normal driving select Dwhere the transmission will use all available forward gears automatically (a ‘kickdown
‘ facility is provided when the accelerator is pressed all the way to the floor past the normal acceleration point forcing the
transmission to select a lower gear to obtain maximum acceleration. To manually select gears move the gear shift lever into
the + and - positions to change gears up or down. Release pressure on the accelerator to return to normal accelerator use).
Whenever the vehicle is at a standstill apply the handbrake.
VIC-FIA-03 / 15-06-2017

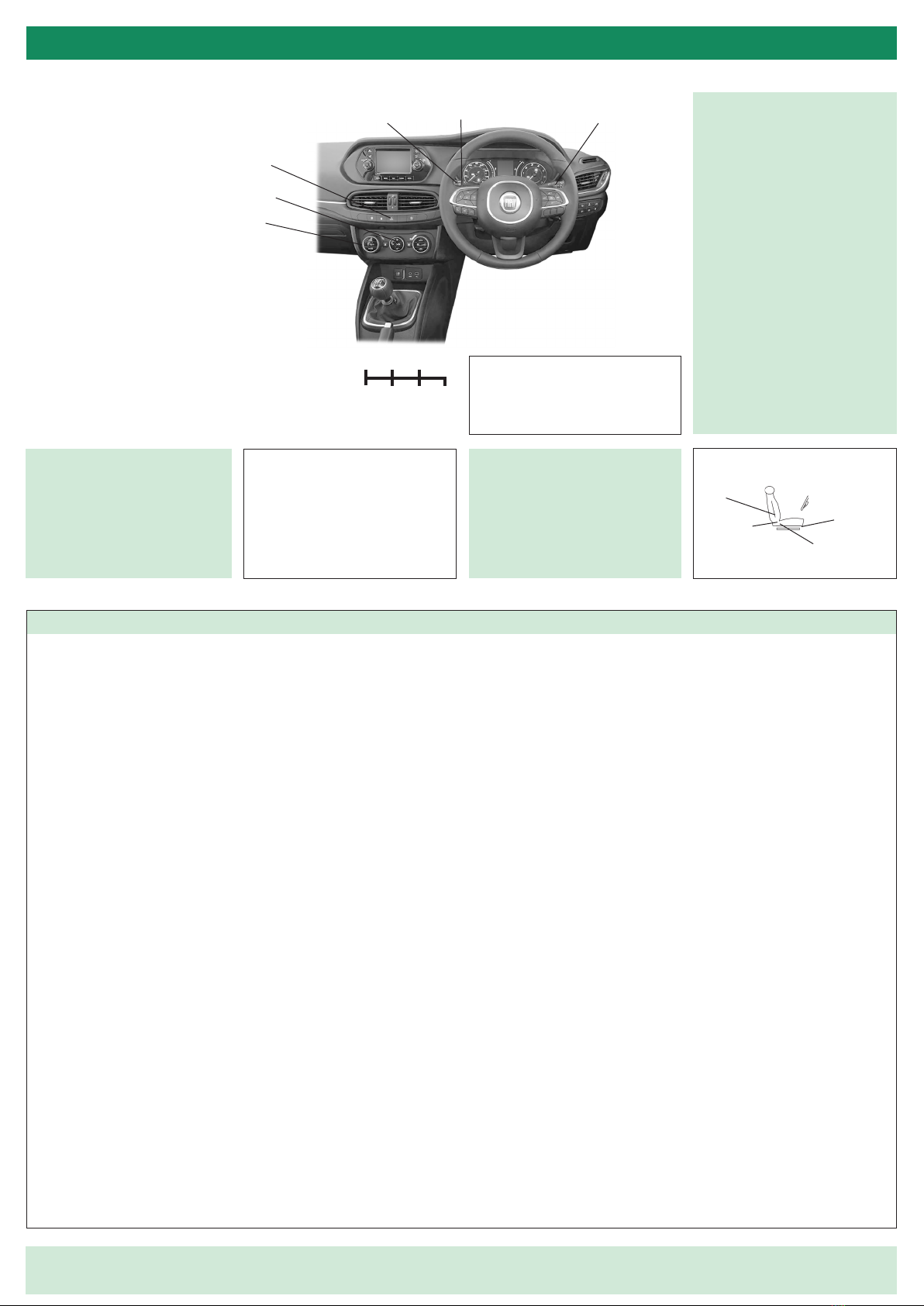

FIAT TIPO
10
Tilt
Lumbar
Legroom
3
5 SEATS
5 DOOR HATCHBACK
Ensure you use the correct fuel
type. Only use unleaded petrol
in petrol vehicles (see inside of
filler flap).
Fuel Tank Capacity:
50.0 litres
Check tyre pressure regularly
Legal minimum tread depth is 1.6 mm
195/55 R15
205/55 R16
225/45 R17
Consult the tyre pressure tables found on
the driver’s door B-pillar or inside the fuel
filler cap.
This vehicle may not carry a spare wheel,
or is supplied with a spacesaver spare.
Driving speed and travel distance are
limited when using a spacesaver spare.
1Heating & Ventilation
2Hazard Lights
3Starter Switch
4Headlights
5Sidelights
6Indicators
7Wipers
8Rear Screen Wipers
9Horn
10 Bonnet Release
11 Heated Rear Screen
12 Rear Fog Lamp
13 Front Fog Lamp
4 / 5 / 6 7 / 8
2
1
9
Height
11
Locking the doors?
Anti-theft system?
Opening the boot/tailgate?
Adjusting door mirrors?
Opening the windows?
Operating the sunroof?
Starting the engine?
Opening fuel filler cap?
Releasing the bonnet?
Folding the rear seats?
How to change a tyre?
How to drive an automatic?
12 / 13
P
R
N
D
+
-
or
1 3 5
24 6 R
9
