Model Specifications
Applicable EcoSmart™ Burner Standard models feature the Around Burner.
- please refer to specific Model Specification.
Fuel Use Denatured Ethanol only.
Some fuels are better than others, it’s important to source information on the best fuel in your area from your local
retailer/distributor. Visit www.ecosmartfire.com to find out what Denatured Ethanol is called around the world.
Design Features The Mini T is a square tall model that stands just 620mm high. Featuring four (4) glass panels that enclose
the central flame, the Mini T is designed for indoor and outdoor use, and is suitable for both residential and
commercial settings. Ideal for creating a series of intimate spaces or decorating the garden.
Construction Detail GLASS SURROUND: The four (4) glass panels are made of toughened glass. The glass panels used are sheets of
12mm [0.47in] glass cut to measure. This safety glass is designed to withstand high temperature variations. When
assembled, the glass panels are held in place by slots that are carved into the base.
BASE: The base is made of stainless steal.
BURNER: Placement and clearance allocated for one (1) EcoSmart™ Around Burner only.
Indoor Ventilation EcoSmart™ Fires do not require any form of permanent fixture or fitting, such as a flue for ventilation, a
permanent gas connection or any kind of fixed utility for fuel supply.
In a house of typical construction, that is, one that is not of unusually tight construction due to heavy insulation
and tight seals against air infiltration, an adequate supply of air for combustion and ventilation is provided through
infiltration. However, if the heater is used in a small room where less than 5.7m3[200ft3] of air space is provided for
each 1000 BTU per hour of heater rating (considering the maximum burner adjustment), the door(s) to adjacent
room(s) should be kept open or a window to the outside should be opened at least 25.4mm [1in] to guard against
potential build up of indoor air pollution. Do not install or operate in a bathroom or any other small room.
The room cannot be less than 70m3[2472ft3] per burner.
Recommended Accessories Fire extinguisher
Important! The glass used in the EcoSmart™ Fire Mini T, is toughened glass which means it is stronger than normal glass
and can withstand high temperature variations. Importantly, even though it is stronger, toughened glass still
has weaknesses. The corners and sides are specific pressure points where it is more fragile and can break if
care is not taken. In the case of breakage, toughened glass will shatter into small crystal-like pieces which can
cause potential injury and be a choking hazard for small children. We advise that the glass should be handled
with special care and that operation of the product should cease immediately if a fault is found. Breakage due
to mishandling is not covered by warranty.
- DO NOT remove glass panels
- DO NOT place a lid on top of the side glass panels to create a firebox
- DO NOT use anything other than the Lighting Rod included with this model to extinguish the flame.
To refill the burner when the burner is OFF, the Jerry Can is placed in the centre of the glass enclosure and the
nozzle inserted into one of the honeycomb holes. Attach the included Jerry Can extension spout if required.
Compulsory Cross Reference Please ensure you read the applicable Model Specifications for the EcoSmart™ Burner that is used in this
model before ordering, specifying, installing or operating the EcoSmart™ Burner.
The Outdoor Range offers a selection of portable, weather resistant fireplaces ideal for garden and swimming pool areas and perfect for
intimate alfresco dining settings or commercial bars and restaurants. Placement of outdoor models must comply with minimum clearances to
ensure flame stability in all weather conditions.

Mini T
3
6
Outdoor Range
© Copyright 2004 - 2009 The Fire Company Pty Ltd - International Patent Pending - Trademark Registered - All Designs Registered. www.ecosmartfire.com
Clearances The Mini T is suitable for use both indoors and outdoors.
When used indoors there must be a minimum of 1500mm [59in] between the mouth of the flame and the
nearest combustible at all times. Use common sense to ensure that your fire is positioned away from curtains,
flammable materials and other sources of ignition. Be aware of drafts.

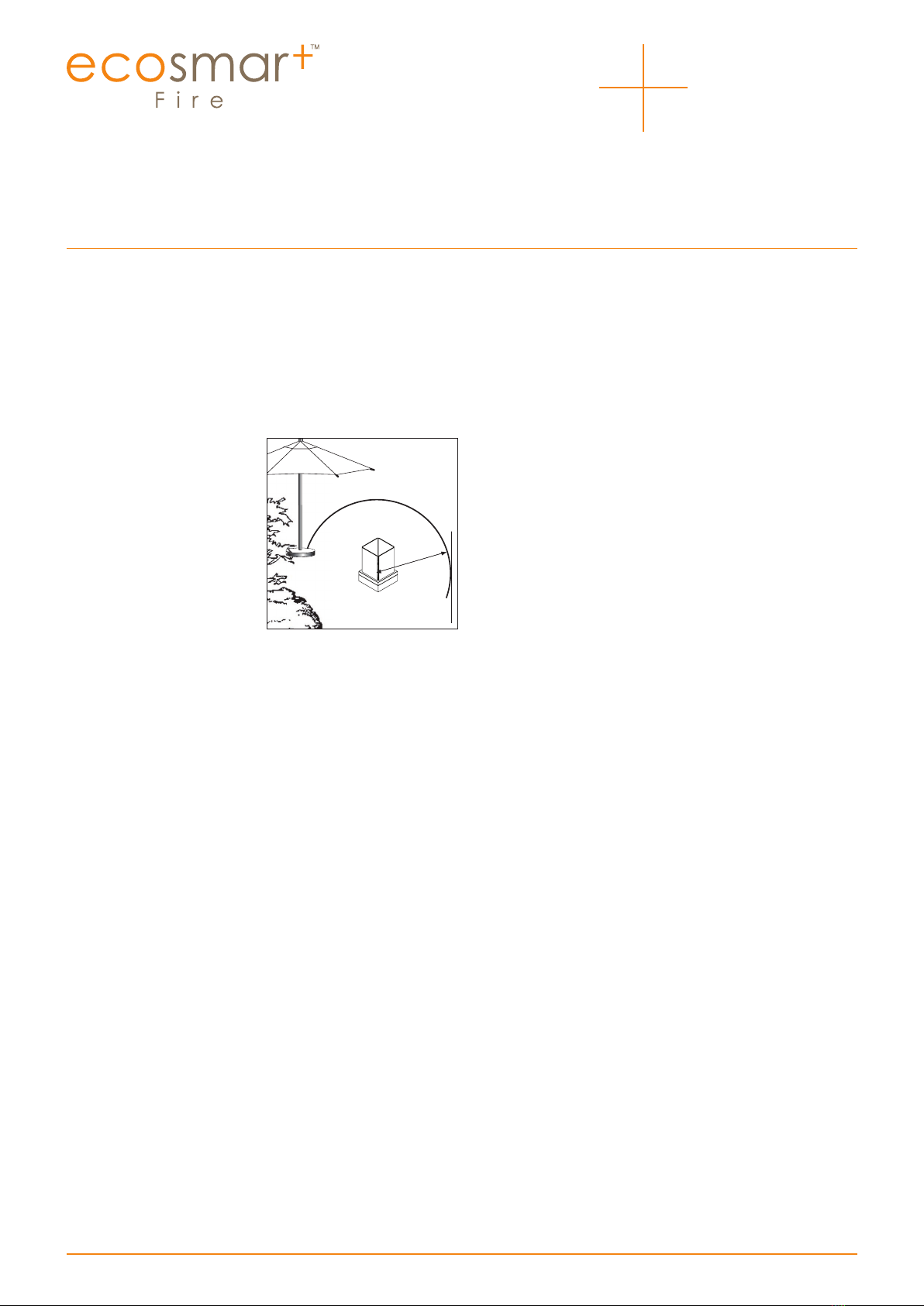

When used outdoors it is important that the model be positioned in a large open space ensuring that the
nearest combustible (trees, branches, umbrellas, ceilings etc) are a minimum of 2000mm [78.74in] away in all
weather conditions (for example, on windy days where there is movement in branches, the clearance must still
be met).
cluded.
[78.74]
2000mm
Model Specifications

Mini T
4
6
Outdoor Range
© Copyright 2004 - 2009 The Fire Company Pty Ltd - International Patent Pending - Trademark Registered - All Designs Registered. www.ecosmartfire.com
Installation Requirements In all cases the EcoSmart™ Fire should be placed in a secure, level position prior to being operated.
Equipment required: phillips head screw driver, flat head screw driver.
1. Confirm you have received all necessary fixings as illustrated.
2. Position the fireplace in accordance to the compulsory minimum clearances.
Glass Panels
3. Place two (2) U-profiles (part A) into frame located at the top of the Mini T base. Position them to the side
of the outer hole as illustrated.
4. Take one (1) glass panel and insert with pre-drilled holes at the bottom of the panel. Push down firmly to
lock into position. Ensure corner brackets are not obstructing the area.
5. Insert two (2) screws (part B) into holes provided, gently tighten.
Repeat steps 3, 4 and 5 for the remaining three (3) glass panels.
6. Align and secure glass panels to a 90º angle by tightening the four (4) corner brackets and the plastic screws
(already in place). Adjust until all four (4) glass panels are at 90º. (Use the “Shim” (Part C) provided).
Insert the Burner.
Model Specifications
4. 5. 6.
1.
A
x 8 B x 8
C x 8
3.
Min 300mm / 12in
2.

Mini T
5
6
Outdoor Range
[15.6]
396
[17.3]
440
[6.6] 168
[24.5]
622
[15.6]
396
[17.3]
440
Scale 1/10
34.5kg
76.04lbs
Material
Steel, Glass
ISOMETRIC VIEW
SIDE VIEW
TOP VIEW
FRONT VIEW
[15.6]
396
[17.3]
440
[6.6] 168
[24.5]
622
[15.6]
396
[17.3]
440
Scale 1/10
34.5kg
76.04lbs
Material
Steel, Glass
ISOMETRIC VIEW
SIDE VIEW
TOP VIEW
FRONT VIEW
[15.6]
396
[17.3]
440
[6.6] 168
[24.5]
622
[15.6]
396
[17.3]
440
Scale 1/10
34.5kg
76.04lbs
Material
Steel, Glass
ISOMETRIC VIEW
SIDE VIEW
TOP VIEW
FRONT VIEW
Measurements
[inches] = imperial
mm = metric
Weight
34.5kg, 76lbs
Materials
Stainless Steel,
Toughened Glass
Scale 1:10
© Copyright 2004 - 2009 The Fire Company Pty Ltd - International Patent Pending - Trademark Registered - All Designs Registered. www.ecosmartfire.com
ISOMETRIC VIEW TOP VIEW
FRONT VIEW SIDE VIEW

Mini T
6
6
Outdoor Range
© Copyright 2004 - 2009 The Fire Company Pty Ltd - International Patent Pending - Trademark Registered - All Designs Registered. www.ecosmartfire.com
Conditions of Use
1. For the purposes of this model specification
we refer to the fuel used in the EcoSmart™ Fire
as Denatured Ethanol*.
*There are many different names for this
fuel around the world. Please refer to www.
ecosmartfire.com for a list of commercially
available fuel names in your country.
Denatured Ethanol* is classified as a
Dangerous Goods Flammable Liquid
Class 3, PGII and is regulated by specific
standards and rules. You must familiarise
yourself with the appropriate regulations of
your country in order to safely and legally
store, handle, decant and use this fuel.
The customer warrants to The Fire Company
Pty Ltd that after delivery of their EcoSmart™
Fire and whilst The Fire Company Pty Ltd
retains any interest in the goods or consigned
goods (as the case may be) the customer shall
comply with all applicable Acts, Regulations
and Laws dealing with the transport, unloading
and storage of Dangerous Goods.
2. Children do not recognize the dangers that
can arise when handling Dangerous Goods,
nor do they recognize the volatility of flammable
liquids when ignited. Please ensure you keep
children at a safe distance and supervised at all
times when operating the fire.
3. Approval from building authorities may
be required. Please ensure you contact the
appropriate parties before installing your
EcoSmart™ Fire.
4. It is a condition of purchase that you obtain
a fire extinguisher Ammonium Phosphate
AB:E type. These can be purchased from your
distributor or independently.
Warnings
1. Risk of explosion:
a) Never use any fuel other than the fuels
specifically identified for use in the appliance.
Never use gasoline.
b) Never fill the fuel reservoir when it is operating
or still hot.
c) Never fill fuel reservoir in areas where
flammable vapours or gas may be present.
d) Never store or transport the fuel in other than
a metal or plastic container that is:
1. Acceptable for use with the specific fuel.
2. Is in the original container for the alcohol fuel.
2. Never store fuel in the living space where
the fire is situated.
3. Due to high surface temperatures, keep
children, pets, clothing, and furniture away.
The unit is hot while in operation, contact with
the EcoSmart™ Fire may cause skin burns.
4. Risk of indoor air pollution – use EcoSmart™
Fires only in well-ventilated areas. People with
breathing problems should consult a physician
before using the appliance.
5. Do not use the EcoSmart™ Fire to heat
or boil water or as a cooking appliance. Do
not throw waste materials or paper into the
EcoSmart™ Fire.
6. EcoSmart™ Fires have not been tested with
an unvented gas log set. To reduce the risk of
fire or injury, do not install an unvented gas log
set into this appliance.
7. The EcoSmart™ Fire has not been tested
for use with doors. To reduce the risk of fire or
injury, do not install doors.
8. It is recommended that the EcoSmart™ Fire
be fixed into position to avoid displacement as
per instruction provided with each model.
9. Do not dismantle the EcoSmart™ Burner.
10. Do not attach any other tank to the
EcoSmart™ Burner.
11. EcoSmart™ Fires must only be operated
using authorised accessories & equipment.
12. Do not obstruct the open/close sliding
mechanism of the EcoSmart™ Burner in any
way as this could result in the jamming/non
functionality of the shut off mechanism.
13. The EcoSmart™ Burner should not be started
if a fault is suspected or when there appears to be
any damage to the burner or its housing.
14. The use of any fitting other than those
available from or recommended by The Fire
Company Pty Ltd for the EcoSmart™ Firebox
and Burner is not permitted.
15. The Fire Company Pty Ltd does not accept
responsibility for any damage which occurs if the
EcoSmart™ Fire is used for purposes other than
those for which it is intended, or if it is incorrectly
operated or repaired by unqualified persons.
16. The EcoSmart™ Fire is not intended to
operate continuously. To avoid heat expansion
and potential splitting of the timber framework in
Designer Range models please ensure that the
model is allowed to cool down completely on a
regular basis.
If you have any questions regarding any of the
above important safety information please contact
your distributor or The Fire Company Pty Ltd.
Testing & Compliance
The EcoSmart™ Fire is manufactured
by The Fire Company Pty Ltd whose
quality management system is
certified as being in conformity with
ISO 9001:2000.
The EcoSmart™ Fire Collection has achieved
Swedish Institute for Technical Approval in
Construction (SITAC) approval.
The EcoSmart™ Fire is
the first product of its kind
to have its collection so
comprehensively C-UL US
listed. For the most up to
date list of C-UL US Listed models and
compliance requirements please contact your
local distributor.
Instructions and specifications for the EcoSmart™
Fire were tested as far as practicable to a selection
of clauses from AS4553/AG103 – Australian
Standard for Gas Space Heaters (closest
comparable product at the time of invention)
Investigation into applicable standards and
testing platforms for compliance to GS & CE
were held and The Fire Company has gained
a Compliance Verification Declaration from
Globalnorm GmbH.
EcoSmart Fire is TÜV certified in Germany
when using Burner Two within a Firebox
setting. For further information, please contact
your distributor.
Some models from the EcoSmart™ Fire Collection have achieved the following certification and approvals:
