FIRE FEATURES FIREBOWL 45 L User manual

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
WARNING:
FOR OUTDOOR USE ONLY
MANUAL PILOT IGNITION
FIREBOWL OWNER’S MANUAL
MODELS: 45 • 54 • 68 L, LL, & NL
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this gas appliance.
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in a enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, or home.
!
!
!
DANGER
!DANGER: IF YOU SMELL GAS:
!WARNING:
DO NOT DISCARD THIS MANUAL
• Important operating and maintenance instructions included.
• Read, understand and follow these instructions for safe installation and operation.
• Leave this manual with party responsible for use and operation.
COLOMBO CONSTRUCTION CORP
342 Park AVE Brooklyn, NY 11205
T 718.399.2233 F 718.399.2237 M 212.334.5069
firefeatures.com
C
388-O-01b-5
TEST CERTIFIED BY OMNI TEST LABORATORIES
ANSI Z21.97-2012/ CSA 2.41-2012
CGA 2.17-M91 (2009)
REVISED: 07.27.2018

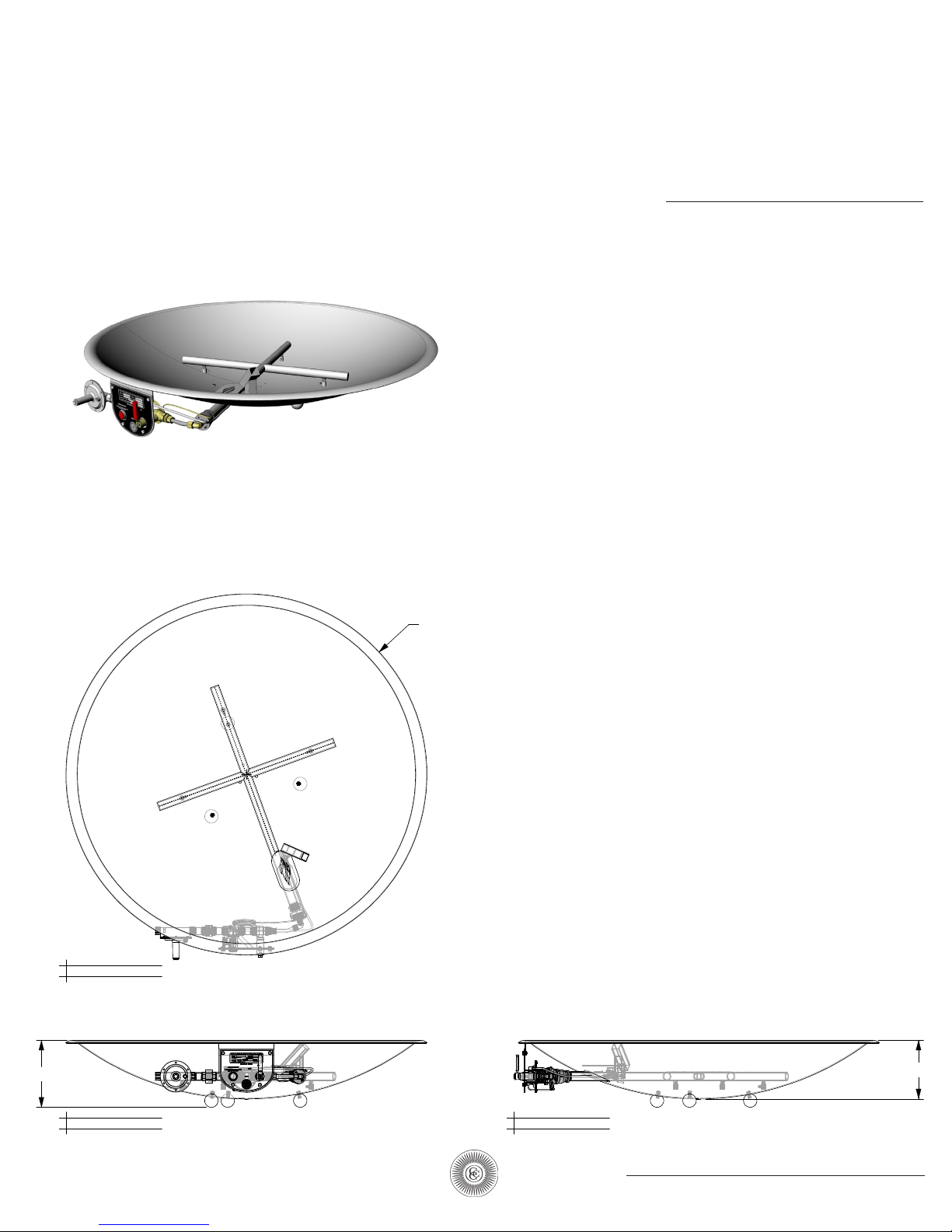

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
4
5
12
14
15
16
17
18
19
20
21
22
24
25
26
28
29
31
Listing Information
Purchase Agreement
Warnings
Warranty Information

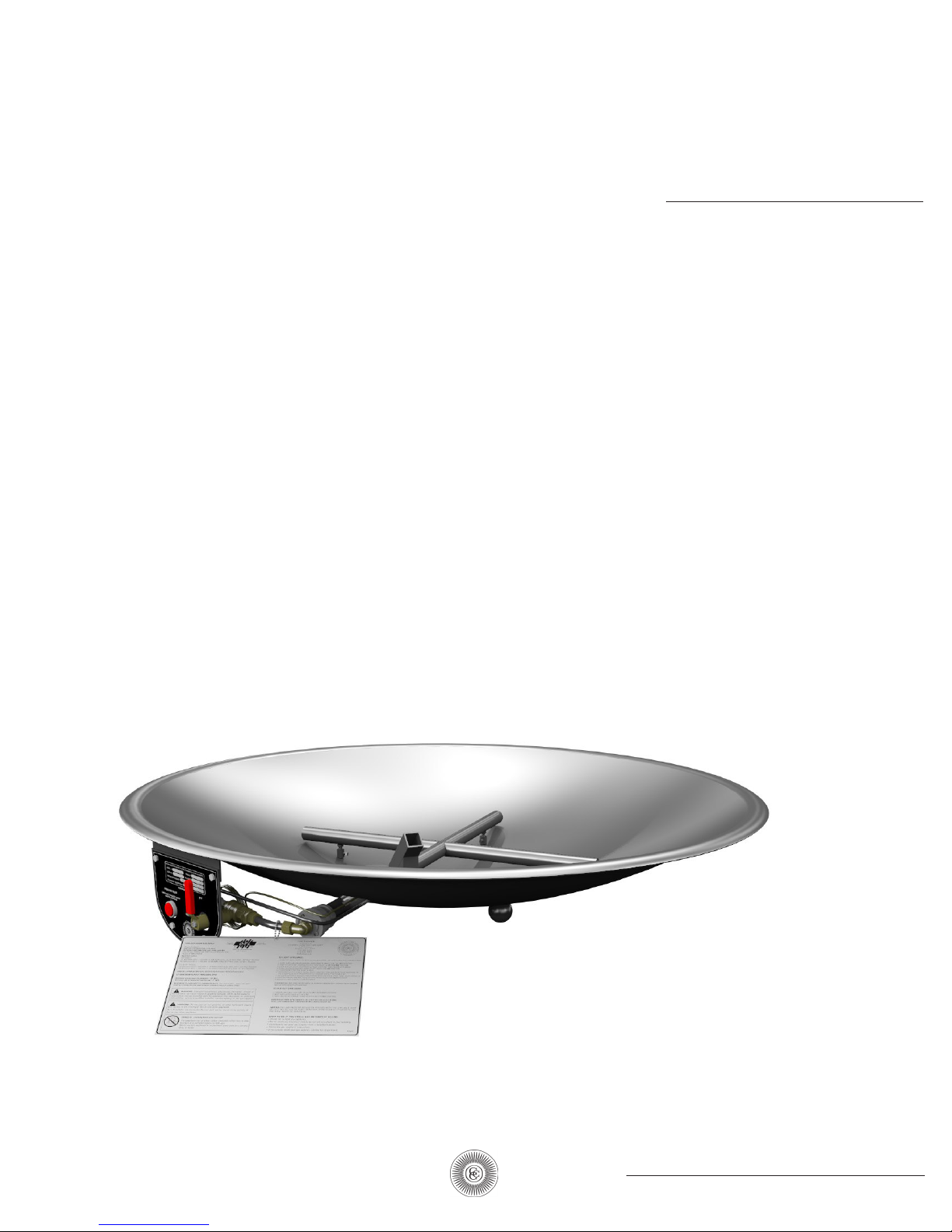

Overview
Size Chart
Components

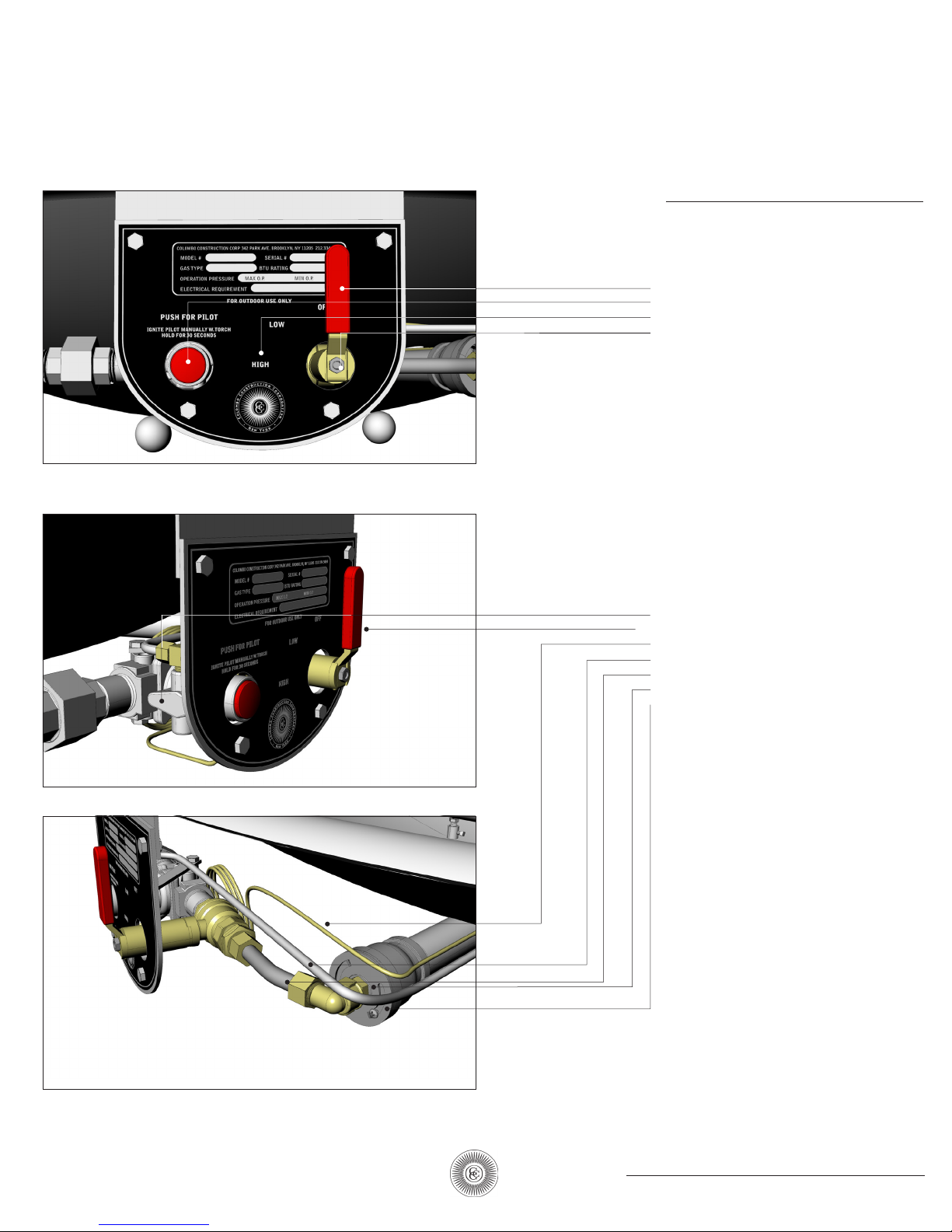

Control Panel

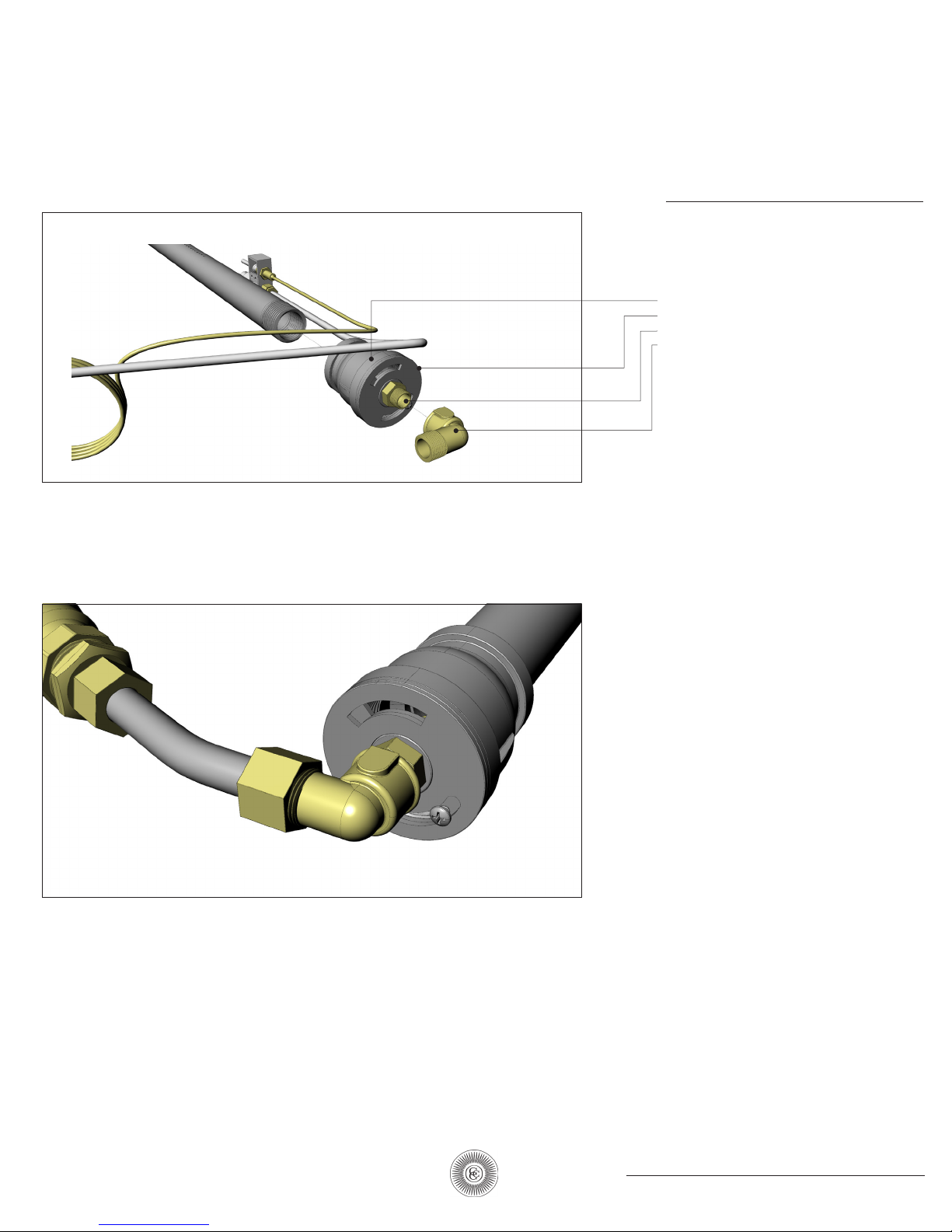

Venturi/Orifice
Burner/Pilot
Pilot Guard/Pilot Sighting Tube
Mounting
Clearances
Gas Connection
Ignition
Rocks
Maintenance
Replacement Parts
TABLE OF CONTENTS
3

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
LISTING INFO
OMNI-TEST LABORATORIES INC.
!
4
The Firebowls have been product certified by OMNI-
Test Laboratories, Inc. (OMNI) is a full service hearth
product testing laboratory with state-of-the-art emis-
sions and safety measurement and analysis equip-
ment. OMNI’s product testing programs are accredited
by national and international accreditation bodies
including, the American National Standards Institute
(ANSI), the Standards Council of Canada (SCC), the In-
ternational Accreditation Service, Inc. (IAS), and the
U.S. Environmental Protection Agency (EPA). OMNI is
also recognized by various other state, provincial, and
city jurisdictions.
Mailing Address: P.O. Box 301367 Portland, OR 97294
Phone: [phone] Fax: [phone]
Email: [email protected]
Model: Firebowl
ANSI Z21.97-2012/CSA 2.41-2012
OUTDOOR DECORATIVE GAS APPLIANCES
Type of Gas: Natural Gas (NG), Liquid Propane (LP)
Report # 388-0-01b-5
ORIFICE SIZES:
45” Models:
LP Maximum BTU = 150,000 w. #26 DMS orifice @ 11”W.C. Inlet - 10”W.C. Manifold
NG Maximum BTU = 150,000 w. #6 DMS orifice @ 7”W.C. Inlet - 6”W.C. Manifold
54” & 68” Models:
LP Maximum BTU = 300,000 w. #4 DMS orifice @ 11”W.C. Inlet - 10”W.C. Manifold
NG Maximum BTU = 300,000 w. #K DMS orifice @ 7”W.C. Inlet - 6”W.C. Manifold
INSTALLATION & SERVICE BY CERTIFIED GAS TECHNICIAN ONLY
CAN/CGA 2.17-M91 (R2009) Gas-Fired Appliances for Use at High Altitudes
THIS APPLIANCE IS EQUIPPED FOR ALTITUDES OF:
U.S. 0-2000FT. (0-610 M) – CANADA 0-4500FT. (0-1,372 M)
LP MAXIMUM SUPPLY PRESSURE: 2PSI
Minimum gas pressure for propane - 10" W.C.
Minimum gas pressure for natural gas - 5" W.C.
MINIMUM CLEARANCE TO COMBUSTIBLES: Top: 12ft (144”) - Sides: 2ft (24”)
INSTALLATION ON (OR OVER) NON-COMBUSTIBLE FLOORS ONLY.
TO LIGHT APPLIANCE:
•OPERATE AT ARMS LENGTH •DO NOT LEAN OVER APPLIANCE •USE SAFETY GOGGLES & EXTENDED TORCH •
1. MAKE SURE GAS VALVE CONTROL KNOB ON APPLIANCE IS IN THE OFF POSITION
2. TURN ‘PLAIN VIEW’ EMERGENCY SHUT-OFF VALVE TO ON OR OPEN POSITION
3. LOCATE PILOT LIGHT ON BURNER & PILOT SIGHTING TUBE INSIDE APPLIANCE
4. TURN GAS VALVE CONTROL KNOB ON APPLIANCE TO LOW POSITION
5. PUSH RED BUTTON FOR PILOT & HOLD
6. IMMEDIATELY PUT TORCH INSIDE PILOT SIGHTING TUBE & IGNITE PILOT. CONTINUE TO
HOLD RED PILOT BUTTON DOWN FOR 30 SECONDS UNTIL PILOT STAYS LIT
7. RELEASE BUTTON & REMOVE TORCH FROM SIGHTING TUBE. MAKE SURE PILOT STAYS LIT
8. TURN GAS VALVE CONTROL KNOB ON APPLIANCE SLOWLY TO HIGH POSITION
9. ADJUST FLAME HEIGHT TO PREFERENCE
IF BURNER DOES NOT LIGHT OR YOU SMELL OR HEAR GAS, IMMEDIATELY TURN GAS VALVE CONTROL
KNOB ON APPLIANCE TO OFF POSITION.
TO PUT OUT APPLIANCE:
1. TURN ‘PLAIN VIEW’ SHUT-OFF VALVE TO OFF OR CLOSED POSITION.
2. WAIT FOR GAS TO BURN OUT OF LINE.
3. TURN GAS VALVE CONTROL KNOB ON APPLIANCE TO OFF POSITION.
ALWAYS SHUT DOWN IN THIS MANNER: GAS LINE FIRST, APPLIANCE SECOND.
TO RE-LIGHT BURNER,WAIT 5 MINUTES AFTER A COMPLETE SHUT-OFF.
English
CAUTION: THE GAS PRESSURE REGULATOR PROVIDED WITH THIS APPLIANCE MUST
BE USED. THIS REGULATOR IS SET FOR AN OUTLET PRESSURE OF 11”WATER COLUMN
FOR LP & 6”WATER COLUMN FOR NG.
WHAT TO DO IF YOU SMELL GAS OR SUSPECT A LEAK:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
WARNING: Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to the owner’s
information manual provided with this appliance. For assistance, or additional
information, consult a qualied installer, service agency, or the gas supplier.
!
WARNING: Do not store or use gasoline, or other ammable vapors
and liquids, in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of
this or any other appliance.
!
DANGER! CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in a enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, or home
C
388-O-01b-5
FIRE FEATURES
A Division of
COLOMBO CONSTRUCTION CORP
342 Park Ave
Brooklyn, NY 11205
718.399.2233
212.334.5069
firefeatures.com

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
DECORATIVE GAS APPLIANCE PURCHASE AGREEMENT
Purchase agreement dated _____________ , 2018 between Colombo Construction Corporation (the “Com-
pany”) with a principal office located at 342 Park Avenue, Brooklyn, New York 11205 and _____________ (the
“Buyer”), located at _____________ for (job/project title): _____________ .
1. Purchase: (a) Buyer agrees to purchase the Decorative Gas Appliance (the “Appliance”) described
in the Quote and Specifications (the “Quotation and Specifications”) annexed hereto as Schedule A. Un-
less Buyer accepts the prices quoted by the Company within 30 days by delivery to the Company of a signed
original of this Agreement accompanied by either payment in full or 50% of the purchase price, the prices
quoted will expire. The purchase of the Appliance shall be subject to the terms and conditions set forth in
this Purchase Agreement and the Quotation and Specifications, which shall be deemed, incorporated in this
Purchase Agreement.
(b) The Appliance is being purchased FOB Ex Works. Title and beneficial ownership shall pass to Buyer
when the Appliance is shipped. Freight, insurance, and all other shipping expenses shall be added to the price
of the Appliance charged to Buyer unless otherwise specified in the Quotation and Specifications. Buyer ac-
knowledges and agrees that any modifications of any nature of the Appliance or any components not speci-
fied in the Quotation and Specifications shall be made at the Company’s option and, if made, at an additional
charge as provided in paragraph 2 of this Agreement.
(c) Buyer warrants, represents and agrees that it has carefully reviewed the specifications and features of
the Appliance and the components thereof and that the Appliance and its components are suitable for their
intended purpose, location, installation and operation. Buyer agrees to indemnify and hold the Company
harmless from and against any claim, loss, damage or expense (including reasonable attorneys fees) resulting
or arising from a breach of Buyer’s warranty.
2. Prices: The prices specified are not subject to change unless otherwise agreed to in writing. The Com-
pany shall not be obligated to make any modification of the Appliances or provide installation, site prepara-
tion, maintenance, training or any additional services unless agreed to in writing by the Company and Buyer.
Any additional services or modifications including, without limitation, installation or modifications to facili-
tate installation shall be subject to additional charges at the Company’s rates then in effect unless otherwise
agreed in writing. Prices include ordinary packing only unless otherwise specified.
3. Terms of Payment: Unless otherwise specified, terms of payment shall be fifty (50%) due upon ex-
ecution of this Purchase Agreement and the remaining balance shall be due upon notice being sent by the
Company to Buyer at the above address that the Appliance is ready for shipment.
4. Delivery: Delivery of the Appliance will be to Buyer’s address set forth above or such other address as
may be set forth in the Quotation and Specifications. Title and risk of loss shall pass to Buyer upon delivery
to Buyer. The Company shall have the right to choose the means of transportation and to route shipments
when specific instructions are not included in the Quotation and Specifications. The Appliance purchased
shall be adequately packaged by the Company to prevent damage during shipment. The Company shall have
no liability whatsoever, nor shall this Agreement be subject to cancellation for delay in delivery due to act of
God or civil or military authority, acts of terrorism, fire, labor disturbance, war, insurrection or riot, failure of
or delay in transportation, unusually severe weather, or due to any other cause beyond the Company’s con-
trol. In the event of delay for any such cause, the specified delivery date shall be extended for a reasonable
length of time.
342 Park AVE
Brooklyn, NY 11205
T 718.399.2233 •F 718.399.2237 •M 212.334.5069
firefeatures.com •info@firefeatures.com
FIREFEATURES for COLOMBO CONSTRUCTION CORP
5

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
5. Additional Charges: No allowance shall be made to Buyer for any transportation, labor charges or
parts, adjustments or repairs, or any other work, without the Company’s prior written authorization. Pay-
ment for modifications requested by Buyer shall be due upon written acceptance by the Company of such
modifications. Payment for additional services requested by the Buyer shall be due upon receipt by Buyer of
the Company’s notice that the Appliance is ready for shipment unless otherwise specified in the Company’s
written acceptance of such request for services.
6. Taxes: Unless otherwise specified, prices do not include federal, state or local sales, use, excise, man-
ufacturing, processing or importation tax, or and any other tax or charge, that is or may be imposed on the
articles or services purchased by Buyer. Any such taxes or charges will be added to the invoices as separate
items, unless appropriate exemption certificates are furnished to the Company.
7. Warranties: (a) The Company warrants and represents that the Appliance purchased shall conform
to the specifications provided herein and be free from defects in materials and workmanship under normal
use for a period of 90 days from the date of delivery. The Company will repair or replace, at its option, any
defective products. This Warranty is Buyer’s exclusive remedy for defective products and is solely for the
benefit of the original purchaser. The Company shall also pass through to Buyer all warranties provided by its
manufacturers and subcontractors.
(b) The defective product must be shipped back with an RMA (Return Merchandise Authorization) issued by
The Company for that specific product which states the nature of the defect or warranty claim. The product
to be returned should be packed carefully. The Company is not responsible for damage on returned items.
The original purchase information will be required. RMA’s are only valid for 30 days from the date of issue by
The Company and will not be processed if received after the expiration date. The RMA number must be indi-
cated on the outside of the return package and a copy of the RMA in the package with product.
Installation and servicing is to be performed by qualified professionals. The Company is not responsible for
local codes and / or if any of our products are not approved for installation. Buyer should confirm with it’s
local building department or governing agencies for proper approvals before purchasing it’s products. The
Company is not responsible for the actions including negligence of the installer.
This warranty does not cover damage caused by over heating, flooding, improper use, operation, installation,
maintenance, accident, solvents, modifications, problems caused by other equipment or any other external
causes.
THE COMPANY WILL NOT BE LIABLE FOR ANY DAMAGE, LOSS OR INJURY OF ANY NATURE INCLUDING LOST
PROFITS OR CONSEQUENTIAL DAMAGES EVEN IF SUCH DAMAGES ARE FORESEABLE. EXCEPT AS EXPRESS-
LY PROVIDED IN THIS WARRANTY, THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. UN-
DER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY LOSS OR DAMAGE IN EXCESS OF THE
AMOUNT PAID BY BUYER FOR THE PRODUCT.
This warranty gives Buyer specific rights. Buyer may also have additional rights under the laws of the State
in which it resides.
8. Buyer’s use of the Appliance. (a) Buyer acknowledges the Appliance was manufactured and assembled
in accordance with the American National Standard Institute (ANSI) Z21.97-2012 and CSA Standard 2.41-2012
for Outdoor Fireplaces. It uses natural gas, and in the absence of local codes and ordinances is gov-
erned by the standard for storage and handling of liquefied petroleum gas, ANSI/NFPA 58 and the Natural
Gas Installation code CAN/CGA B149.2 This standard instructs on the safe storage and handling of com-
pressed gases.
When an appliance is for connection to a fixed piping system, the installation must conform with local codes,
or in the absence of local codes, with the National Fuel Gas Code, ANSI z223.1/NFPA 54, International Fuel Gas
Code, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, CSA
C22.1, if applicable.
6

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
Model: Firebowl only
ANSI Z21.97-2012/CSA 2.41-2012
Type of Gas: Natural Gas (NG), Liquid Propane (LP)
Report # 388-0-01b-5
ORIFICE SIZES:
45” Models:
LP Maximum BTU = 150,000 w. #26 DMS orifice @ 11” W.C. Inlet - 10” W.C. Manifold
NG Maximum BTU = 150,000 w. #6 DMS orifice @ 7” W.C. Inlet - 6” W.C. Manifold
54” & 68” Models:
LP Maximum BTU = 300,000 w. #4 DMS orifice @ 11” W.C. Inlet - 10” W.C. Manifold
NG Maximum BTU = 300,000 w. #K DMS orifice @ 7” W.C. Inlet - 6” W.C. Manifold
INSTALLATION & SERVICE BY CERTIFIED GAS TECHNICIAN ONLY
LP MAXIMUM SUPPLY PRESSURE: 2PSI
MINIMUM CLEARANCE TO COMBUSTIBLES: Top: 12ft (144”) - Sides: 2ft (24”)
INSTALLATION ON (OR OVER) NON-COMBUSTIBLE FLOORS ONLY - UNLESS A HEAT SHIELD IS INCLUDED.
(b) Buyer acknowledges and agrees that at the time of delivery the Appliance will be owned by Buyer;
that the Company is not responsible for the installation of the Appliance or for training of Buyer’s personnel
in the use, care, maintenance, operation and service of the Appliance, applications of the Appliance, deci-
sions as to the location and environment selected for the use or storage of the Appliance, and decisions alter-
ing which persons are exposed or have access to the Appliance including, without limitation, their respective
age, physical condition, mental capacity and degree of skills.
(c) The company may in its sole discretion provide on-site installation services of the decorative portion
only of the Appliance. Any arrangements for such on-site, custom installation of the decorative portion of
the Appliance must be made between the Buyer and the Company in writing at the time of the quotation.
In addition to the requirements of paragraph 14 of this Purchase Agreement, Buyer shall, prior to the com-
mencement of installation, obtain at its expense such liability insurance, and other insurance as the Company
or Buyer may determine is reasonably necessary to insure against injury to persons and property by reason of
such on-site installations. The policy shall be in the name of the Company, and the Buyer and the construction
company shall be designated a coinsured on such additional insurance policies. Such policies shall also provide
that the parties shall be given 30 days prior notice of the their cancellation or termination.
(d) Buyer understands and acknowledges that Appliance has been designated for exterior use only, that
it must be used solely for that purpose for which the appliance has been designated and that the installation
and use of Appliance in locations for which it has not been designed to operate may cause equipment fail-
ures, deterioration and malfunctions of the Appliance as well as hazardous conditions to persons and prop-
erty. Buyer acknowledges that they have been advised that they must familiarize themselves with the proper
use, installation, operation and maintenance of the Appliance, and the precautions, which must be taken,
and that the Appliance may be subject to local fire codes and ordinances, and that THE APPLIANCE IS NOT UL
RATED.
(e) The Buyer acknowledges and agrees that it understands that the Appliance uses combustible gas and
extreme caution must be used at all times; that the Appliance must be installed in a location in which proper
precautions has been taken to prevent the possibility of fire and for which adequate ventilation has been
provided. Buyer shall comply with all state and federal laws, orders and regulations applicable to the instal-
lation, operation, maintenance and use of the Appliance, including without limitation all applicable building
codes, ordinance and regulations and local fire safety codes, ordinances and regulations. Buyer shall be re-
sponsible to familiarizing itself with and obtaining certification that the Appliance is in compliance with ANSI
AGA and CSA Standards for Decorative Gas Appliances and, in the absence of local codes and ordinance, the
ANSI/NFPA and Natural Gas Installation Codes.
7

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
9. Partial Shipments: The Company may make and invoice partial shipments of components of the Ap-
pliance or defer manufacture or delivery of the Appliance only if, when and to the extent agreed to in writing
by Buyer.
10. Cancellation: Orders are not subject to cancellation, complete or partial, without the Company’s
consent. Any reduction in quantities ordered shall constitute a partial cancellation subject to this clause. In
the event of cancellation, settlement will be made on the following basis. Buyer will pay to the Company fol-
lowing delivery, the full purchase price of all products completed at the time of cancellation. Buyer will pay
to the Company a percentage of the purchase price of all other products not completed or delivered equiva-
lent to the percentage of completion thereof as determined by the Company, but not less than fifty (50%)
percent of the purchase price. Buyer will also pay the full-amortized costs of materials, dies, tools, patterns,
and fixtures, made or contracted specifically for Buyer’s order. Upon full payment to the Company, title to
all components of any partially completed Appliance shall pass to Buyer. Invoices for all cancellation charges
are payable on presentation.
11. Defaults: (a) If the Buyer fails to perform any agreement under this Purchase Agreement or any
other Purchase Agreement between Buyer and the Company, or if Buyer shall be bankrupt or insolvent or
shall make an assignment for the benefit of creditors or if there shall be instituted by or against Buyer any
proceeding under any bankruptcy, reorganization, arrangement, readjustment of debt or insolvency law of
any jurisdiction or for the appointment of a receiver or trustee in respect of any of Buyer’s property, then, the
Company may, at any time upon written notice to Buyer, in addition to any other rights the Company may
have, terminate all of its obligations under this Agreement.
(b) If Buyer defaults in its obligations and the Company retains counsel to enforce its rights under this
Purchase Agreement, Buyer shall pay to Company its costs and expenses including its reasonable attorney’s
fees. Buyer agrees that any dispute arising in connection with this Agreement shall be subject to the jurisdic-
tion of the Federal and State courts located in New York County, the State of New York. Buyer consents to
the jurisdiction of such courts and waives any defense based on lack of jurisdiction or forum inconveniens.
12. Ownership of Designs. Buyer acknowledges and agrees that the Appliance is a sculpture and work of
art designed by the Company and enhanced with the use of mechanical and electric components manufac-
tured by third parties; and that the designs, concepts, artwork and enhancements of the Appliance provided
by the Company are the unique and exclusive property of the Company. Nothing contained shall grant Buyer
any license or right of any nature, whether express or implied, to copy, reproduce, photograph or otherwise
create any reproduction or likeness of the Appliance using any method or medium (including digital or elec-
tronic formats).
13. Indemnification: Buyer acknowledges that the Appliance is capable of causing severe and significant
damages, to individuals and property, if the safety procedures and instructions are not followed exactly as
stated in the Quotation and Specifications, and the literature and materials provided with the Appliance or
fails to comply with its obligations pursuant to this Purchase Agreement. Buyer hereby agrees to indemnify
the Company, and it’s successors, predecessors and subsidiaries, assigns, heirs, officers, agents, servants, at-
torneys, employees, former employees, former officers, directors, former directors, insurers and re-insurers
to defend and to hold it harmless, of and from all actions, causes of action, suits, controversies, claims, dam-
ages, and demands of every kind and nature both in law and in equity, mature or to mature in the future, for
and by reason of any matter, thing or claims arising out of or in any way related to the use of the Appliance
that results in personal injury, property damage, economic loss of any kind, pain and suffering, loss of ser-
vices, or any other claims made by anyone, including the Buyer, and any other third party claiming injury or
damage resulting from the Appliance, when such injuries or damages are the result of or caused by the im-
proper installation, maintenance or operation of the Appliance or the failure by Buyer, or any other person
or entity, to use the proper care and techniques.
14. Insurance. Buyer shall provide such liability insurance, and other insurance as the Company may de-
termine is reasonably necessary to insure against injury to persons and property by reason of the installa-
tion, use, maintenance, or operation of the Appliance. Buyer shall obtain a Waiver of Subrogation of Claims
against the Company from its insurer.
8

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
SCHEDULE A:
GENERAL SPECIFICATIONS:
Prior to installation, the Project Manager, as well as the mechanical, structural and fire safety engineers, must
first approve the specifications of this low-pressure decorative gas appliance.
It must be installed on site, pressure and leak checked by a certified gas technician as per national and local,
building, gas, fire, and safety codes and ordinances. (Gastite specialists preferred).
Individual low pressure appliance regulators (suggested: Maxitroll or Rego), and ‘plain view’ emergency gas
shut-off valve, are to be supplied and installed by a certified gas technician as per national and local, building,
gas, fire, and safety codes and ordinances.
BURNER & BTU SPECIFICATIONS:
The burner for this appliance is assembled and tested by:
Charles A. Hones Inc., P.O. Box 405 - 355 NY State Route 49, Cleveland NY 13042 [phone]
All gas connections have been assembled and tested by Charles A. Hones Inc., in accordance with the safety
requirements of the compressed gas industry and the applicable ANSI, AGA and CSA standards.
The burner is a special, stainless steel, “Yellow Flame” burner, and is rated at a minimum of 150,000 and a
maximum of 300,000 BTU’s. The burner is supplied with the appropriate 1/4” brass orifice for use with either
natural gas (NG) or propane (LP), a modified 90-100M stainless steel air mixer, and stainless steel pipe con-
nections.
OPERATING PRESSURES
•Propane: Standard operating pressure: 11 inches water column, minimum operating pressure: 10
inches water column, maximum operating pressure: 12 inches water column.
•Natural gas: Standard operating pressure: 6 inches water column, minimum operating pressure: 5
inches water column, maximum operating pressure: 7 inches water column.
MANUAL PILOT IGNITION SYSTEM SPECIFICATIONS:
Includes: Mounted, instructional control panel with 3/4” gas ball valve with plastic handle for flame height
adjustment, H15DA-3C Baso safety pilot set with red push button lighting, J990MDA-2 Honeywell pilot burn-
er, K16BA-72 Thermocouple, 90M stainless steel Venturi Air Mixer, and stainless steel 1/4” union connection
to main gas feed.
ELECTRONIC IGNITION SYSTEM SPECIFICATIONS:
Please note electronic ignition systems are not certified by OMNI_Test Labroatories.
Includes: • Electronic LOW VOLTAGE Ignition System Includes: AWEIS All-Weather HOT SURFACE Pilot Ig-
nitor w. thermocouple for flame detection; NEMA 4X Enclosure if requested; 24 volt AC transformer; Selo-
noid valves and controller module.
If requested, The Company will supply drawings of a site specific decorative design, burner dimensions and
specifications, and list of ignition system components which must be approved by the property owner, pro-
ject manager, construction supervisor, mechanical, structural and safety engineers prior to installation, and
in accordance with national, local and safety codes and ordinances.
The exterior installation, use, and maintenance of electronic ignition systems must be made in accordance
with the manufacturer’s instructions, warranties, specifications and recommendations. Failure to do so may
result in the failure of the ignition system to function properly, voiding the manufacturer’s warranty and the
creation of hazardous conditions.
If requested, The Company will supply drawings of a site specific decorative design, burner dimensions and
specifications, and list of ignition system components which must be approved by the property owner, pro-
ject manager, construction supervisor, mechanical, structural and safety engineers prior to installation, and
in accordance with national, local and safety codes and ordinances.
9

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
The exterior or interior installation, use and maintenance of ignition systems must be made in accordance with
the manufacturer’s instructions, warranties, specifications and recommendations. Failure to do so may result
in the failure of the ignition system to function properly, voiding the manufacturer’s warranty and the crea-
tion of hazardous conditions.
FOR YOUR SAFETY YOU MUST READ THE FOLLOWING WARNINGS AND INSTRUCTIONS BEFORE PURCHASE
OR OPERATION:
This appliance uses combustible gas and extreme caution must be used at all times. Failure to follow instruc-
tions, miss-use, carelessness, and inattention can create a dangerous or life threatening situation.
Except where noted, all parts used are unaltered and purchased through industrial compressed gas industry
vendors and/or major chain plumbing, hardware and/or home improvement stores, not limited to but includ-
ing: pilot systems, copper and steel piping, gas valves, gas fittings, ignitors, ignitor plungers, ignitor wires,
electrical connectors, mounts, and lag bolts.
THE APPLIANCE IS NOT UL RATED OR AGA/CSA CERTIFIED.
THE PURCHASER ASSUMES ALL RISK IN THE OPERATION OF THIS APPLIANCE.
THE APPLIANCE IS FOR OUTDOOR DECORATIVE USE ONLY, AND IS NOT TO BE USED FOR COOKING OR HEAT-
ING.
WARNINGS: Only persons who have read the operating instructions for the appliance, and who can under-
stand and follow them exactly, should operate or service this appliance • Use appliance only in a well venti-
lated area • Do not use appliance inside house, camper, tent, garage, vehicle or any other enclosed area which
does not have proper ventilation • Never operate while sleeping or leave unattended • Do not operate or
place appliance on, near, or in the vicinity of any flammable materials, vapors, liquids or accelerants of any
kind; including but not limited to: bottled gases, gasoline, kerosene, diesel fuel, oil, aerosol cans, paints, thin-
ners, solvents, sealants, lubricants, chemicals, plastics, petroleum products, electronics, motors, vehicles, fer-
tilizer, gun powder, ammunition, rearms, reworks, fabrics, paper products, wood, dry vegetation etc. • Do
not operate appliance during an electrical storm • Check appliance for corrosion, debris or damage before
each use • Do not use a damaged appliance • Do not alter this appliance in any way • Appliance and propane
cylinder must be permanently secured to a stable and level surface • Fuel line must be hard piped to appliance
in accordance with local codes and ordinances by a certied gas technician • A minimum 100lb. propane cyl-
inder only must be used with this appliance • Propane cylinder must be placed at least 10 ft. from appliance •
Do not try to light the burner by hand • Before operating, smell all around the appliance for gas. Do not oper-
ate if you smell gas • Use only your hand to turn the gas valve control knob on the appliance. Never use tools.
If the knob will not turn by hand, do not try to force or repair it yourself. Call a qualied service technician •
Forced or attempted repair may result in a re or explosion • Do not use this appliance if any part has been
under water. Immediately call a qualified service technician to inspect the appliance and to replace any part
of the control system and any gas control, which has been under water. • Severe burns may occur • Keep chil-
dren and animals away from appliance • Do not touch appliance or gas controls when in operation • Do not
lean on or into appliance • Do not play on or around appliance • Do not sit on or step into appliance • Do not
put hands, feet or any body part on appliance, in or near ame • Do not throw foreign objects or any liquids
into appliance • Do not operate this appliance under the inuence of alcohol or drugs.
• LAVA ROCKS ARE FOR PURCHASE SEPARATELY & NOT INCLUDED WITH YOUR ORDER •
Please note: Most rocks contain water, and when heated will crack, split or burst. Please consult your local
landscape supply for recommendations on which rocks are best for fires before purchasing your rocks.
Supervision is essential. The appliance does not come with a screen, cage, fence, or any device that will inhibit
people or animals from falling in. Protection of the public using the appliance is the responsibility of the pur-
10

C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
C
O
L
O
M
B
O
C
O
N
S
T
R
U
C
T
I
O
N
C
O
R
P
O
R
A
T
I
O
N
.
N
E
W
Y
O
R
K
.
chaser and must be taken extremely seriously.
The purchaser further agrees to take the necessary precautions to prevent children and other unqualified per-
sons from being able to ignite or breath in closed quarters the propane or natural gas required to operate the
appliance, as well as to post or secure the appliance from unknowing persons contacting the appliance while
it is in operation, or hot, either during or after use. It is recommended that the purchaser post some form of
communication to the public warning of the danger and hot temperature of the appliance and/or to obstruct
access to and/or prevent contact with the product during the high temperatures of the product.
Signature: Date:
Please print name: Title:
Company:
Job/Project Title:
11

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
WARNINGS
12
FOR YOUR SAFETY READ BEFORE
OPERATING
!
FOR YOUR SAFETY READ BEFORE
OPERATING
!
FOR YOUR SAFETY READ BEFORE
OPERATING
!
FOR YOUR SAFETY READ BEFORE
OPERATING
!
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUC-
TIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE.
• IMPROPER INSTALLATION, ADJUSTMENT, ALTERA-
TION, SERVICE OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE.
• INSTALLATION & GAS CONNECTION IS TO BE HARD
PIPE & MUST BE DONE BY A CERTIFIED GAS TECHNI-
CIAN, QUALIFIED INSTALLER, SERVICE AGENCY OR GAS
SUPPLIER. FOR ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED INSTALLER, SERVICE
AGENCY, OR THE GAS SUPPLIER.
• THIS APLIANCE IS A DECORATIVE GAS APPLIANCE FOR
OUTDOOR USE ONLY AND MUST NOT BE USED FOR COOK-
ING.
COLOMBO CONSTRUCTION CORP disclaims any responsibility
for, and the warranty will be voided by the following actions:
• Installation & use of any damaged components.
• Modification of the burner and valve assemblies.
• Installation other than as instructed by this Owner’s Manual.
• Installation and/or use of any component part not approved
by Colombo Construction Corp.
ANY SUCH ACTION MAY CAUSE A FIRE HAZARD.
(See additional warranty info pg 6)
The installation of this appliance must conform with local
codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1.
Solid fuels are not to be burned in this gas appliance.
The appliance should be inspected before each use for debris,
damage, or corrosion, and at least annually by a qualified ser-
vice person.
• INSPECT THE APPLIANCE & COMPONENTS.
• DO NOT INSTALL DAMAGED COMPONENTS.
• DO NOT INSTALL INCOMPLETE COMPONENTS.
• REPORT DAMAGED PARTS TO DEALER.
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
More frequent cleaning may be required as necessary. It is im-
perative that control compartment, burners and circulating air
passageways of the appliance be kept clean to provide for ad-
equate combustion and ventilation air.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases.
The appliance and its individual shut-off valve must be discon-
nected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of ½ psi.
The appliance must be isolated from the gas supply piping sys-
tem by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pres-
sures equal to or less than ½ psi.
A test gage connection shall be furnished downstream of the
gas appliance pressure regulator for measuring gas pressure.
The connection shall be a 1/8 inch NPT plug or cap with cleanly
cut tapered pipe threads in accordance with the Standard for
Pipe Threads, General Purpose (Inch), ANSI/ASME B1.20.1.
If the plug is of the slotted type it shall also incorporate square
or hex flats; or when the pressure test gage connection is pro-
vided as part of the control this pressure test gage connection
shall be:
(a) A tapping sealed by a 1/8 inch NPT plug or cap with cleanly
cut tapered pipe threads in accordance with the Standard for
Pipe Threads, General Purpose (Inch), ANSI/ASME B1.20.1.
If the plug is of the slotted type, it shall also incorporate square
or hex flats; or
(b) A hose fitting with a minimum length of 0.355 in (9.02
mm) and a 0.355 in (9.02 mm) maximum/0.335 in (8.05 mm)
minimum outside diameter and which incorporates a sealing
means.
The construction of the hose fitting shall incorporate an inter-
nal restriction not greater than 0.0394 in (1.0 mm) in diameter.
Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition. Young children should be carefully super-
vised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung
from the appliance, or placed on or near the appliance.
Any guard or other protective device removed for servicing the
appliance must be replaced prior to operating the appliance.
Use outside only in well ventilated area. Do not use inside house, camp-
er, tent, garage, vehicle or any type of un-vented or enclosed area.

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
WARNINGS
FOR YOUR SAFETY READ BEFORE
OPERATING
!
Do not operate or place appliance on, near, or in the vicinity
of any flammable materials, vapors, liquids or accelerants of
any kind; including but not limited to: bottled gases, gaso-
line, kerosene, diesel fuel, oil, aerosol cans, paints, thinners,
solvents, sealants, lubricants, chemicals, plastics, petroleum
products, electronics, motors, vehicles, fertilizer, gun pow-
der, ammunition, firearms, fireworks, fabrics, paper prod-
ucts, wood, dry vegetation etc.
Do not operate appliance during an electrical storm.
Appliance must be permanently secured on a stable and
level surface.
Never operate while sleeping or unattended.
Before operating, smell all around the appliance for gas.
DO NOT OPERATE IF YOU SMELL GAS.
WHAT TO DO IF YOU SMELL GAS OR SUSPECT A LEAK:
IMMEDIATELY SHUT OFF GAS TO THE APPLIANCE AND VEN-
TILATE AREA. DO NOT STRIKE A MATCH, SMOKE, OR CRE-
ATE ANY FLAME OR ELECTRIC SPARK. FIND AND CORRECT
ANY LEAKS. USE A SOAP SOLUTION TO DETECT ESCAPING
GAS. DO NOT TOUCH ANY ELECTRICAL SWITCH. DO NOT
USE ANY PHONES IN THE AREA. IMMEDIATELY CALL YOUR
GAS SUPPLIER. FOLLOW THE GAS SUPPLIER’S INSTRUC-
TIONS. IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL
THE FIRE DEPARTMENT.
• Use only your hand to turn the gas valve control knob on
the appliance. Never use tools. If the knob will not turn by
hand, do not try to force or repair it yourself.
Call a qualified service technician.
• Forced or attempted repair may result in a fire or explo-
sion.
• Do not touch appliance or gas controls when in operation.
• Do not lean on or into appliance.
• Do not play on or around appliance.
• Do not sit on or step into appliance.
• Do not put hands, feet or any body part on appliance, in
or near flame.
• Do not throw foreign objects or any liquids into appliance.
• Do not operate this appliance under the influence of alco-
hol or drugs.
The firebowl does not come supplied with rocks. 100- 200
lbs. of 6” to 10” lava rocks are recommended. Some rocks
contain water and when heated will crack, split or burst.
Please consult your local landscape supply for recommenda-
tions on which rocks are best for fires.
LEAK TESTING PROCEDURE
• Perform a leak test at least once each year whether the gas
supply has been disconnected or not.
• Conduct a leak test anytime the gas supply is connected to
the regulator or any part of the gas system is disconnected
or replaced.
• As a safety precaution, remember to always leak test your
Firebowl/Fire Feature outdoors in a well-ventilated area.
• Never smoke or permit sources of ignition in the area while
doing a leak test.
• Do not use a flame, such as a lighted match to test for leaks.
Use only a leak testing solution as specified below.
Leak Testing Procedure:
1. Prepare a leak testing solution of sudsy water by mixing in a
spray bottle half-liquid soap and half water.
2. Check and make sure all the control knobs are in the OFF position.
3. Turn gas supply valve counter clockwise one turn to open.
4. Apply leak-testing solution by spraying on joints of the gas
delivery system.
5. Blowing bubbles in the soap solution indicates that a leak is
present.
6. Stop a leak by tightening the loose joint or by replacing the
faulty part with a replacement part recommended by the manu-
facturer. Do not attempt to repair the gas supply valve if it should
become damaged. The gas supply valve must be replaced.
7. If you are unable to stop a leak, close the valve at the gas
supply. Call an authorized gas appliance service technician or
LP gas dealer. Do not use the appliance until the leak is cor-
rected.
8. Push in and turn any control knob to release pressure in the
hose and manifold.
9. Turn off the control knob.
13

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
!!!!
WARNINGS/
WARRANTY
FOR YOUR SAFETY READ BEFORE
OPERATING
FOR YOUR SAFETY READ BEFORE
OPERATING
FOR YOUR SAFETY READ BEFORE
OPERATING
FOR YOUR SAFETY READ BEFORE
OPERATING
LP SPECIFICATIONS:
For an appliance designed for use with a self-contained LP-gas
supply system, a minimum of 100lb tank is to be used.
Storage of an appliance indoors is permissible only if the appli-
ance is disconnected from the gas supply.
If the pressure regulator is supplied with the appliance, it must
be used. Replacement pressure regulators must be those speci-
fied by the manufacturer.
The gas supply system must be arranged for vapor withdrawal.
If you build an enclosure for a self-contained LP-gas supply sys-
tem, follow these recommended specifications and local codes:
Enclosures must be ventilated by openings at the level of the
gas supply valve and at floor level. Effectiveness must be deter-
mined with the gas suppy tank in place.
One side of the enclosure must be completely open or, for an
enclosure having four sides, a top and a bottom:
• At least two ventilation openings at gas supply valve level
shall be provided in the side wall, equally sized, spaced at 180
degrees (3.14 rad), and unobstructed. Each opening must have
a total free area of not less than 1/2 square inch per pound (3.2
sq. cm/kg) of stored fuel capacity and not less than a total free
area of 10 square inches (64.5 sq. cm).
• Ventilation opening(s) must be provided at floor level and
shall have a total free area of not less than 1/2 square inch per
pound (3.2 sq. cm/kg) of stored fuel capacity and not less than
a total free area of 10 square inches (64.5 sq. cm). If ventilation
openings at floor level are in a side wall, there must be a least
two openings. The bottom of the openings must be at floor
level and the upper edge can’t be more than 5 in. (127 mm)
above the floor. The openings must be equally sized, spaced at
180 degrees (3.14 rad) and unobstructed.
• Every opening must have minimum dimensions to permit the
entrance of a 1/8 inch (3.2 mm) diameter rod.
Gas supply valves must be readily accessible for hand opera-
tion. A door on the enclosure to gain access to the gas sup-
ply valves is acceptable, provided it is non-locking and can be
opened without the use of tools.
The design of the enclosure must be such that:
• The LP-gas supply can be connected, disconnected and the
connections inspected and tested outside the gas supply tank
enclosure.
• Those connections which could be disturbed when installing
the gas supply tank in the enclosure can be leak tested inside
the enclosure.
• Be certain to mount or set the LP gas supply tank on a flat sta-
ble surface and retain it to prevent it from tipping.
• There must be a minimum clearance of 2 in. (50.8 mm) be-
tween the lower surface of the floor of the LP gas supply tank
enclosure and the ground.
WARRANTY INFO:
(A) COLOMBO CONSTRUCTION CORP WARRANTS & REP-
RESENTS THAT THE APPLIANCE PURCHASED SHALL CON-
FORM TO THE SPECIFICATIONS PROVIDED HEREIN & BE
FREE FROM DEFECTS IN MATERIALS & WORKMANSHIP
UNDER NORMAL USE FOR A PERIOD OF 90 DAYS FROM
THE DATE OF DELIVERY.
COLOMBO CONSTRUCTION CORP WILL REPAIR OR RE-
PLACE, AT ITS OPTION, ANY DEFECTIVE PRODUCTS. THIS
WARRANTY IS BUYER’S EXCLUSIVE REMEDY FOR DEFEC-
TIVE PRODUCTS & IS SOLELY FOR THE BENEFIT OF THE
ORIGINAL PURCHASER.
COLOMBO CONSTRUCTION CORP SHALL ALSO PASS
THROUGH TO BUYER ALL WARRANTIES PROVIDED BY ITS
MANUFACTURER & SUBCONTRACTORS.
(B) THIS WARRANTY DOES NOT COVER DAMAGE CAUSED
BY IMPROPER USE, OPERATION, INSTALLATION, MAINTE-
NANCE, ACCIDENT, SOLVENTS, MODIFICATIONS, PROB-
LEMS CAUSED BY EQUIPMENT OF ANY OTHER EXTERNAL
CAUSES.
COLOMBO CONSTRUCTION CORP WILL NOT BE LIABLE
FOR ANY DAMAGE, LOSS OR INJURY OF ANY NATURE
INCLUDING LOST PROFITS OR CONSEQUENTIAL DAM-
AGES. EXCEPT AS EXPRESSLY PROVIDED IN THIS WAR-
RANTY, THE COMPANY MAKES NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. UNDER NO CIRCUMSTANCES SHALL THE COM-
PANY BE LIABLE FOR ANY LOSS OR DAMAGE IN EXCESS
OF THE AMOUNT PAID BY BUYER FOR THE PRODUCT.
This warranty gives Buyer specific rights. Buyer may
also have additional rights under the laws of the State
in which it resides.
14

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
FRONT VIEW
TOP VIEW
8 3/4"
10"
54" DIA
SIDE VIEW
GENERAL SPECIFICATIONS
The firebowl must be installed on site, pres-
sure and leak checked by a certified gas
technician as per national and local, build-
ing, gas, fire, and safety codes and ordi-
nances.
This appliance comes supplied with a Max-
itroll 325-5AL Individual low pressure appli-
ance regulator. An additional ‘plain view’
emergency gas shut-off valve is to be sup-
plied and installed by a certified gas techni-
cian as per national and local, building, gas,
fire, and safety codes and ordinances.
BURNER & BTU SPECIFICATIONS
The burner for this appliance is assembled
and tested by:
Charles A. Hones Inc., P.O. Box 405 - 355 NY
State Route 49, Cleveland, NY 13042, (315)
623-2124
The burner is a special, stainless steel, “Yel-
low Flame” burner, and is rated at a mini-
mum of 150,000 and a maximum of 300,000
BTU’s. The burner is supplied with the ap-
propriate brass orifice for use with either
natural gas (NG) or propane (LP).
OPERATING PRESSURES
• Propane: Standard operating pressure: 11
inches water column, minimum operating
pressure: 10 inches water column, maxi-
mum operating pressure: 12 inches water
column.
• Natural gas: Standard operating pressure:
6 inches water column, minimum operating
pressure: 5 inches water column, maximum
operating pressure: 7 inches water column.
HIGH-ALTITUDE OPERATION
No adjustments are required for high-alti-
tude installation.
OVERVIEW
15
54LL Firebowl

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
45” DIAMETER
LL = LITTLE LIP
NL = NO LIP
54” DIAMETER
LL = LITTLE LIP
NL = NO LIP
68” DIAMETER
L = LIP
NL = NO LIP
SIZE CHART
LIP OPTIONS
16

Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
LEGEND
Feet
Burner
Pilot Sighting Tube
Pilot Guard
Pilot Assembly
Venturi Air Mixer
Venturi Air Shutter
Orifice
1/2” Connection to Control Valve
Gas Valve Control Knob
Baso Safety Valve
Maxitrol 325-5AL Low Pressure Regulator
Control Panel
COMPONENTS
EXPLODED VIEW
MODEL SHOWN: 54LL
17
1
2
3
4
5
6
7
8
9
10
11
12
13
MANUAL PILOT FIREBOWL

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
CONTROL
PANEL
18
FRONT PLATE
LEGEND
Burner Plate
Pilot Lighting Button
Control Panel
Gas Valve Control Knob
BEHIND THE FRONT PLATE
LEGEND
H15DA-3C Baso Safety Valve
3/4” Ball Valve (Flame adjustment)
K16BA-48 #22 Baso Thermocouple
1/4” Pilot Gas Feed
1/2” Connection to Control Valve
Orifice
Venturi Air Mixer
1
2
3
4
1
2
3
4
5
6
7

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
VENTURI/
ORIFICE
VENTURI/ORIFICE ASSEMBLY
LEGEND
90M Stainless Steel Venturi Air Mixer
Venturi Air Shutter
1/4” Brass Orifice
1/4” NPT Brass Compression Tube Fitting
Elbow Adapter
OXYGEN INTAKE ADJUSTMENT
The Venturi is factory set with a set screw.
Before operation, check to see that the Ven-
turi is set in the position to the left.
The positioning keeps the flame looking
yellow and natural. The more oxygen you
let in, the smaller and bluer the flame, If the
oxygen is shut off completely, the flame will
contain more soot and unburned contami-
nents.
1
2
3
4
19

MANUAL PILOT FIREBOWL
Side Mounted Ignition •45 •54 •68 NL & LL Firebowl
BURNER/PILOT
BURNER
Special 150,000 to 300,000 BTU cross style
“Yellow Flame” burner tested prior to
shipping
LEGEND
Burner Mounting Leg
1” Schedule 40 Stainless Steel Cross Burner
90M Stainless Steel Venturi Air Mixer
LEGEND
Pilot Sighting Tube Mounting Post
1/4” Gas Feed
Pilot Mounting Ring
J990MDA-2 Baso Pilot Assembly
K16BA-48 #22 Baso Thermocouple
20
PILOT
The Pilot Assembly is located under the Pilot
Guard.
1
2
3
1
2
3
4
5
