WARNING
For Outdoor Use Only (outside,
non-enclosed area Do Not Use For Cooking.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
FOR YOUR SAFETY:
FIRE OR EXPLOSION HAZARD
DANGER
If you smell gas:
1.Shut off gas to appliance.
2.Extinguish any open flame.
3.If odor continues, leave the area
immediately.
4.After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion, which
could cause property damage,
personal injury, or death.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
FOR YOUR SAFETY:
WARNING
1. Do not store or use gasoline , or other flammable
vapors and liquids, in the vicinity of this or any other
appliance.
2. An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
DANGER • This appliance can produce
carbon monoxide which has
no odor.
• Using it in an enclosed space
can kill you.
• Never use this appliance in
an enclosed space such as a
camper,tent, car or home.
DANGER
Do NOT leave this appliance unattended while it is in
operation.
FOR YOUR SAFETY:
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.
FOR YOUR SAFETY:
WARNING
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch;
do NOT use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone.
•Follow the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
If you are assembling this unit for
someone else, give this manual to
him or her to read and save for
future reference.
USER'S MANUAL
FIRE TABLE
NP10164
FHTS80217B

Table of Contents
This appliance complies with "ANSI Z21.97-2017-/CSA2.41 -2017,
Outdoor Decorative Gas Appliances."
California Proposition 65: This product can expose you to carbon
monoxide, which is a combustion by product known to the State of
California to cause cancer birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
California Proposition 65: Handling the brass material on this product
can expose you to Lead, which is known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash
hands after handling.
Package Contents
Important Safety Information
Propane (LP) Dangers And Warnings
Caution
Hose & Regulator Assembly and replacement

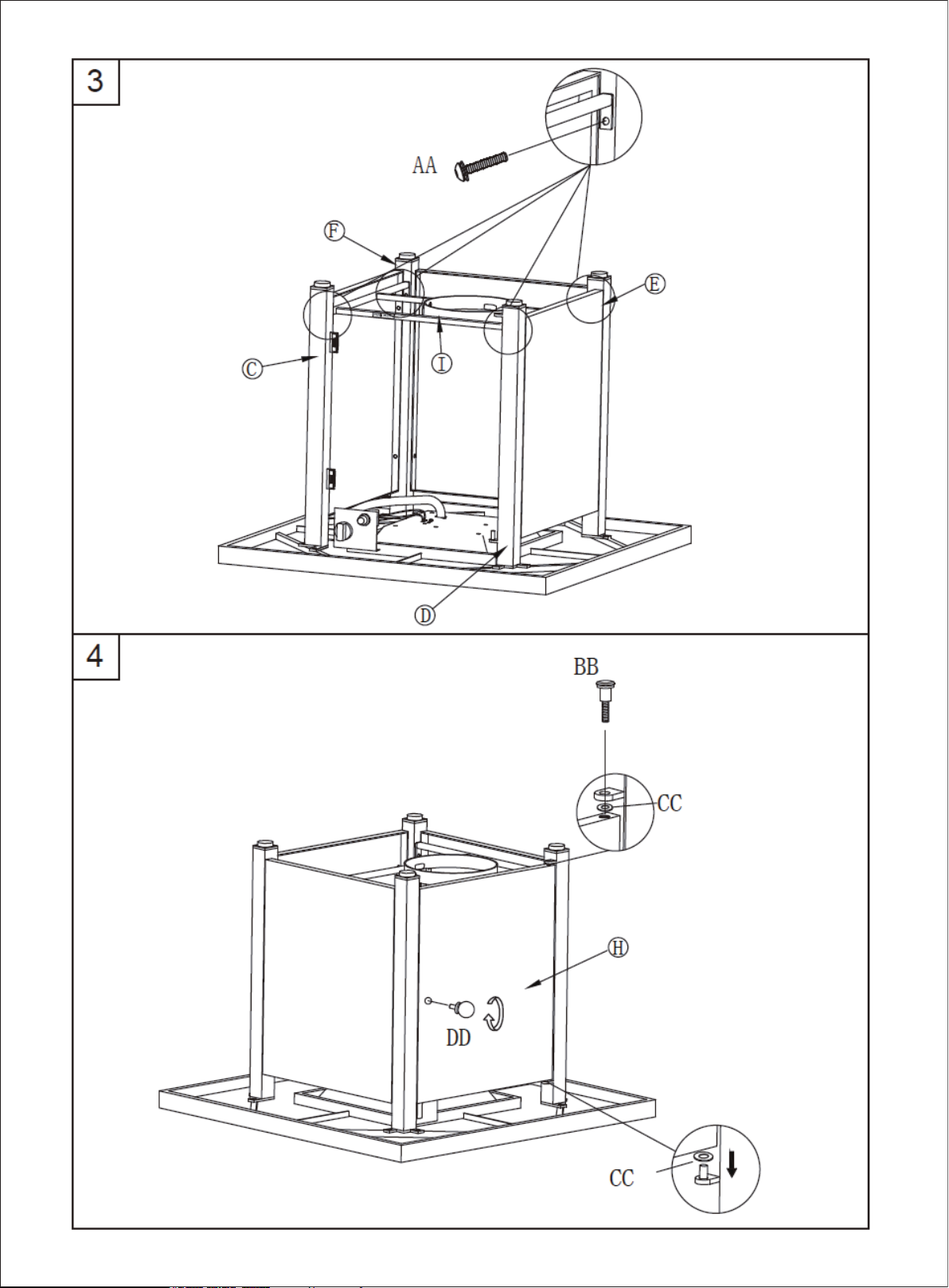

Assembly Instructions
Operating Instructions
Cleaning and Care
02

PACKAGE CONTENTS
03

04

05

06

2
07

2
08

09

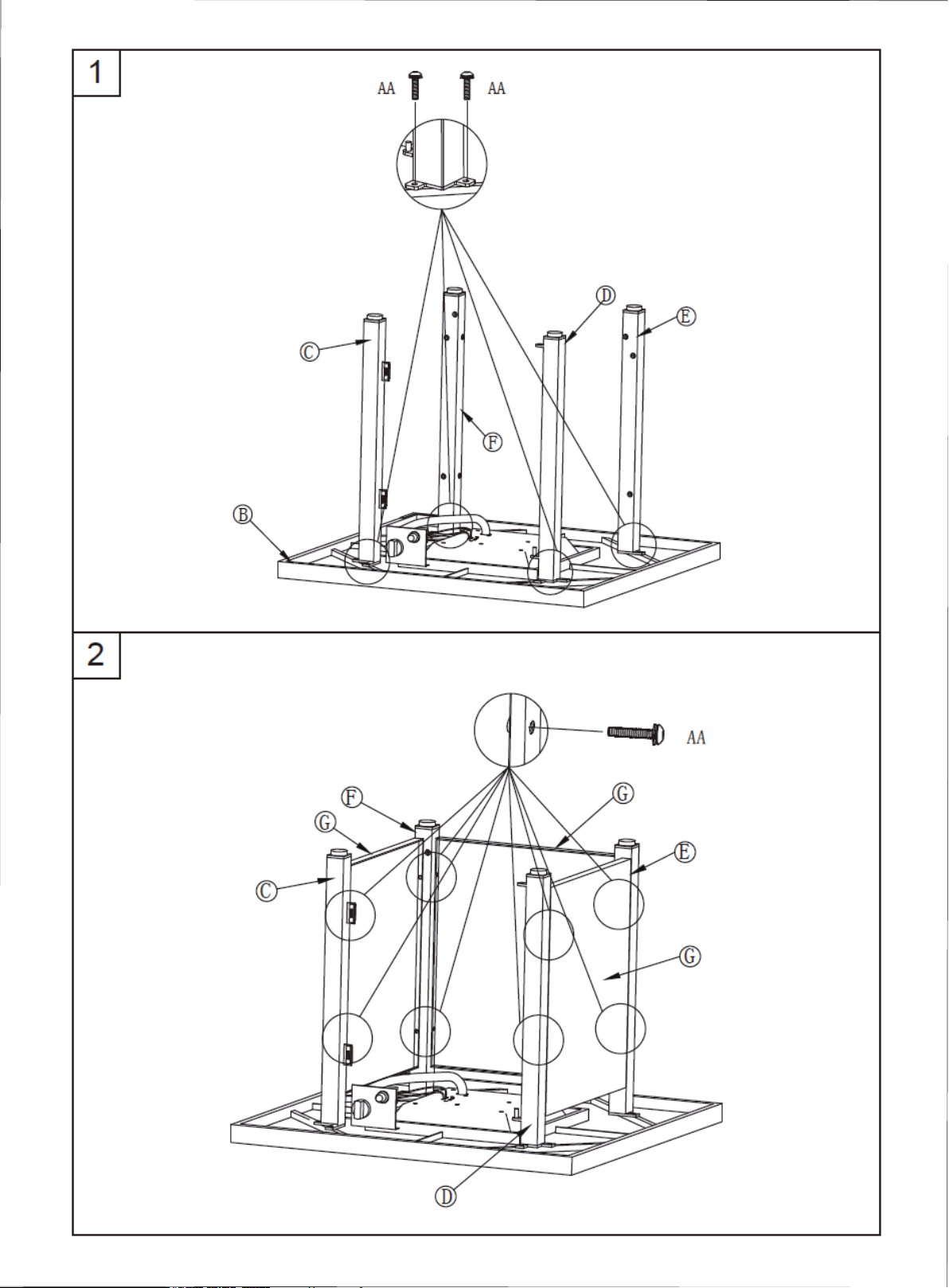

a pictorial diagram in at least two views or a single exploded view depicting proper
positioning of field assembled parts. The following statement must be included with the
pictorial diagrams:
“WARNING: Failure to position the parts in accordance with these diagrams or failure to
use only parts specifically approved with this appliance may result in property damage or
personal injury.”
10

IMPORTANT SAFETY INFORMATION
WARNING FIRE TABLE IS FOR OUTDOOR
USE ONLY
Installation and repair should be done by a qualified service person. The
appliance should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners and circulating air
passageways of the appliance are kept clean.
WARNING Failure to follow the dangers, warning and cautions in this manual may
result in serious bodily injury or death, or in a fire or an explosion causing damage to
property.
IMPORTANT NOTICE Read and understand all warnings and precautions prior to
assembly and use of your gas fire table. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage.
Note The use and installation of this product must conform to local codes. In the
absence of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA54.
Reference to Natural Gas and Propane Installation code CSA B149.1 or Propane
Storage and Handling code B149.2.
Minimum Clearance from Unit to Combustible Materials
65 in (165.1cm) from the top: 48 in (121.9cm) from all sides and back. Do not locate
this fire table under any overhead enclosure.
IF YOU SMELL GAS
・Shut off gas supply to the fire table.
・Extinguish any open flame.
・Do not try lighting any appliance.
・Do not touch any electrical switch; do not use any phone in your building.
・Immediately call your gas supplier from a neighbor's phone.
・Follow the gas supplier's instructions.
・If you cannot reach your gas supplier, call the fire department.
Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
This outdoor fire table is not to be operated by children.
Young children should be carefully supervised when they are in the
area of the appliance.
11

IMPORTANT SAFETY INFORMATION
Clothing or other flammable materials should not be hung from the appliance or
placed on or near the appliance. Any guard, barrier, or other protective device
removed for servicing the appliance shall be replaced prior to operating the
appliance.
・Keep these instructions for future reference. If you are assembling this unit for
someone else, give this manual to him or her to read and keep for future reference.
・This gas fire table must be used ONLY outdoors in a well-ventilated space and
shall NOT be used inside a building, garage, or any other enclosed area.
・DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon
monoxide fumes can accumulate and cause asphyxiation.
・NEVER LEAVE this gas fire table unattended when in use.
・This unit is to be used with propane gas & natural gas only (sold separately).
・Do not use a flame to check for gas leaks.
• Do not store or use gasoline or other flammable vapors and liquids within 25 feet
(7.62m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
■ The use of alcohol, prescription or non-prescription drugs may impair an
individual's ability to properly assemble or safely operate this outdoor fire table.
• DO NOT use in an explosive atmosphere. Keep gas fire table area a clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
▪ This outdoor fire table is not to be installed or used in or on recreational vehicles
and/or boats.
▪ Always use in accordance with all applicable local, state and national codes.
Contact your local fire department for details on outdoor burning.
▪ Use the same precautions you would with any open fire when using this outdoor
fire table.
▪ DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal,
manufactured logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or
stained or pressure treated wood in this outdoor fire table.
▪ DO NOT paint or color any part of this heating unit.
▪ DO NOT use this outdoor fire table until it is COMPLETELY assembled and all
parts are securely fastened and tightened.
12

▪ DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table
while it is in operation.
▪ DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational
vehicles.
▪ DO NOT use this outdoor fire table under any overhead structure or near any
unprotected combustible constructions.
Avoid using near or under overhanging trees and shrubs.
▪ Always use this outdoor fire table on a hard, level non-combustible surface such
as concrete, Glass Beads or stone. An asphalt or blacktop surface may not be
acceptable for this purpose.
▪ DO NOT use this outdoor fire table if any part has been under water. Immediately
call a qualified service technician to inspect the fire table and to replace any part or
control system and any gas control which has been under water.
▪ Always remove protective cover before operating (if applicable).
▪ DO NOT set the protective cover over the unit until it is turned off and completely
cooled down.
▪ DO NOT use in windy conditions.
▪ Keep all electrical cords away from a hot outdoor fire table.
▪ Certain areas of this outdoor fire table when in use will become too hot to touch.
Do not touch hot surfaces until the unit has cooled unless you are wearing
protective gear such as insulated pot holders or heat resistant gloves or mittens to
avoid burns.
▪ DO NOT attempt to move or store this outdoor fire table until all parts
are cool.
▪ DO NOT lean over this outdoor fire table when lighting or when in use.
▪ Use only the regulator and hose assembly provided. The replacement
regulator and hose assembly shall be that specified by the
manufacturer.
▪ DO NOT attempt to disconnect the gas regulator from the tank or any
gas fitting while the outdoor fire table is in use.
▪ Always shut off the supply at the tank valve and disconnect regulator
from the tank when the fire table is not in use.
▪ DO NOT sit on the fire table when the unit is in operation.
▪ DO NOT throw anything onto the fire when the unit is in operation.
▪ Glass Beads are very hot; please keep children or pets at a safe
distance.
13

▪ It is essential to keep the outdoor fire table valve compartment,
burners, and circulating air passages clean. Inspect outdoor fire table
before each use.
▪ Check for leaks after not using the unit for long periods of time.
▪ Prior to each fire table operation, visually check the hose for evidence
of excessive abrasion or wear.
If the hose is damaged, cracked or cut, it must be replaced before using
the gas fire table. The hose assembly can only be replaced with a hose
assembly specified by the manufacturer. Please call: 844-242-1885
• Before each use, remove the Glass Beads. Examine the burner and its
components. If dirty, clean with a soft brush and soapy water solution.
Also examine the area around the burner. Any dirt or foreign material,
such as spider webs or nests in this area should be removed. If it is
evident that the burner is damaged, the fire table must not be used. The
burner assembly can not be replaced. Please call：844-242-1885 for
technical support.
• Place the hose out of the pathways where people may trip over it (if
using external tank). Do not place the hose in areas where it may be
subjected to accidental damage.
• ATTENTION: Any alteration of the outdoor fire table that is not
specifically directed in the operations manual will void manufacturer
warranty.
14

LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the
characteristics before using any LP gas product.
Propane Characteristics:
• Flammable, explosive under pressure, heavier than air and settles in pools in low
areas.
• In its natural state, propane has no odor. For your safety, an odorant has been
added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
LP GAS WARNINGS:
• Cylinders must be stored outdoors in a well-ventilated area out of reach of
children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must
not be stored in a building, garage or any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by
your propane gas supplier.
• Be sure to use only one 20lb (9.1 kg) LP gas cylinder with a Type 1 valve with this
appliance as required by the American National Standards Institute (ANSI) and the
Canadian Standards Steering Committee.
• Only tanks marked "propane" may be used.
• The LP gas supply tank must be constructed and marked in accordance with the
Specifications for LP gas tanks of the U.S. Department of Transportation (DOT) or
the National standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and
Tubes for the Tran spoliation of Dangerous Goods.
• LP gas tank must be arranged for vapor withdrawal.
• The LP gas tank must have a listed overfilling prevention device (OPD) and a
QCCI or Type I (CGA810) LP gas tank connection.
• The LP gas tank must have a tank collar to protect the tank valve.
LP gas cylinder must contain a shut-off valve as specified in the standard for
compressed gas cylinder valve outlet and inlet and inlet connection, ANSI/CGA-V-1
-1977, CSA B96.
PROPANE (LP) DANGERS AND WARNINGS
15

• Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented
or rusted LP gas tanks may be hazardous and should be checked by your LP gas
supplier prior to use.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a
building, garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F.
• Do not store the LP gas cylinder in direct sun light or near a source of heat or
combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas
pressure to increase, which may open the relief valve and allow gas to escape.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install
the type of dust cap on the LP gas tank valve outlet that is provided with the LP gas
tank valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or
serious injury may occur.
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11 inches of water column (pressure).
• The maximum inlet propane gas pressure for this outdoor fire table is 250 psi.
• The minimum inlet propane gas pressure for this outdoor fire table is 25 psi.
• The maximum inlet natural gas pressure for this outdoor fire table is 10.5 inch w.c.
• The minimum inlet natural gas for this outdoor fire table is 3.5 inch w.c.
• Never attempt to attach this appliance to the self-contained LP gas system of a
camper trailer, motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance
to connect to a LP gas cylinder. Never connect to an unregulated LP gas supply.
For technical support contact please call: 844-242-1885
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn
by hand, do not try to repair it. Call a Certified Gas Technician.
The use of force or any self attempted repair may result in a fire or explosion.
Connecting your gas cylinder:
Before connection, be sure that there is no debris caught in the head of the gas
cylinder, head of the regulator valve or in the head of the burner and burner ports.
Connect regulator valve and hand-tighten firmly. Disconnect the propane cylinder
from the regulator valve when the fire table is not in use. DO NOT obstruct the flow
of combustion air and ventilation air to the burner.
16

CAUTION: After lighting - using a fireplace tool and heat-resistant
gloves, carefully move the Glass Beads back to their proper
position, being careful to avoid the flame.
CAUTION: If ignition does not occur in 5 seconds, turn control
knob to “ OFF”, wait 5 minutes, fan with a newspaper or
magazine and repeat lighting procedure.
CAUTION
CAUTION:
1. All cleaning and maintenance should be done when outdoor fireplace
is cool and with the fuel supply disconnected.
2. Do not clean any outdoor fireplace part in a self-cleaning oven, the
extreme heat will damage the finish.
3. Do not enlarge valve orifices or burner ports when cleaning the
valves or burners.
CAUTION: NEVER place cover on hot outdoor fire table.
CAUTION: For battery
1. Caution for ingestion.
2. Non-rechargeable: batteries are not to be recharged.
3. Batteries are to be inserted with the correct polarity.
4. Exhausted batteries are to be removed from the product.
17

Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 60 minutes
PREPARATION
1.This fire table comes equipped with a standard LP gas hose and regulator
including the appliance side connection for a CGA No 791 Cylinder Connection
Device. The LP gas hose and regulator supplied with this fire table must be used.
Only a hose and regulator specified by manufacturer can be used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device that
acts to limit the flow of gas if a leak is detected between theregulator and the burner
valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being
opened, the connection will interpret this free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to the
appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas
cylinder service valve to ensure that the connection flow limiting device is not
triggered mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas
cylinder service valve and the burner valve, wait 10 seconds to allow the device to
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if
the hose contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of
cracks, abrasions, cuts or damage of any kind, do not operate the appliance. Fix or
replace the hose as required before using the appliance. For assistance with repair
or replacement of the hose, send email to [email protected] Use only
replacement parts from the manufacturer.
HOSE & REGULATOR ASSEMBLY AND
REPLACEMENT
18

b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder
when replacing the cylinder or at least once per year. If there is any indication of
damage, have the seal replaced by a certified gas dealer before operating the
appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP gas
cylinder service valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA
No 791 connection on to the LP gas cylinder service valve.
6. "Leak Test" should always be performed after attaching the connection to the LP
gas cylinder service valve. (See "Checking for Leaks"
section of this manual on page 10).
7. For the connection of the hose and regulator to the LP tank, refer to the
"Connection" section of the LP gas cylinder section above.
Glass Beads Warning:
1. Glass Beads may have sharp edges. Wear safety glasses and gloves when
handling.
2. Do not change or substitute the Glass Beads provided with this fire pit. If
replacing, use only replacement Glass Beads media available from your local
authorized dealer/distributor.

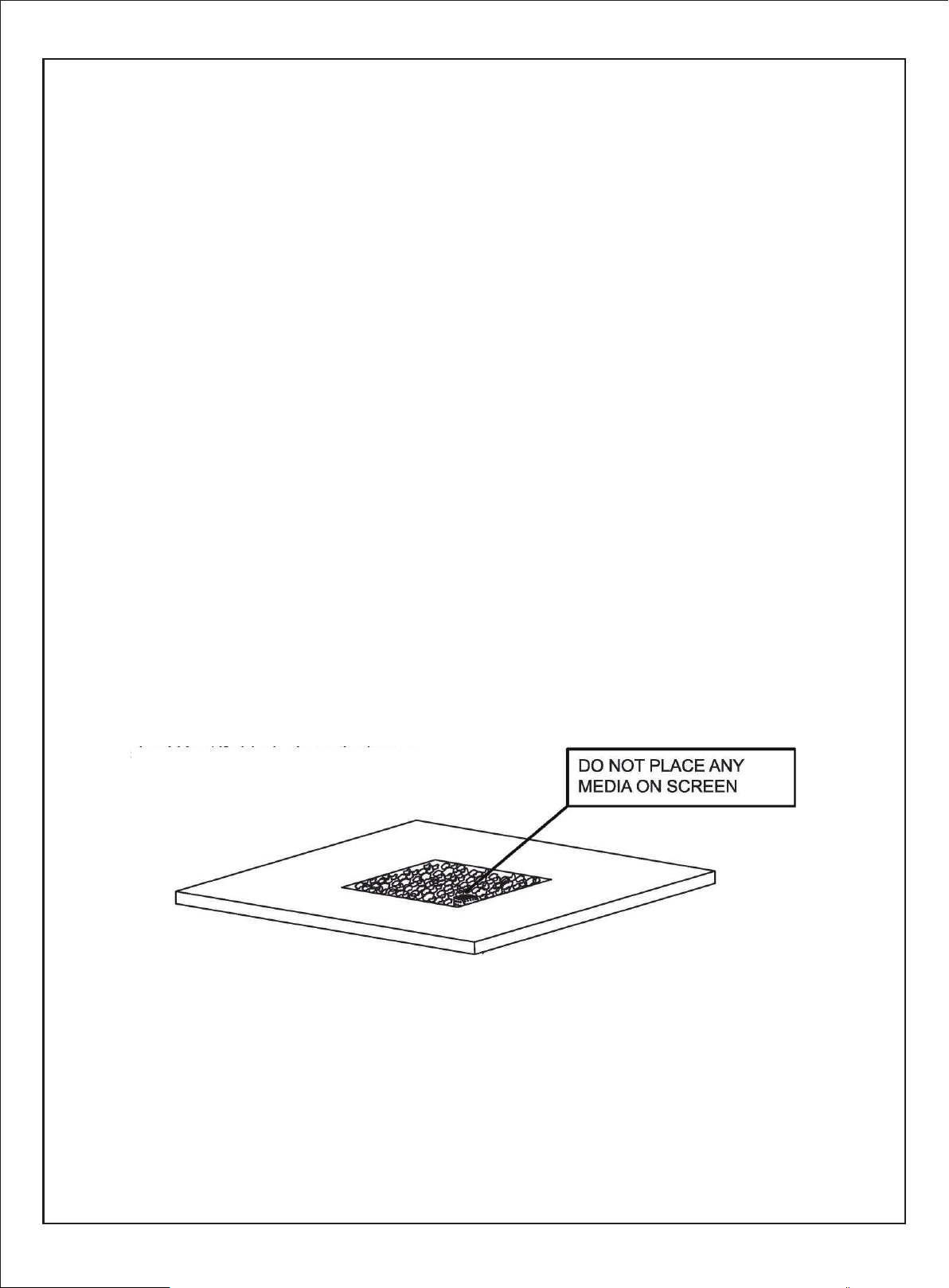

3. Pour the Glass Beads media evenly into the burner area (with the exception of
the screen-if applicable). The Glass Beads should be 1/2-1 inch above the burner.
4. IMPORTANT: Do not exceed a height of 1 inch above the burner when placing
Glass Beads media. Ensure no media covers the igniter screen. Store any excess
media in a safe location.
5. Keep away from the unit for the first 20 minutes after igniting your unit for the first
time, as lava rocks/pumice stones /glass shards/glass beads could pop out and
cause injury. Should any Glass Beads pop out, discard them.
6. Always ensure that lava rocks/pumice stones/glass shards/glass beads are
completely dry before use. Failure to do so will cause them.to crack or pop.
19
