Fisher & Paykel WASHSMART WA60T56G User manual

INSTALLATION GUIDE / USER GUIDE
NZ AU SG ROW
WASHSMART™ AND QUICKSMART™
CLOTHES WASHERS
WA60T56G, WA55T56G, MW60, MW513,
WA8056G & WA8056M models

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 5
Before you do your first wash 11
Getting started quickly — WashSmart™ washer 12
Getting started quickly — QuickSmart™ washer 14
Washer safety features 16
Sorting 17
Loading 18
Detergent 19
Fabric softener 20
Wash cycles — WashSmart™ washer 21
Wash cycles — QuickSmart™ washer 22
Wash options 23
Favourite cycle 28
Customising the wash cycles 29
Changing pre-set options 30
Caring for your washer 35
Before you call for service 37
Troubleshooting 39
Manufacturer’s Warranty 43
Customer Care 45

3
INTRODUCTION
Welcome to your Fisher & Paykel clothes washer
Thank you for buying a Fisher & Paykel washer. We are proud of this washer and trust it
will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic and kind to the environment. Thousands of tonnes of washing and over
80years of laundry experience have been programmed into your washer to help give
you the best possible performance.
Your washer has numerous wash cycles and options so you can perform every wash task
with ease and spend less time in the laundry. With the ability to select the most efficient
water level for each load, your Fisher & Paykel washer makes it kinder on your wallet
and the environment.
Please take the time to read these instructions carefully before you begin using your
washer. Following the advice in this user guide will ensure you get the performance you
expect from your washer and that you get the best possible wash results.
We hope you enjoy your new washer. We have certainly enjoyed designing it for you.
WashSmart™ washer QuickSmart™ washer

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
 This clothes washer is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they are supervised or given instructions on how to use the clothes washer by
someone responsible for their safety, and they understand the hazards involved.
 The clothes washer should only be used for washing and rinsing of textiles where this
is indicated on the care label.
 Keep children away from the clothes washer while it is in operation.
 Children should be supervised to ensure that they do not play with the appliance.
 Cleaning and user maintenance shall not be completed by children without supervision.
 The only user removable parts of the clothes washer are the inlet hoses and agitator.
No other parts are designed to be removed by anyone other than a Fisher&Paykel
trained and supported service technician.
 The lid will be locked for stages of the cycle for safety reasons.
 Never force open the lid.
 When disposing of the clothes washer, it is recommended that the lid is taped down
to avoid children getting trapped inside, and that the electrical cable is cut off close
to the clothes washer.
 Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances
to the wash water. These substances give off vapours that could ignite orexplode.
 Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.

5
INSTALLATION INSTRUCTIONS

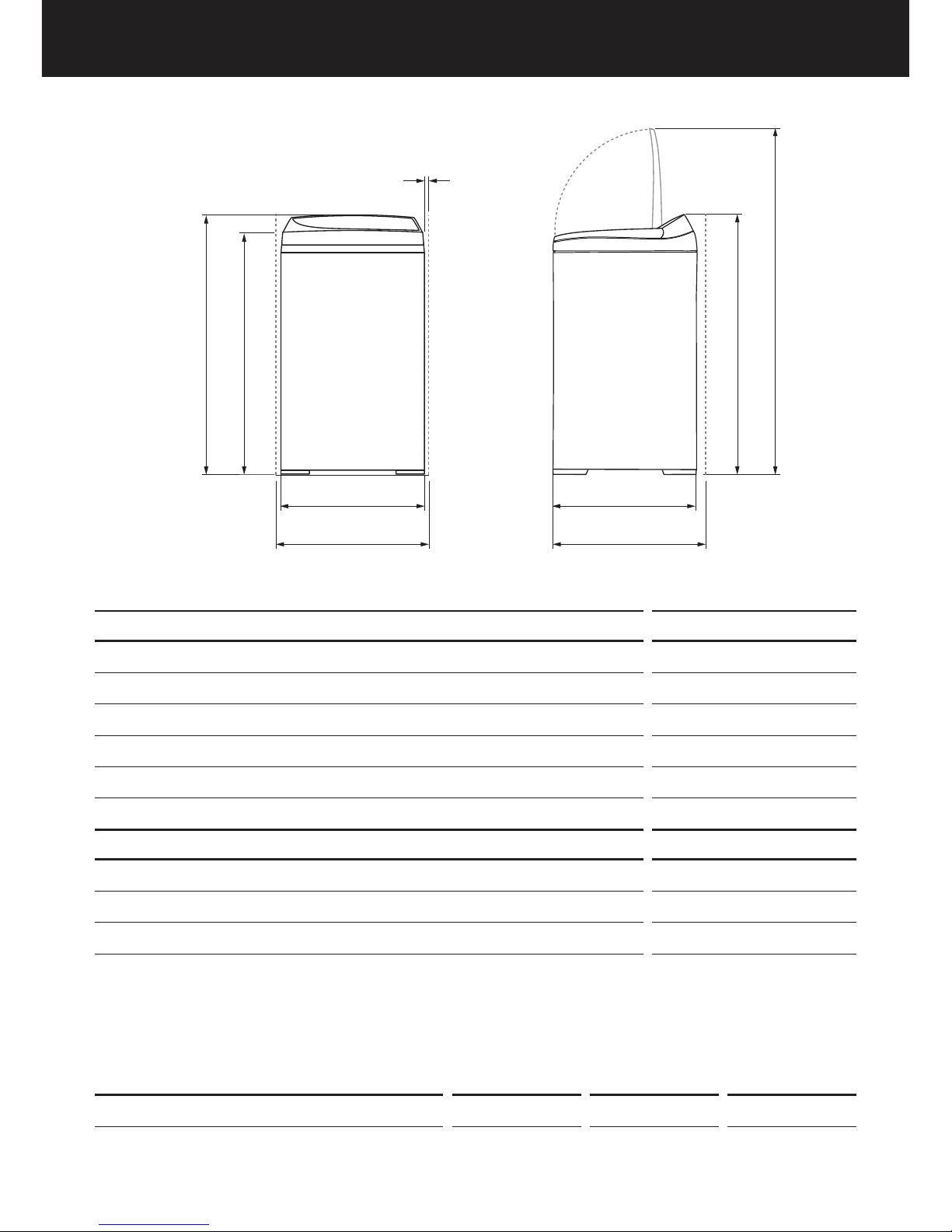

Product and minimum clearance dimensions
WA**56* OR MW*
PRODUCT DIMENSIONS mm
AOverall height of product † (to highest point of console) 1020 – 1050
BOverall width of product 560
CDepth of product 560
DHeight of product to top of lid † (closed) 920 – 980
EHeight of lid open † (measured from bottom of product) 1320 – 1350
Standpipe height 850–1200
MINIMUM CLEARANCES mm
FMinimum cavity width 600
GMinimum depth clearance (including inlet and drain hoses) 620
HMinimum clearance to either side or wall # 20
† Includes adjustable mounted feet and the range of movement.
# Applies either side.
MW5*
WA5*
MW6*
WA6* WA8*
Maximum capacity (kg) 5.5 6.0 8.0
Note: maximum capacity may differ according to market, and the associated standards.
FRONT VIEW PROFILE VIEW
A
B
D
F
C
G
E
A
H

6
INSTALLATION INSTRUCTIONS
Unpacking
To ensure the best performance from your new washer please follow the instructions below.
Removing the packaging
1Remove the outer packaging.
2Tilt the washer backwards and walk it off the
base packer one foot at a time (ensure the lid
is still taped down).
3Remove the base packer from under the
washer by tilting the washer backwards and
pulling the packer out the front.
4Remove the tape, lift the lid and remove the
bowl packer from the bowl.
5Remove the hoses and accessories.
6Keep the base packer and bowl packer in case
they are required for future transit.
IMPORTANT!
Please ensure that the base packer has been removed BEFORE OPERATING your washer.
Location
IMPORTANT!
Install the washer on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpets, rugs).
In your washer you will find:
 1hose guide.
 2inlet hoses.
 User guide
Drain hose
1Carefully pull the drain hose out from the back
of the washer by pulling the exposed part of the
hose downward and outward.
2To guide the drain hose over the tub or
standpipe the hose guide MUST be fitted to the
drain hose.
IMPORTANT!
To prevent siphoning the drain hose should
not extend more than 20mm from the end of
the guide. The height of the standpipe or tub
should be between 850–1200mm. The drain
hose can be trimmed to length.
3Place the drain hose in the tub or standpipe. Do
not fit the hose to a drain spigot. Drainage must
not be airtight in order to prevent siphoning.
Tilt washer backwards to remove packer
Pull hose
through
guide
Flex hose
guide apart
Standpipe 850–1200mm
(20mm)
maximum
Fitting the drain hose guide

7
INSTALLATION INSTRUCTIONS
Electrical connection
 This appliance must be supplied with a 220–240V, 50Hz, sinusoidal, 10Aelectrical supply.
 Check the power cord for damage, making sure it is not squashed or twisted.
 A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, in order to avoid a hazard.
 The appliance must not be operated until it is repaired, as there is a risk of electric shock.
Draining
 Regularly check that your standpipe or tub is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
 In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain.
 Draining must comply with local by-laws.
Water supply
IMPORTANT!
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
 If you have an uncontrolled water heating source (eg a wet back or solar heating
system) you should fit a tempering valve. This will ensure the hot water temperature
remains within safe limits.
 Contact your registered plumber to select and install the tempering valve.
 Inlet water static pressure: Max.1MPa(150psi) Min.34KPa (5psi)
 Inlet water flow rate at tap: Min.6litres/min
IMPORTANT!
 This appliance must be installed in accordance with the installation instructions
before use.
 Provide accessibility to the plug or incorporate a switch in the fixed wiring in
accordance with the wiring rules to allow disconnection of the appliance from the
supply after installation.
 Do not operate this washer if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher&Paykel trained and supported service technician.

8
INSTALLATION INSTRUCTIONS
Inlet hoses
IMPORTANT!
WARNING: Failure to adhere to the following instructions
may result in a flood and damage to property.
 New hose sets provided with the washer shall be used to
connect the washer to the water supply.
 Old hose sets should not be used.
 We recommend replacing the inlet hoses every 5years.
 Hoses should be checked from time to time and replaced
ifany wear, cuts, bulges, kinks or leaks are found.
1Connect the straight ends of the inlet hoses to the taps (thereare washers fitted in
both ends). Connect the red connector hose to Hot, and the white connector hose
toCold.
2Connect the elbow ends of the inlet hoses to the corresponding washer inlet valves.
Inlet valves are marked on the back of the washer. Ensure the Hot valve is connected
to the hot tap and the Cold valve is connected to the cold tap.
H = Hot C = Cold
Cold water supply only:
If you only have a cold water supply, a blanking cap MUST be connected to the Hot
inlet valve. The cap prevents water leaking out of the hot valve. The cap is available
from your Fisher & Paykel dealer or Fisher & Paykel trained and supported service
technician, PartNo.388491P. This appliance incorporates backflow protection
complying with AS3500.1. No further backflow protection is required for connection to
the water supply.
Note: your washer does not have an internal heater to heat water.
Should you wish to use cold water only for all wash cycles, refer to ‘Customising the
wash cycles’ on how to program your washer to remember your wash preferences.

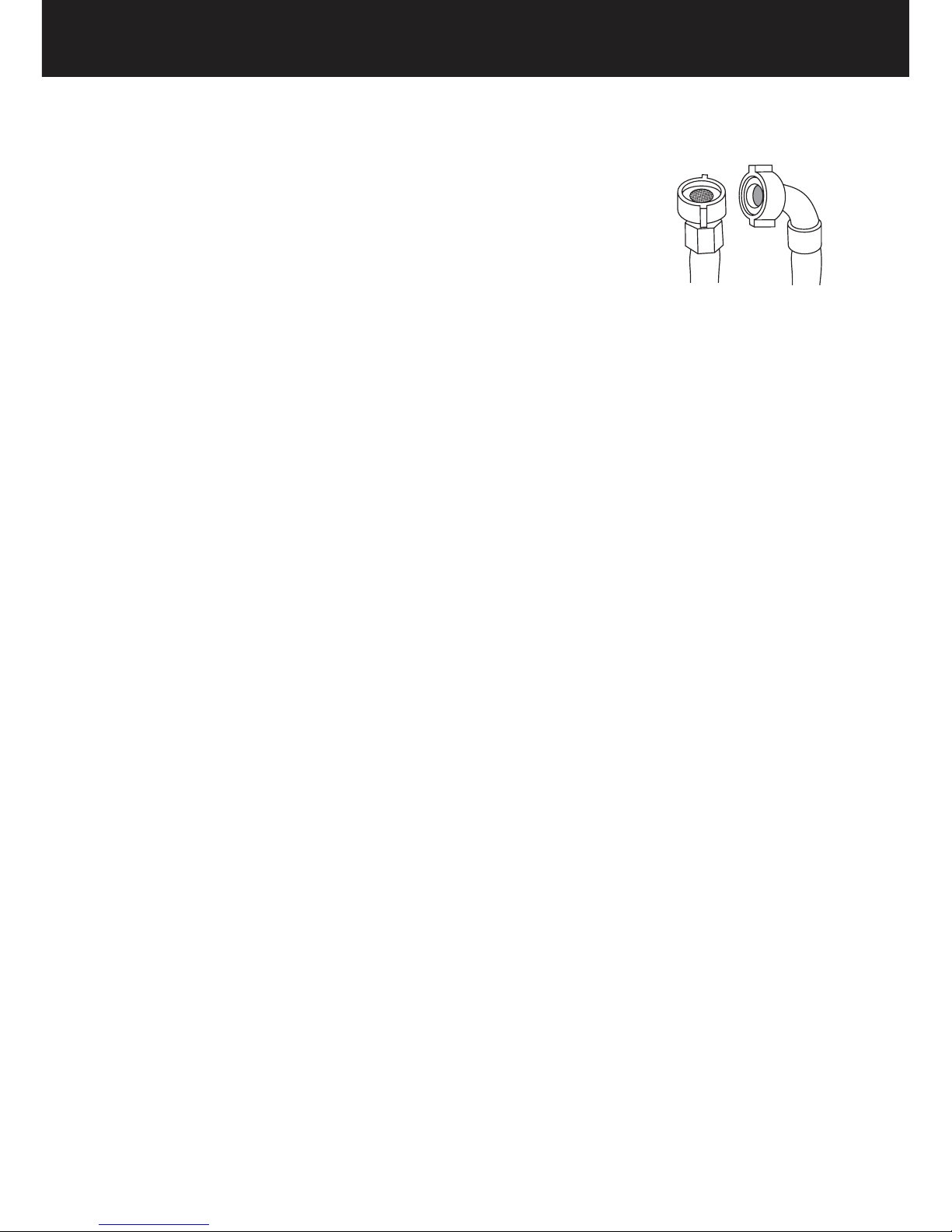

Elbow
(Washer) end
Straight
(Tap) end
Inlet hose ends

9
INSTALLATION INSTRUCTIONS
Levelling instructions
It is IMPORTANT to level the washer to ensure good spin performance.
Note: after levelling, the corners of the washer should be clear of the floor and the
washer must not rock in any direction.
Levelling your washer
1Move the washer to its final position (we suggest a
minimum clearance of 20mm each side).
2Adjust all four feet (wind down) so the washer is level
and does not rock.
To check if your washer is level:
1Look down on the wash bowl and make sure it sits slightly forward of centre (see
Diagram 1).
2Close the lid.
3Visually check that the lid fits evenly on both sides. If it does not look like the diagram
in the middle, adjust one of the feet slightly until it matches. The diagram on the top
and bottom are not correct (see Diagram 2).
To assess levelling, check lid alignment
Lid alignment
Lid
Topdeck Lid
Lid
Topdeck
Topdeck
Wind right foot down
(out) to correct
Wind left foot down
(out) to correct
Diagram 1 Diagram 2
Correct
Incorrect
To check levelling look
down on the wash bowl
IMPORTANT!
If moving or transporting your washer in the future, ensure you tape the lid down
beforehand.
Adjusting the levelling feet
Adjustable feet
Cabinet corners

10
INSTALLATION INSTRUCTIONS
Completing your installation
 Turn on the water and check all hose connections for leaks. Make sure there are no kinks
in the hoses. Check the hose connections for leaks again after 24hours.
 Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
 Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
IMPORTANT!
Do not touch or operate the washer with wet hands or with bare feet.
ACCESSORIES AND SPARE PARTS
Available from your Fisher & Paykel dealer or a Fisher & Paykel trained and supported
service technician.
Blanking Cap Part No. 388491P
Hose Inlet Long (2m) Part No. 422680P
Hose Inlet Large Bore Part No. 426123P
Drain Hose Extension Part No. 425627P
Power Cord If the power cord of your clothes washer is damaged it is
highly recommended that it is replaced by a Fisher & Paykel
trained and supported service technician in order to avoid a
hazard, as it is not a standard power cord.

11
BEFORE YOU DO YOUR FIRST WASH
You owe it to yourself and your washer to have your washer installed correctly.
Before you start, it is a good idea to go through the following checklist:
1Has the base packer been removed? (refer to ‘Installation Instructions’ section).
2Is the drain hose threaded through the ‘U bend’ (with no more than 20mm extended)
and hooked into your tub or standpipe? (refer to ‘Installation Instructions’ section).
3Is the hot hose connected to the Hot valve marked ‘H’? Is the cold hose connected to
the Cold valve marked ‘C’? (refer to ‘Installation Instructions’ section).
4Is the washer correctly levelled, feet are extended and cabinet corners are clear of the
floor? (refer to ‘Installation Instructions’ section).
If you bought a QuickSmart™ model, it is a good idea to check the warm fill temperature
(refer to ‘Changing pre-set options — Wash temperatures’).
WashSmart™ washer and QuickSmart™ washer capacities
The table below outlines what is included in a 5.5kg and 6.0kg wash load (in accordance
with AS/NZS2040.1:2005).
WASH LOAD 5.5kg 6.0kg
Sheets (double) 2 2
Bath towels 4 5
Tablecloths 2 2
Shirts 2 3
T-Shirts 3 3
Pillowcases 4 4
Shorts 3 3
Washcloths 5 4
Handkerchiefs 4 5
Note: the above load composition is indicative only. We recommend for everyday use
that you separate out your sheets and towels and wash them separately on the ‘Regular’
cycle.
Note: the WA8056M and WA8056G models have a different capacity based on country
standards. Refer to the serial plate on the back of the product.

12
GETTING STARTED QUICKLY — WASHSMART™ WASHER
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
to the ‘Fabric softener’ section).
IMPORTANT!
Fabric softener must not be used if you have selected
the ‘Quick’ wash or the ‘Eco’ option (refer to the ‘Fabric
softener’ section).
Before you start
 It is important to sort your clothes, particularly separating white/light colours from
darkcolours, as well as separating out sheets and towels (refer to the ‘Sorting’ and
‘Loading’ sections).
 Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
 Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
 Close bra clasps, do up zippers and check pockets.
 Place your clothes directly into the wash bowl.
 Place the load evenly around the agitator (refer to ‘Sorting’ and‘Loading’ sections).
 Remove fabric softener dispenser cup.
Detergent
 Follow the manufacturer’s instructions on the
detergent package.
 Use the size of the load as a guide to the amount of
detergent to use (refer to the ‘Detergent’ section).
 Pour the detergent down the centre of the agitator stem.
 Replace the fabric softener dispenser cup (this stops
small articles falling down the centre of theagitator).
1
2
WashSmart™ washer control panel

13
GETTING STARTED QUICKLY — WASHSMART™ WASHER
If you wish to stop your WashSmart™ washer
 Press .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
IMPORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
Using your washer
1Press ‘Power’ to activate your WashSmart™ washer.
2Select your desired wash cycle by pressing the wash cycle button of your choice (refer
to ‘Wash cycles’ section).
3Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
spin speed (refer to the ‘Wash options’ section).
4Use to advance through to the desired part of the wash cycle.
5Press to start the cycle. The washer will start to fill with water and select the correct
wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
6‘Delay Start’ allows you to delay the start of your wash by 1, 3 or 9 hours (refer to the
‘Wash options’ section).
3 6 5
4

14
GETTING STARTED QUICKLY — QUICKSMART™ WASHER
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
tothe ‘Fabric softener’ section).
IMPORTANT!
Fabric softener must not be used if you have selected the
‘Eco’ option (refer to the ‘Fabric softener’ section).
Before you start
 It is important to sort your clothes, particularly separating white/light colours from
darkcolours, as well as separating out sheets and towels. (refer to the ‘Sorting’ and
‘Loading’ sections).
 Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
 Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
 Close bra clasps, do up zippers and check pockets.
 Place your clothes directly into the wash bowl.
 Place the load evenly around the agitator (refer to ‘Sorting’ and‘Loading’ sections).
 Remove fabric softener dispenser cup.
Detergent
 Follow the manufacturer’s instructions on the
detergent package.
 Use the size of the load as a guide to the amount of
detergent to use (refer to the ‘Detergent’ section).
 Pour the detergent down the centre of the agitator stem.
 Replace the fabric softener dispenser cup (this stops
small articles falling down the centre of theagitator).
1
2
QuickSmart™ washer control panel
4

15
GETTING STARTED QUICKLY — QUICKSMART™ WASHER
If you wish to stop your QuickSmart™ washer
 Press .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
IMPORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
Using your washer
1Press ‘Power’ to activate your QuickSmart™ washer.
2Select your desired wash cycle by pressing the wash cycle button of your choice (refer
to ‘Wash cycles’ section).
3Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
spin speed (refer to the ‘Wash options’ section).
4Use to advance through to the desired part of the wash cycle.
5Press to start the cycle. The washer will start to fill with water and select the correct
wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
3 5

16
WASHER SAFETY FEATURES

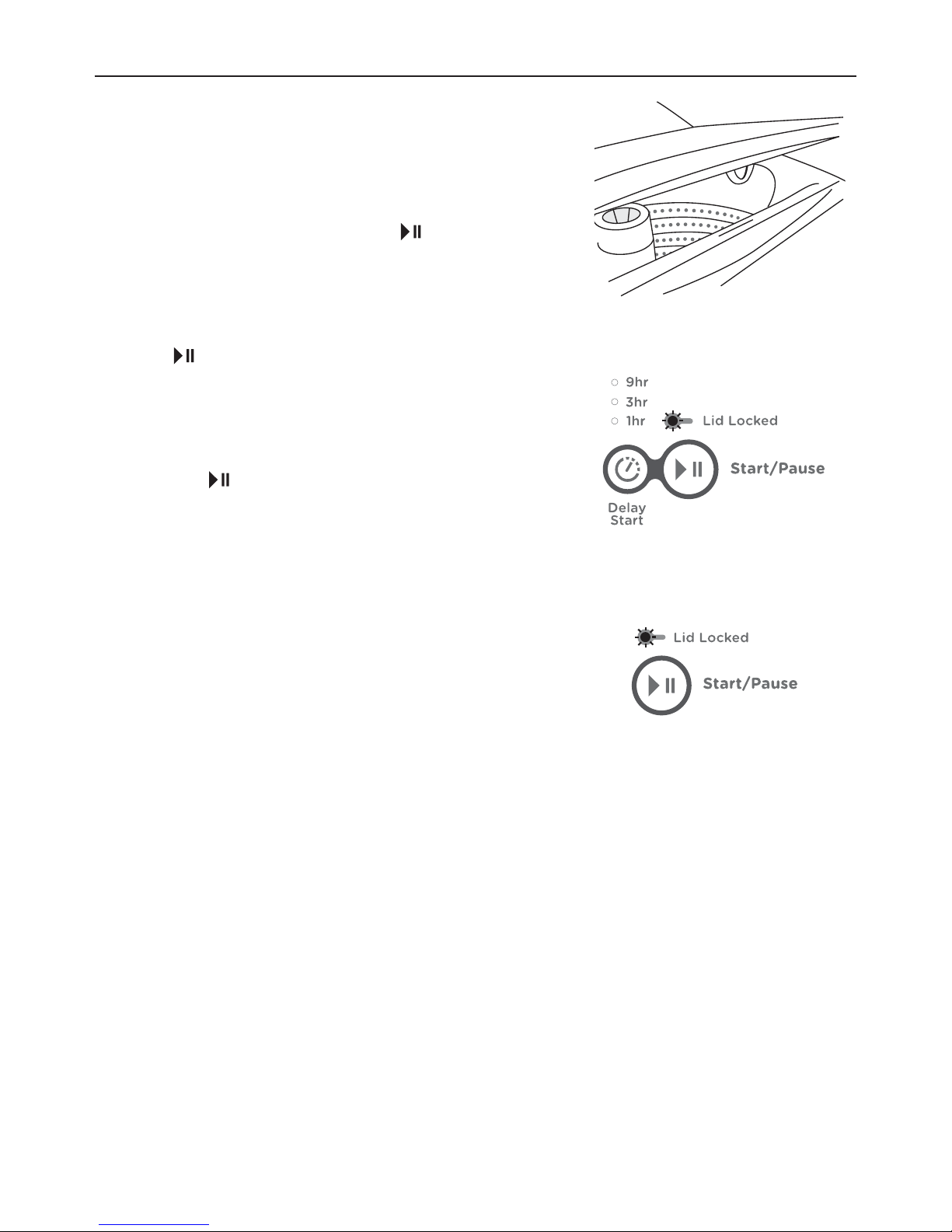

Lid Lock
The lid of your washer is locked for some parts of
the wash cycle, ensuring safety for you and your
family while it is operating.
The ‘Lid Locked’ light (above the button) is
illuminated when the lid lock is activated, letting
you know at a glance if you can open the lid or
not.
To unlock the lid at any time during the cycle
press .
If the lid is left open, your washer will be unable
to lock the lid, and the cycle will be halted. The
washer will play a tune and the ‘Lid Locked’ light
will flash to alert you. If this occurs, close the lid
and press .
IMPORTANT!
 Do not put anything down the lid lock slot in the
top deck of your washer.
 Do not try to disable the lid lock.
Ensure that children or infirmed persons are well
supervised when around your washer.
‘Lid Locked’ light
QuickSmart™
WashSmart™
Lid Lock

17
SORTING
Sorting
To get the best wash results it pays to sort your clothes before washing.
Care labels
The care label will tell you about the fabric of the garment and how it should be washed.
Machine Washable
Warm 40°C maximum
Rinse Well
Normal Spin
Do not bleach
Tumble drying possible,
maximum 60°C
Warm iron
Do not dry clean
Examples of different care label symbols.
Soil
Sort clothes according to the type and amount of soil. Some soils suit warmer washes,
eg oily soils, while others are best washed in cold water, eg mud, blood.
Colour
Sort white fabrics from coloured fabrics.
Lint
Wash lint givers and lint collectors separately. Where possible, turn lint collectors inside
out (see table below).
LINT GIVERS LINT COLLECTORS
Towels Synthetics, eg polar fleece
Chenille Corduroy
Nappies Poly cotton
Socks

18
LOADING
Loading
Check pockets
Loose items can damage both your washer and your clothes.
Close zippers, hooks and eyes
This is to make sure that these items do not snag on other clothes.
Mend any torn garments or loose buttons
Tears or holes may become larger during washing. Remove any loose bra wires as they
can damage your washing machine and/or dryer.
Pretreat any stains
Make sure you use an appropriate surface to apply treatments. Do not use the lid or top
of the washer, as damage may occur to these surfaces.
Make sure the water level suits the load size
If manually selecting the water level, select the correct water level by using the mark on
the agitator nearest to the top of the load. Ensure the load does not extend above the
bottom of the fabric softener dispenser cup, as splashing may occur.
For a balanced load
 Place unfolded clothes firmly and evenly around the agitator, no higher than the bottom
of the fabric softener dispenser cup.
 Do not wrap large items, such as sheets, around the agitator.
 A mixture of small and large items will wash best.
Note: in the unlikely case of an out of balance load, refer to ‘Before you call for
service — The washer is out of balance’.
IMPORTANT!
Please do not, under any circumstances, attempt to wash an electric blanket in your
washer unless the care label specifically states it is safe to do so. Also, we do not
recommend that you wash curtains in your washer. Sunlight makes them brittle and
they may disintegrate during washing.
