Fisher CAMERACORDER FVD-C1 User manual

INSTRUCTIONMANUAL
Pocket CameraCorder
FVD-Cl i '
Important note
This manual explains how to safely operate the FVD-C1.
Please read these instructions carefully before using the camera. Make
sure to read and understand the section "USING YOUR CAMERA
SAFELY AND CORRECTLY" on pages 7 to 24. Keep this manual in a
safe place for later reference.

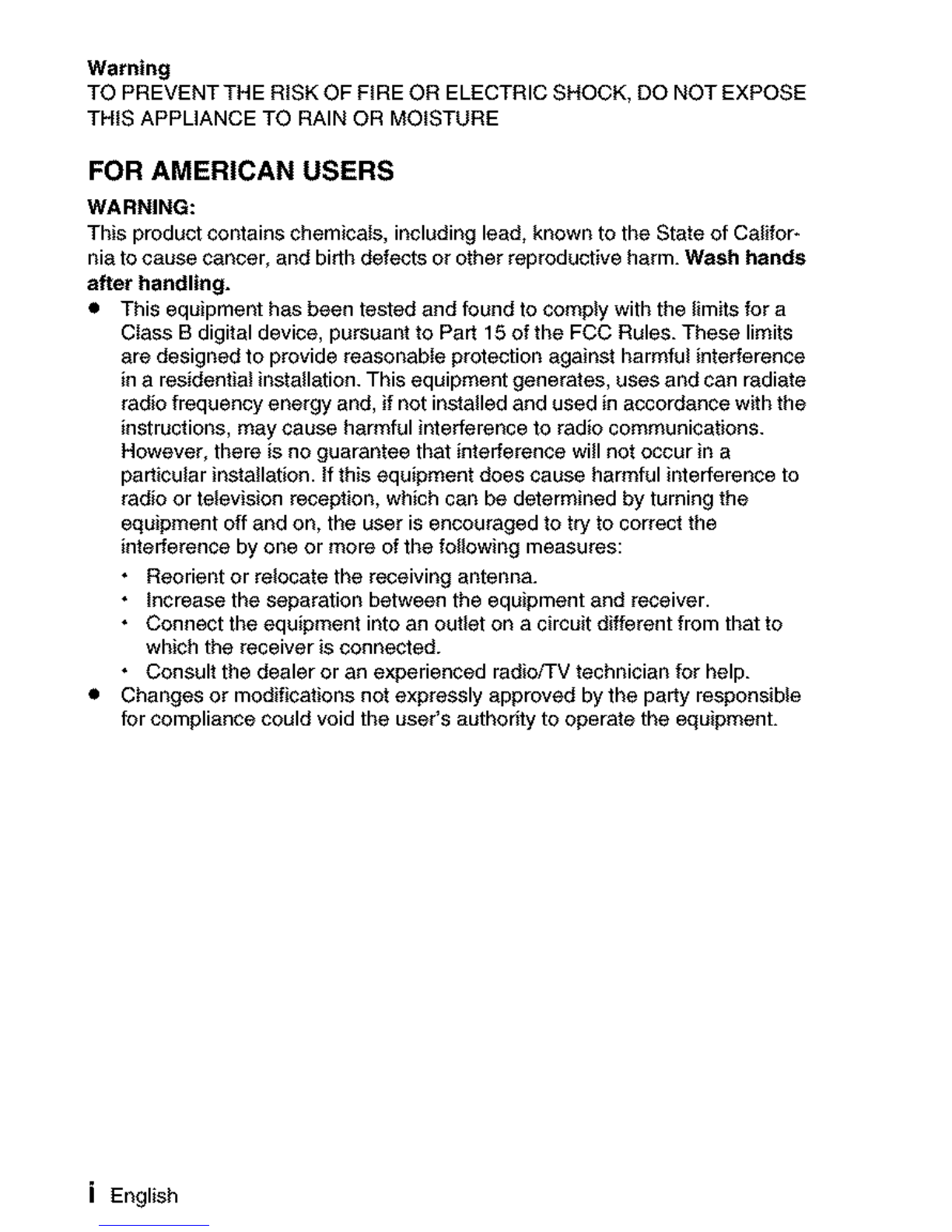

Warning
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE
FOR AMERICAN USERS
WARNING:
This product contains chemicals, including lead, known to the State of Califor-
nia to cause cancer, and birth defects or other reproductive harm. Wash hands
after handling.
•This equipment has been tested and found to comply with the limits for a
CIass B digital device, pursuant to Pad 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not ins'tailed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult tbe dealer or an experienced radio/TV technician for belp.
• Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
iEnglish

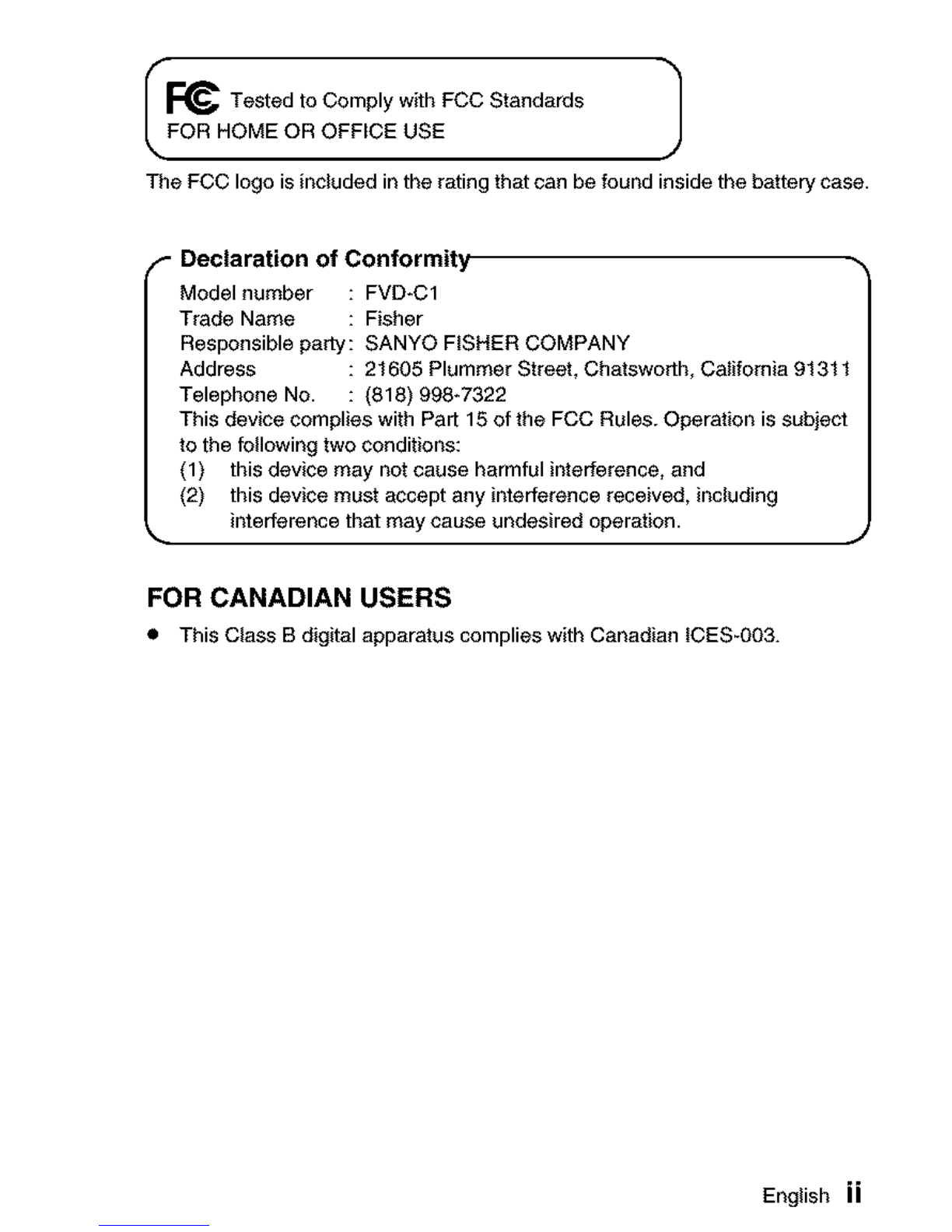

r_ TestedtoComplywithFCCStandards
FOR HOME OR OFFICE USE )
The FCC logo is included in the rating that can be found inside the battery case.
iDeclaration of Conformity _,
Model number : FVD_C1
Trade Name : Fisher
Responsible party: SANYO FISHER COMPANY
Address : 21606 Plummet Street, Chatsworth, California 91311
Telephone No. : (818) 998-7322
This device complies with Pad 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, includting
interference that may cause undesired operation.
FOR CANADIAN USERS
•This Class Bdigital apparatus complieswithCanadian ICES-003.
Englishii

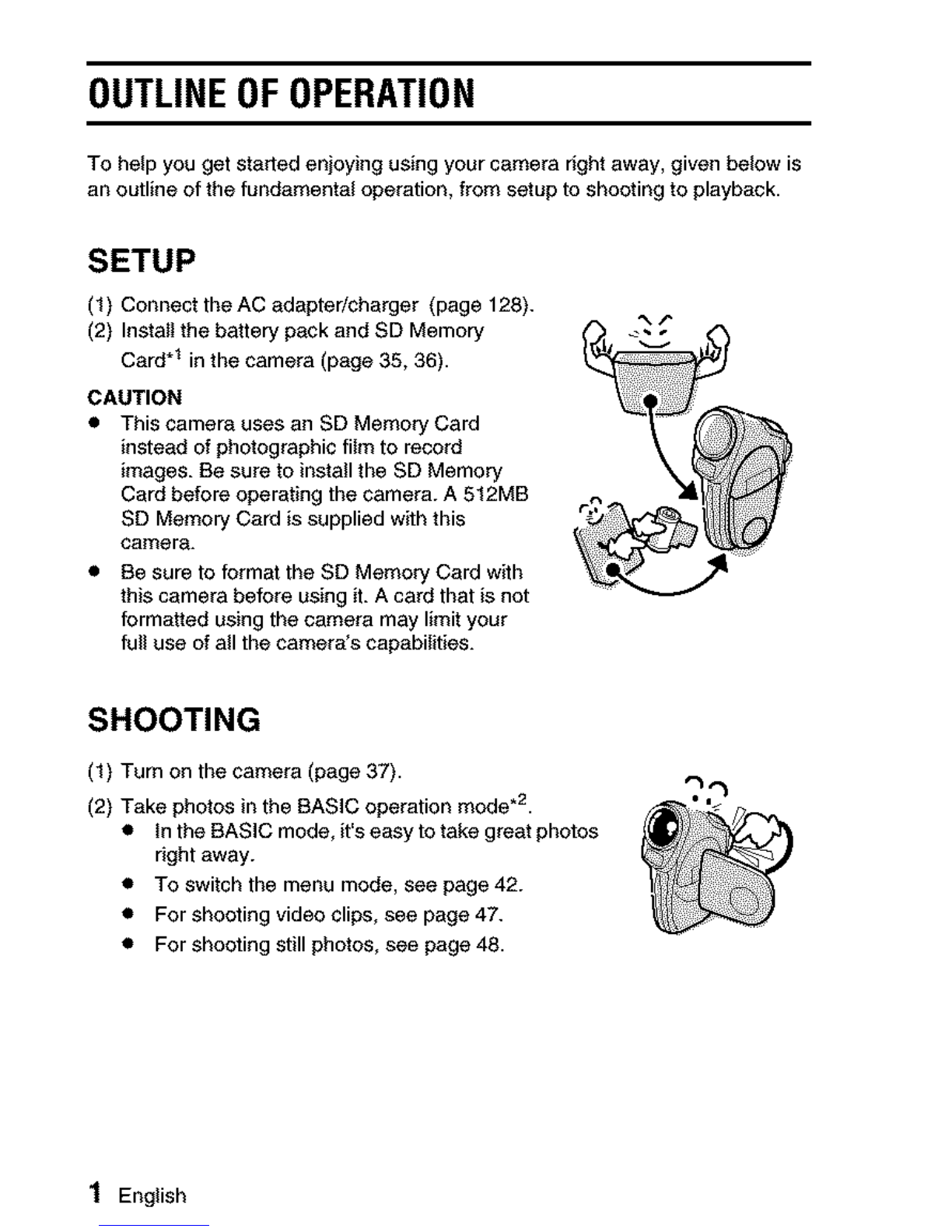

OUTLINEOFOPERATION
To help you get started enioying using your camera right away, given below is
an outline of the fundamental operation, from setup to shooting to playback.
SETUP
(1) Connect the AC adapter/charger (page 128).
(2) Instal! the battery pack and SD Memory
Card *_ in the camera (page 35, 36).
CAUTION
•This camera uses an SD Memory Card
instead of photographic film to record
images. Be sure to install the SD Memory
Card before operating the camera. A 8f2MB
SD Memory Card is supplied with this
camera.
• Be sure to format the SD Memory Card with
this camera before using it. A card that is not
formatted using the camera may limit your
full use of all the camera's capabilities.
SHOOTING
(1) Turn on the camera (page 37).
(2) Take photos in the BASIC operation mode .2.
• In the BASIC mode, it's easy to take great photos
right away.
• To switch the menu mode, see page 42.
• For shooting video clips, see page 47.
• For shooting still photos, see page 48.
1 English

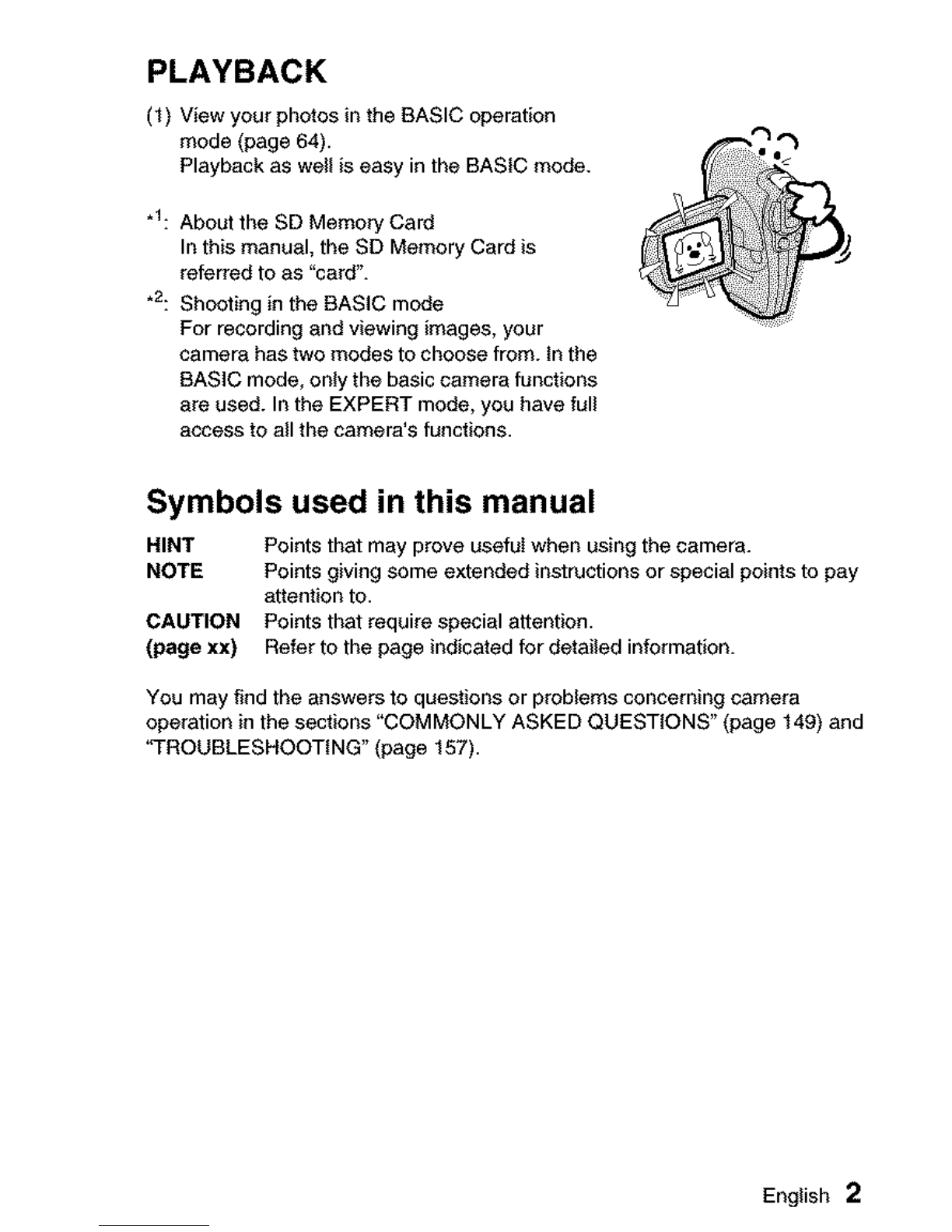

PLAYBACK
(t) View your photos in the BASIC operation
mode (page 64).
Playback as well is easy in the BASIC mode.
.1: About the SD Memory Card
In this manual, the SD Memory Card is
referred to as "card".
*2: Shooting in the BASIC mode
For recording and viewing images, your
camera has two modes to choose from. In the
BASIC mode, only the basic camera functions
are used. In the EXPERT mode, you have full
access to all the camera's functions.
Symbols used in this manual
HINT
NOTE
CAUTION
(page xx)
Points that may prove useful when using the camera.
Points giving some extended instructions or special points to pay
attention to.
Points that require special attention.
Refer to the page indicated for detailed information.
You may find the answers to questions or problems concerning camera
operation in the sections "COMMONLY ASKED QUESTIONS" (page 149) and
"TROUBLESHOOTING" (page 157).
English2

CONTENTS
OUTLINE OF OPERATION .............................. 1
USING YOUR CAMERA SAFELY AND CORRECTLY ......... 7
CHECKING THE INCLUDED ACCESSORIES .............. 25
GETTING THE MOST OUT OF YOUR CAMERA ............ 27
•PREPARATION
PARTS NAMES ...................................... 31
CHARGING THE BATTERY PACK ....................... 34
INSTALLING THE BATTERY PACK AND CARD ............ 35
TURNING THE POWER ON AND OFF .................... 37
OPERATION BUTTONS ............................... 40
SWITCHING THE MENU MODE ......................... 42
BEFORE TAKING PICTURES ........................... 44
3English

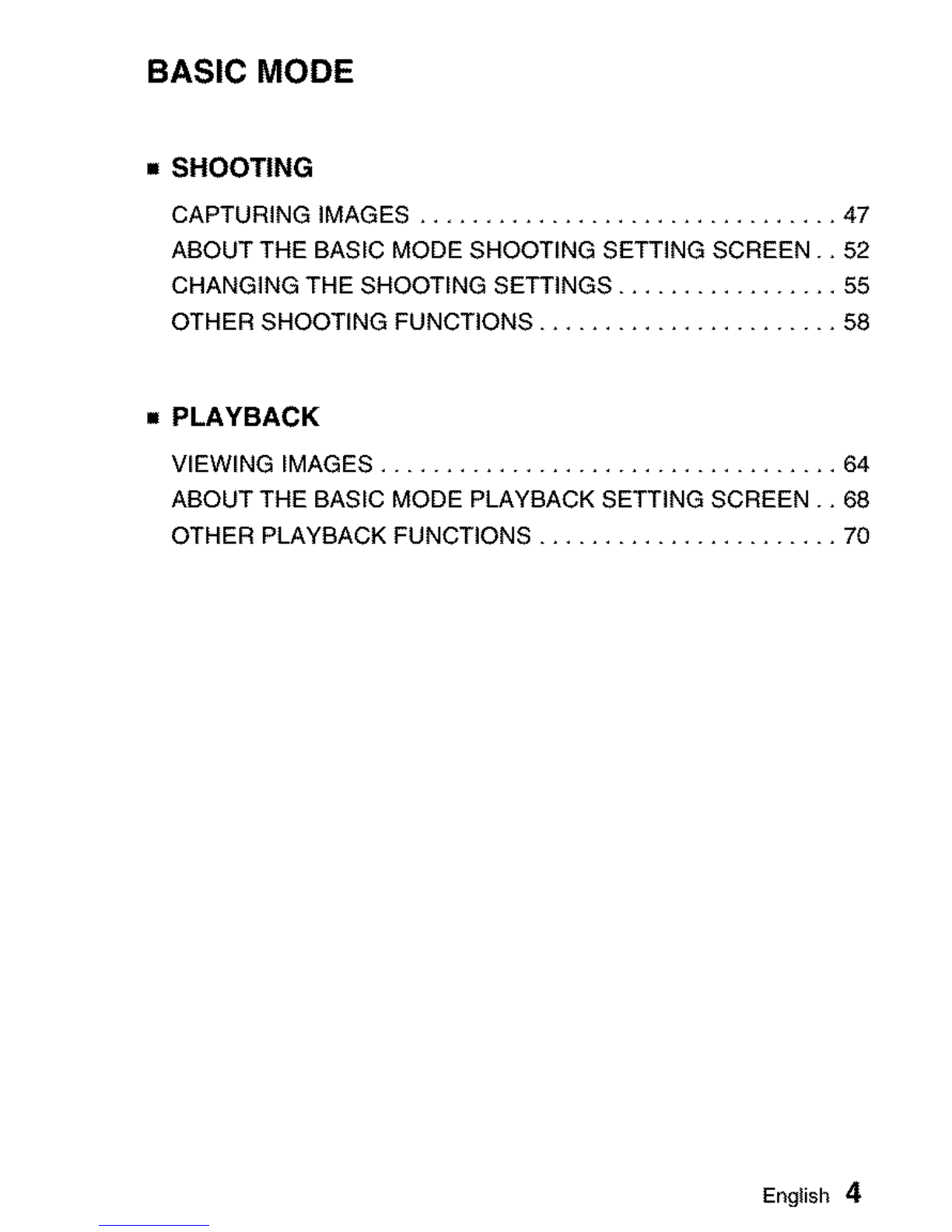

BASIC MODE
•SHOOTING
CAPTURING IMAGES ................................ 47
ABOUT THE BASIC MODE SHOOTING SETTING SCREEN.. 52
CHANGING THE SHOOTING SETTINGS ................. 55
OTHER SHOOTING FUNCTIONS ....................... 58
•PLAYBACK
VIEWINGIMAGES ................................... 64
ABOUTTHEBASIC MODE PLAYBACKSETTING SCREEN..68
OTHER PLAYBACK FUNCTIONS ....................... 70
English4

EXPERT MODE
•SHOOTING
ABOUT THE EXPERT MODE SHOOTING SETTING SCREEN 78
VIDEO IMAGE QUALITY ............................... 81
FOCUS ............................................ 82
FLICKER-REDUCTION FUNCTION ...................... 83
ISO SENSITIVITY .................................... 84
WHITE BALANCE SETTING ............................ 85
EXPOSURE CORRECTION ............................ 86
•PLAYBACK
ABOUT THE EXPERT MODE PLAYBACK SETTING SCREEN, 87
ROTATE IMAGE ..................................... 89
EDITING VIDEO CLIPS ................................ 90
PRINT SETTINGS (STILL IMAGES ONLY) ................ 98
5 English

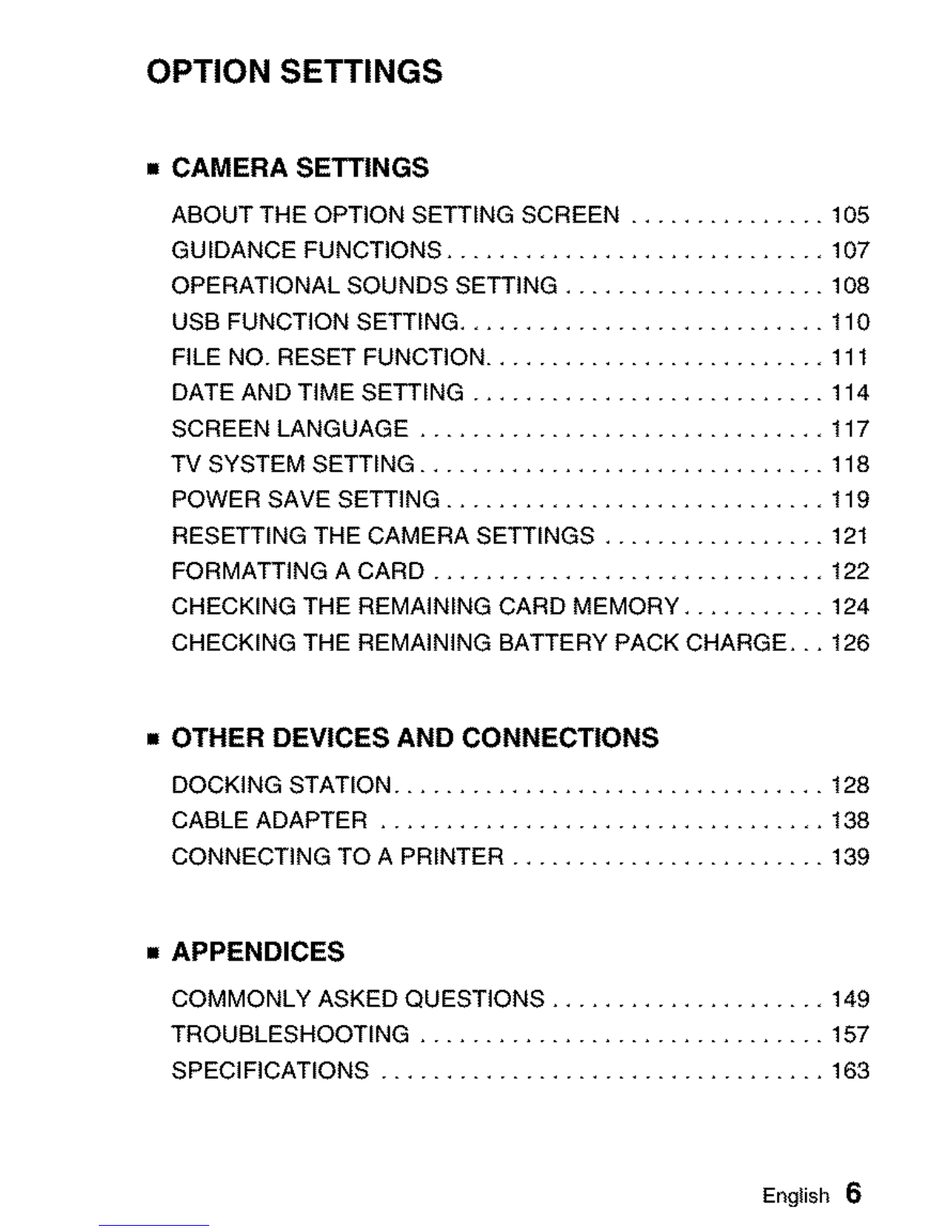

OPTION SETTINGS
•CAMERA SETTINGS
ABOUT THE OPTION SETTING SCREEN ............... 105
GUIDANCE FUNCTIONS ............................. 107
OPERATIONAL SOUNDS SETTING .................... 108
USB FUNCTION SETTING ............................ 110
FILE NO. RESET FUNCTION. ......................... 111
DATE AND TIME SETTING ........................... 114
SCREEN LANGUAGE ............................... 117
TV SYSTEM SETTING ............................... 118
POWER SAVE SETTING ............................. 119
RESETTING THE CAMERA SETTINGS ................. 121
FORMATTING A CARD .............................. 122
CHECKING THE REMAINING CARD MEMORY ........... 124
CHECKING THE REMAINING BATTERY PACK CHARGE... 126
• OTHER DEVICES AND CONNECTIONS
DOCKING STATION ................................. 128
CABLE ADAPTER .................................. 138
CONNECTING TO A PRINTER ........................ 139
•APPENDICES
COMMONLY ASKED QUESTIONS ..................... 149
TROUBLESHOOTING ............................... 157
SPECIFICATIONS .................................. 163
English6

USINGYOURCAMERASAFELYAND
CORRECTLY
CAMERA
WARNING
• If the camera makes a strange noise, emits a
strange odor, or if smoke comes out from it,
immediately turn off the power and remove the
battery pack.
•If the camera is used under these conditions, it may cause
a fire or etect dc shock. Immediately turn off the digital
camera, remove the battery pack, and wait to make sure
no more smoke comes from the camera. Then take it to the
dealer for service. Do not try to repair or open the camera
yourself.
•Do not modify or open the cabinet
• High voltage circuits are inside, and there is a high risk of
fire or electric shock if they are touched. Any internal
check, setting, or repair should be performed by the dealer.
•Do not use while driving
•Do not capture images, pIay back images, or watch the
LCD monitor while driving a vehicle. Doing so may cause
an accident.
• Be carefut where you put down the camera inside an
automobiIe. During sudden stops or turns it may fall behind
ttle brake pedal and prevent braking.
•Beawareofyour surroundings when asingthe
camera
•Pay close attention to your surroundings when using the
camera. Failure to do so may lead to an accident or injury.
• When using the camera while walking, be very careful of
your surroundings and especially the traffic to avoid
accidents.
• Do not use the camera inside an airplane or elsewhere
where its use may be restricted.
7English

WARNING
• Do not get the camera wet
• This camera is not water-resistant. DOnot allow it to get
wet, as doing SO may cause a fire or electric shock.
• Do not use the camera in a bathroom.
• If the camera gets wet, immediately turn it off and remove
the battery pack. Then take it to a dealer for repair. Using
the camera after it has been become wet may cause a fire,
electric shock, or other accident.
•Do not use during astorm
• To avoid the risk of being struck by lightning, do not use the
camera during a thunderstorm. In periicular, if used in an
open field, you have an increased chance of being struck by
lightning. Quickly seek refuge in a place that will protect you
from lightning.
•Do not place on an unstable surface
i he camera may fall resulting in damage to the camera or ,_
mlury"
If the camera has fallen and its body is damaged, turn _toff,
remove the battery pack, and take it to the dealer for repair.
Using the camera after its body has been damaged may _
cause a fire or electric shock.
•Do not look through the camera into the sun
• Do not look through the camera at the sun or any other
strong source of light. Doing so may seriously injure your
eyes.
•Do not use the flash close to a person's face
• TO prevent possible eye injury, do not use the flash near a
person's face (especially young children or babies). If the
flash is used close to a person's opened eyes, there is a risk
that it may damage that person's eyesight.
English 8

USINGYOURCAMERASAFELYANDCORRECTLY
WARNING
• Do not use where there is risk of explosion
•Do not use the camera in alocation where there isexplosive
gas, or any other flammable material inthe air. Doing so may
cause a fire or an explosion.
•Keep the camera out of the reach of children
• The following may happen if children play with the camera:
•They may wrap the strap around their neck and suffo _
cate.
• They may swallow the battery pack or other small
parts. In such a case, consuit a physician immedi*
ateiy.
• They may damage their eyesight if the flash goes off
too close to their eyes.
• They may get hurt by the camera.
CAUTION
•Cautions when carrying the camera
• DO not walk around holding the camera by the handstrap. It
may hit other objects and get damaged. When walking
around, hold the camera in your hand or place it in a pocket.
• Be careful not to drop the camera or subject it to strong
shocks.
• Make sure direct suniigltt does not hit the camera lens, as
that may damage the internal parts. When not using the
camera, be sure to always turn it off and close the lens cover.
• If the camera is not going to be used for a long
period of time
•For safety's sake, remove the battery pack from the camera.
This will prevent any possible excess heat or leakage of
battery fluid that may result in injuries or damage to nearby
objects. (Nots that when the battery pack is removed for a
long period, the time and date settings will be cleared.)
9English

CAUTION
• Cautions during use and storage
•This camera is a precision instrument. When using or
storing the camera, make sure to avoid the following
locations to avoid damage.
•Places in direct sunlight
• Places where humidity and temperature are high
• Places that may get wet
• Places close to an air conditioner or heater
• inside a car
• Places where there is dust and dirt
• Places where there is a fire burning
• Places where voIatile products are stored
• Places subject to vibration
Operating environment:
•Temperature O°C to 4O°C (operation)
-20 to 6O°C (storage)
•Humidity 30 to 90% (operation, no condensation)
10 to 90% (storage, no condensation)
English10

USINGYOURCAMERASAFELYANDCORRECTLY
DOCKING STATION AND AC ADAPTER/
CHARGER
DANGER
•Do not recharge battery packs that are not Li-ion
battery packs (Model DB-L20)
•DO not recharge a battery pack other than the supplied Udon
battery pack (DB*L2O). Recharging a dry-cell battery or other
type of rechargeable battery may cause excess heat,
combustion, or leakage, and cause a fire, injuries, burns, or
damage to nearby objects.
•Use a 100 to 240 V AC power supply
•If used with a power supply other than the one specified, it
may cause a fire or electric shock. The power cord is rated _2_1_ o
for 125 V AC. Therefore, if you plan to use the docking I_'_ _
station and!or the AC adapter/charger in a region with a
different voltage, it may be necessary to replace the power
cord with one that can be used in that location. For details,
please see page 168.
•Do not disassemble or modify
• It is dangerous to touch ffle inside. Doing so may cause a fire
or electric shock.
•Do not use as a direct current generator.
•Do not get the docking station or AC adapter/
charger wet
i ake sure they do not get wet, as doing so may cause a fire _
or electric shock. _',/,',_
Do not use the camera in a bathroom.
If the docking station or AC adapter/charger gets wet,
immediately unplug it from the power outlet and remove the
battery pack. Then contact the place of purchase. If used
while wet, it may cause a fire, electric shock, or an accident.
11 English

DANGER
•Cautions when plugging in
• Securely plug the power cord all the way into the power
outleh tfthe docking station or AC adapter/charger is used
with the power cord not fully plugged in, heat may be
generated and cause a fire.
• Do not use if the power cord is damaged or cannot be
correctly plugged into the power outlet. Using in this
condition may cause a fire or electrfc shock.
• Do not allow dust, etc. to build up on the power cord or
power outlet. A buiId-up of dust may cause a short circuit
or generate heat and cause a fire.
• When unpIugging the power cord, be sure to hold the plug
part and slowly pull it out of the power outlet. Pulling the
cord portion may damage the power cord and cause a fire
or electric shock.
•Do not pull on the power cord to unplug it
•Do not leave the power cord plugged intothe power outlet
while the other end isnot plugged into the docking station
or AC adapter/charger. The loose end can cause
electrocution ff touched with wet hands or if handled by
children.
• Use only the supplied power cord. If a different power
cord is used, it may be rated for a different current thad,
and that may cause a fire.
• The suppIied power cord is for exclusive use with the
devices supplied w_th your camera. Do not use _twith
other devices, as doing so may cause a fire or electric
shock.
• Do not use a bundled power cord, as the heat generated
may cause a fire.
• When using an extension cord, make sure that the total
wattage of the connected devices does not exceed the
rated value of the extension cord. If the power load
exceeds the rated value, it may cause a fire.
English12

DANGER
•Keep out of the reach of children
•Children may place the battery pack or other sma_!
components in their mouth or perform some other such
unforeseeable action. If swallowed, consult a physician
immediately.
•If smoke or a strange odor is emitted, or if
strange noises are heard, immediately unplug
the power cord from the power outlet
• If used under these conditions, it make cause a fire or
electric shock.
• If strange conditions such as these occur, immediately
unplug the device, remove the battery pack, and wait to
make sure no more smoke is emitted. Then contact the
place of purchase. Do not try to repair or open the device
yourself.
•Do not handle with wet hands
•Handling the docking station or AC adapter/charger with
wet hands may cause an electric shock.
•Do not use during a storm
• Do not touch the docking station, AC adapter/charger or _-_ _ _=_
power cord while it is plugged into a power outlet during a
thunderstorm. Doing so may cause an electric shock.
13 English

CAUTION
•Do not damage the power cord
•Do not place heavy objects on the power cord. Do not
ptace the power cord near a heat source. Do not
excessively bend the power cord, modify it, or secure it
with staples. Doing so may damage the power cord and
cause a fire or electric shock.
• If the power cord is damaged, or if it does not plug
properly into the docking station, AC adapter/charger or
wall outlet, contact the place of purchase.
•Do not place on an unstable surface
• The camera may fall, resulting in damage to the camera
or iniury.
• If it falls and the body is damaged, remove the battery
pack and contact the place of purchase, if used white
damaged, it may cause a fire, electric shock, or other
damage.
• Operating and storage conditions
• Do not use close to a heat source (dose to a stove or
heater) or leave it exposed to direct sunlight.
Operating environment:
•Temperature Oto 4O°C (charging)
-20 to 60°C (storage)
•Humidity 20 to 80%
(charging and storage)
English14

LI-ION BATTERY PACK (DB-L20)
DANGER
This camera uses a Li-ion battery pack (Model DB*L20).
•If there is leaking, discoloration, change of
shape, rise in temperature, damaged exterior,
strange odor or any other abnormal condition,
immediately discontinue use and remove the
battery pack from the camera, taking care to
keep it well away from fire.
•Continued use of the battery pack under any of ttlese
conditions may result in fire, injury, explosion or other
serious damage.
• If battery fluid is leaking, placing the battery pack in close
proximity to a fire or other heat source may ignite the
battery fluid and result in fire, damage, eruption of battery
fluid, or smoke fumes.
•Do not transform, take apart, or modify.
• Safety _qechanisms and protective devices have been in
incorporation inthe battery pack for the purpose of
preventing danger. Any modification, by transforming,
disassembling, or directly soldering to it, etc., wilI defeat
these safety devices and possiMy cause the battery pack
to catch fire, explode, or leak or spew battery fluid.
•Do not connect the (+) and (-) terminals with a
wire or other metal implement. Do not carry
loose or keep with necklaces, hairpins, etc.
• Doing so may result in a short circuit, high voltage flow,
fire, explosion, leaking or spewing battery fluid, or heat
generation. Metal such as a wire or necklace, etc. may
cause heat to be generated.
•Do not throw the battery pack in the fire or sub*
ject it to heat
•Doing so may cause the insulation to melt, damage the
gas discharge valve and safety mechanisms, or ignite
the battery fluid, resulting in fire or explosion.
15 English

DANGER
•Do not drop, hit, or submit the battery pack to
strong shocks
•If the safety mechanisms and protective devices are
broken, an abnormal chemical reaction may occur inside
the battery pack, or cause the battery pack to catch fire,
explode, leak or spew battery fluid, or generate heat.
•Do not allow the battery pack to come into con* -_<_/J
tact with fresh or salt water, or allow the termi-
nals to become wet.
•If the safety mechanisms and protective devices are
damaged by corrosion, an abnormal chemical reaction
may occur inside the battery pack, or cause the battery
pack to catch fire, explode, leak or spew battery fluid, or
generate heat.
•Operating and storage conditions
• Temperature when using or recharging: 0 to 40°C
• Do not use, recharge, store or leave the battery pack near fire or
inside a car exposed to the hot sun, etc. (locations in which the tem-
perature reaches 60°C or higher).
• At high temperatures, the safety mechanisms and protective devices
inside the battery pack may be damaged by corrosion, causing an
abnormal chemical reaction to occur, or cause the battery pack to
catch fire, explode, leak or spew battery fluid, or generate heat. If the
safety mechanisms and protective devices are damaged, the battery
pack will become unusable. An environment with extremely high or
low temperatures will cause the battery capacity to deteriorate and
shorten the usable time, and may even shorten the battery Iife.
• Avoid storing the battery pack with it near full charge. It is recom-
mended to store the battery pack when ff is near fully discharged.
• If the battery pack is completely discharged, it may become unable to
be recharged again. To avoid this, charge the battery pack for at
least five minutes every six months.
• Storage temperature: -10°C to 30°C
When not using the battery pack, remove it from the camera and
store at 0°C to 30°C in a place with no condensation.
• Humidity: 10% to 90% (no condensation)
English16

DANGER
•Use only the supplied docking station and AC
adapter/charger
•If another charger is used, the battery pack may be __.,
overcharged, or recharged with an abnormal vokage,
causing an abnormal chemical reaction to occur, or cause
the battery pack to catch fire, explode, leak or spew battery
fluid, or generate heat.
•Use the battery pack only in the specified device
• If the battery pack is used in a device other than that
specified, it may cause an abnormal voltage flow, or cause
the battery pack to catch fire, explode, leak or spew battery
fluid, or generate heat.
•Do not peel or damage the outer case
• Damaging the outer case, inserting nails, hitting with a
hammer, stepping on the battery pack, etc. may cause a
short circuit inside the battery pack or cause the battery
pack to catch fire, explode, leak or spew battery fluid, or
generate heat.
• If the battery pack is leaking and the electrolyte
gets on your skin or clothing, immediately rinse
with clean water
• If the electrolyte gets into your eyes, you gsk losing your
eyesight. Immediately rinse your eyes with clean,
running water, and seek medical attention right away.
Any electrolyte that comes into contact with your skin or
clothing may harm your skin. Immediately rinse the area
with clean, running water.
• Insert the battery pack correctly, as specified
• When installing the battery pack in the charger or
camera, pay attention to the indicated polarity (+ and -),
and insert it correctly.
• If the battery pack is installed with the wrong orientation,
it may cause an abnormal chemical reaction while in the
charger, an abnormal voltage flow when it isused, or
cause the battery pack to catch fire, explode, leak or
spew battery fluid, or generate heat.
17 English
Other manuals for CAMERACORDER FVD-C1
1
Table of contents
Other Fisher Camcorder manuals
